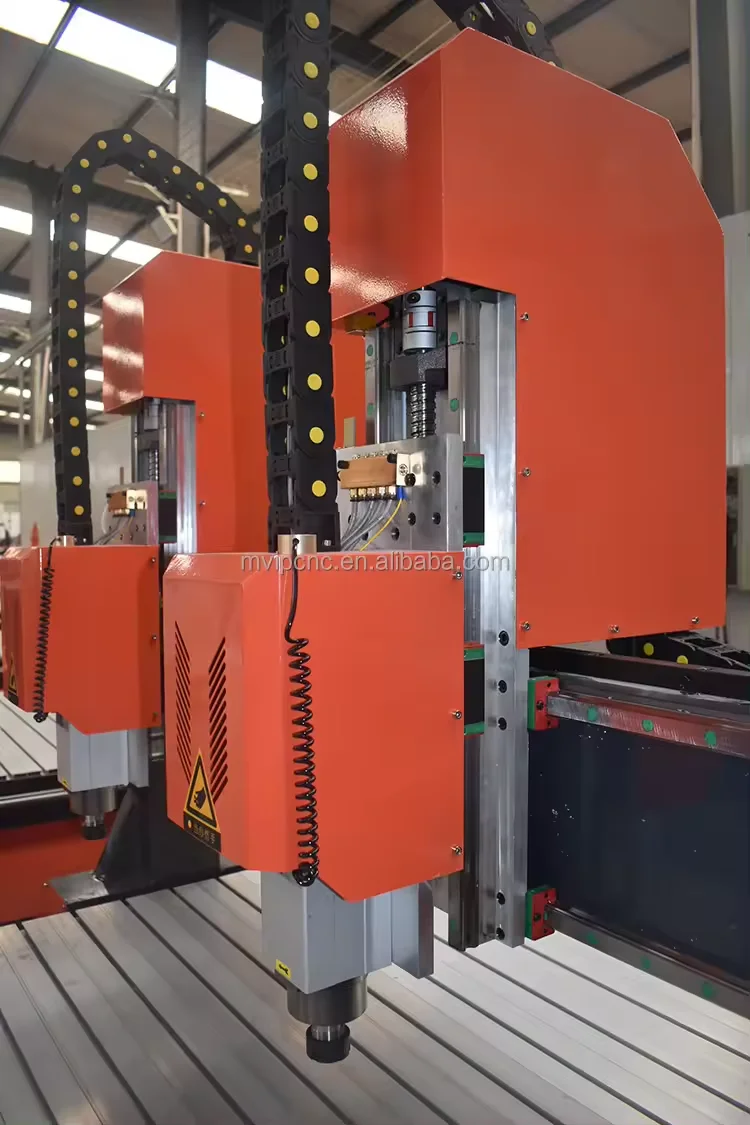

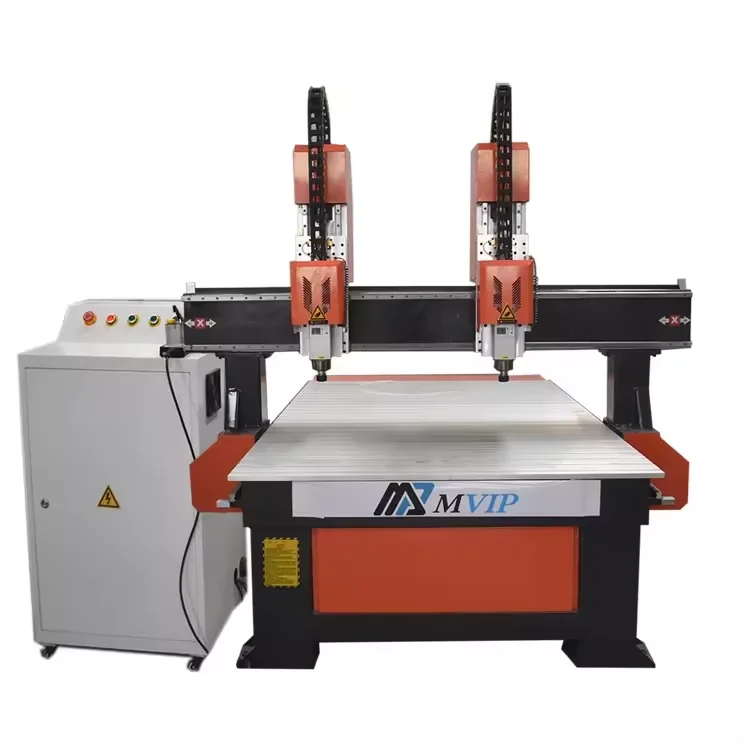

High precision life carving machine double head coffin machine carving machine computer numerical control cnc router
- Category: >>>
- Supplier: Jinan Mingpu CNC Equipment Co. Ltd.
Share on (1601100722640):
Product Overview
Description
Recommend Products
Product Description
Power
0.8KW-12KW
0.8KW-12KW
Speed
determined by material and thickness
determined by material and thickness
Positioning accuracy
±0.02mm
±0.02mm
This series CNC Router has many types,spindle, inverter can be selected according to actual needs.
The use of Vacuum table to ensure the processing of the plate stability, compared to the mechanical clamping, plate will not be damaged.
The use of Vacuum table to ensure the processing of the plate stability, compared to the mechanical clamping, plate will not be damaged.
cnc wood machinery 3d router / 1325 cnc engraving bed frame is made of thick steel tube, which can effectively reduce the vibration during processing and ensure the strength and service life of the machine.
HIWIN square guide rail, bearing heavy, working steadily, high precision, and long life time, import ball screw, high precision for cutting.
High speed drive motor and drivers, and two motors for Y axis. Max speed is 30M/MIN. With water cooling spindle highly upgrade the processing speed.
HIWIN square guide rail, bearing heavy, working steadily, high precision, and long life time, import ball screw, high precision for cutting.
High speed drive motor and drivers, and two motors for Y axis. Max speed is 30M/MIN. With water cooling spindle highly upgrade the processing speed.
Specification
item | value |
Condition | New |
Range of Spindle Speed(r.p.m) | 6000rpm - 24000rpm |
Positioning Accuracy (mm) | 0.02mm |
No. of Spindles | Double |
Working Table Size(mm) | 1300×2500 |
Machine Type | CNC Router |
Travel (X Axis)(mm) | 1300mm |
Travel (Y Axis)(mm) | 2500mm |
Repeatability (X/Y/Z) (mm) | 0.03mm |
CNC or Not | CNC |
NC Studio, Siemens, Syntec, Mach3, DSP, RichAuto | |
Place of Origin | China |
Shandong | |
Voltage | 380V/220V |
Certification | CE |
Weight (KG) | 1050 |
Warranty | 1 Year |
Online support | |
Key Selling Points | Easy to Operate |
After Warranty Service | Video technical support, Online support |
Marketing Type | New Product 2021 |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Bearing, Motor, Gear, Engine |
Application | Wood Working |
Working table | T-slot Aluminum Table |
Working area | 1300x2500mm |
Spindle motor | Water Cooling Spindle |
Linear guide | HIWIN |
X Y axis transmission | Gear Rack |
Z axis transmission | Lead screw |
Motor and driver | Stepper Moter |
Driving system | Chinese Stepper |
Color | Customers Needing |
Machine Detail

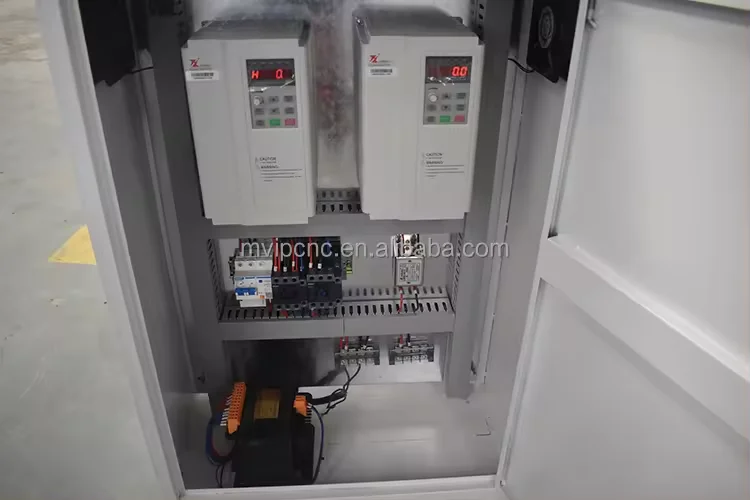

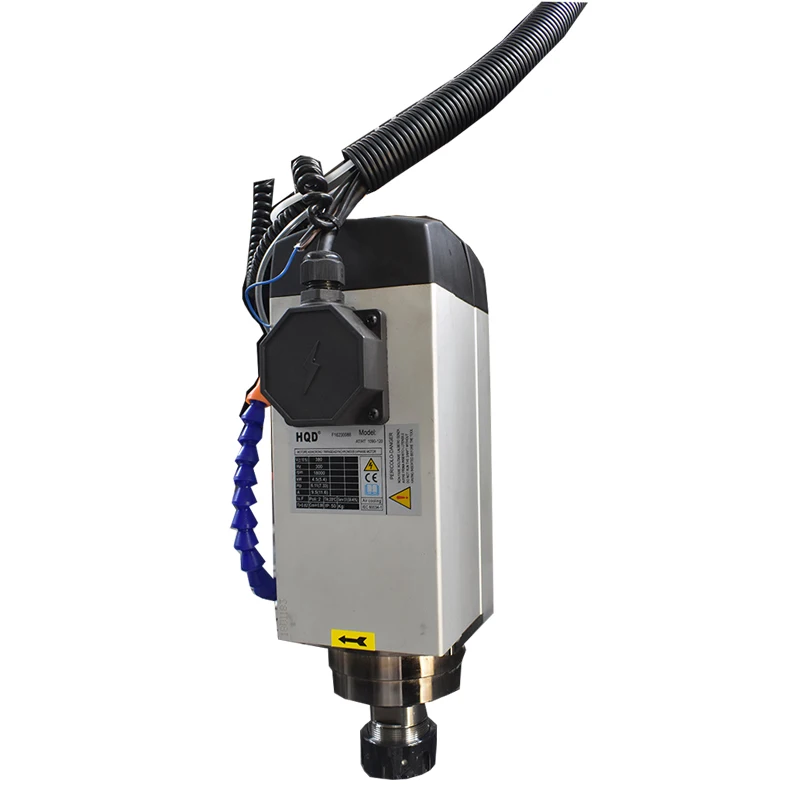

Different engraving materials can choose different power spindles， the rotation speed of the spindle can be adjusted steplessly by
frequency conversion.The maximum speed reaches 24000 revolutions per minute.
frequency conversion.The maximum speed reaches 24000 revolutions per minute.

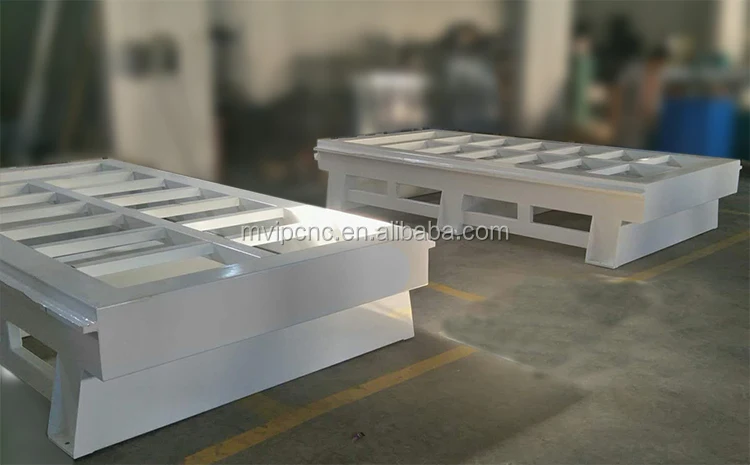

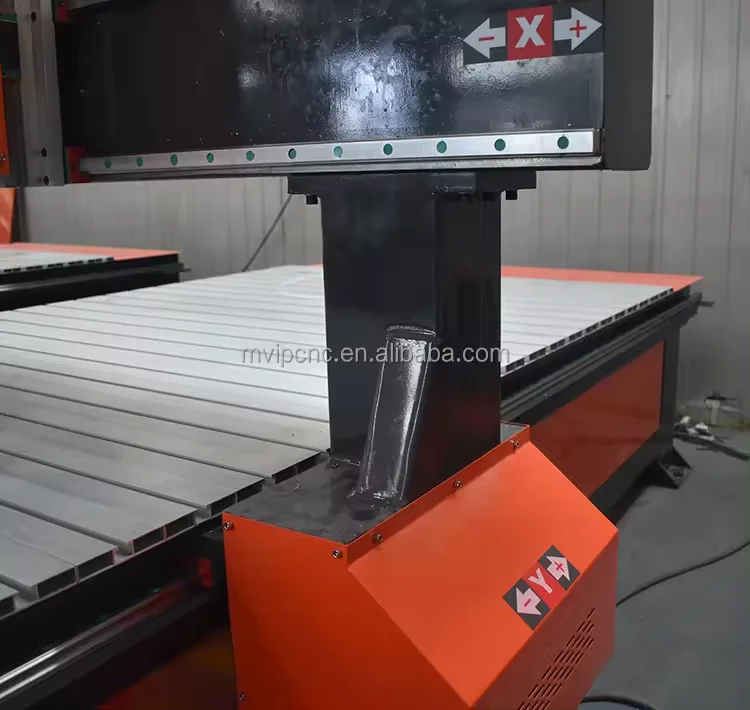

Machine bed and frame is welded with 12mm thickness steel tubes. heavy-duty machine bed. heated with 650 degrees temperature
treatment and will not be deformed for 20 years and ensure stale moving.
treatment and will not be deformed for 20 years and ensure stale moving.

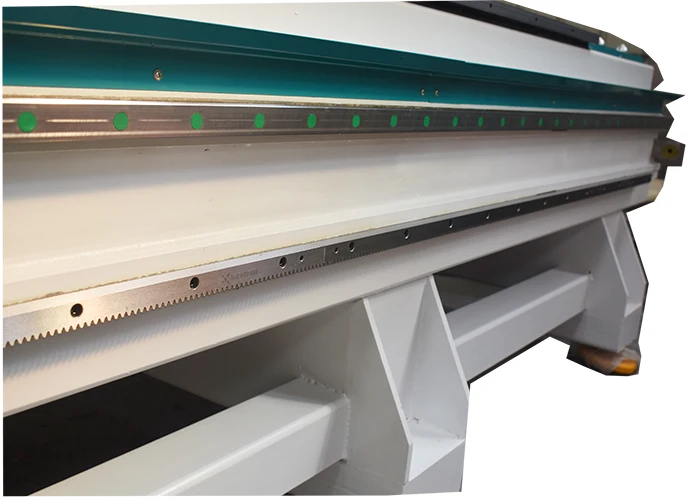

The rail with four-direction load characteristics and automatic centering function, which can absorb the assembly error of the mounting surface, has a relatively strong load-bearing capacity and stable operation. The mounting surface of this rail is all milled by a large machine at one time，to ensure the accuracy of the machine.

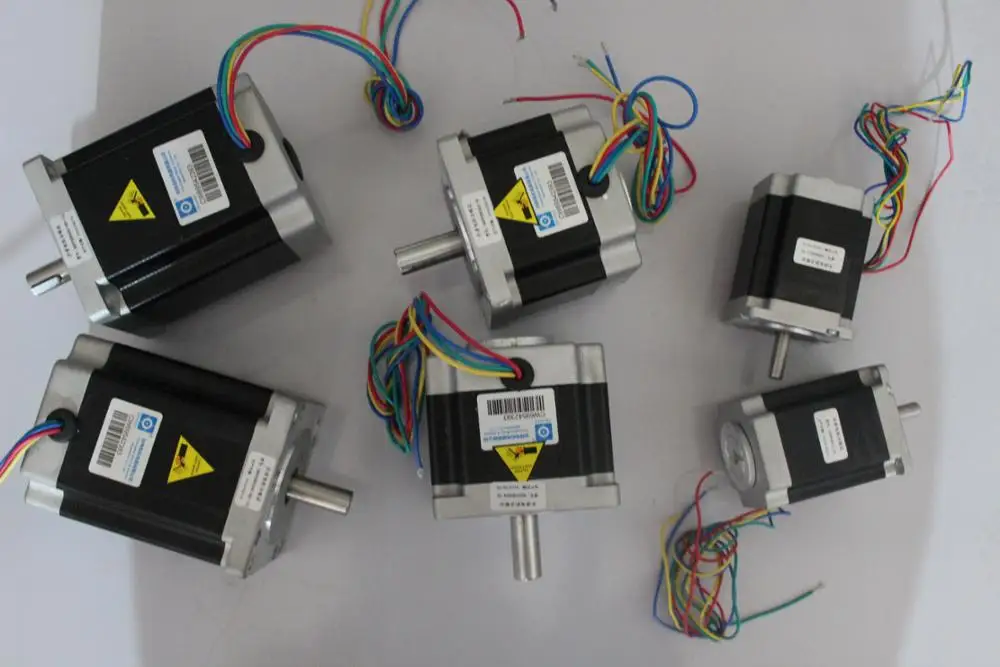

our machine Adopt stepping motor or servo motor， to control the movement of the equipment to ensure higher movement accuracy.
Samples of the machine
1325 cnc engraving mainly suitable for board furniture, such like cabinet door, wooden door,wardrobe,wood carve patterns and designs,solid wood floor,compound door, metal boards and advertising industry.

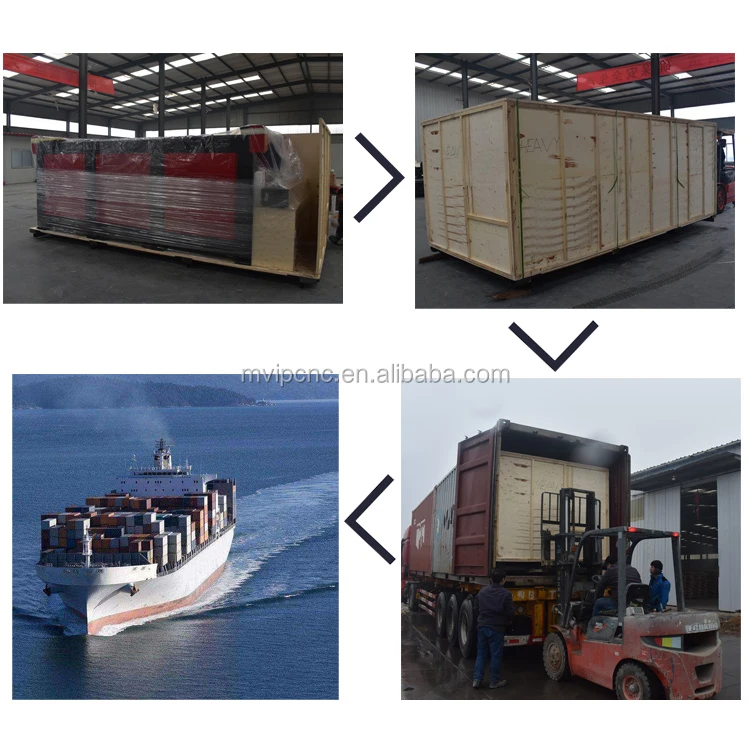

Packing & Delivery
Standard Package:
1.Inner package: Covered with plastic film on the cnc machine.
2.Outside package: Standard marine export plywood case.
3.We can package according to your requests.
4.Delivery Detail: Shipped within 10 working days after full payment.
5.Payment Terms: TT/LC,
1.Inner package: Covered with plastic film on the cnc machine.
2.Outside package: Standard marine export plywood case.
3.We can package according to your requests.
4.Delivery Detail: Shipped within 10 working days after full payment.
5.Payment Terms: TT/LC,

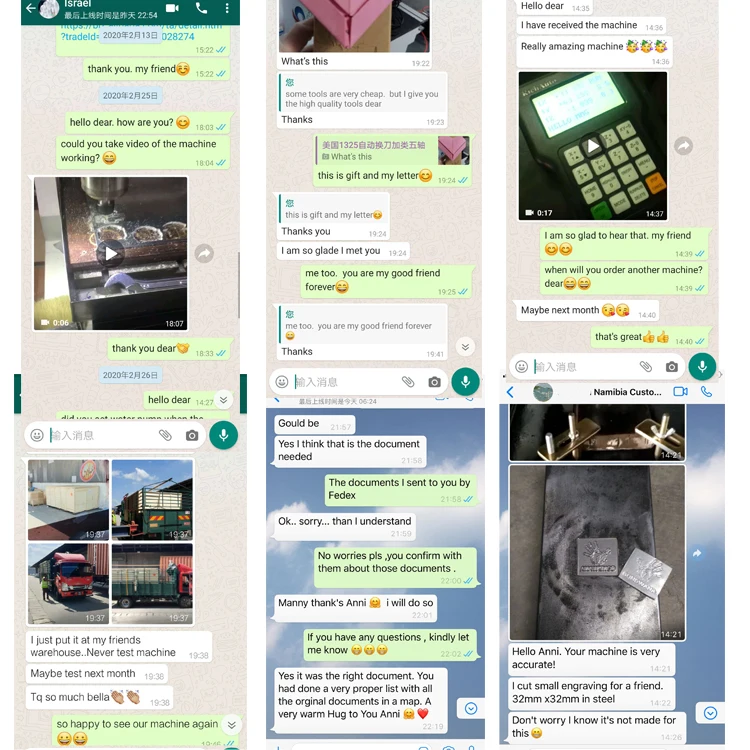

Customer Visits and Testimonials

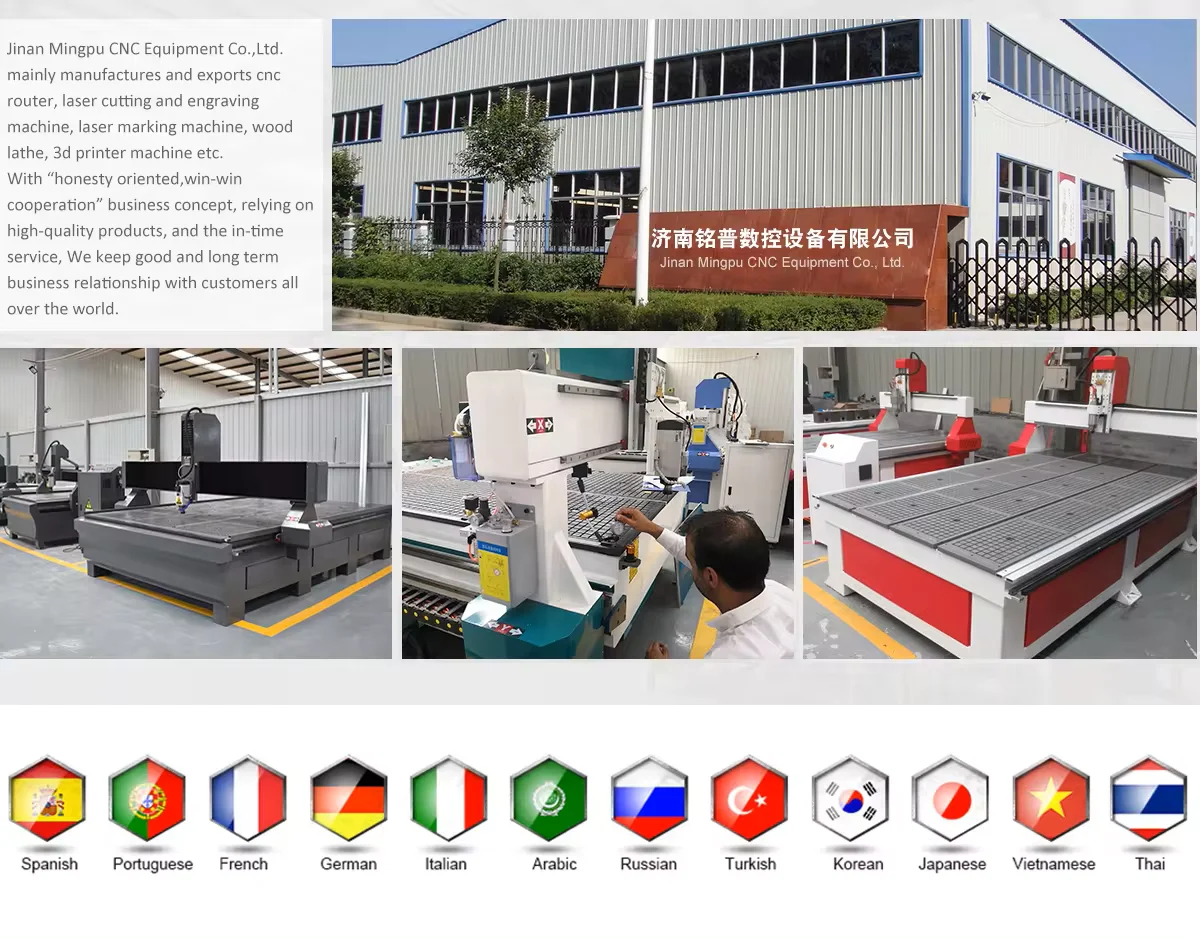

Company Profile
Jinan Mingpu CNC Equipment Co., Ltd. mainly manufactures and exports CNC router, laser engraving and cutting machine, laser marking machine, wood lathe and machine parts etc.
Following the trend of the times, the company constantly improve management mechanism; and based on the customer-demand-oriented purpose, the company always adhere to the best quality, best service and honesty promise.
Following the trend of the times, the company constantly improve management mechanism; and based on the customer-demand-oriented purpose, the company always adhere to the best quality, best service and honesty promise.
