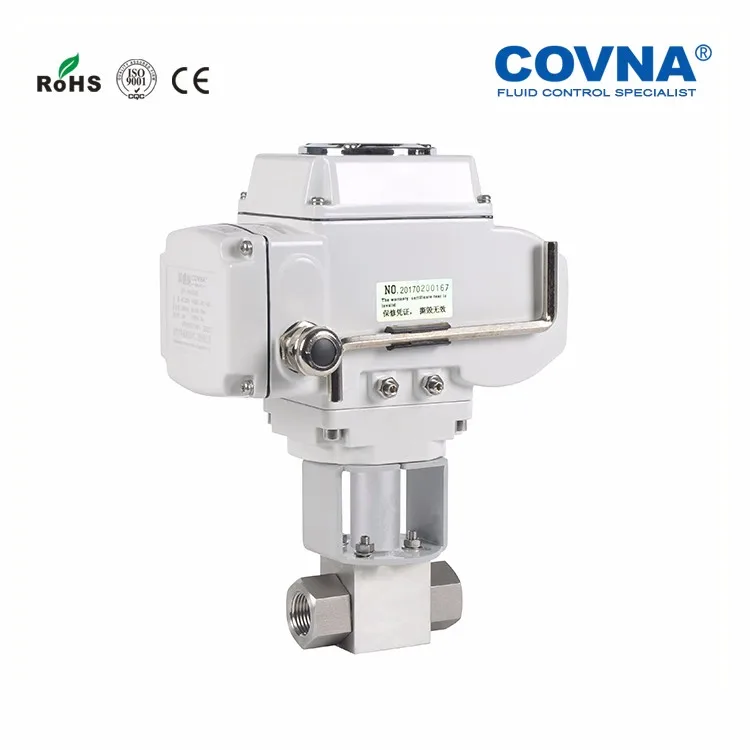

COVNA Water Control Motorized Valves Washing Equipment Electric Actuator Ball Valve High Pressure Ball Valve
- Category: >>>
- Supplier: Dongguan Chuancheng Pneumatic Components Co. Ltd.
Share on (1601100900183):
Product Overview
Description
COVNA Electric Actuator Valve Series
We offer all kinds of electric actuator valve for your project
To help your project runs well and help your business grows
Electric Ball Valve Series
Electric Butterfly Valve Series
Multi-Turn Electric Actuator Valve Series
We could offer the actuators only or valve only for you.
Consult us to get a free valve solution!
COVNA Electric Actuator

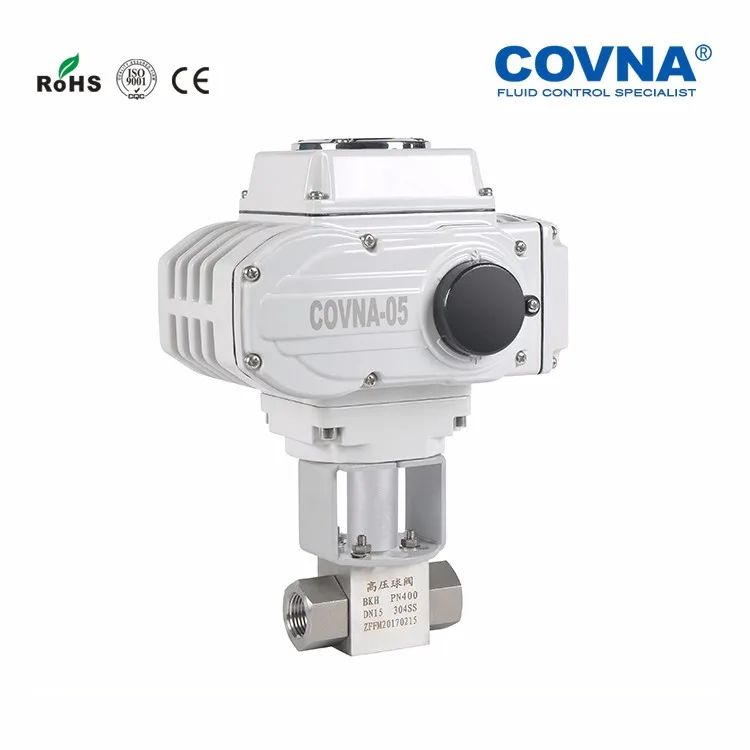

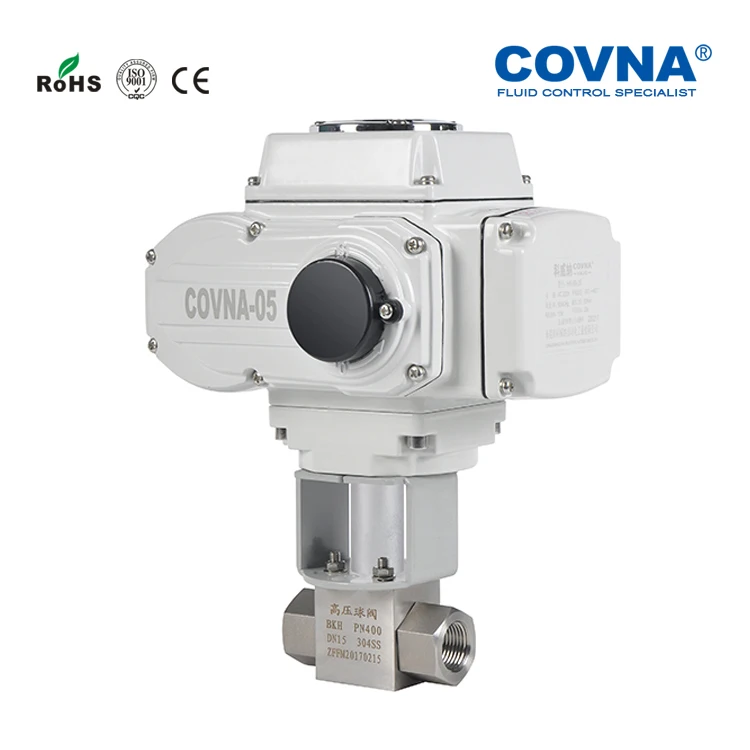

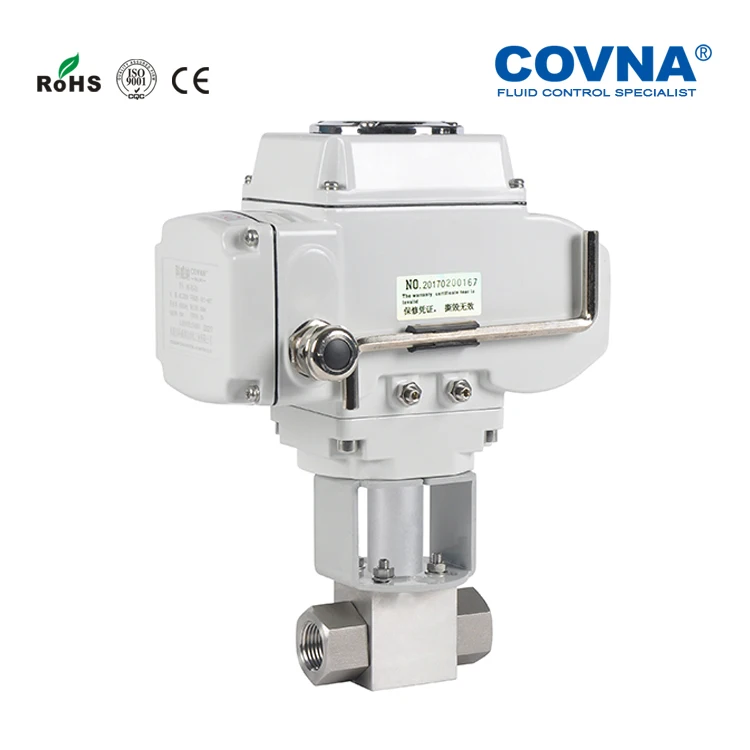

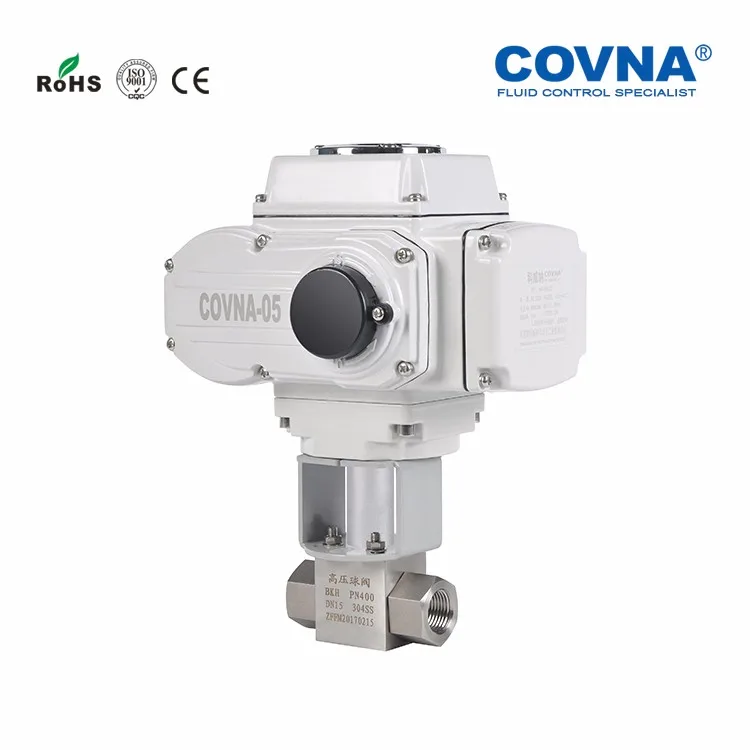

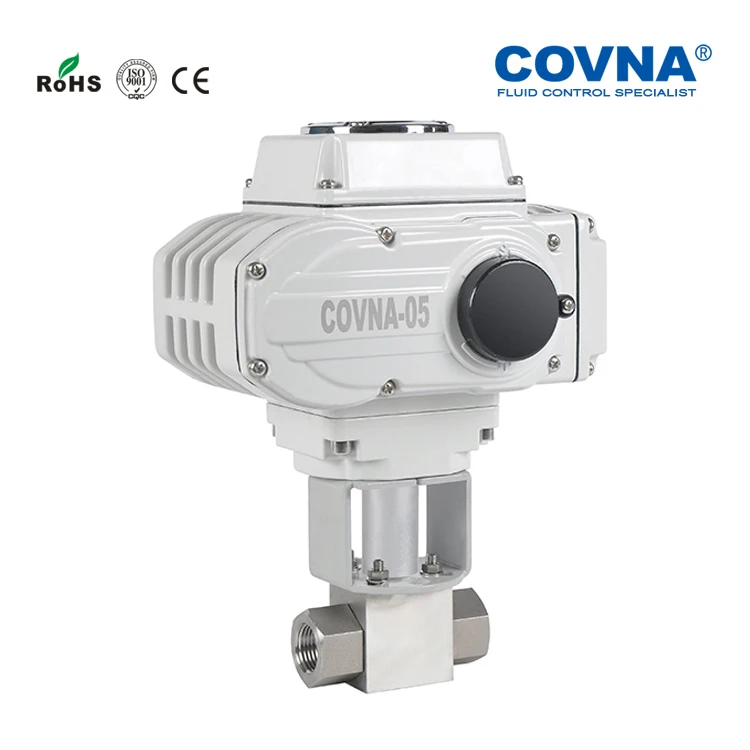

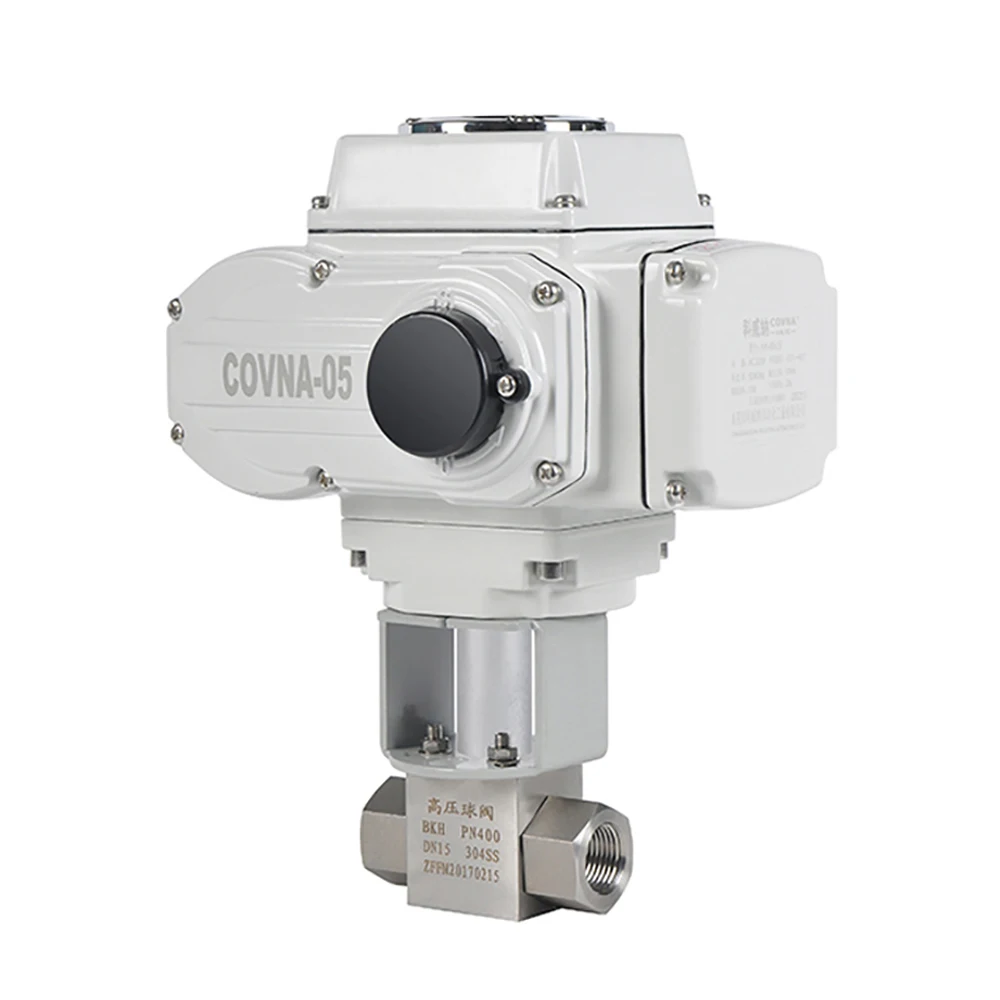

COVNA High Pressure Ball Valve
Hot Sale Products
Specification

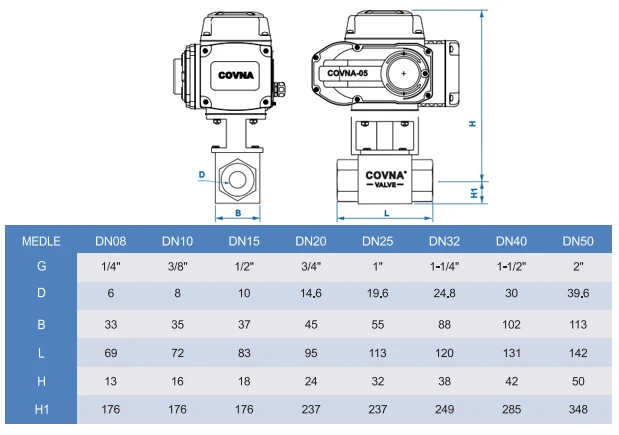

Item | COVNA Water Control Motorized Valves Washing Equipment 2'' 2000WOG Onoff Electric Actuator Ball Valve | ||||
Size Range | DN15 to DN100 | ||||
Operating Pressure | 10 bar to 400 bar | ||||
Body Material | Stainless Steel, WCB, CF8, CF8M, CF3M | ||||
Sealing Material | Flexible graphite, PTFE | ||||
Structure | 2 Way Ball Valve | ||||
End Connection | thread end connection, welding end connection | ||||
Applicable Media | Control of Water, Air, Gas, Oil, Liquid, Steam | ||||
Temp. of Media | Range from -10 to +180°C | ||||
Application | Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries | ||||
Features Of COVNA Quarter-Turn Electric Actuator:
● 90 degree rotation
● Available in ON/OFF type, modulating type and intelligent type for your choice to allow you flow control easier
● Available in ON/OFF type, modulating type and intelligent type for your choice to allow you flow control easier
● AC/DC power supply, signal control and manual override
● High output torque up to 4000N.m
● Low failure rate, overloading protection
● ISO5211 mounting for ball and butterfly valve
● IP65 weather proof protection class for outdoor use
● Offering online technical support to help you install the actuator and valve
● 1 Year warranty
● High output torque up to 4000N.m
● Low failure rate, overloading protection
● ISO5211 mounting for ball and butterfly valve
● IP65 weather proof protection class for outdoor use
● Offering online technical support to help you install the actuator and valve
● 1 Year warranty
Series | 05 | 10 | 16 | 30 | 60 | 125 | 250 | 400 | |||||||
Torque Output | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm | |||||||
90° Cycle Time | 20S | 15/30S | 15/30S | 15/30S | 30S | 100S | 100S | 100S | |||||||
Angle Of Rotation | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | |||||||
Working Current | 0.23A | 0.35A | 0.4A | 0.45A | 0.6A | 1.03A | 1.85A | 2.7A | |||||||
Drive Motor | 50W | 75W | 80W | 100W | 130W | 210W | 285W | 360W | |||||||
Voltage Options | DC12V, DC24V, AC24V, AC110V, AC220V, AC380V | ||||||||||||||
Input Signal | 4-20mA, 1-5VDC, 0-10VDC | ||||||||||||||
Output Signal | 4-20mA, 1-5VDC, 0-10VDC | ||||||||||||||
Protection Class | IP65 protection class | ||||||||||||||
Ambient Temp | -20 to +60°C | ||||||||||||||
Wiring Diagram | A: ON/OFF type with light indicator signal feedback B: ON/OFF type with passive contact signal feedback C: ON/OFF type with resisance potentiometer signal feedback D: ON/OFF type with resistance potentiometer and neutral posistion signal feedback E: Regulation type with servo control module F: DC24/DC12V direct ON/OFF type G: AC380V 3-phase power supply with passive signal feedback H: AC380V 3-phase power supply with resistance potentiometer and neutral posistion signal feedback | ||||||||||||||
About COVNA
COVNA from Dongguan, China is a professional manufacturer of fluid control valves provides performance, safety and long service life products which have to reliably handle the most aggressive of substances, our products stand the test of time in food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.
COVNA give comprehensive service from start to finish, encompassing consultation through to after sales service, full support in every respect and ensure that you are accompanied at each stage of your project.
Together with continual feedback from our customers as well as our experience in manufacturing and quality control, COVNA aims to provide our customers the best quality products with the most competitive pricing,on-time delivery and full warranty service
Our competitive advantage:
● Consistent product quality and reduction of defective rate
● Improved manufacturing process and better productivity
● Significant cost reduction versus competitors
This is COVNA - solve your technical questions with solid experience.
COVNA give comprehensive service from start to finish, encompassing consultation through to after sales service, full support in every respect and ensure that you are accompanied at each stage of your project.
Together with continual feedback from our customers as well as our experience in manufacturing and quality control, COVNA aims to provide our customers the best quality products with the most competitive pricing,on-time delivery and full warranty service
Our competitive advantage:
● Consistent product quality and reduction of defective rate
● Improved manufacturing process and better productivity
● Significant cost reduction versus competitors
This is COVNA - solve your technical questions with solid experience.

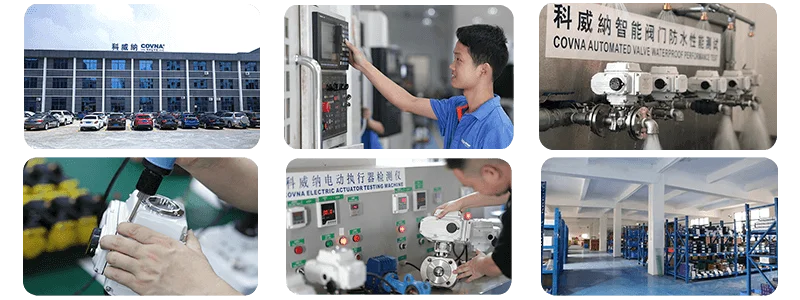

#ALIBABA SELECTION SUPPLIER WITH 20 YEARS MANUFACTURING EXPERIENCE | ||||||
GERMAN TECHNOLOGY
COVNA havs invested in quality assurance, state-of-the-art machining and testing facilities in order to assist customers in safely controlling their processes.
MADE BY EXPERIENCED ENGINEERS
All products are designed, engineered and manufactured by experienced engineers to provide safe, reliable and dependable valves, actuators and solutions.
Our Service
Certifications
Packing
Packing: Electric valves packed with foam in carton.
Delivery Time: 10 working days after payment confirmed.
FAQ
Q: Can I get a sample and how do I get it?
A: Yes, the sample is available and please tell us your requirements of the sample and we will quote it for you and help you to order it.
Q: What are your main products?
A: We are a valve and actuator manufacturer with 20 years experience and we could provide ball valve, butterfly valve, check valve, gate valve, globe valve, electric actuator and pneumatic actuator for you. We committed to being your No.1 one-stop valve solution provider.
Q: Do you have any certificates?
A: Yes, we have ISO9001:2015, CE, TUV, SGS and more than 30 patents. Quality is our goal and the certificate is good proof of our quality.
Q: Can I be your distributor?
A: Yes, you can be our distributor. Details please contact us.
Q: What are your payment term and delivery time?
A: We accept TT, Paypal, Western Union, Credit card. The delivery time about 3 to 7 working days.
A: Yes, the sample is available and please tell us your requirements of the sample and we will quote it for you and help you to order it.
Q: What are your main products?
A: We are a valve and actuator manufacturer with 20 years experience and we could provide ball valve, butterfly valve, check valve, gate valve, globe valve, electric actuator and pneumatic actuator for you. We committed to being your No.1 one-stop valve solution provider.
Q: Do you have any certificates?
A: Yes, we have ISO9001:2015, CE, TUV, SGS and more than 30 patents. Quality is our goal and the certificate is good proof of our quality.
Q: Can I be your distributor?
A: Yes, you can be our distributor. Details please contact us.
Q: What are your payment term and delivery time?
A: We accept TT, Paypal, Western Union, Credit card. The delivery time about 3 to 7 working days.
