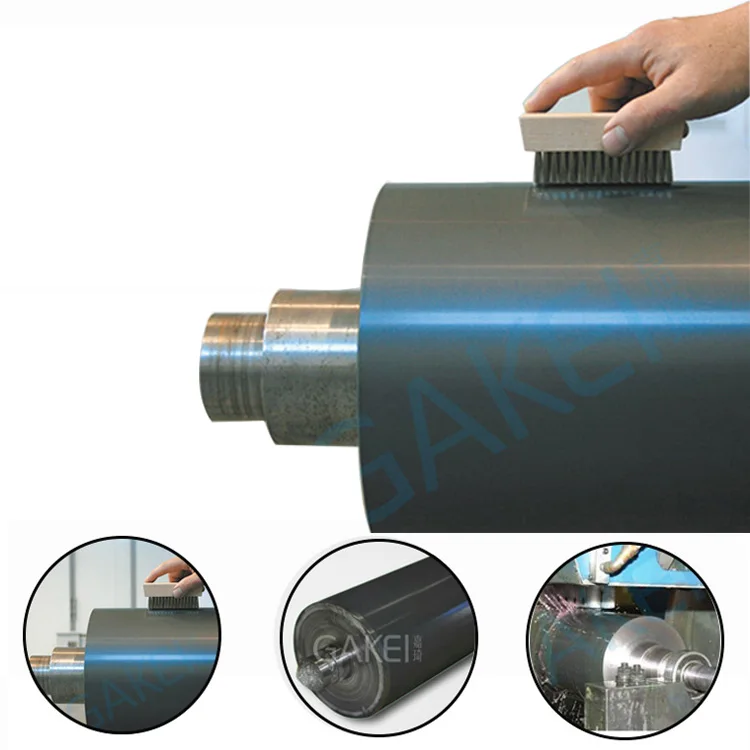

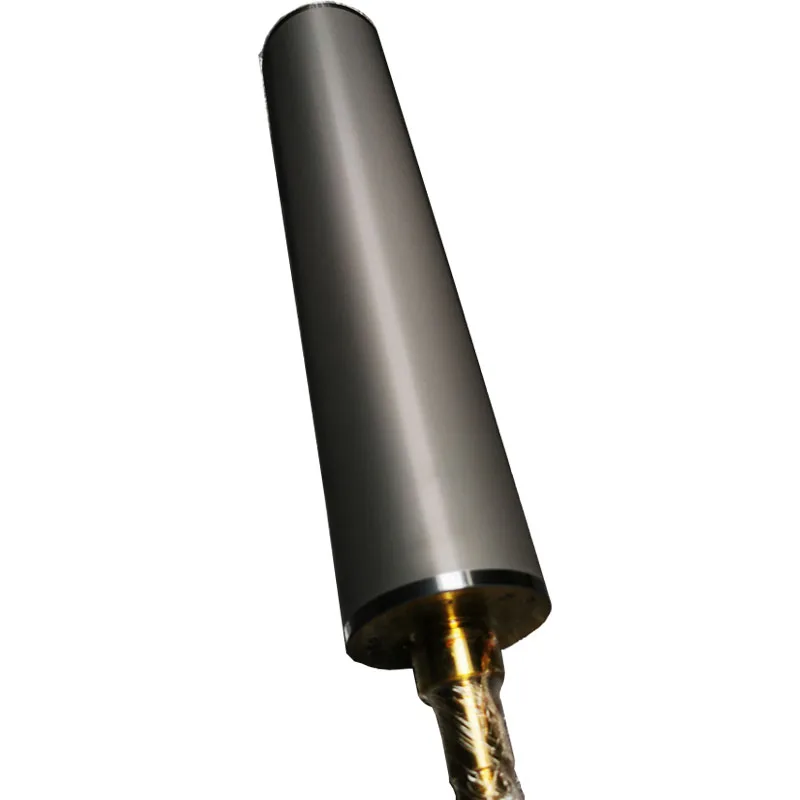

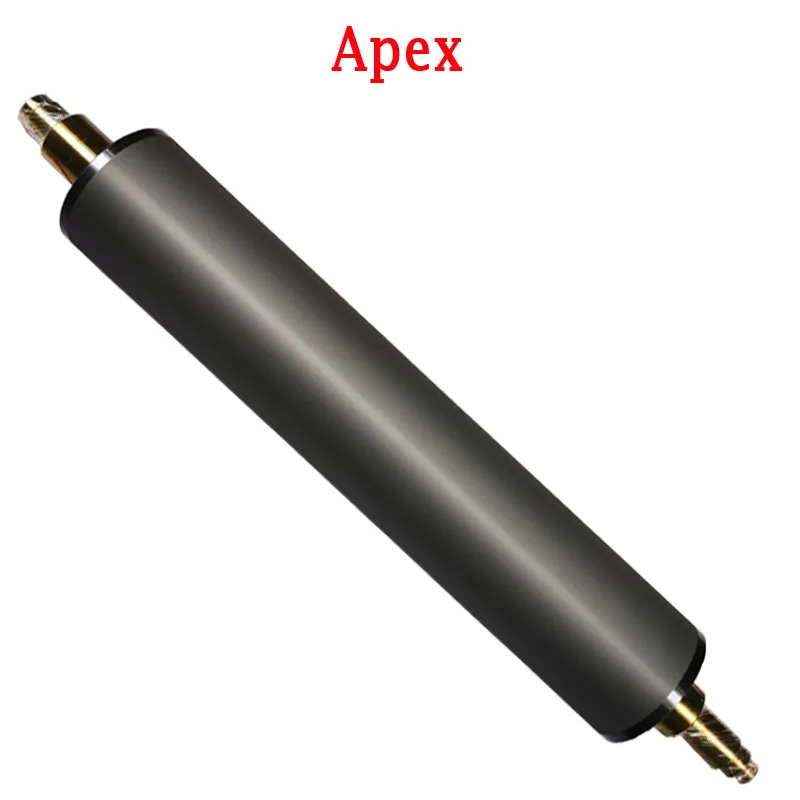

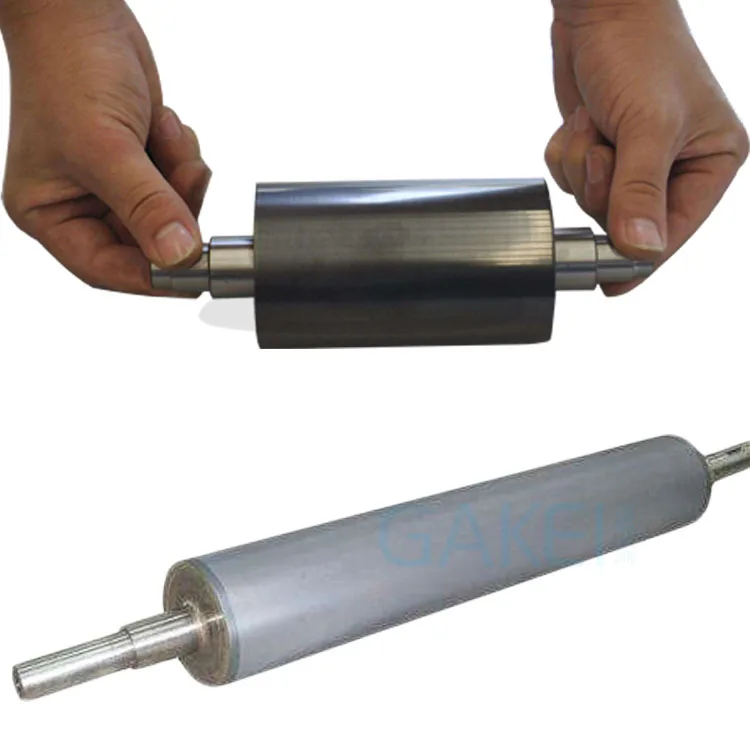

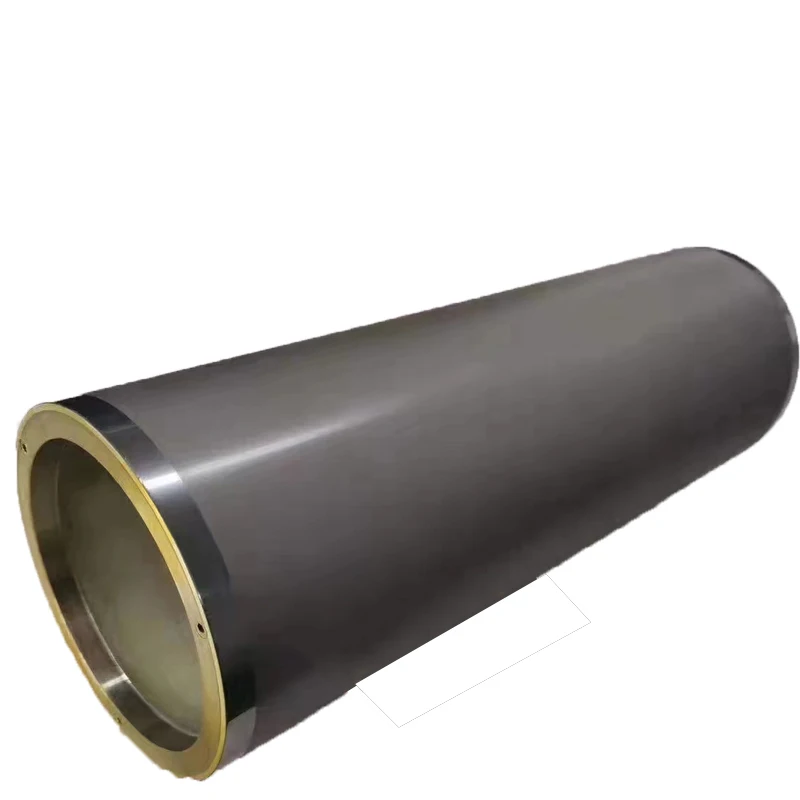

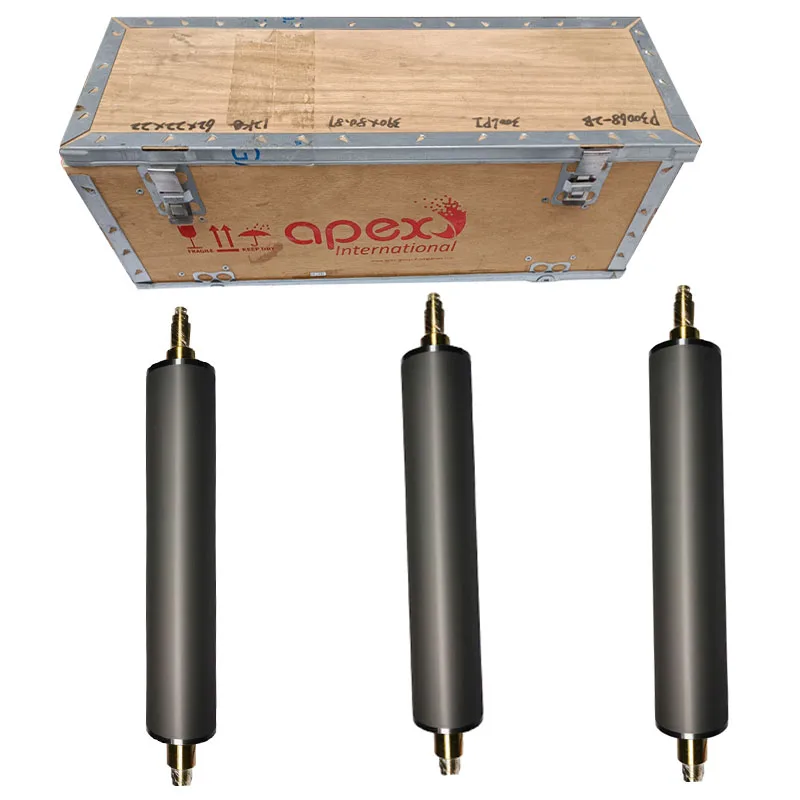

Apex International GTT ceramic anilox roller
- Category: >>>
- Supplier: Guangzhou Jiaqi Printing Supplier Co. Ltd.
Share on (1601100917032):
Product Overview
Description
Video Description
Specification
Product Name | Apex International Ceramic Anilox roller | ||||||
Use for | Any Brand Flexographic Printing And Gravure Printing Machine | ||||||
MOQ | 1 PCS | ||||||
Maximum width | 5500mm ( with axis) | ||||||
Screen count range | 30-2000 LPI | ||||||

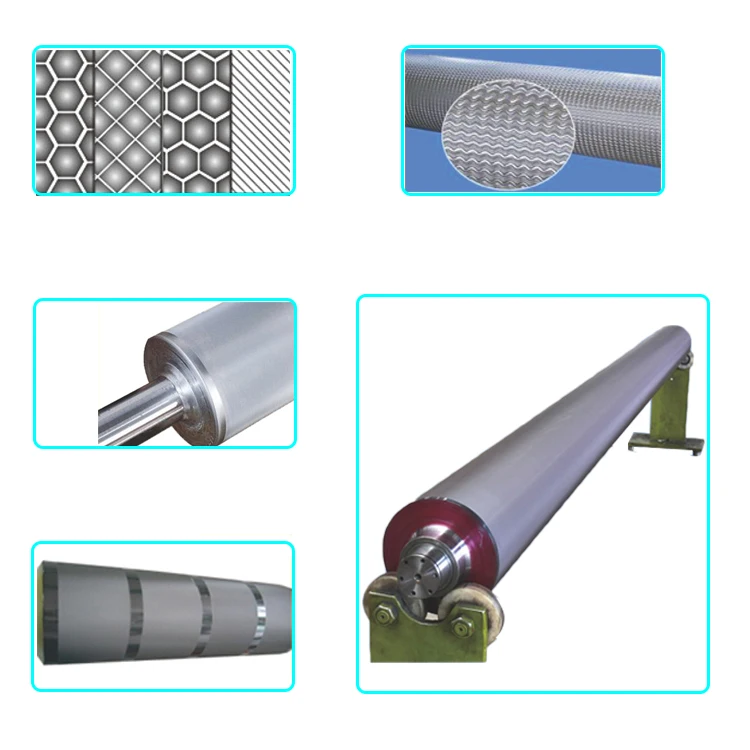

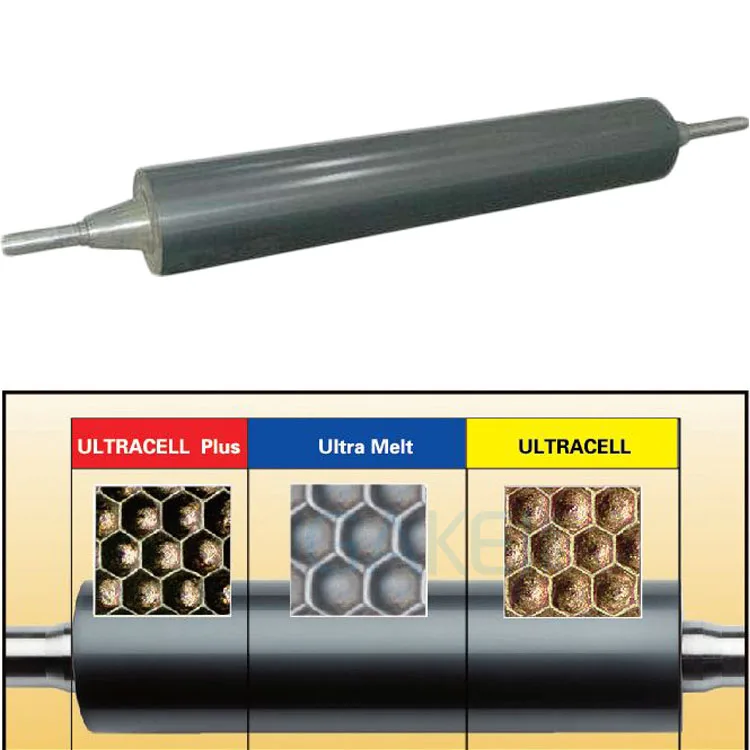

Cell shape | Hexagon,Diamond,Tri-heliCal and other special shapes. | ||||||
Cell Angle | 60°,45°,30°and other special requirements | ||||||
Payment | Trade Assurance,T.T,western union,china payment agent | ||||||
Shipping Method | DHL Fedex TNT EMS UPS Or send to your shipping agent | ||||||
Delivery time | About 20 working days after payment received | ||||||
Products Description

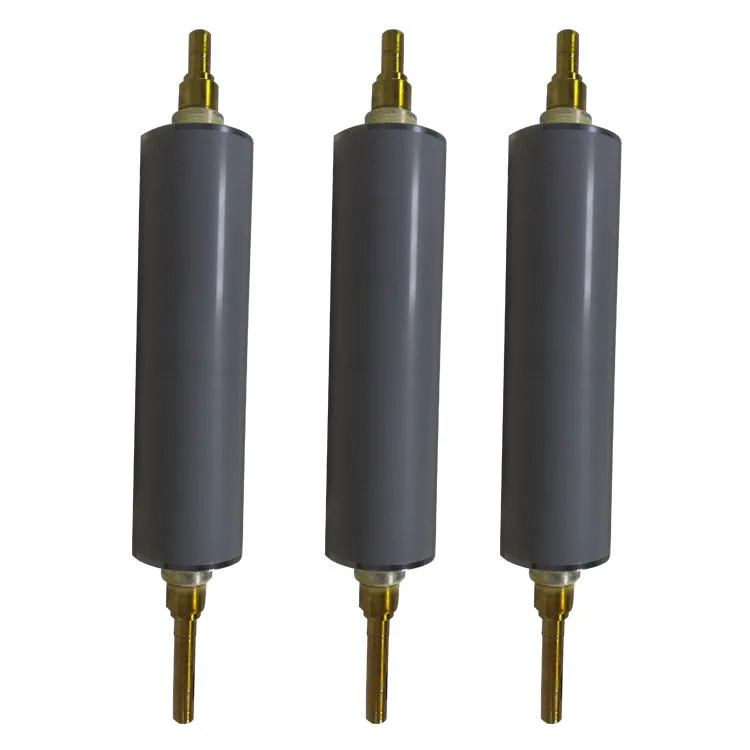

Flexo Printing Ceramic Anilox Rollers Manufacturer

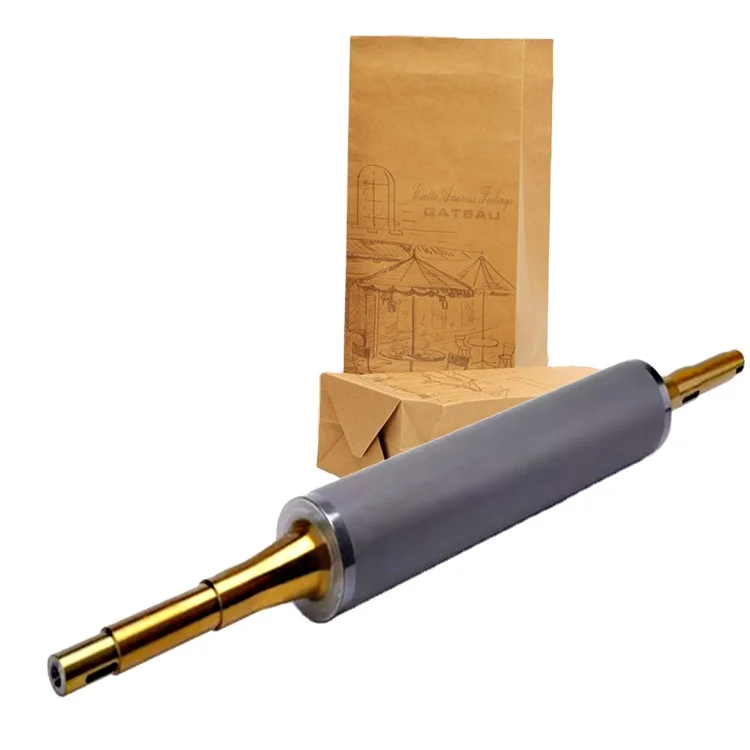

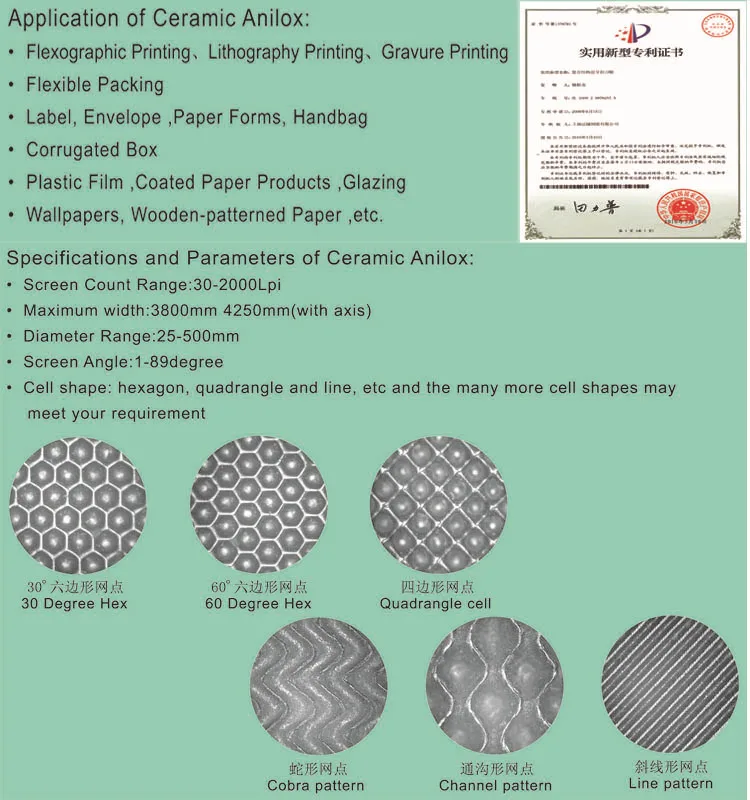

Application:
1. Flexographic Printing, Lithography Printing , Gravure Printing
2 .Flexible Packing
3. Label , Envelope , Paper Forms , Handbag
4. Corrugated Box
5. Plastic Film, Coated Paper Products, Glazing
6.Wallpapers , Wooden-patterned Paper , etc .
As the leading manufacturer of flexo graphic laser engraving ceramic anilox,printing cylinders and other relevant products in connection with flexo, our mission is to serve flexographic printing companies in and abroad with good quality and best service.

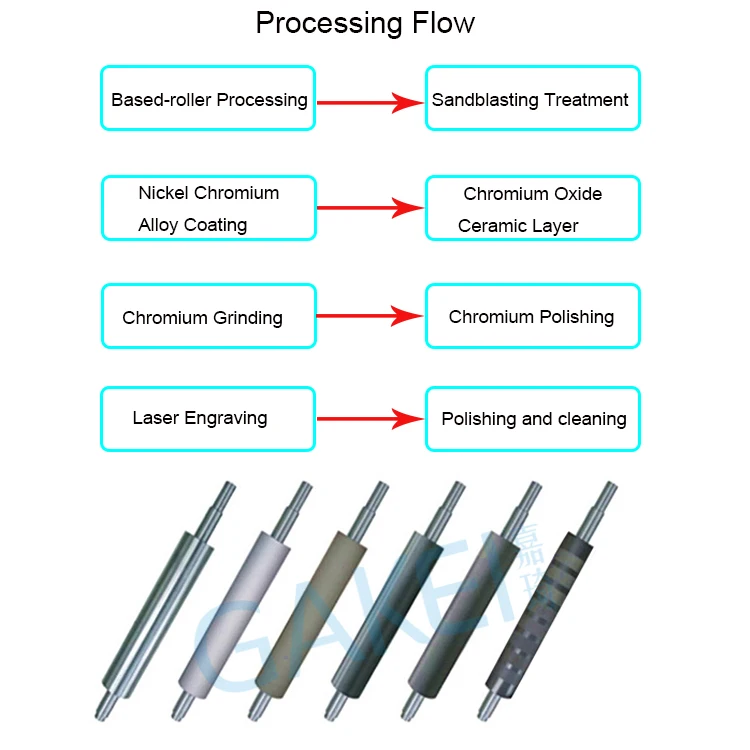

Now let us introduce our main production process and the reasons for you to choose us.
Now let us introduce our main production process and the reasons for you to choose us.
Product Advantage
1.Base roller process:
All the base rollers are produced by ourself. For the base roller, normally we adopt the #45 seamless steel tube and the thickness is from 15mm-25mm based on the dimension of the roller. And we can also make the special thickness according to customers requirement. But normally the above mentioned information is enough for the long life use of finished products.
And we can also use No5 series aluminum as the base roller if the customer has the requirement on the weight to be light enough.

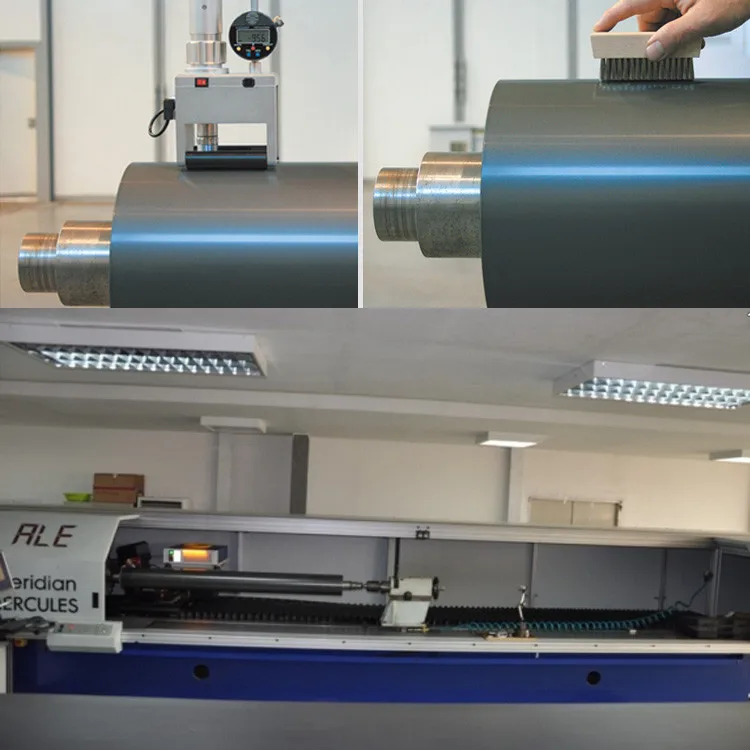

We will check all the dimensions according to customer confirmed drawing, surface roughness, straightness, dynamic balance, cylindricity and so on. If there is any small problem on these information we will not use the roller for next step but to make a new one to make sure the quality.
We will check all the dimensions according to customer confirmed drawing, surface roughness, straightness, dynamic balance, cylindricity and so on. If there is any small problem on these information we will not use the roller for next step but to make a new one to make sure the quality.
2.Ceramic spraying
We are using the famous plasma spraying machine and it is from Switzerland Oerlikon.And the chrome oxide ceramics we are using are also from this supplier and it can reach a hardness 1200HV. The advantage of this supplier’s ceramic powder is the evenness degree can be controlled well, 80% can be between 15u-35u but other brand especially the brand made in China only 30% can be controlled between 15u-35u.
3.Antiseptic treatment
It is easily for the ceramic anilox rollers to reach the solvent with corrosion. Once the solvent reached the base roller, it will be corroded bubble then we can not use it any more. But because we use the nanoscopic sealant to coat on the surface of the ceramic. And this kind of sealant can reach the tiny cell so it can realize a good production against the corrosion.
4.Precise delivery on the inks

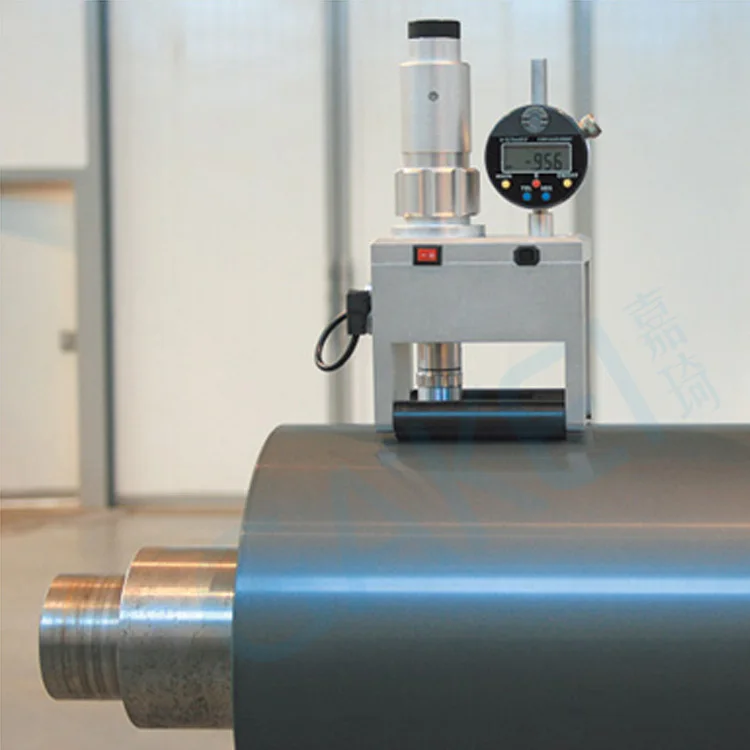

For each roller, we will make the trial engraving before the real engraving. And after that we will use the scanner to scan each layer to test the volume of the cell then according to the realationship between the LPI and BCM to make sure the LPI we would like to reach.
5.Quality Control
We have the quality control system during the whole production from the very beginning to the end and our principle is to make sure each roller is qualified.
6. Service life
Under nomal operation and maintenance,our ceramic anilox rollers can work 8-10years or even longer.

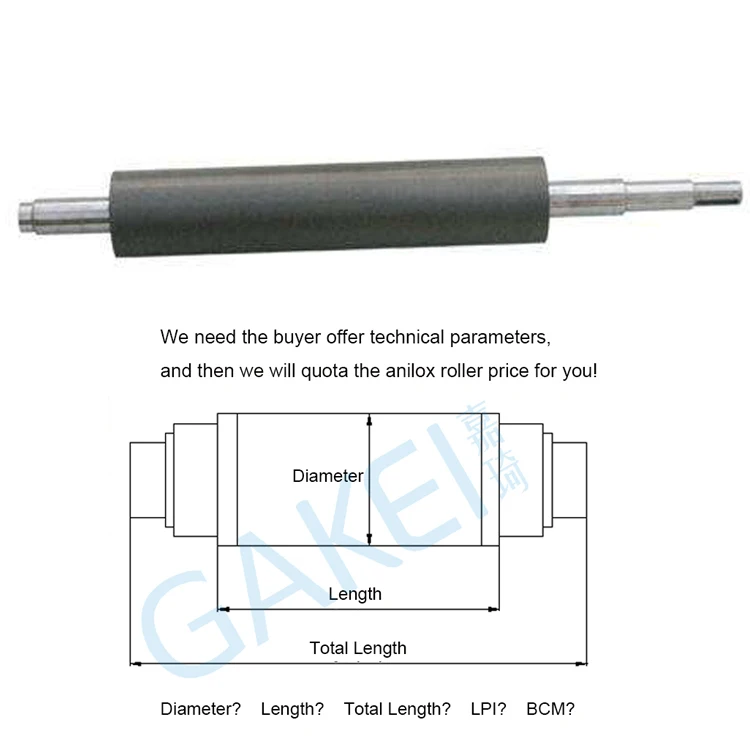

Notes For Placing Orders
Company Profile
We are Guangzhou Jiaqi Printing Supplier CO.Ltd.We are main do offset and flexo printing consumables.We have more than 12 years of experience in the printing industry.
such as creasing matrix, rubber roller, ceramic anilox roller, cleaner, Doctor blade, end seal, Ink Proofer, Zahn Cup, Anilox Roller Microscope, patch up tape, bending machine, Rubber Suckers, Die Cutting Rule Machine, Die Cutting Rule, Waste Stripper, Sawing Machine, Rule Puller, Creasing Matrix Cutter, Magic Makers , Tesa tape, Plate Making Machine, Flexo Printing Plate Mounting Machine and etc.
such as creasing matrix, rubber roller, ceramic anilox roller, cleaner, Doctor blade, end seal, Ink Proofer, Zahn Cup, Anilox Roller Microscope, patch up tape, bending machine, Rubber Suckers, Die Cutting Rule Machine, Die Cutting Rule, Waste Stripper, Sawing Machine, Rule Puller, Creasing Matrix Cutter, Magic Makers , Tesa tape, Plate Making Machine, Flexo Printing Plate Mounting Machine and etc.
Why Choose Us
1.More than 10 years experience :
More than 10 years experience for offset printing and flexo printing.we have creasing matrix factory. Ceramic anilox rollr factory ,rubber roller factory and we are TESA first class agent
2.Professional flexo printing solve solution :
with 10 years working experience in clean ceramic anilox. Especially for printing and machinery plant
3.Fast dispatch :
Most of the products are in stock.creasing matrix .die cutting rule,small machine.Tesa tape,below 100 pcs can be delivered within
15 days
4.Small order accepted :
Low MOQ accepted .1 pcs are available
2.Professional flexo printing solve solution :
with 10 years working experience in clean ceramic anilox. Especially for printing and machinery plant
3.Fast dispatch :
Most of the products are in stock.creasing matrix .die cutting rule,small machine.Tesa tape,below 100 pcs can be delivered within
15 days
4.Small order accepted :
Low MOQ accepted .1 pcs are available
