E Moke Electric Vehicle Tour Car Electric Sightseeing Vehicle 72v Lead Acid Battery Custom 4 Seats Electric Golf Carts
- Category: >>>
- Supplier: Shandong Rainbow International Business Co. Ltd.
Share on (1601100985227):
Product Overview
Description
Data Parameter
Model: GMOKE-96V | Website: www.sdrainbow.en.alibaba.com | |||||
Data Parameter | ||||||
Basic Parameter | Power Specification | |||||
Rated person： | 4 persons | Motor： | 96V 10KW PMSM ( Peak power: 20KW ) | |||
Body： | unframed, aluminum | |||||
Dimension(LXWXH)： | 2950x1500x1550 mm | Electric system： | DC12V 500W | |||
Wheelbase： | 2100 mm | 2000 w（AC/220V) 1200 w（AC110V) | ||||
Track Width (f/r)： | 1250/1320 mm | |||||
Drive type： | Front wheel driving | Controller： | 96 V 10KW | |||
Min.ground clearance： | 150 mm(full loaded) | Battery type： | Ternary lithium battery | |||
Net weight： | 441 kg | Battery life： | Recharging for 1000 times | |||
Braking system： | Hydraulic, F:disk /R: drum Power brake | Battery： | 96V 150AH (102.2V 150AH; 15.3 kwh) | |||
Braking distance： | ＜5 m(40km/h) | Curb weight： | 573 kg | |||
Max climbing capability： | ≧20% | Full rated weight： | 873kg | |||
Min.turning diameter： | 9 m | Function Specification | ||||
Max speed： | 70 km/h | BMS： | √ | |||
Running distance： | 160km（45km/h，25℃） | A/C： | X | |||
Charging time： | ≤10h（AC220~240V） | Heater： | X | |||
Parking Brake： | hand brake for real wheel | Aluminum wheel rim： | √ | |||
Speed control： | pedal control /automatic | Power steering： | X | |||
Transmission | Wheel type(front/rear)： | 155/65R13 | ||||
Fixed speed ratio | wheel hub： | 13'' | ||||
Electronic speed regulation and | Safety | |||||
Commutation | Safety Belt： | √ | ||||
Chassis System | ||||||
Front: McPherson independent suspension. | ||||||
Rear: Independent suspension | ||||||

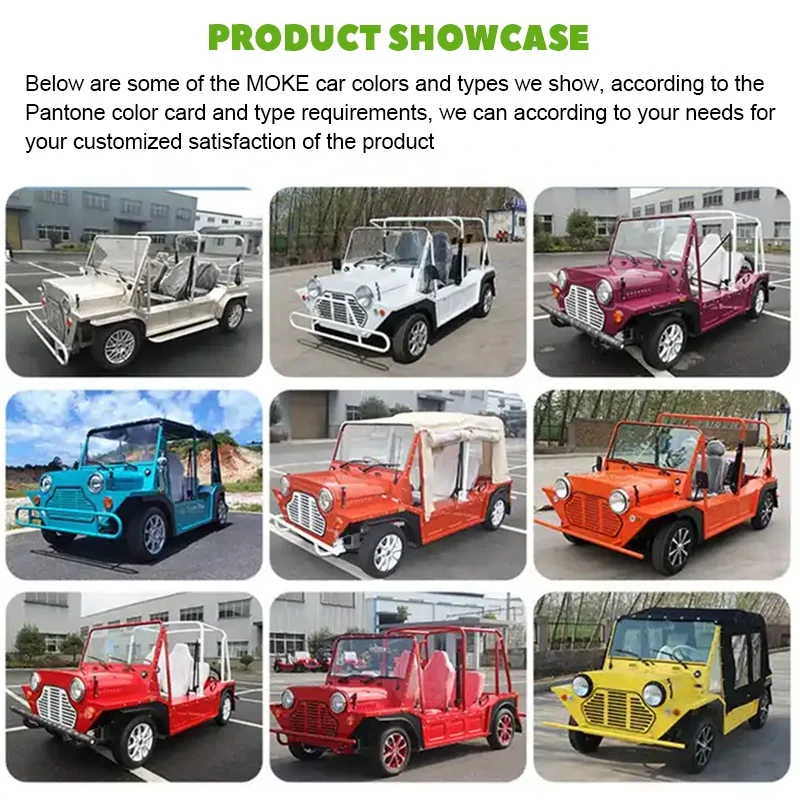

WHITE | WHITE | |||||
BLACK | BLACK | |||||
ARMY GEREEN | ORANGE | |||||
RED | BLUE | |||||
YELLOW | GREEN | |||||
WHITE | BLACE | |||||
Why Choose Us
Client Reviews
Transport
FAQ
Q1. What is your terms of packing?
A1: Generally, we pack out goods in containers by iron frame. If you have special requirement we can follow.
Q2.What is your terms of payment?
A2:T/T 30% deposit,70% balance before dispatch from factory.
Q3. How about the logo?
A3:We can customize the logo for free as per your requets.
Q4. How about your delivery time?
A4: Generally, it will take 7 to 15days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A5: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. How to charging the electric car, if there are any notice during the charge?
A6: Company will send on charger along with theelectric car.The charging will be finish automatically once the battery is full.
Q7. How long for the warranty?
A7: The whole electric car have 12 months warranty.
Q8. Do you accept to customize the vehicles as per our special request?
A8: Yes, we customize vehicles as per customer's speical request with reasonable cost and lead time, as long as the customization is not related to the chassis modification.
Q9. Do you test all your goods before delivery?
A9: Yes, we have 100% test before delivery.
Q10: How do you make our business long-term and good relationship?
A10: 1. We keep good quality and competitive price to ensure ourcustomers benefit: 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
