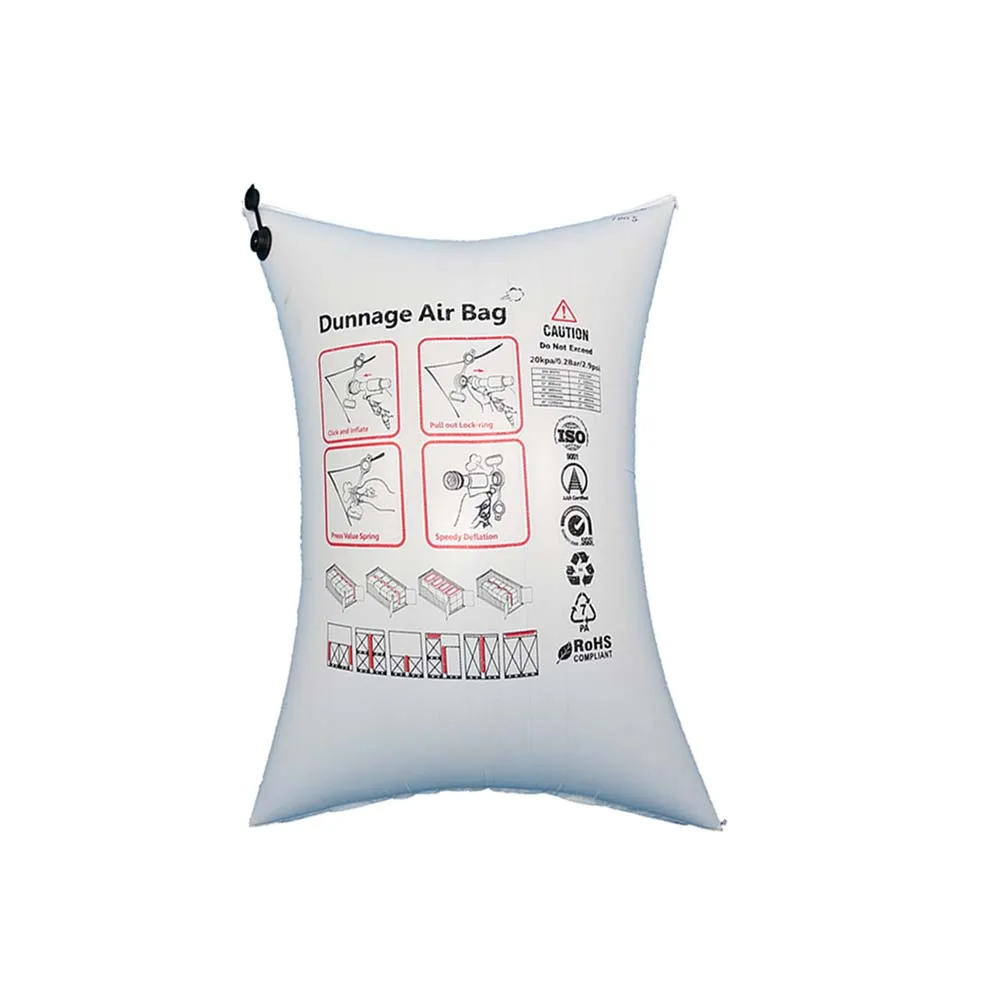

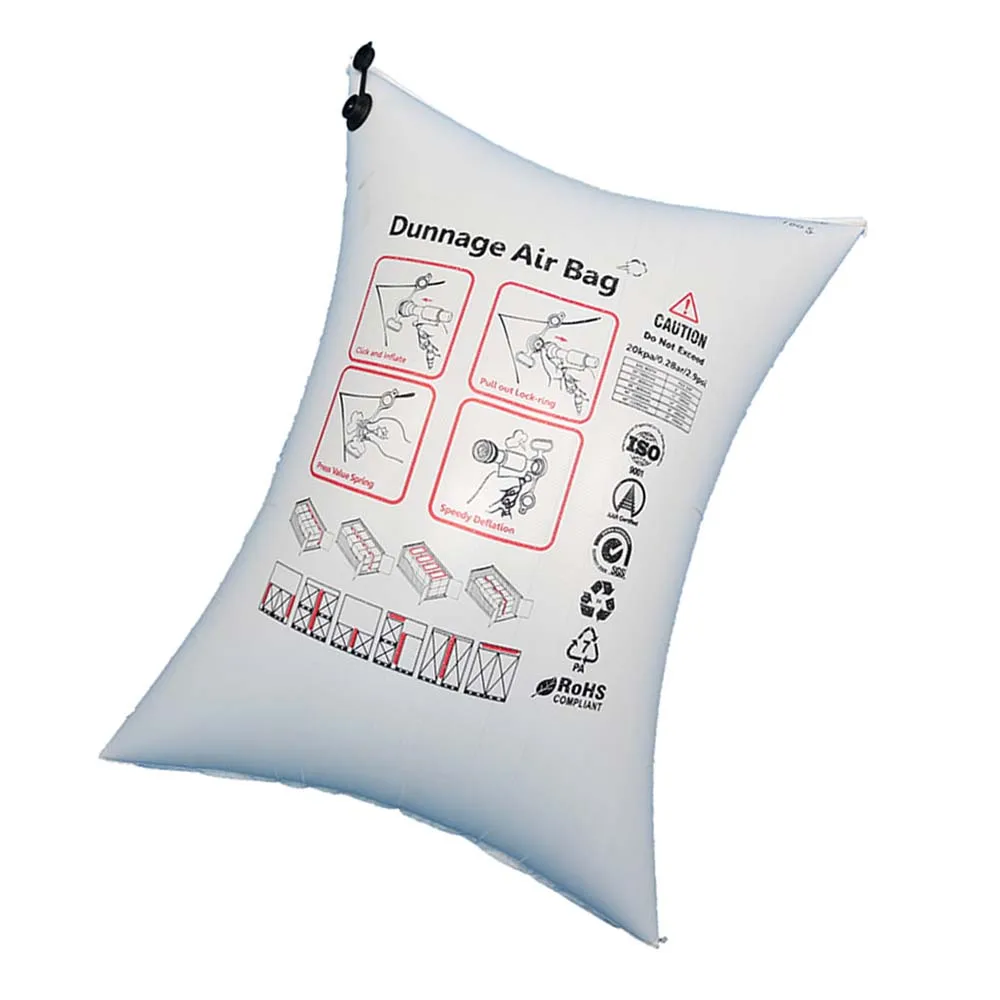

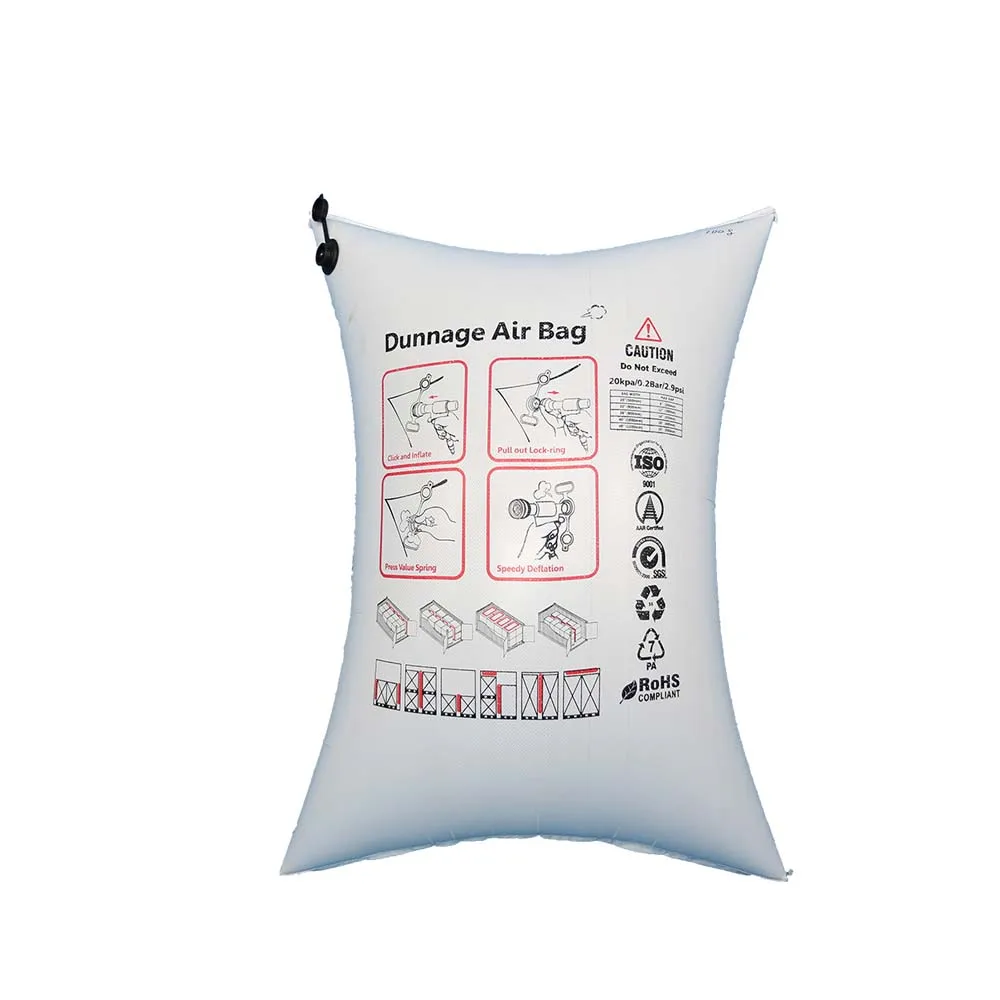

Wholesale Price PP Woven Dunnage Air Bag For Logistics
- Category: >>>
- Supplier: Shanghai Dream-Mao Packing Technology Co. Ltd.
Share on (1601100992286):
Product Overview
Description
\t\t\t\t\t\t\t\t\tOur Company \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tProduct Detail \t\t\t\t\t\t\t
Technical Parameters
Compressive strength: 20kpa-25kpa
Inner Bag Heat seal strength:≥35N/15MM
Inner Bag Longitudinal Tensile Strength: ≥26MPa
The horizontal Tensile Strength of the inner Bag : ≥26MPa
The Outer bag is pulling force : ≥728N/CM
Outer Bag
The outer kraft paper USES pure wood pulp paper to make no waste material, and import new materials from abroad.
Outer Bag Filling pull: ≥668N/CM

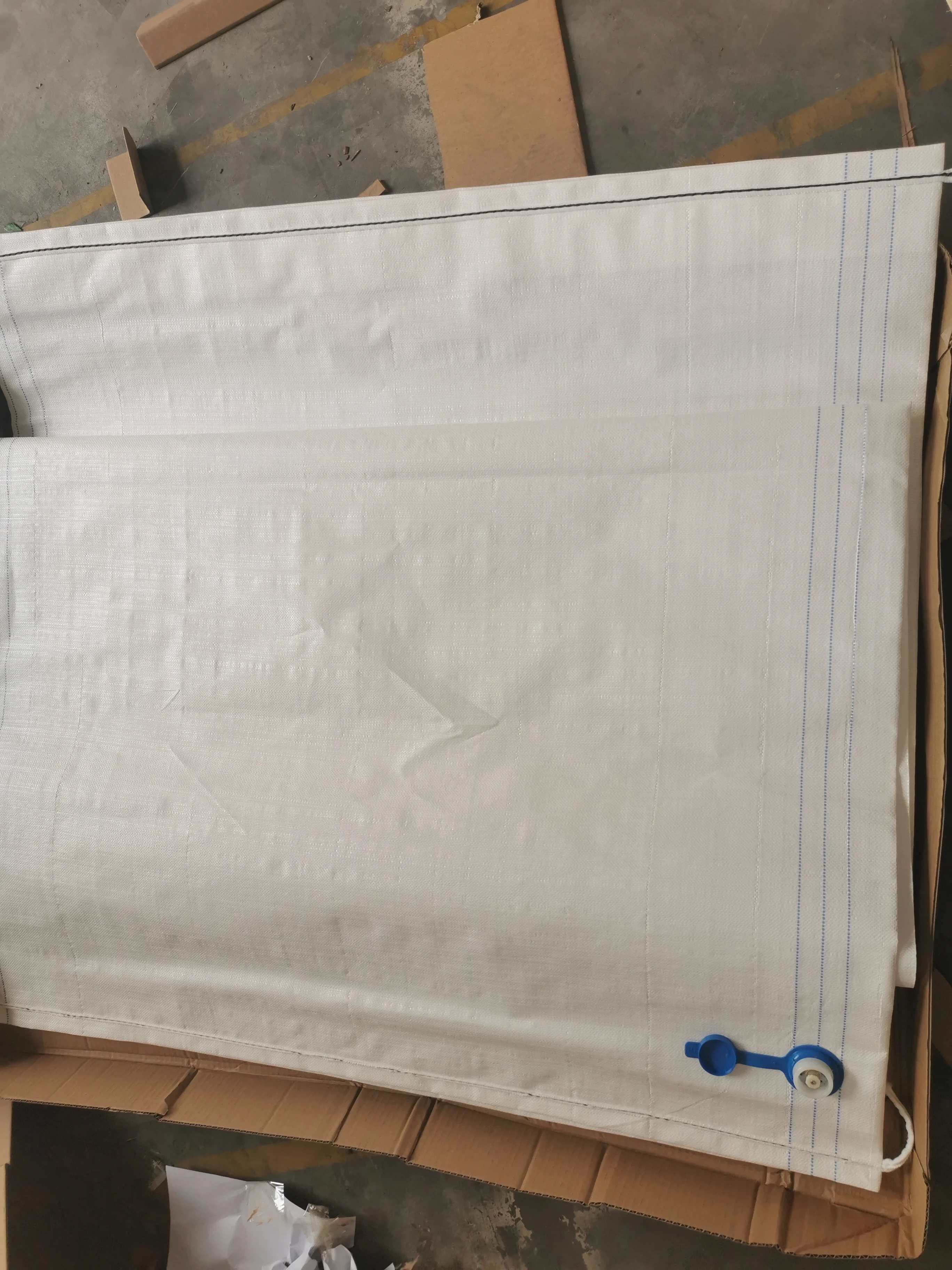

Material: Out Bag PP woven, Inner Bag Polymide(PA)
Structure: Out Bag(PP woven)+Inner Bag (7 layers co-extrusion PA film)+Air valve
G.W: Out Bag 70-218 g/㎡, Inner Bag 75-150 g/㎡
Thickness: Inner Bag 7.5S-15S/75μm-150μm
Compressive Strength: 20Kpa-80Kpa/5T-40T
Inner Bag Heat Seal Strength: ≥35N/15MM
Inner Bag Longitudinal Tensile Strength: ≥26Mpa
Inner Bag Lateral Tensile Force: ≥26Mpa
Outer Bag Meridional Tensile Force:≥628N/CM
Outer Bag Weft Tensile Strength:≥568N/CM
Turbo Air Valve And Normal Air Valve
Turbo Valves
Faster air inflation speed
Higher air tightness
Safer and more convenient
Turbo Inflatable Tool And Normal Inflatable Tool
Turbo Inflatable Tool
MM inflatable dunnage air bags equipped with a patented valve, which allows fast inflation, when connect with the quick inflator, the time for inflation can be reduced significantly beside ensuring consistent pressure.\t\t\t\t\t\t\t\t\tSize \t\t\t\t\t\t\t
Size(cm) | Product weight(kg) | Max air pressure(Kpa) | Bearing force(ton) | Filling the width(cm) | Filling the height |
50*100 | 0.3 | 20 | 2.8 ton | 10-25 | 90 |
50*150 | 0.38 | 20 | 2.5 ton | 10-25 | 140 |
60*120 | 0.35 | 20 | 3 ton | 10-25 | 110 |
80*120 | 0.54 | 20 | 3.45 ton | 10-40 | 110 |
80*160 | 0.62 | 20 | 3.5 ton | 10-40 | 150 |
90*180 | 0.86 | 20 | 5-7 ton | 10-45 | 170 |
100*180 | 0.86 | 20 | 5-7 ton | 10-50 | 170 |
100*200 | 1.04 | 20 | 5-7 ton | 10-50 | 190 |
120*240 | 1.49 | 20 | 5-7 ton | 10-60 | 230 |

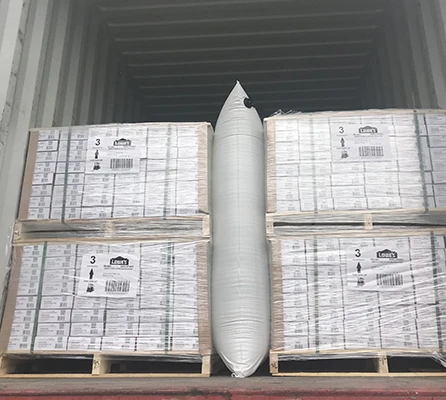

\t\t\t\t\t\t\t\t\tUsing \t\t\t\t\t\t\t

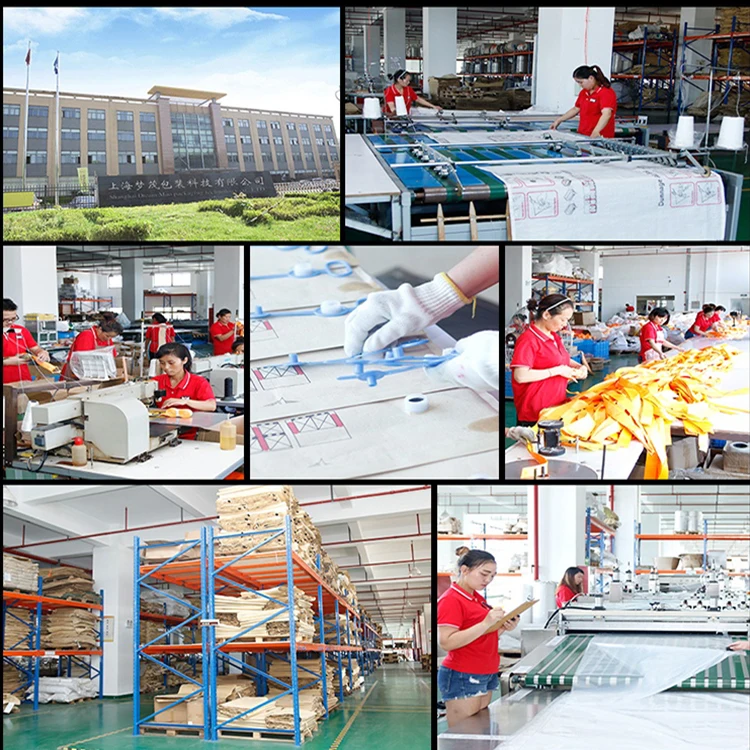

\t\t\t\t\t\t\t\t\tFactory \t\t\t\t\t\t\t
