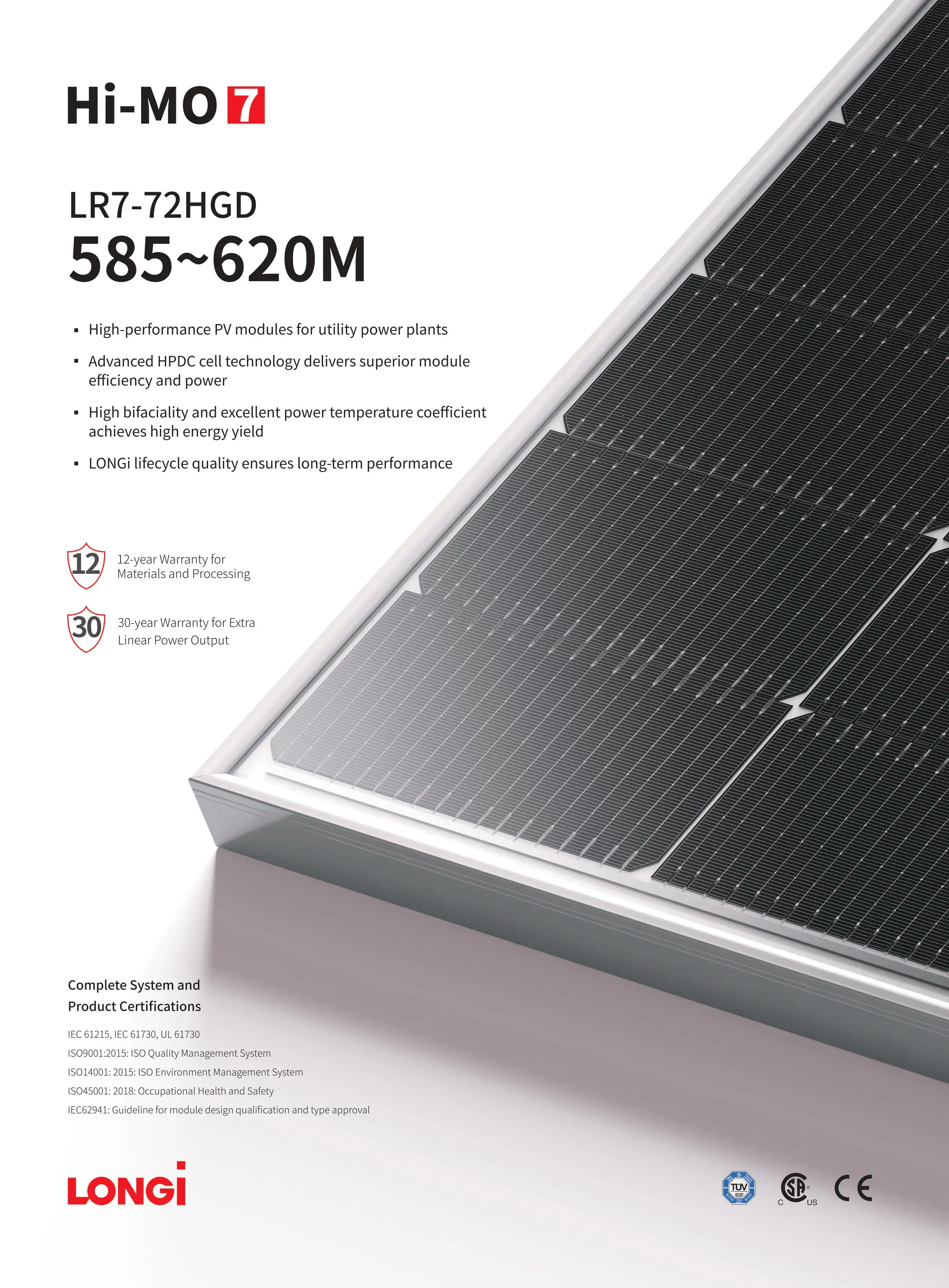

LONGi Hi MO 7 Explorer LR7 72HGD 585 620M High Efficiency Solar Panel with Half Cell Technology 585W 590W 575W 595W 600W
- Category: >>>
- Supplier: Jiangsu Solarman Technology Co. Ltd.
Share on (1601101010790):
Product Overview
Description
About LONGi
Picture of Longi Xi'an Headquarters
Founded in 2000, LONGi Green Energy Technology Co., Ltd. (LONGi) is committed to being the most valuable solar technology company in the world.
Longi's shipment volume is far ahead of its peers, ranking first in 2020, 2021, and 2022, among the few in the world.
LONGi Authorizes SOLARMAN's Certificate
LONGi × SOLARMAN
Product Description

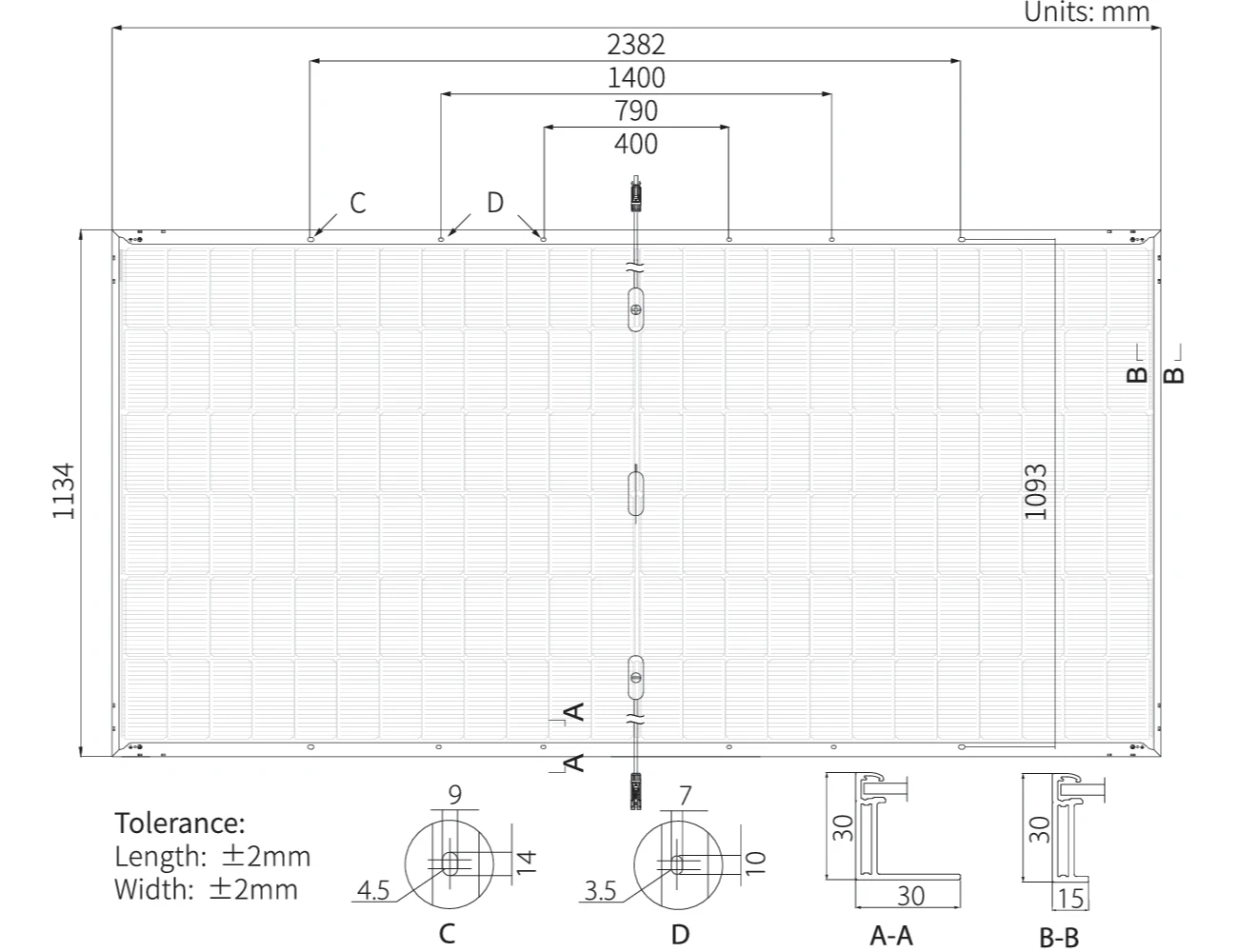

Mechanical Parameters | |||||||
Cell Orientation | 144（6*24） | ||||||
Junction Box | IP68,three diodes | ||||||
Output Cable | 4mm², +400,-200mm/±1400mm,lenght can be customized | ||||||
Glass | Dual glass,2.0±2.0mm semi-tempered glass | ||||||
Frame | Anodized aluminum alloy frame | ||||||
Weight | 33.5Kg | ||||||
Dimension | 2382*1134*30mm | ||||||
Packaging | 36pcs per pallet/144pcs per 20' GP/720pcs per 40' HC | ||||||
Electrical Performance Parameters (STC Test)
Module Model | LR7-72HGD-585M | LR7-72HGD-590M | LR7-72HGD-595M | LR7-72HGD-600M |
Maximum power (Pmax/W) | 585 | 590 | 595 | 600 |
Open-circuit voltage (Voc/V) | 52.01 | 52.12 | 52.23 | 52.34 |
Short circuit current (Isc/A) | 14.29 | 14.37 | 14.45 | 14.53 |
Voltage at Maximum Power (Vmp/V) | 43.57 | 43.68 | 43.79 | 43.9 |
Current at Maximum Power (Imp/A) | 13.43 | 13.51 | 13.59 | 13.67 |
Module Efficiency(%) | 21.7 | 21.8 | 22 | 22 |

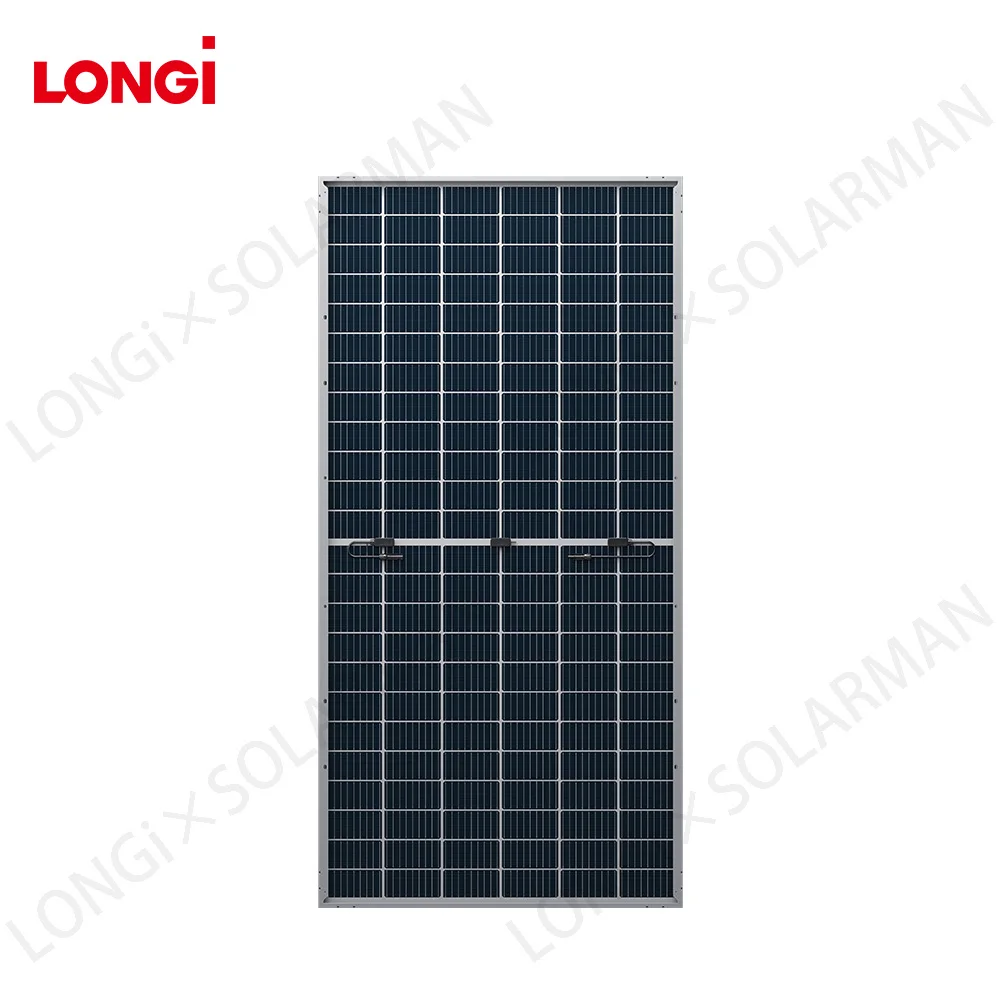

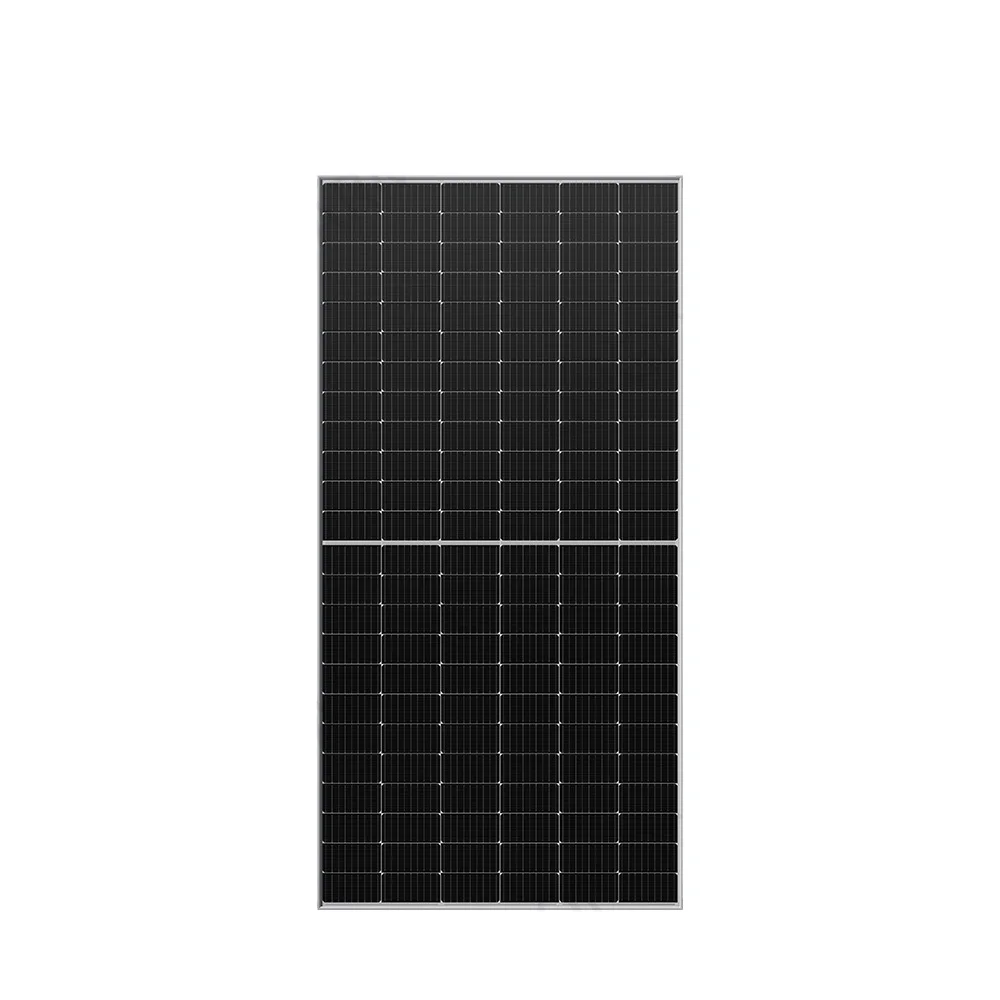

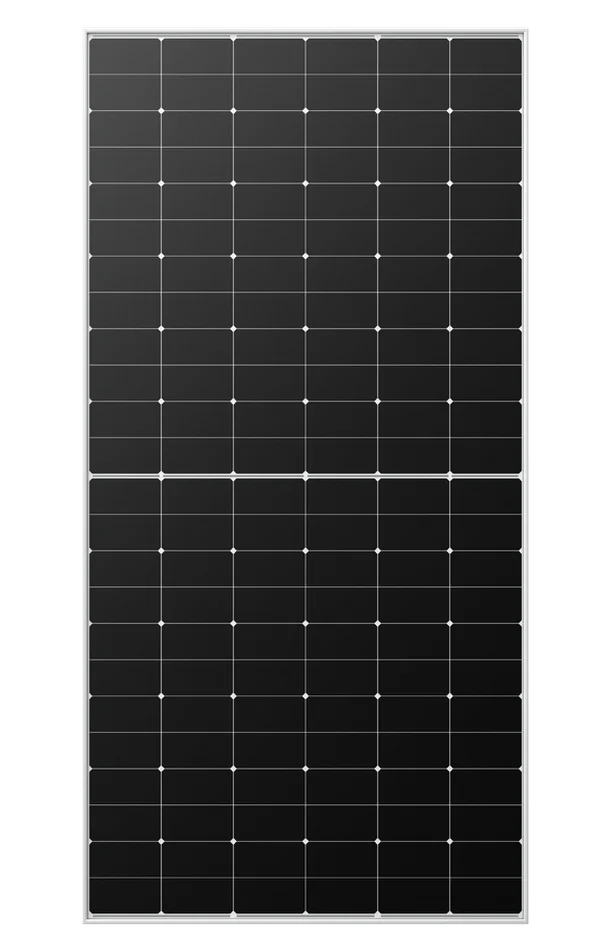

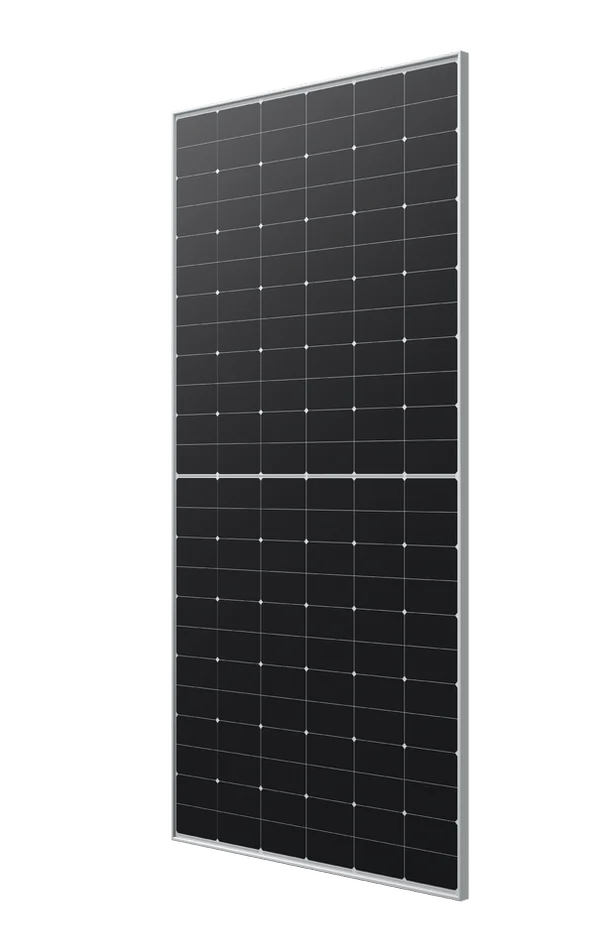

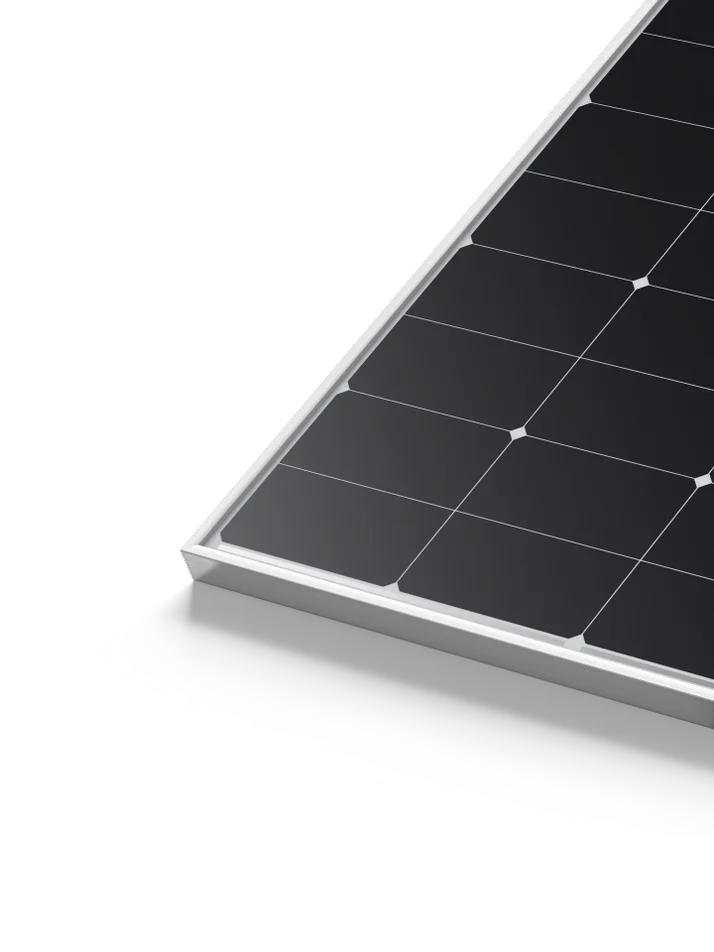

Product image
Packaging and container loading
Projects cases
Longi Factory Roof Solar Power Station（see above）
Longi Ground Solar Power Station（See below）
