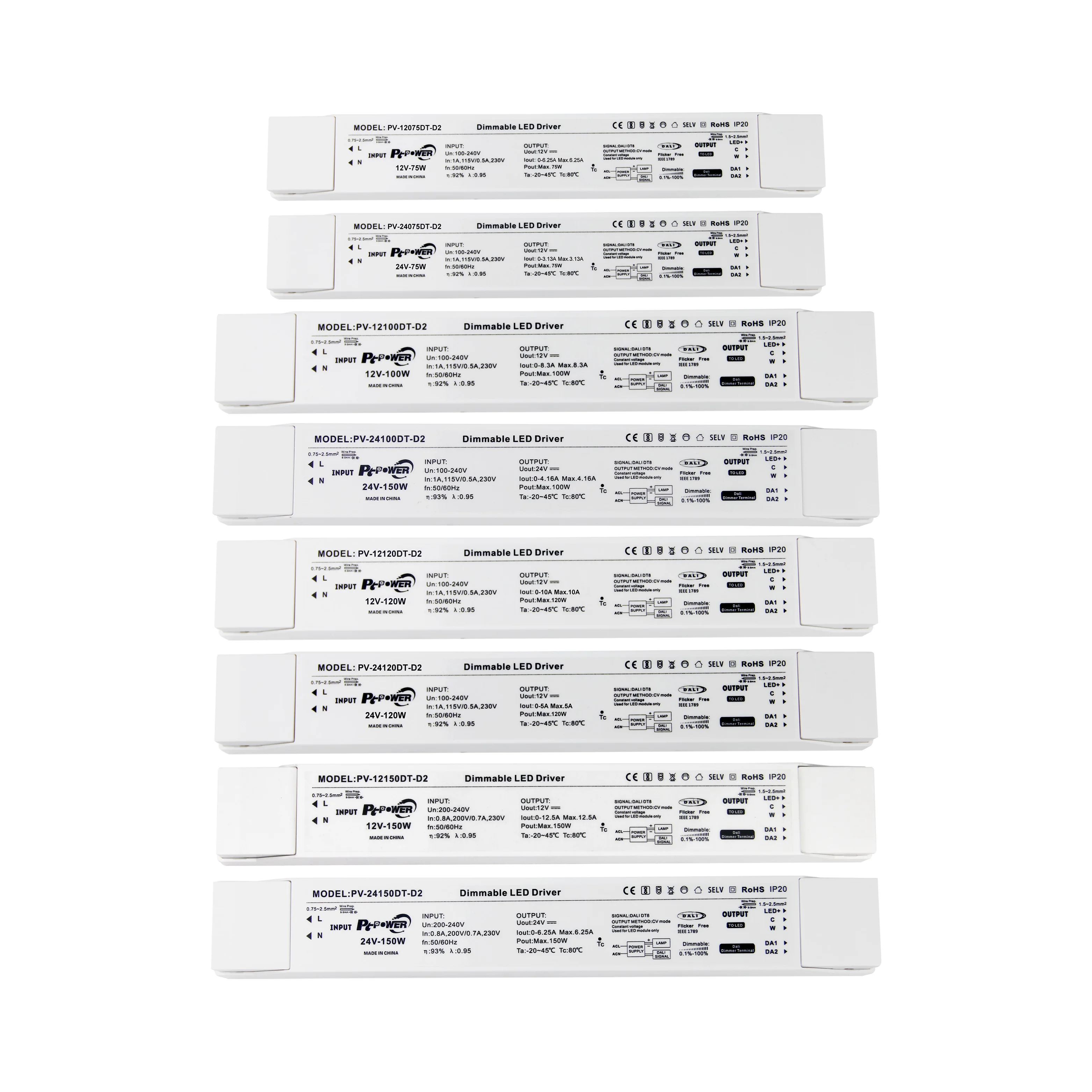

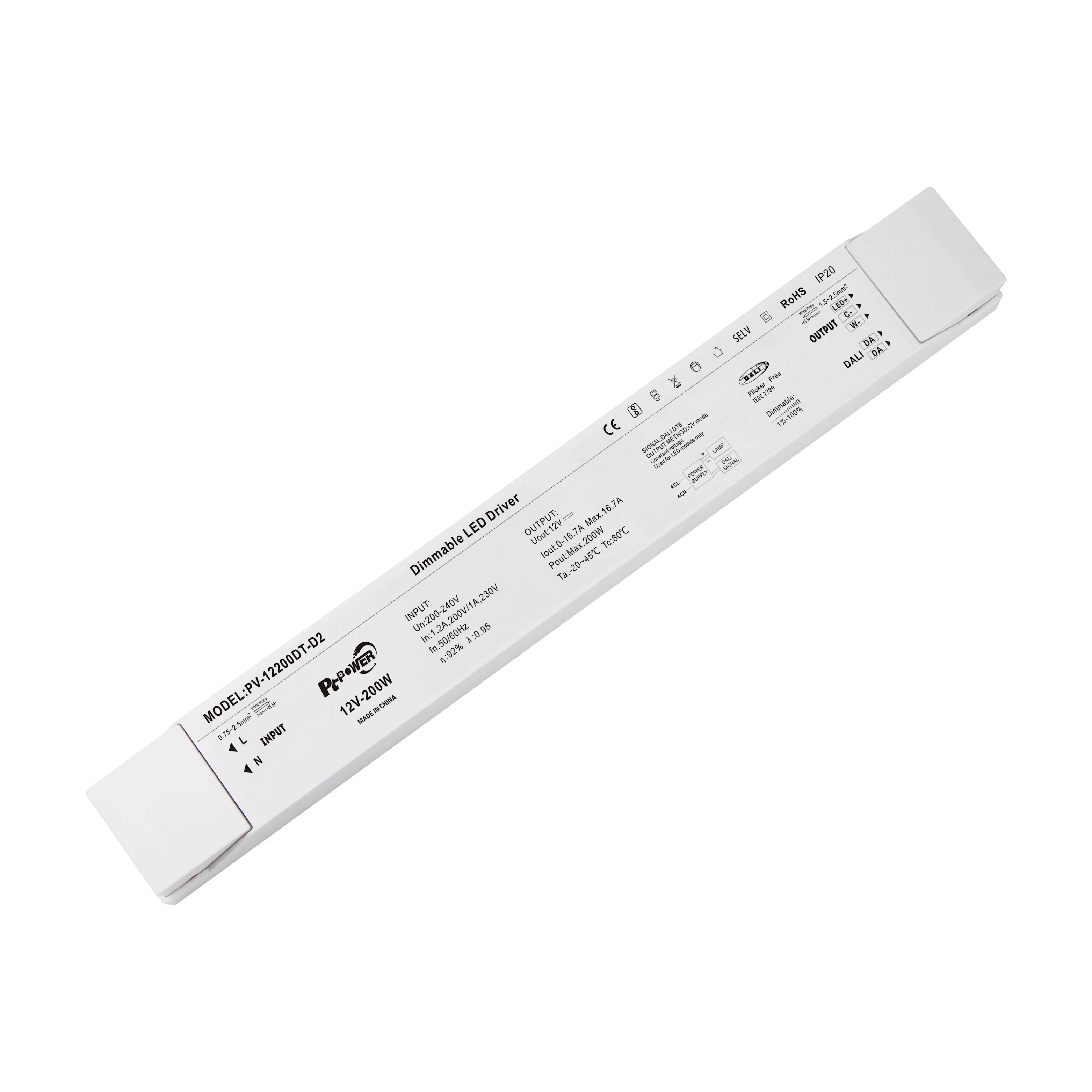

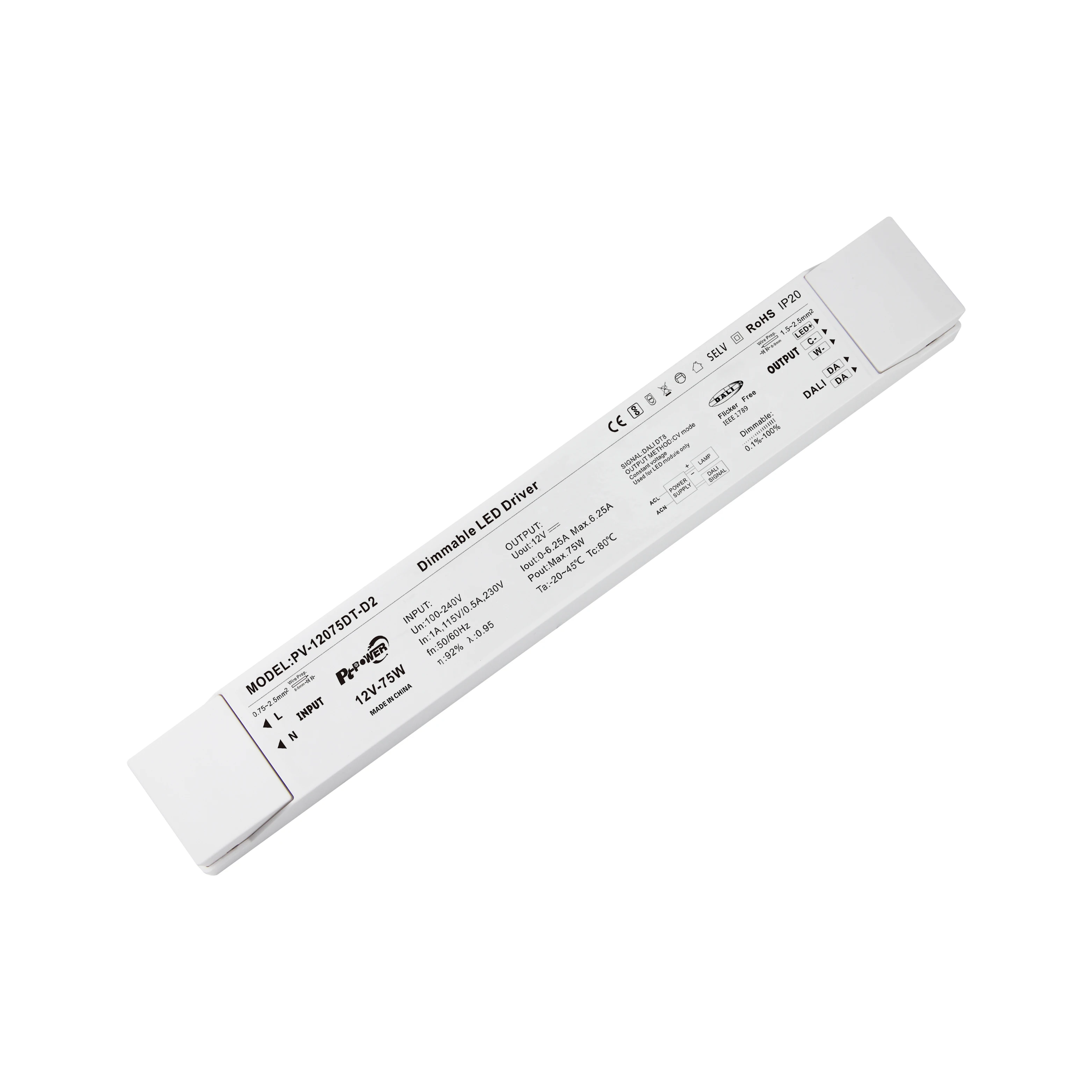

LED Lamp Power Supply DALI2 DT8 White Constant Voltage LED Light Driver

Model No.:

PV-12150DT-D2

PV-24150DT-D2

Output

Rated Output Voltage

12V

24V

Output current Range

0-12.5A

0-6.25A

Rated Output Power

150W

Output Voltage Precision

±3%

Output Ripple and Noise

<120mVP-P

240mVP-P

Load Regulation

±2%

Input

Input Voltage Range

200-240VAC

Input Frequency Range

50-60HZ

Power Efficiency

>92%

>93%

PF

PF≥0.97/230Vac, PF≥0.92/264Vac (Full Load)

THD

@THD<20%

Standby Power Consumption

<0.5W

Leak Current

<0.7mA/230VAC

Protection

Overload Protection

When the load current exceeds 110-150% of the output current, the power supply will enter protection state. Protection Mode:
Hiccup Mode.

Short Circuit Protection

The protection mode is Cut-off the output mode. When the short-circuit fault is removed, turn off the power supply and power on
again,or use the DALI signal to re-switch the power supply to resume normal operation.

Working Environment Protection

Working Temperature

-20°C~50°C (Pls refer to "Derating Curve")

Storage Temperature

-40°C~80°C

Ingress Protection Rating

90%RH non condensing, refer to IP20

Shockproof Character

10-500HZ,2G 10min/1cycle,preiod for 60min,each along X,Y,Z axes

Temperature Coefficient

±0.03%°C (0-50°C)

Security Features

Security Standard

IEC 61347-2-13 2014+A1 IEC 61347-1 2015+A1

Withstand Voltage

I/P-O/P:3.75KVAC

Insulation Resistance

I/P-O/P:>100M Ohms/500VDC/25°C/70% RH

EMC

EN55015 EN 61000-3-2:2014 EN 61000-3-3:2013

Size/Weight

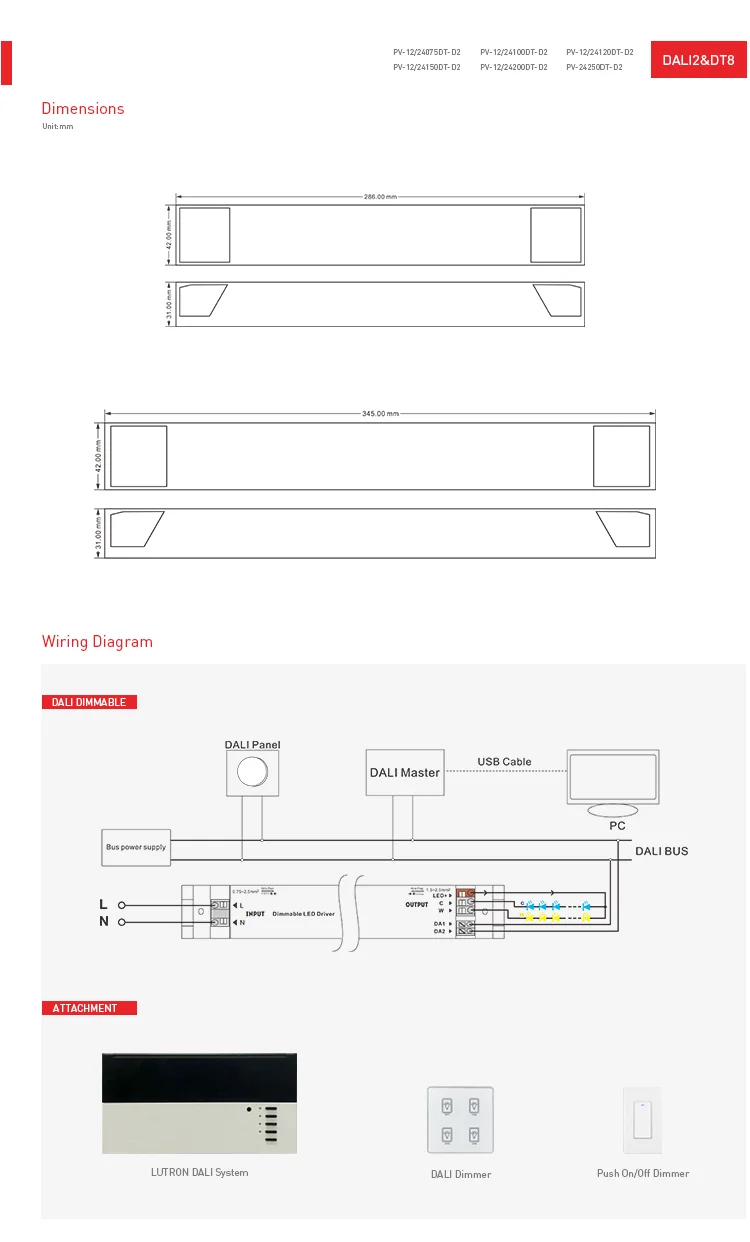

Outter Size

286*42*31mm(L*W*H)

Weight/PCS

320g
