Wholesale Factory Price Cream Charger Customized Fruit Flavored 580g/615g Whipped Cream High Industrial Gas Made Steel 5L/8L
- Category: >>>
- Supplier: Shandong Yongan Heli Cylinder Co. Ltd.
Share on (1601101035721):
Product Overview
Description

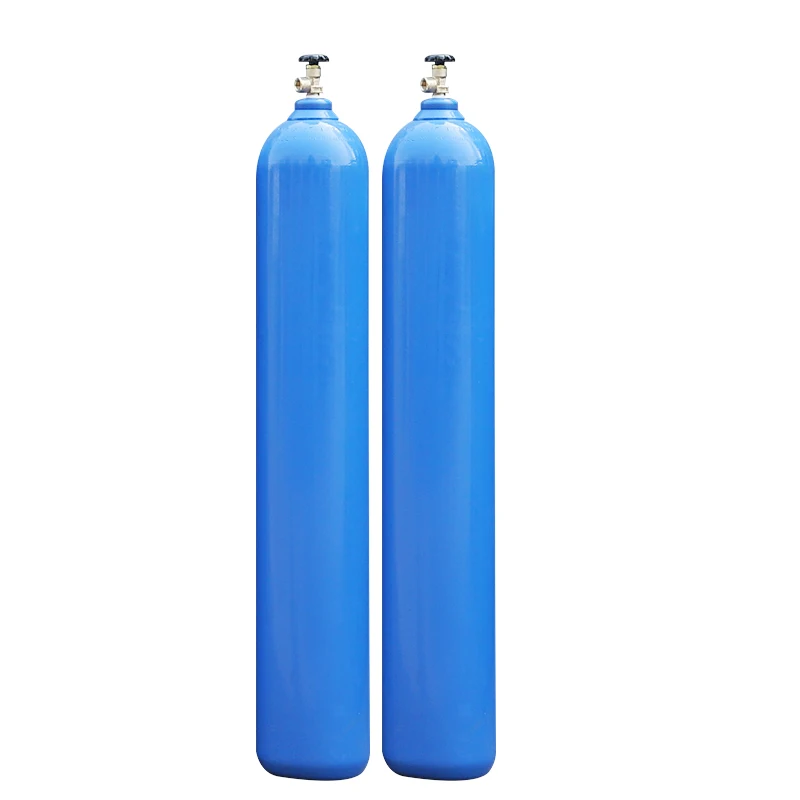

Lso9809 Standard 13.6Kg 10M3 10 L 150Bar Oxygen Cylinder With Valve
 | 10L Oxygen Gas Cylinder | |
| Cylinder Standard | ISO9809-3 | |
| Outside diametor | 152mm | |
| Water capacity | 10L | |
| Height(without valve) | 710mm | |
| Weight(without valve/cap) | 13.6Kg | |
| Service pressure | 150Bar | |
| Test pressure | 250Bar | |
| Design wall thickness | 4.0mm | |
| material | 37Mn | |
ISO9809-3 Standard Gas Cylinders | ||||||||
| Type | Outside Diameter (mm) | Water Capacity (L) | Height (Without Valve) | Weight (Without Valve/Cap) (kg) | Service Pressure (Bar) | Test Pressure (Bar) | Design Wall Thickness (mm) | Material |
| ISO219-4-15 | 140 | 4 | 460 | 8.2 | 150 | 250 | 3.6 | 37Mn |
| ISO219-10-15 | 152 | 10 | 710 | 13.6 | 4.0 | |||
| ISO219-15-15 | 152 | 15 | 1020 | 18.6 | 4.0 | |||
| ISO219-20-15 | 219 | 20 | 700 | 28 | 5.7 | |||
| ISO219-40-15 | 219 | 40 | 1315 | 48 | 5.7 | |||
| ISO219-47-15 | 232 | 47 | 1370 | 55 | 6.0 | |||
| ISO219-50-15 | 232 | 50 | 1460 | 58 | 6.0 | |||
| ISO219-50-20 | 232 | 50 | 1450 | 56 | 200 | 300 | 5.8 | |
| ISO219-50-23 | 232 | 50 | 1450 | 56 | 230 | 345 | 5.8 | 34CrMo4 |
All kinds of oxygen cylinders have ISO TPED TESO TUV standard and other authority quality certification, the bottle body adopts the most advanced 37Mn steel seamless manufacturing process, high strength and durable.The valve adopts QF-2 series of manual detachable national standard strip steel printing, GB/8 standard air outlet, safe and leakproof.The color of the bottle body can be customized. Adequate inventory of various types of cylinders can be delivered quickly.
