Factory P10 Easy Installation LED Screens Commercial Advertising Bill Boarding P10 SMD Outdoor LED Display 1/2 scan
Part Number | Value |
Pixel Pitch | 10mm |
Physical Density | 10000pixels/m² |
Pixel configuration | 1R1G1B |
LED Arrangement | SMD3535 LED |
Module Dimension | 320×160mm |
Module Resolution | 32×16pixels |

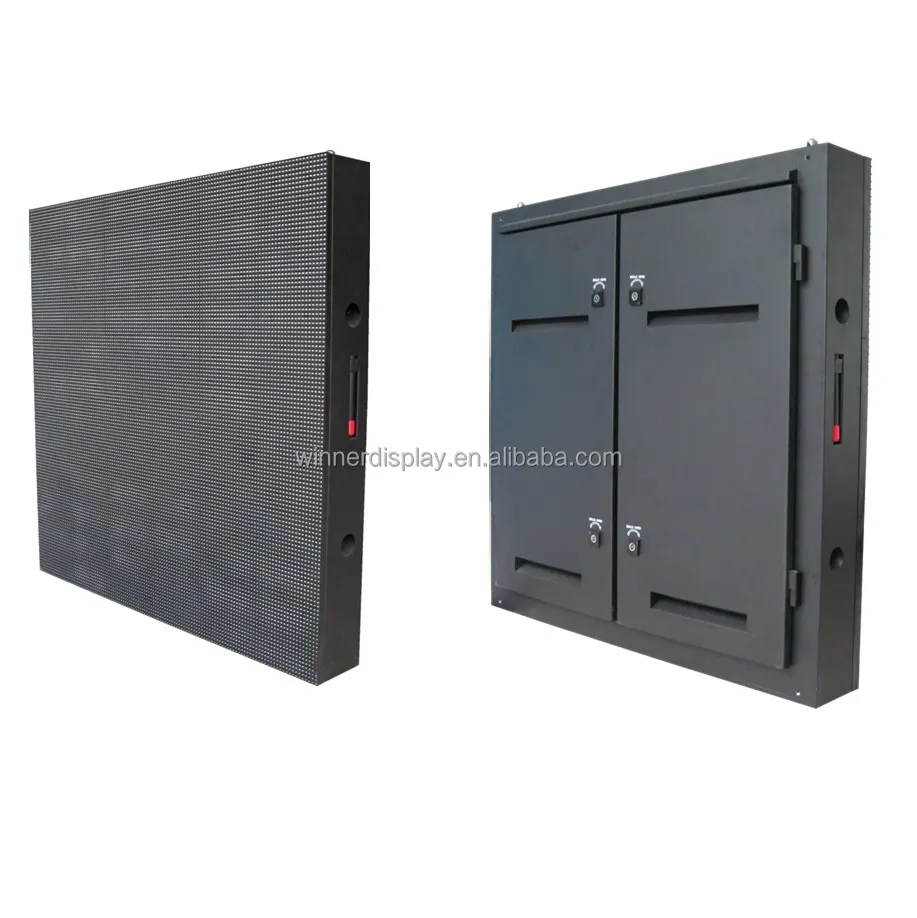

Cabinet Dimension | 960×960×120mm(customization) |
Cabinet Resolution | 96×96pixels |
Cabinet Weight | 45kg |
Brightness Level | 6000nits |
Max Power Consumption | 900W |
Ave Power Consumption | 300W |
Viewing Angle | 120°/120° |
Operating Power Source | AC90-240V 50-60Hz |
Operating Temperature | −20℃~+60℃ |
Refresh Rate | 1,000~3,840Hz (Configurable) |
Drive Mode | 1/2 scan constant current |
Signal Input Source | Composite, S-Video, Component, VGA, DVI, HDMI, SDI, HD SDI |
Life Span | 100,000Hours |
MTBF | 5,000Hours |
Protecting Rating | IP65 |
Languages | English, French, Spanish ,Greek,Russian and Italian.... |
Operating system | Windows (2000/XP/Vista/Win7/Win8/Win10...) |
Verification | CE, EMC, LVD, ROHS |
Function
-display content: text, pictures, video, and can receive several kinds of video signals like TV, VCR, DVD etc.;
-diverse cabinets: column mounted, hanging mounted, place installation, lifting installation etc.

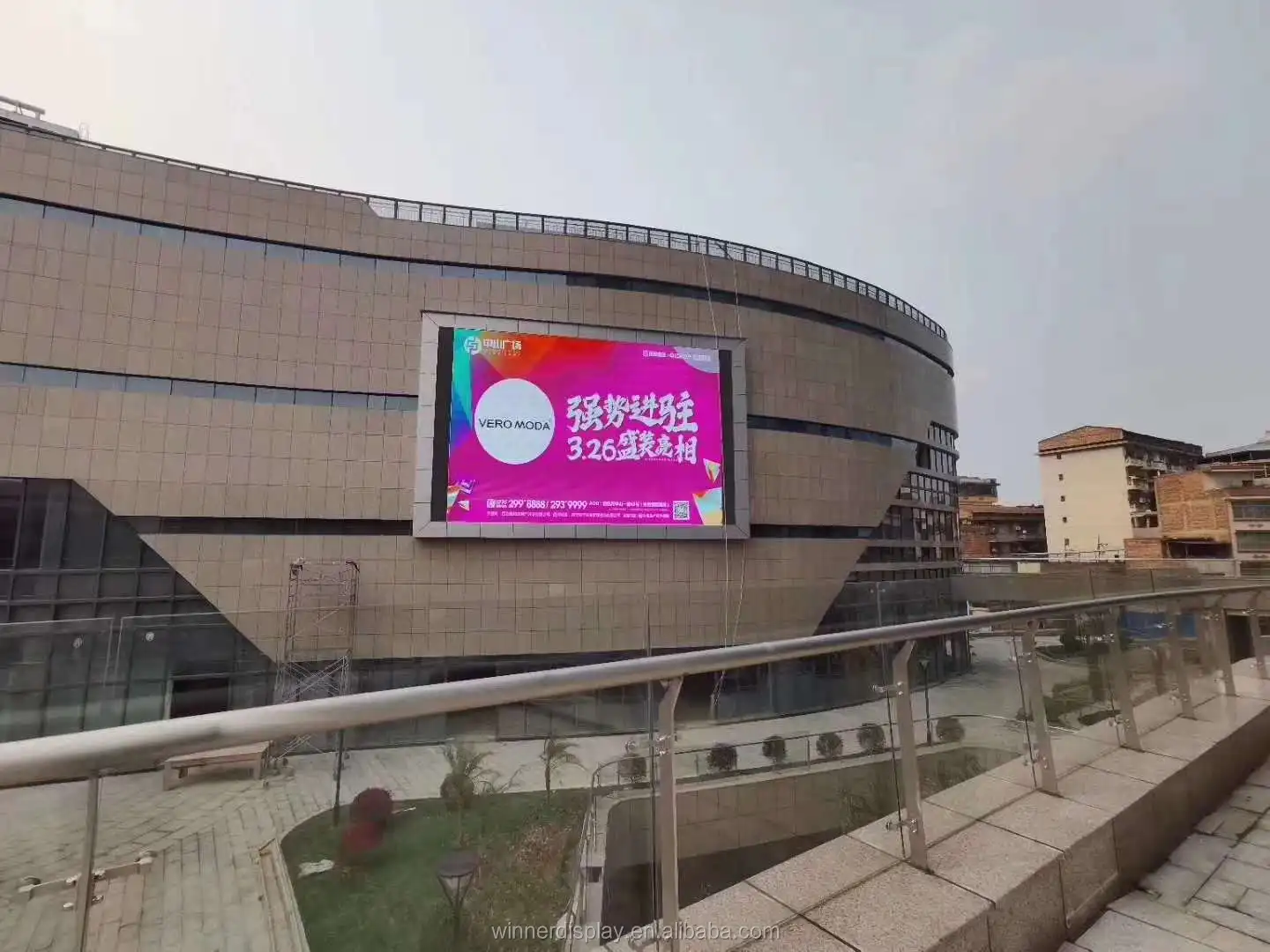

Outdoor full color display refers to the all-weather LED display applied in outdoor complex environment, connecting optics, microelectronics, information processing, mechanics and other technologies as a whole. The main application areas: Government Plaza, leisure square, Cultural Square, large entertainment plaza, commercial center, advertising- information publish board, commercial street, railway stations, airports, bus stations, subway, shopping malls, supermarkets, hospitals, hotels , education system, bank, securities markets, auction houses, shopping centers, media centers etc.
P10 outdoor led display screen led business screen bright led display signs

Control Mode
Synchronous and control mode: synchronous convenience control and synchronous supersized-screen control (Asynchronous control optional: WIFI/ LAN / USB / 4G. They can be freely selective according to the scene and as customers' requests).








1. We provide 2 years warranty. If the item is defective, please notify us within 7 days after goods delivered.
2. All items must be returned in their original condition, in order to qualify for a refund or exchange of goods.
3. The buyer is responsible for all shipping costs incurred.
4.Support 24 Hours Online Guide & Help if you have any problems!
5. High quality original LED Chip with CE,ROHS,FCC certified.(Epistar)!
6. We gaurantee to test every part before the delivery and gaurantee the quality!

Shenzhen Leading Optoelectronics Co.,Ltd. is an excellent global supplier which are specialized in the research&develoment, production, marketing and engineering services of LED display screens, LED light and other series of LED products. We are equipped with full series automatic production lines, including advanced manufacturing equipments and perfect testing devices, which guarantee the monthly production capacity of 4,000 square meters of LED displays.


Q1. What is your terms of packing?
A: Generally, we pack our goods in carton boxes, wooden boxes or flight case. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 7 to 15 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
