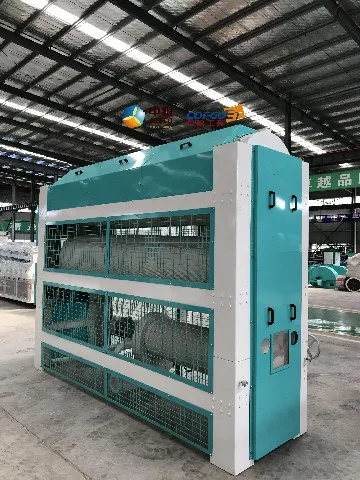

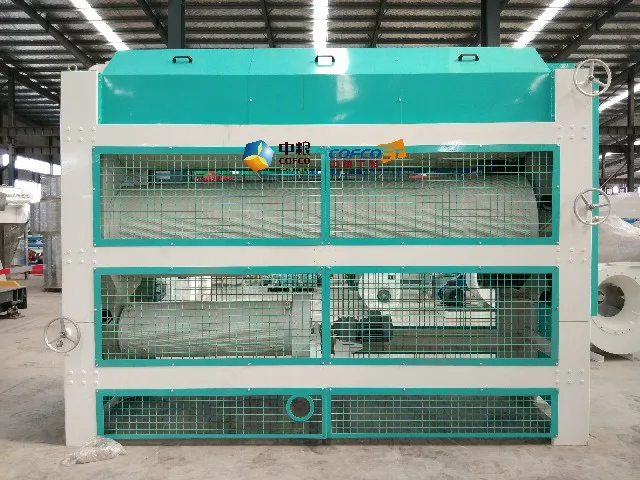

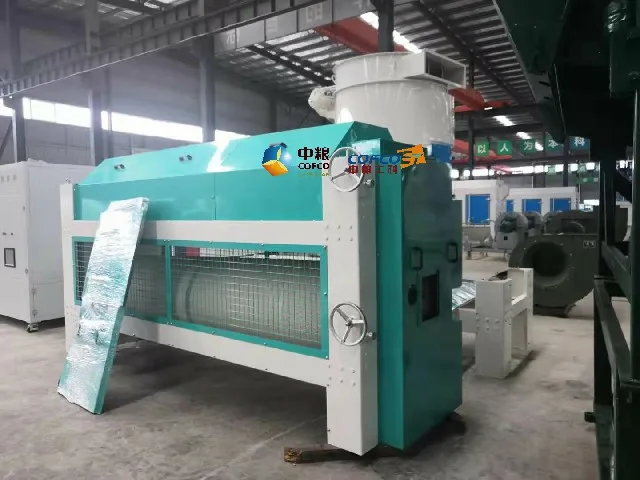

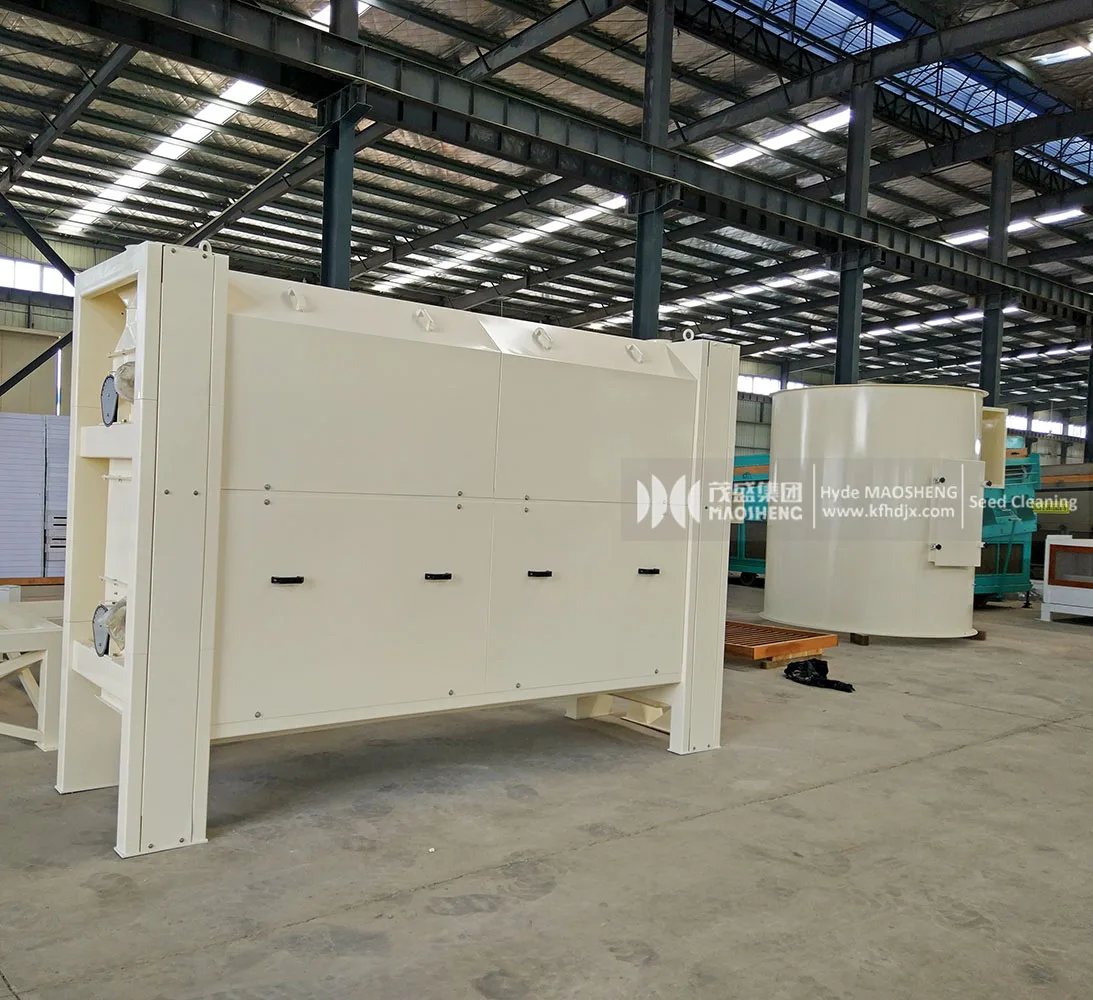

5XW-5 Seed Indented Cylinder Separator



1) Function: gentle grading of all granular materials by length
2) Capacity: 5t/h (based on wheat with 3% impurities).



Indented cylinders combine long and short grain separation in one system, separating products by length. They are usually used after the pre-cleaning machine or air screen cleaner. The speed of the cylinders and the flow rate can be adjusted for different processing materials to achieve a maximum quality of product separation.





5XW-5 Indented Cylinder Length Grader Application

Hyde 5XW-5 Seed Indented Cylinder are used for sorting and separating granular and free flowing products such as wheat, paddy, barley, maize, fine seeds, and sticks from sunflower or sugar beet, plastic particles etc.



Hyde 5XW-5 Indented Cylinder in 5t/h Paddy Rice Cleaning Plant



Hyde 5XW-5 Indented Cylinder in Paddy Wheat Oat Plant





Working Principle 5XW-5 Seed Indent Cylinder

Hyde 5XW-5 indented cylinder machine is equipped with one indented cylinder for short grain separation and one for long grain separation (for series mode). Inside each cylinder there is the trough with a auger conveyor. Each cylinder is driven by a gear motor.

Left: Series Mode (above for separate both long and short impurities);                  Right: Parallel Mode

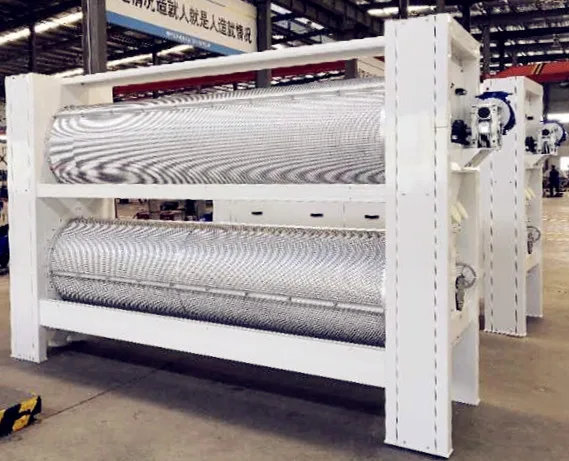

Working part of indented cylinder is the rotating cylinders whose cover is provided with deep drawn spherical shaped pockets (indented cells) for the most precise length separation.



Grains which sizes are smaller than pockets will stay in the indented pockets, and will be lifted with the rotation of cylinder, after a certain distance (adjustable) fall out of the pockets under gravity into the trough, then discharged to the product outlet by auger conveyor. Impurities which are longer than the indent diameter will remain on the inside surface of cylinder and slide out to impurity outlet of cylinder. (Same for long grain and short impurity)

Left: Series Mode;                                                                   Right: Parallel Mode

5XW-5 Indented Cylinder Advantages

•


  Gentle cleaning and grading of seeds and grains.





•


  Bolted robust steel structure and compact size.





•


  Full-closed cylinder to reduce the dust.





•


  Cylinders can be series or parallel as per requirement, driven by individual motor.





•


  Quick changeable indented cover, easy to remove the accumulation.





•


  Easy and adjustable trough positioning.





•


  Dust aspiration outlet to connect with dust collector.




5XW-5 Seed Indent Cylinder Specification

Item		Unit	Specification
Overall Dimension (L×W×H)		mm	3881×1040×2330
Total Weight		kg	1500
Rated Capacity		t/h	5
Power	Motor		Cylinder Motor×2
	Type		YSJ90L4
	Power	kW	1.5×2
	Rotate Speed	rpm	1400
Cylinder ×2	Dimension (Dia.×L)	mm	Φ700×2700	Φ700×2700
	Indented Pocket Diameter	mm	5.6 or 8.5	5.6 or 8.5
	Rotating Speed	rpm	38~48(adjustable)	38~48(adjustable)
	Dip Angle	(°)	0	0
Product Trough Adjustable Range		(°)	0~360	0~360

 Notes:

1. Machine can be converted to different cleaning programs, cylinder cover shall be changed accordingly.
2. Above technical data can vary due to continued development, or different machine configurations.
