Skyplant 40HQ Green Leafy Vegetables Vertical farming Growing Hydroponics Container Farm Cucumber Container Farming System
Skyplant 40HQ Green Leafy Vegetables Vertical farming Growing Hydroponics Container Farm Cucumber Container Farming System
Skyplant 40HQ Green Leafy Vegetables Vertical farming Growing Hydroponics Container Farm Cucumber Container Farming System
Skyplant 40HQ Green Leafy Vegetables Vertical farming Growing Hydroponics Container Farm Cucumber Container Farming System
Skyplant 40HQ Green Leafy Vegetables Vertical farming Growing Hydroponics Container Farm Cucumber Container Farming System
Skyplant 40HQ Green Leafy Vegetables Vertical farming Growing Hydroponics Container Farm Cucumber Container Farming System
Skyplant 40HQ Green Leafy Vegetables Vertical farming Growing Hydroponics Container Farm Cucumber Container Farming System

Skyplant 40HQ Green Leafy Vegetables Vertical farming Growing Hydroponics Container Farm Cucumber Container Farming System

Share on (1601101072580):


Price:$28,000.00 - $35,000.00

Quantity:


Product Overview

Description



Product Description

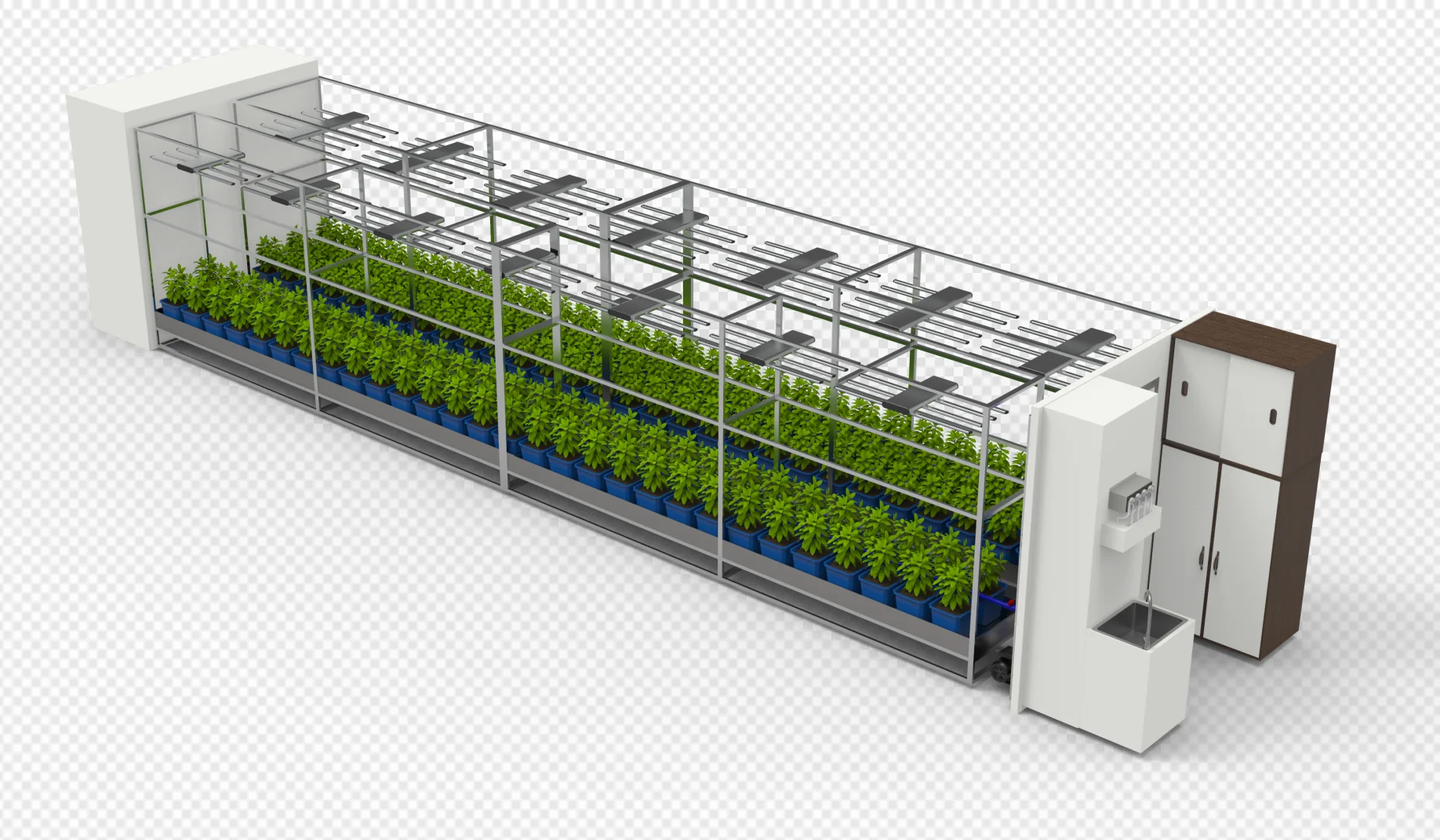

Container farm
Absolute independent growing system,removable

Adaptable, free from environmental impacts such as temperature and humidity, altitude and harsh weather;
System integration modular; modular product components;
Adopt automatic water circulation system to save manpower and realize intelligent production;
The cultivation frame module has high strength, simple appearance and convenient maintenance;
Patented LED light source formula ensures quality and significant energy saving;
Not relying on outside enviroment,year round production

Production of zero-pesticide, zero-residue organic vegetables to ensure food safety
Energy-saving insulated refrigerator
Soilless culture nutrient solution
Intelligent environment control system
High quality plant provenance

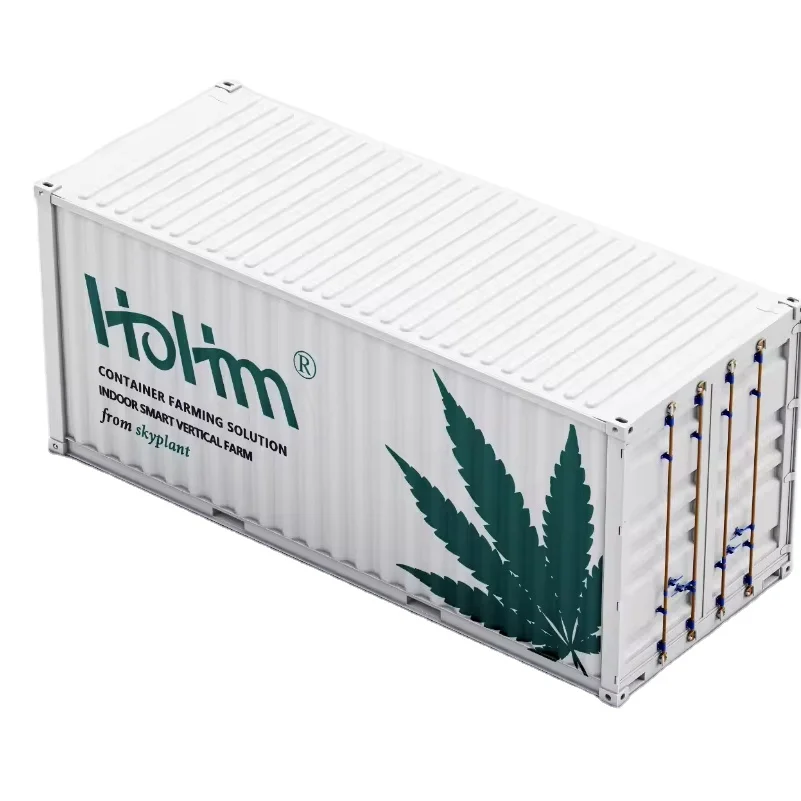

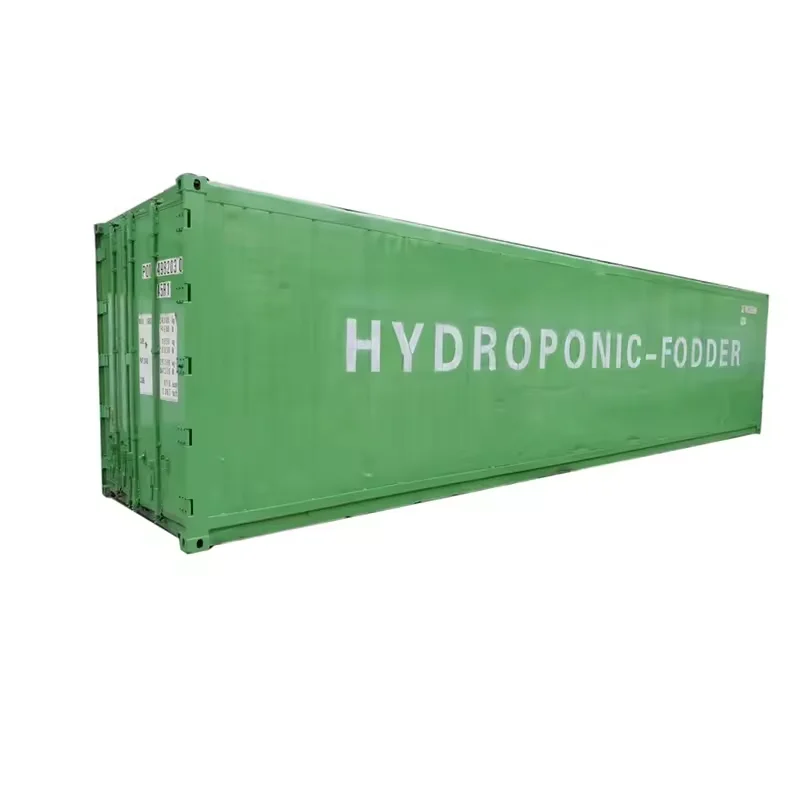

Container Specification1.The container is the most commonly used 40 foot HC standard steel refrigerated container with high
strength, good appearance,and durability, easy to repair. In accordance with ISO standards, suitable for sea transportation and
inland transportation. The structural features are as follows: corten weather resistant steel frame, MGSS stainless steel outer
plate, HGSS stainless steel inner and door lining, aluminum plate pre-coated inner top; double open back door, without rivet door
plate.
2. Outer size：12192*2438*2896mm，Inter size：11590*2294*2674mm.

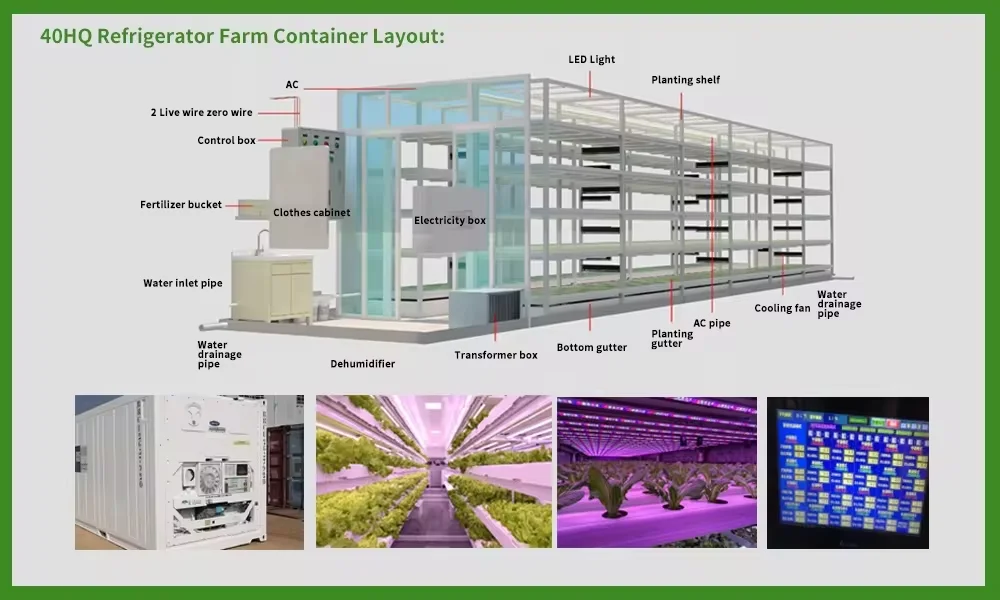

Product name
40HQ farm container
Brand
SKYPLANT
Size
12192mm*2438mm*2896mm
Growing system
1.seeding and planting system
2.light compensation system
3.intelligent fertilizer system
4.air circulation system
5.intelligent control system
Usage
leafy vegetable, hemp, fodder herbage，Strawberries
Production capacity
1100/crop，year-round production
Power consumption
Lighting 12 hours / day;140kW·h/ day
Power parameter
220V/380V，50HZ（3PH，5lines），P=20.7kW






Air circulation system
1.The air circulation system includes fans, air conditioner and dehumidifier.
2.The air in the container can be changed
automatically within 30 minutes through the main control system.
3.When the external temperature of the container is in the range of - 30 C to+ 40 °c, the temperature of the growth chamber and operation room is in the

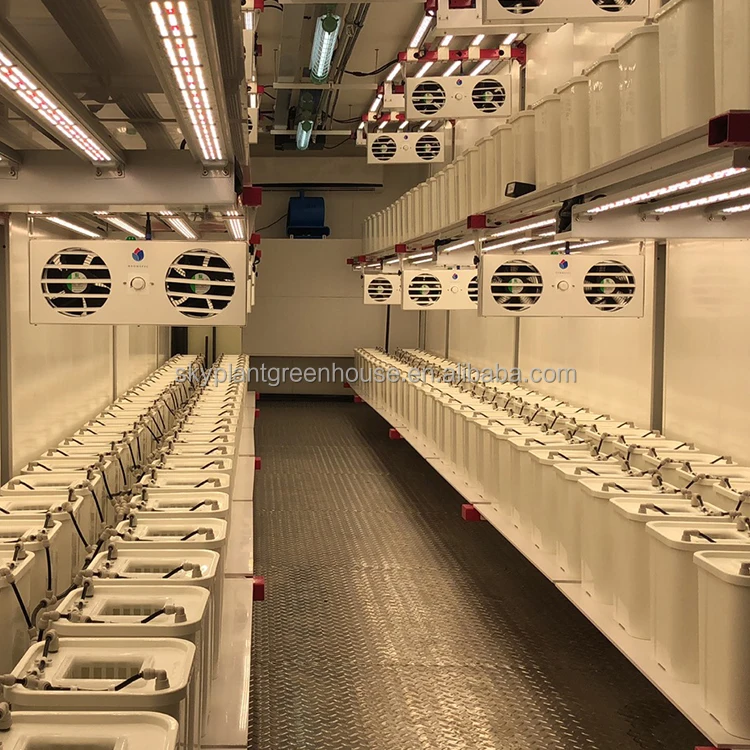

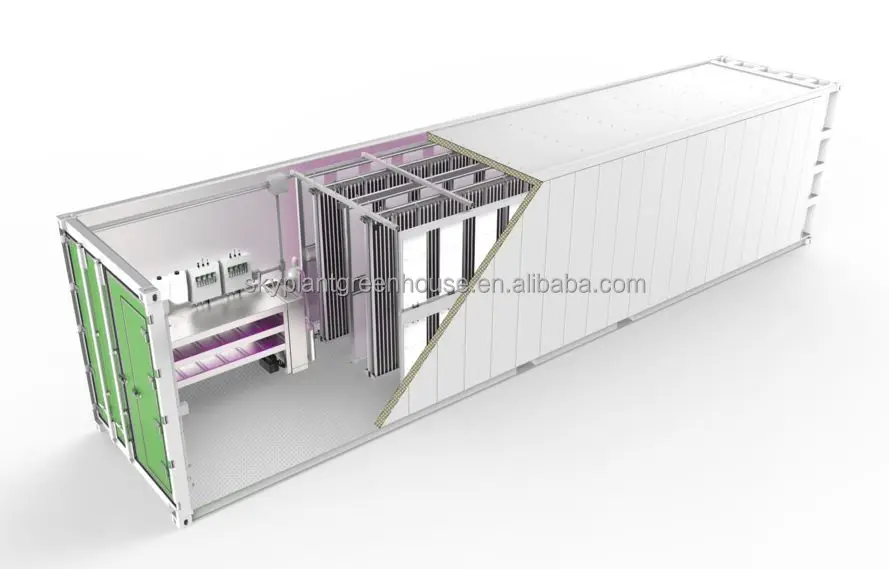

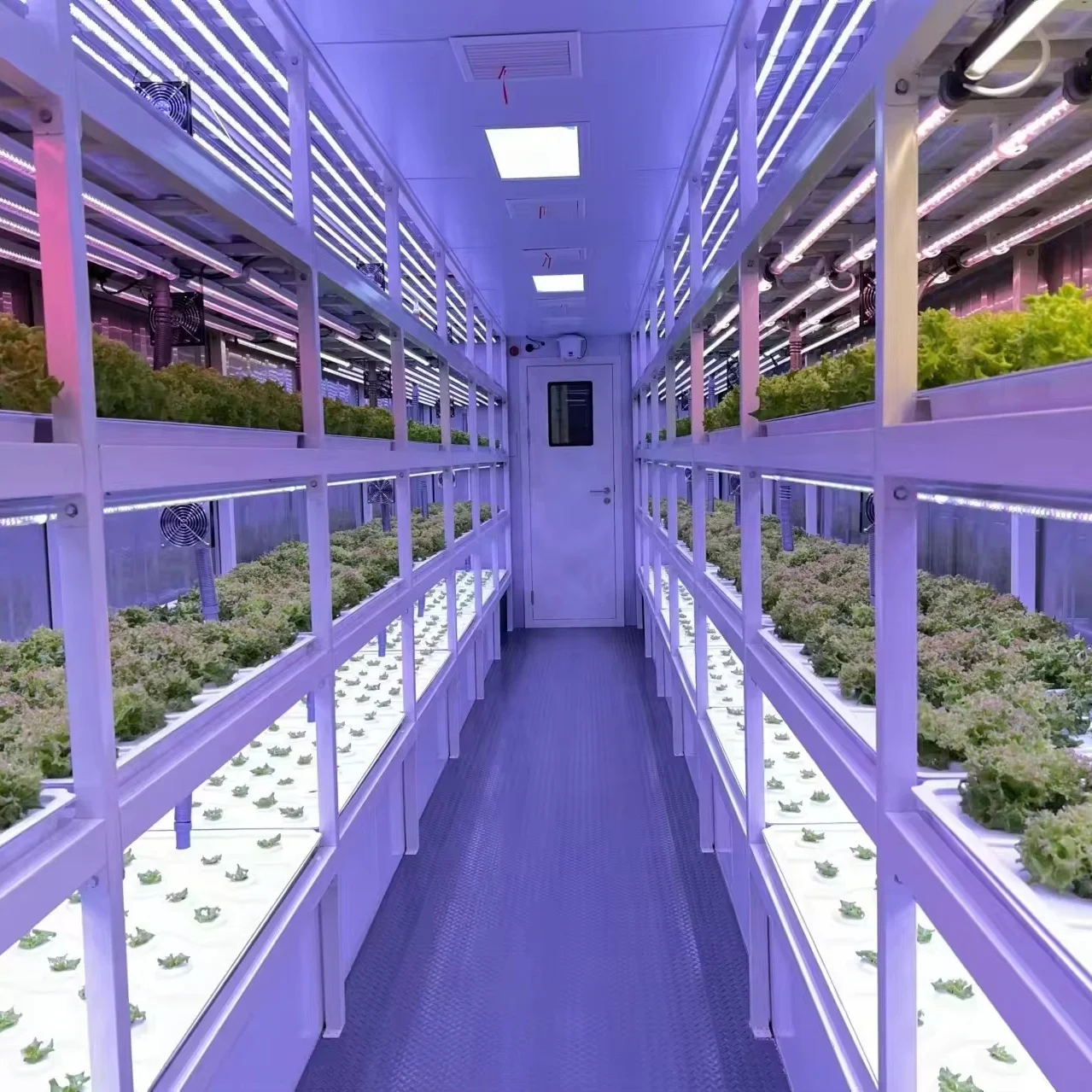

Seedling and planting system

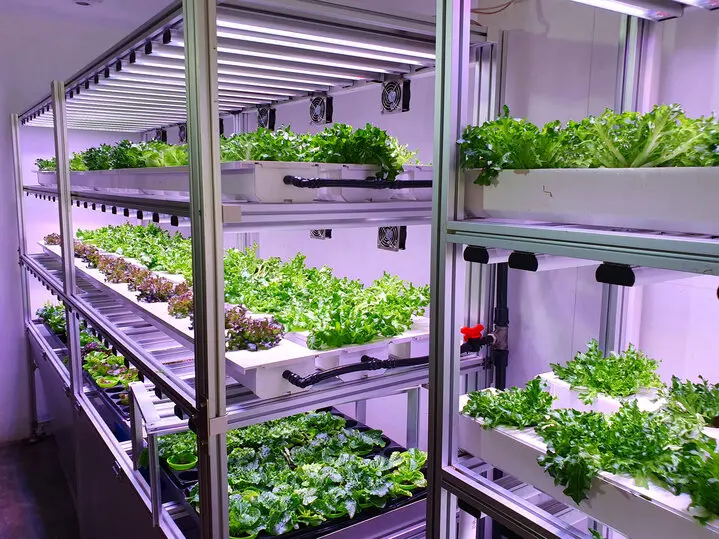

1.There are 10 layers of planting tray in the growingroom,the use of vertical hydroponics plantinggreatly improves the utilization
of space and thequality of crops.
2.The seedling box can raise 5800 seedlings at thesame time.

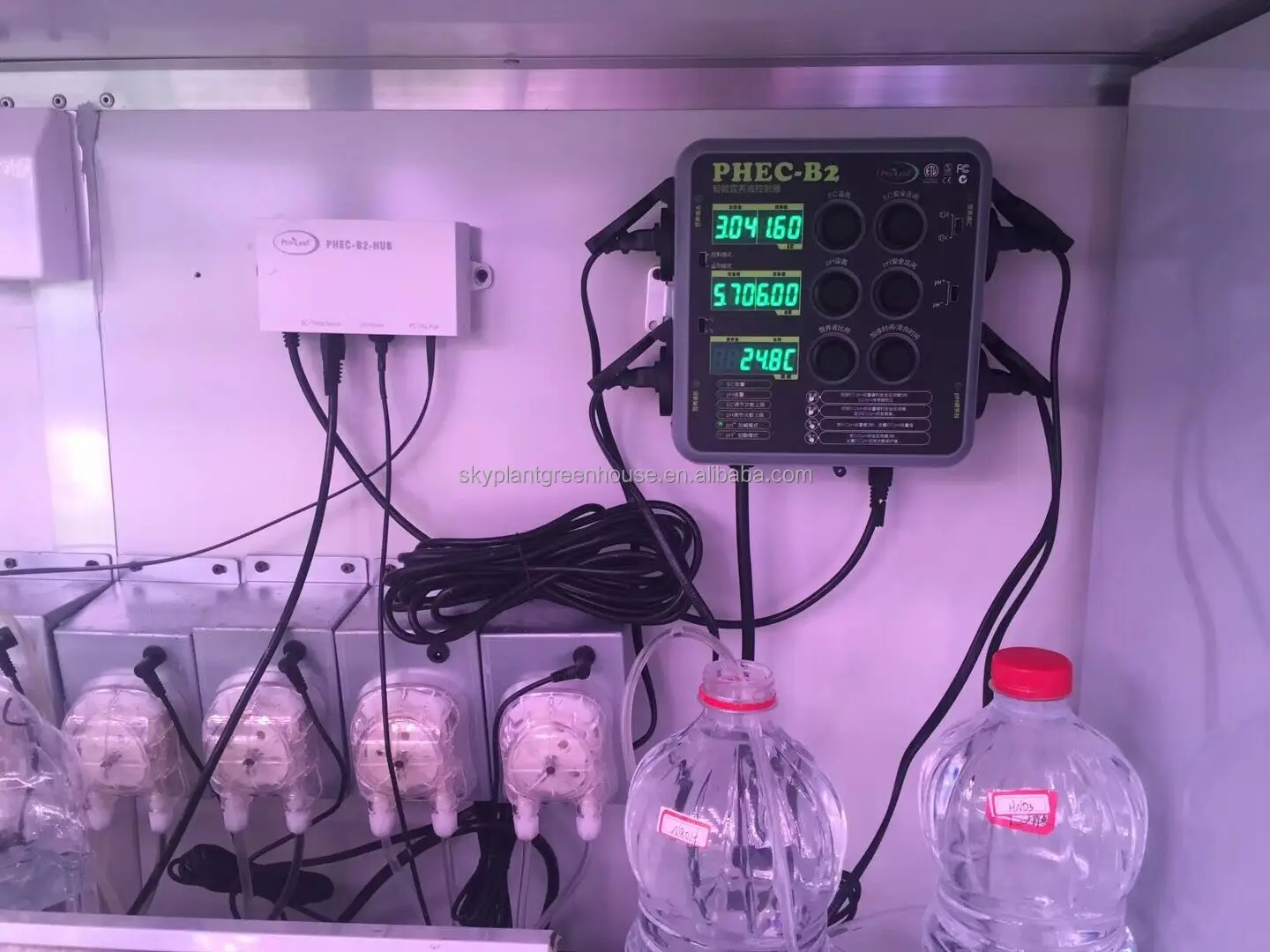

Water and fertilizer system
1.The water and fertilizer system is a special systemfor NFT hydroponics planting.
2.lt can effectively achieve a uniform ratio of
waterand fertilizer, and irrigate crops on time and amountto meet crop water demand while achieving water saving irrigation

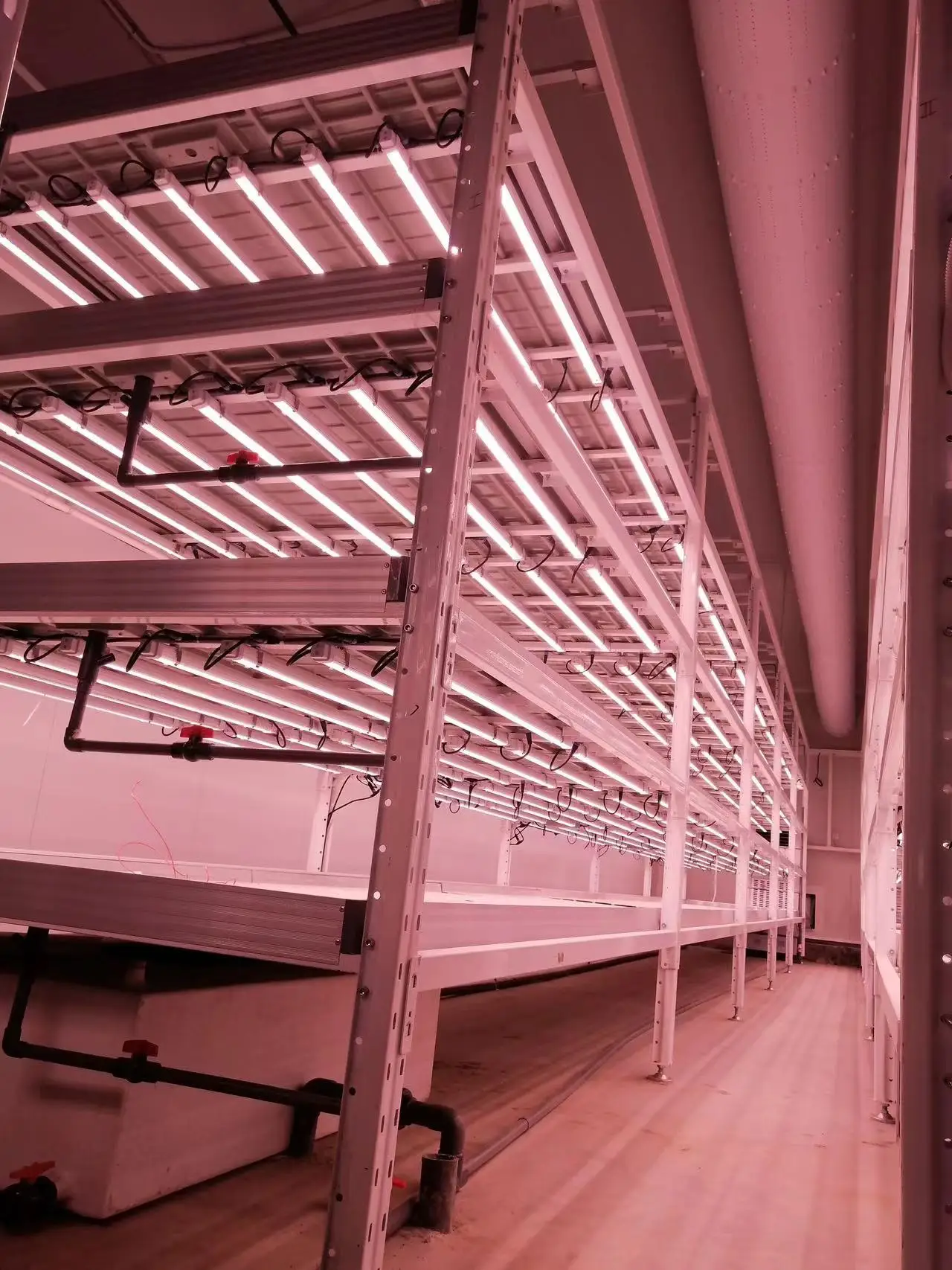

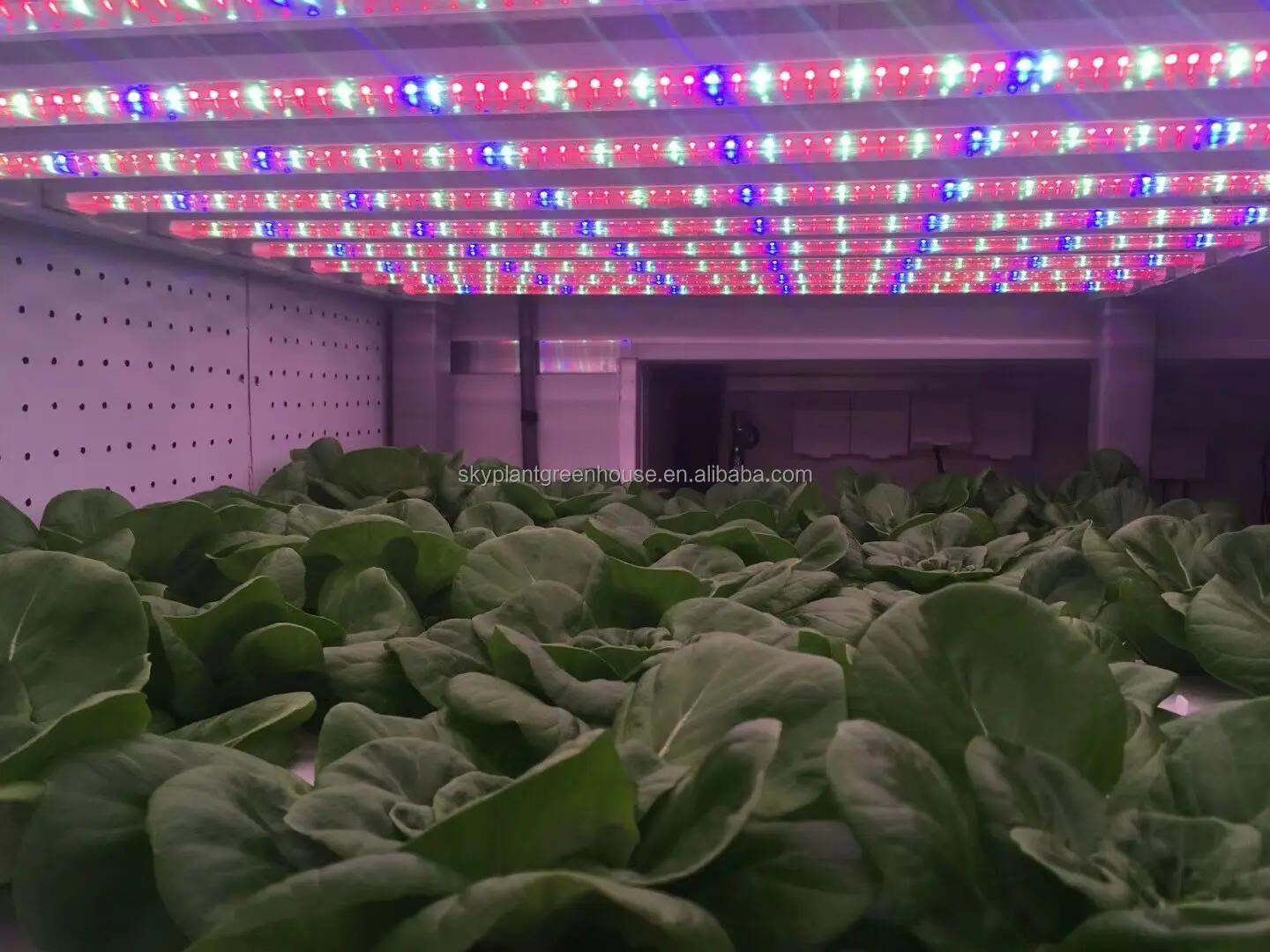

Growth lighting system


Planting room, seedling box and operation roomare equipped with LED growth lights.


lntelligent control system
1.Intelligent control system can auto mati cally control all power equipment in the box.
2.The main control system can auto mati
cally control light, temperature, humidity, co2 concentration and other environmental datathrough PLC, automatically control the
NFT hydroponic planting system, automatically adjustthe EC/PH value in the fertilizer.














Packing & Delivery

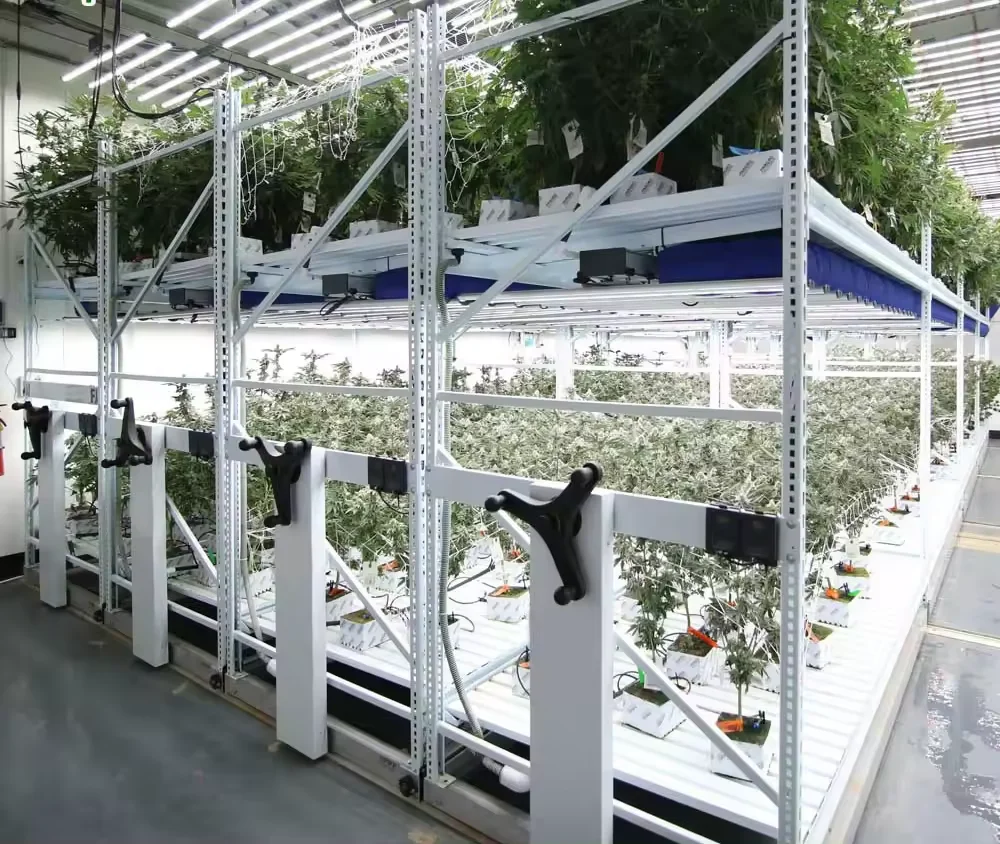

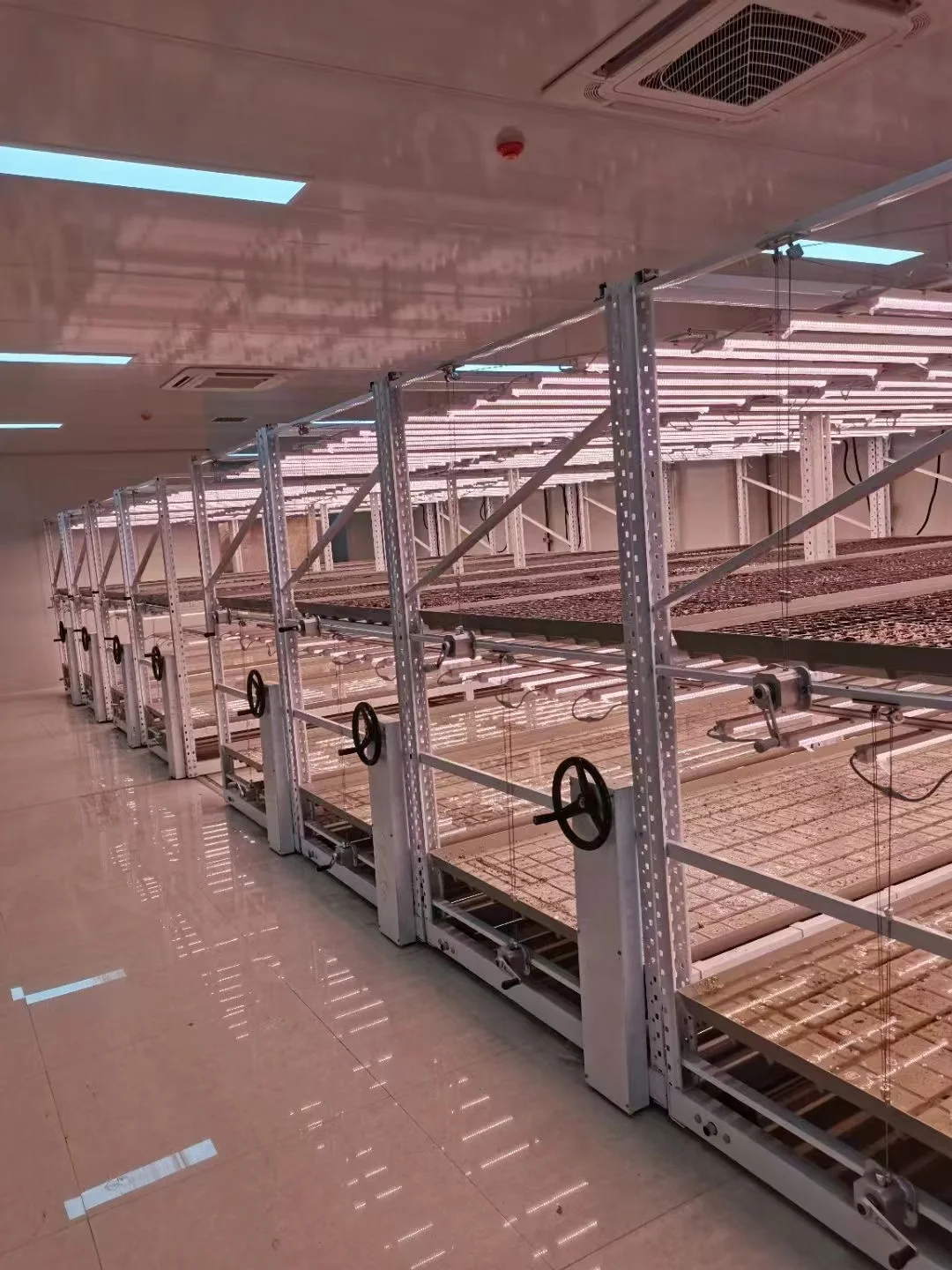

Skyplant Growing Rack Solution , Vertical Rolling Bench For Grow, Multi-layer Rolling Bench ,2 Floor Rolling Bench Table,Movable Rolling Bench For Seedling And Flow,Rolling Bench Vertical Grow Rack System Indoor Growing Table Rolling Table Rolling Benches Seedling Bed Plastic Nursery Bed,Growing Seedlings Trays Hydroponic Plastic Seedling Nursery Bed Bench, Multiple Size Benches Rolling Beds Indoor Grow Racks
Greenhouse Grow Racks ,Multi-tier Mobile Grow Racks ,Rolling Bench ,Vertical Farming Nursery Rolling Bench, Mobile Storage System ,Mobile Vertical Farming Systems, Grow Rack Rolling Bench ,Mobile Vertical Grow Racks, Multi-tier Mobile Grow Racks 4x8 Vertical Grow,Rack Automated Grow Rack, Vertical Grow System, Mobile Vertical Grow Racks ,Grow Racks And Rolling Bench ,Flood Trays Hemp Grow Equipment ,Greenhouse Rolling Bench


Hydroponic ebb and flow heavy duty rolling table grow rack for USA market
Less than 700 sqm, all items are packed in wooden boxes if they are LCL;
700sqm in 20''container,1400sqm in 40''container


Company Profile




Our Solutions


Rolling Benches

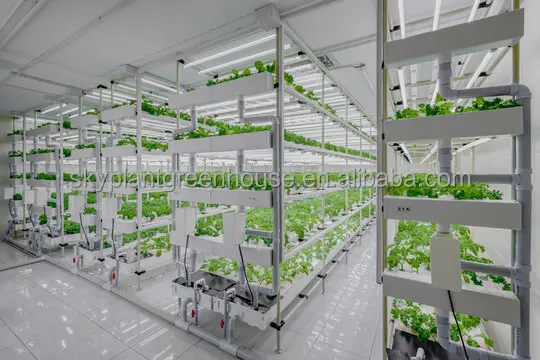

Vertical Grow Systems
