Morin Portable Column PA System 2400W Peak Power Professional Active Line Array Speakers for World Tour and Music Festival
- Category: >>>
- Supplier: Guangzhou Morin Sound Audio Equipment Ltd.
Share on (1601101114586):
Product Overview
Description
Product Paramenters

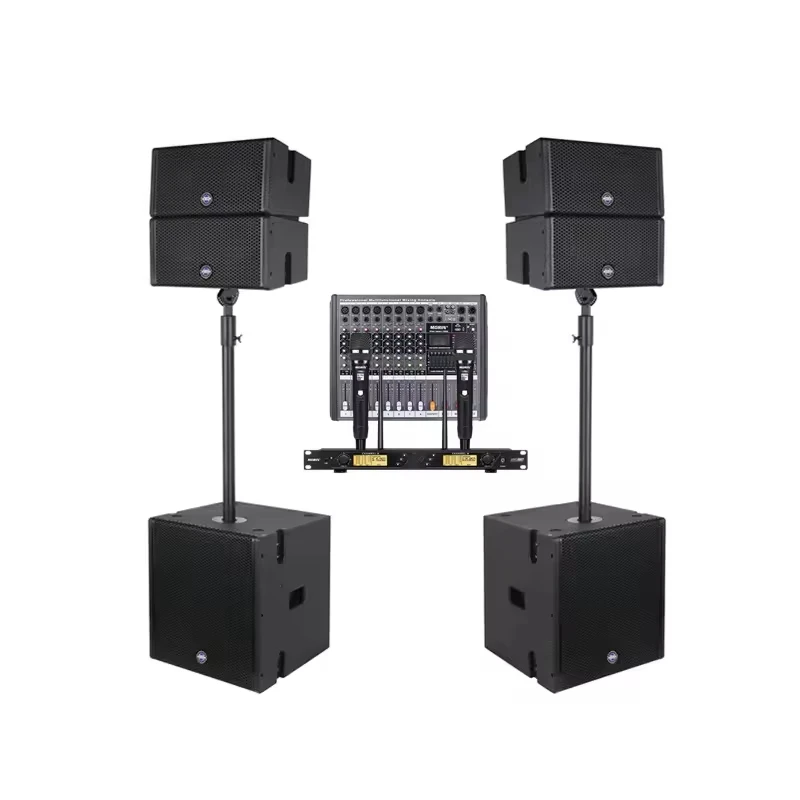

Product Name | Professional Active Line Array Speakers Set | ||||||
Model Name | COX-5.4SET | ||||||
Type | Active | ||||||
Enclosure Material | Plywood | ||||||
Peak Power(w) | 2400W | ||||||
Passive Dual 5 Inch Coaxial Line Array Speaker * 2 pieces | |||||||
Including Parts | Active 12 Inch Subwoofer * 2 pieces | ||||||
3 in 1 amplifer and wireless microphone * 1 set | |||||||
Mixer * 1 piece | |||||||
Speaker Stands * 2 pieces | |||||||
Total Gross Weight(kg) | 90.5 kg | ||||||

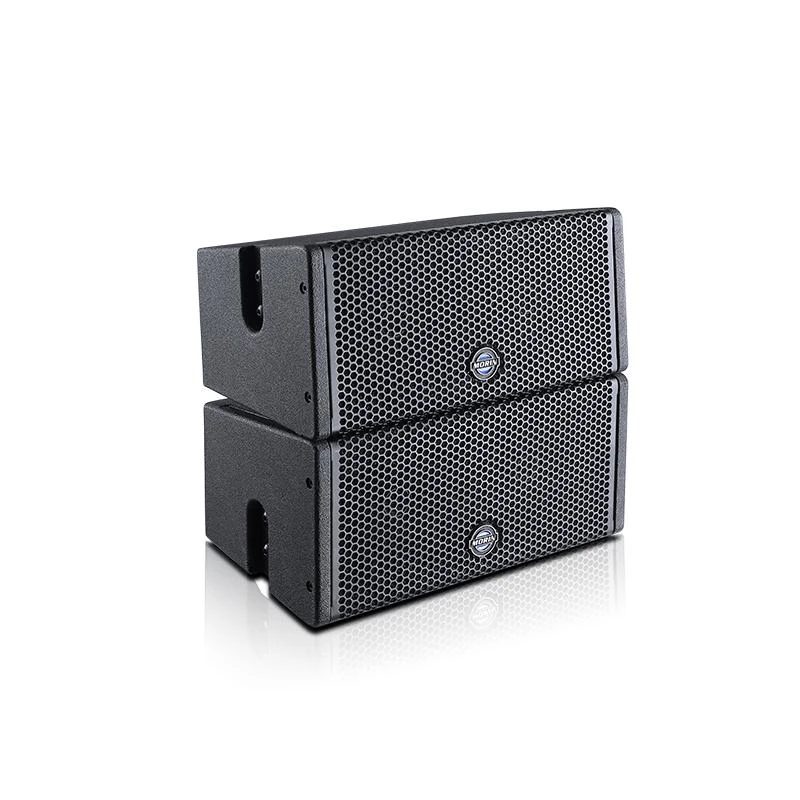

Part One | Passive Dual 5 Inch Coxial Line Array Speaker | ||||||
Model Name | COX-5.4 | ||||||
Components | 2 ×5"LF +2*20mm HF | ||||||
Speaker Unit | 5 Inch Woofer * 2 Piece and 20mm Tweeter * 2 Piece | ||||||
Voice Coil Diameter | HF:Voice Coil Diameter 20mm, LF: Voice Coil Diameter 30mm | ||||||
Frequency Response | 100Hz ～20KHz (±1dB) | ||||||
Impedance(ohm) | 8Ω | ||||||
Hanging Angle | 5° | ||||||
Rate Power | 120W/8 Ω | ||||||
Distortion | <0.05% (specialize good at man voice) | ||||||
Rated Peak SPL | 94db | ||||||
Carton Size | Carton Size: 460*570*490 mm | ||||||
Packing | Kraft paper carton packing with form and desiccant | ||||||
2 pcs Hanging parts and 2pcs line(including 4pcs caron head) | |||||||

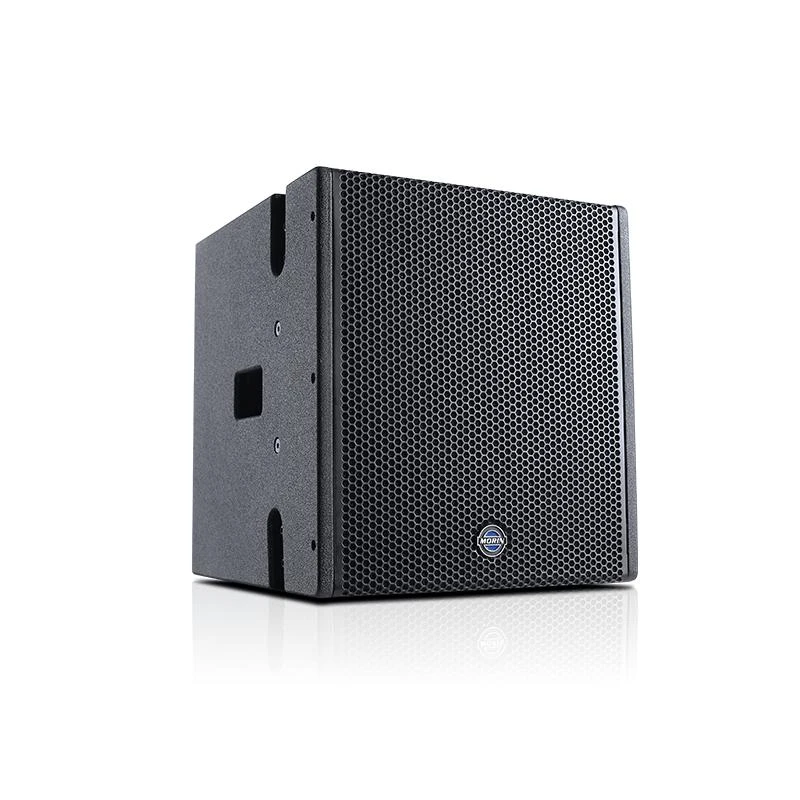

Part Two | Active 12 Inch Subwoofer | ||||||
Model Name | COX-12BDSP | ||||||
Type | Passive | ||||||
Components | 12" Woofer * 1 piece | ||||||
Rated Power | 400W | ||||||
Peak Power | 1200W | ||||||
Sensitivity | 100dB | ||||||
Maximum Peak SPL | 118dB peak,@1m. | ||||||
Feature | with 1 piece DSP audio processor | ||||||
Frequency Response | 40Hz～350Hz (±3dB) | ||||||
Working Impedance | 8Ω | ||||||
Dimension | (L*W*H): 375*395*420 mm | ||||||
Packing | Speaker cabinet made by high quality birch plywood, surface Sprayed painted, aluminium alloy speaker hanger | ||||||
Packing Size | 455*475*466mm 1 piece/1 ctn | ||||||

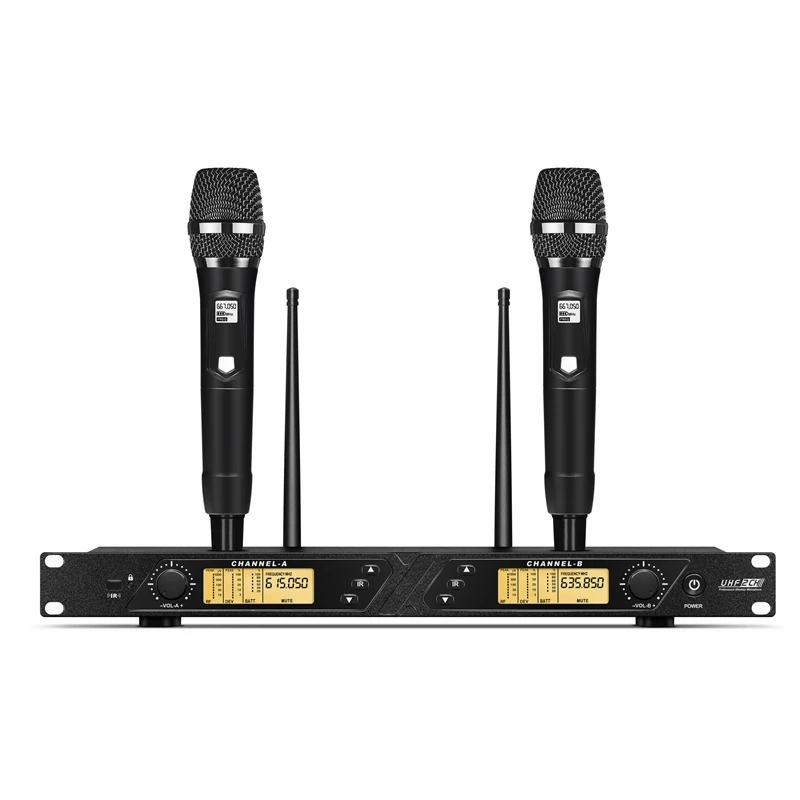

Part Three | 3 in 1 amplifer and wireless microphones | ||||||
Model Name | US-2210 | ||||||
Quantity | 1 Set | ||||||
Feature 1 | High stability/durability tube structure developed and designed for KTV. | ||||||
Feature 2 | Dual channel UHF wireless system with 100 selectable frequencies per channel. | ||||||
Feature 3 | The backlit LED display screen indicates the RF and AF signal strength, battery status, diversity channel indication (A/B), frequency, frequency group/channel, and other working status. | ||||||
Feature 4 | Adopting digital audio code locking technology to effectively block noise interference in the usage environment | ||||||
Feature 5 | Adopting the latest infrared automatic frequency matching (IR) technology, setting and operation are more convenient. | ||||||
Two interchangeable microphones with strong versatility, all metal plated tube body, sturdy, anti drop, wear-resistant frequency range: 610MHz-6700MHz | |||||||
Number of channels | 200 | ||||||
Channel spacing | 300KHZ | ||||||
Frequency stability | ± 0.005% | ||||||

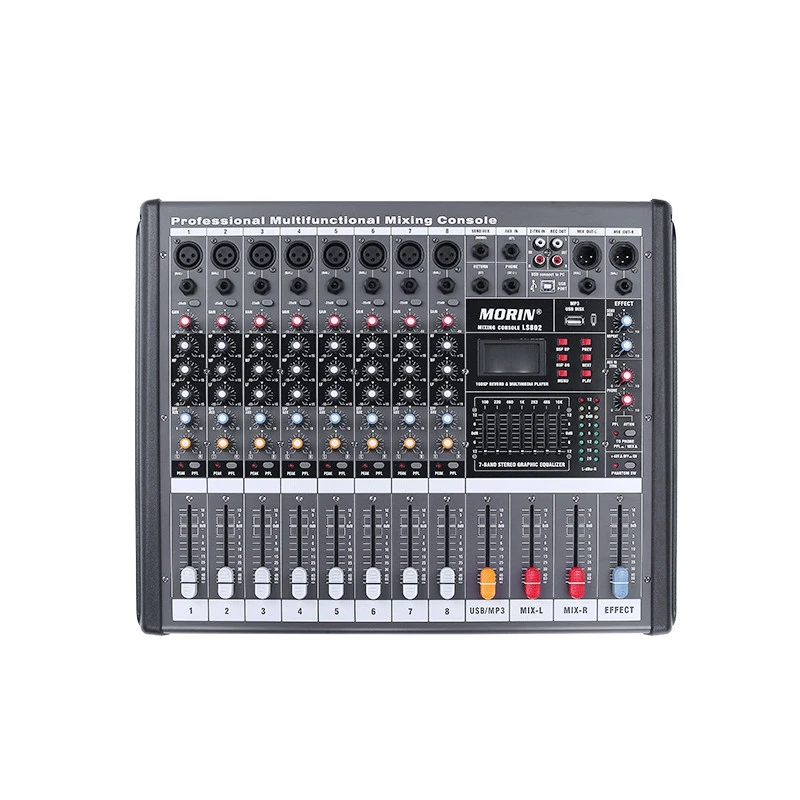

Part Four | 8 Channel Professional Mixing Console | ||||||
Model Name | LS-802 | ||||||
Quantity | 1 Piece | ||||||
Power Supply | Global power supply, universal AC input accepts 90-270V | ||||||
Feature 1 | Equipped with high quailty components, such as TDK resistance, Pillips transisitor, Rubycon capacitor | ||||||
Feature 2 | Stable and efficent switching power supply | ||||||
Feature 3 | 7-Band euqalization adjustment | ||||||
Feature 4 | 16 ECHO Effect | ||||||
Feature 5 | Balanced microphone input | ||||||
Phantom Power | 48V | ||||||
Packing Size | 500*450*160mm | ||||||
Gross Weight | 5.5kg | ||||||
Company Profile

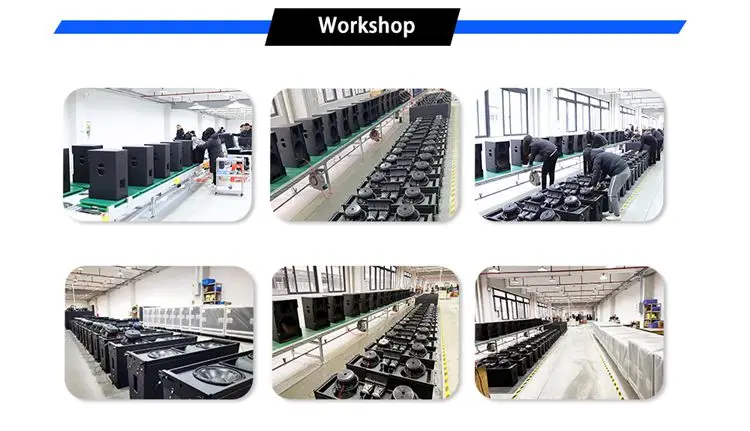

Workshop
