security glass wall glass price facad building facade miter glass cladding panels wall
- Category: >>>
- Supplier: Linqu Sanjing Glass Co. Ltd.Linqu Ltd.
Share on (1601101198192):
Product Overview
Description
Specification
Machining | Cutting, punching, drilling, bending, weld, mill, CNC, etc. |
Single tempered glass: 6/8/10/12mm Laminated glass: 5mm+0.38/0.76/1.52pvb+5mm Double glazing tempered glass: 6mm+6A/9A/12A/27A+6mm Low-E glass tinted/clear ,according to customer's requirement | |
Color | Silver, bronze, champagne, titanium, nickel, golden yellow, etc. |
Surface Finish | Mill finish,Anodizing,Powder Coating,Wood Grain,Electrophoresis,Polished,Brushed |
System performance | 1.Anti-burglary 2.High thermal insulation 3.Sound resistance Rw to 48 dB 4.Wind and watertightness to 1000 Pa |
1.Unique glazing sizes from 6 through 50mm 2.High glass weights to 300KG 3.View width 60mm 4.Different cover caps on the outside 5.Inside and outside color as desired | |

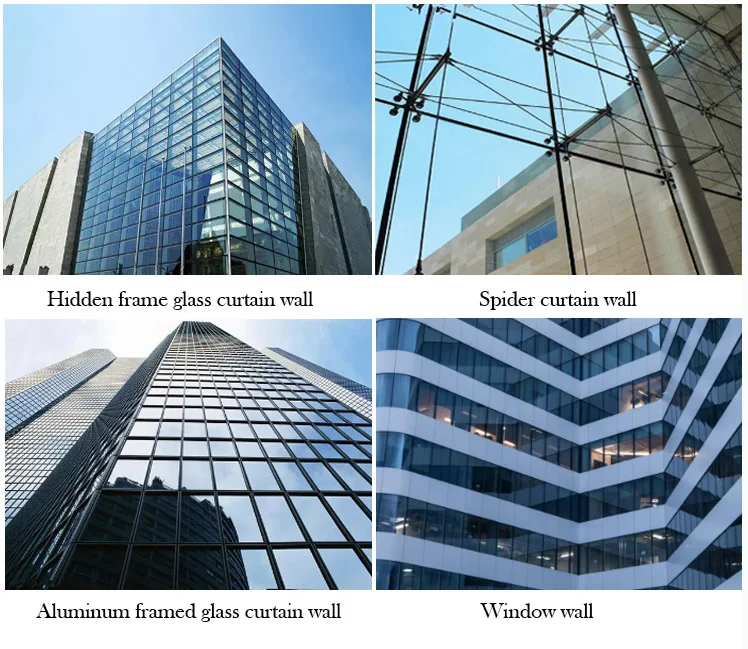

Glass Curtain Wall System | 1.Unitized Glass Curtain Wall 2.Point Supported Curtain Wall 3.Visible frame glass curtain wall 4.Invisible Frame Glass Curtain Wall |
Accessories | Full set of included. gasket,silicon,sealant rubber,screws. |

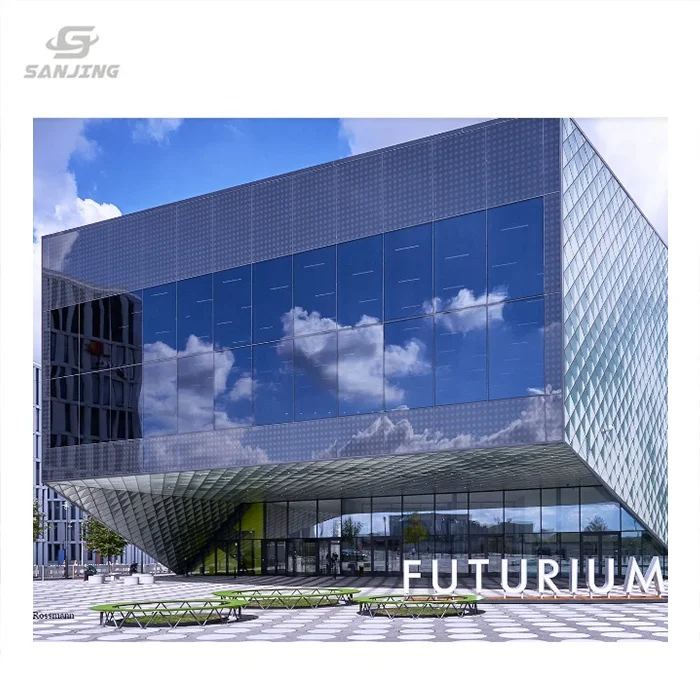

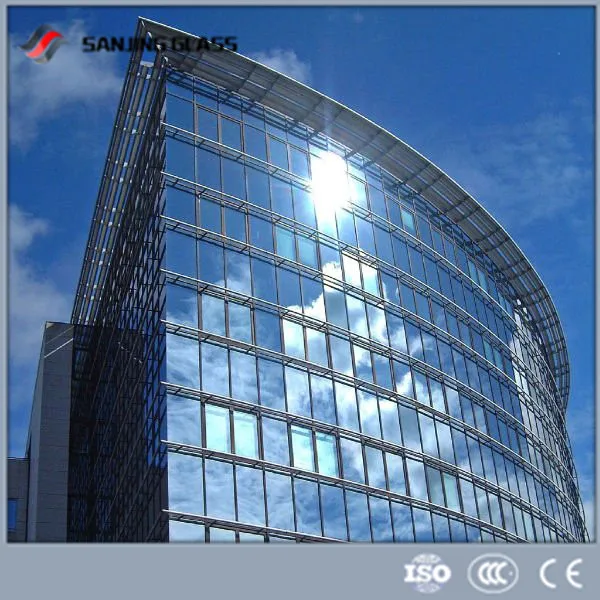

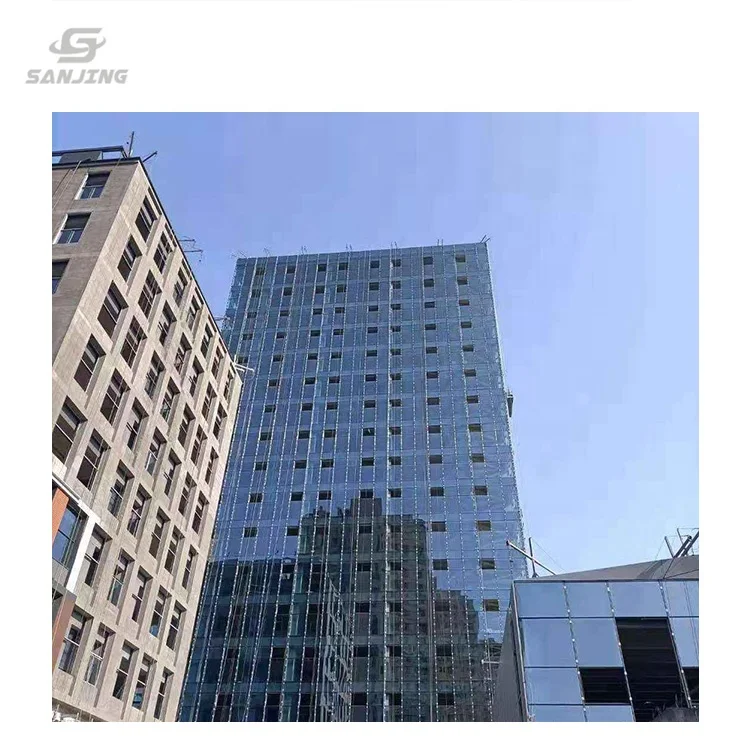

The curtain wall is that it can be installed in small or large units, depending on the needs and preference for your project. The walls may span the distance of the floor to ceiling or be installed across multiple floors. This allows for a greater flexibilityin design.
In part because of the versatility of the system,glass curtain wall are an attractive modern-looking option for you any building exterior.
In part because of the versatility of the system,glass curtain wall are an attractive modern-looking option for you any building exterior.
HARDWARE
1.Customized handle for the galss curtain wall
2.Skillfully combined the transmission mechanism and the square shaft;
3.Go with gearwheel for stable and smmothly opening and colsing 4.Multipoint lock for better security performance.
HINGE
1.Modular design hinges for easier screws position and faster installation,configuration options are as customer required; 2.Separate clamp, no need to install is good to improve the efficiency hinge installation;
3.Stainless steel material is wear-resistant and durable, and has strong bearing capacity to prevent the fan from sagging
HEAT INSULATION BROKEN BRIDGE ALUMINUM ALLOY
Aluminium alloy of the heat insolation of advantages:
1. Energy saving: the remarkable energy saving effect of K value of 2.0 to 3.0 w/m2k energy-saving thirty percent to 40. 2.The sound insulation, good sound insulation performance,reduce noise 30-50 db
3.Insulation: condensation coagulate frost prevention function, the window clean and bright
4.High intensity,wind resistance performance after reach the standard level 1
5.Good air tightness,reach the standard level 1
6.3 room desian princidle.high stabillty. mechanicalperformance is excellent. middle sea design,double sealing effect
Energy Efficiency U-value low to 0.8 W/㎡. K
Durable powder coating warranty to 20 years
Glazing unit weight max to 1,000 kg
Glazing thickness from 4mm to 60 mm
Sound Resistance Rw to 48 dB
Water Penetration Resistance high to 1000 Pa
Durable powder coating warranty to 20 years
Glazing unit weight max to 1,000 kg
Glazing thickness from 4mm to 60 mm
Sound Resistance Rw to 48 dB
Company Profile

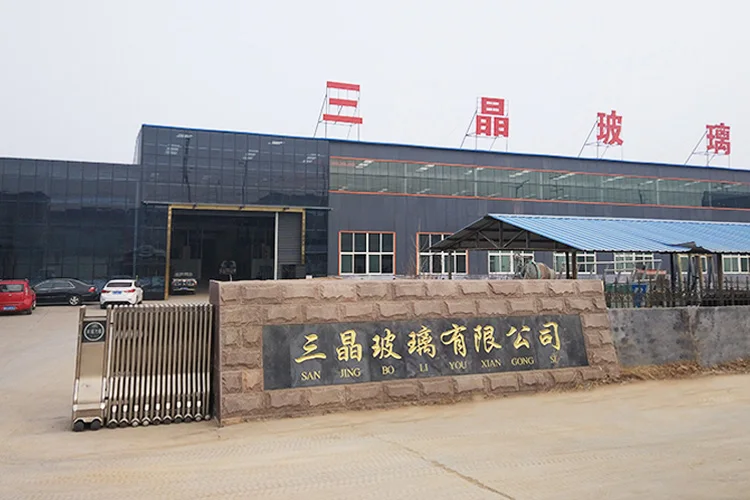

Our Company

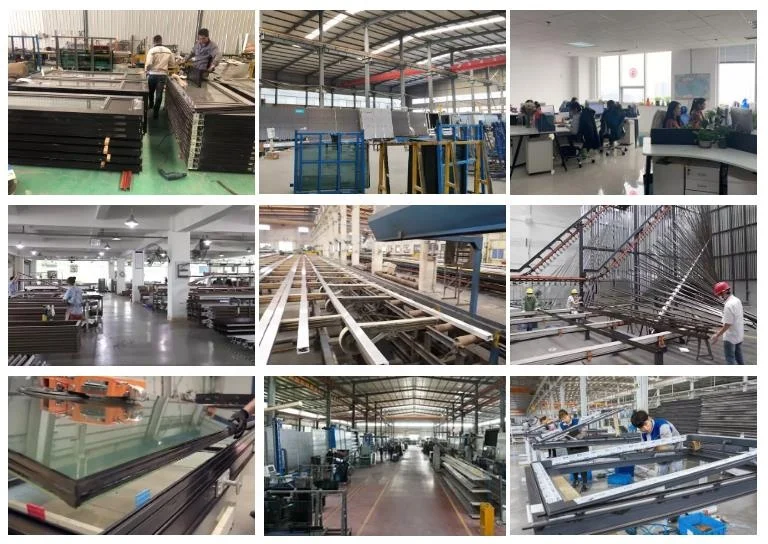

1. We are one of the biggest glass factory in China with 28 year glass production experience, have advanced machines and experienced technicians.
2. Process by used grade A building glass materials, without any bubble, scratch, spot etc defects.
3. Each step of our processing meet ISO, CE,CCC, SGCC,IGCC etc standard.
4. Provide 10 years warranty, any quality problem can refund or replace glass.
5. 100% inspection after production to make sure each sheet of glass are all in good condition.
6. Powerful transportation system and fast shipping time, long-term cooperation relationship with MAS, NYK, COSCO etc
7. Professional sales and technical team, provide 24-hour service, meet any specific requirements.
2. Process by used grade A building glass materials, without any bubble, scratch, spot etc defects.
3. Each step of our processing meet ISO, CE,CCC, SGCC,IGCC etc standard.
4. Provide 10 years warranty, any quality problem can refund or replace glass.
5. 100% inspection after production to make sure each sheet of glass are all in good condition.
6. Powerful transportation system and fast shipping time, long-term cooperation relationship with MAS, NYK, COSCO etc
7. Professional sales and technical team, provide 24-hour service, meet any specific requirements.

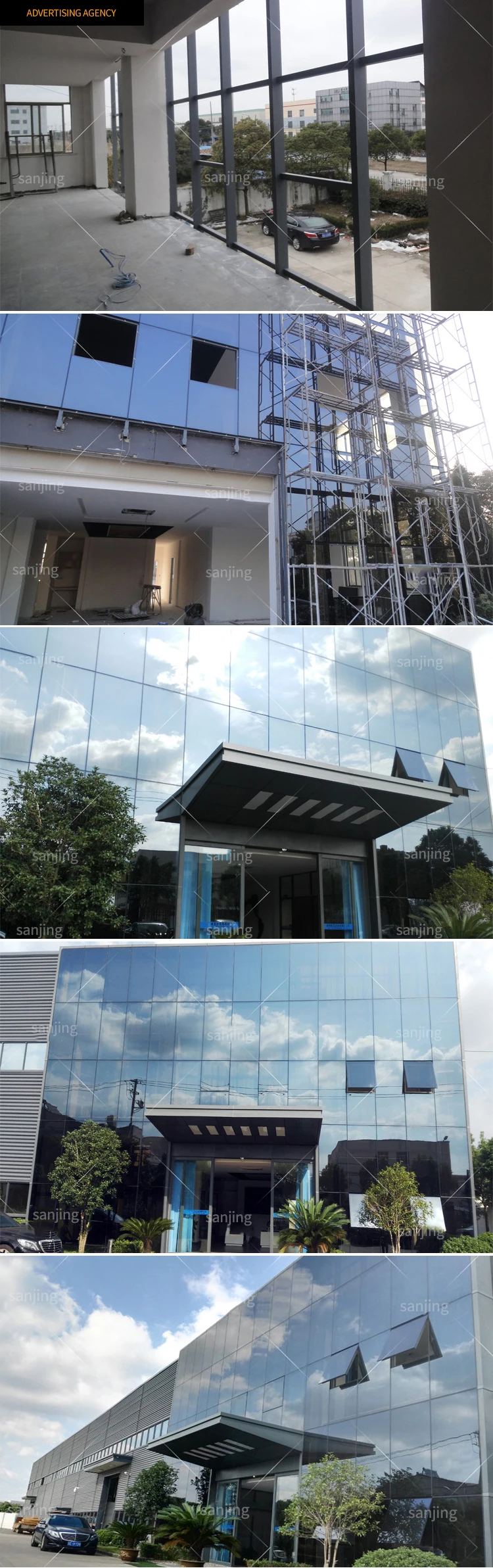

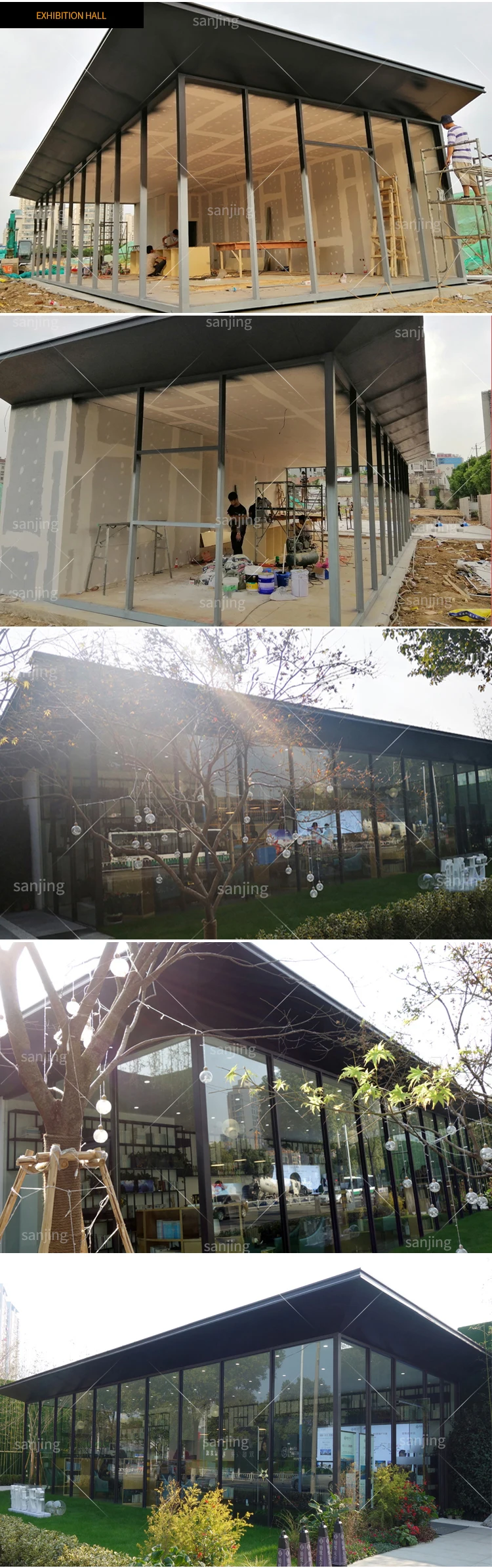

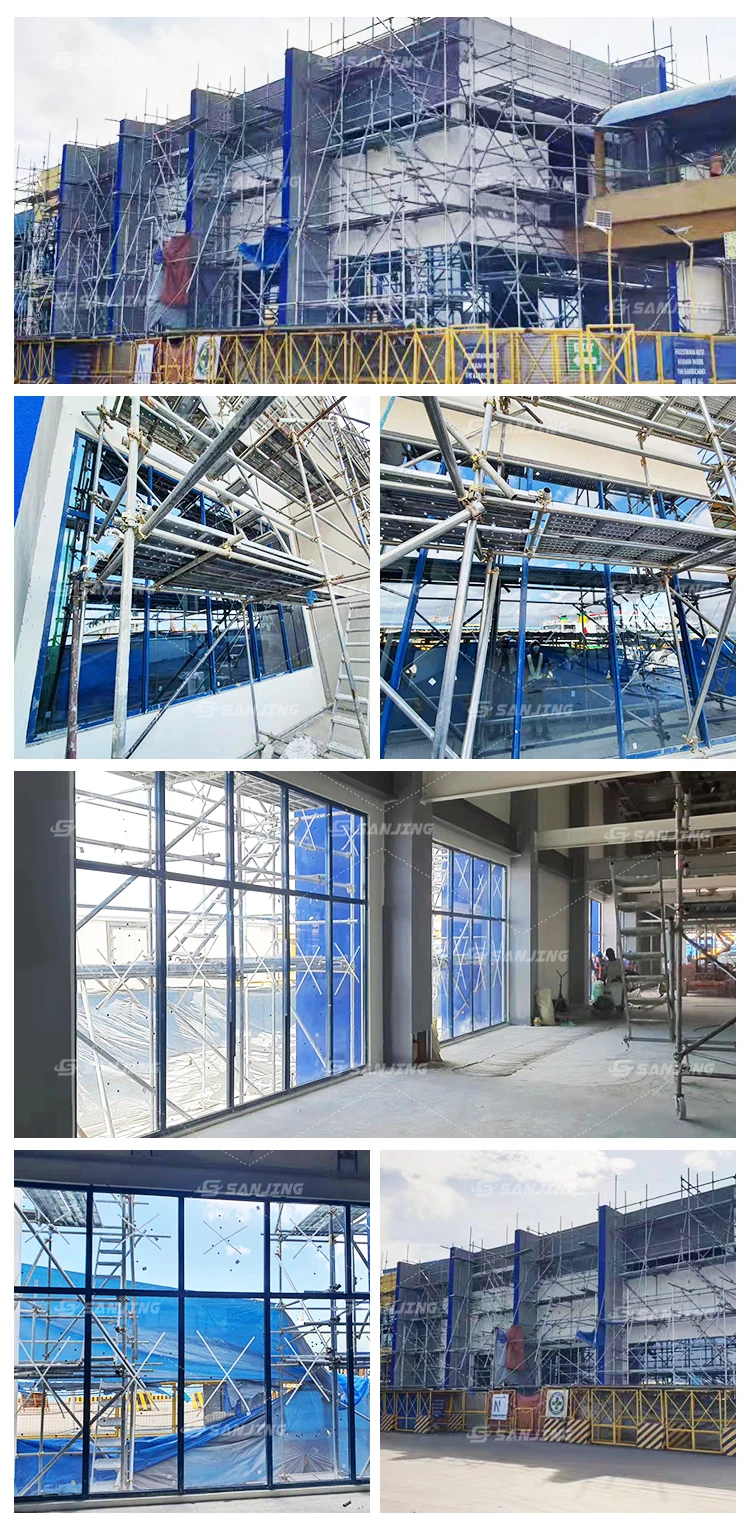

Our projects and stories
Certifications
Why Choose Us

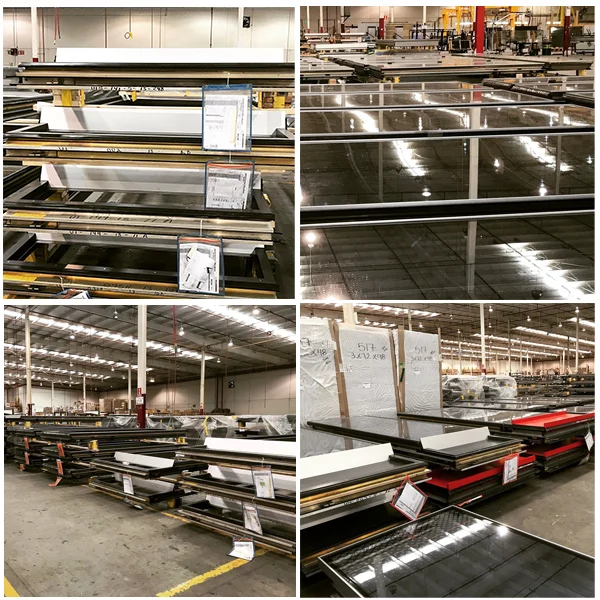

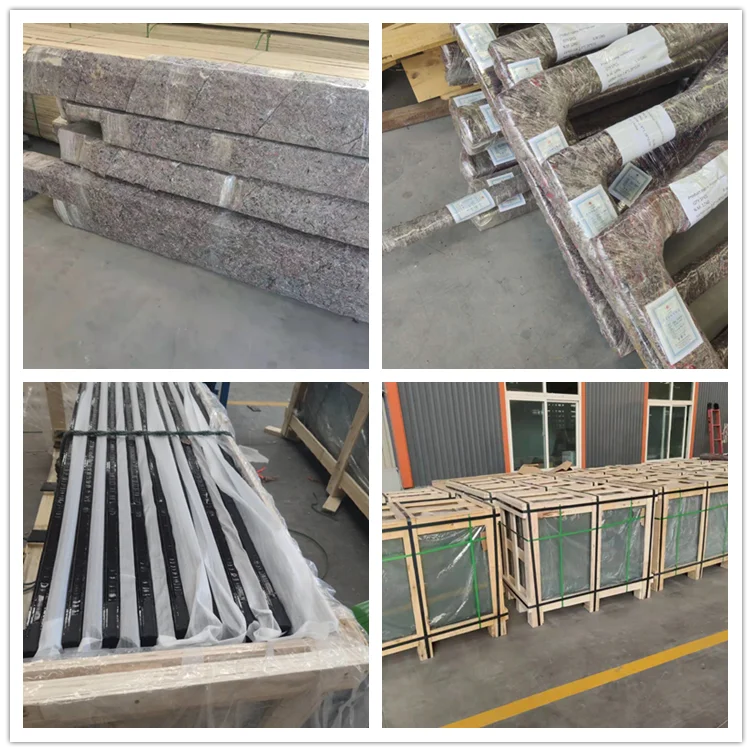

Product packaging
