Foxeer Mini Cat 3 1200TVL 0.00001Lux StarLight FPV Camera M12 2.1mm Low Light Lens PAL/NTSC For RC Racing Drone
- Category: >>>
- Supplier: Shenzhen Fengfei Electronics Co. Ltd.
Share on (1601101244562):
Product Overview
Description
Product Description
Product Description
Specification
Specification
Sensor Type | Sony 1/3" CMOS Sensor |
Scale | 4:3(Default)/16:9 Switchable |
Tv System | PAL(Default)/NTSC Switchable |
Resolution | 1200TVL |
Lens | M12 2.1mm Low Light Lens |
FOV | 4:3 FOV-H: 100° FOV-D:125° |
16:9 FOV-H: 100° FOV-D:115° | |
Shutter Speed | PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec |
Video Output | CVBS Analog Signal |
Minimum Illumination | 0.00001Lux |
White Balance | Auto |
DNR | 3DNR |
WDR | 100dB |
DAY/NIGHT | EXT/Auto/Color/B&W |
Flight OSD | Voltage/Cam Title/Time |
Input Voltage | 4.6V~20V |
Language | ENGLISH /china/ PYCCKNN / ESPANOL / ITALIANO /FRANCAIS/POLSKIM/ PORTUGUES / JP / EAAHNIKA |
Working Temperature | -10°~50°C RH90% MAX |
Working Humidity | 20~80% |
Storage Temperature | -20°~70°C |
Consumption | 95mA±15% @ DC12V |

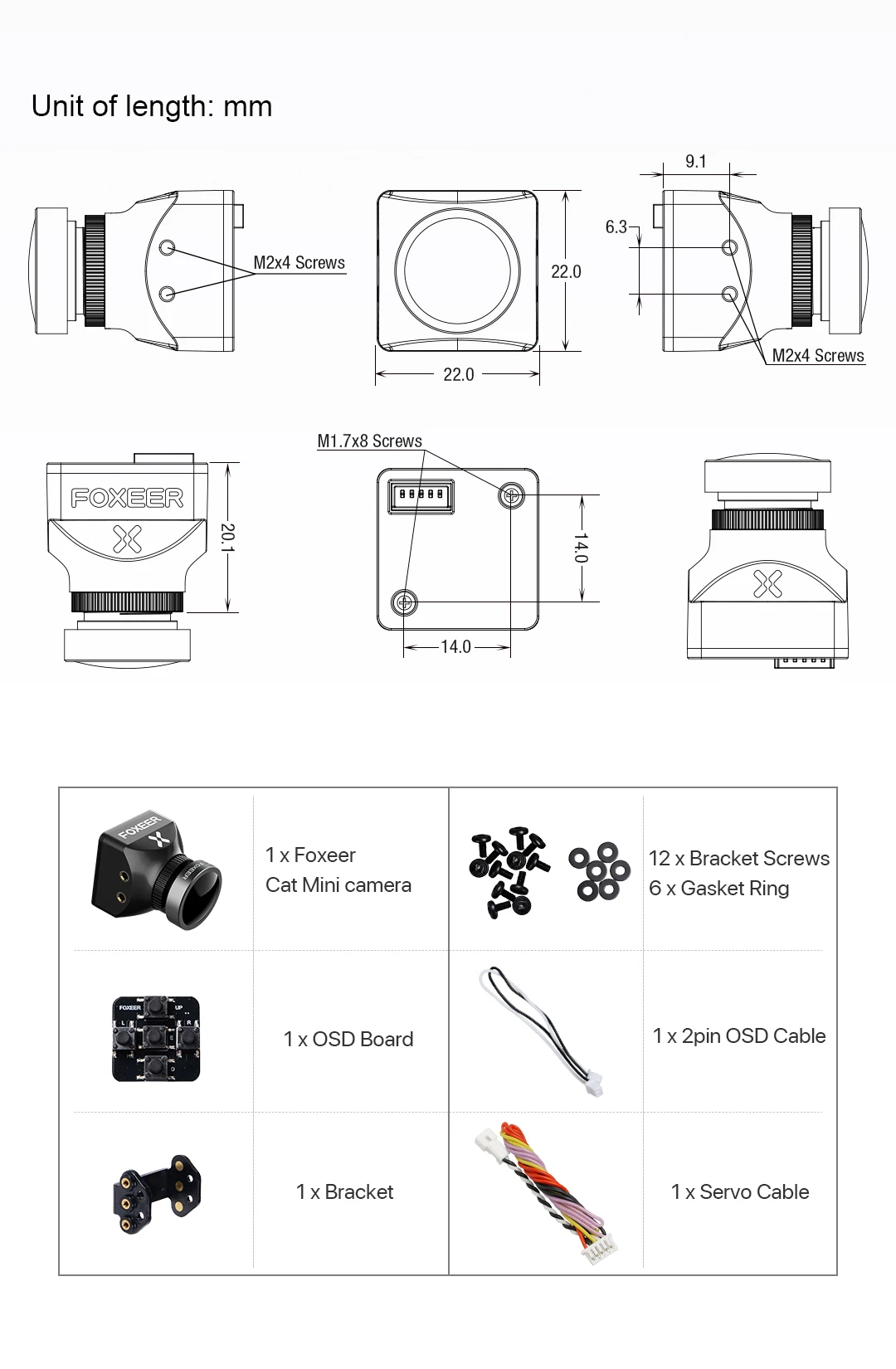

Dimension | 22*22mm; 28*22(with Bracket) |
Weight | 12.2g(Exclude cable) |
Packing & Delivery
Packing & Delivery
1x Foxeer Cat Mini camera 1x OSD Board 1x Bracket 12x Bracket Screws 6x Gasket Ring 1x 2pin OSD Cable 1x Servo Cable
