CHNT 560 Watt Monofacial Solar Panels Solar Cell Plate 21.7% High Efficiency Monocrystalline PV Pow TUV Certified (560W*33Pcs)
- Category: >>>
- Supplier: Shijiazhuang Zhenyu Import And Export Co. Ltd.
Share on (1601101288136):
Product Overview
Description
Product Description
Specification
Module power(W) | 560 |
Module efficiency | 21.7% |
Module weight(kg) | 35 |
Module length(mm) | 2,278 |
Module width(mm) | 1,134 |
Module area(m2) | 3.1 |
Short-circuit current-Isc(A) | 18.62 |
Open-circuit voltage-Voc(V) | 46.1 |
Module per container(pcs) | 594 |

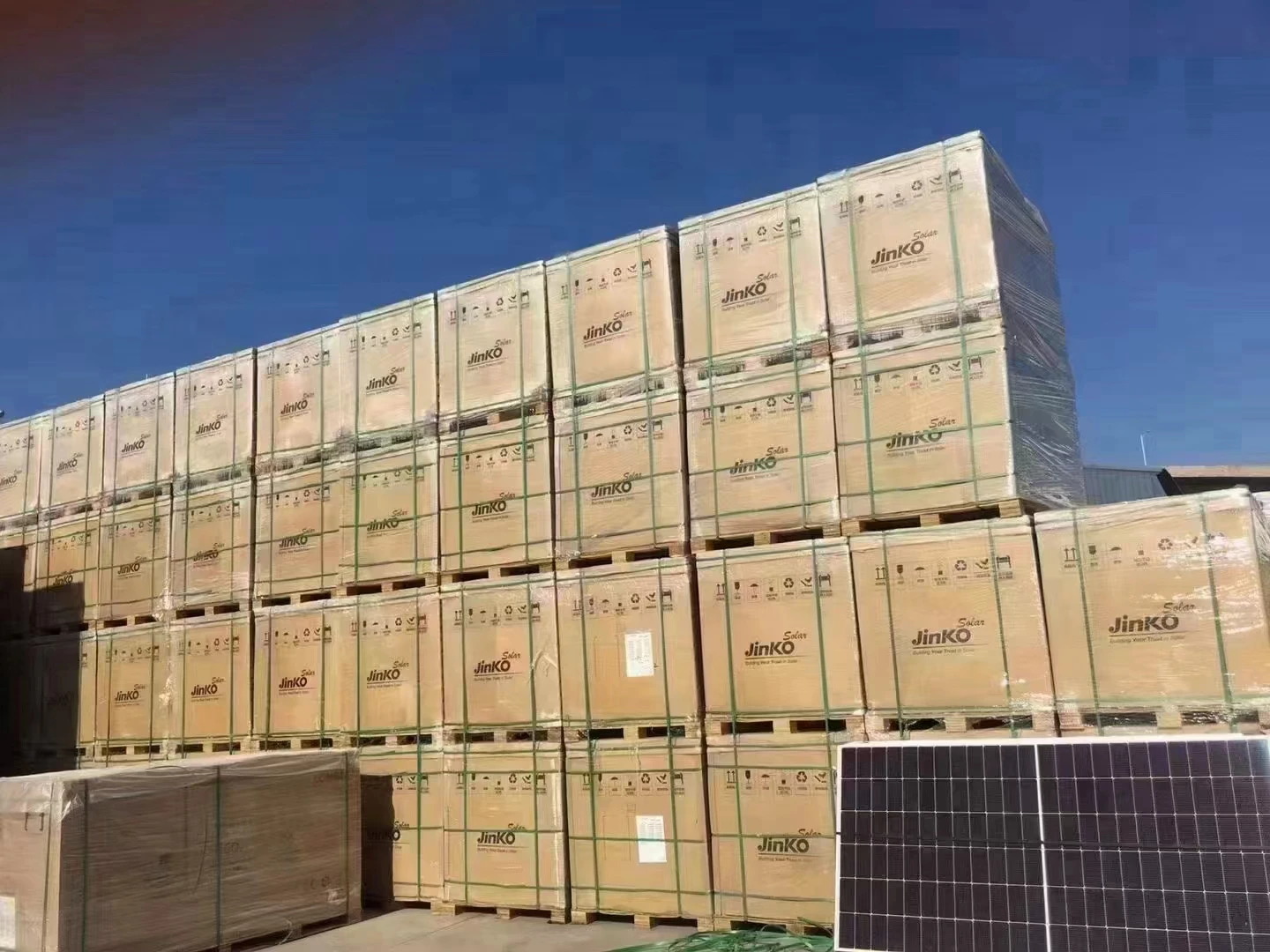

Packing & Delivery
Carton,Pallet,then Container.
Company Profile

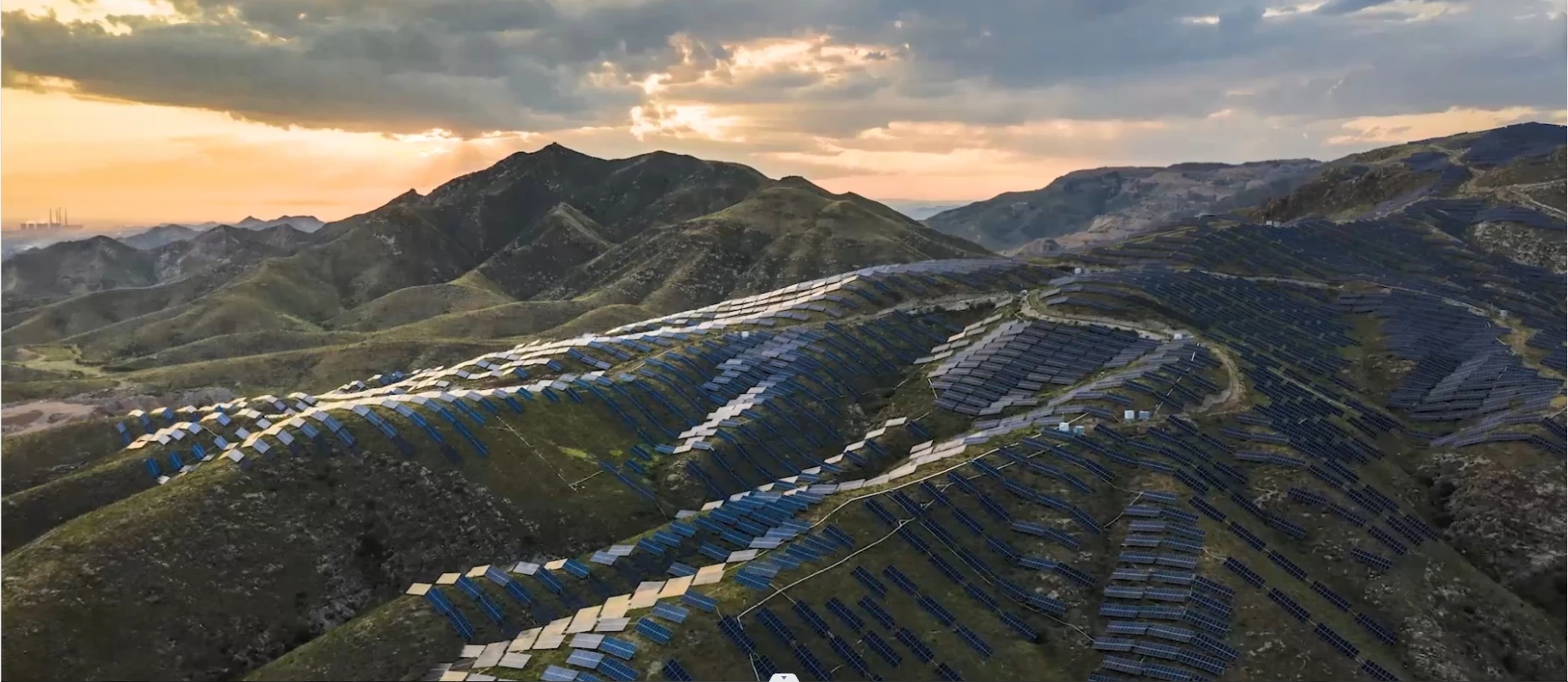

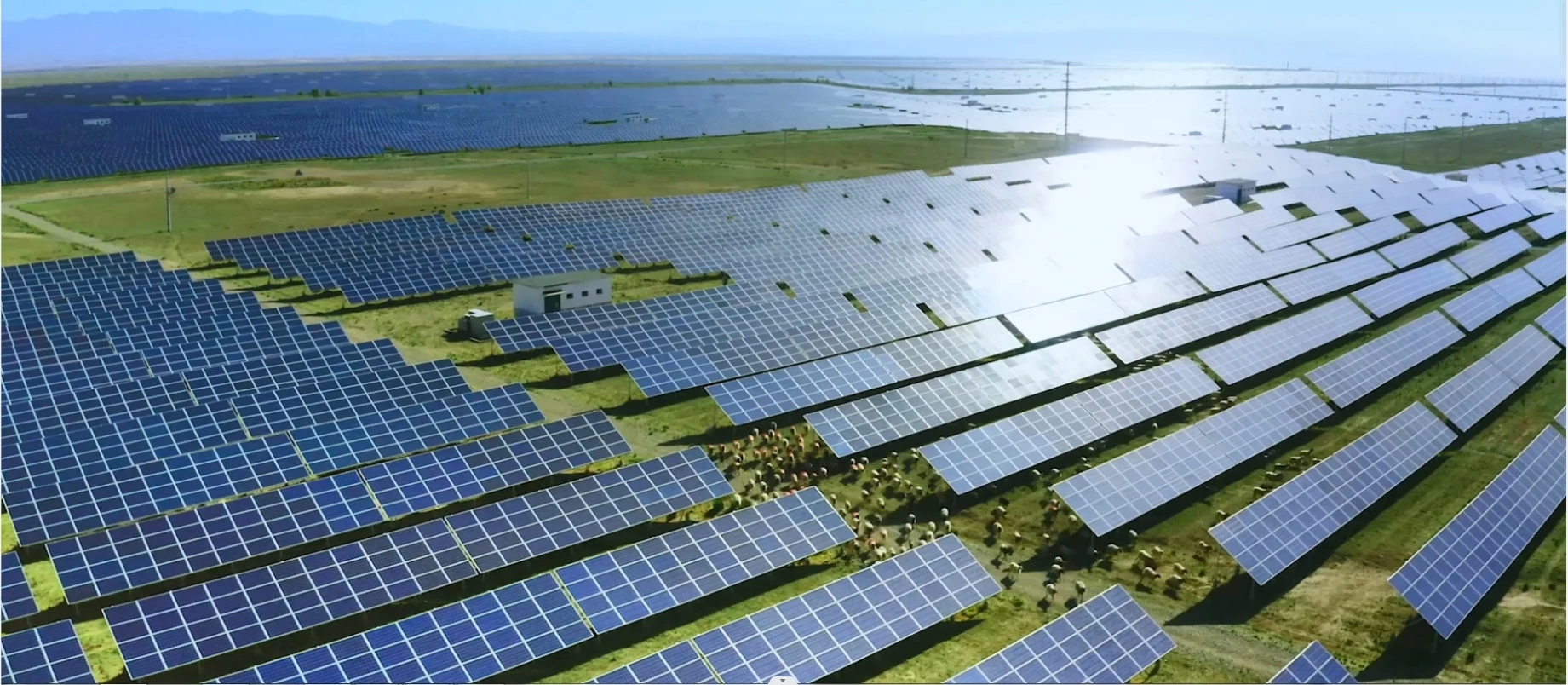

Project Case
FAQ
1: Does a Solar Panel produce full power?
A: In most cases, it is normal for a solar panel to not be able to provide its full nominal power.
Factors affecting the performance of solar panels:Peak Sun Hours， Sunlight Angle， Operating Temperature，
Installation Angle， Panel Shading， Adjacent Buildings Etc...
Installation Angle， Panel Shading， Adjacent Buildings Etc...
2: How to test a solar panel?
A: The ideal conditions: Test in the noon, under a clear sky, panels should be at 25 degrees tilted towards the sun, and the battery is at a low state/less than 40% SOC. Disconnect the solar panel from any other loads, using a multimeter to test the panel's current and voltage.
3: How does temperature affect solar panel efficiency?
A: Solar panels are generally tested at about 77°F/25°C and are rated to perform at peak efficiency between 59°F/15°C and 95°F/35°C. Temperature going up or down will change the efficiency of the panels. For example, if
the temperature coefficient of power is -0.5%, then the panel maximum power will be reduced by 0.5% for every 50°F/10°C rise.
4:How to install our solar panels using different brackets?
A: There are mounting holes on the panel frame for easy installation using a variety of brackets. Most compatible with Z-mount, tilt-adjustable mount, and pole/wall mount, making panel mounting suitable for a variety of applications.
5: Can I connect different solar panels together?
A: Though mixing different solar panels is not recommended, the mismatch can be achievable as long as each panel’s electrical parameters (voltage, current,wattage) are carefully considered.
