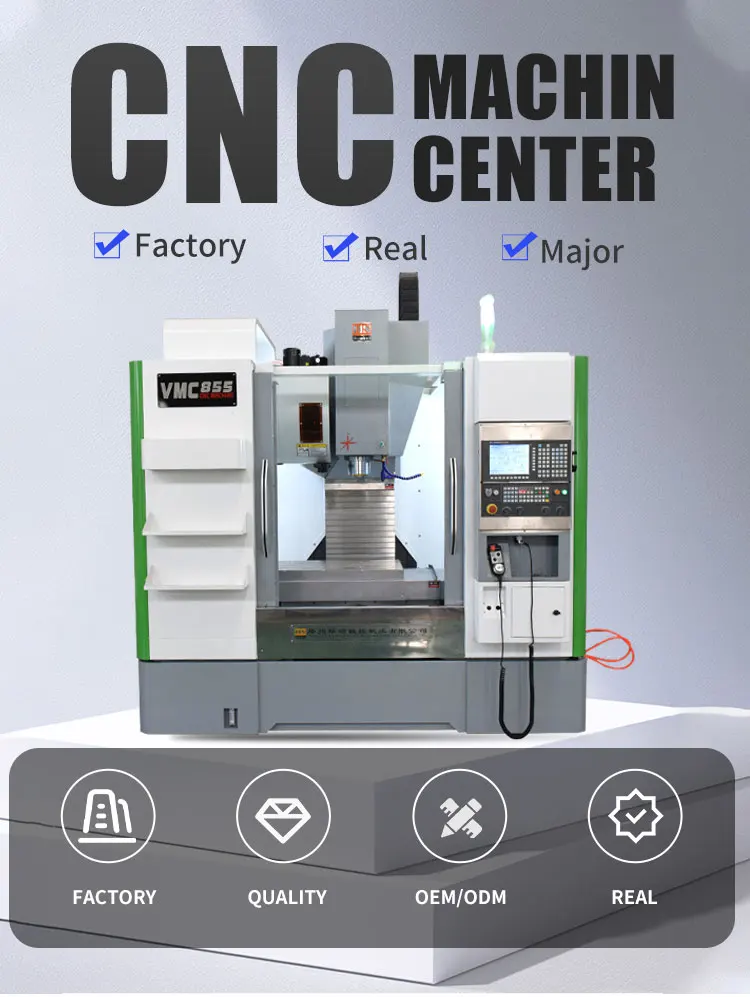

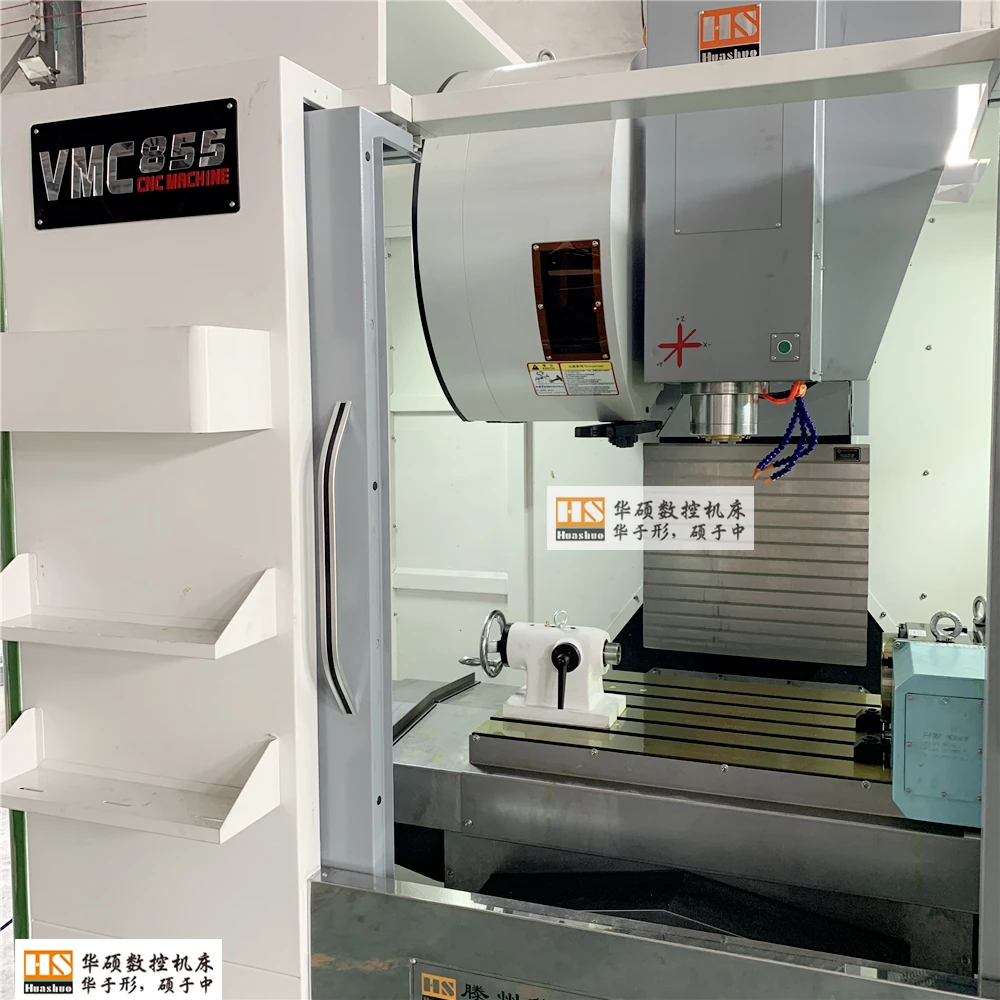

Vmc855 High Precision CNC Turning Lathe 5 axis cnc milling machine 5 axis cnc milling machine
- Category: >>>
- Supplier: Tengzhou Huashuo NC Machine Tool Co. Ltd.
Share on (1601101322113):
Product Overview
Description
pioject | Content | unit | Vmc855 |

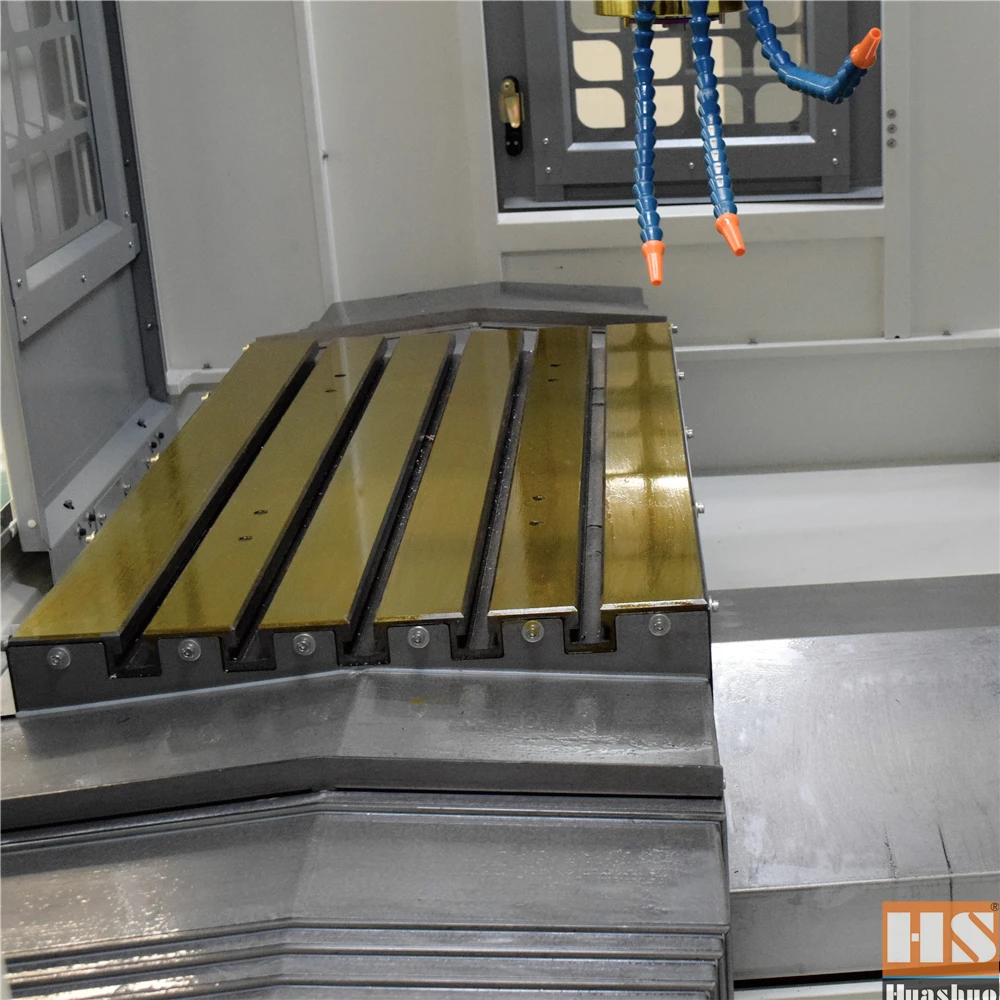

workbench | Workbench area | mm | 1000×550 |
T-shaped groove | mm | 5-18-100 | |
Max capacity | Kg | 800 | |
trip | Moving range X、Y、Z | mm | 800×550×550 |
Distance from spindle nose to workbench | mm | 120-670 | |
Distance from spindle center to column guide rail surface | mm | 550 | |
Feed | Fast moving speed x, y, Z | m/min | 36/34/34/min |
Cutting feed speed x, y, Z | mm/min | 10~10000mm/min | |
Spindle | Spindle taper hole | BT40 | |
Spindle speed | r/min | 0-8000pm | |
Spindle power | kw | AC servo 7.5-11 | |
Tool magazine | Tool magazine capacity | Bundle | 24 |
Maximum tool weight | kg | 8kg | |
Maximum tool size | mm | φ150×300 | |
Accuracy | Accuracy positioning accuracy x/y/z | mm | ±0.008 |
Repeat positioning accuracy x/y/z | mm | ±0.005 | |
Dimensions | Overall dimension length width height | mm | 3000*2400*3100 |
weight | KG | 5400 |
Serial number | name | Vmc855 |

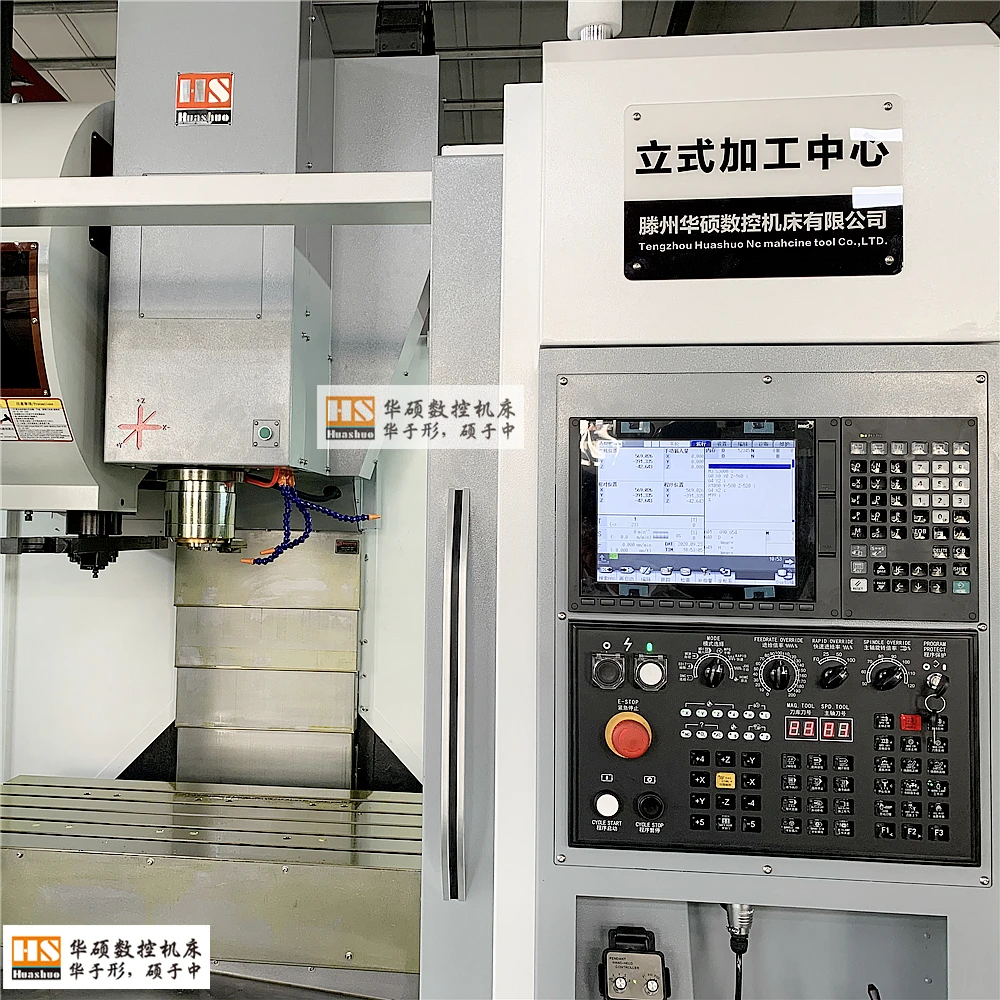

1 | System | GSK 25i |
2 | electric machinery | Three axis servo feed, spindle servo |
3 | guide | Three axis precision linear guide rail (precision level P) |
4 | Screw rod | Three axis precision ball screw (accuracy class C3) |

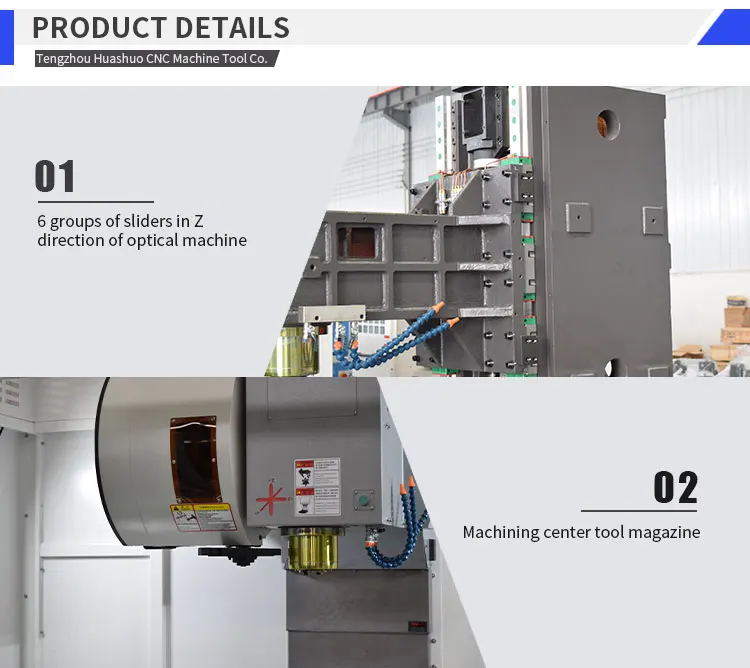

5 | Spindle | Precision BT40 spindle unit |
6 | Bearing | Japan Nachi screw rod bearing (P4 grade) |
7 | Tool magazine | 24t manipulator disc magazine |

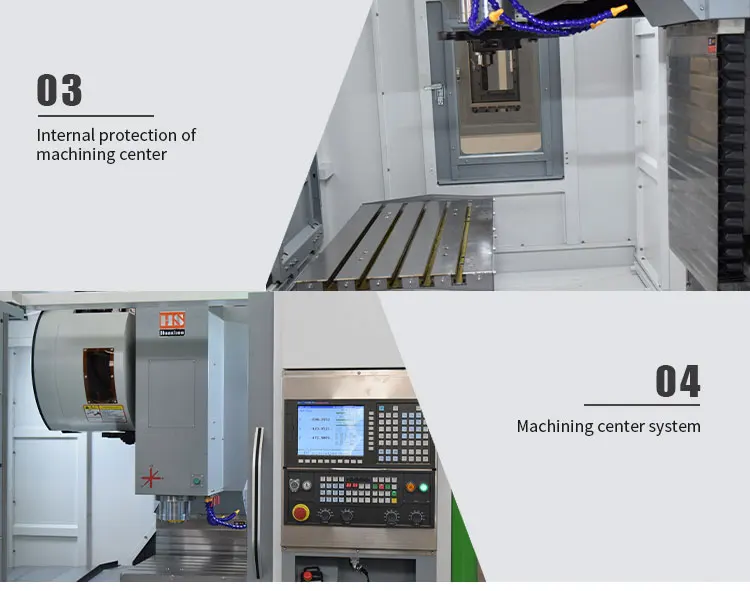

8 | Protection | Metal internal and external protection |
9 | Lighting | Explosion proof LED |

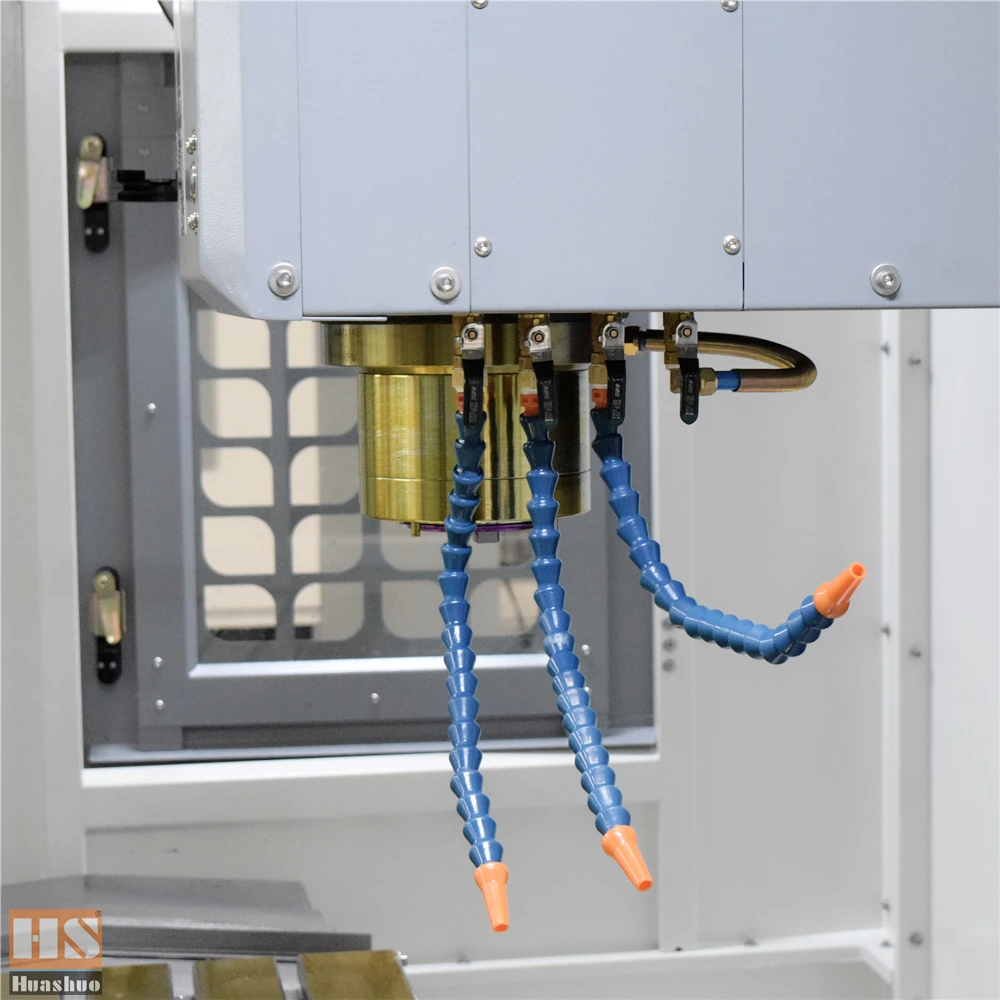

10 | Cooling | 750W high pressure cooling |
11 | packing | Export wooden case packaging |
Select configuration items (need to increase costs)

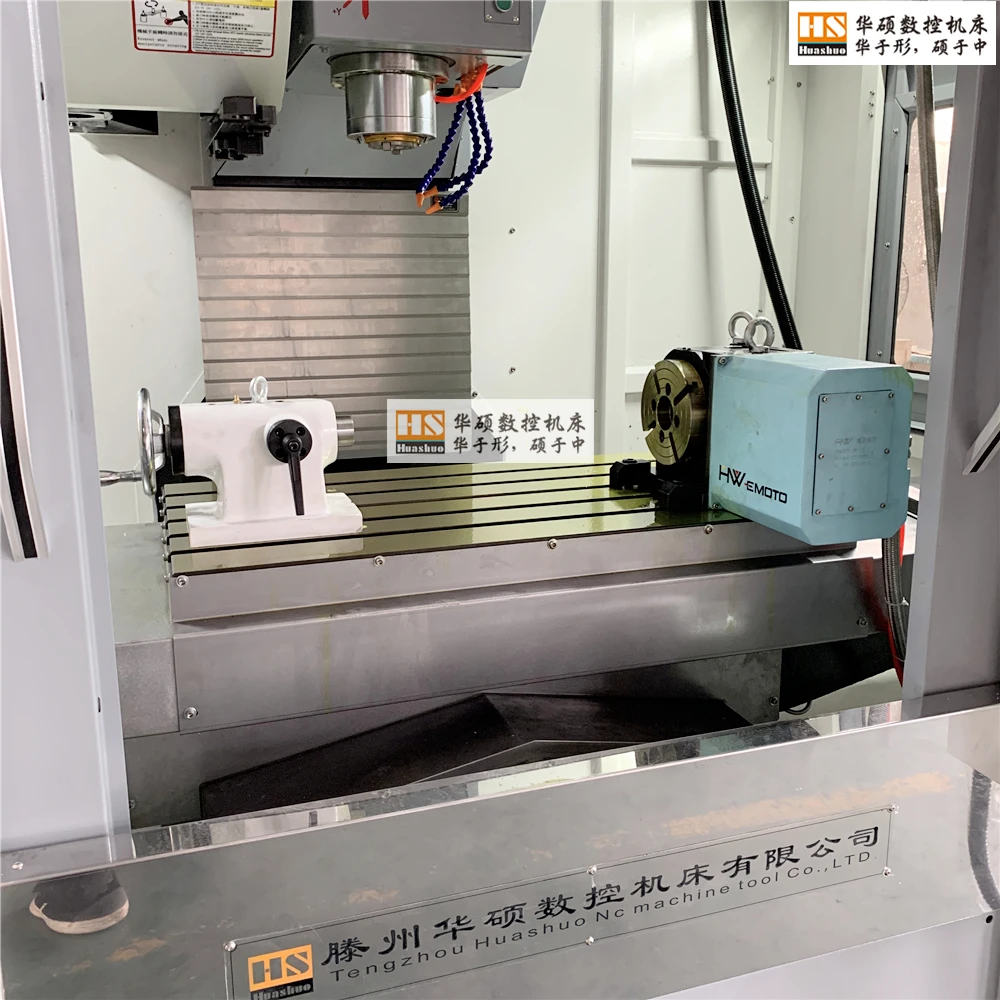

1 | Four axis turntable | Four axis turntable, including chuck and manual tailstock (plus 15000-35000 yuan) |
2 | Automatic cutting | Drag chain automatic cutting machine, including pin car (plus 8000 yuan) |
3 | High speed spindle | Direct connected 12000 turn spindle unit (plus 12000 yuan) |
4 | CNC systems of different brands | GSK 25i |
