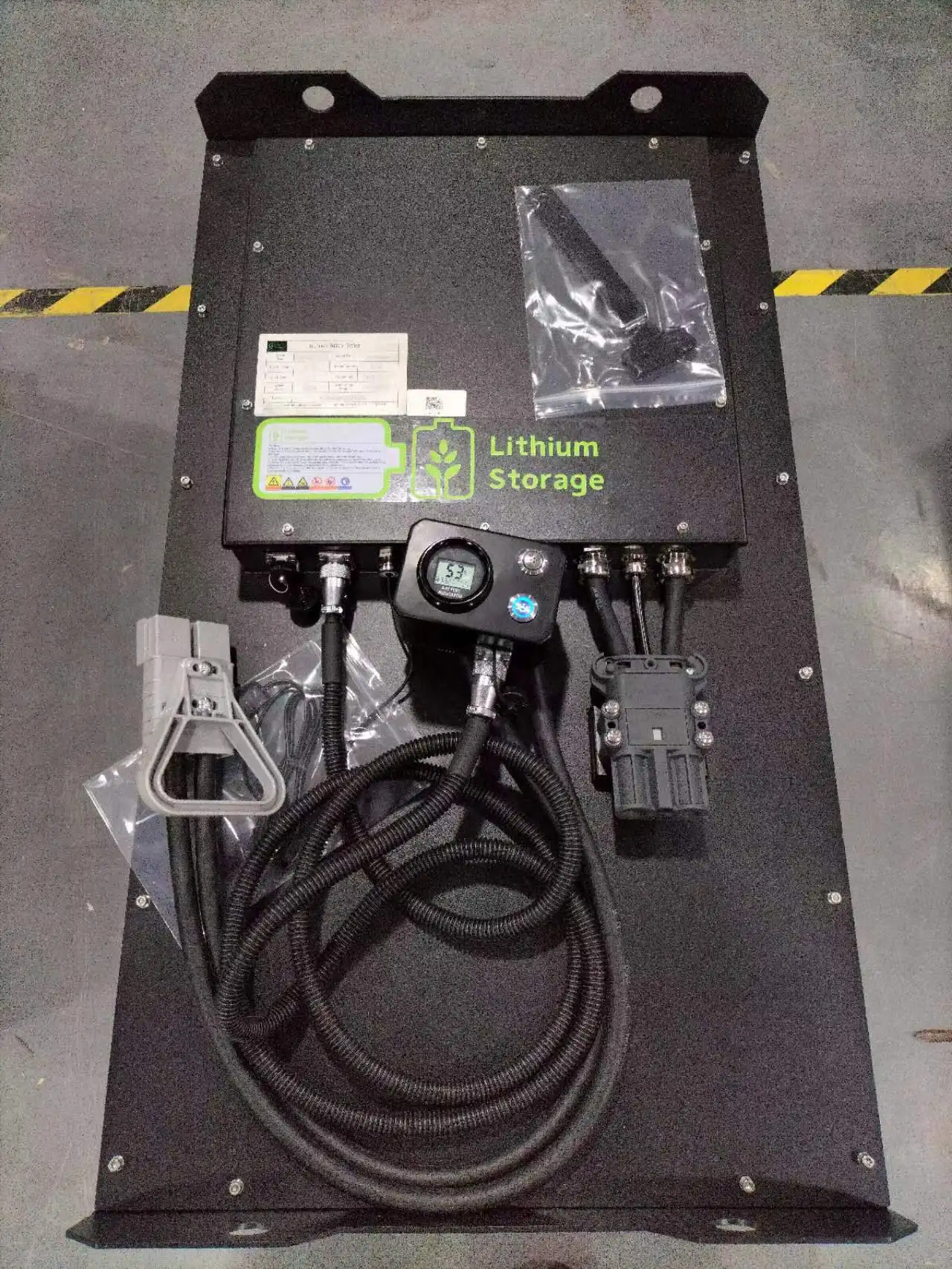

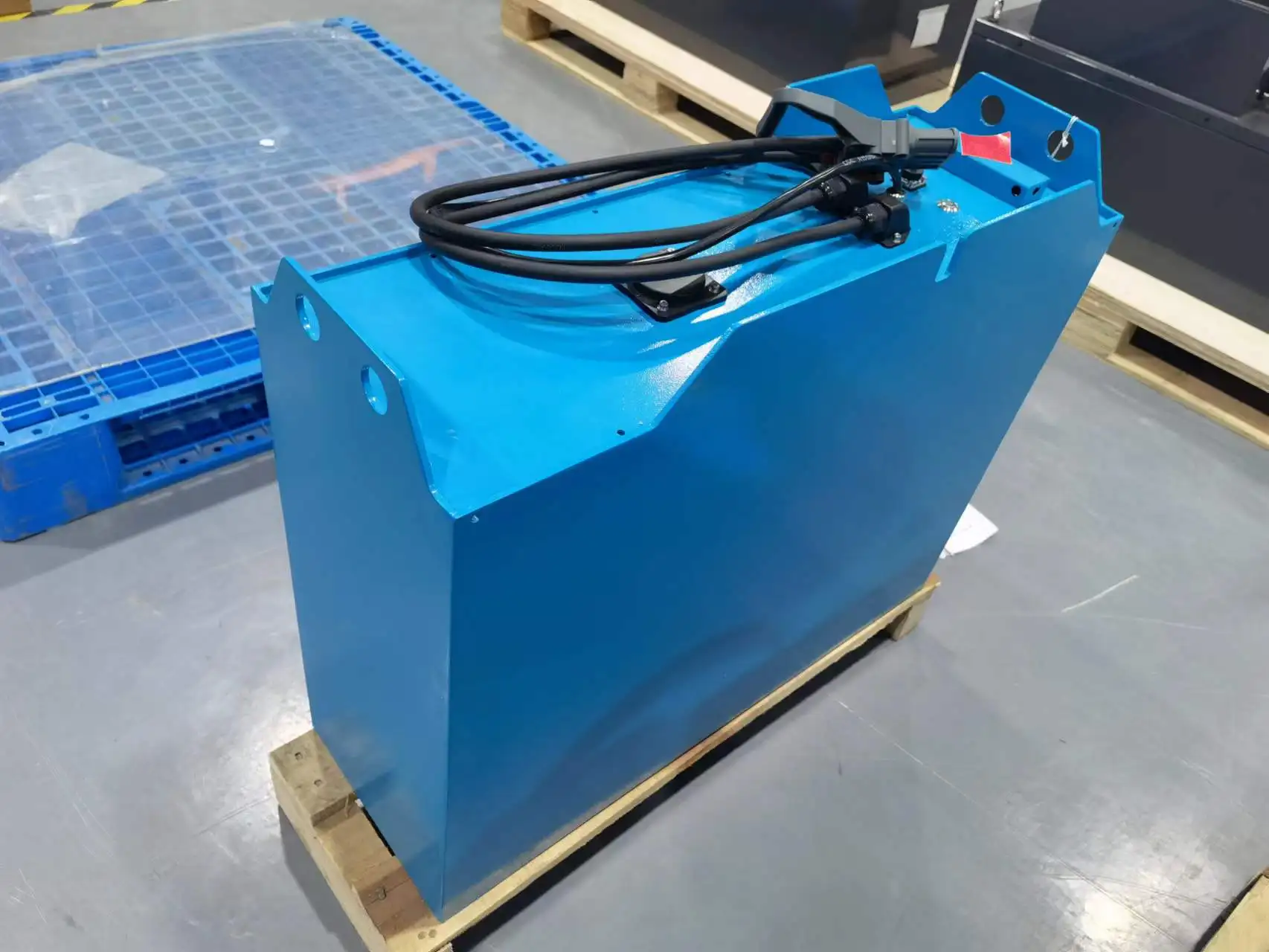

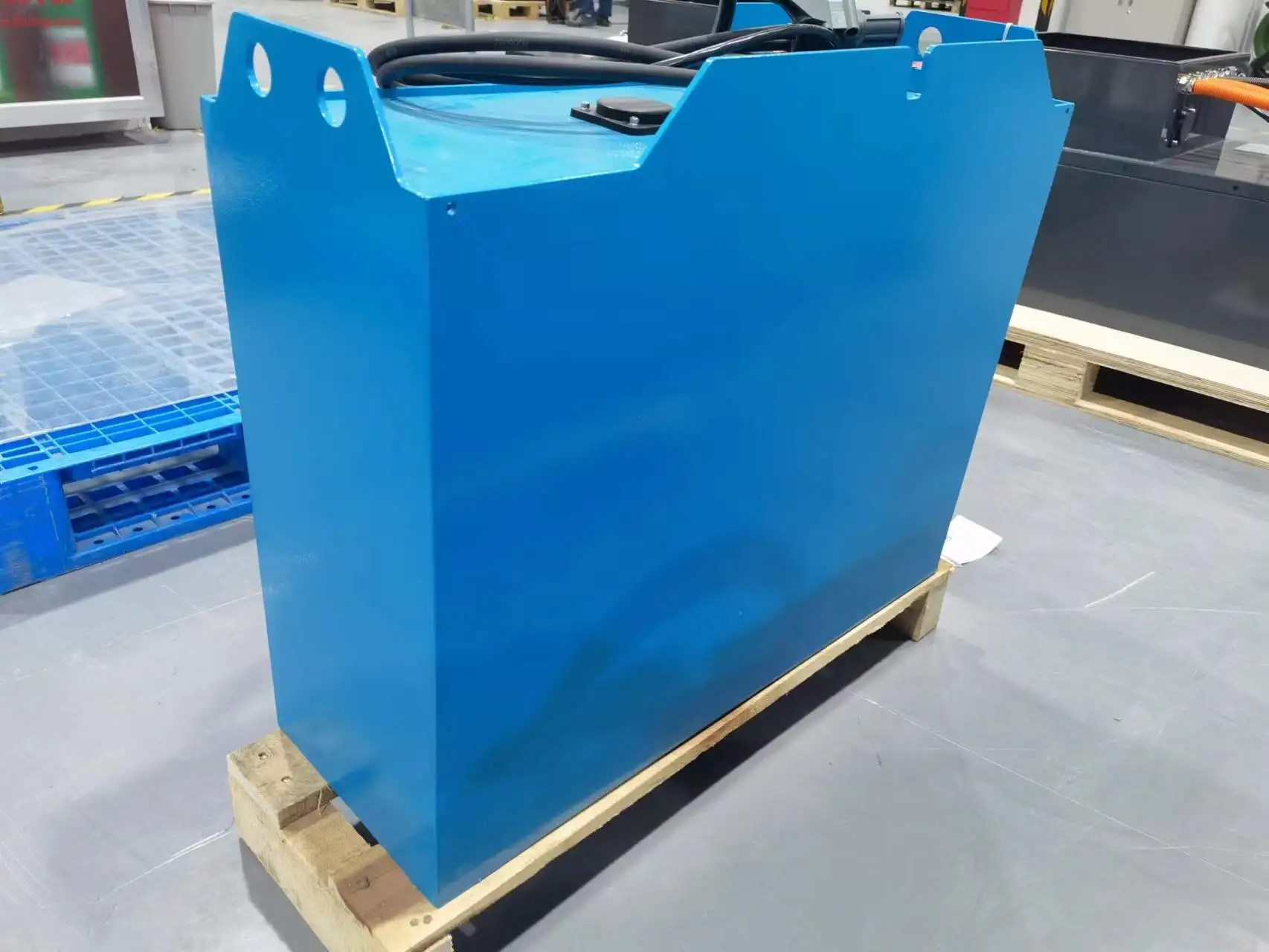

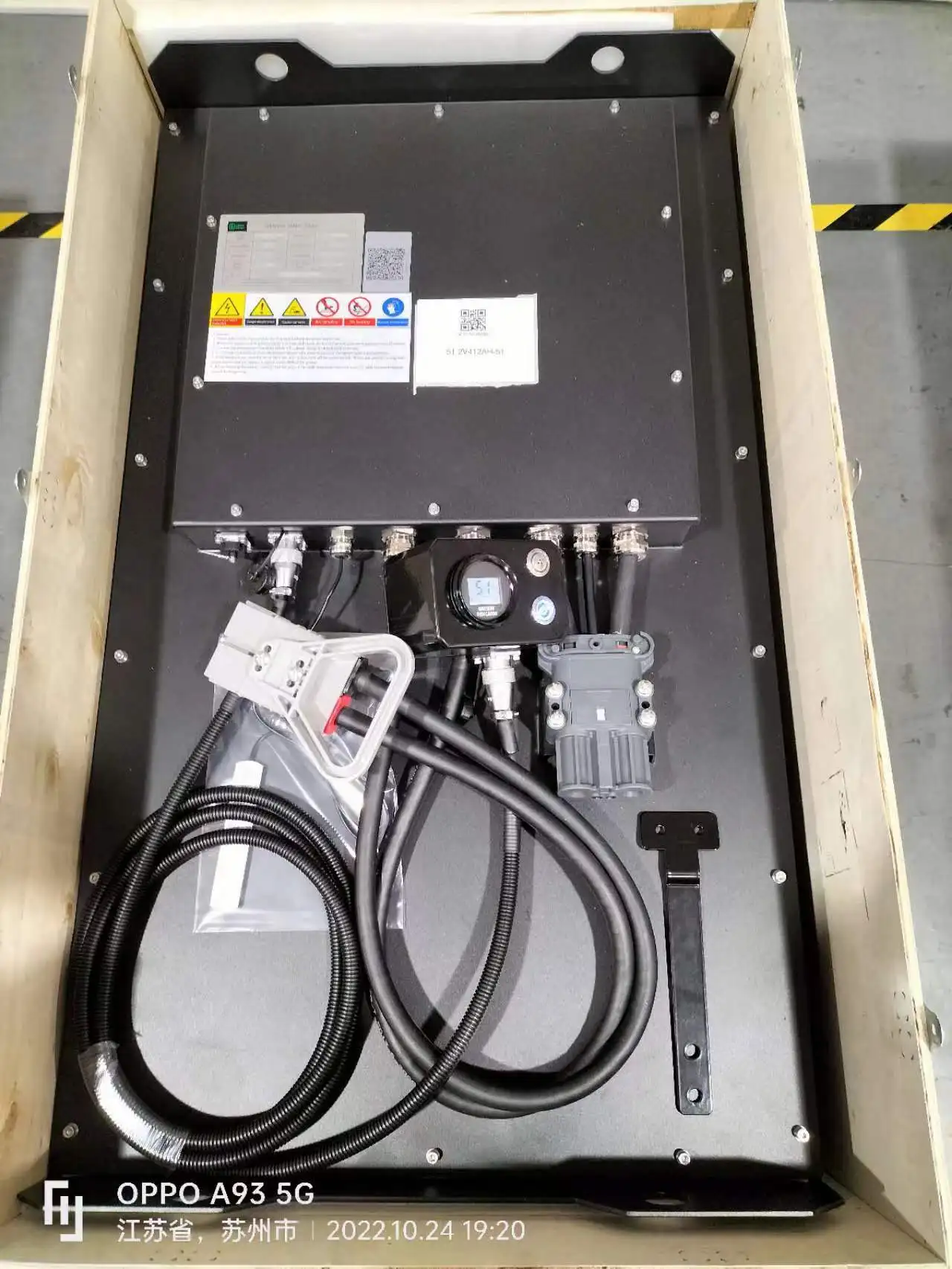

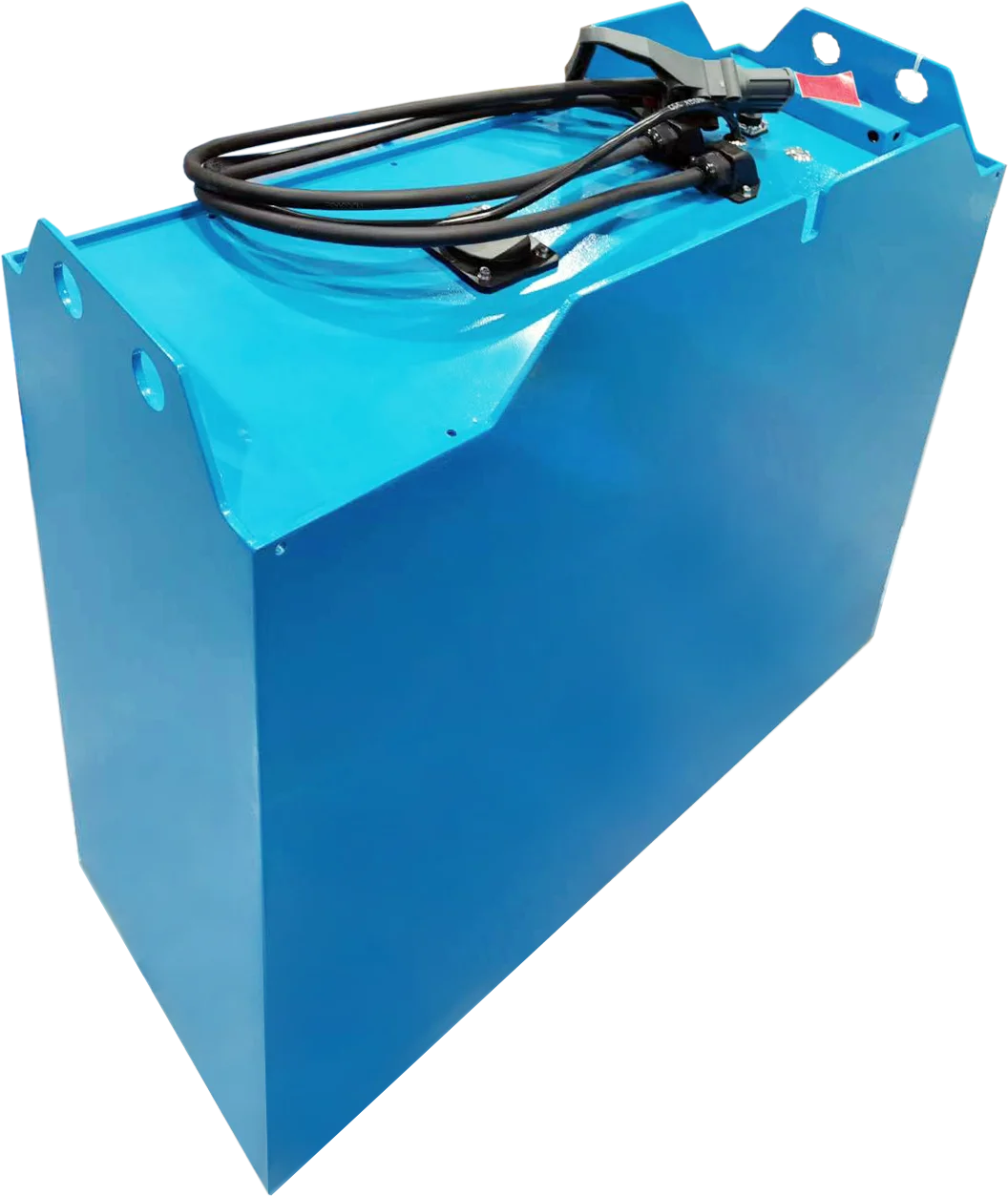

Lifepo4 Battery Module Forklift Battery Pack 1p8S 2s16p 24V 38.4V 48V Lithium ion 230ah 300ah 302ah 456ah Lithium Battery Pack
- Category: >>>
- Supplier: Lithium Storage Co. Ltd.
Share on (1601101828107):
Product Overview
Description
Products Description
Smart FLT Series: Forklift Lithium Battery 25.6V 206Ah/280Ah | ||||||
Items | Parameter | Parameter | Note | |||
Nominal voltage(V) | 25.6 | 25.6 | ||||
Operating voltage(V) Min | 20 | 20 | ||||
Operating voltage(V) Max | 29.2 | 29.2 | ||||
Group mode | 206Ah1P8S | 280Ah1P8S | ||||
Nominal energy（KWh ） | 5.27 | 7.17 | 25±2℃ | |||
Weight（Kg） | ≈80kg | ≈85kg | not additional weight | |||
Nominal capacity(Ah) | 206 | 280 | 25±2℃ | |||
Maximum continuous charge current（A） | 100 | 100 | 25±2℃ | |||
Maximum continuous discharge current（A） | 160 | 160 | 25±2℃ | |||
Maximum pulse discharge current（≤5s）（A） | 300 | 300 | 25±2℃ | |||
Shipping consistency（mv） | 30 | 30 | Voltage difference between cell ＜30mV | |||
Charging port | REMA160A（female） | Customized | customizable | |||
Discharging port | REMA160A（female） | Customized | customizable | |||
GPRS communication | 4G | 4G | optional | |||
SOC operating range（%） | 20~100 | 20~100 | ||||
Insulation requirements(MΩ) | ≥20 | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |||
cooling method | Natural cooling | Natural cooling | ||||
Shipping capacity | ≈30% | ≈30% | SOC is consistency in the same batch | |||
Dimension L (mm) | 550 | Customized | For Crown WP3035-45 Outer box dimension can be costomizable according to the brand and model of forklifts | |||
Dimension W (mm) | 195 | Customized | ||||
Dimension H (mm) | 520 | Customized | ||||
Charger | Optional | Optional | ||||
Product Accessories
Charger Option |
24V 100A/ 24V 150A |
48V100A /48V150A / 48V200A |
80V200A / 80V300A |
Lithium Storage can provide lithium battery charger for matching charge communication with our forklift pack. |
Product Application
Company Profile
Certifications
Exhibition
Product packaging
Shipping option | Delivery period | Transportation period |
Air shipment | 5-10 working days | 7-10 days |
Sea shipment | 5-10 working days | 30-35 days |
FAQ
Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Customized is available.
Q: What about the lead time?
A: Sample needs 7-12 days, mass production time needs negotiation.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by FedEx. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q: How to proceed an order?
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.
Q: Is it OK to print my logo on product?
A: OK, Need customer provide their packaging or we make neutral packaging.
Q: Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we’ll regard your inquiry priority
A: Yes, we welcome sample order to test and check quality. Customized is available.
Q: What about the lead time?
A: Sample needs 7-12 days, mass production time needs negotiation.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by FedEx. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q: How to proceed an order?
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.
Q: Is it OK to print my logo on product?
A: OK, Need customer provide their packaging or we make neutral packaging.
Q: Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we’ll regard your inquiry priority
