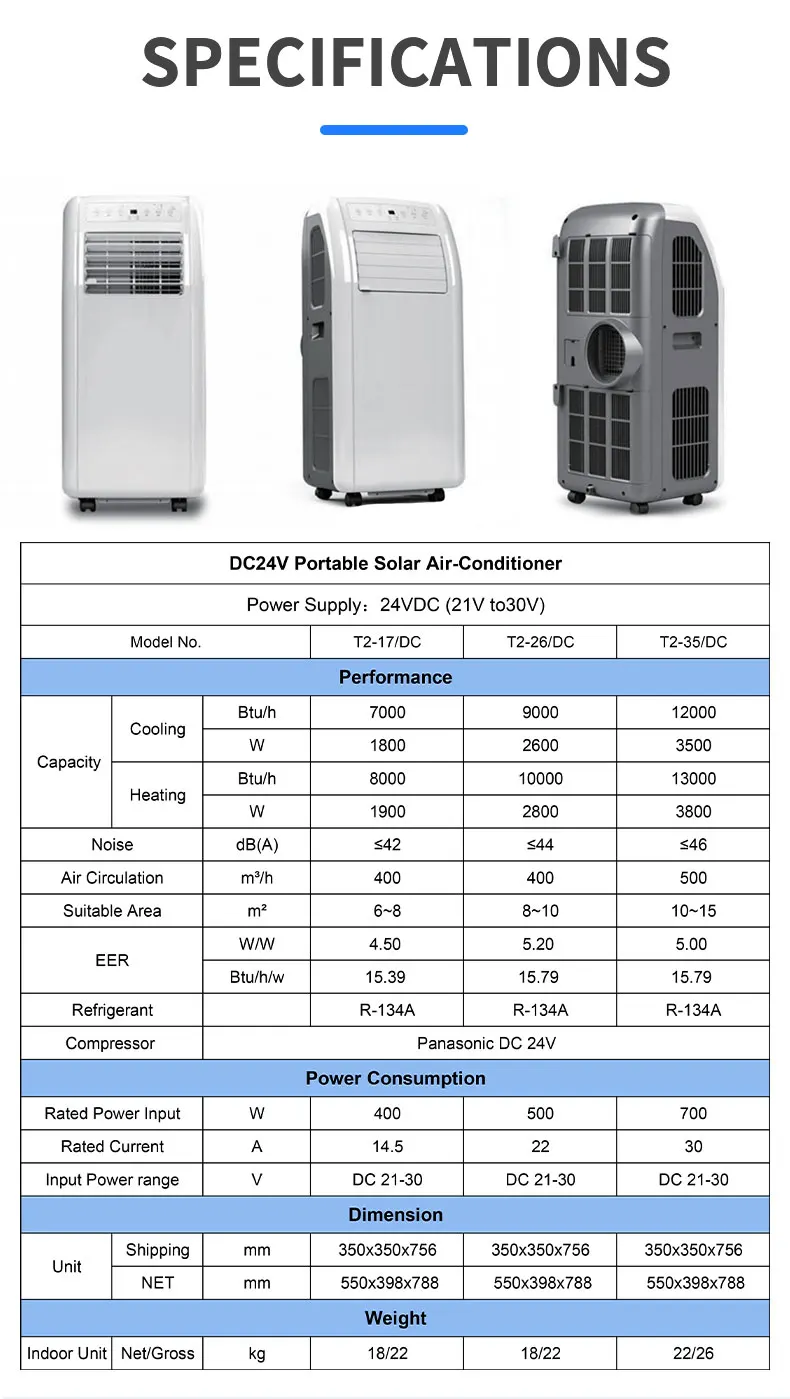

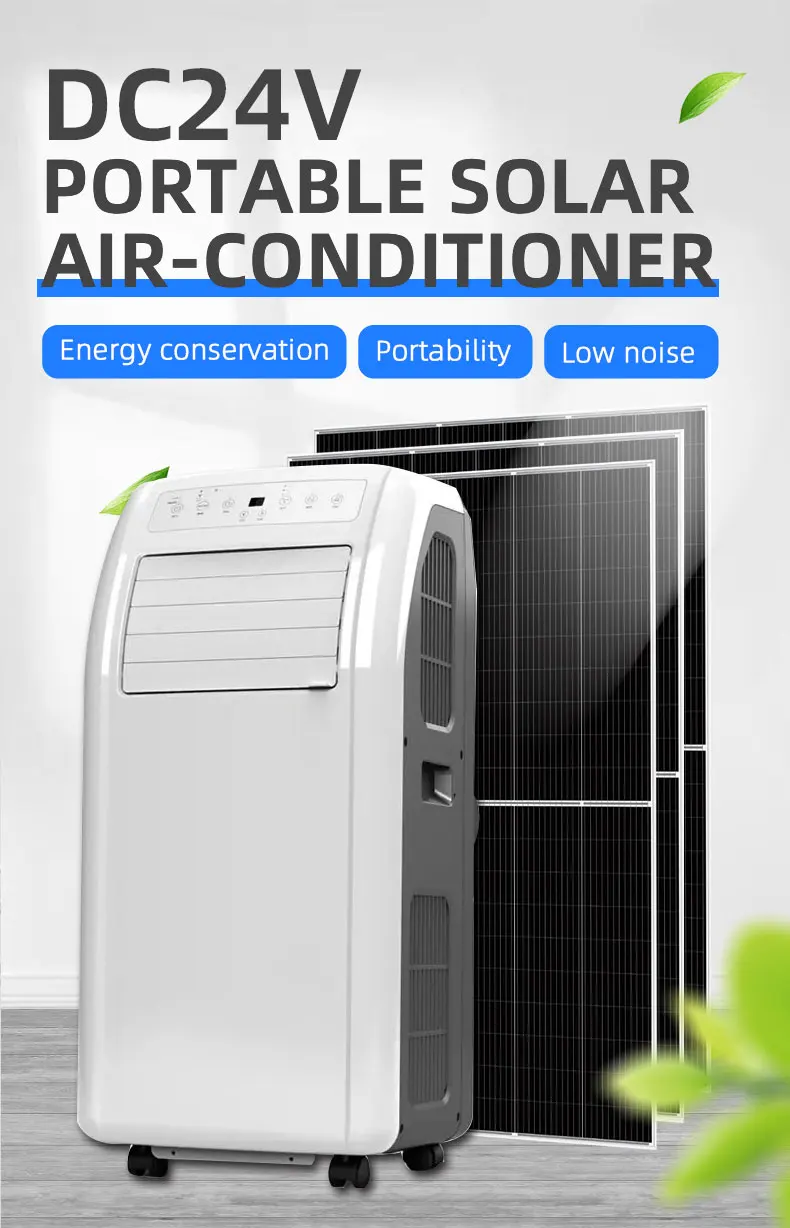

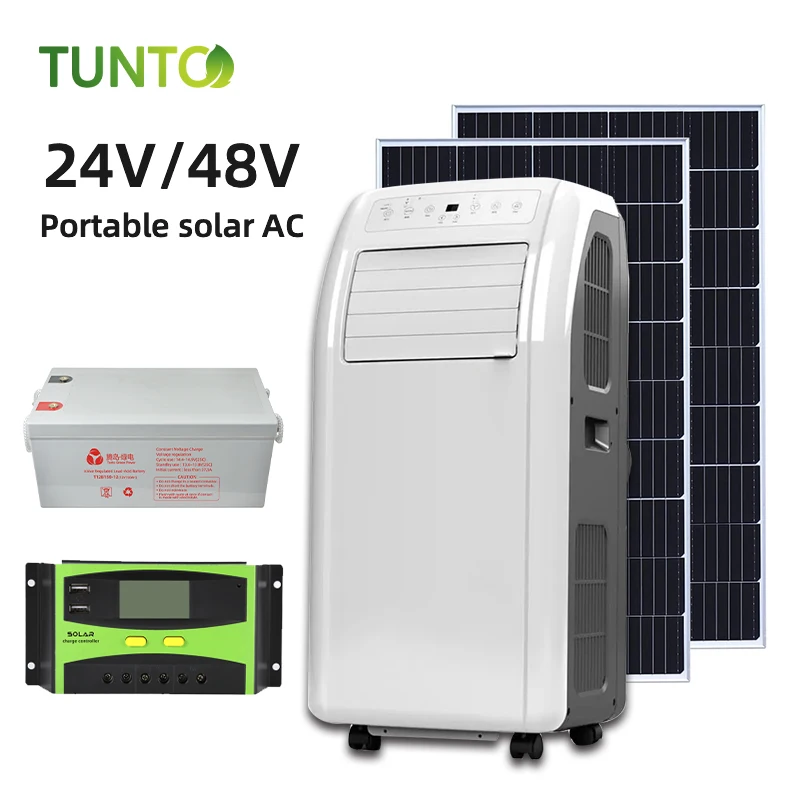

Power Supply : 24VDC (21V to30V) | |||||
Model No. | T2-17/DC | T2-26/DC | T2-35/DC | ||
Performance | |||||
Capacity | Cooling | Btu/h | 7000 | 9000 | 12000 |
w | 1800 | 2600 | 3500 | ||
Heating | Btu/h | 8000 | 10000 | 13000 | |
w | 1900 | 2800 | 3800 | ||
Noise | dB(A) | S42 | S44 | s46 | |
Air Circulation | m3/h | 400 | 400 | 500 | |
Suitable Area | m | 6-8 | 8-10 | 10-15 | |
EER | W/W | 4.50 | 5.20 | 5.00 | |
Btu/h/w | 15.39 | 15.79 | 15.79 | ||
Refrigerant | R-134A | R-134A | R-134A | ||
Compressor | Panasonic DC 24V | ||||
Power Consumption | |||||
Rated Power Input | w | 400 | 500 | 700 | |
Rated Current | A | 14.5 | 22 | 30 | |
Input Power Range | v | DC 21-30 | DC 21”30 | DC 21”30 | |
Dimensi. n | |||||
Unit | Shipping | mm | 350x350x756 | 350x350x756 | 350x350x756 |
NET | mm | 550x398x788 | 550x398x788 | 550x398x788 | |
Weight | |||||
Indoor Unit | Net/Gross | kg | 18/22 | 18/22 | 22/26 |
