High Productivity Stone Crusher Ore Jaw Crusher Rock Crushing Machine
- Category: >>>
- Supplier: Henan Kolev Equipment Technology Co. LtdHenan Ltd
Share on (1601101849627):
Product Overview
Description

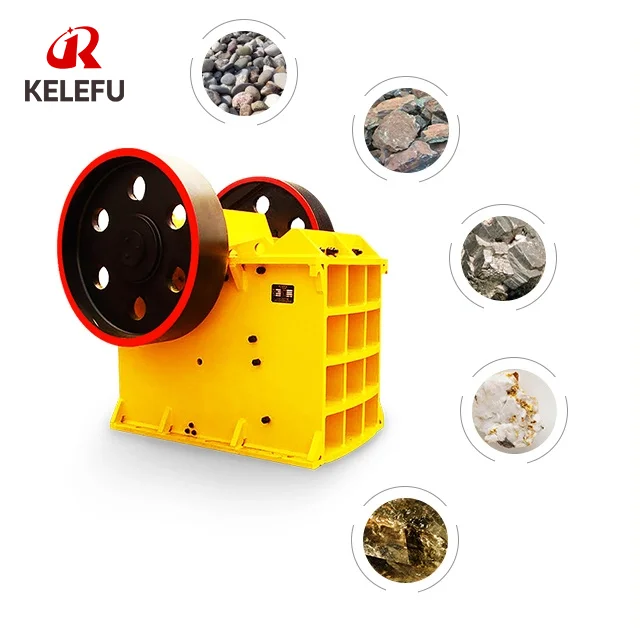

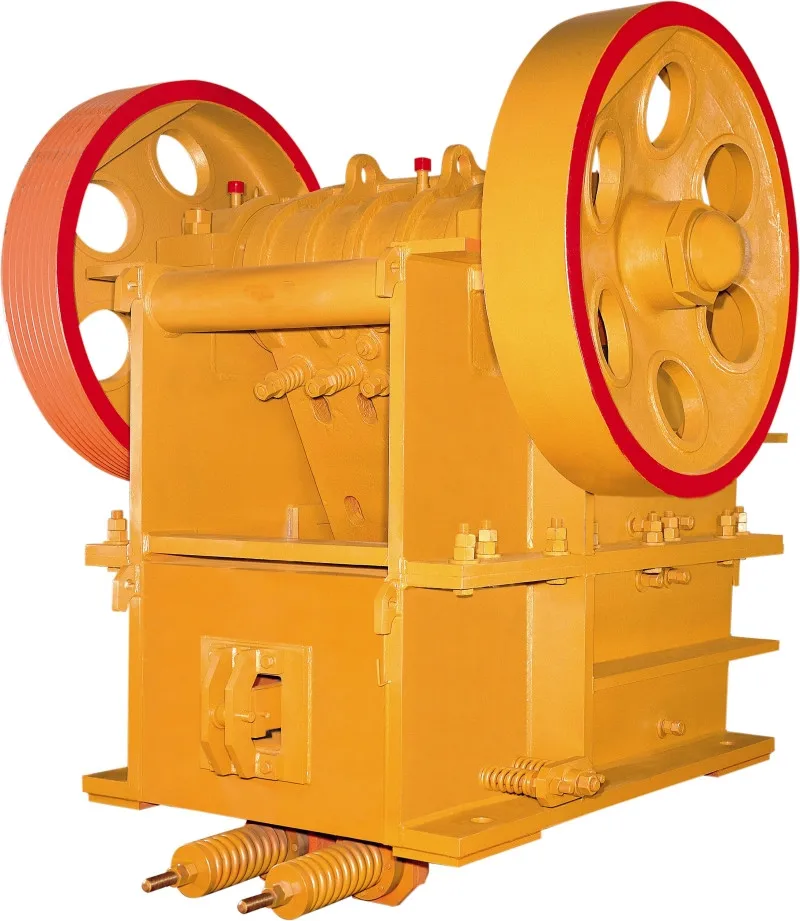

High Productivity Stone Crusher Ore Jaw Crusher Rock Crushing Machine
Jaw crusher is a rock and mineral processing equipment, which can be used for coarse and medium crushing of hard and highly abrasive ores and rocks. High crushing efficiency, low investment cost, long service life and stability.

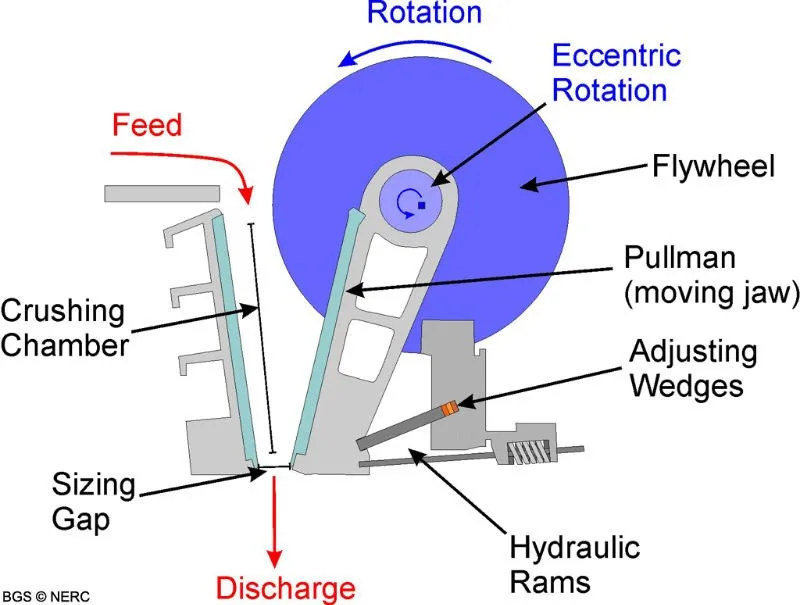

working principle
Working Principles:
1. The motor drives the belt and the pulley, and moves the movable jaw up and down through the eccentric shaft. When the moving jaw rises, the angle between the bracket and the moving jaw becomes larger, thereby pushing the movable jaw closer to the fixed jaw.
2. At the same time, the material is crushed or chopped to achieve the purpose of crushing;
3. When the moving jaw is down, the angle between the bracket and the moving jaw becomes smaller. The moving jaw is separated from the fixed jaw by the action of the tension rod and the spring. At this time, the broken material is discharged from the lower opening of the crushing chamber.
4. As the motor rotates continuously, the crushing and maneuvering cycle motion crushes and excretes the material to achieve mass production.
1. The motor drives the belt and the pulley, and moves the movable jaw up and down through the eccentric shaft. When the moving jaw rises, the angle between the bracket and the moving jaw becomes larger, thereby pushing the movable jaw closer to the fixed jaw.
2. At the same time, the material is crushed or chopped to achieve the purpose of crushing;
3. When the moving jaw is down, the angle between the bracket and the moving jaw becomes smaller. The moving jaw is separated from the fixed jaw by the action of the tension rod and the spring. At this time, the broken material is discharged from the lower opening of the crushing chamber.
4. As the motor rotates continuously, the crushing and maneuvering cycle motion crushes and excretes the material to achieve mass production.
calcite, chalk, limestone, dolomite, kaolin, bentonite, talc, mica, magnesite, illite, pyrophyllite, vermiculite, sepiolite, attapulgite, tablite, ceyssatite, barite, gypsum, alunite, black lead, fluorite, phosphate rock, potassium ore, floatstone,
copper mine,quartz,marble.
Model | Max feeding size(mm) | discharging size range(mm) | capacity (t/h) | powder(kw) | Dimension(mm) | weight (t) |
PE150×250 | 125 | 10-40 | 1-3 | .5 | 720×660×850 | 2.8 |
PE250×400 | 210 | 20-60 | 5-21 | 6P15 | 1300×1090×1270 | 2.8 |
PE400×600 | 340 | 40-100 | 16-64 | 6P30 | 1730×1730×1630 | 7 |
PE500×750 | 450 | 50-100 | 40-110 | 6P55 | 1980×2080×1870 | 12 |
PE600×900 | 500 | 150-200 | 80-240 | 6P55 | 2070×2000×1920 | 15.8 |
PE750×1060 | 630 | 80-140 | 110-320 | 8P110 | 2660×2430×2800 | 29 |
PE800×1060 | 640 | 130-190 | 130-330 | 8P110 | 2740×2430×2800 | 29.8 |
PE900×1060 | 685 | 230-290 | 230-390 | 8P110 | 2870×2420×2940 | 333 |
PE900×1200 | 750 | 95-165 | 220-380 | 8P110 | 3380×2870×3330 | 52 |
PE1000×1200 | 850 | 195-265 | 315-500 | 8P110 | 3480×2876×3330 | 55 |
PE1200×1500 | 1020 | 150-350 | 400-800 | 6P 160-220 | 4200×3300×3500 | 100.9 |
PE1500×1800 | 1200 | 220-350 | 500-1000 | 8P 280-355 | 5160×3660×4248 | 139 |
PEX-150×750 | 120 | 18-48 | 8-25 | 4P 15 | 1200×1530×1060 | 3.8 |
PEX-250×750 | 210 | 25-60 | 13-25 | 6P 22 | 1380×1750×1540 | 5.5 |
PEX-250×1000 | 210 | 25-60 | 16-52 | 6P 30 | 1560×1950×1390 | 7 |
PEX-250×1200 | 210 | 25-60 | 20-61 | 6P 37 | 2140×1660×1500 | 9.7 |
PEX-300×1300 | 250 | 20-90 | 16-105 | 6P 55 | 2720×1950×1600 | 15.6 |
PEX-500×1500 | 350 | 25-120 | 50-160 | 6P 90 | 2360×2660×2105 | 20 |

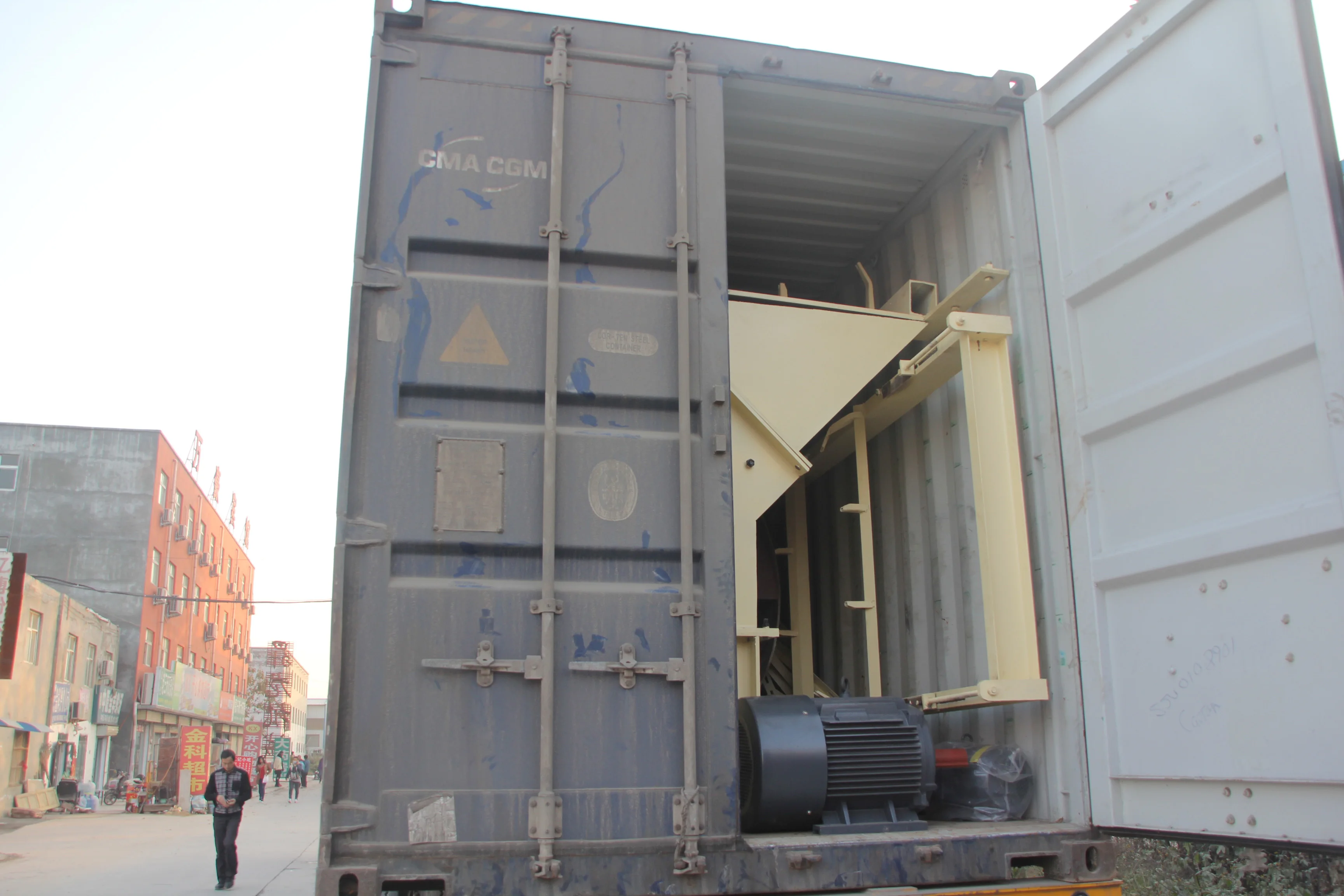

Packaging and transportation
Recommend Products

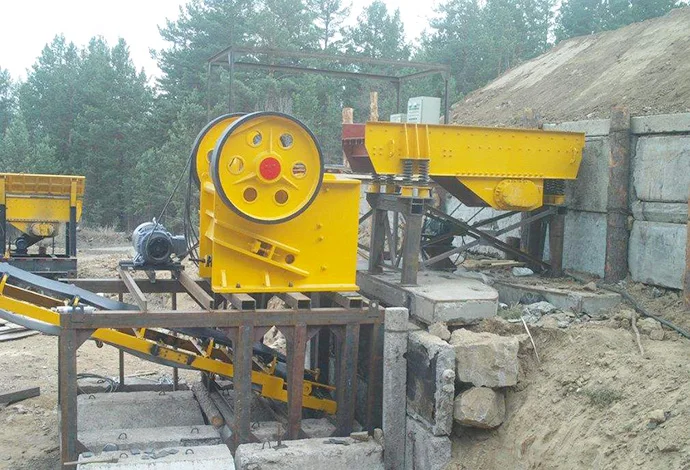

Cooperation cases
FAQ
Q1: Are you factory or trading company?
A1: we are factory, Self-produced and self-sold.
Q2: How about the quality of your products?
A2: No one pays more attention to product quality than we do,our boss is technical background, he is not a businessman, he often says that manufacturing inferior product is equal to producing garbage,This slogan has been hung in our production workshop.
Q3:Do you provide complete solutions?
A3: Yes,we provide kinds of solutions in drying, milling, crushing and sand making area! And we are professional!
Q4:How is your company's financial situation
A4:The company's operation is excellent without any debts and loans, and the plant and land have property rights
Q5:Do your company has any certification
A5:At present, we have 26 utility model patents and many invention patents
Q6:How about the after-sale service?
A6:12 months warranty for all kinds of products.
Q7: How to get the free solution and quotation ?
A7: Please send inquiry to us ,leave your whatsapp and email , our sales manager will contact you as soon as possible
Q2: How about the quality of your products?
A2: No one pays more attention to product quality than we do,our boss is technical background, he is not a businessman, he often says that manufacturing inferior product is equal to producing garbage,This slogan has been hung in our production workshop.
Q3:Do you provide complete solutions?
A3: Yes,we provide kinds of solutions in drying, milling, crushing and sand making area! And we are professional!
Q4:How is your company's financial situation
A4:The company's operation is excellent without any debts and loans, and the plant and land have property rights
Q5:Do your company has any certification
A5:At present, we have 26 utility model patents and many invention patents
Q6:How about the after-sale service?
A6:12 months warranty for all kinds of products.
Q7: How to get the free solution and quotation ?
A7: Please send inquiry to us ,leave your whatsapp and email , our sales manager will contact you as soon as possible
