ECOXINDA Class A1 Fireproof Insulation Rock Wool Roll Blanket ASTM Standard Sound Absorbing Fiber Exposed Rock Wool
- Category: >>>
- Supplier: Shandong Huanli Xinda New Materials Co. Ltd.
Share on (1601101892255):
Product Overview
Description
Product Description

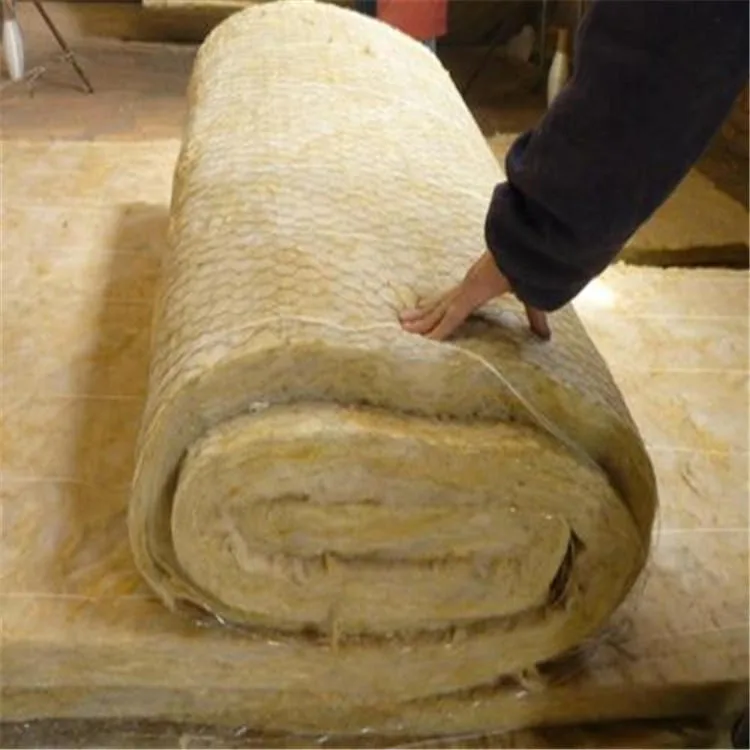

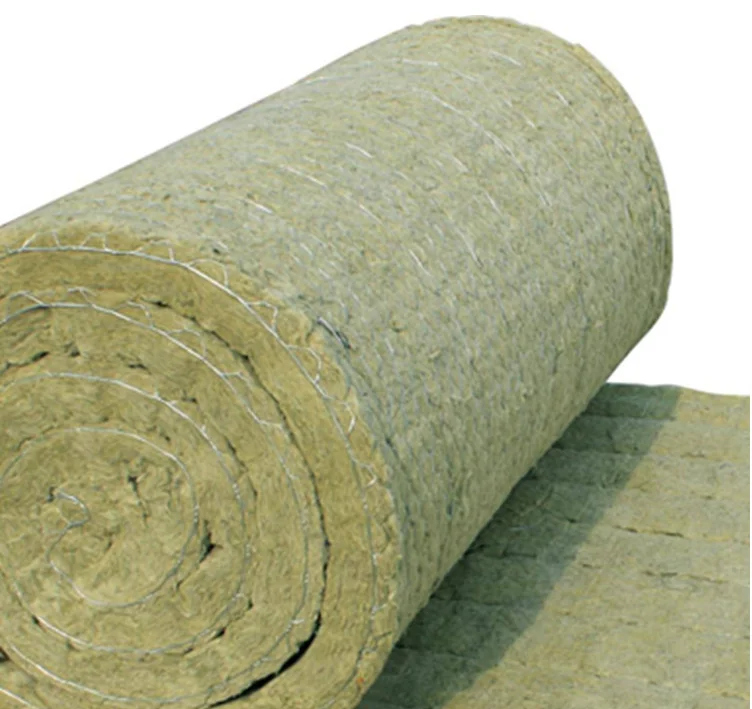

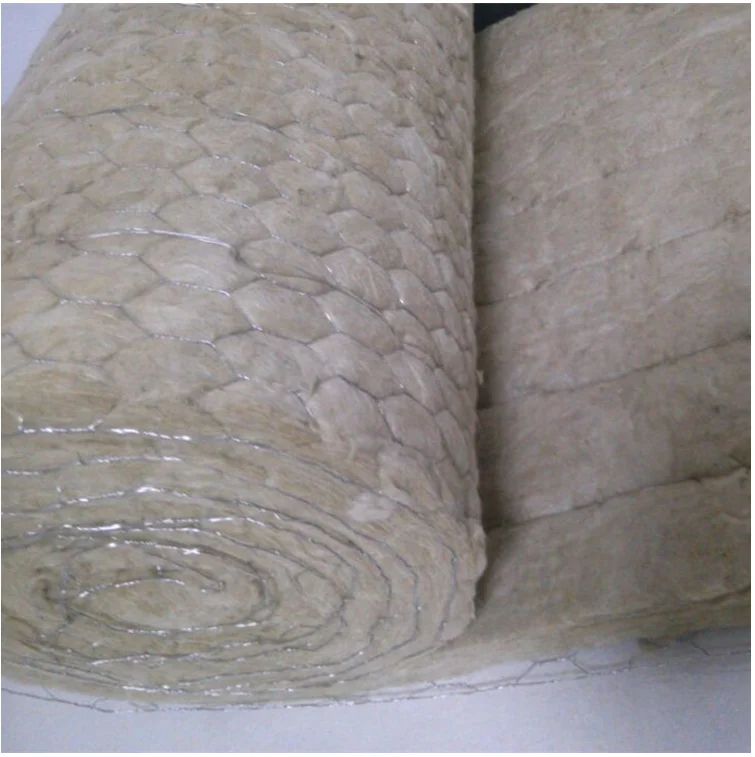

rock wool Blanket with Steel Mesh
Product Introduction
rock wool blanket with steel mesh is the most ecomomical insulating material. It is mainly applicable to insulation,sound absorption and fireproof of power plant, oil derprt, metallurgy and chemical industry equipment, such as: boiler, oil tank, heat exchanger,reaction tower,dust remover, dryer, oven, big pipes, sound-absorbing fire prevention. It is the most economic light weight insulating material.
rock wool blanket with steel mesh is the most ecomomical insulating material. It is mainly applicable to insulation,sound absorption and fireproof of power plant, oil derprt, metallurgy and chemical industry equipment, such as: boiler, oil tank, heat exchanger,reaction tower,dust remover, dryer, oven, big pipes, sound-absorbing fire prevention. It is the most economic light weight insulating material.
Standard Type
Density : 60-120 (kg/m3)
Length : 5000 mm
Width : 600 mm
Thickness : 30-100 mm
Package : Plastic bag.

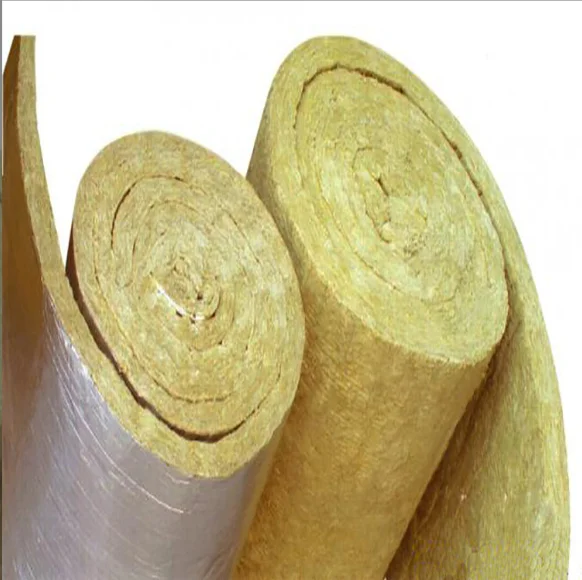

According to client needs,we can cover surface with materials such as aluminum foil etc.
Density : 60-120 (kg/m3)
Length : 5000 mm
Width : 600 mm
Thickness : 30-100 mm
Package : Plastic bag.
According to client needs,we can cover surface with materials such as aluminum foil etc.
Typical Parameters
Description | rock wool blanket 45 | rock wool blanket 65 | |||
Maximum Use Temperature (℃ ) | 550 | 750 | |||
Recommended Use Temperature (℃ ) | 450 | 650 | |||
Surface burning characteristics | Flue gas development index | ≤25 | |||
Flame spread index | 0 | ||||
Combustion performance | Non-combustible A1 | ||||
Volumetric hygroscopic rate (%) | ≤1 | ||||
Mass hygroscopic rate (%) | ≤1 | ||||
Density (kg/m³) | 80 | 100 | |||
Thermal Conductivity (W/m·K) | 70℃ | 0.040 | 0.038 | ||
100℃ | 0.046 | 0.042 | |||
150℃ | 0.050 | 0.048 | |||
200℃ | 0.064 | 0.056 | |||
250℃ | 0.076 | 0.063 | |||
300℃ | 0.080 | 0.070 | |||
350℃ | 0.077 | ||||
400℃ | 0.085 | ||||
Health and safety | No asbestos , No irritating odor , No bacteria | ||||
Specification
Performance | Indicators |
Shot content ( Particle diameter ≥0.25mm) | ≤ 12.0 % |
The average diameter of fiber | ≤7.0 μm |
Density Tolerance | ± 15% |
Thermal Conductivity ( average temperature 70℃±52℃),W/(m/K) | ≤ 0.044 |
Thermal load contraction temperature (more than 60kg/m3) | ≥ 600 ℃ |
Moisture | ≤0.5% |
Combustion performance | Not burning (Class A) |
Organic content | ≤ 4.0% |

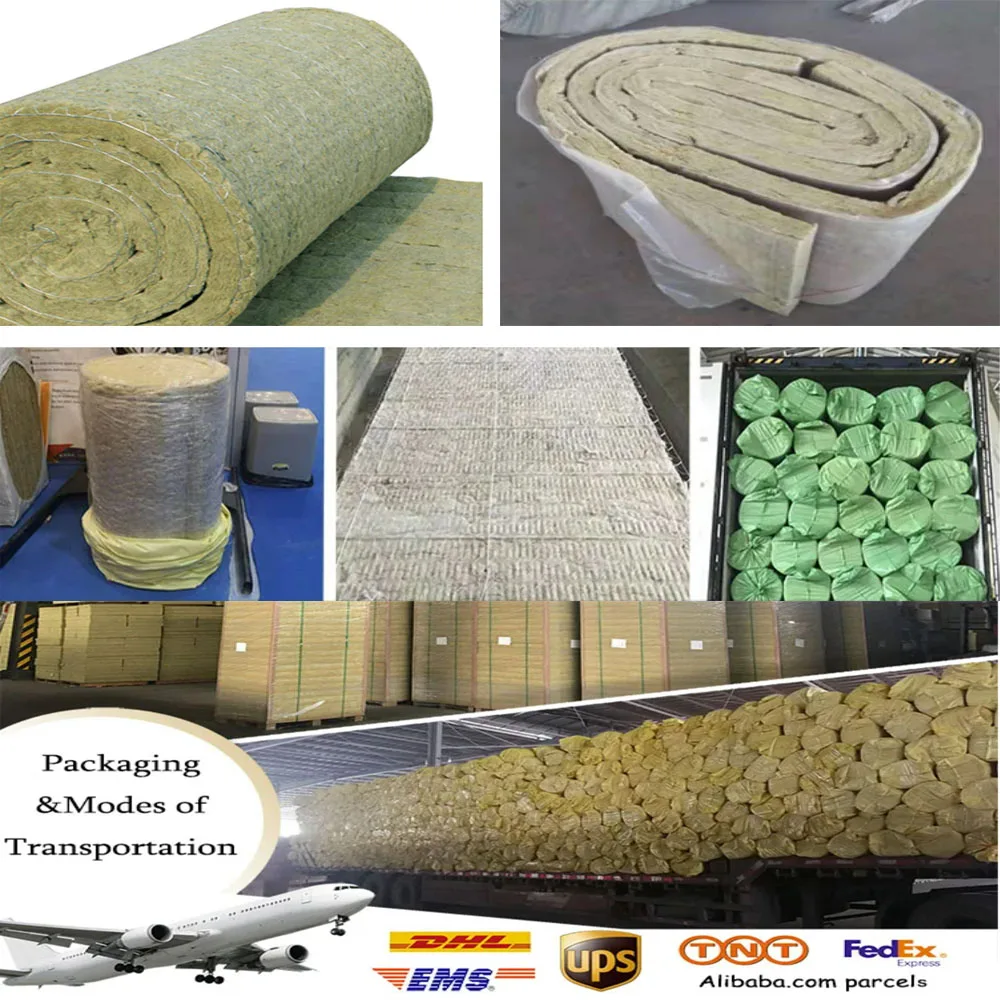

Packing & Delivery

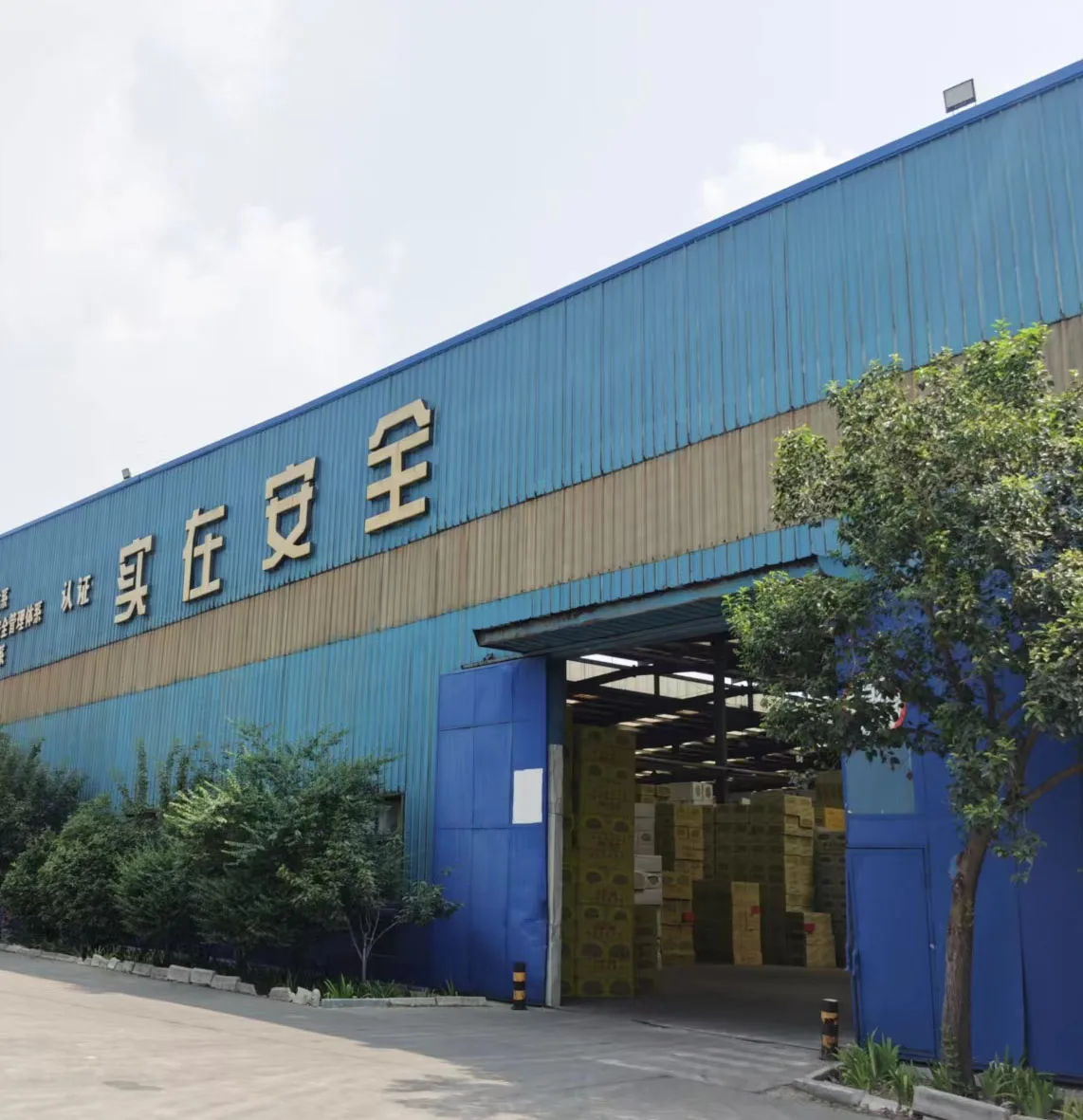

Company Profile
EcoXinDa New Material Co., Ltd. has become a well-known R&D, production and sales enterprise of ceramic fiber, rock wool fiber, and other new energy-saving materials.
Luoyang has an annual output of 400,000 tons of various ceramic fiber products and 200,000 tons of rock wool products.
Luoyang has an annual output of 400,000 tons of various ceramic fiber products and 200,000 tons of rock wool products.
