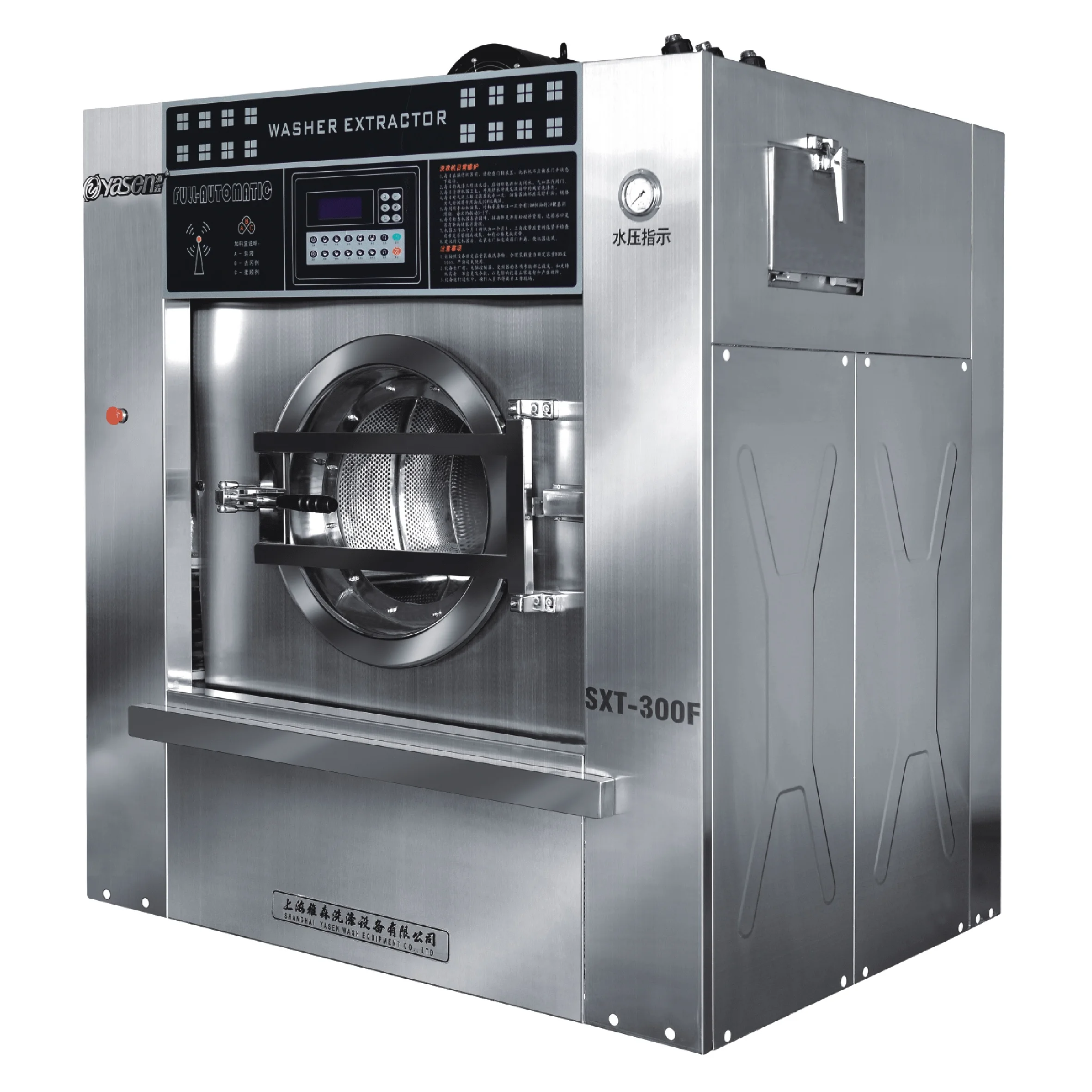

Fully automatic commercial laundry equipment industrial washer machine
- Category: >>>
- Supplier: Shanghai Yasen Wash Equipment Co. Ltd.
Share on (1601102479559):
Product Overview
Description
Product Description
Use:
SXT-F Series Washer-extractor is suitable for hotel,restaurant,hospital,garment factory, industry-mining enterprise as well as individual washing-dyeing.It is used for washing cotton,wool,chemical fiber and other fabrics.
Short introduction:

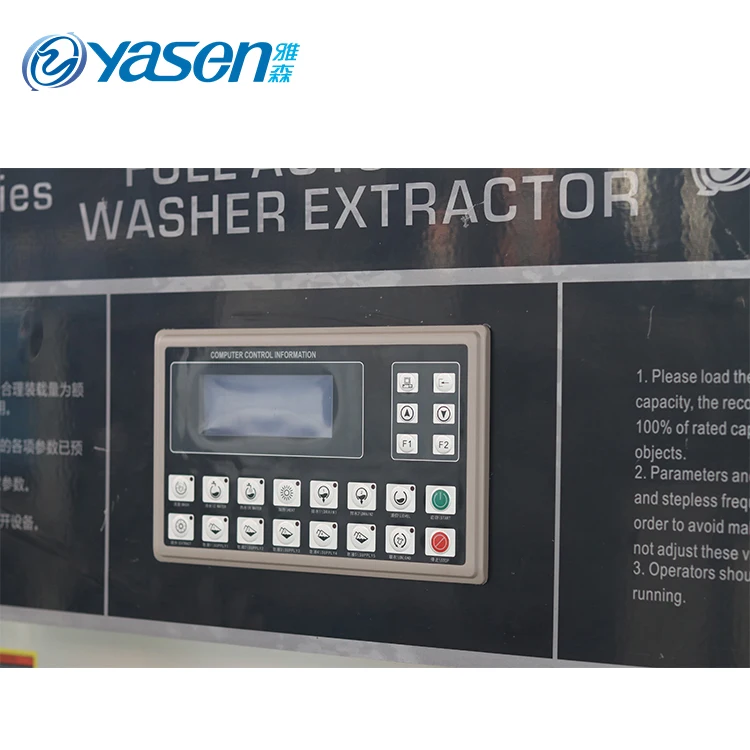

Full-automatic control by computer control system
SXT-F washer-extractor has professional computer control system,excellent capacity and super function ,it contains 30
programmable procedures and 5 standard programs, and all design is near to human feature.
Full-automatic control by computer control system
SXT-F washer-extractor has professional computer control system,excellent capacity and super function ,it contains 30
programmable procedures and 5 standard programs, and all design is near to human feature.
User can control work liquid-level,wash temperature ,wash time,and efficiently satisfy with wash request in different situations.
High strength,long durability
Creative structure from drum design of excellent stainless steel ensures that machine lifespan is prolonged during overload situation.
Adopting advanced limit principle to design outer vat is made by stainless steel(50-150 kg),it can resist corrosion and have high stability.
Different design of high-strength big shaft-pedestal and high-accuracy short shaft can effectively reduce transverse vibration moment .Bearing of major shaft adopt high accurate core,so that prolong use lifespan and durability.
Seal technology of major shaft have acquired state invention patent,double design of water-proof,imported seal material of fluorine rubber,special compartment design,assuring that protect bearing and improve use lifespan.
High strength,long durability
Creative structure from drum design of excellent stainless steel ensures that machine lifespan is prolonged during overload situation.
Adopting advanced limit principle to design outer vat is made by stainless steel(50-150 kg),it can resist corrosion and have high stability.
Different design of high-strength big shaft-pedestal and high-accuracy short shaft can effectively reduce transverse vibration moment .Bearing of major shaft adopt high accurate core,so that prolong use lifespan and durability.
Seal technology of major shaft have acquired state invention patent,double design of water-proof,imported seal material of fluorine rubber,special compartment design,assuring that protect bearing and improve use lifespan.
After sales service:
The whole machine has been guaranteed for 1 years.
Providing lifelong technical support.
Guarantee of spare parts supply.
Engineers available to service machinery overseas.
The whole machine has been guaranteed for 1 years.
Providing lifelong technical support.
Guarantee of spare parts supply.
Engineers available to service machinery overseas.
Specification
Model | SXT-150F | SXT-200F | SXT-300F | SXT-500F | SXT-1000F | SXT-1300F | SXT-1500F |
Rated Capacity(kg) | 15 | 20 | 30 | 50 | 100 | 130 | 150 |
Drum Dimension(mm) | Φ640×480 | Φ730×450 | Φ900×470 | Φ970×680 | Φ1200×888 | Φ1300×980 | Φ1470×880 |
Heating Type | electricity / steam | electricity / steam | electricity / steam | electricity / steam | electricity / steam | electricity / steam | electricity / steam |

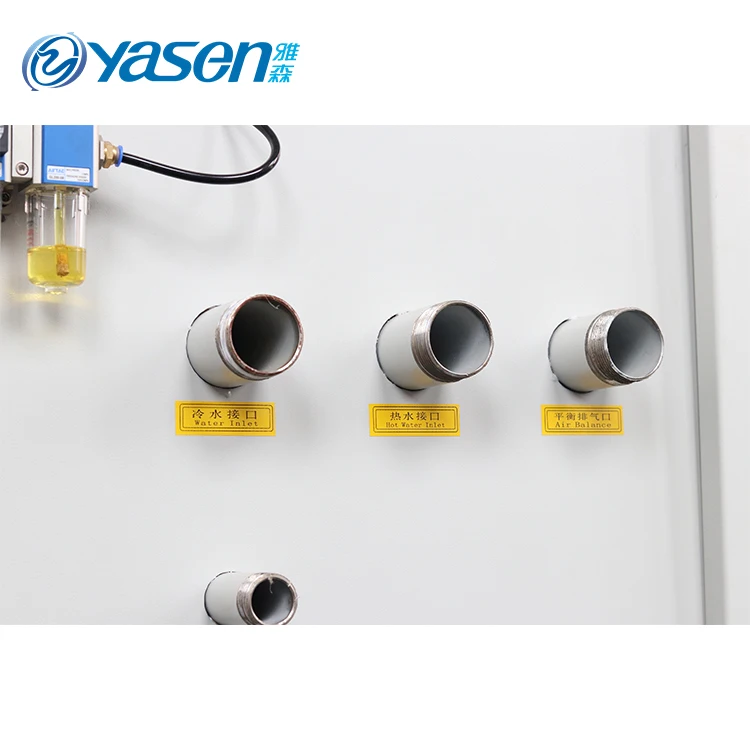

Water Inlet(lnch) | G3/4" | G3/4" | G1" | G1.5" | G1.5" | G2" | G2" |
Steam lnlet(lnch) | G3/4" | G3/4" | G3/4" | G1" | G1" | G1" | G1.5" |
Motor Power(kw) | 1.5 | 2.2 | 3 | 4 | 7.5 | 11 | 15 |
Electric Heating Power(kw) | 9 | 18 | 27 | 36 | 72 | - | - |
Power Supply(v/p/Hz) | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 |
Noise dB(A) | <78 | <78 | <78 | <78 | <78 | <78 | <78 |
Dimension WxDxH(mm) | 1100x1000x1550 | 1100x1050x1550 | 1440x1240x1750 | 1540x1815x1605 | 1910x2190x1982 | 2060x2330x2018 | 2320x2375x2215 |
Net Weight(kg) | 450 | 550 | 1500 | 2200 | 2900 | 3900 | 4900 |
