New Type Cheap Price Jaw Crusher Rock Crusher Mobile Stone Crusher With Belt Conveyor
- Category: >>>
- Supplier: Shenyang Boyiqiang Heavy Machinery Equipment Co. Ltd.
Share on (1601102488353):
Product Overview
Description
Product Description

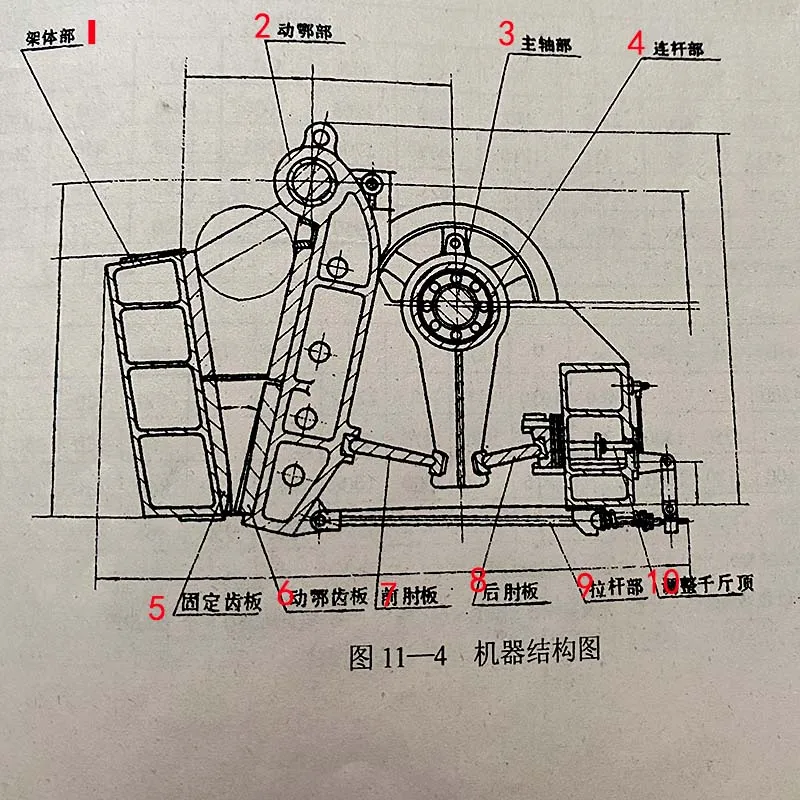

Simple pendulum jaw crusher
. Body section
2. The jaw
3. Spindle
4. Link part
5. Fixed tooth plate
6. Motion of Hubei tooth plate
7 Front elbow plate
8. Backelbow plate
9. Pull the rod
10. Adjust the jack
2. The jaw
3. Spindle
4. Link part
5. Fixed tooth plate
6. Motion of Hubei tooth plate
7 Front elbow plate
8. Backelbow plate
9. Pull the rod
10. Adjust the jack
Product Paramenters
FE Jaw Crusher Technical Parameters
model | feed size | recommend maximum feed size | motor power kw | discharge port | output t/h | weight t |
FE80 | 800*510 | 420 | 75 | 40-175 | 65-365 | 9.5 |
FE96 | 930*580 | 480 | 90 | 60-175 | 120-410 | 12.2 |
FE100 | 1000*760 | 630 | 110 | 70-200 | 140-510 | 23.5 |
FE106 | 1060*700 | 580 | 110 | 70-200 | 165-520 | 18.6 |
FE116 | 1150*800 | 650 | 132 | 70-200 | 180-540 | 22.3 |
FE120 | 1200*870 | 700 | 160 | 70-175 | 190-560 | 31.5 |
FE125 | 1250*960 | 760 | 185 | 100-250 | 260-775 | 44 |
FE130 | 1300*1000 | 800 | 185 | 100-250 | 285-850 | 45.8 |
FE140 | 1400*1070 | 860 | 200 | 125-250 | 345-870 | 54.2 |
FE150 | 1400*1200 | 1000 | 220 | 125-250 | 355-900 | 61 |
FE160 | 1600*1200 | 1000 | 250 | 150-300 | 445-1170 | 88.2 |
FE200 | 2000*1500 | 1200 | 400 | 175-300 | 645-1460 | 137 |
FE Jaw Crusher Processing Capacity
Recommend Products
Certifications
FAQ
Is there credit protection and availability?
We have two large factories. Welcome to visit
How to install?
We will provide a detailed installation process diagram, or feel free to ask our service personnel
If you would like us to recommend products to you, please provide the following information:
Broken material
Maximum material size (mm)
Desired output size
Maximum material size (mm)
Desired output size
