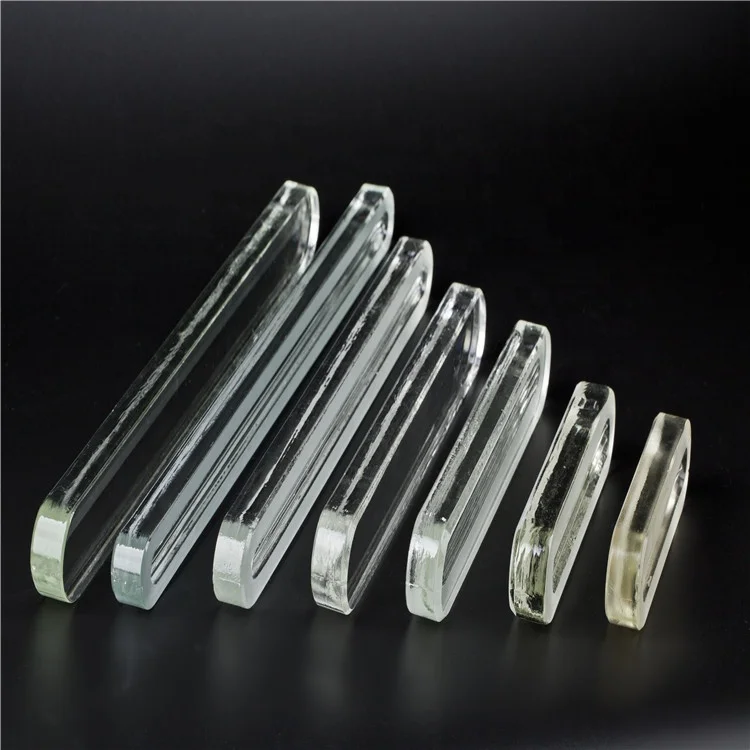

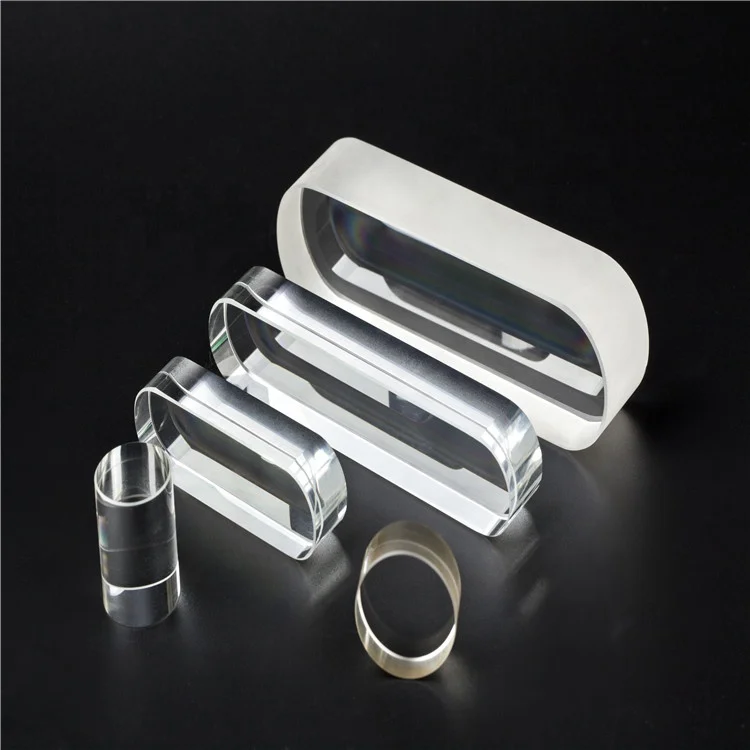

Borosilicate glass boiler level gauge glass reflex boiler liquid level gauge liquid level sight glass
- Category: >>>
- Supplier: Qingdao Vatti Glass Co. Ltd.
Share on (1601102544085):
Product Overview
Description
Product Description

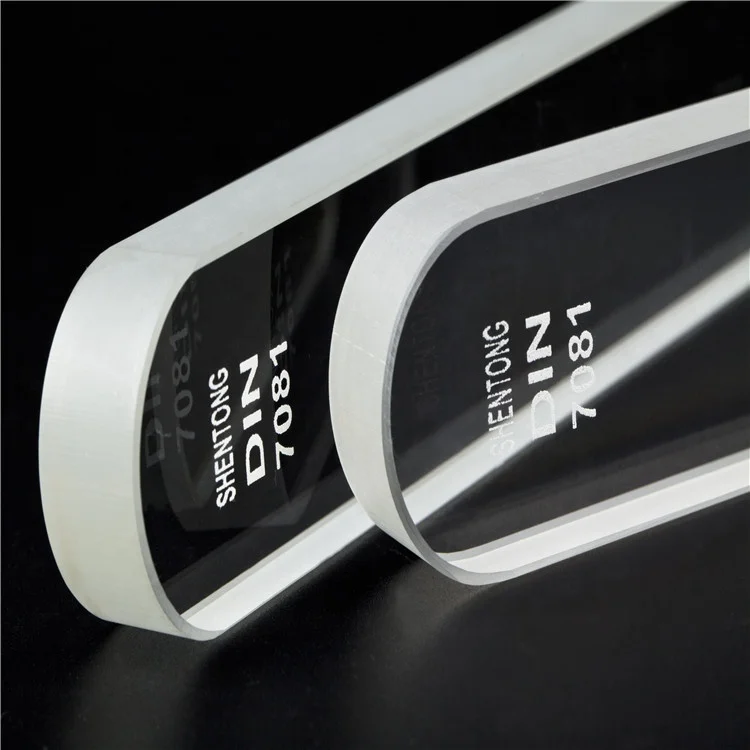

Borosilicate glass 3.3 boiler level gauge glass reflex boiler liquid level gauge glass
borosilicate boiler level gauge glass: reflex type and transparent type.
Size & design: accept customized logo according to customer's requirement, edge can be polished or frosted as requirement.
Product Name | Level gauge glass |
Material | Aluminosilicate glass,borosilicate glass |
Color | Transparent |
Density | 2.62-2.67g/cm3 |
Transmissivity | 91.8%(8mm), 91.9%(1mm) |
Hardness | >7 |
Tensile strength | 4.8x107pa(N/M2) |
Compressive strength | (0-300) 3.3±0.1×10-6K-1 |
Poisson's ratio | 0.18 |
Coefficient of thermal expansion | (0-300) 3.3±0.1×10-6K-1 |
Thermal conductivity | 1.2W·m-1·k-1 |
Softening point | 820±10°C |
Annealing point | 560°C |
Strain point | 516±10°C |
Electrical resistivity | >1018 Ωm |
Dielectric constant | 4.6 1 MHz, 25 |
Advantage
1) Factory direct supply.
2) Operating Temperature: 400℃.
3) Excellent visual and chemical performance: acid-resistance, alkali-resistance, good thermal stability.
4) Health care and environmental protection.
5) No air bubble and no air line.
6) Excellent electrical insulator.

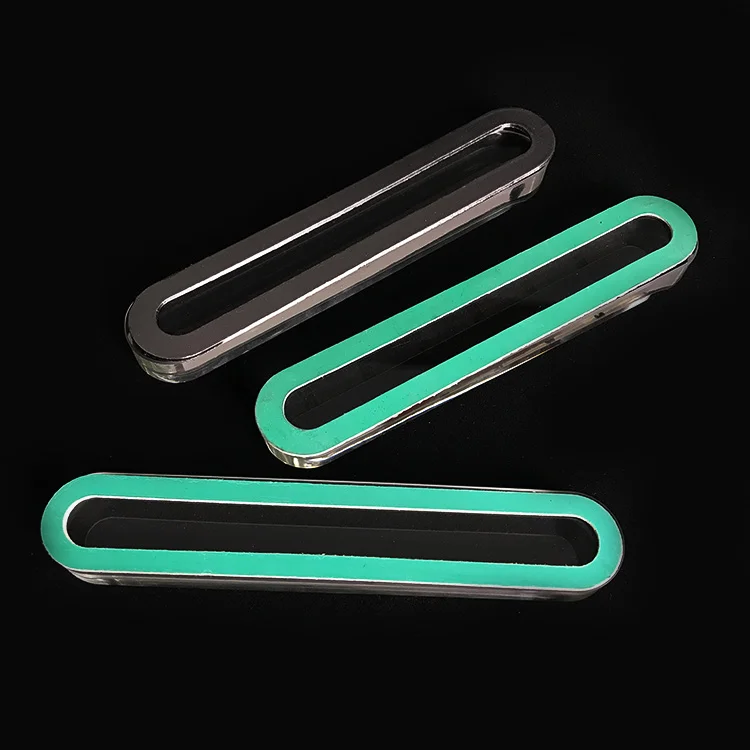

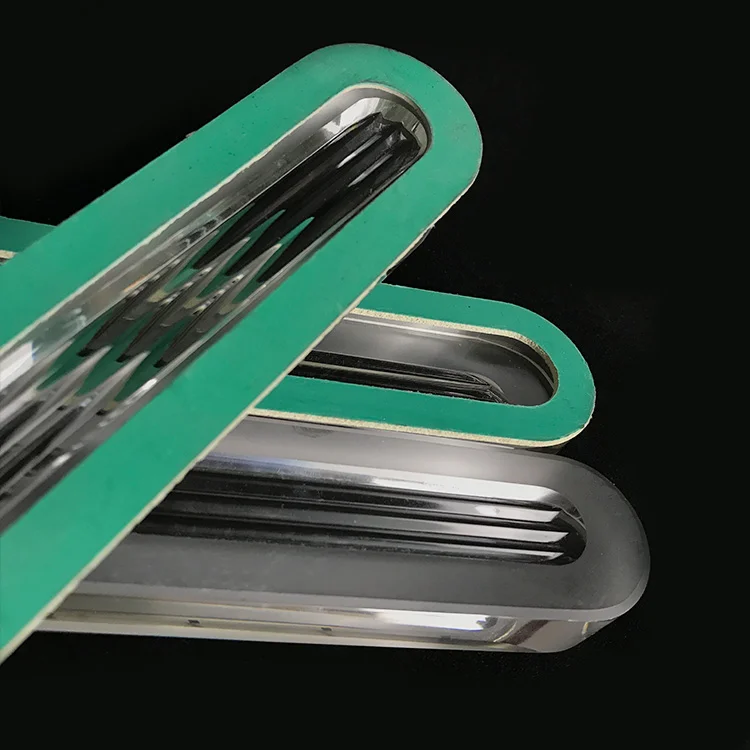

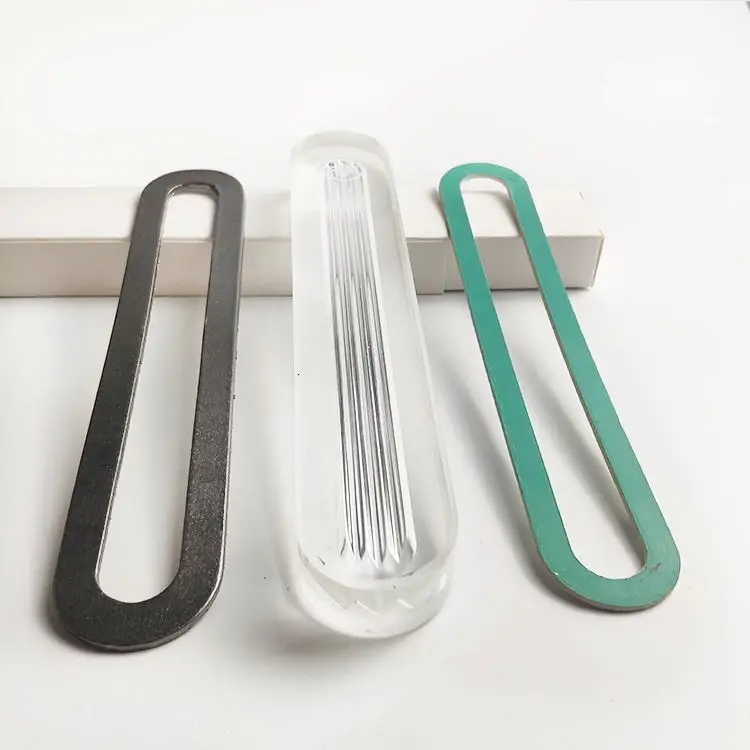

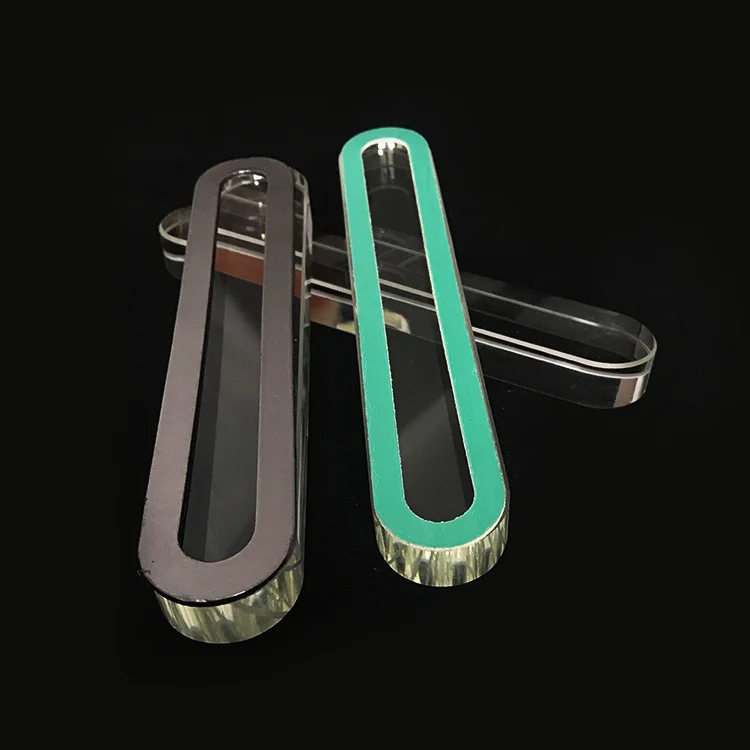

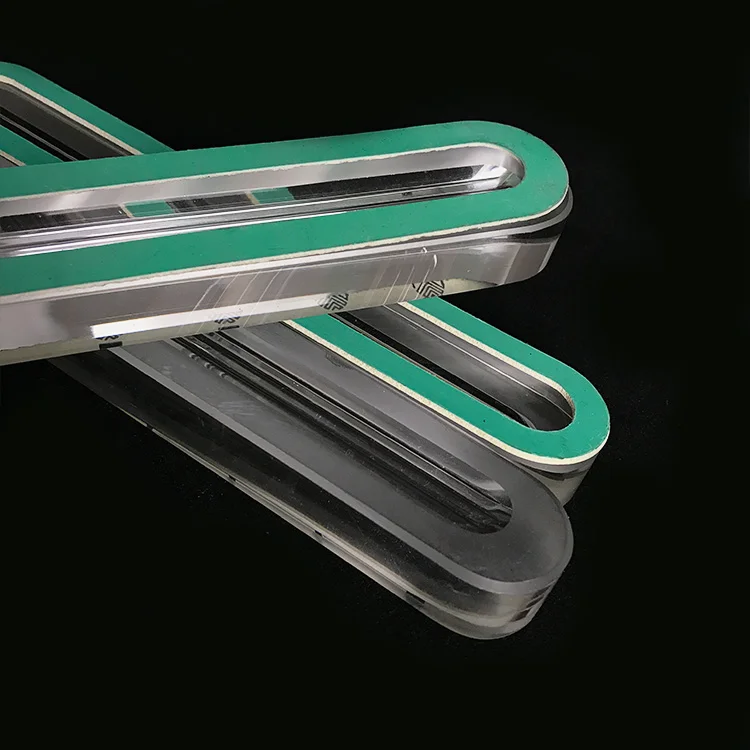

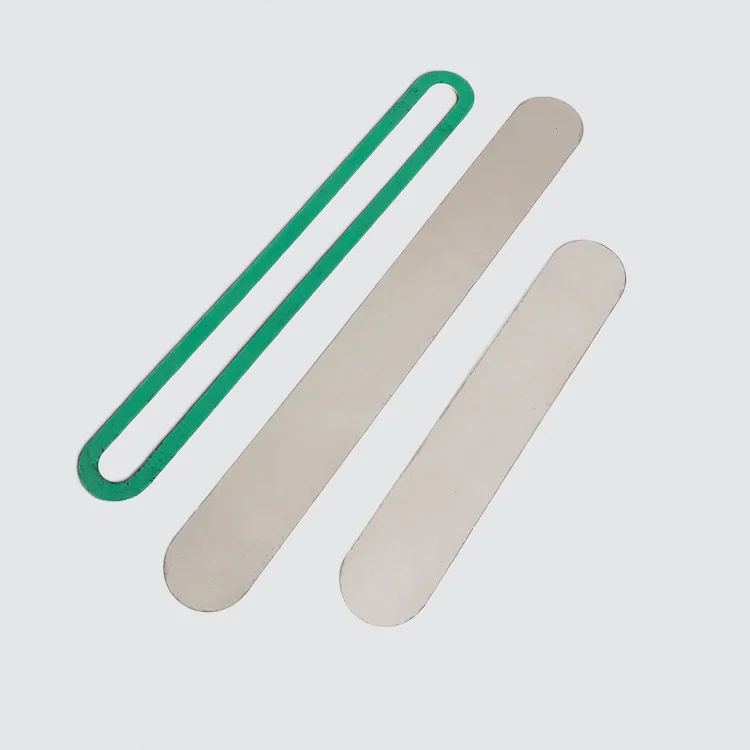

7) Matched gaskets available: non asbestos gasket, graphite gasket and mica gasket.
7) Matched gaskets available: non asbestos gasket, graphite gasket and mica gasket.

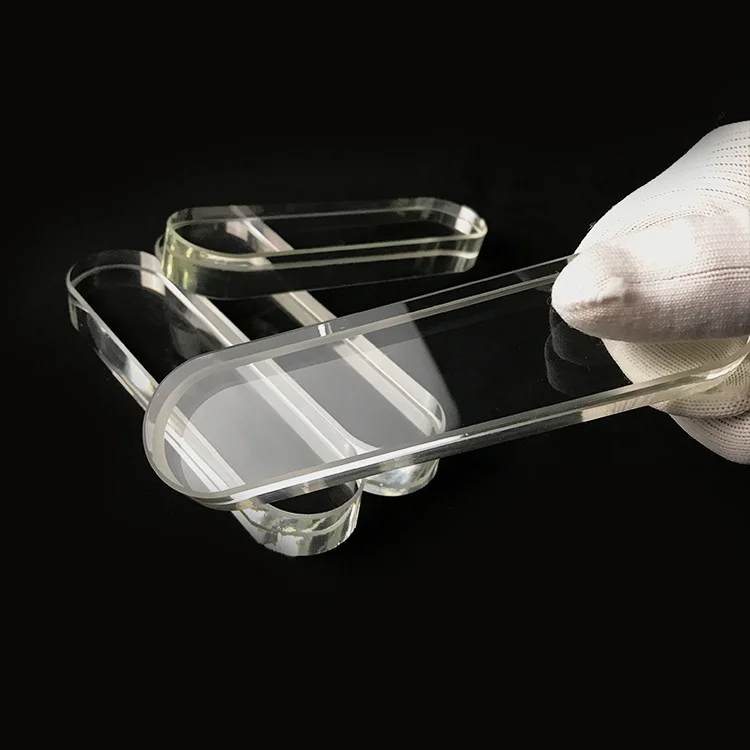

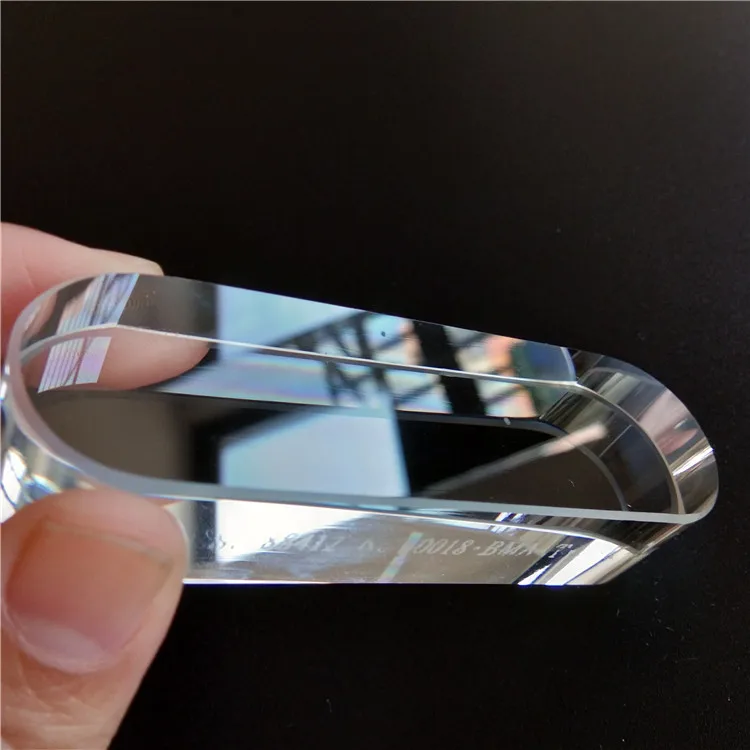

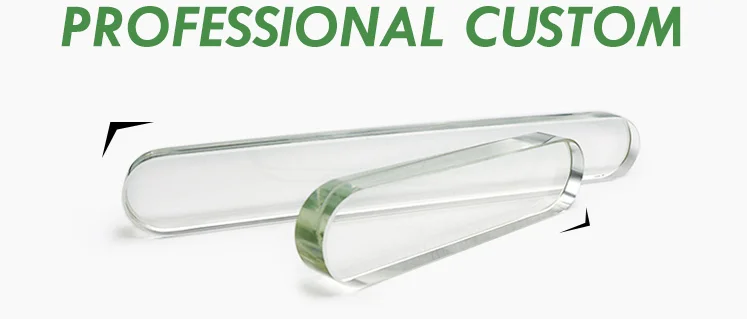

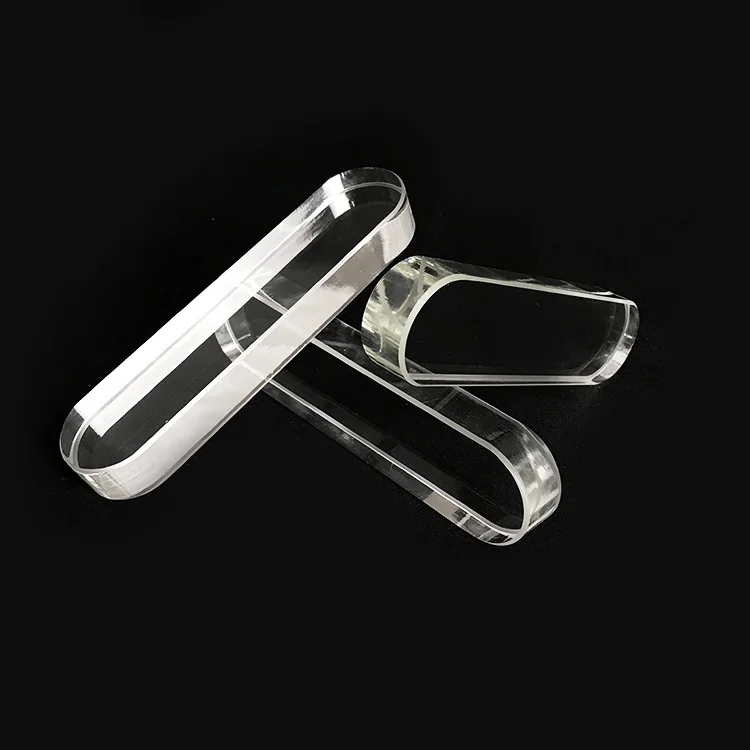

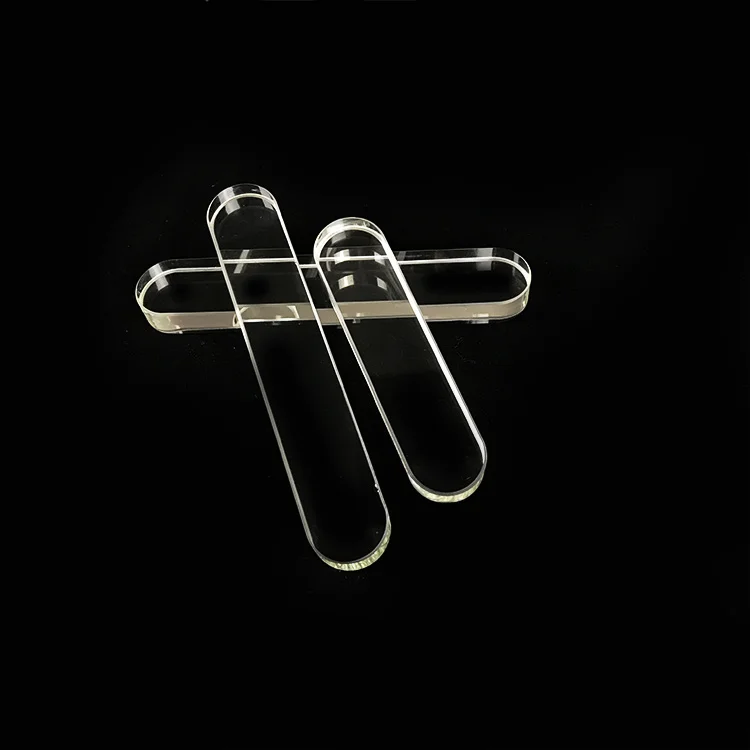

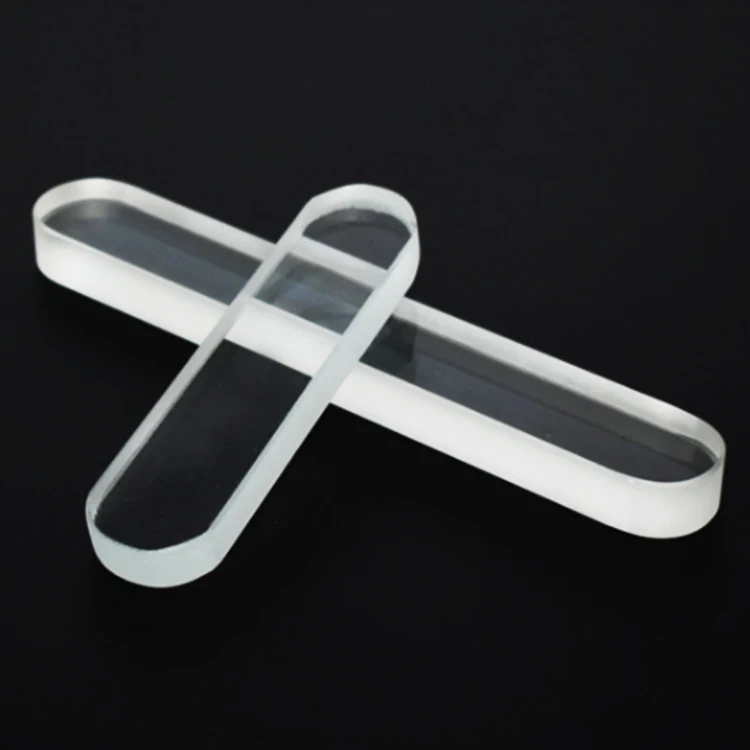

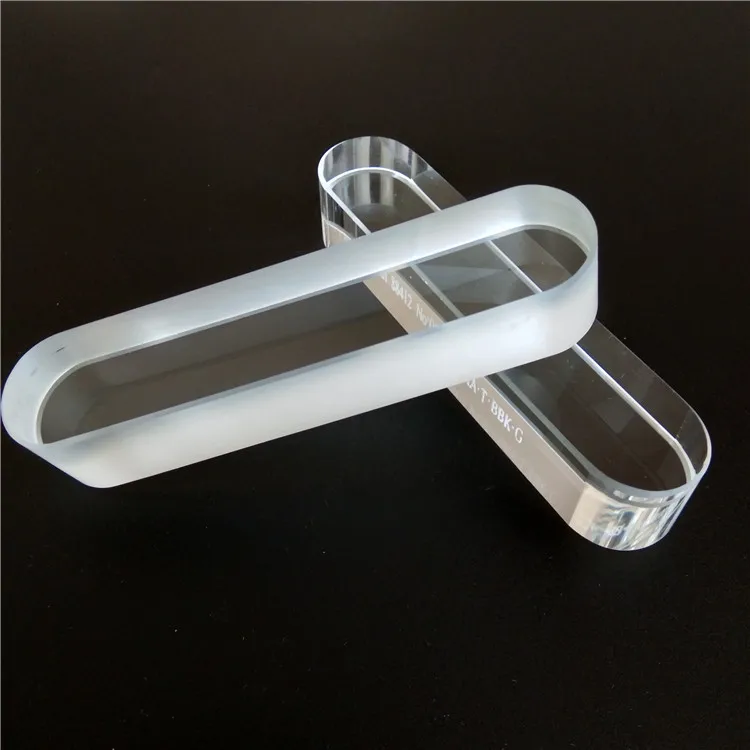

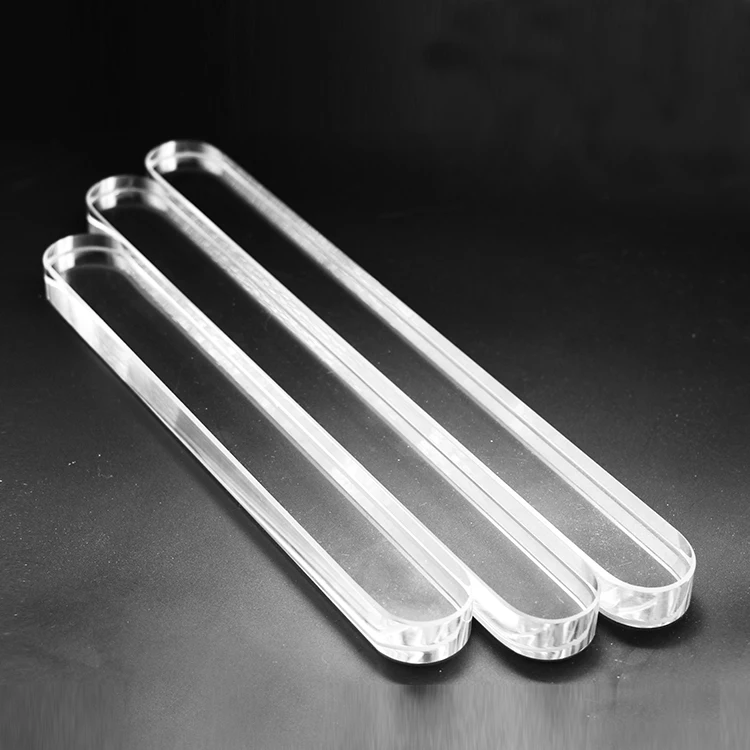

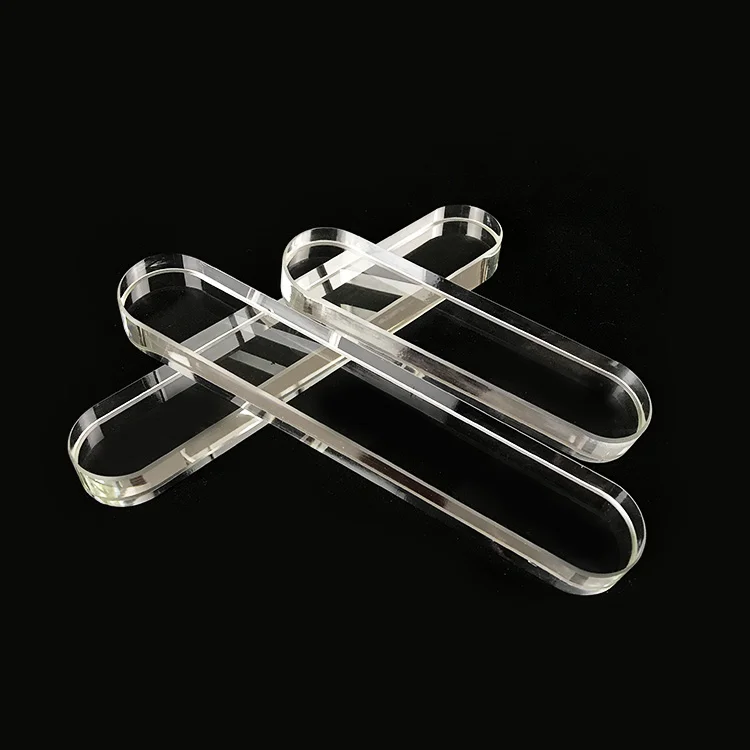

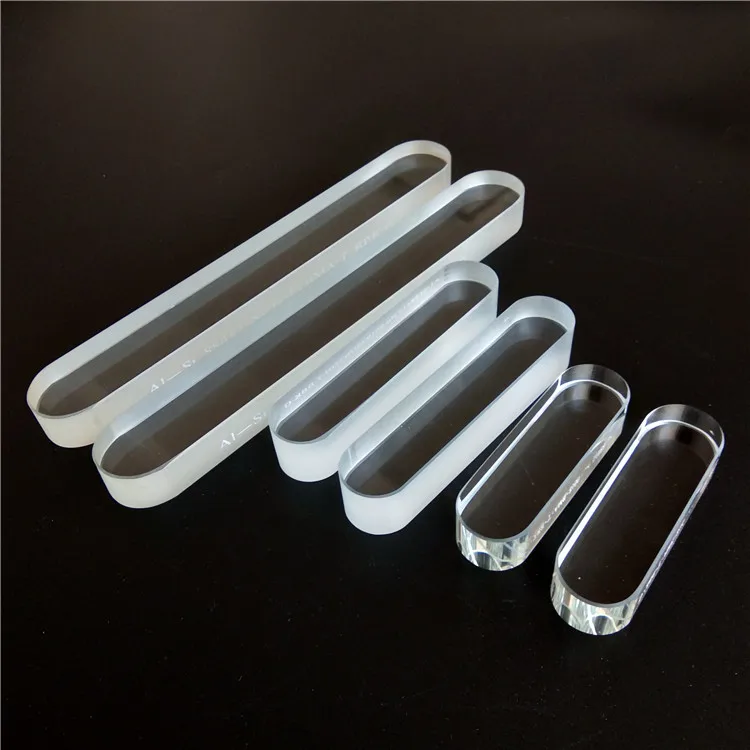

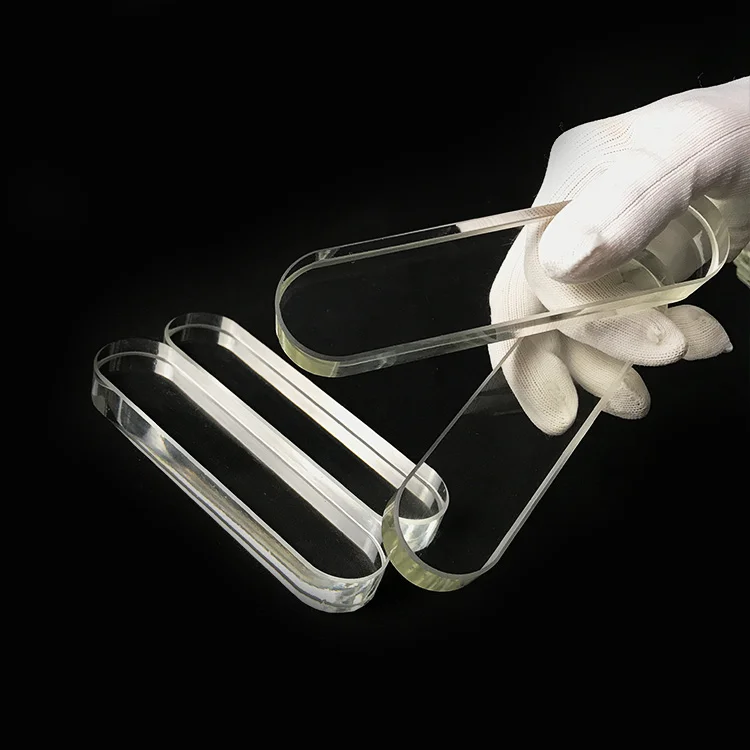

Transparent level gauge glass, also called transparent sight glass, transparent level glass and transparent level gauge, is usually made of borosilicate glass and aluminosilicate glass. The glass is manufactured into the strip shape and used in boiler or some instruments for observing the liquid level.

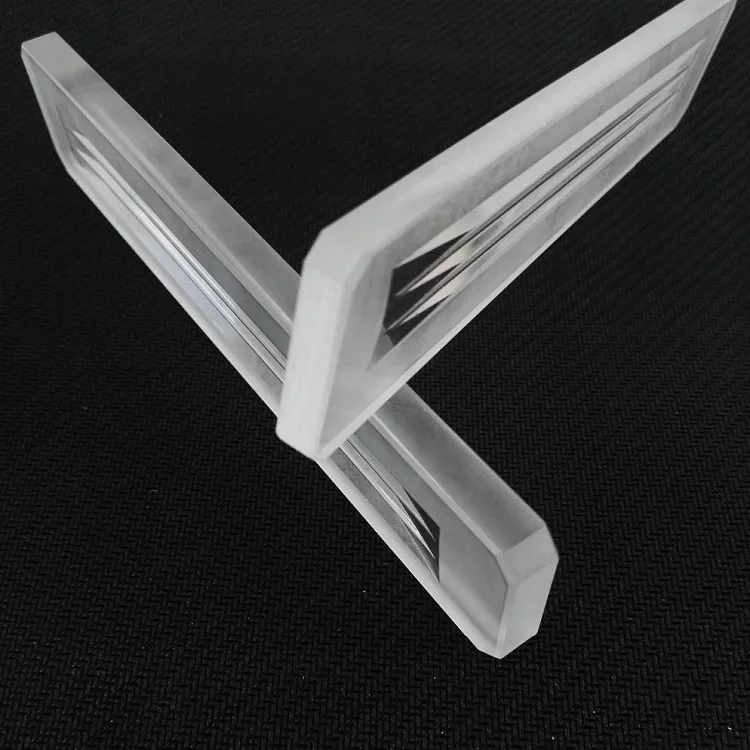

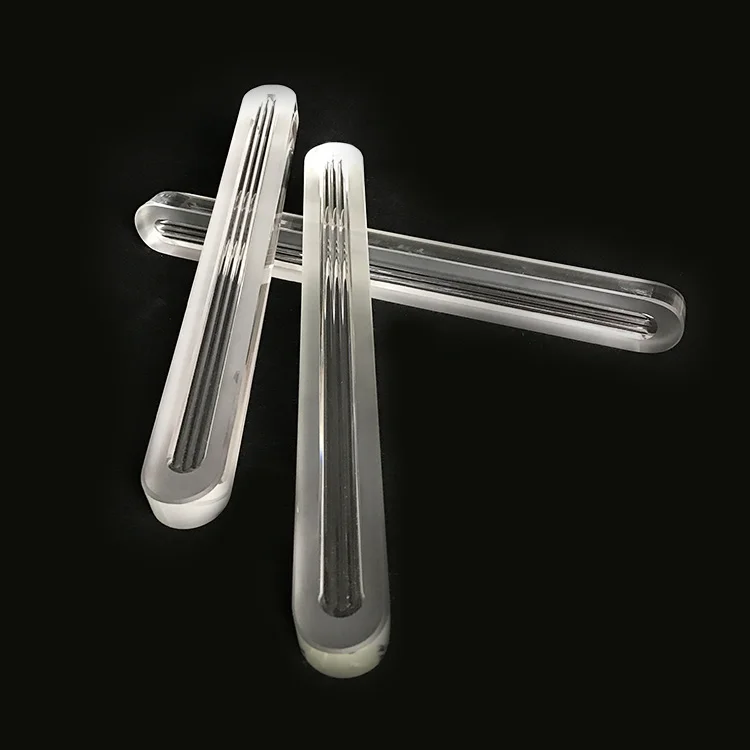

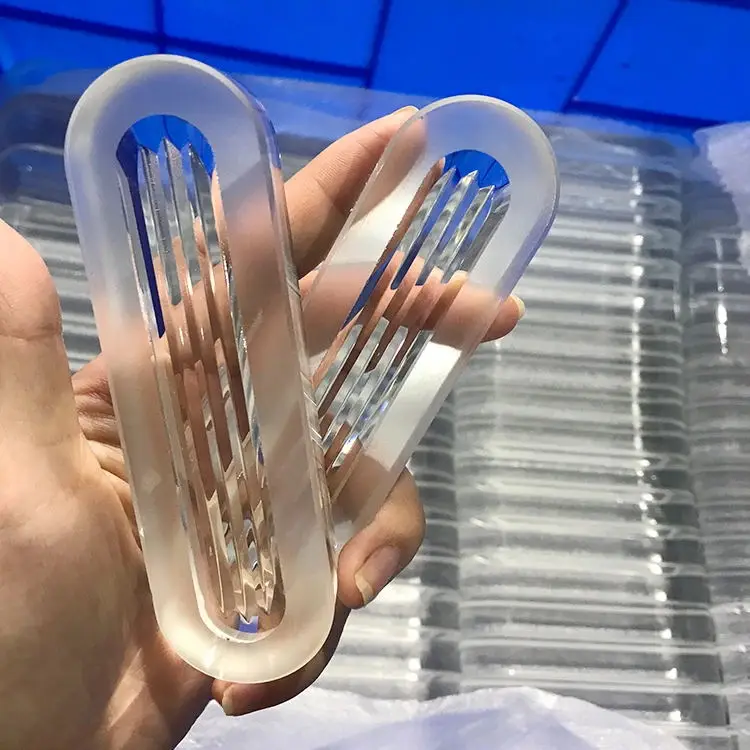

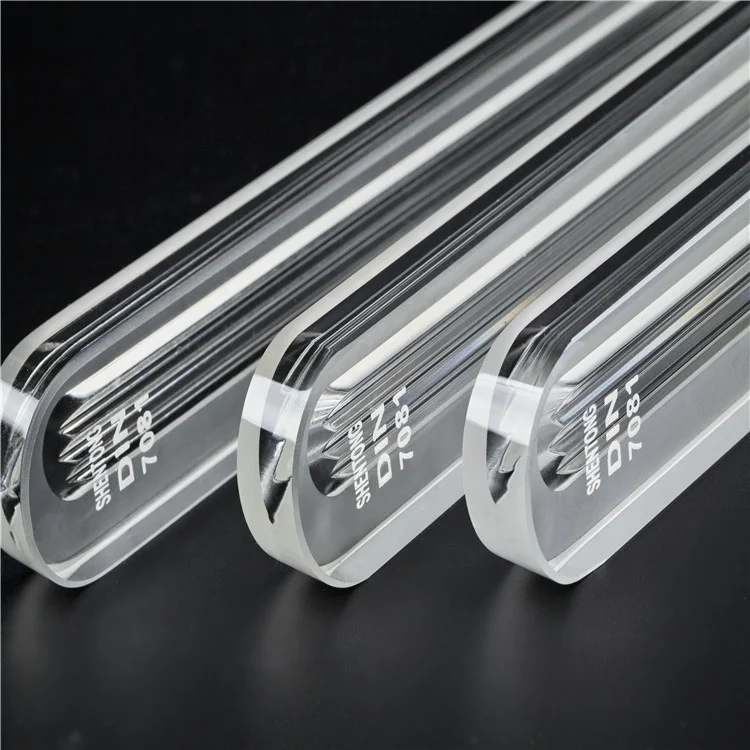

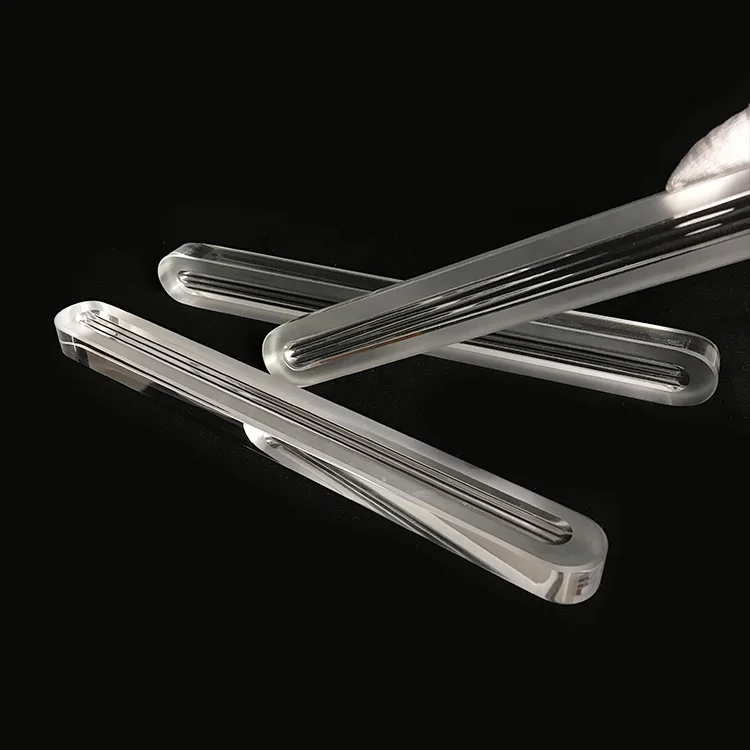

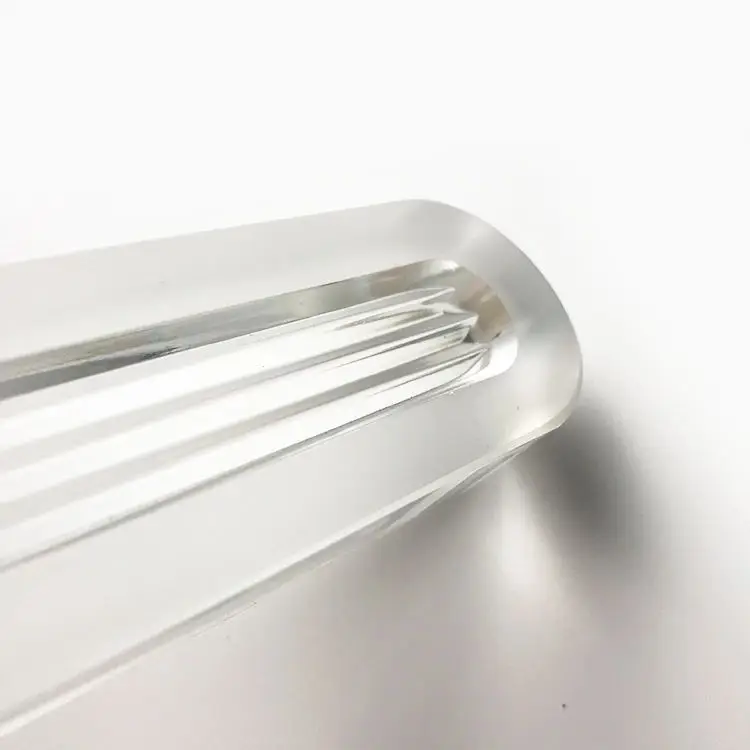

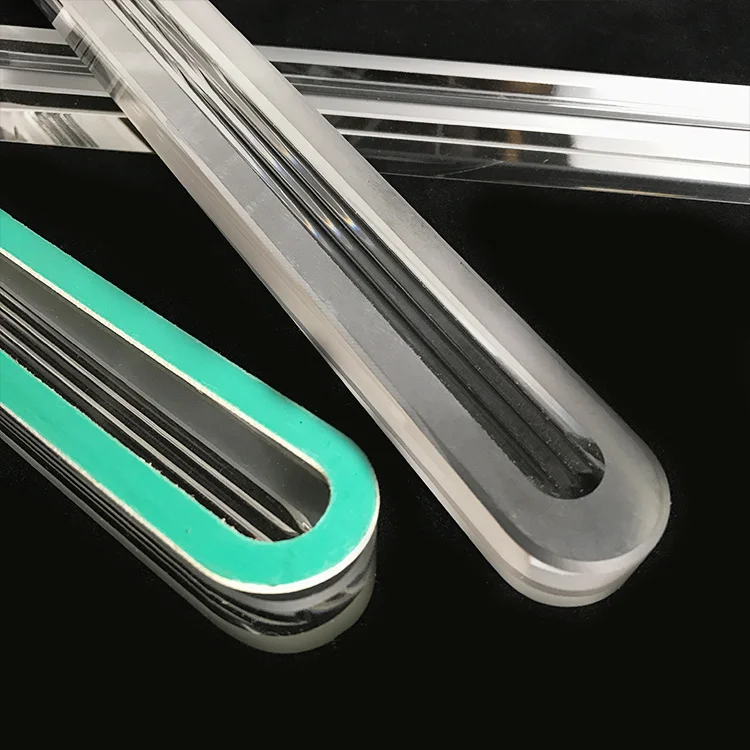

Reflex gauge glass is used to read the medium level in the boiler or other tanks. The one side of the glass which is exposed to the medium has a prismatic surface and another side is smooth. The medium level inside the level gauge is indicated as the result of the light refraction principle, since the liquid filled area completely absorbs the rays of light and appears dark, whereas the rays of light are totally reflected in the
gas/air filled area which appears bright.
gas/air filled area which appears bright.

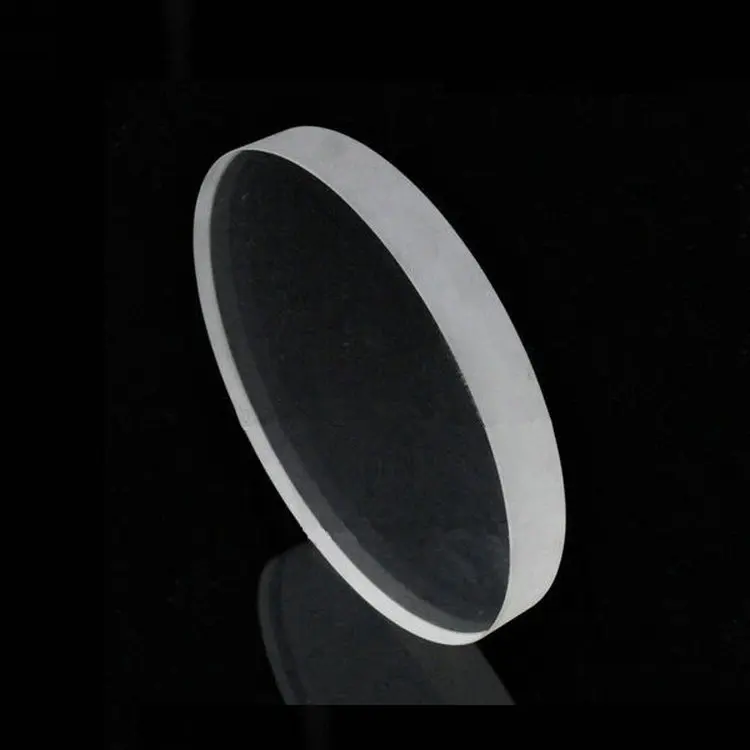

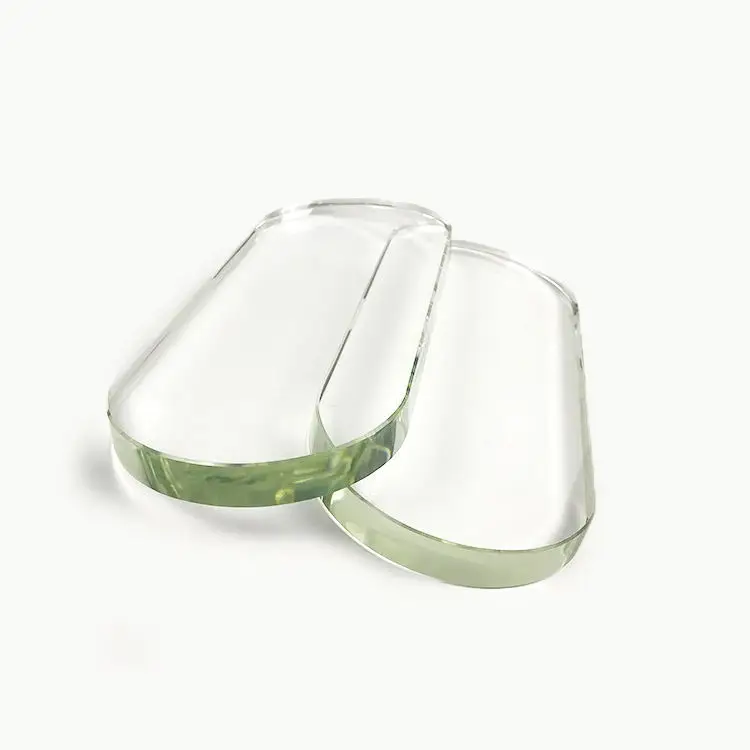

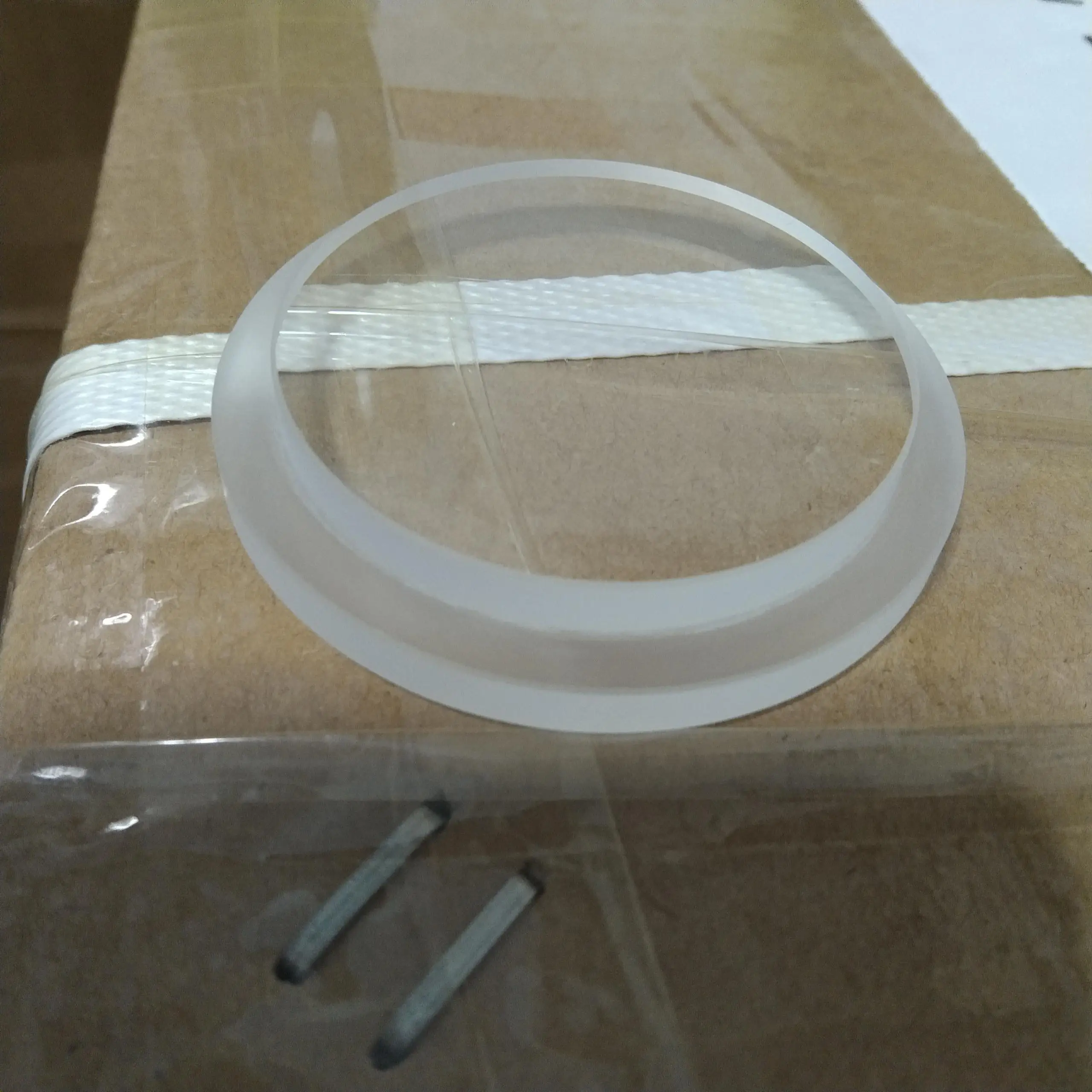

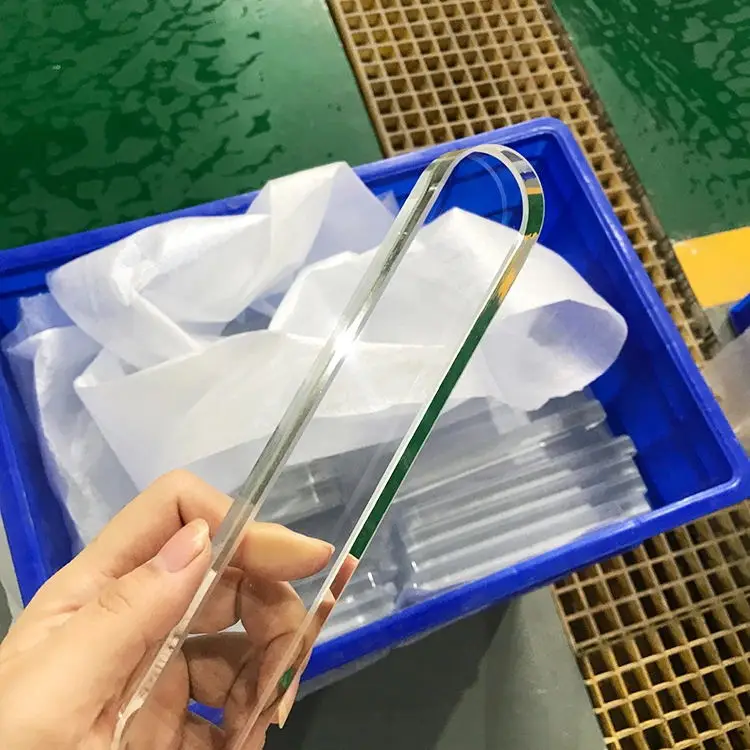

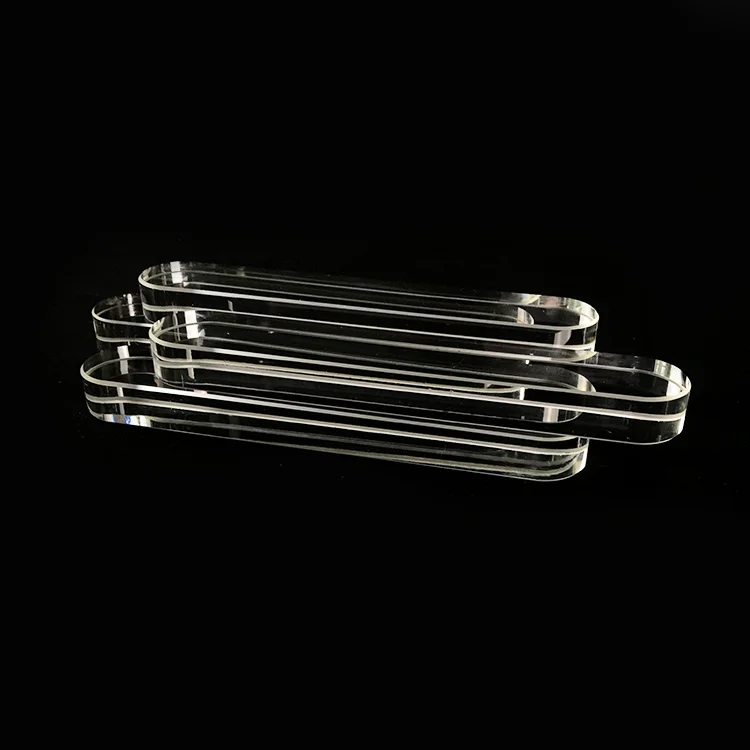

Product Show

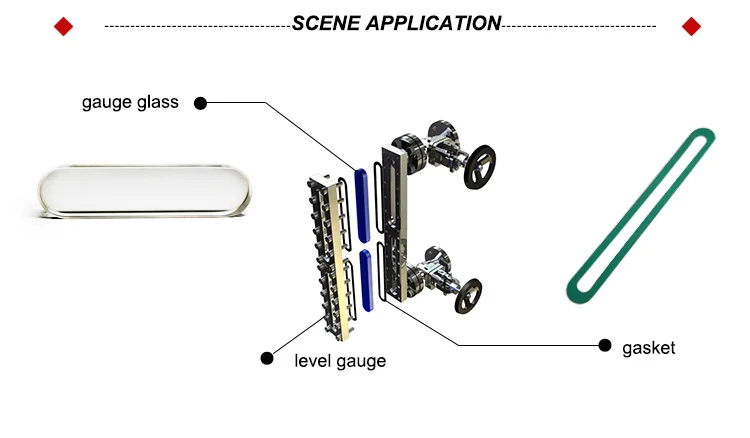

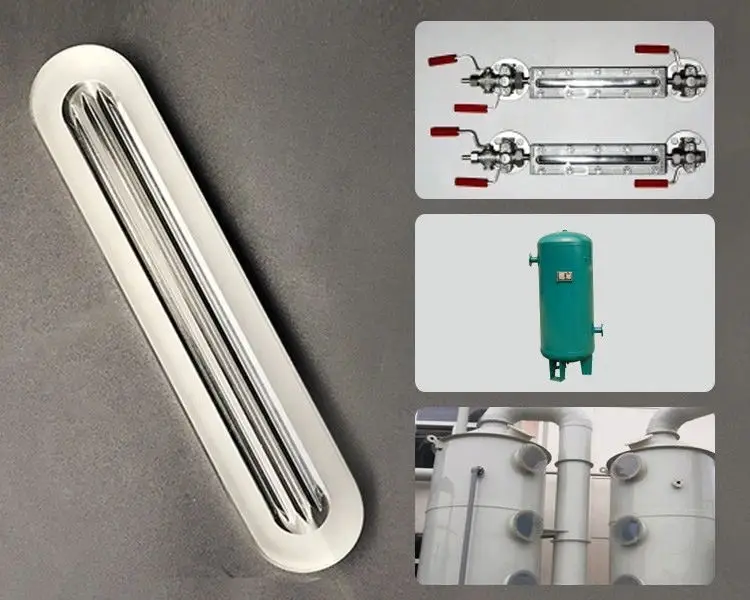

Application
Packing & Shipping

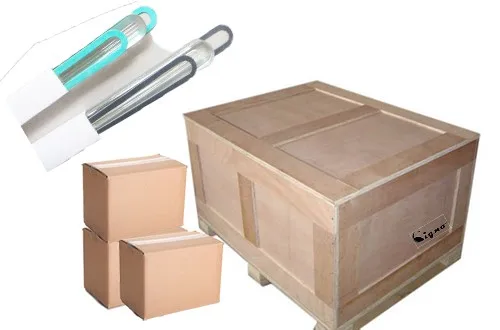

Packing

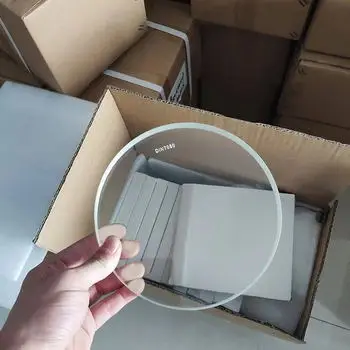

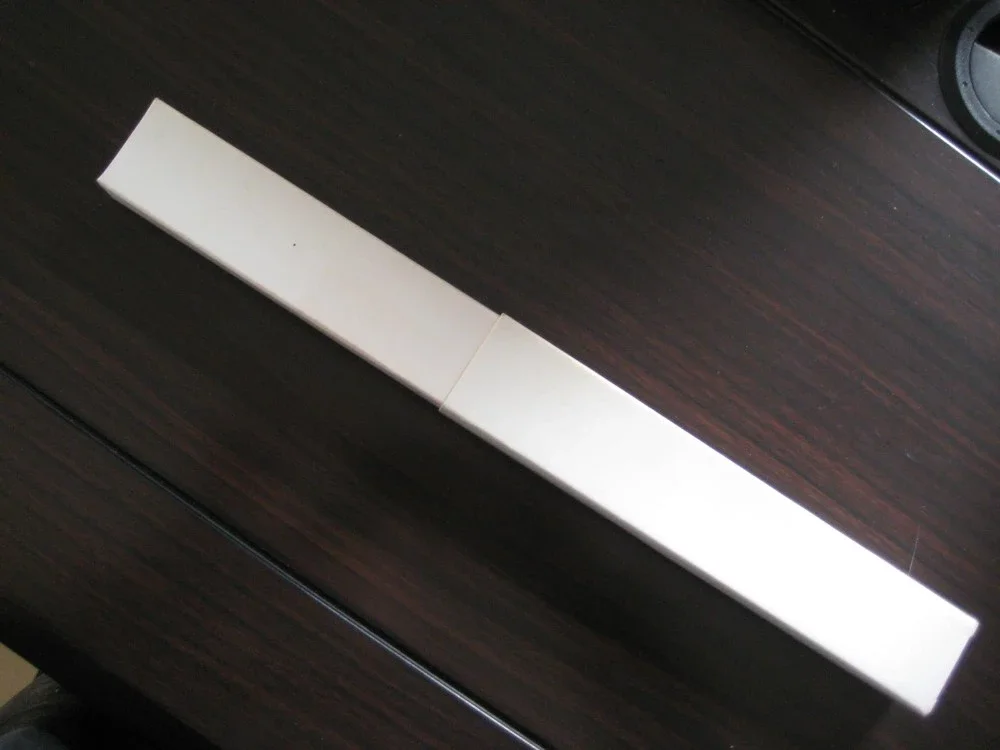

1. White paper box for each piece, 50 pieces in one carton, or as customer`s requirements.
2. Wooden crates worthy for ocean and land carriage.
Shipping
1. 30% deposit and 70% before shipping, FOB Qingdao Port.
2. Sample Order and small order will ship by DHL, TNT, FEDEX, EMS and UPS. It will take 7-10 working days since payment arrived.

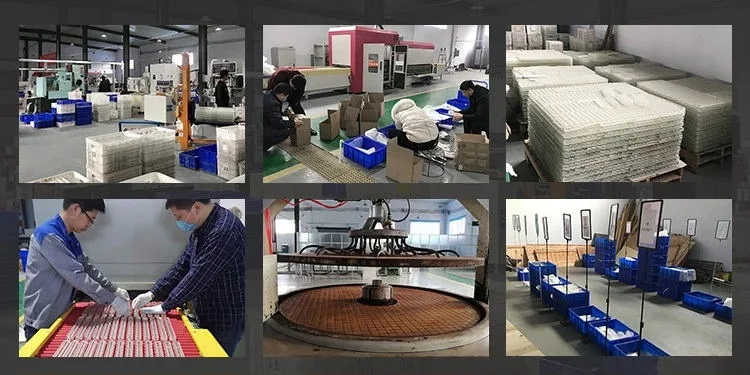

Our Company
