Dhc European Standards All New Design With Ce Tuv Etl Cec Etfe Flexible Solar Panels For Home
- Category: >>>
- Supplier: Jiangsu DHC Environmental Si-Tech Co. Ltd.
Share on (1601102564451):
Product Overview
Description
Product Description
Dhc European Standards All New Design With Ce Tuv Etl Cec Etfe Flexible Solar Panels For Home
This flexible photovoltaic panel is specifically designed for distributed photovoltaic, module efficiency up to 20.24%. The weight of flexible solar module is only 30% of conventional glass solar module and the installation efficiency is increased by 60%, which effectively solved the load bearing problems of the roof top.
ELECTRICAL PARAMETERS STC | ||
Model | ESF100 | |
Max. Power Output Pmax | 100W | |
Power Tolerance | 0~+3％ | |
Max. Power Voltage Vmap | 20.16V | |
Max. Power Current lmp | 4.96A | |
Open Circuit Voltage Voc | 23.39V | |
Short Circuit Current lsc | 5.26A | |
Module Eficiency | 20.24% | |
*STC(Standard Test Condition): Irradiance 1000W/㎡,Cell Temperature 25℃,Air Mass 1.5. | ||
MECHANICAL PARAMETERS | ||
Cell Type | Mono，166*83cm | |
Cell Arrangement | 36psc（3*9） | |
Size | 838*720*3mm | |
Weight | 2.45±0.1kg | |
CE 100w lightweight solar module monocrystalline flexible pv panel thin film etfe flexible solar panels 200w for car roof
Flexible solar module can be bent into curved or irregular shapes at will. It can be installed on the top of streamlined cars, the cabin surfaces of sailboats, racing boats, and motorboats, as well as on the roofs and exterior walls of buildings such as houses, in order to fully utilize the abundant solar energy and convert it into electricity.

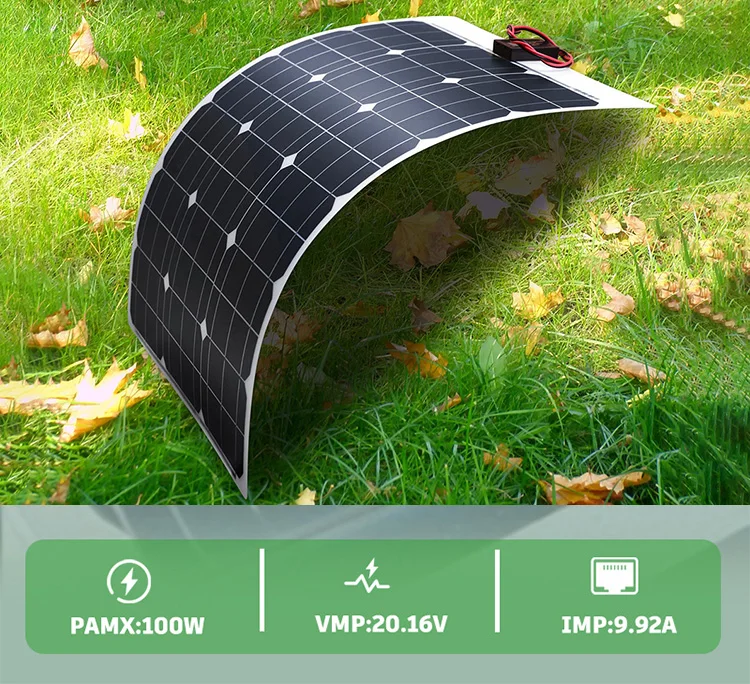

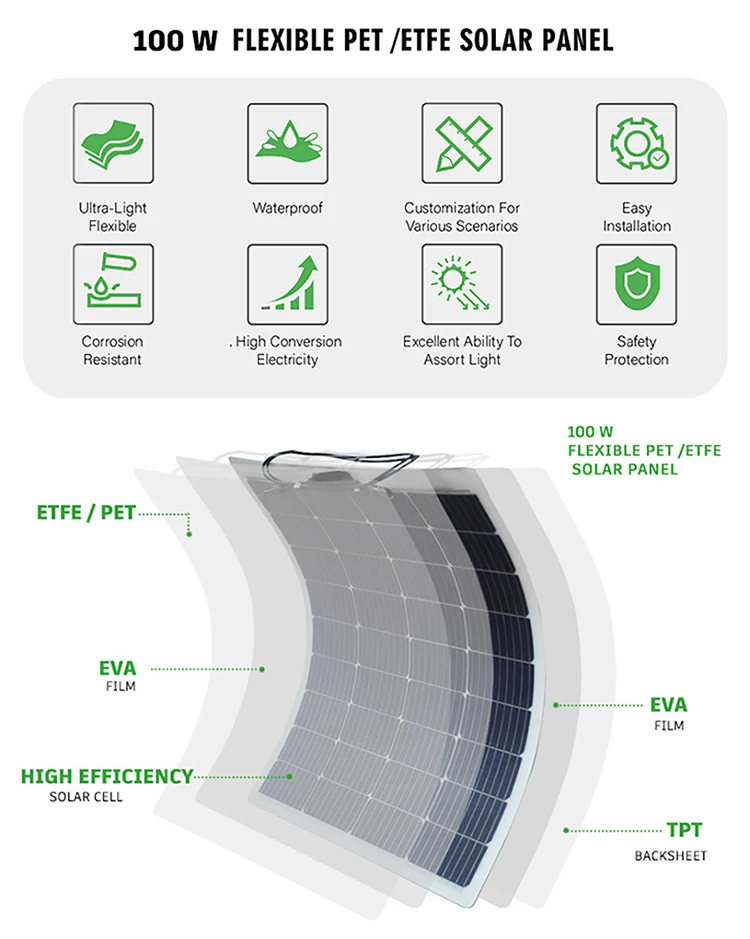

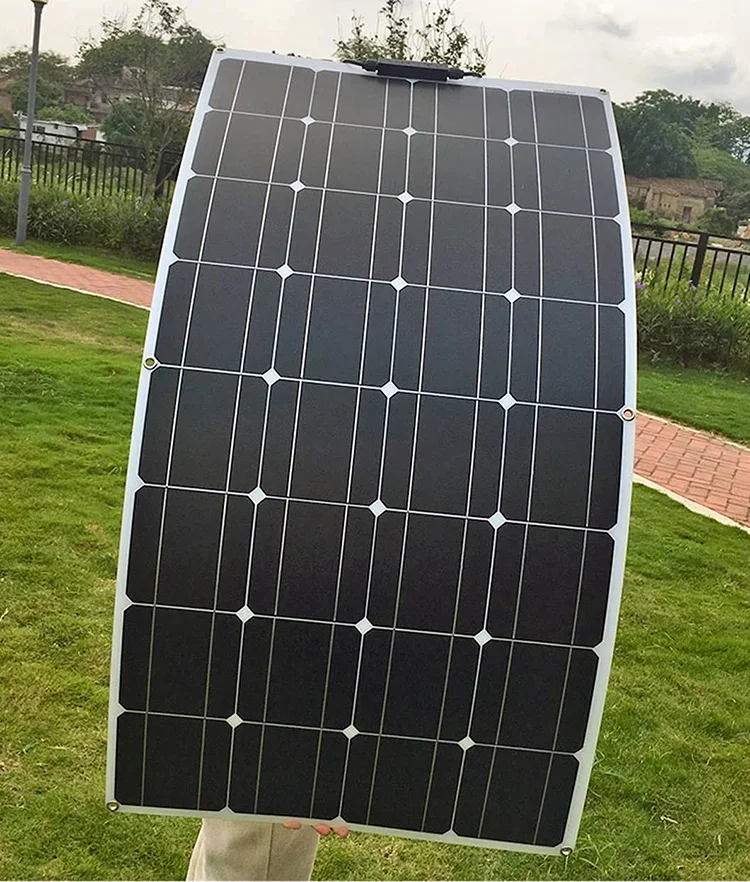

Flexible solar panels
- Light, Thin Design
2.45KG weight, match various requirements for low-load projects.

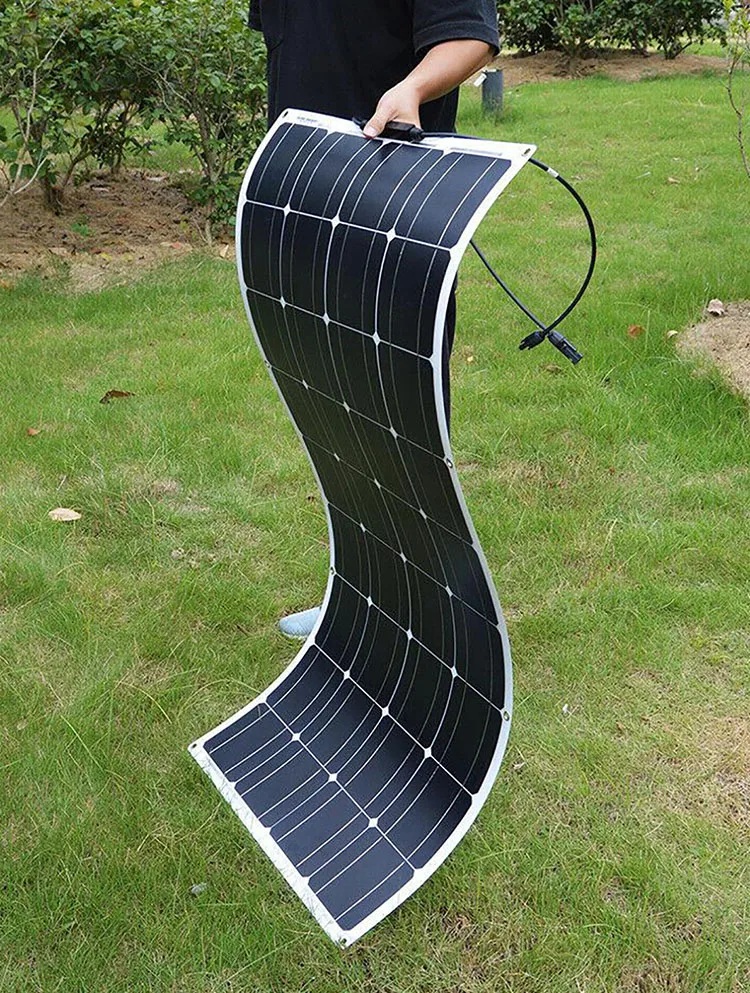

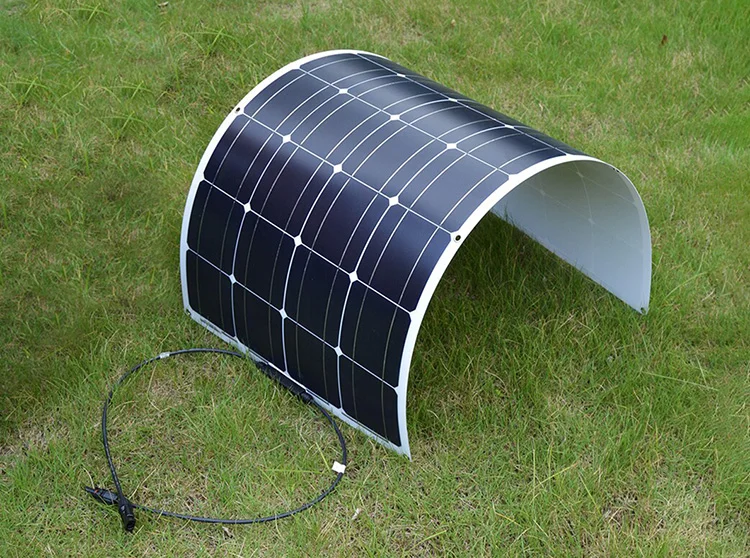

- Ultra Flexible
Ultra-thin silicon wafers with advanced organic polymer encapsulation materials, fit all kinds of curved surface perfectly.
- High Efficiency and Reliability
Busbar-free design increases cell conversion efficiency, more power output can be achieved at low irradiance conditions.
- Customizable
Customized design for different scenarios.
- Convenient Installation
Easy installation and convenient transportation with lower cost.
2.45KG weight, match various requirements for low-load projects.
- Ultra Flexible
Ultra-thin silicon wafers with advanced organic polymer encapsulation materials, fit all kinds of curved surface perfectly.
- High Efficiency and Reliability
Busbar-free design increases cell conversion efficiency, more power output can be achieved at low irradiance conditions.
- Customizable
Customized design for different scenarios.
- Convenient Installation
Easy installation and convenient transportation with lower cost.

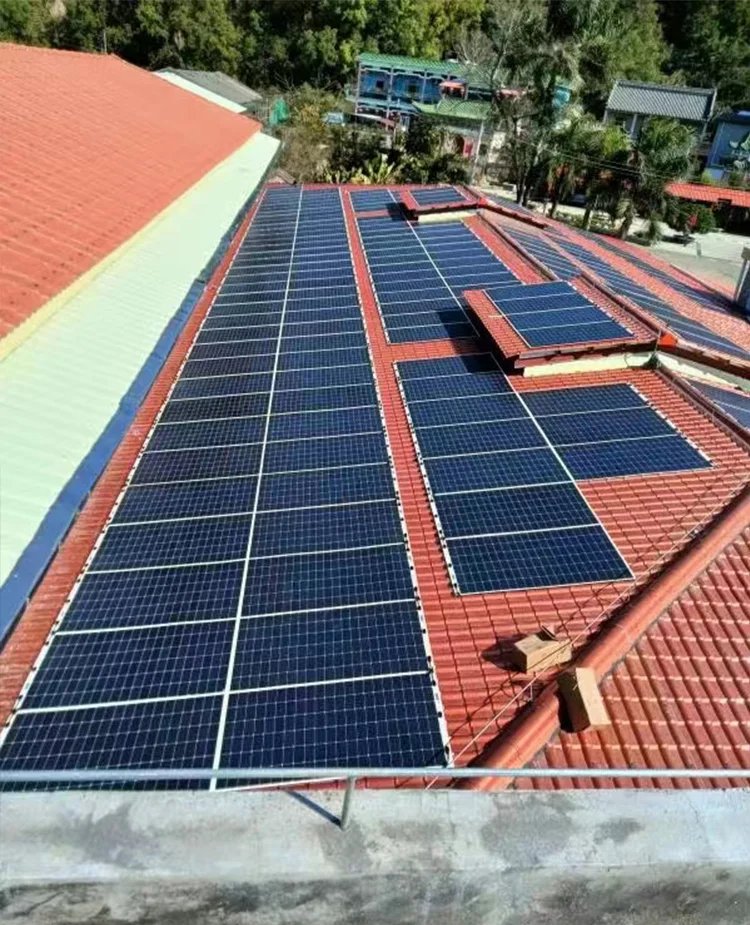

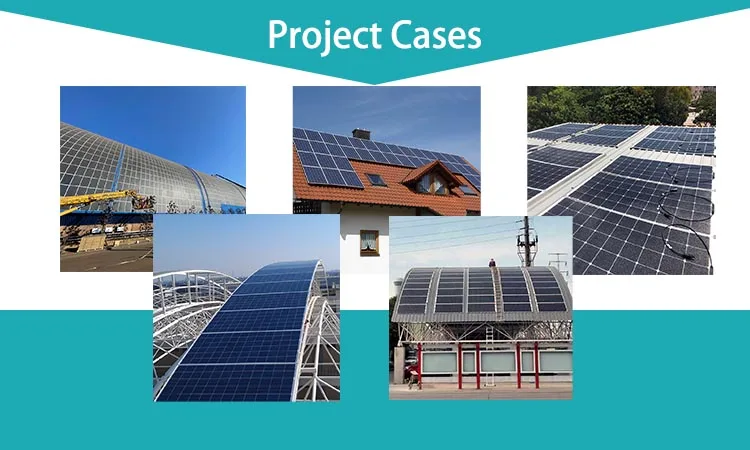

Project Cases
Project Case Display
DHC provides free smart photovoltaic system design and integration solutions. Our company's products sold worldwide. The company has won the unanimous recognition of consumers with satisfactory quality and perfect after-sales service. We has a professional team, which can help you solve questions.
Company Profile
Founded in 2016, Jiangsu DHC Environmental Science and Technology Company Limited is a technology-based company integrating development, installation, commissioning, marketing and after-sales service. We are always committed to saving energy and protecting the environment. With excellent delivery ability, DHC provides reliable technologies, products and after-sales services for customers. Our main products are solar panel, lithium battery storage system, inverter and their application apparatus..
Why Choose Us
Our Certificates
Packing & Delivery
Knowing that the development of the company depends on the innovation and quality of the products, we have established a quality management system to meet the requirements of the international quality management system. With continuously releasing the original innovations according to the market and customer needs, our company always maintains the novelty and innovative products to take the customer's thoughts and urgency into consideration. Providing excellent service for customers and meeting customer needs are our eternal pursuit! To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
My Contact
Online face-to-face
Just send inquiry and express your requirement, DHC technical engineer always at your service!
FAQ
Q1.Can I have a sample order?
A:Of course we can supply you samples, You can make an enquiry to us and pay the sample fee and freight. These fees can be waived if you place bulk order over 5000 USD next time.
Q2. What about the lead time?
A:Small orders can be shipped for you immediately if we have product in stock, for large orders, the production time is usually about 30 days according to your quantity.
Q3. Is it Ok to print my logo on product? What is the MOQ?
A:It is OK to print the LOGO on foldable solar panels and portable power stations, but can not print on the flexible solar panels.
The MOQ of flexible solar panels are 68pcs.
The MOQ of our foldable solar panels are 50pcs.
The MOQ of our portable power stations are 5 sets.
Q4. What is your payment terms?
A:We can accept Alibaba Trade Assurance Order, T/T and L/C.
Q5. Can i install it myself?
A: The installation of our products is very easy. You can install it yourself according to the installation manual and installation tutorial video.
Q6. What kind of certificates your products have acquired ?
A:We are ISO14001 certified and our product also holds CE and CQC certification.
Q7. Can you send me the price and catalog?
A: Of course,you can tell me your requirements and quantity, and I will provide you with prices and solutions.
Q8. What's your product warranty time?
A:The warranty of flexible solar panel is 3 years.
The warranty of foldable solar panel is 1 year.
The warranty of flexible solar panel is 12 years.
The warranty of portable power station is 1 years.
A:Of course we can supply you samples, You can make an enquiry to us and pay the sample fee and freight. These fees can be waived if you place bulk order over 5000 USD next time.
Q2. What about the lead time?
A:Small orders can be shipped for you immediately if we have product in stock, for large orders, the production time is usually about 30 days according to your quantity.
Q3. Is it Ok to print my logo on product? What is the MOQ?
A:It is OK to print the LOGO on foldable solar panels and portable power stations, but can not print on the flexible solar panels.
The MOQ of flexible solar panels are 68pcs.
The MOQ of our foldable solar panels are 50pcs.
The MOQ of our portable power stations are 5 sets.
Q4. What is your payment terms?
A:We can accept Alibaba Trade Assurance Order, T/T and L/C.
Q5. Can i install it myself?
A: The installation of our products is very easy. You can install it yourself according to the installation manual and installation tutorial video.
Q6. What kind of certificates your products have acquired ?
A:We are ISO14001 certified and our product also holds CE and CQC certification.
Q7. Can you send me the price and catalog?
A: Of course,you can tell me your requirements and quantity, and I will provide you with prices and solutions.
Q8. What's your product warranty time?
A:The warranty of flexible solar panel is 3 years.
The warranty of foldable solar panel is 1 year.
The warranty of flexible solar panel is 12 years.
The warranty of portable power station is 1 years.
