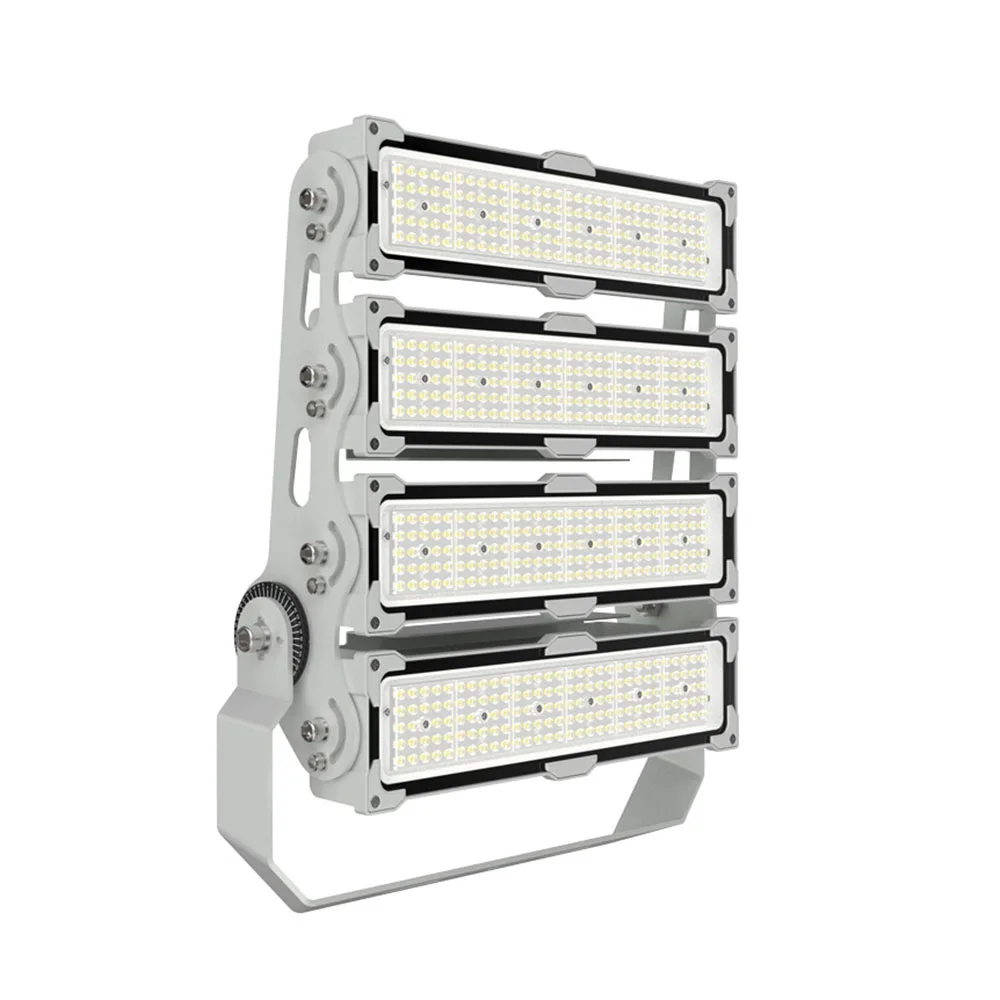

0utdoor IP67 Waterproof 400W LED Sport Light 60000~72000 Lumen Modular Stadium Projector Lamp 400W Flood Lights
- Category: >>>
- Supplier: Shenzhen Snoowel Technology Co. Limited
Share on (1601102640552):
Product Overview
Description
Product Description
Function:
*7-year warranty
*IP67 design, with 3rd party testing reports;

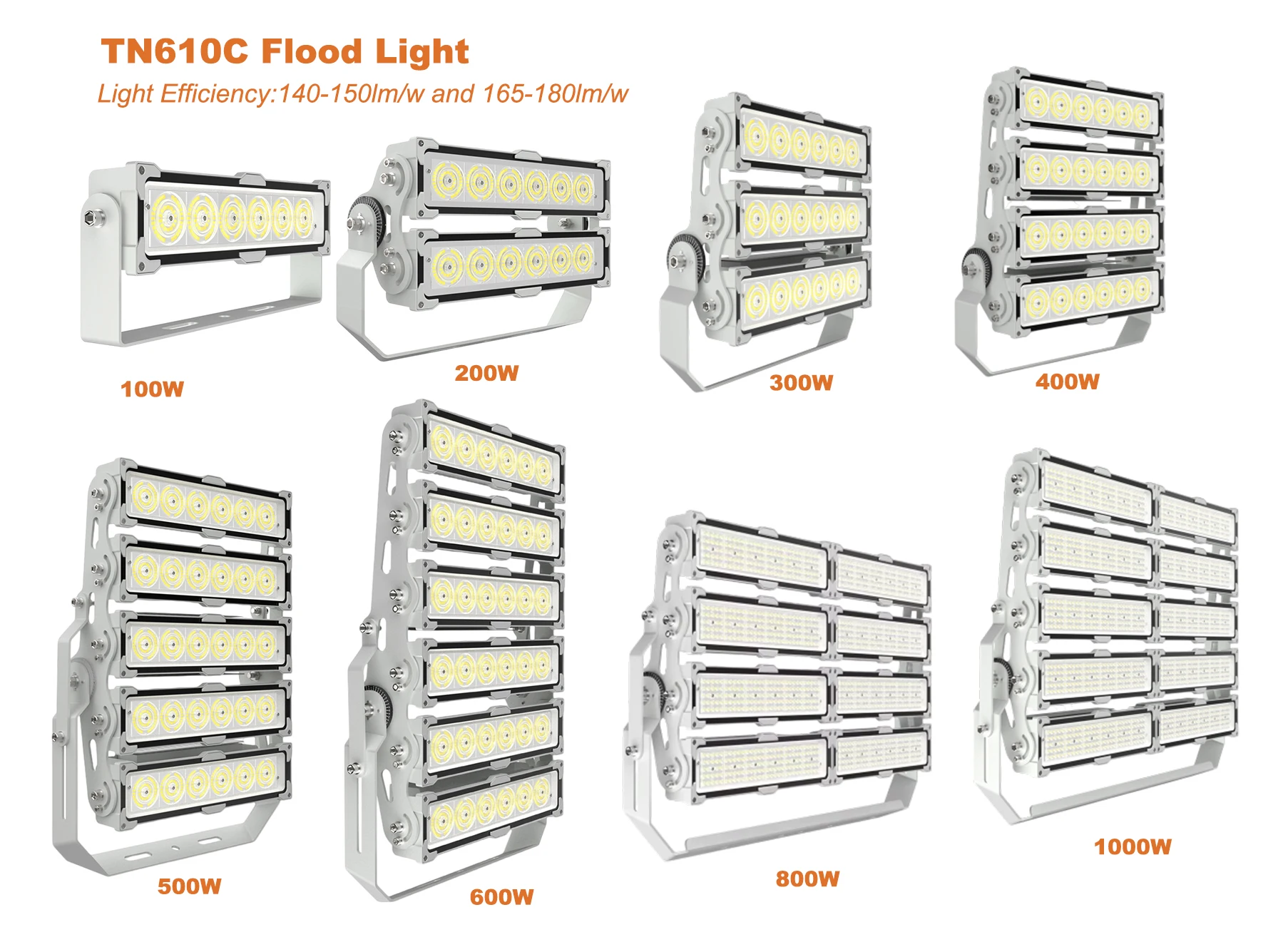

*For this series, we have 30w,50w,75w,100w, 200w, 300w, 400w, 500w, 600w,800w,1000w for option;
*7-year warranty
*IP67 design, with 3rd party testing reports;
*For this series, we have 30w,50w,75w,100w, 200w, 300w, 400w, 500w, 600w,800w,1000w for option;
*The lamps are with certification of TUV ENEC CB SAA CE ROHS EMC LVD LM79 LM80, etc;
*Surge protection: 10KV/20KV;
*1-10V dimming, DMX, DALI are available for option;
*Multi beam angles are available: 20°,30°, 45°, 60°, 90°,120°,60x120°, 90x120°, and 80*150°(asymmetrical lens T2,T3,T4)
*Surge protection: 10KV/20KV;
*1-10V dimming, DMX, DALI are available for option;
*Multi beam angles are available: 20°,30°, 45°, 60°, 90°,120°,60x120°, 90x120°, and 80*150°(asymmetrical lens T2,T3,T4)
SNOOWEL private model, with big stock of materials, stable supply, fast delivery, no MOQ!
Flood Lights Specifications: | ||||||||||||||||
Model | SW-TN610C-W400 | |||||||||||||||
Watt | 100W | 200W | 300W | 400W | 500W | 600W | 800W | 1000W | ||||||||
Lumens | 16500lm | 33000lm | 49500lm | 66000lm | 82500lm | 99000lm | 132000lm | 165000lm | ||||||||
Efficiency | 150-160lm/w,165-180lm/w option | |||||||||||||||
LED Chip | 2835 SMD,3030 SMD | |||||||||||||||
LED Driver | SOSEN , Inventronics(If you need other brands of LED Driver, please contact us) | |||||||||||||||
Dimmable | 1-10V dimming, DMX, DALI are available for option | |||||||||||||||
Input Voltage | 50/60Hz;AC90-305V; 347V/480V for option | |||||||||||||||

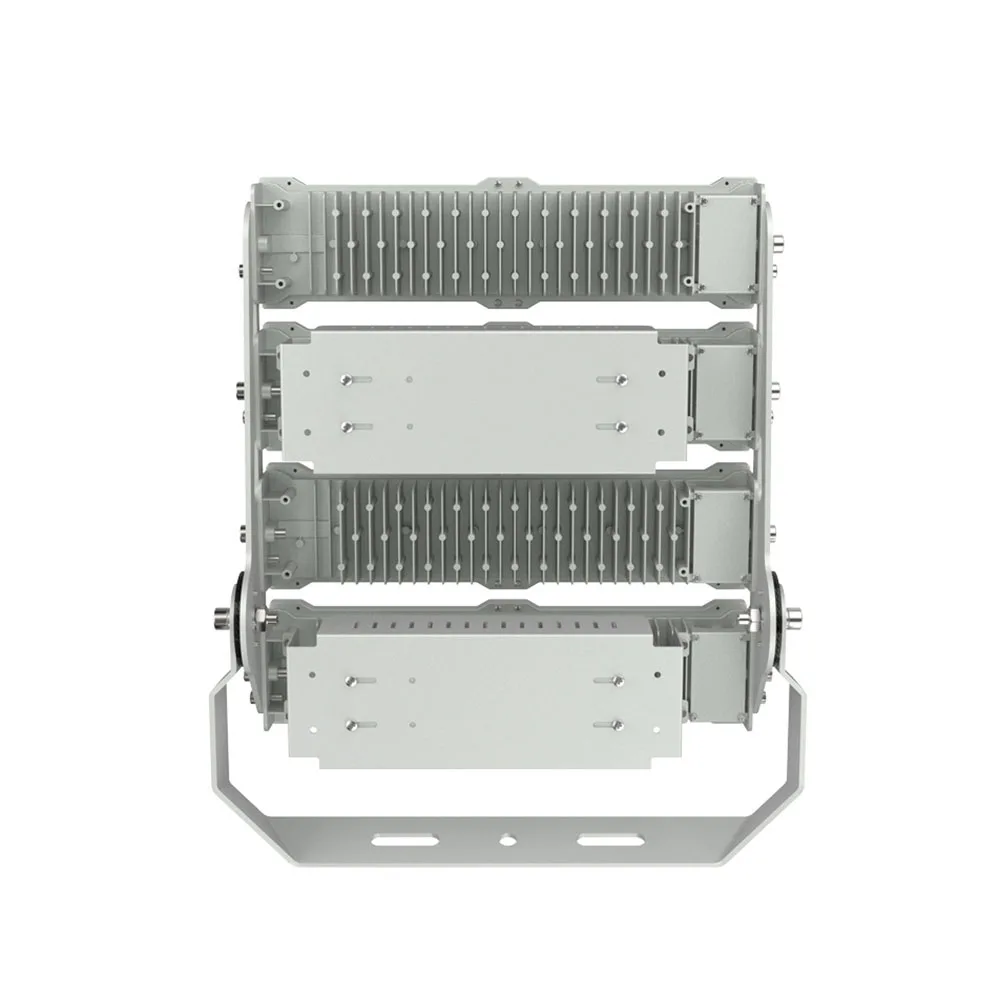

Heatsinks | Die casting aluminum ADC12, PC lens+glass | |||||||||||||||
Beam Angle | 20°,30°, 45°, 60°, 90°,120°,60x120°, 90x120°, and 80*150°(asymmetrical lens T2,T3,T4) | |||||||||||||||
THD | <10%（at 230v, 50Hz) | |||||||||||||||
Surge protection | L/N-PE: 10KV, L-N: 6KV; 20KV version is for option. | |||||||||||||||
Color Temperature | Warm White:2700-3200K Natural White:4000-4500K/5000-5500K Cool White:5700-6500K | |||||||||||||||
IP Grade: | IP67, IK09 | |||||||||||||||
CRI | >70Ra | |||||||||||||||
PF: | > 0.95 | |||||||||||||||
Life Hours | 70,000 hrs | |||||||||||||||
Warranty | 7-year | |||||||||||||||
Temperature | -35℃ - 45℃ | |||||||||||||||
Operating Humidity | 10% - 90% RH | |||||||||||||||
Body color | Grey | |||||||||||||||
Certificates | TUV ENEC CB SAA CE ROHS EMC LVD LM79 LM80, etc | |||||||||||||||
Product Details

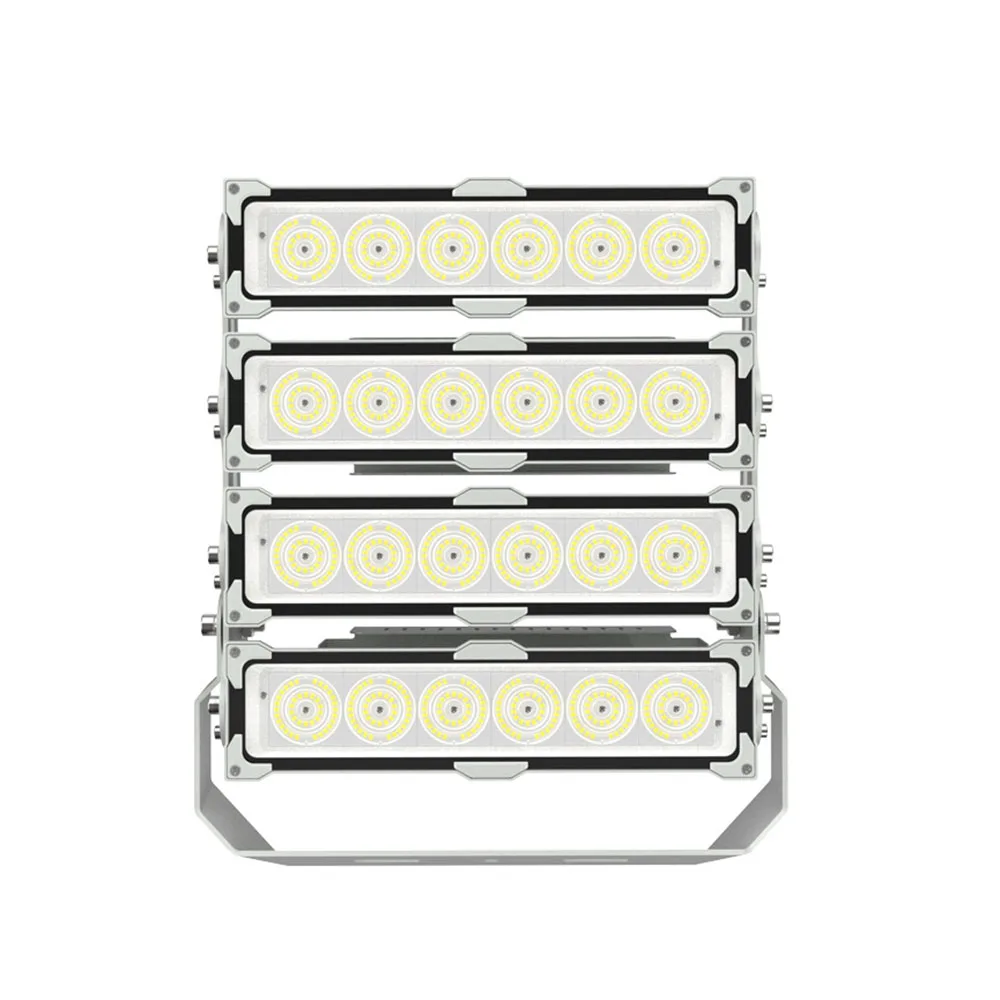

Unique design with PC lens + tempering glass
Customizable
LED flood light with daylight sensor（option)
Using 304 stainless steel fixtures, anti-corrosion, pass 1000 hours salt spray testing, suitable for projects closed to sea, etc.
The bracket material can also be customized as 316 or 304 stainless steel material. Please contact me.
The bracket material can also be customized as 316 or 304 stainless steel material. Please contact me.
Test Report

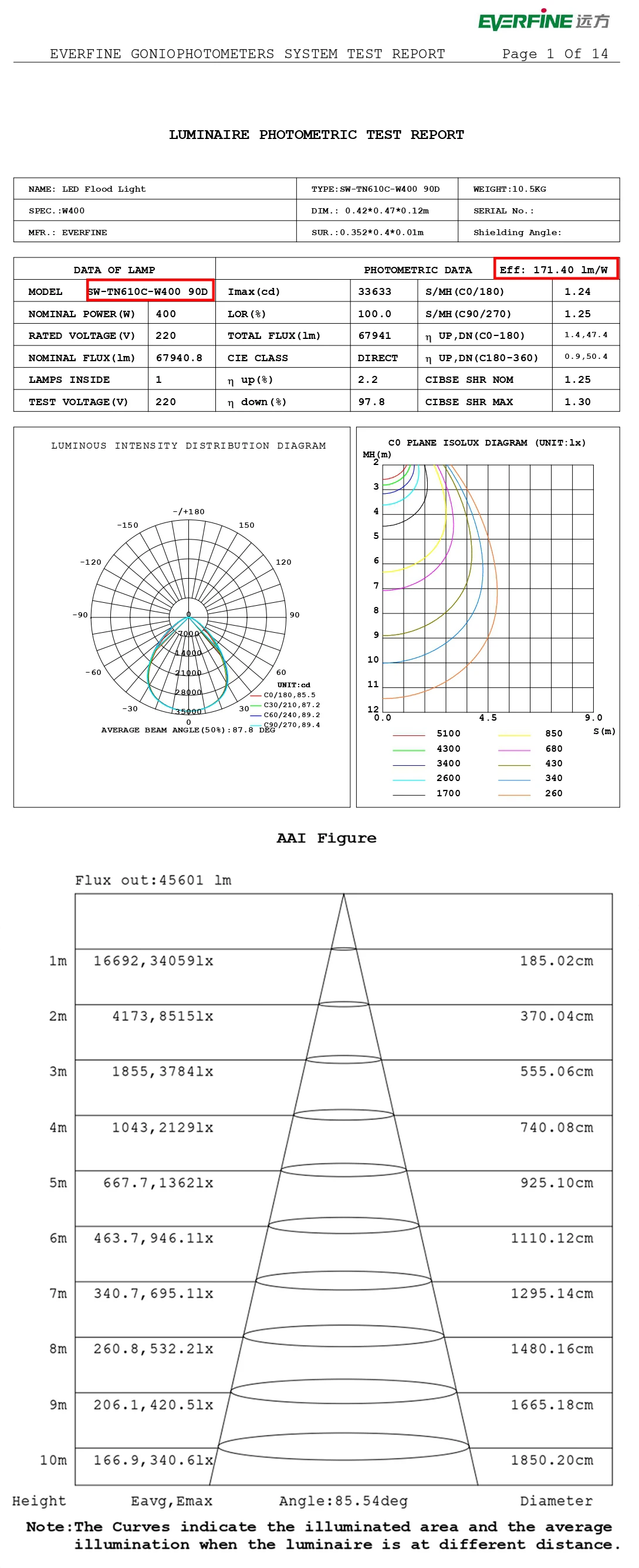

IES Test Report
SW-TN610C-W400 90D，(For other reports, please contact me）
Hot Products
Company Profile
SNOOWEL was established in 2007 . located in Bao'an district Shenzhen . now it is ISO9001 and ISO14001 factory , mainly producing and exporting outdoor led lights and industrial led lights .
Our main markets are in Europe , South America , Australia , and also exported to North America and some Asian markets : all of our items are with CE ( EMC , LVD ) . ROHS , and many of them are with ETL , DLC,ENEC SAA , etc .
We have 17 years experience in led lighting field ; have a well-trained team to research and develope new products ,and have a responsable QC team to control the quality from material and finished products delivery.
SNOOWEL products include LED Flood Ligh,LED Stadium Lights,LED Tunnel Lights,LED Street Light,UFO LED High Bay Light,Linear LED High Bay,LED Shoebox Lights,LED Canopy Light,LED Garden Light,LED Facade Lights,LED Spotlight Series, which are also widely used.As long as you need them, we have a variety of indoor and outdoor products that can meet your needs.
Our main markets are in Europe , South America , Australia , and also exported to North America and some Asian markets : all of our items are with CE ( EMC , LVD ) . ROHS , and many of them are with ETL , DLC,ENEC SAA , etc .
We have 17 years experience in led lighting field ; have a well-trained team to research and develope new products ,and have a responsable QC team to control the quality from material and finished products delivery.
SNOOWEL products include LED Flood Ligh,LED Stadium Lights,LED Tunnel Lights,LED Street Light,UFO LED High Bay Light,Linear LED High Bay,LED Shoebox Lights,LED Canopy Light,LED Garden Light,LED Facade Lights,LED Spotlight Series, which are also widely used.As long as you need them, we have a variety of indoor and outdoor products that can meet your needs.
Certifications
FAQ
1. Can I have a sample order for led light?
Yes,we welcome sample order to test and check quality,Mixed samples are acceptable.
2. What is the warranty for the lights?
For the lights, we have 5-7 years warranty. If any quality problems on our side occurred in this period, we'll take on the
shipping cost and replacement.
3. You are factory or trading company?
We are factory directly specialized in LED Lighting. We offer reliable quality, competitive price and short lead time for our
clients.
4. ODM or OEM is acceptaed?
Yes,we can do ODM&OEM,put your logo on the light or package both are available.
5. How is your quality control?

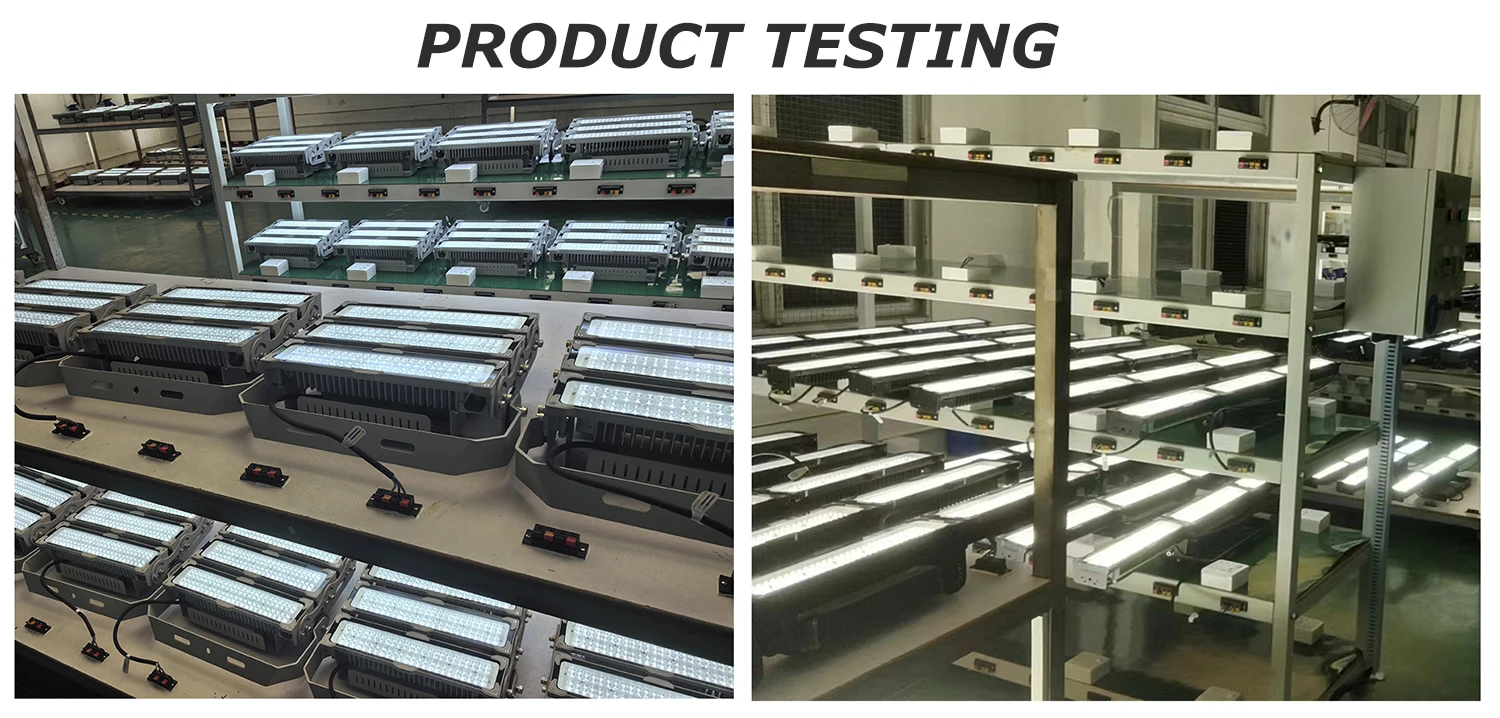

We have strict QC process and all the lights will be 100% 48-72 hours testing before shipping.
6.Can we make our own label on the sample lights?
Yes, we can use the label you offer,we can also do OEM & ODM.
7.Our project is on seaside, what if your lights be corrosion by sea water?
Metal has high corrosion resistance.Besides, we do best on light surface treatment, electrostatic spraying and electrophoresis can effectively protect our lights from salt water corrision.
8. We now have football stadium projects need to do the lighting design,can you help us?
Sure we can, our design teams can provide you dialux design for you. And if you have the tech to make design yourself , we can provide the IES files for you.
9.I have a football/tennis court ,what's your suggestion?
Please give me the below information:
A:the area of the field
B:the location and the height of the light poles
C:the requirement of the illumination
Yes,we welcome sample order to test and check quality,Mixed samples are acceptable.
2. What is the warranty for the lights?
For the lights, we have 5-7 years warranty. If any quality problems on our side occurred in this period, we'll take on the
shipping cost and replacement.
3. You are factory or trading company?
We are factory directly specialized in LED Lighting. We offer reliable quality, competitive price and short lead time for our
clients.
4. ODM or OEM is acceptaed?
Yes,we can do ODM&OEM,put your logo on the light or package both are available.
5. How is your quality control?
We have strict QC process and all the lights will be 100% 48-72 hours testing before shipping.
6.Can we make our own label on the sample lights?
Yes, we can use the label you offer,we can also do OEM & ODM.
7.Our project is on seaside, what if your lights be corrosion by sea water?
Metal has high corrosion resistance.Besides, we do best on light surface treatment, electrostatic spraying and electrophoresis can effectively protect our lights from salt water corrision.
8. We now have football stadium projects need to do the lighting design,can you help us?
Sure we can, our design teams can provide you dialux design for you. And if you have the tech to make design yourself , we can provide the IES files for you.
9.I have a football/tennis court ,what's your suggestion?
Please give me the below information:
A:the area of the field
B:the location and the height of the light poles
C:the requirement of the illumination
