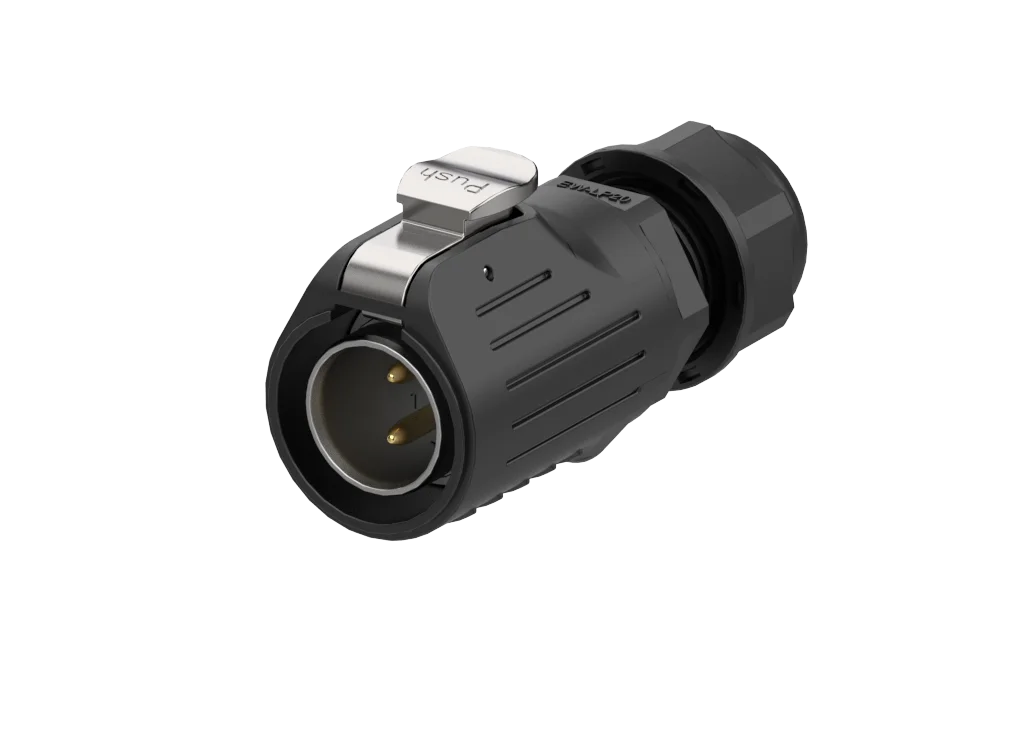

  • LP20 9 Pin Electrical Terminal Wiring Connecting Outdoor LED Garden Lighting PA66 Plastic IP68 Waterproof Cable Connector

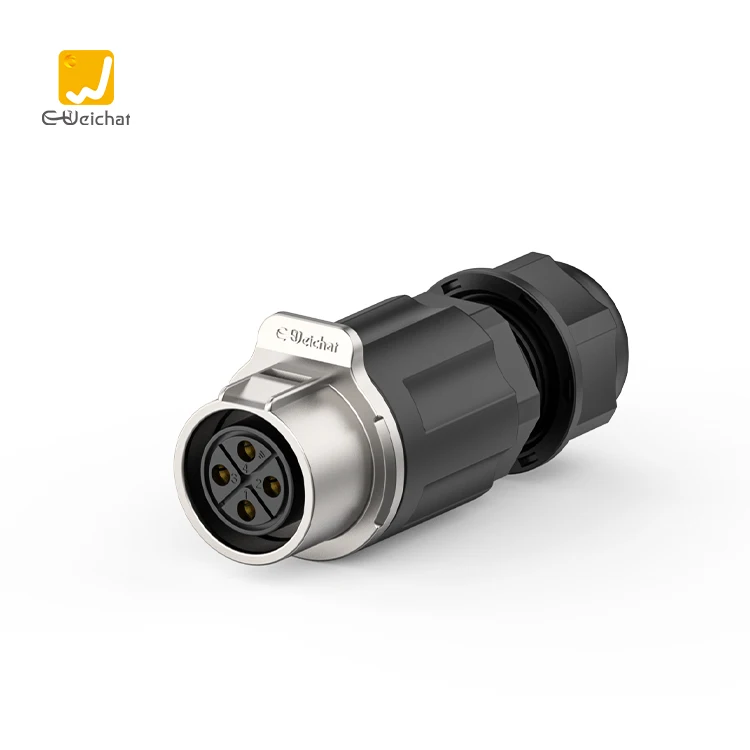

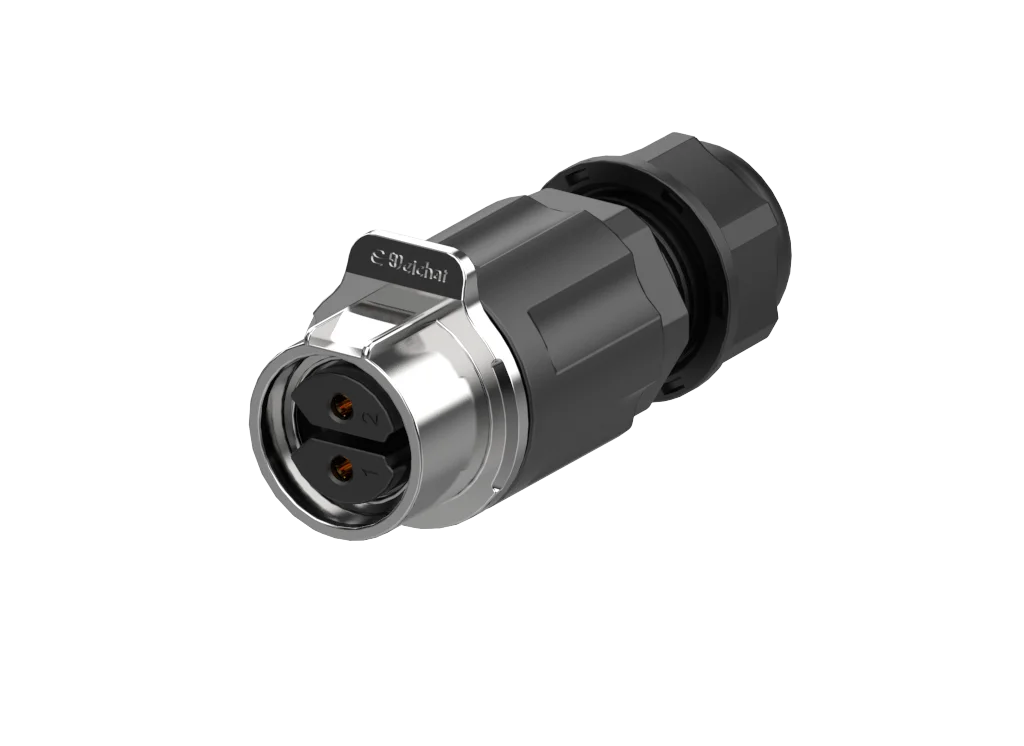

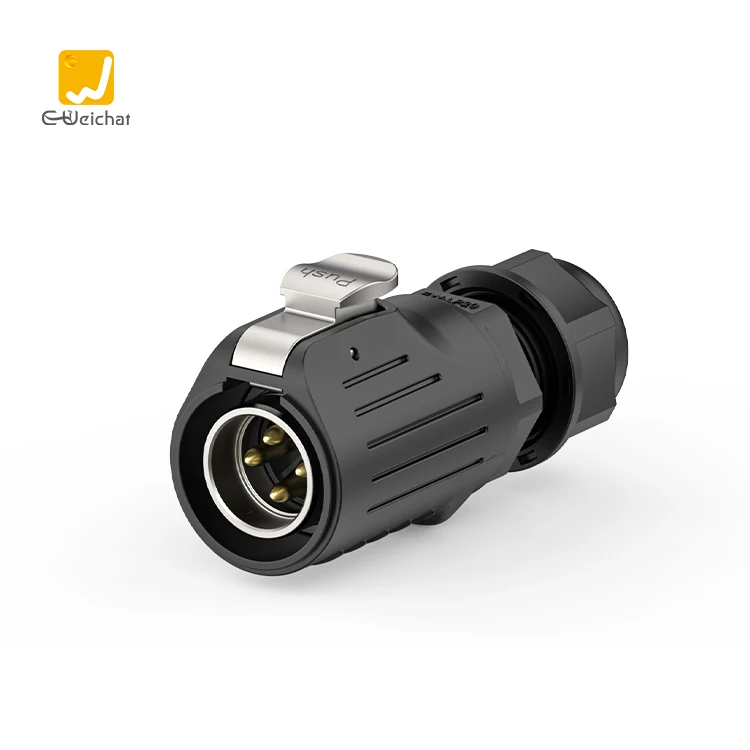

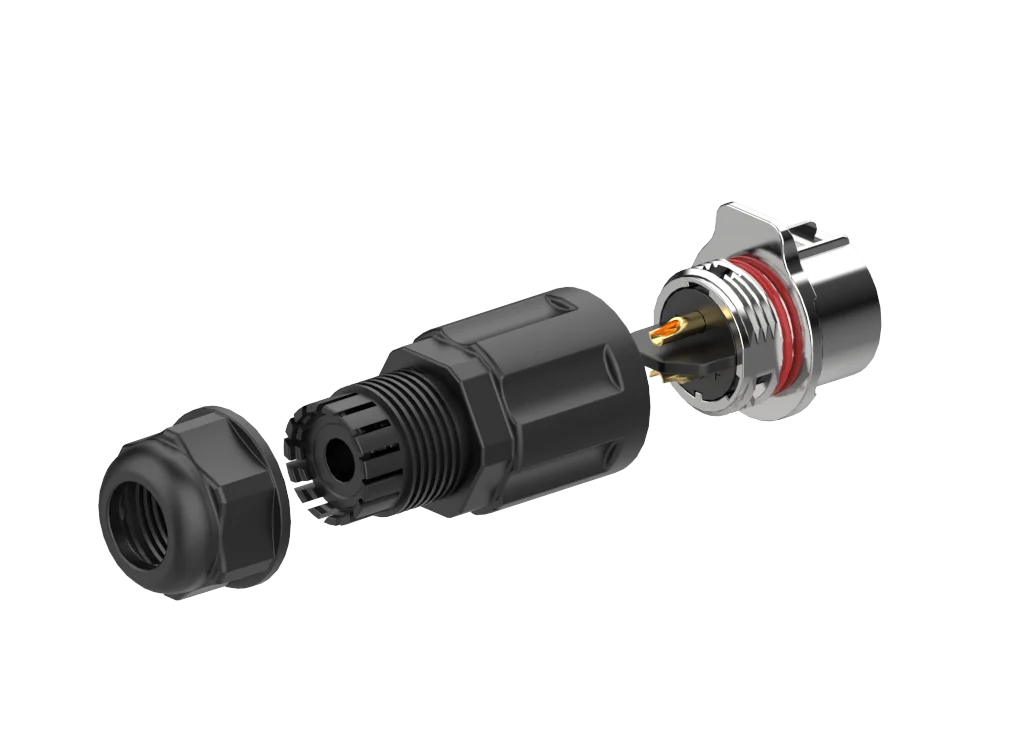

LP20 9 Pin Electrical Terminal Wiring Connecting Outdoor LED Garden Lighting PA66 Plastic IP68 Waterproof Cable Connector
LP20 9 Pin Electrical Terminal Wiring Connecting Outdoor LED Garden Lighting PA66 Plastic IP68 Waterproof Cable Connector
LP20 9 Pin Electrical Terminal Wiring Connecting Outdoor LED Garden Lighting PA66 Plastic IP68 Waterproof Cable Connector
LP20 9 Pin Electrical Terminal Wiring Connecting Outdoor LED Garden Lighting PA66 Plastic IP68 Waterproof Cable Connector
LP20 9 Pin Electrical Terminal Wiring Connecting Outdoor LED Garden Lighting PA66 Plastic IP68 Waterproof Cable Connector
LP20 9 Pin Electrical Terminal Wiring Connecting Outdoor LED Garden Lighting PA66 Plastic IP68 Waterproof Cable Connector
LP20 9 Pin Electrical Terminal Wiring Connecting Outdoor LED Garden Lighting PA66 Plastic IP68 Waterproof Cable Connector

LP20 9 Pin Electrical Terminal Wiring Connecting Outdoor LED Garden Lighting PA66 Plastic IP68 Waterproof Cable Connector

Share on (1601102779080):


Price:$7.66 - $7.86

Quantity:


Product Overview

Description



New Products




PRODUCTS DESCRIPTION




Conne-ction mode
Solder wire
√
√
√
√
√
√
√
Screw
wire
√
√
√
√
×
×
×
Conta-ct parts
Solder wire
φ2.7*2
φ2.7*3
φ2.7*4
φ1.8*5
φ1.8*7
φ1.0*9
φ1.0*12
Screw
wire
φ2.4*2
φ2.4*3
φ2.4*4
φ1.8*5
×
×
×
Wire gauges
2.5~4mm² / 14~12AWG
1~1.5mm² / 18~16AWG
0.34~0.75mm²/22~20AWG
Rated current
20A
10A
5A
Operating
voltage
500V AC
500V AC
250V AC
Withstand
pressure
2,500V AC
2,000V AC
1,500V AC

Contact
impedance
＜1 mΩ
＜3 mΩ
＜5 mΩ
Temperature
Rise
20A 30℃ ↓ ; 25A 40℃ ↓  ;
30A 50℃ ↓
10A 30℃ ↓ ; 15A 40℃ ↓ ;
200A 50℃ ↓
5A 30℃ ↓ ; 7A 40℃ ↓ ;
10A 50℃ ↓
Insulation
resistance
≥1,000 mΩ
Mechanical life
≥1,900 times
Environment
temperature
-40℃~﹢80℃
High temperature
aging
85℃ / 168 h
Salt Mist
PH6.5~7.2, NaC1, 5% 48 h
Waterproof grade
IP68 ( 2m / 2h )
Applicable line
diameter (0D)
General power supply class φ 9~12mm ; General power supply class φ 5~6.5mm
else φ 5~9mm
Certification
cUL/ TUV / CE / RoHs


Details Images




RECOMMEND PRODUCTS

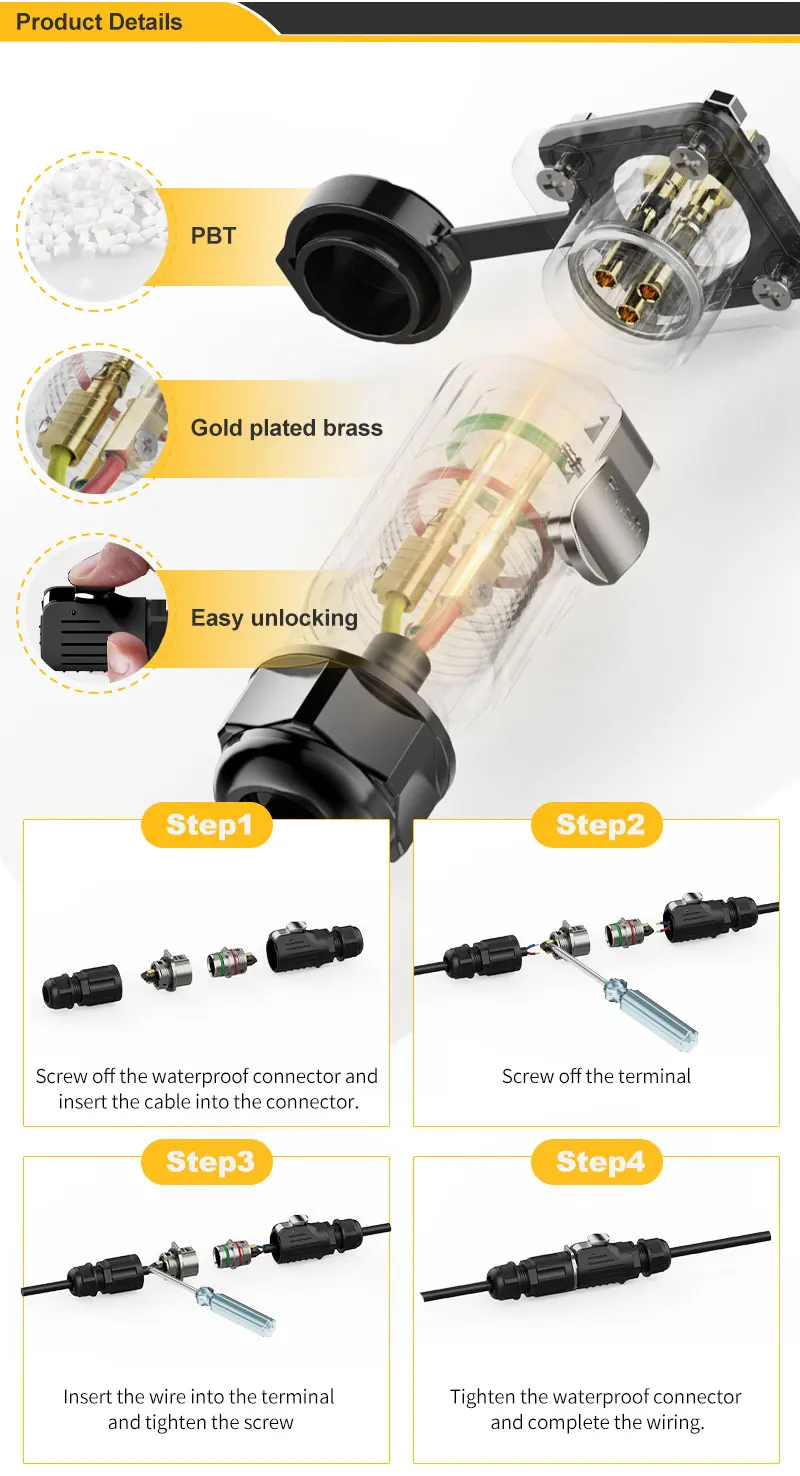

Installation Instructions
