QihangRAS 20m/3 koi pond water filter aquaculture ras stainless steel screen rotary drum filter 200 mesh net drum filter


FEATURES AT A GLANCE

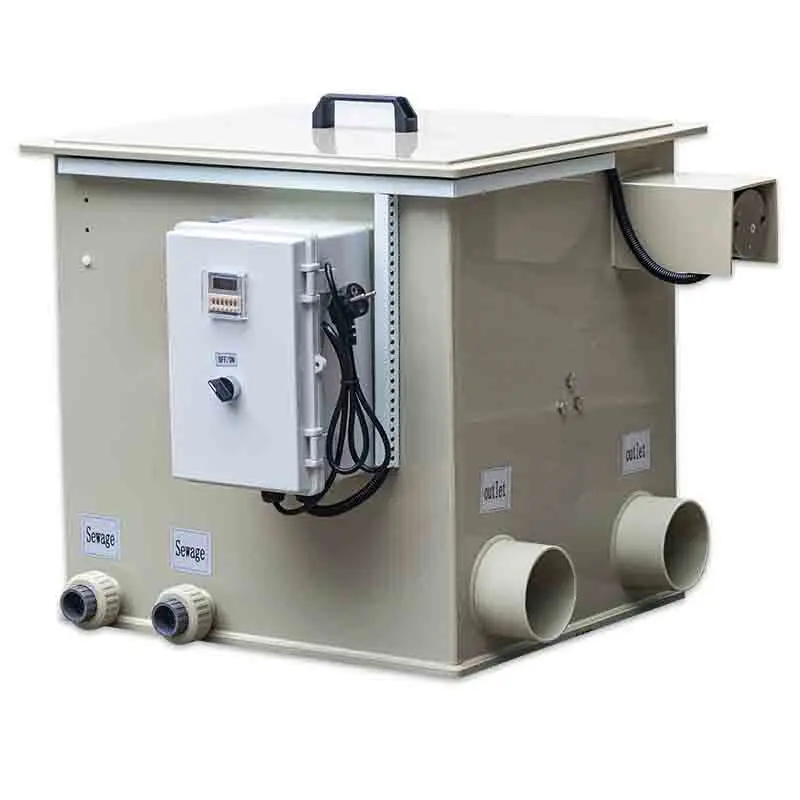

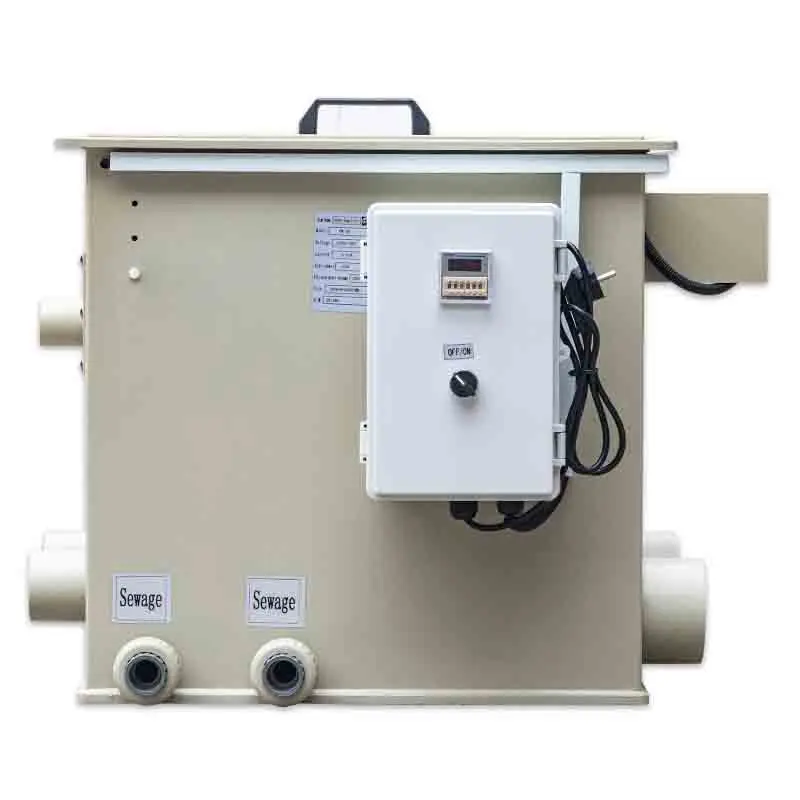

Front
Side

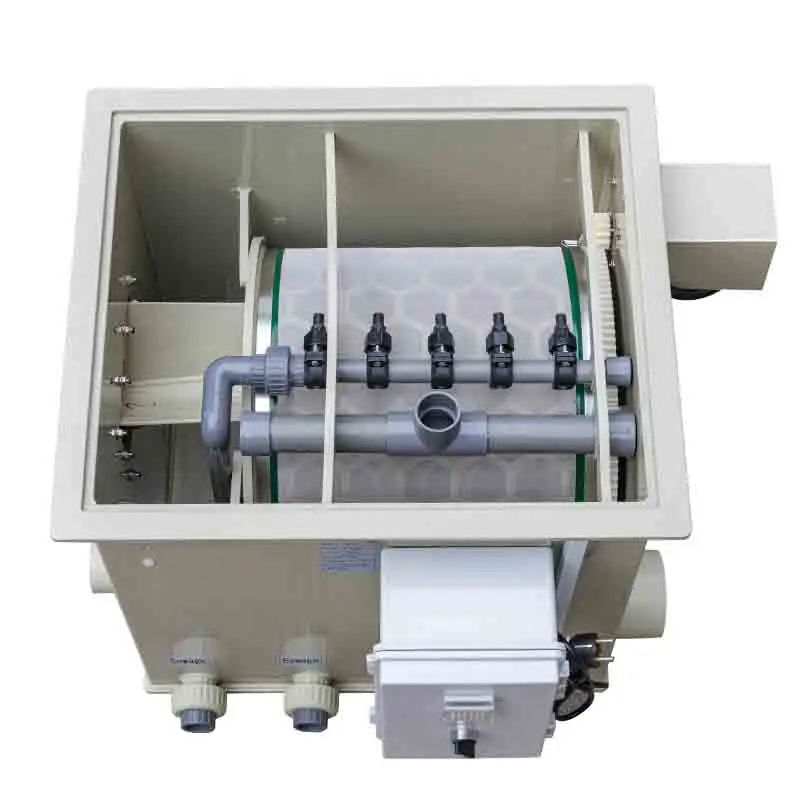

Top

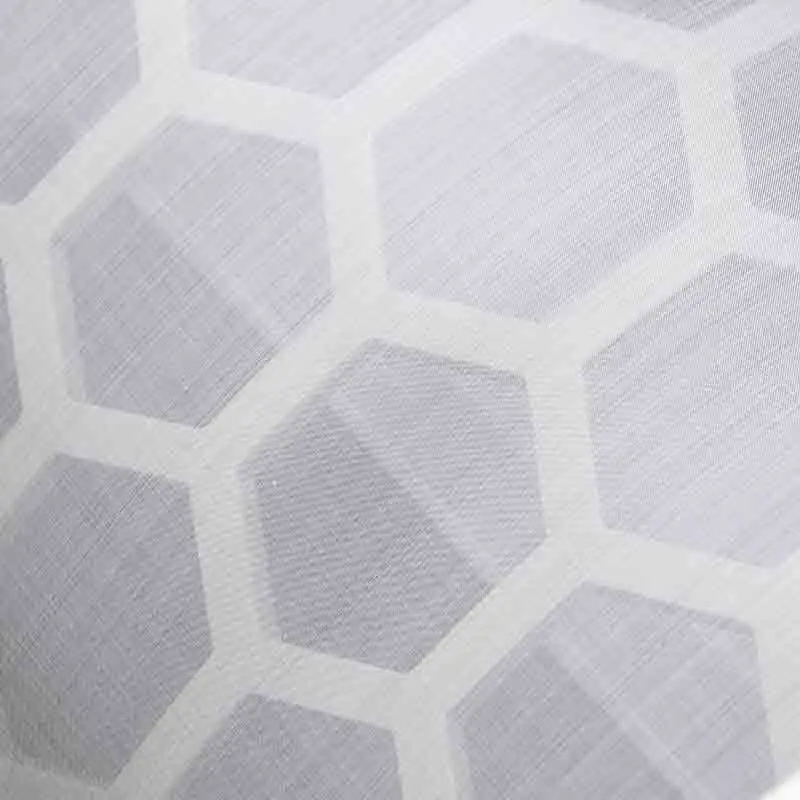

75um 316L Stainless Steel Precision Sieve Mesh
316L stainless steel screen drum that filters contaminants largelthan 75 micron impurities (e.g., fish, bait, algae, pellets,
etc.) fromthe water stream.

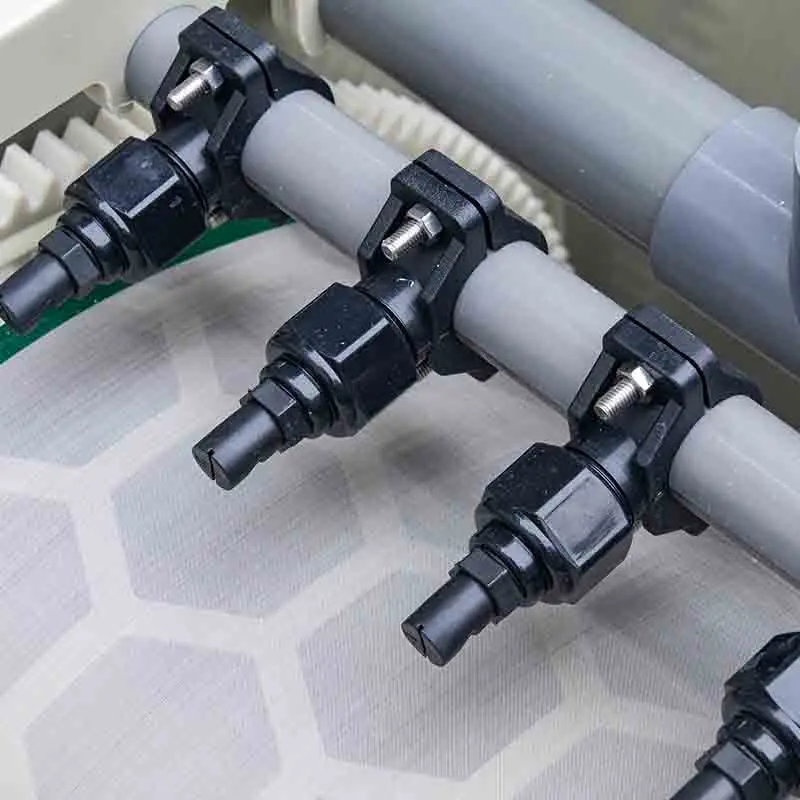

HIGH PRESSURE NOZZLE
Timed high-pressure nozzle not only saves energy, butalso has stronger cleaning ability

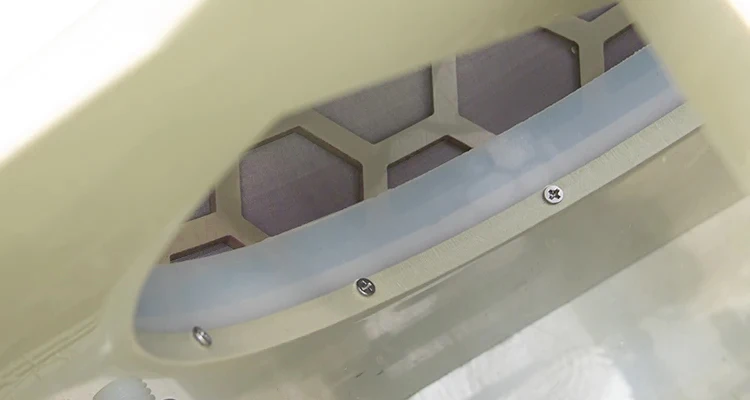

Upgraded andimproved seals
Upgraded sealing performance to effectively eliminate overflow areas

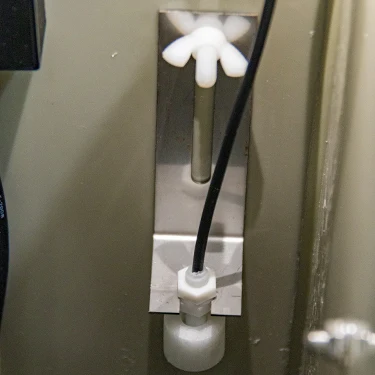

Automatically sensesclogging and flushes
Save Time - Save Effort - Save Heart As soon as a clogged cartridge is detected, thelevel sensor is activated and the
backwashprogram is carried out automatically.

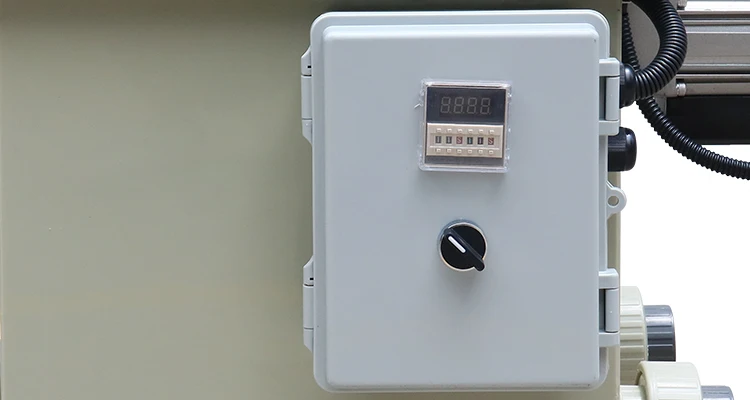

Integrated control panel box
Controlling each part through the panel box, and with microcomputertimer switch, reasonable and efficient cleaning of the fish
pool.




PRODUCT SPECIFICATIONS


Model
QL-PM5
QL-PM10
QL-PM20
QL-PM30
Flow
5T/H
10T/H
15-20T/H
20-30T/H
Inlet
32mm*2
40mm*2
110mm
160mm
Outlet
40mm*2
50mm*2
110mm
160mm
Sewage Outlet
32mm
32mm
32mm
40mm
Size
430×390×370mm
500×400×430mm
565×465×566mm
800×600×710mm
Motor power
15w
15w
25w
40w
Backwash pump power
86w
86w
86w
750W




Cetification




Professional Factory




Customer Photos






Company Introduction


We are professional manufaturer of aquaculture equipment. Our production lines havehigh efficiency. The annual output is 60,000 sets per year. The main products include ozonegenerator; rotary drum filter; koi pond combi drum filter; protein skimmer; bio filter tower:pp tank; trickle tower; oxygen concentrator; ozone tester; ozone spare parts; temperaturecontrol system; UV lamp;oxygen cone and etc.The person in charge of QihangRAS Fisheriessaid: system design, engineering solutions and other service details are the corecompetitiveness that can't be copied by other manufacturers in the industry!













FAQ


Q: Are you manufacturer or trader?
A: We’re professional manufacturer focus on aquaculture equipment, located in Baiyun District,Guangzhou City, China. Welcome to visit us.

Q: What’s the warranty?
A: Warranty is 12 months, life time technical support. If any quality problem occur during this period,which due to our responsibility, we’ll take care of it, or send more new spare parts to replace.

Q: What’ the MOQ?
A: One piece each model.

Q: Can I buy a sample for test purpose, then if it’s ok, I’ll buy more?

A: Yes, you can.

Q: Can we print our logo and have our own package
A: Yes, you can, OEM&ODM orders are acceptable.

Q: Is there any discount?

A: Of course, more quantities, more discount.

Q: Can I get a catalog?
A: Yes, you can download on our website.

Q: How is the quality?
A: All the materials used for our products are strictly chosen by QA, finishings are checked carefully by QC. Every machine will be strictly tested and aged for several days before delivery.
