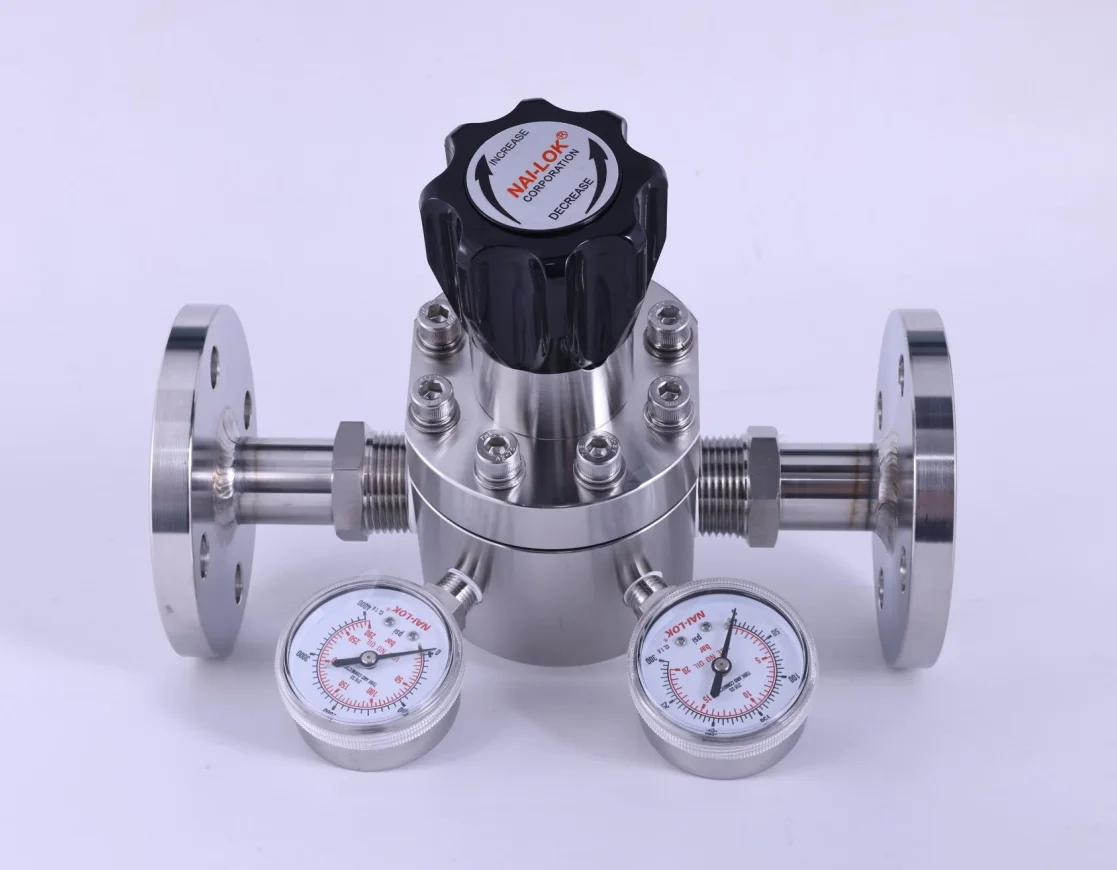

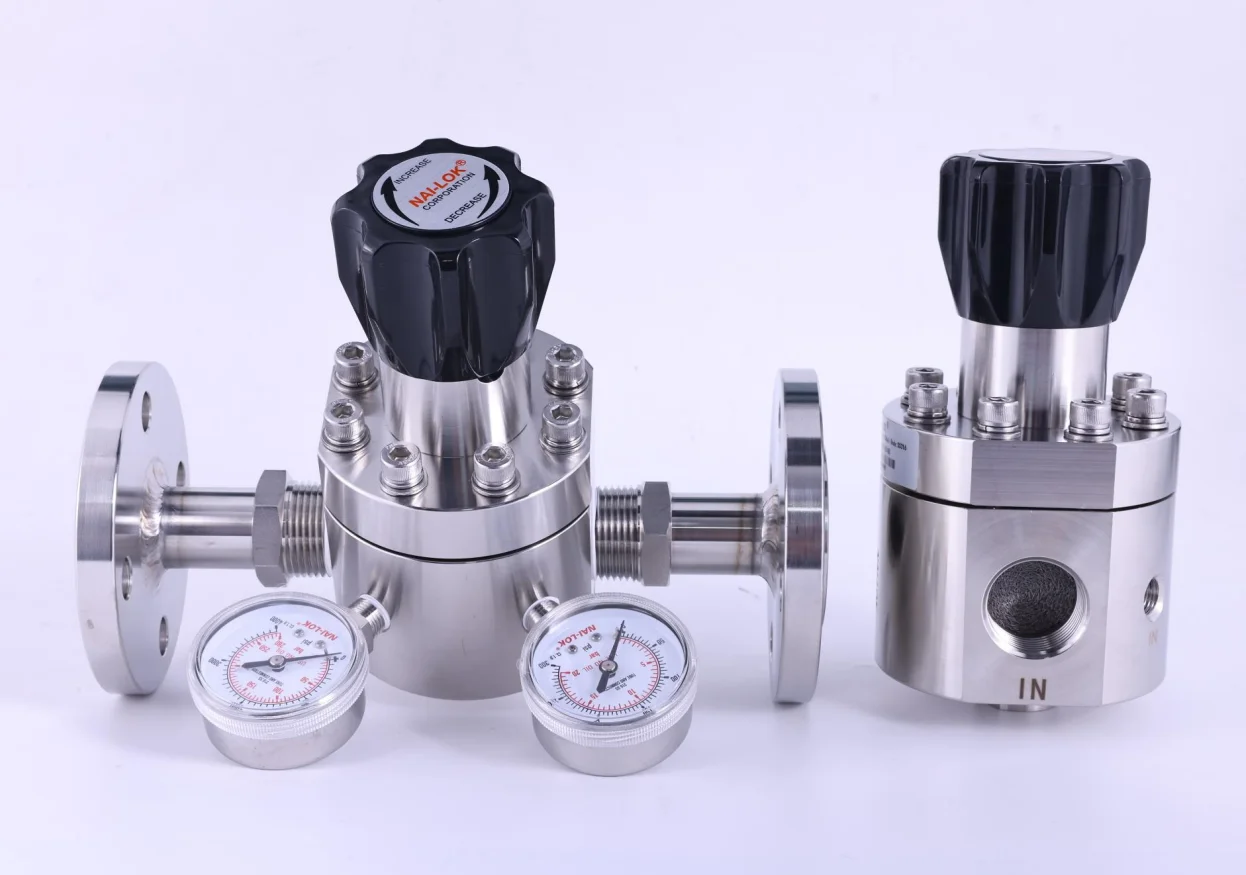

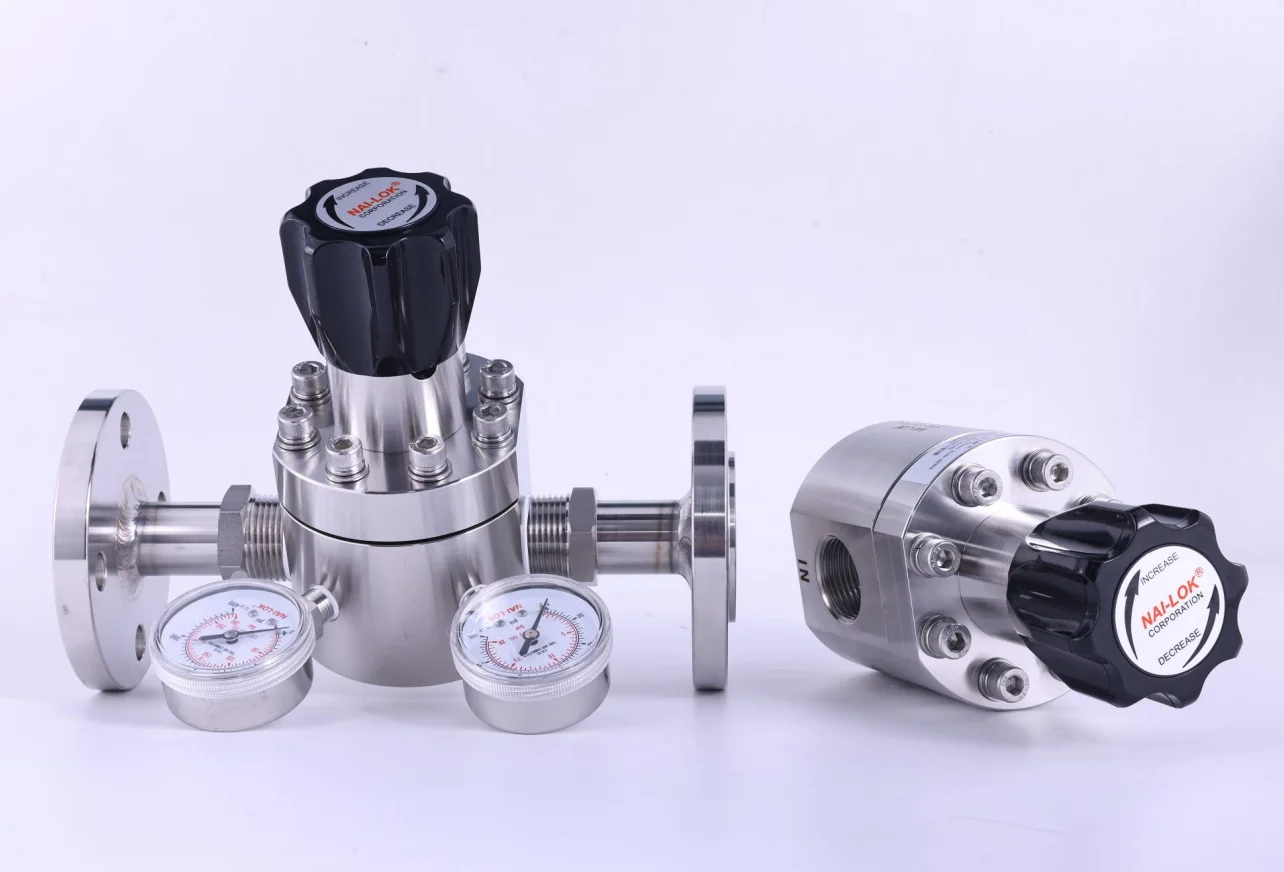

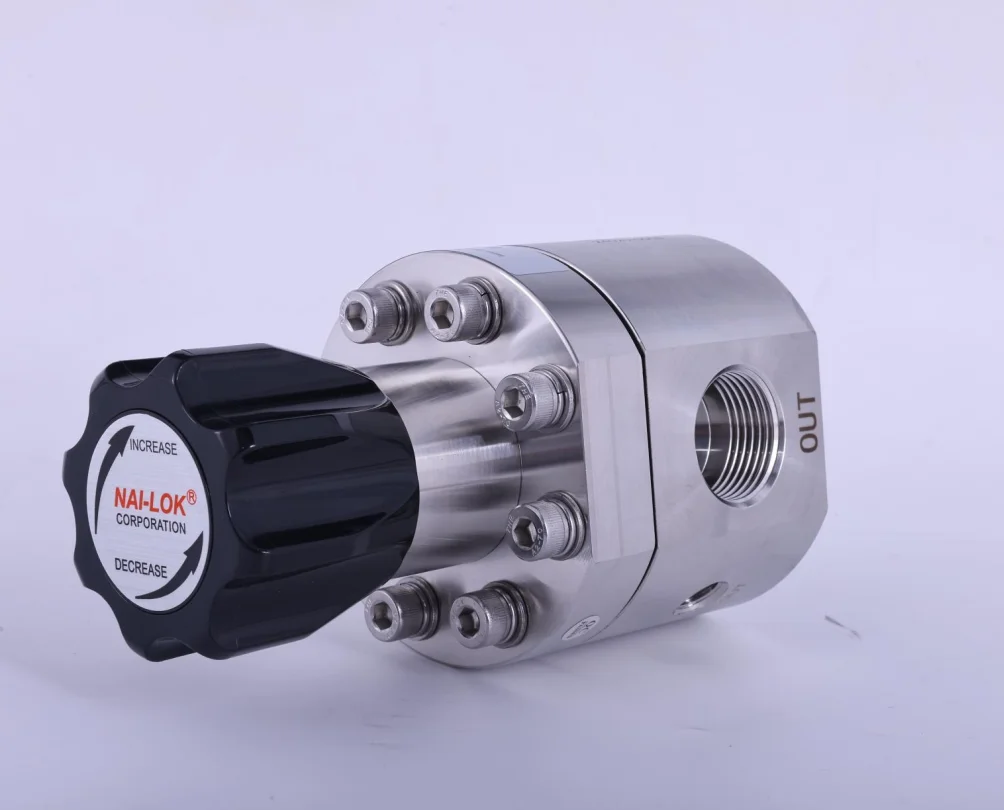

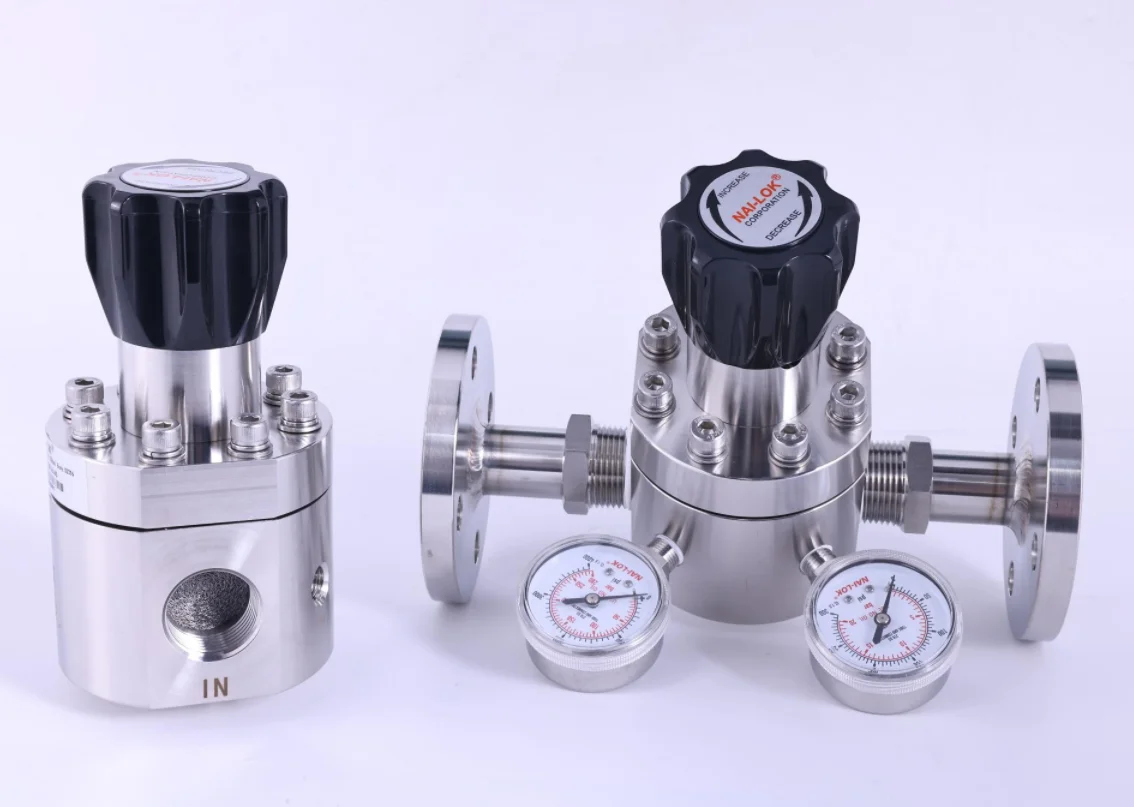

NAI LOK chrome plated brass 3000psi inlet High flow flanged connection CNG regulator air pressure regulator
- Category: >>>
- Supplier: Shanghai Yiwei Flow Control Technology Co. Ltd.
Share on (1601103138240):
Product Overview
Description
Product Overview
NAI-LOK Stainless steel 316 3000psi inlet High flow flanged connection CNG regulator air pressure regulator 3000pis
PRODUCT SPECIFICATIONS
Product Name | NR61 Regulators-Pressure Reducing |
Maximun Inlet Pressure | 500,3000 psig(34.5, 207 bar) |
Outlet Pressure Ranges | 0-25,0-50,0-100,0-250,0-1000psi(0-1.7, 0-3.4, 0-6.9, 0-17.2) |
Design Proof Pressure | 150% maximum rated pressure |
Leakage | Internal: Bubble-tightExternal:Design ro meet≤2×10-8atm cc/sec He |
Operating Temperature | -40℉ to 165℉/-40℃ to 60℃ |
Flow Capactiy | CV=5.0 |
Media Contact materials | ||||||
Body | 316L Stainless Steel,Brass, | |||||
Bonnet | 300 Series Stainless Steel,Brass | |||||
Diaphragm | 316 Stainless Steel,Elgiloy | |||||
Seat | 3000 psig/207 bar Inlet:CTFE 500 psig/34.5 bar Inlet:Teflon | |||||
Seat retainal | Nitronic 60 | |||||
Seal | Teflon | |||||
Remaining Parts | 316 Stainless Steel | |||||
PRODUCT CONFIGURATION
