Automatic Stainless Steel Square round rectangular tube pipe rolling bending machine Roll circle cutting machine
- Category: >>>
- Supplier: Zhangjiagang Ruifa Haiwei Machinery Co. Ltd.
Share on (1601103407385):
Product Overview
Description
Products Description
Rolling bending air conditioner pipes
Connected roller bending and cutting ,high efficiency

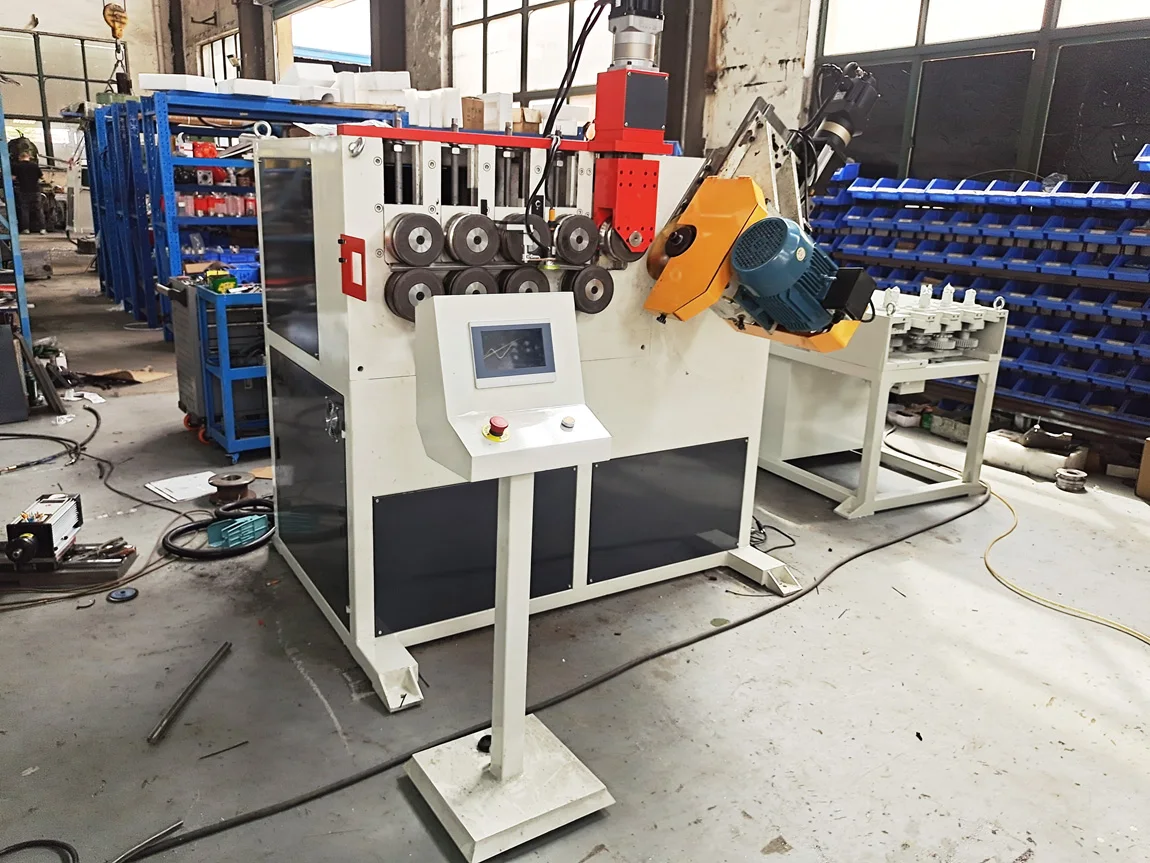

Factory true views
Main Specifications/models | HWQ-40CNC | HWQ-60CNC | HWQ-60CNC-S弯 | HWQ-100CNC |
Max rolling pipe diameter(carbon steel)（mm） | Φ40X2.5 | Φ60X2.5 | Φ60X2.5 | Φ100X5 |
Maximum applicable stainless steel pipe（mm） | Φ40X2 | Φ60X2 | Φ60X2 | Φ100X4 |
Maximum bending angle（°） | 360 | 360 | 360 | 360 |
Minimum bending radius（mm） | 管件直径*8-15倍 Fitting diameter*8-15 times | 管件直径*8-15倍 Fitting diameter*8-15 times | 管件直径*8-15倍 Fitting diameter*8-15 times | 管件直径*8-15倍 Fitting diameter*8-15 times |
Rounding speed（mm/s） | 50-150 | 50-150 | 50-150 | 50-150 |
Rotational speed of die（mm/s） | 40 | 20 | 60 | 20 |
Diameter of wheel mould（mm） | 136 | 156 | 146 | 228 |
Diameter servo motor power （KW） | 1 | 1 | 2.3 | 3 |
Feed frequency conversion motor（KW） | 3 | 4 | 3.8 | 11 |
Machine weight（kg） | 960 | 1000 | 1020 | 2500 |
Machine size (L*W*H)（mm） | 1260*1220*1200 | 1300*800*1100 | 1500*1200*1200 | 2000*1400*1200 |
