Product Overview

Description



Product Description


THE SPECIFICATION OF DRUM PUMP/BARREL PUMP
Model
HD series
Max Flow Rate
120L/min
Max Head
28m
Speed Rate
10000rpm(idle:17000~20000rpm)
Motor engine
-25℃~40℃
Liquid Viscosity
1200cps
Pumps used temperature is limited with materials, the highest temperature for working as follows
1-PP:500℃
2-PTFE:110℃-160℃
3-SS:110℃
4-AL:110℃
More information, please contact us.


Motor Model
Motor Model Meaning
Voltage
Speed
Frequency
Power
HD-E2-V
Variable speed control motor
220V
0-10000r/mi
50-60Hz
800W
HD-EX2-V(SB-3)
Explosion-proof motor
220V
12000r/min
50-60Hz
880W
HD-A1
Air motor
/
0-10000r/min
3-7bar
375W
SB-550W
High-speed motor
220V
8000r/min
50-60Hz
550W
SB-880W
High-speed motor
220V
10000r/min
50-60Hz
880W
SB-1100W
High-speed motor
220V
10000r/min
50-60Hz
1100W


Motor Type
Pump Model
Max.Flow
(L/min)
Max
Head
(M)
Power
(W)
Speed
(r/min)
Outle
diameter
(mm)
Max.
Viscosity
(cps)
Variable speed
control motor
HD-E2-V+△-□
165
10
800
10000
25
1000
HD-E2-V+△-□HP
100
28
800
10000
25
1200
Explosion proof
electric motor
HD-EX2-V(SB-3)+△-□
198
12
880
12000
25
500
HD-EX2-V(SB-3)+△-□HP
120
30
880
12000
25
800
High-speed motor
SB-1100W+△-□
180
11
1100
10000
25
500
SB-1100W+△-□HP
110
30
1100
10000
25
800
SB-800W+△-□
170
10
880
10000
25
500
SB-800W+△-□HP
105
29
880
10000
25
800
SB-550W+△-□
120
8
550
8000
25
500
SB-550W+△-□HP
70
22
550
8000
25
800
Explosion proof
air moto
HD-A1+△-□
150
10
375
9500
25
300
HD-A1+△-□HP
80
16
375
9500
25
700
Remarks

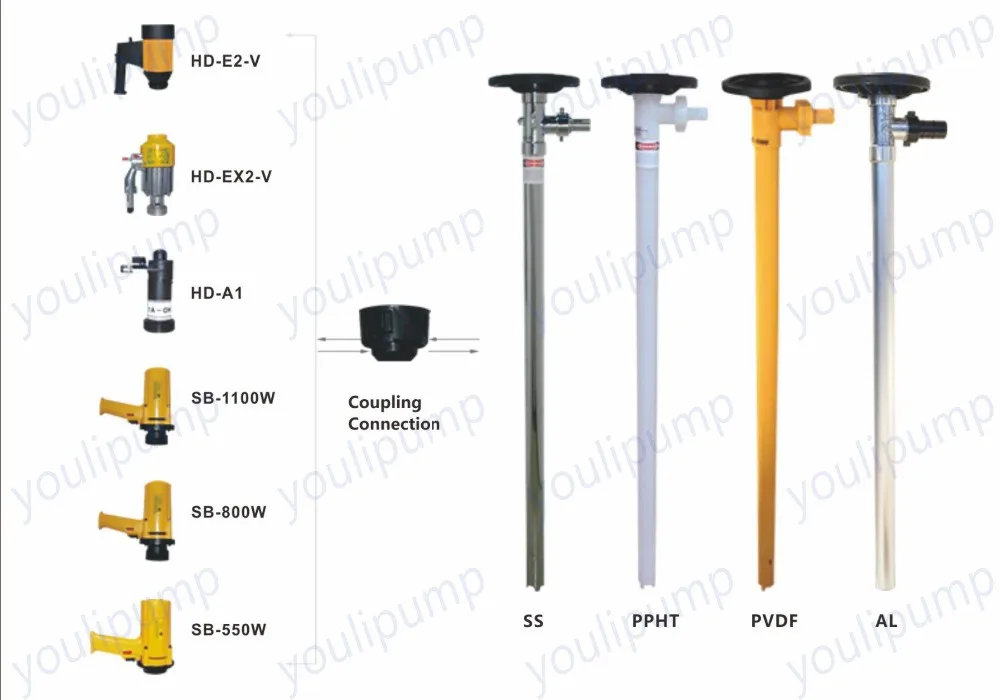

The above"△"refers to material of pump tube: AL(Aluminum),SS304,SS316L,PPHT(PP)PVDF
The above "□"refers to the pump tube length:700mm,1000mm,1200mm,1500mm
The above "HP"refers to the high pressure type,"HV"refers to high volume type,(Do not bid
For Example:HD-E2-V+AL-1000 means Aluminum pump tube material/1000mm tube length/high volume type

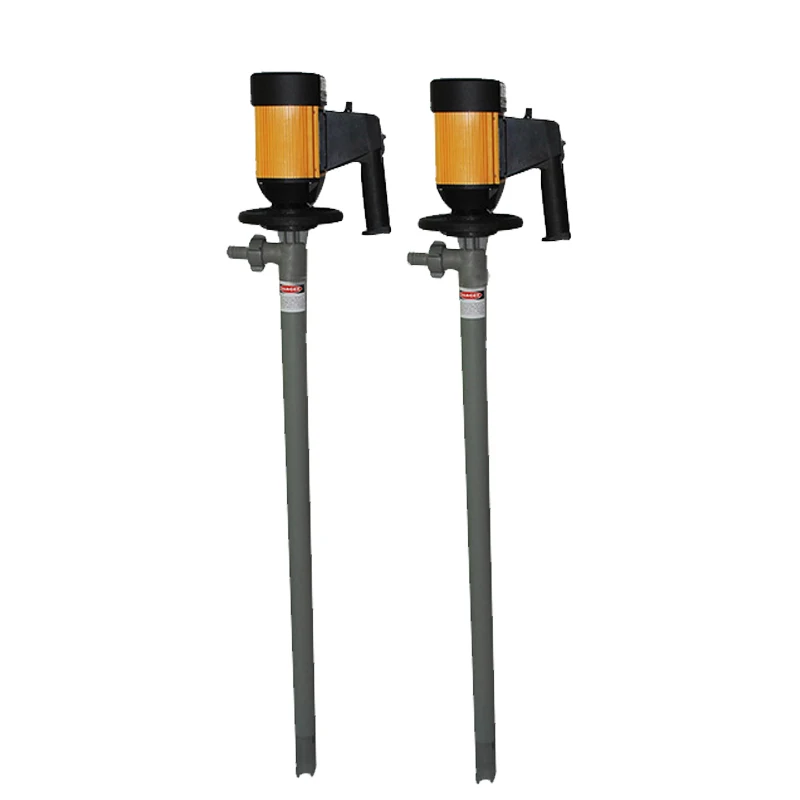

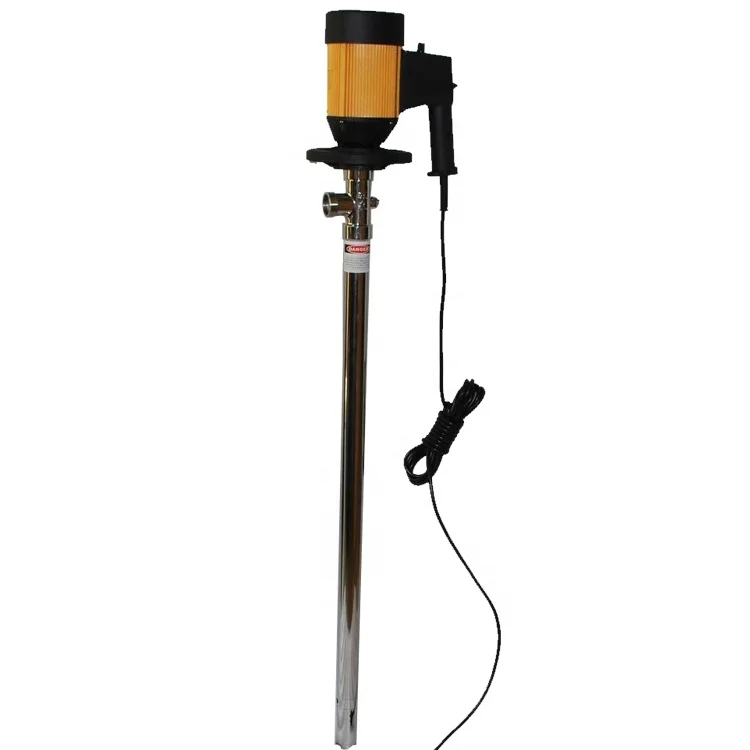

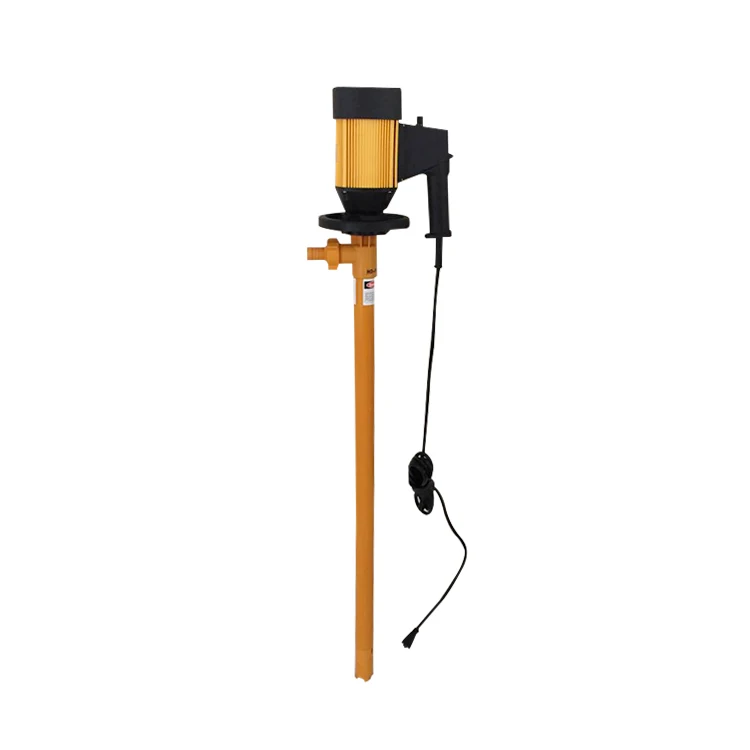

Drum Pump is a kind of barrel pump. The tube can be directly put into the drum to pump liquid. As per different transferring liquid, the pump wet part can choose Aluminum Alloy, Stainless Steel, PP, RPP, PVDF, PTFE Material. The driving motor can be single phase common motor, Ex-proof motor, no brush motor & high-speed motor for option. It is easy to use, maintenance &high efficiency. It is widely used to transfer acid, petrochemical liquids, treatment water, drinks, gas, kerosene, diesel and some low-viscosity liquids in extensive fields of petrochemical, refinery, food, petro oil, marine, pharmacy, filling station etc.

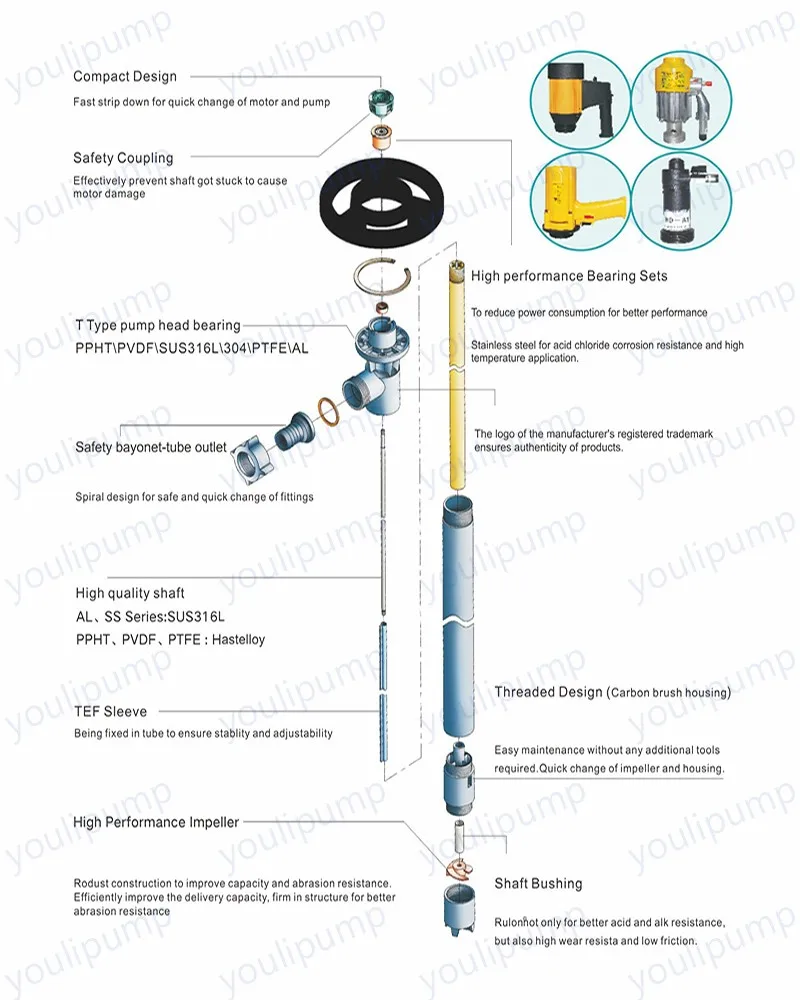

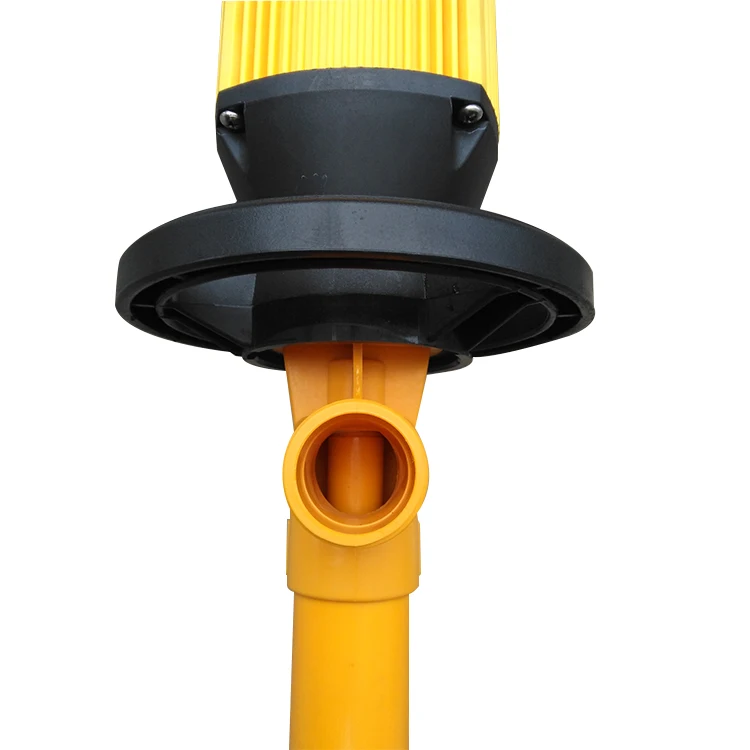

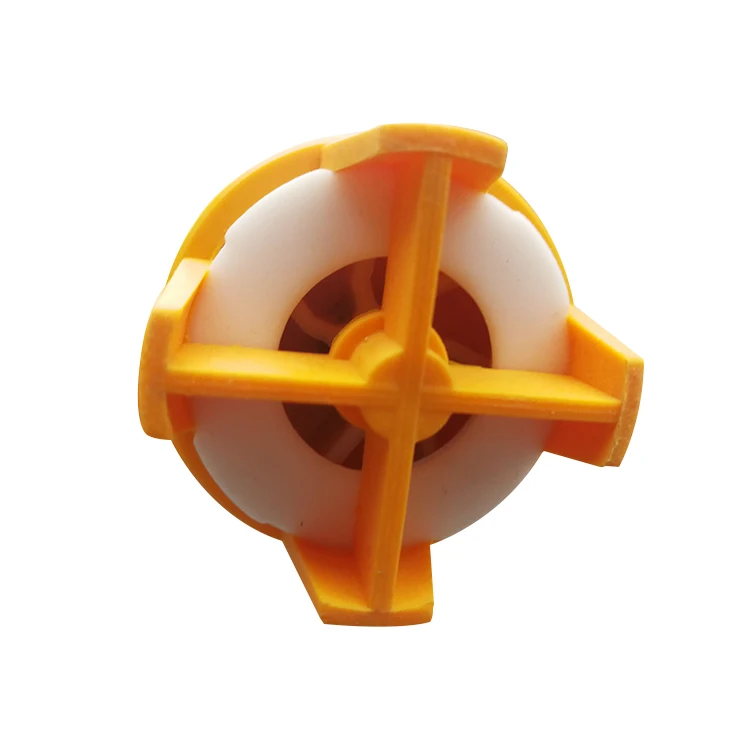

Details Images




Main products

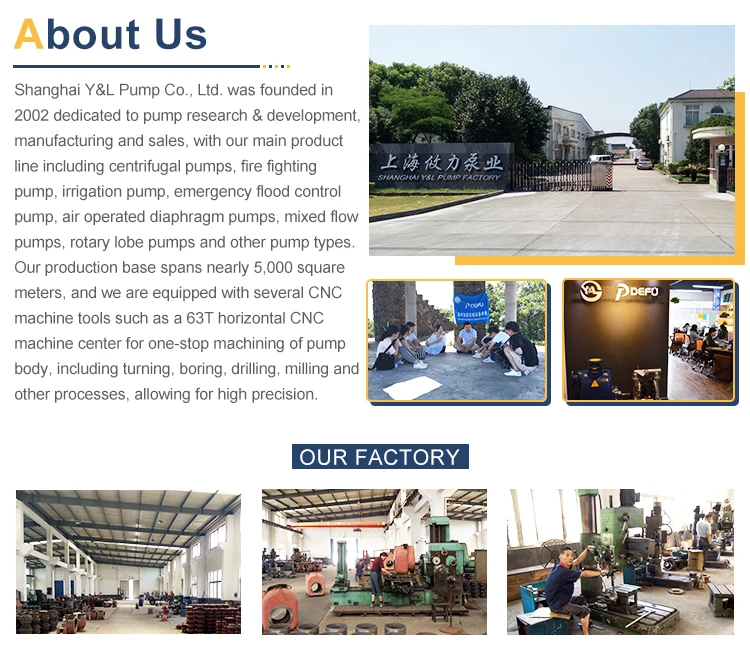

Company Information








FAQ


1. Q: Whats the MOQ ?
A: 1 set for regular product ,the special one we need to discuss.

2. Q : What're your payments ?
A: For small order valve < 4000USD, our customer chose 100% T/T.
For order valve >4000USD, we can accept 30 % T/T inadvance , 70 % should be paid before shipping.

3 . Q : How long is the deliver time ?
A : For the order in stock ,we will deliver goods at once against payment.
For the orders out of stock , the products time is 7 days for bare pump, 25days for electric pump set or diesel engine pump set ,
the deliver time is base on the shipping date and your order by sea.

4. Q: What about the package ?
A : Standard export Plywood case .

5.Q : How is the pump delivered to us ?
A : For small order will be delivered by internation express ,like DHL,TNT ,FEDEX,UPS.
For large order ,it will be delivered by air ,sea ,vehicle or multi-modal transport.

6. Q : How long is the warranty ?
A: According to the internation standards , pump in standard operation is 1 year ,3 monthes for spare parts.
