High Output Dry Mix Plant Dry Mortar Mixing Plant for Sale



Product Description


dry mortar mixing plant for sale is a production line used to produce dry mix mortar. Commonly used dry mortar mixing plant for sale types include station layout, stepped layout, tower layout, etc. The general process is to lift all pre-processed raw materials to the top of the raw material silo, rely on the weight of the raw materials themselves to naturally flow out of the silo, and become the final product after weighing, batching, mixing, packaging and other processes. The entire production process of dry mortar mixing plant for sale is completed under the operation of modern microcomputer control system. The operator only needs to specify the type and quantity of the product, and all other operations are automatically completed by the control system without manual intervention. The entire dry mortar mixing plant for sale equipment adopts closed production system equipment, and the site is clean and free of dust pollution, ensuring the health of workers. The dry mortar mixing plant for sale equipment has a modular structure, the production capacity can be connected with the market development, the batching accuracy is high, the use is flexible, and is easy to expand.dry mortar mixing plant for sale





Product Composition

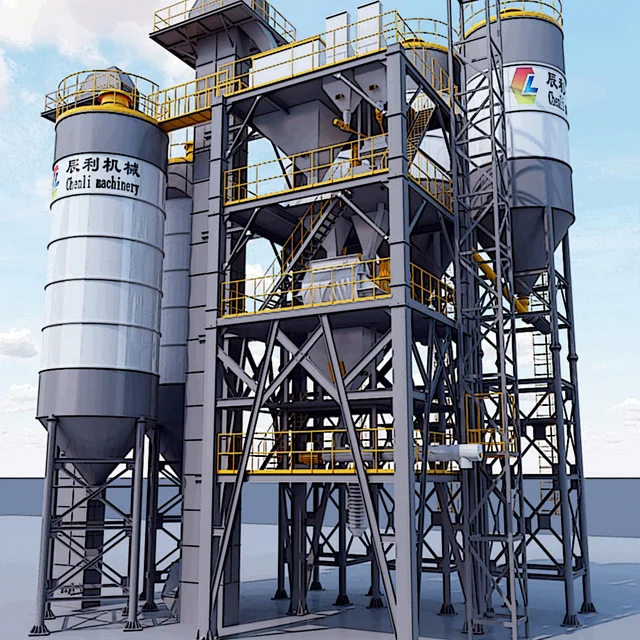

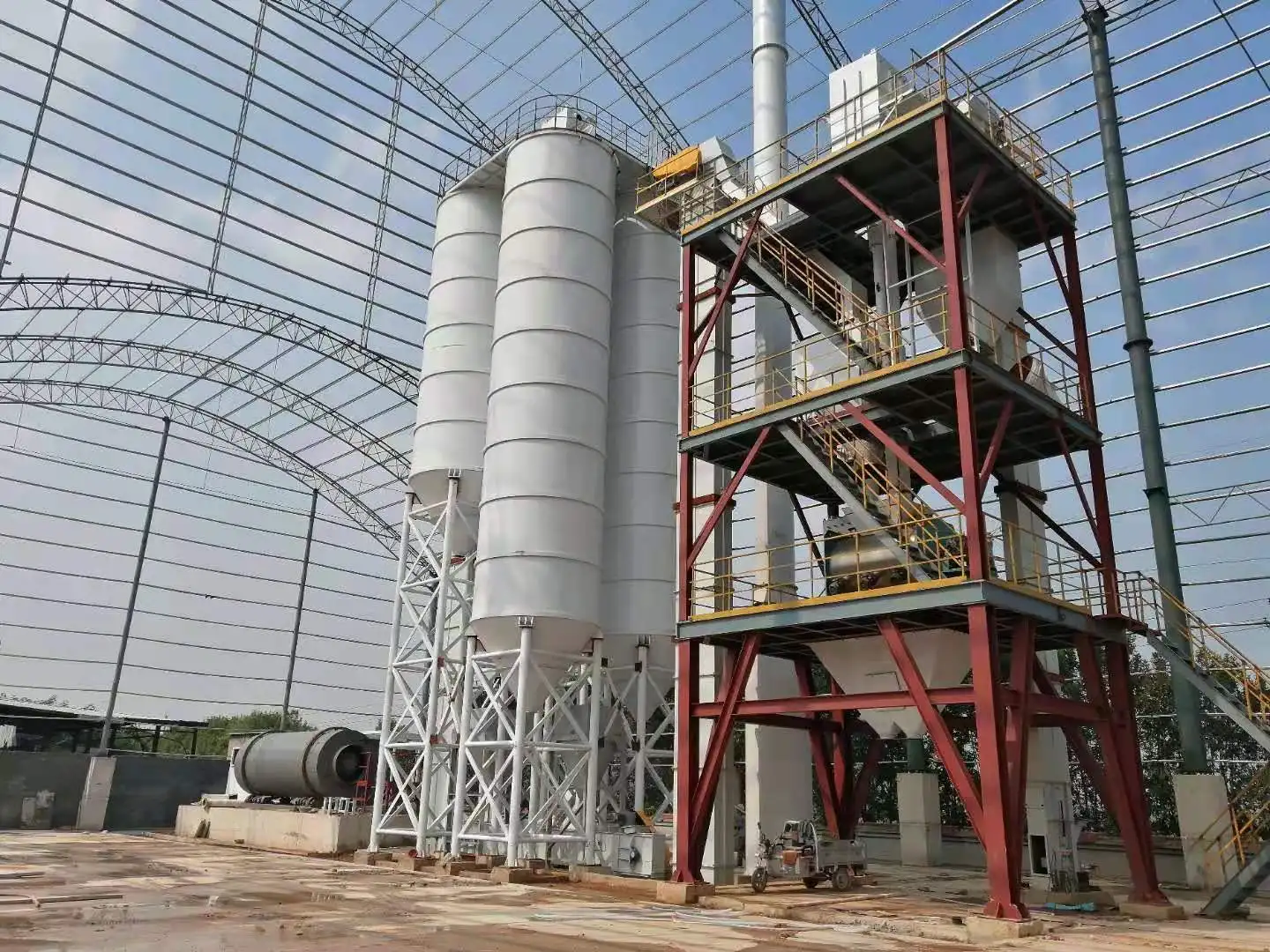

dry mortar plant


Workflow

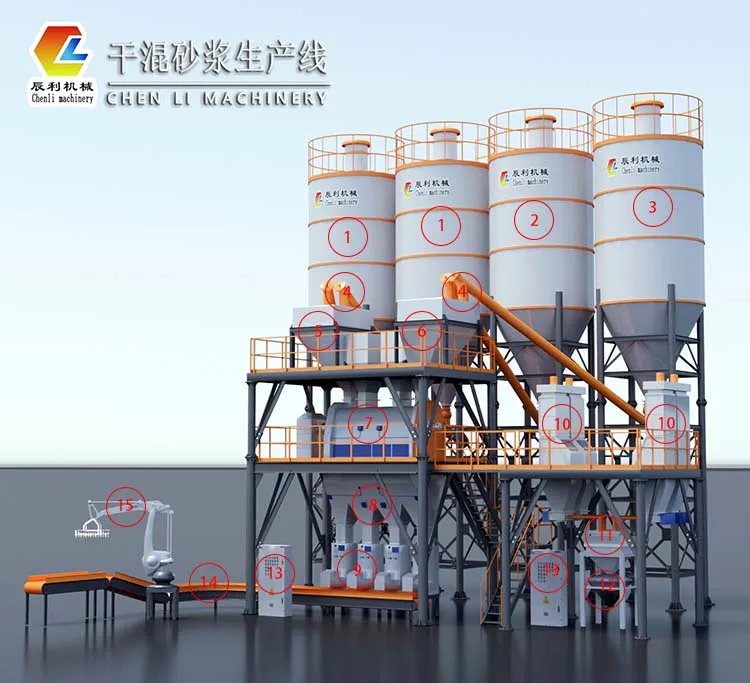

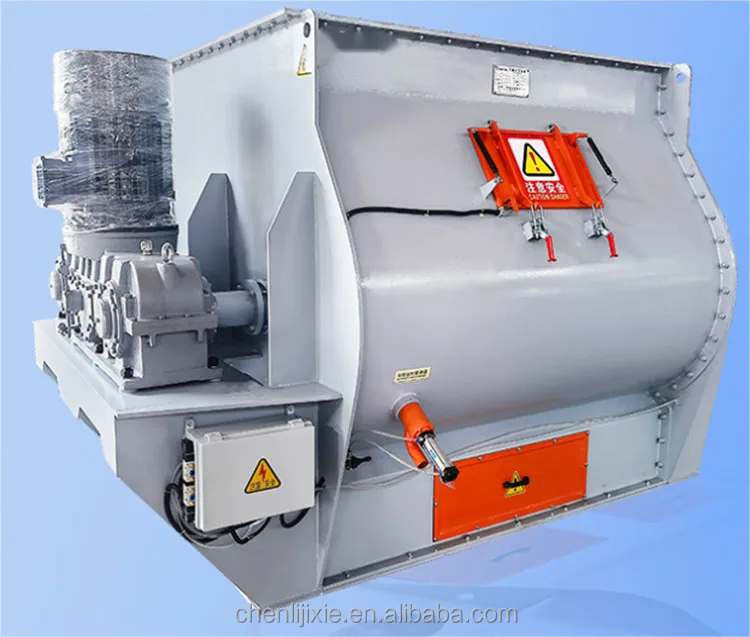

  1. Fine sand(1), cement(2), and fly ash(3) are respectively fed into the aggregate scale(5) and powder scale(6) through a screw conveyor(4), and after weighing, the mixture fall into the mixer(7).

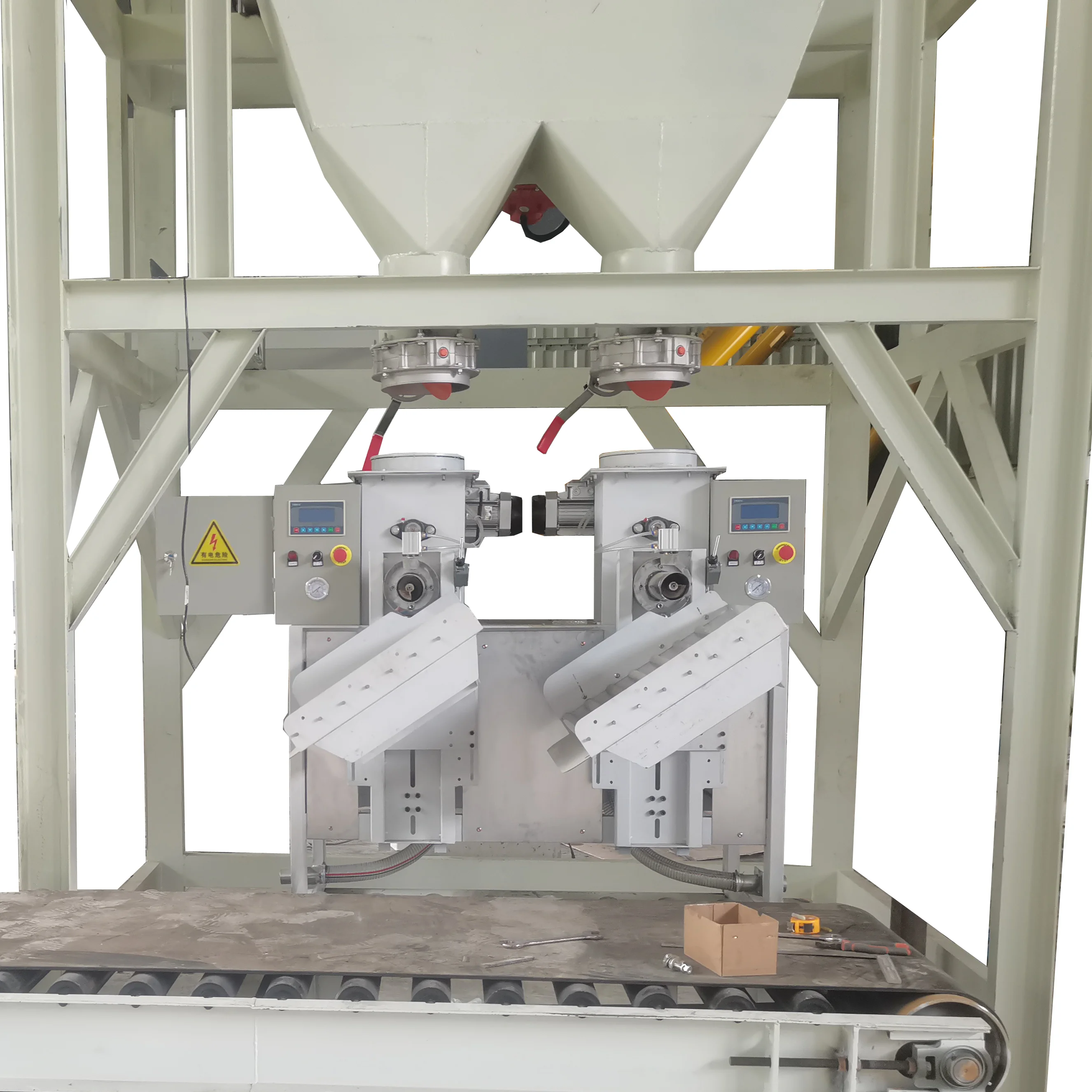

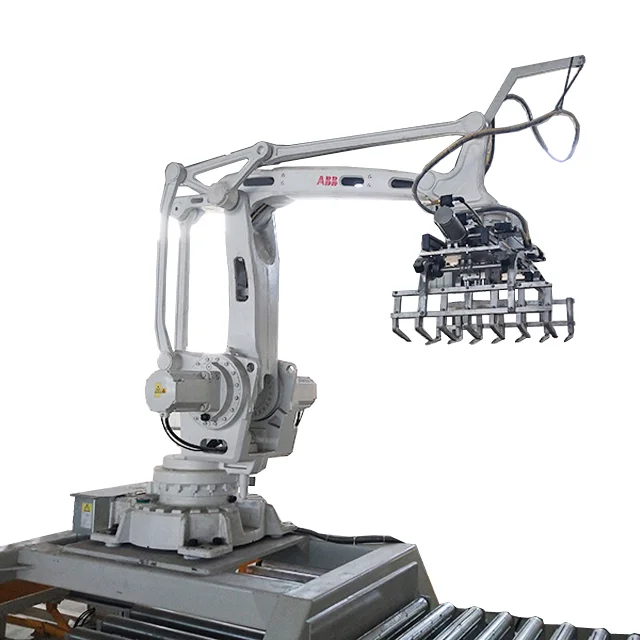

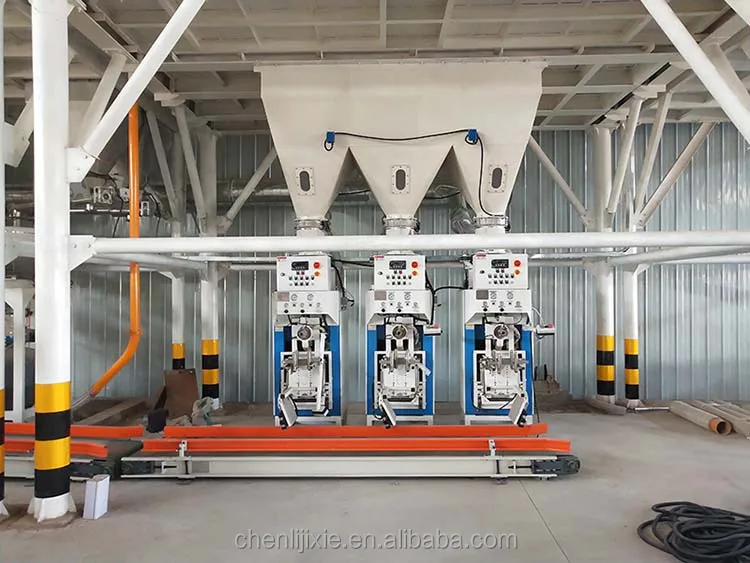

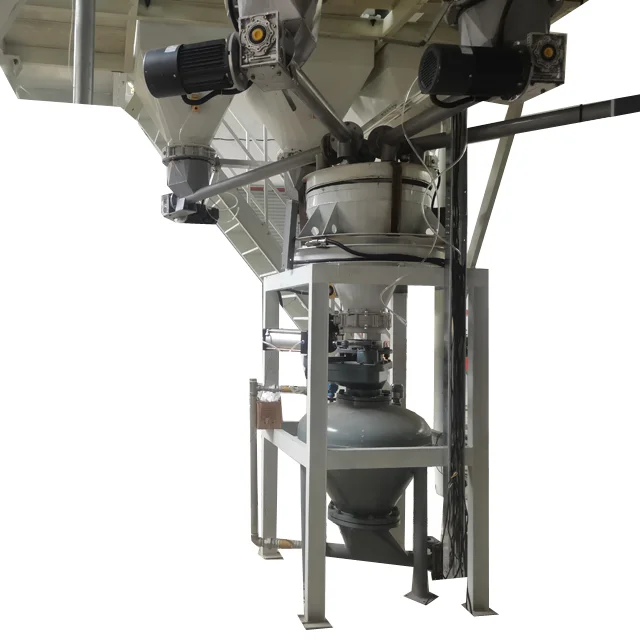

  2. The additives in the additive tank(10) enter the additive scale(11), after weighing, the additives enter the warehouse pump(12). There is a pipeline connection between the warehouse pump and the mixer. The warehouse pump is pressurized and the high-pressure gas transports the additives to the mixer. Various materials are mixed evenly in the mixer and enter the finished product silo(8). The finished production is bagged by the packaging machine(9) and palletized by the palletizer(15) for easy loading.





Specification































































Structure TypeEquipment ModelMixing Plant ModelOutput(t/h)Annual Output(10 thousand tons)
Special mortar production equipmentGCSE5WZ-152.5
GCSE10WZ-2105
 Stepped station GCSZ40 WZ-6 40 20
 GCSZ60 WZ-10 60 30
 GCSZ80 WZ-13 80 40

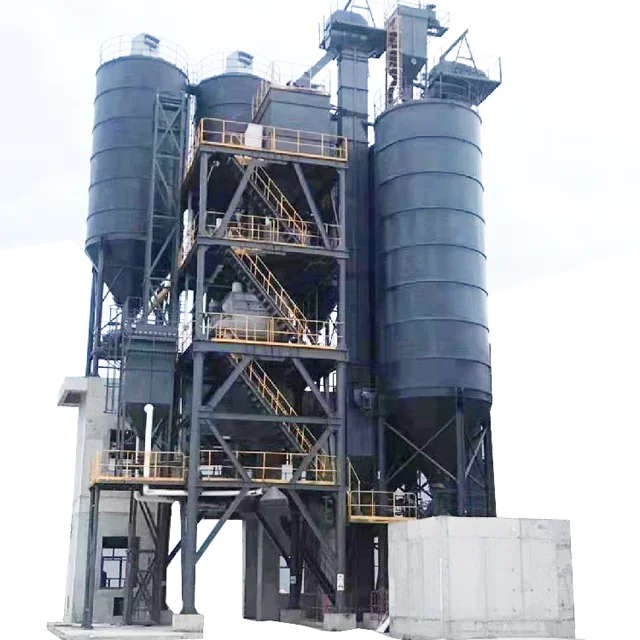

   Tower style GCSH40 WZ-6 40 20
 GCSH60 WZ-10 60 30
 GCSH80 WZ-13 80 40

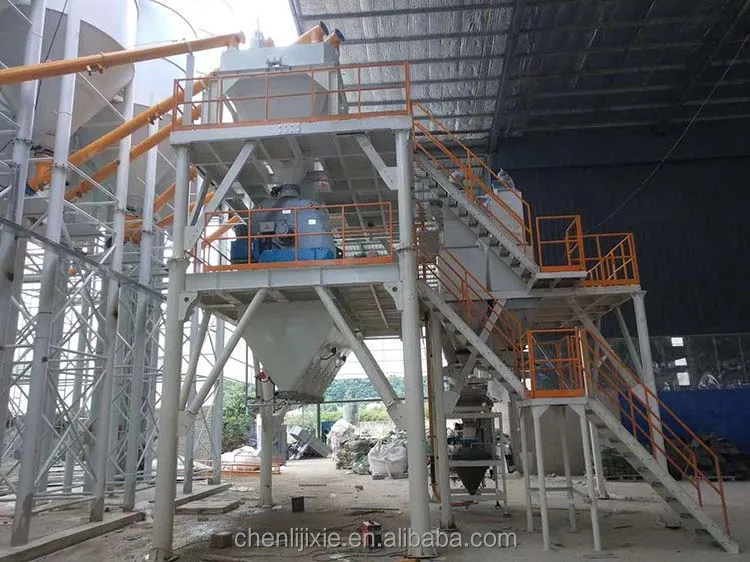

dry cement mortar mix machine





Features



  1. According to the customer's product formula and investment scale, Chenli optimizes the process flow and customize it to provide customers with the most efficient and economical product solutions.

  2. A strong R&D and design team, mature and advanced design concepts, and well-known accessories at home and abroad make the dry mortar mixing plant for sale system operation stable and reliable.

  3. The design of the process flow and the efficient and comprehensive treatment of dust removal emissions enable the dry mortar mixing plant for sale equipment to operate efficiently, energy-saving and environmentally friendly.

  4. Provide one-stop services such as market analysis, equipment selection, installation training, repair and maintenance, and formula support to enable your dry mortar mixing plant for sale equipment to operate efficiently and maximize your output value and profits.

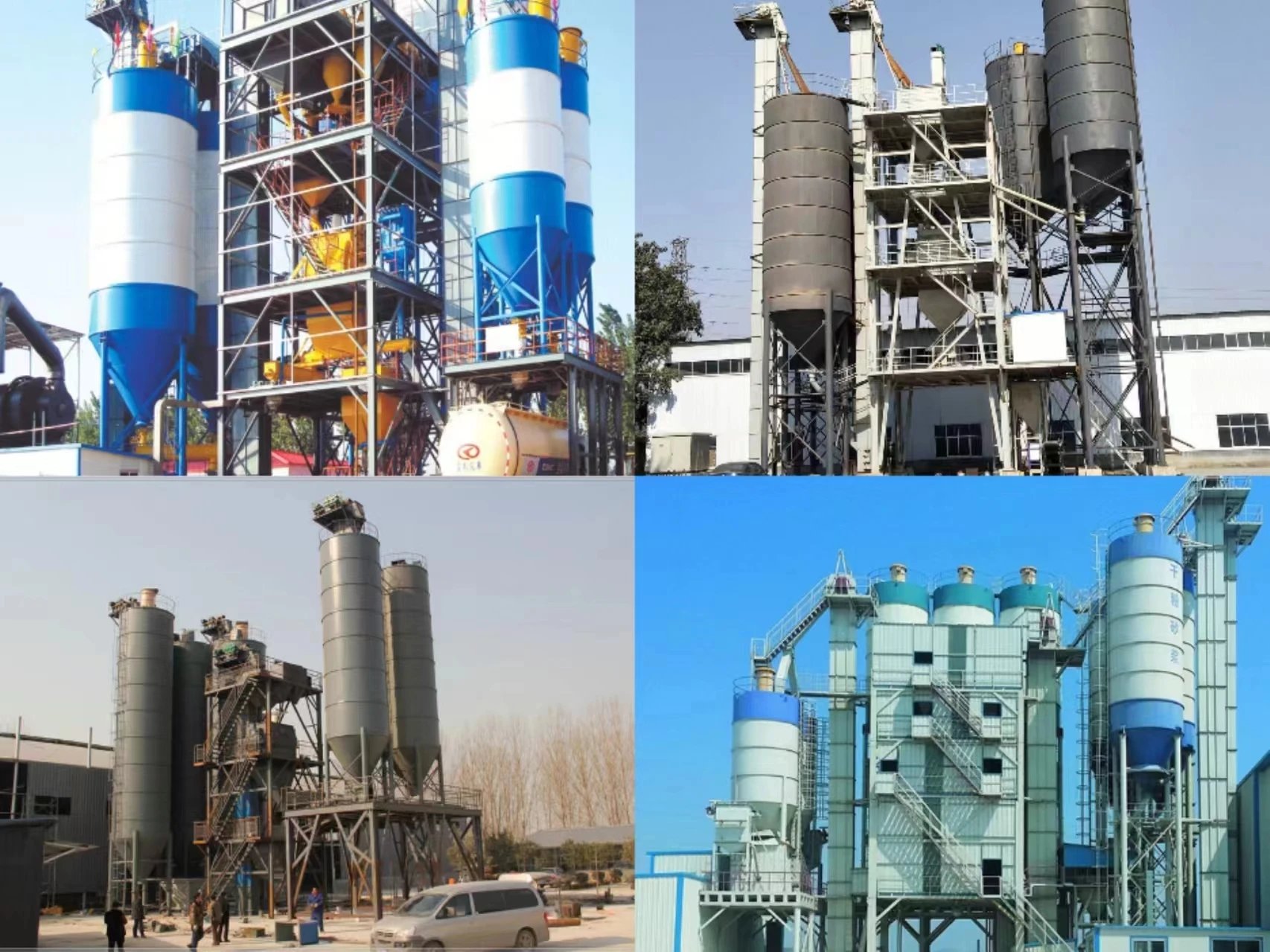

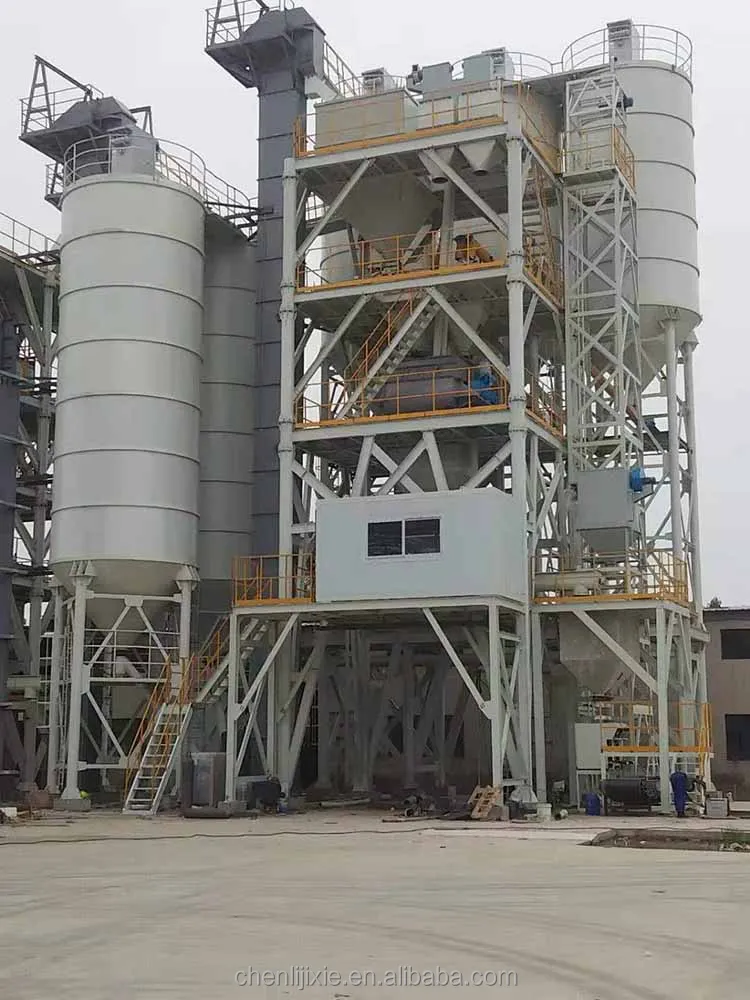

dry mortar plantdry mortar plantdry mortar plant





Application


Dry mixed mortar produced by dry mortar mixing plant for sale refers to a granular or powdery form that is physically mixed in a certain proportion by dry and screened aggregates, inorganic cementitious materials and additives. it is a material that is transported to the construction site in bags or bulk and can be used directly after being mixed with water.


In the construction industry, dry mixed mortar produced by dry mortar mixing plant for sale plays the role of bonding, lining, protection and decoration in thin layers, and is widely used in construction and decoration projects.dry powder mortar plant





dry cement mortar mixing plant





Recommended Products


construction machinery








Our Factory


Tai'an Chenli Construction Machinery Co., Ltd. is a technology-based company focusing on the development, design, manufacturing, engineering and service of intelligent complete equipment for building materials. Based on a deep understanding of building intelligent equipment, Taian Chenli is committed to providing users with "practical, efficient, low-carbon, environmentally friendly, intelligent and advanced" intelligent equipment products. In line with the product concept of "excellence in quality, simplicity to the extreme", committed to the high-tech development and application of intelligent equipment, energy-saving and environmentally friendly equipment for new building materials. The current leading products are cement concrete batching plants, mortar production lines, tower type sand making machine, and environmental protection equipment for batching plants. The products win the trust of the market with high standards and high reliability, and are deeply trusted by users.-1.jpg
