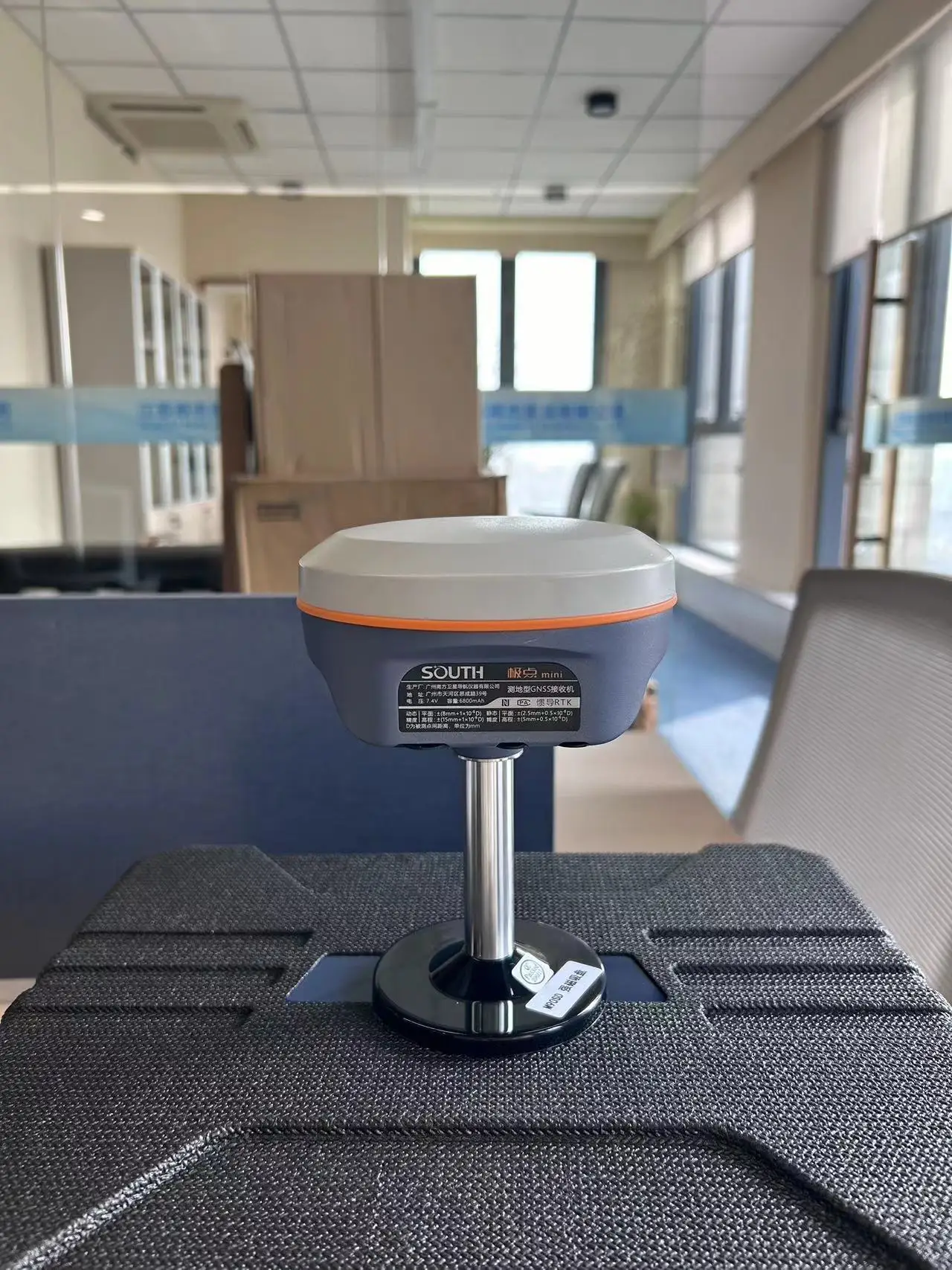

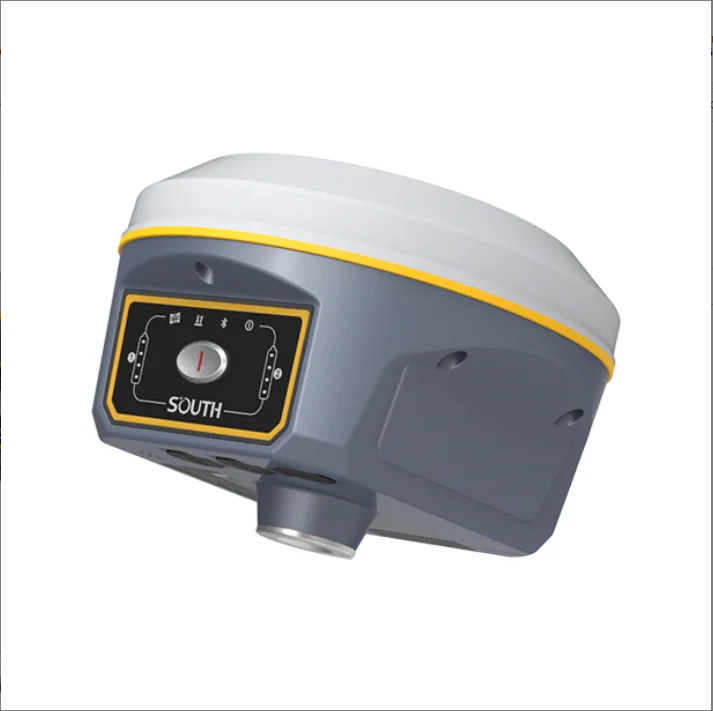

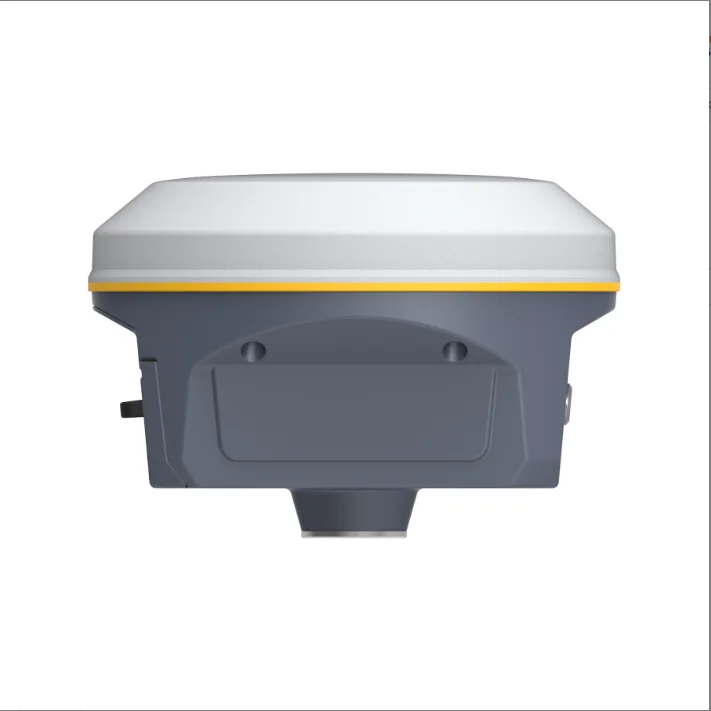

Smart wireless RTK South G9 1598 Channels high efficiency GNSS RTK SOUTH G9 for land survey GPS RTK Base Rover Galaxy G9
- Category: >>>
- Supplier: Jiangsu Bangjie Trading Co. Ltd.
Share on (1601103744192):
Product Overview
Description
Product Description
High integration creates convenient field work Carrying a new RTK integration technology, Bluetooth, WIFl, GSM antennas are highly
integrated into GNSS antenna, that brings you an unprecedented experience of field surveying, making the field work more
convenient and easier.
Advantageous SoC (System-on-Chip) platform The GNSS board of G9 is upgraded to the most advanced SoC which is a high integration
chip that has 1598 channels for multi-constellation and multi-frequency tracking, efficiently suppresses the interference
signals，and obtains higher quality observation data from GNSS constellations.
Intelligent Base signallocking technology Using one-to-one signal tracking and locking technology, and the independent frequency
under Farlink protocol, the G9 rover can continuously lock and capture the target base station signal to reduce cross-frequency
interference even though other base stations are working nearby with the same channel.The ultimate internal UHF performance The G9 breaks through the constraints on wavelengths based on a SOUTH high-performance UHF
module with Farlink communication technology, which increases signal sensitivity and transmission efficiency, and really achieves
the goal of 10km ultra-long-distance working range.

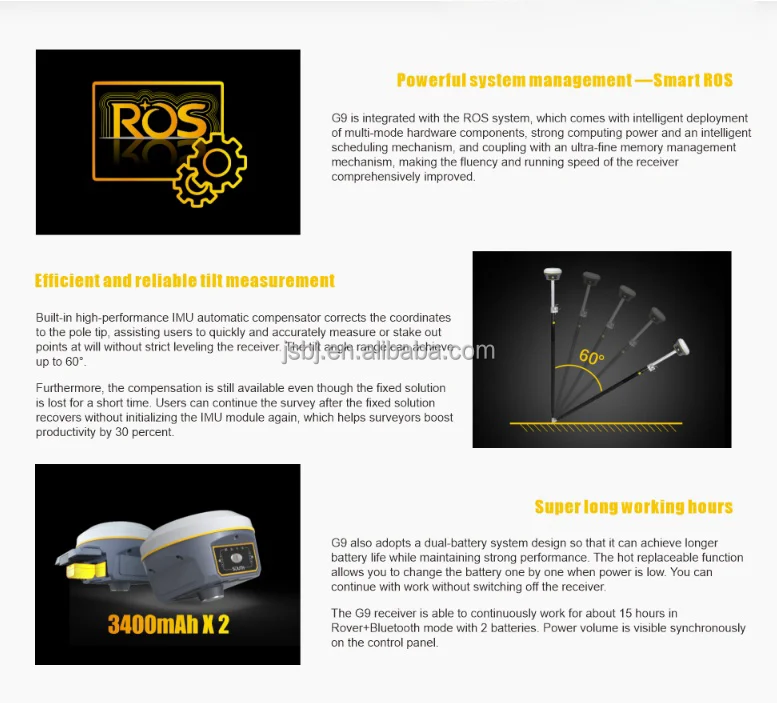

Powerful system management--Smart ROS G9 is integrated with the ROS system, which comes with intelligent deployment of multi-mode
hardware components, strong computing power and an intelligent scheduling mechanism. and coupling with an ultra-fine memory
management mechanism, making the fluency and running speed of the receiver comprehensively improved.
Efficient and reliable tilt measurement Built-in high-performance IMU automatic compensator corrects the coordinates to the pole
tip, assisting users to quickly and accurately measure or stake out points at will without strict leveling the receiver. The tilt
angle range can achieve up to 60°. Furthermore. the compensation is still available even though the fixed solution is lost for a
short time. Users can continue the survey after the fixed solution recovers without initializing the IMU module again, which helps
surveyors boost productivity by 30 percent.
Superlong working hours G9 also adopts a dual-battery system design so that it can achieve longer battery life while maintaining
strong performance. The hot replaceable function allows you to change the battery one by one when power is low. You can continue
with work without switching off the receiver. The G9 receiver is able to continuously work for about 15 hours in Rover+Bluetooth
mode with 2 batteries. Power volume is visible synchronously on the control panel.
integrated into GNSS antenna, that brings you an unprecedented experience of field surveying, making the field work more
convenient and easier.
Advantageous SoC (System-on-Chip) platform The GNSS board of G9 is upgraded to the most advanced SoC which is a high integration
chip that has 1598 channels for multi-constellation and multi-frequency tracking, efficiently suppresses the interference
signals，and obtains higher quality observation data from GNSS constellations.
Intelligent Base signallocking technology Using one-to-one signal tracking and locking technology, and the independent frequency
under Farlink protocol, the G9 rover can continuously lock and capture the target base station signal to reduce cross-frequency
interference even though other base stations are working nearby with the same channel.The ultimate internal UHF performance The G9 breaks through the constraints on wavelengths based on a SOUTH high-performance UHF
module with Farlink communication technology, which increases signal sensitivity and transmission efficiency, and really achieves
the goal of 10km ultra-long-distance working range.
Powerful system management--Smart ROS G9 is integrated with the ROS system, which comes with intelligent deployment of multi-mode
hardware components, strong computing power and an intelligent scheduling mechanism. and coupling with an ultra-fine memory
management mechanism, making the fluency and running speed of the receiver comprehensively improved.
Efficient and reliable tilt measurement Built-in high-performance IMU automatic compensator corrects the coordinates to the pole
tip, assisting users to quickly and accurately measure or stake out points at will without strict leveling the receiver. The tilt
angle range can achieve up to 60°. Furthermore. the compensation is still available even though the fixed solution is lost for a
short time. Users can continue the survey after the fixed solution recovers without initializing the IMU module again, which helps
surveyors boost productivity by 30 percent.
Superlong working hours G9 also adopts a dual-battery system design so that it can achieve longer battery life while maintaining
strong performance. The hot replaceable function allows you to change the battery one by one when power is low. You can continue
with work without switching off the receiver. The G9 receiver is able to continuously work for about 15 hours in Rover+Bluetooth
mode with 2 batteries. Power volume is visible synchronously on the control panel.
Specification
GNSS Features | Channels | 1598 |
GPS | L1C/A, L1C, L2C, L2P, L5 | |
GLONASS | L1C/A, L2C/A, L2P, L3CDMA | |
BDS | B1I, B1C, B2I, B2a, B3 | |
GALILEO | E1, E5A, E5B, E5AltBOC, E6[1] | |
SBAS | EGNOS, WAAS, GAGAN, MSAS, SDCM(L1,L5) | |
QZSS | L1C/A, L1C, L2C, L5, L6 | |
Navic | L5 | |
On module L-Band | Reserve | |
Positioning output rate | 1Hz~50Hz | |
Initialization time | < 10s | |
Initialization reliability | > 99.9% | |
Positioning Precision* | Real-time kinematic (Baseline<40km) | Horizontal: 6 mm + 0.5 ppm RMS Vertical: 10 mm + 1 ppm RMS |
GNSS static | Horizontal: 2.5 mm + 0.5 ppm RMS Vertical: 5 mm + 0.5 ppm RMS | |
Standalone | Horizontal: 1.2m Vertical: 1.9m RMS | |
DGNSS | Horizontal: 0.4m Vertical: 0.7m RMS | |
SBAS positioning | Horizontal: 0.6m Vertical: 0.8m RMS | |
RTK initialization time | 2 ~ 8s | |
IMU tilt compensation | Additional horizontal pole tip uncertainty typically less than 10mm + 0.7 mm/° tilt down to 30° | |
IMU tilt angle | 0° ~ 60° | |
Hardware Performance | Dimension | 154mm(φ)× 106mm(H) Thermometer |
Weight | 1.3kg (battery included) | |
Material | Magnesium aluminum alloy shell | |
Operating temperature | -45℃ ~ +65℃ | |
Storage temperature | -45℃ ~ +85℃ | |
Humidity | 100% Non-condensing | |
Waterproof/Dustproof | IP68 standard, protected from long time immersion to depth of 1m IP68 standard, fully protected against blowing dust | |
Shock/Vibration | Withstand 2 meters pole drop onto the cement ground naturally | |
Power consumption | 2W | |
Power supply | 6-28V DC, overvoltage protection | |
Battery | 7.4V 3400mAh x 2 rechargeable, removable Li-ion battery | |
Battery life(Dual-battery) | 15h(Rover Bluetooth mode) | |

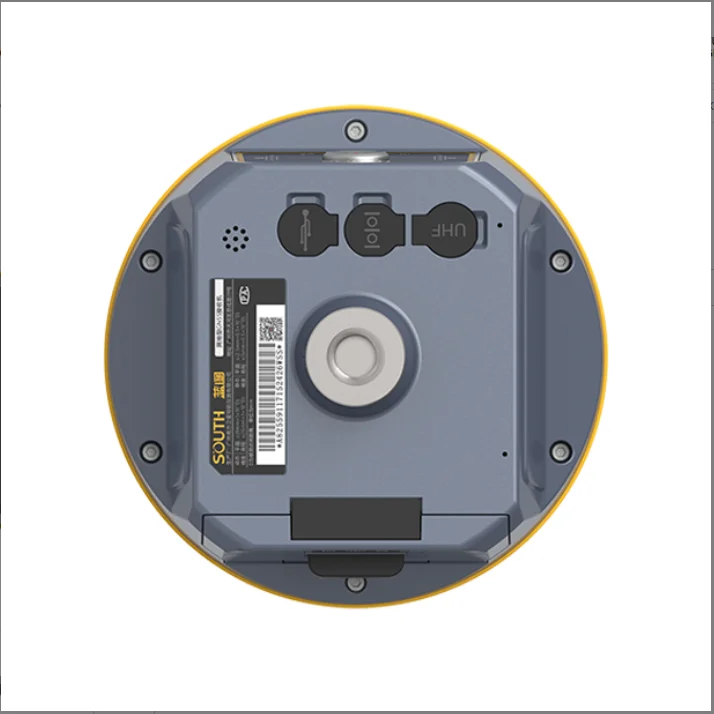

Communications | I/O Port | 5-PIN LEMO external power port + RS232 7-PIN LEMO(USB, OTG and Ethernet) 1 PPS data interface SIM card slot(standard) |
Internal UHF | Receiver and transmitter, 1/2/3W switchable | |
Frequency range | 410 - 470MHz | |
Communication protocol | Farlink, Trimtalk450s, SOUTH, HUACE, ZHD | |
Communication range | Typically 10km with Farlink protocol | |
Cellular mobile network | 4G network communication module | |
Bluetooth | BLEBluetooth 4.0 standard, Bluetooth 2.1 + EDR | |
NFC Communication | Realizing close range (shorter than 10cm) automatic pair between receiver and controller (controller requires NFC wireless communication module else) | |
WIFI | Modem | 802.11 b/g standard |
WIFI hotspot | AP mode, Receiver broadcasts its hotspot form web UI accessing with any mobile terminals | |
WIFI datalink | Client mode, Receiver can transmit and receive correction data stream via WiFi datalink | |
Data Storage/Transmission | Storage | 16GB SSD Automatic cycle storage (The earliest data files will be removed automatically while the memory is not enough) Support external USB storage |
Data transmission | Plug and play mode of USB data transmission Supports FTP/HTTP data download | |
Data format | Static data format: STH, Rinex2.01, Rinex3.02, etc. Differential format: CMR, RTCM 2.x, RTCM 3.x(MSM included) Navigation data format: NMEA 0183, PJK, Binary code Network model support: VRS, FKP, MAC, fully support NTRIP protocol | |
Sensors | Electronic bubble | Controller software can display electronic bubble, checking leveling status of the carbon pole in real-time |
IMU | Built-in IMU module, calibration-free and immune to magnetic interference | |
Thermometer | Built-in thermometer sensor, adopting intelligent temperature control technology, monitoring and adjusting the receiver temperature | |
User Interaction | Operating system | Linux |
Buttons | Single button | |
Indicators | 4 color LED indicators, Battery indicator | |
Web interaction | With the access of the internal web interface management via WiFi or USB connection, users are able to monitor the receiver status and change the configurations freely | |
Voice guidance | It provides status and operation voice guidance, and supports Chinese/English/Korean/Spanish/Portuguese/Russian/Turkish | |
Secondary development | Provides secondary development kit, and opens the OpenSIC observation data format and interaction interface definition | |
Cloud service | The powerful cloud platform provides online services like remote manage, firmware update, online register and etc. |
