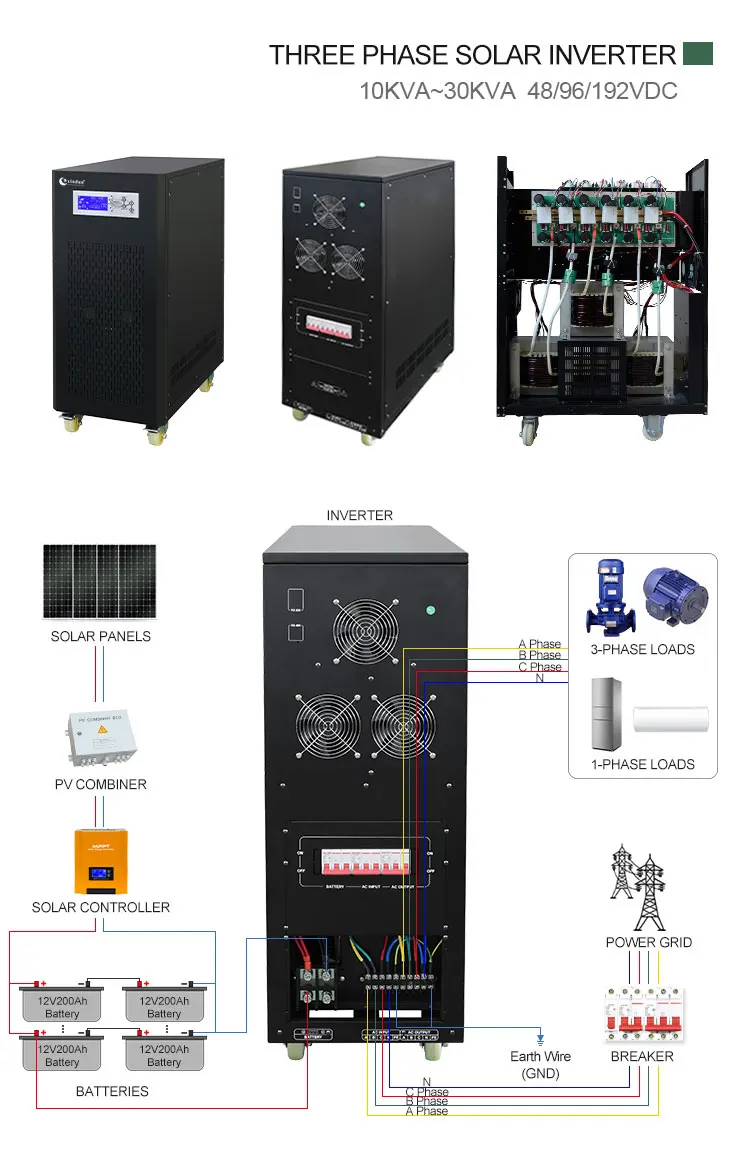

30kva 30kw 10kva 15 Kw 20kw 15kva 25kw 48v 25kva 30kw 3phase 3 Phase 380vac Off Grid Hybrid Power Solar Inverter 48v 100a
- Category: >>>
- Supplier: Guangdong Xindun Power Technology Co. Ltd.
Share on (1601103746192):
Product Overview
Description
Product Description
Specification
Specification | ||||||||||||||
Model: HDSX/HDSX-T | 80248/96/192 | 10348/96/192 | 12348/96/192 | 16396/192 | 20396/192 | 24396/192 | ||||||||
Rated Power | 10KVA/8KW | 12.5KVA/10KW | 15KVA/12KW | 20KVA/16KW | 25KVA/20KW | 30KVA/24KW | ||||||||
Peak Power（20ms) | 24KVA | 30KVA | 36KVA | 48KVA | 60KVA | 72KVA | ||||||||
Start Motor | 5HP | 6HP | 7HP | 10HP | 10HP | 15HP | ||||||||
Battery Voltage | 48/96/192VDC | 96/192VDC | ||||||||||||
Size(L*W*Hmm) | 725*365*1010 | |||||||||||||
Packing Size(L*W*Hmm) | 785*425*1135 | |||||||||||||
N.W.(kg) | 112 | 122 | 134 | 160 | 176 | 189 | ||||||||
G.W.(kg)（Wooden Packing） | 136 | 146 | 158 | 184 | 200 | 213 | ||||||||
Installation Method | Tower | |||||||||||||
Parameter | ||||||||||||||
Input | DC Input Voltage Range | 10.5VDC-15VDC（Single battery voltage） | ||||||||||||
AC Input Voltage Range | 380Vac/400Vac±10%(customized 190Vac/200Vac) | |||||||||||||
AC Input Frequency Range | 45Hz-55Hz（50Hz）/ 55Hz-65Hz（60Hz） | |||||||||||||
Max AC charging current | 0-45A(Depending on the model） | |||||||||||||
AC charging method | Three-stage (constant current, constant voltage, floating charge) | |||||||||||||
Phase | 3/N/PE | |||||||||||||
Output | Efficiency(Battery Mode) | ≥85% | ||||||||||||
Output Voltage(Battery Mode) | 380Vac/400Vac±2%(customized 190Vac/200Vac) | |||||||||||||
Output Frequency(Battery Mode) | 50/60Hz ±1% | |||||||||||||
Output Wave(Battery Mode) | Pure Sine Wave | |||||||||||||
Output waveform distortion | Linear load≤3% | |||||||||||||
Efficiency(AC Mode) | >99% | |||||||||||||
Output Voltage(AC Mode) | Conforming to AC input | |||||||||||||
Output Frequency(AC Mode) | Conforming to AC input | |||||||||||||
No load loss(Battery Mode) | ≤2.5% rated power | |||||||||||||
No load loss(AC Mode) | ≤2%rated power（ charger does not work in AC mode） | |||||||||||||
No load loss(Energy saving Mode) | ≤10W | |||||||||||||
Phase | 3/N/PE | |||||||||||||
Battery Type | VRLA Battery | Charge Voltage :13.8V; Float Voltage:13.7V（Single battery voltage） | ||||||||||||
Customize battery | Charging and discharging parameters of different types of batteries can be customized according to user requirements (charging and discharging parameters of different types of batteries can be set through the operation panel) | |||||||||||||
Protection | Battery undervoltage alarm | 11V（Single battery voltage） | ||||||||||||
Battery undervoltage protection | 10.5V（Single battery voltage） | |||||||||||||
Battery overvoltage alarm | 15V（Single battery voltage） | |||||||||||||
Battery overvoltage protection | 17V（Single battery voltage） | |||||||||||||
Battery overvoltage recovery voltage | 14.5V（Single battery voltage） | |||||||||||||
Overload power protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | |||||||||||||
Inverter output short circuit protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | |||||||||||||
Temperature protection | >90°C（Shut down output） | |||||||||||||
Alarm | A | Normal working condition, buzzer has no alarm sound | ||||||||||||
B | Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection | |||||||||||||
C | When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal | |||||||||||||
Inside Solar controller (Optional) | Charging Mode | MPPT or PWM | ||||||||||||
Charging current | PWM: 10A-60A（48V System); 50A/100A（96V System); 50A/100A（192V System) MPPT: 10A-100A（48V System); 50A/100A（96V System) | |||||||||||||
PV Input Voltage Range | PWM: 60V-88V(48V System); 120V-176V(96V System); 240V-352V(192V System) MPPT: 60V-120V(48V System); 120V-240V(96V System); 240V-360V(192V System) | |||||||||||||
Max PV Input Voltage(Voc) (At the lowest temperature) | PWM: 100V(48V System); 200V(96V System); 400V(192V System) MPPT: 150V(48 System); 300V(96V System); 450V(192V System) | |||||||||||||
PV Array Maximum Power | 48V System: 560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/2800W(50A)/3360W(60A)/4480W(80A)/5600W(100A); 96V System: (PWM: 5.6KW(50A)/11.2KW(100A)) / (MPPT: 5.6KW(50A)/5.6KW*2(100A)); 192V System: (PWM: 11.2KW(50A)/22.4KW(100A)) | |||||||||||||
Standby loss | ≤3W | |||||||||||||
Maximum conversion efficiency | >95% | |||||||||||||
Working Mode | Battery First/AC First/Saving Energy Mode | |||||||||||||
Transfer Time | ≤4ms | |||||||||||||
Display | LCD | |||||||||||||
Thermal method | Forced air cooling | |||||||||||||
Communication(Optional) | RS485/APP（WIFI monitoring or GPRS monitoring） | |||||||||||||

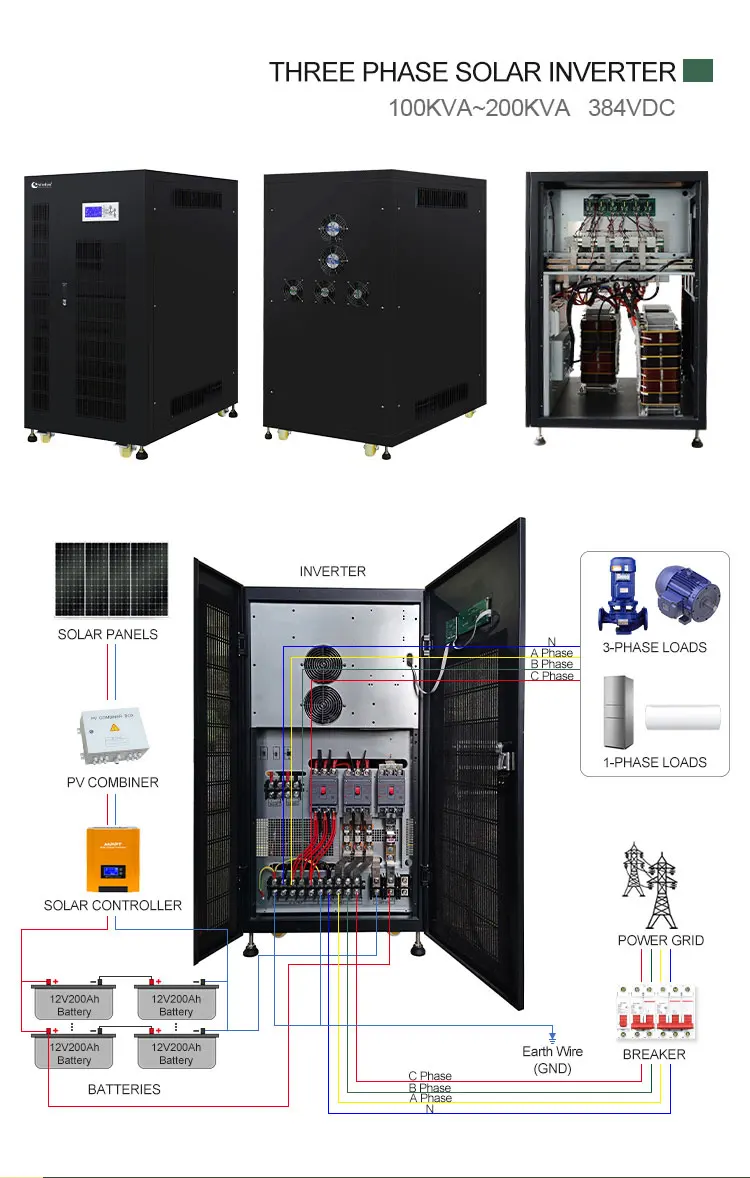

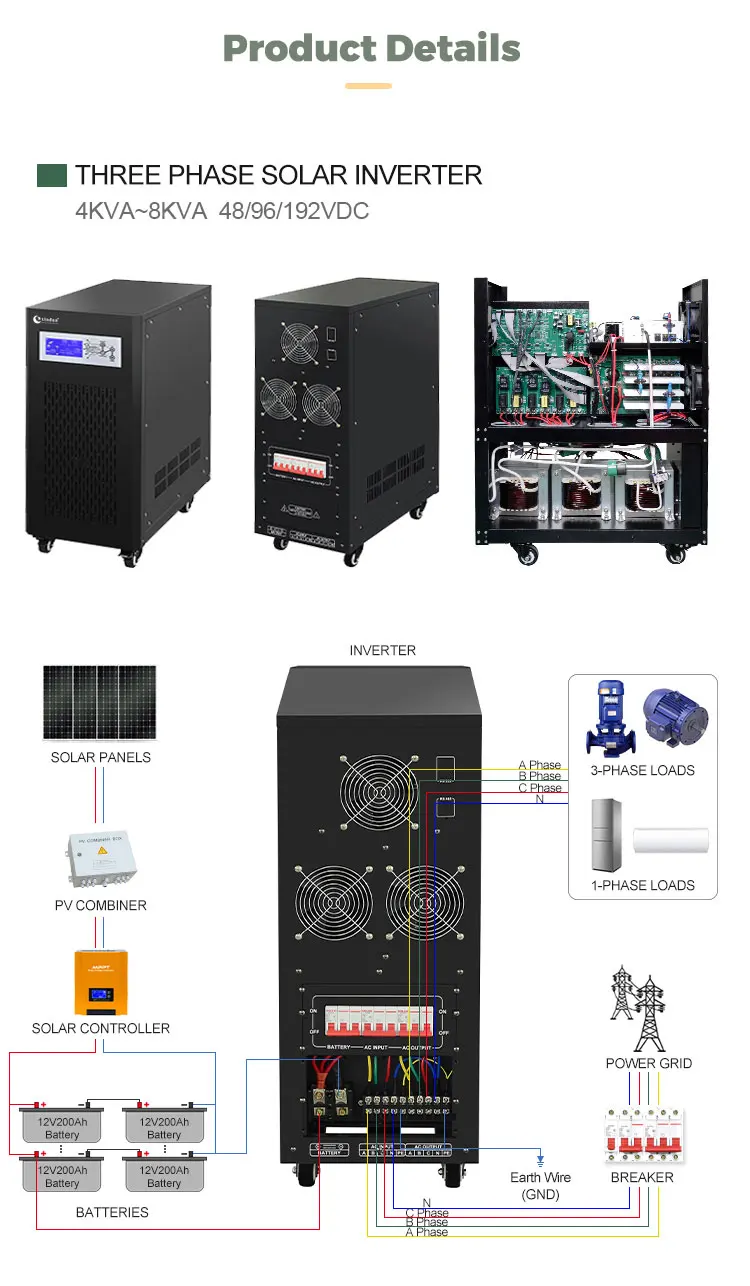

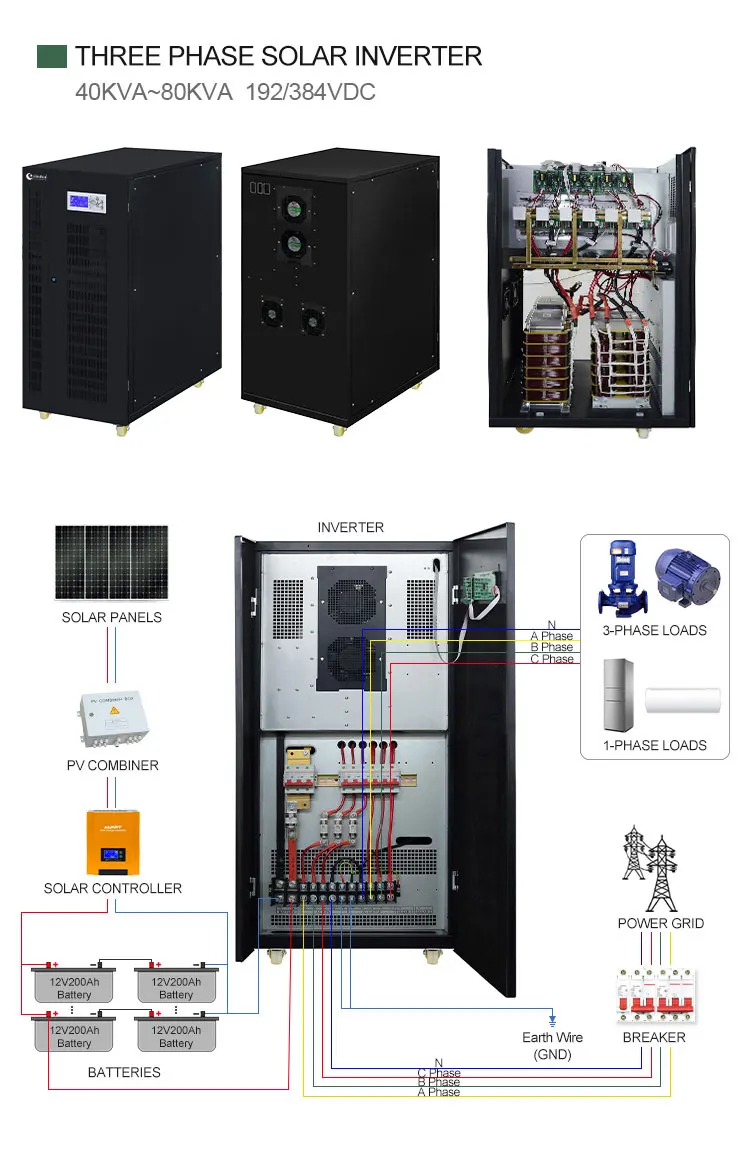

*HDSX series three phase solar inverter power is from 3.2kw~160kw
Please contact us to get other watts information

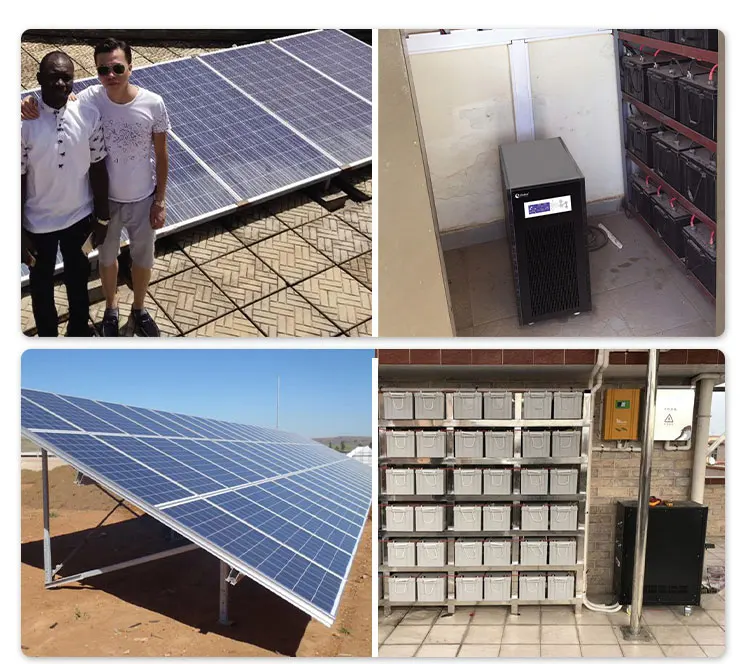

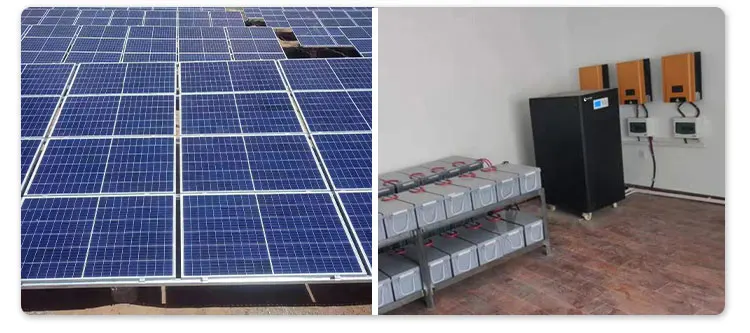

Application
Packing & Delivery

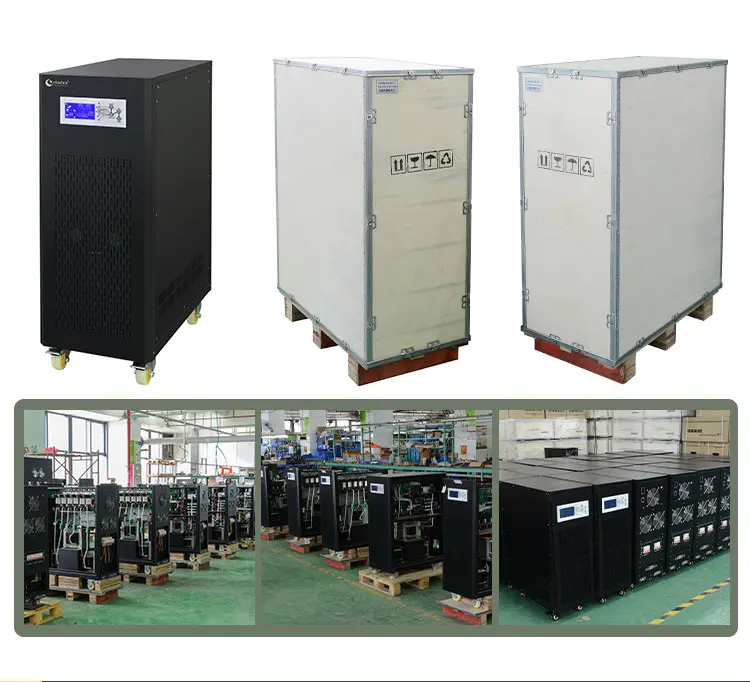

Package
Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.
Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.
Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
Payment | ||||
T/T | EXW | 30% T/T in advance, balance paid before dispatch | ||
FOB | ||||
CNF(CFR) | 30% T/T in advance, balance paid against copy of B/L | |||
CIF | ||||
L/C, D/A, D/P, Money Gram, Western Union, Paypal (Optional) | ||||
Company Profile
Guangdong Xindun Power Technology Co.,Ltd | ||
Factory Location | Foshan,Guangdong,China | |
Product Range | solar inverter, hybrid inverter, ups, solar charge controller, solar power system, mini solar dc system | |
Main Market | Africa, Middle East, Asia & South America. (Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Afriac, Ghana, Thailand, Philippines, etc.) | |

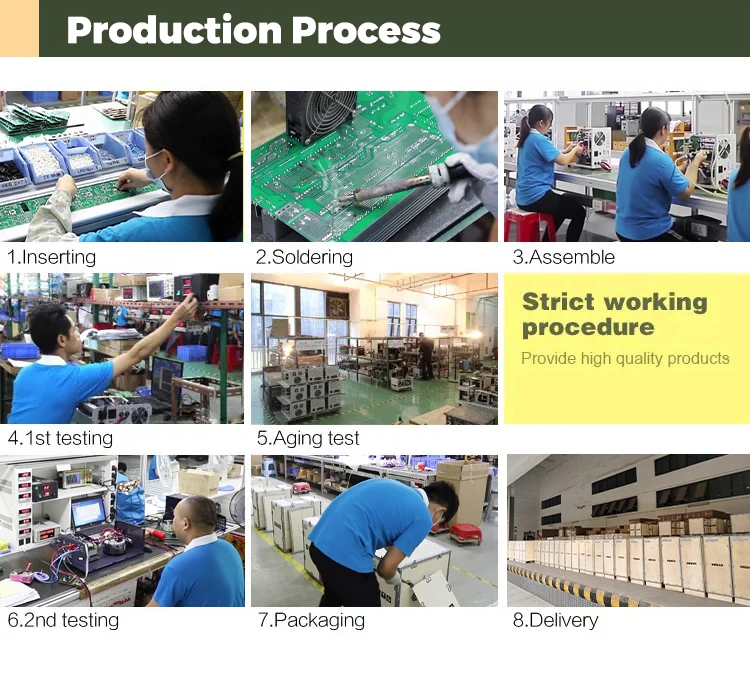

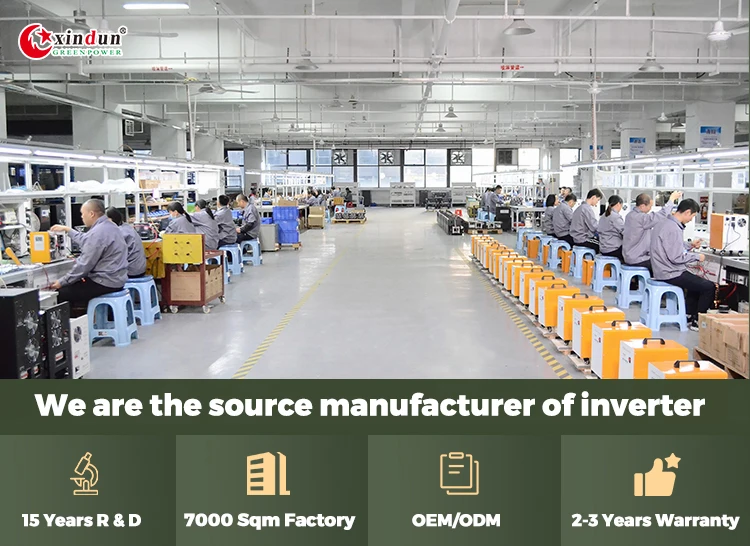

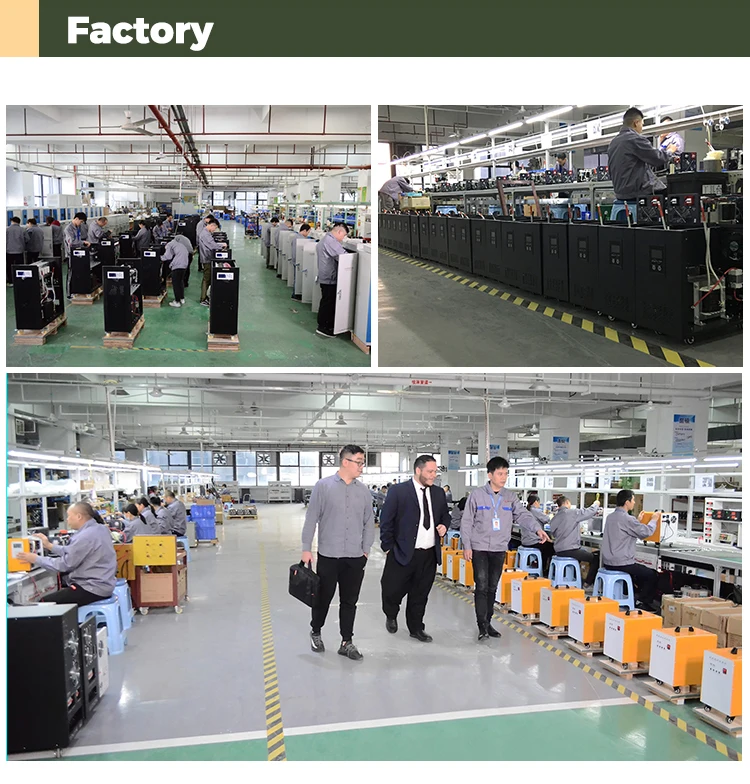

Factory | 7000 Square Meters, 100+ workers | |
Department | R&D, Production, Sales, Marketing, Purchasing, QA, After-sale service department | |
Certificate | ISO9001:2015, CE, IEC, TUV, etc. | |
Patent | Software Paten, Design Patent, Project Pantent | |
