High precision fiber laser cutting machine Closed Tianchen laser 6KW 8KW 12KW domestic sheet metal cutting machine
- Category: >>>
- Supplier: Jinan Tianchen Machine Group Co. Ltd.
Share on (1601103990791):
Product Overview
Description

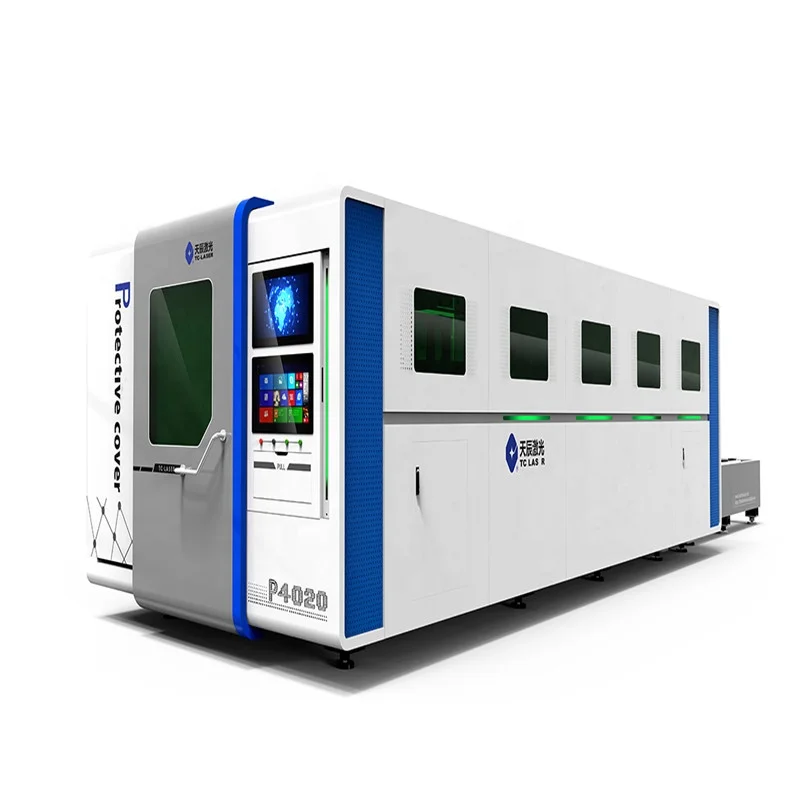

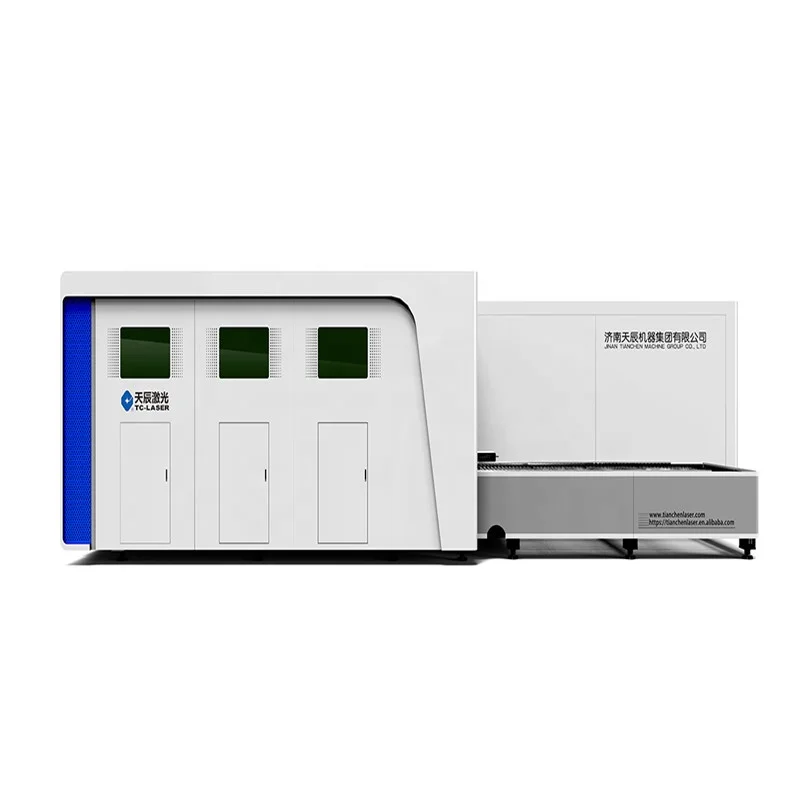

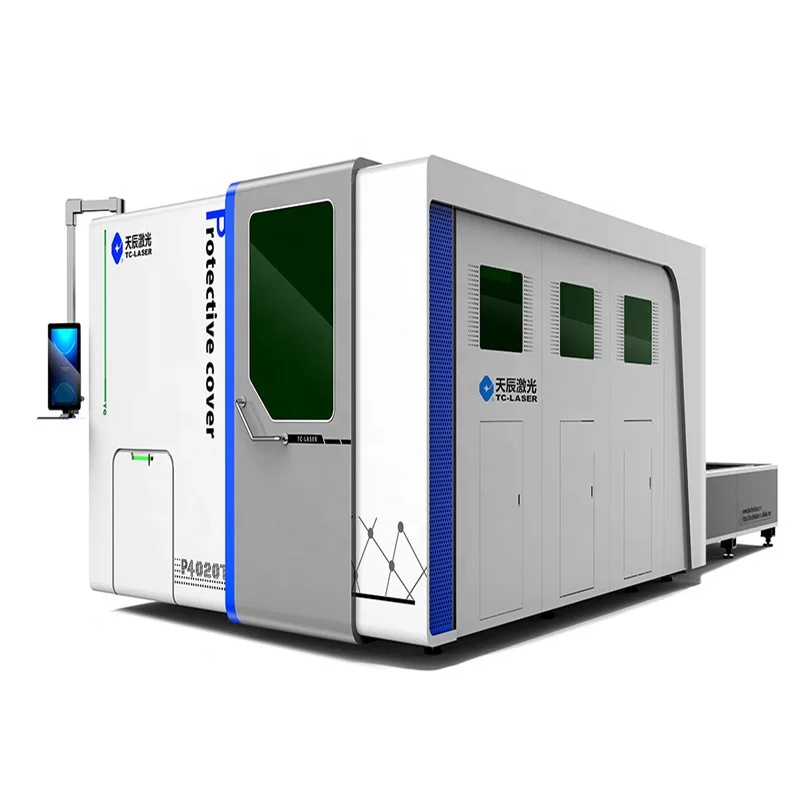

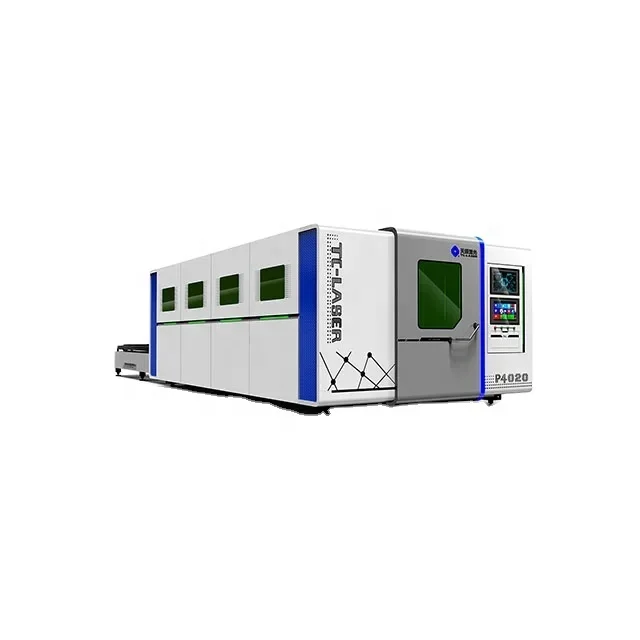

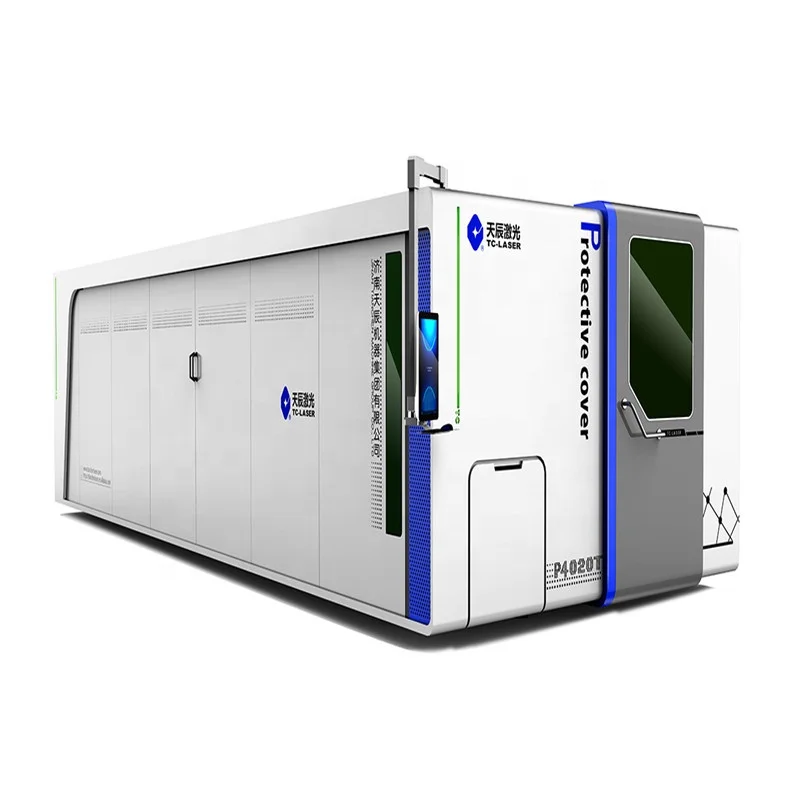

High precision fiber laser cutting machine with outside cover TC-P4020D
EProduct Description
1.Whole Machine welded bed structure,Stable performance,could ensure the stable operation of equipment
2.After 650℃ high temperature heat treatment Machine bed, adopt large Gantry milling accuracy process, ensure machine bed stability and smoothness.
3.Operating system, man-machine interface, easy to operate
4.High quality, high efficiency fiber laser producer. low processing cost and energy conservation and environment protection
5.Servo drive,The structure of the machine tool adopts rack and pinion drive,Ensure equipment high speed , high accuracy, and high reliability
6. Fast delivery 1kw high power CNC metal sheet pipe fiber laser cutting machine , 300W, 500W, 750W, 1000W, 1500W, 2000W, 3000W, 6000W, 8000W fiber laser power available
7. laser cutting machine adopts IPG, N-light, RAYCUS fiber laser source brand available
8. High speed, high accuracy, stable performance, best quality
9. Support Factory Inspection
P advantages
1. The overall design is all-inclusive, safe and environmentally friendly, preventing laser radiation from causing harm to people. 2. High-speed parallel exchange table station design, dual worktables exchange at the same time, stable and reliable, exchange time can be completed within 8 seconds, high efficiency. 3. Intelligent monitoring, ergonomic design, easy to operate and maintain. |
| Type | TC-P3015 | TC-P6015 | TC-P4020 | TC-P6020 | TC-P6025 |
| Laser power | 1000w-4000w | 1000w-4000w | 1000w-4000w | 1000w-4000w | 1000w-4000w |
| Working area(L*W) | 3000mm*1500mm | 6000mm*1500mm | 4000mm*2000mm | 6000mm*2000mm | 6000mm*2500mm |
| Max acceleration | 1.4G | 1.4G | 1.4G | 1.4G | 1.4G |
| Max moving speed | 140m/min | 140m/min | 140m/min | 140m/min | 140m/min |
| Position accuracy | ±0.05mm/m | ±0.05mm/m | ±0.05mm/m | ±0.05mm/m | ±0.05mm/m |
| Repeat positional accuravy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
Our Services
Service:
Within 3 years under normal use and maintenance,
if something is wrong with machine, you will get spare part for free;
Out of 3 years, you will get spare part at cost price.
You will also get technical support and service all the lifetime.
Technical support:
1, Technical support by phone, email or whatsapp/Skype 24hours online
2, Friendly English version manual and operation video
3, Engineer available to service machinery overseas
Samples:
Product Details
 | 1. Machine bed of fiber laser cutting machine is welded with 12-16mm thick carbon structural steel dislocation honeycomb structure, machined after stress relief and annealing, then vibration-aging and natural aging treatment, so that the welding and machining stress can be completely eliminated, to ensure excellent rigidity and high precision of the bed, reducing the machining error caused by the vibration of the bed.
|

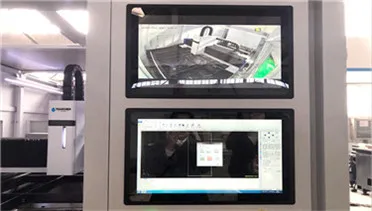

| 2. The fiber laser cutting machine adopts bigger screen, user can touch the screen by hand. and we adopts industrial computer, more stable when cutting. And also the machine come with cypcut software, it is easy to operate. Double cameras monitoring system can monitor the internal and external state of the machine at any time to ensure safe cutting. |  |

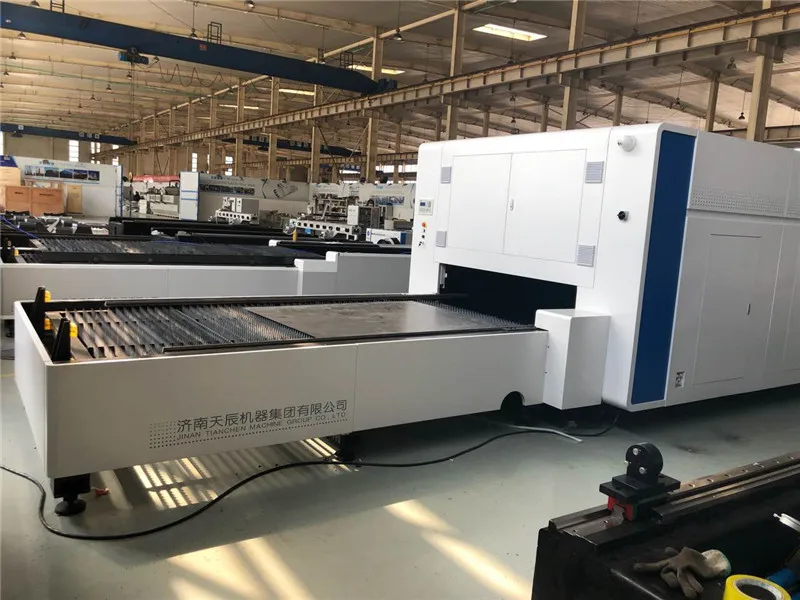

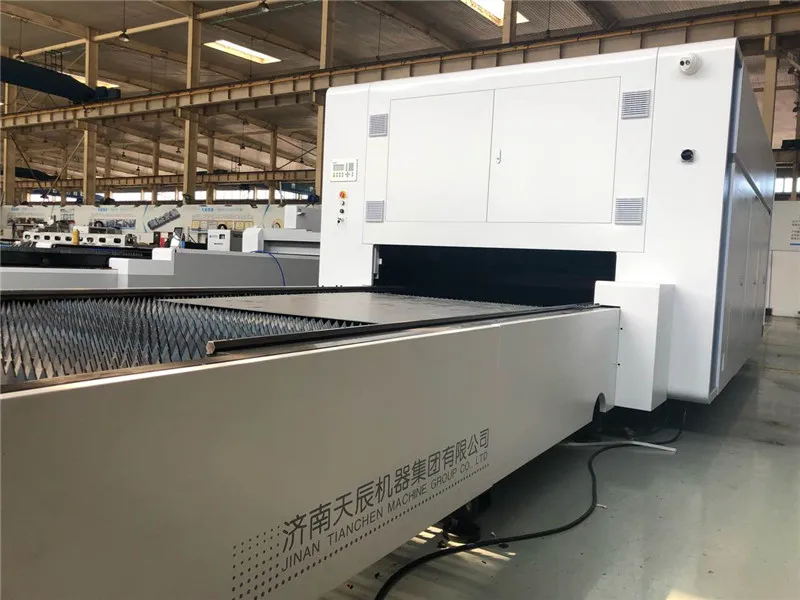

 | 3. Cylinder lock, chain-type transmission, let the fiber laser cutting machine running more stable. Table roller adopts eccentric wheel structure to ensure the height of each wheel is consistent and play the supporting role. Platform exchange time super fast, finish in 10S, high efficiency.
|
| 4. Independent R&D of forced cooling way, remove the dust for each processing area separately. Simple structure, good effect in sealing exhausting, low energy consumption, improve the dust removal effect in this area, workpiece much better, and also solved the environment pollution, and bring effective protection for operators and the fiber laser cutting machine. |  |
Packaging & Shipping

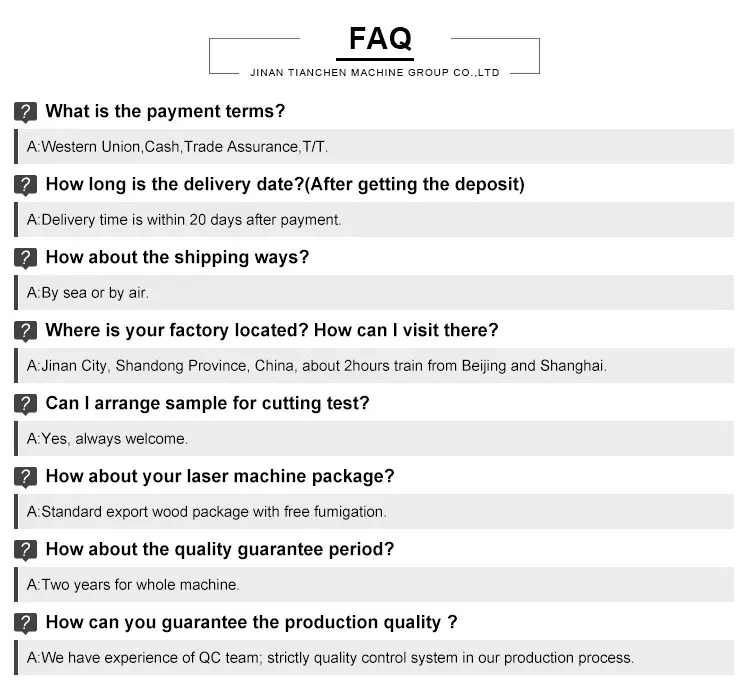

FAQ

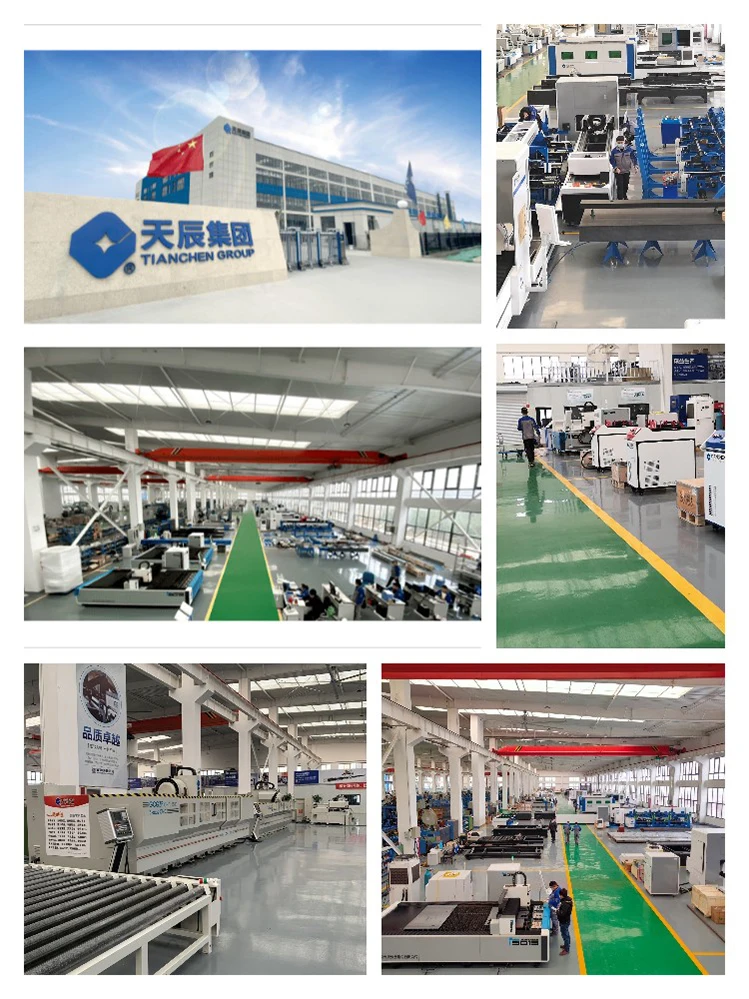

Our company
