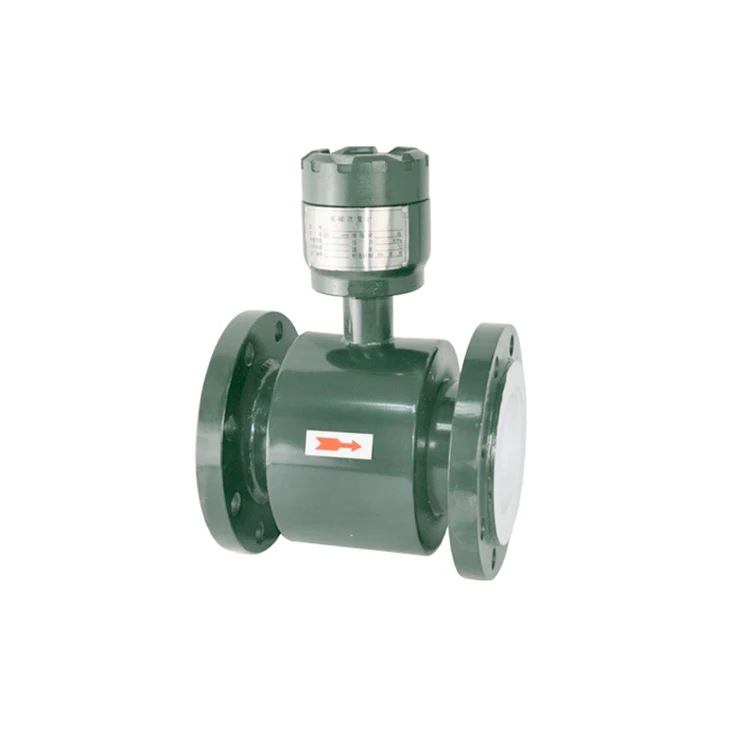

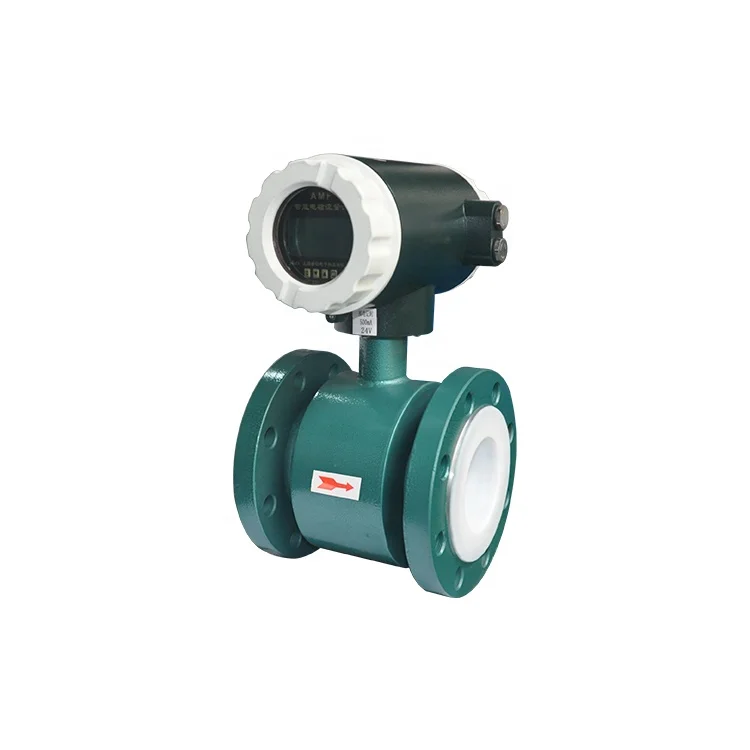

Electroplating wastewater electromagnetic flowmeter with 4 20mA
- Category: >>>
- Supplier: Shanghai Anjun Industrial Co. Ltd.
Share on (1601104037508):
Product Overview
Description
Product Description
Material | Carbon steel |
Accuracy | ±0.5% |
Application | Liquid |
Normal diameter | DN10-DN3000 |
Electrode material | 316L/HC/Ti/Ta/Pt |
Lining material | Rubber/PTFE/F46/PFA |
Power supply | 220VAC/24VDC/battery |
Signal output | Pulse/4-20mA |
Protection class | IP65/IP67/IP68 |
Connection | Flange/thread/clamping |
Applications
1 | Oil & Gas industry |
2 | Power industry |
3 | Chemical industry |
4 | Metallurgical industry |
5 | Pulp and paper industry |
6 | Food & Pharmaceutical industry |
7 | Environmental protection |
8 | Other industry |
Technical specifications
Nominal Diameter | DN3 ~ DN3000 |
Nominal Pressure | DIN PN0.6 ~ 40Mpa,ANSI CL150-2500,JIS 10K,20K,30K |
Accuracy | 0.2% 0.5% |
Repeatability | 0.15% |
Ambient Temperature | -25 ~ +60 Celsius Degree |
Working Temperature | <250 Celsius Degree |
Power Supply | 220V AC, 24V DC, 12V DC, Battery Powered |
Protection | IP65, IP67, IP68 |
Ex-proof | Exdeib BT4 |
Communication | RS-485, HART |
Display | LED display |
Alarm | Upper and lower alarm |
Output Signal | 4~20mA, Frequency, Pulse |
Features:
Unobstructed flow passage without projecting parts
No moving parts
No additional pressure drop
Essentially flow profile insensitive, only short inlet and outlet sections required
Unaffected by changes in temperature, density, viscosity, concentration and electrical conductivity
Favorable choice of material of chemically aggressive or abrasive measuring media
Especially suitable for hydraulic solids transport
Linear relationship between flow rate and measured variable
Operates in both flow directions (forward and reverse)
Measuring range setting can be optimized
Low maintenance, but still easy to maintain
Unobstructed flow passage without projecting parts
No moving parts
No additional pressure drop
Essentially flow profile insensitive, only short inlet and outlet sections required
Unaffected by changes in temperature, density, viscosity, concentration and electrical conductivity
Favorable choice of material of chemically aggressive or abrasive measuring media
Especially suitable for hydraulic solids transport
Linear relationship between flow rate and measured variable
Operates in both flow directions (forward and reverse)
Measuring range setting can be optimized
Low maintenance, but still easy to maintain
Specifications:
LCD Display
High Accuracy: +/-0.2% (Customize), +/-0.5% (Standard)
Temperature of Measured Liquid: <80°C (Rubber), <180°C (PTFE), <60°C (PUR), <260°C (PFA)
Pressure of Measured Liquid: 0.6~40MPa
Ambient Temperature:-25°C~+60°C
Power Supply: 220V AC, 24V DC, Built-in Battery (Working Life:3~5 years)
Protection Grade:IP65, IP67, IP68
Connection: Flange, Clamp on, Thread
Ex-Proof Marks: Exde I b II BT4
Communication Agreement: RS-485, HART
Data can be saved more than 10 years when there is no electricity
LCD Display
High Accuracy: +/-0.2% (Customize), +/-0.5% (Standard)
Temperature of Measured Liquid: <80°C (Rubber), <180°C (PTFE), <60°C (PUR), <260°C (PFA)
Pressure of Measured Liquid: 0.6~40MPa
Ambient Temperature:-25°C~+60°C
Power Supply: 220V AC, 24V DC, Built-in Battery (Working Life:3~5 years)
Protection Grade:IP65, IP67, IP68
Connection: Flange, Clamp on, Thread
Ex-Proof Marks: Exde I b II BT4
Communication Agreement: RS-485, HART
Data can be saved more than 10 years when there is no electricity
Model and suffix code
Code | Description | |
AMF | Standard | |
AMF/W | Sanitation | |
AMF/EX | Ex-Proof | |

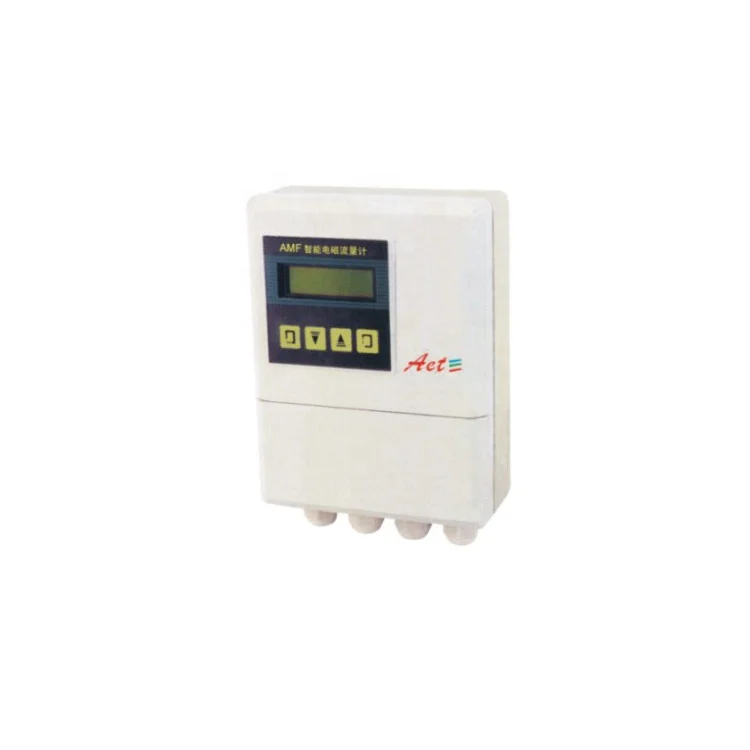

AMF/C | Insertion | |
AMF/J | Flange Clamp On | |
AMF/L | Threaded Connection | |
Normal Diameter | -XXX | -100:DN100, -4:DN4 |
-1 | Standard Fixed | |
2 | Scratcher Electrode | |
0 1 2 3 4 5 | 316L Ti HB HC Ta Pt | |
1 2 4 5 6 | Rubber PUR F4 PFA F46 | |
Rated Pressure | -4.0 | DN10~DN80 |
1.6 | DN100~DN150 | |
1.0 | DN200~DN1000 | |
0.6 | DN1100~DN3000 | |
Ground Electrode | 0 1 2 4 | Without electrode One ground electrode Two ground electrode Four ground electrode |
0 1 2 | IP65 IP68 IP67 | |
0 1 0G 1G | Compact Remote Compact High Frequency Remote High Frequency | |
0 R H | Without Communication RS-485 HART | |
-C F M | Carbon steel SS304 SS316 | |
Install Companion Flange | 0 1 | Without Companion Flange With Companion Flange |
Power Supply | A D E | 220VAC 24V DC Battery Powered |
Product Display
