Growatt 5kw 15kw Spf 3500 Es Solar System Off On Grid Solar Inverter Price / 6kw 10kw Spf 6000 5000 Es Growatt Hybrid Inverter
- Category: >>>
- Supplier: Zhongjian Decheng (henan) Industrial Development Co. Ltd.
Share on (1601104068614):

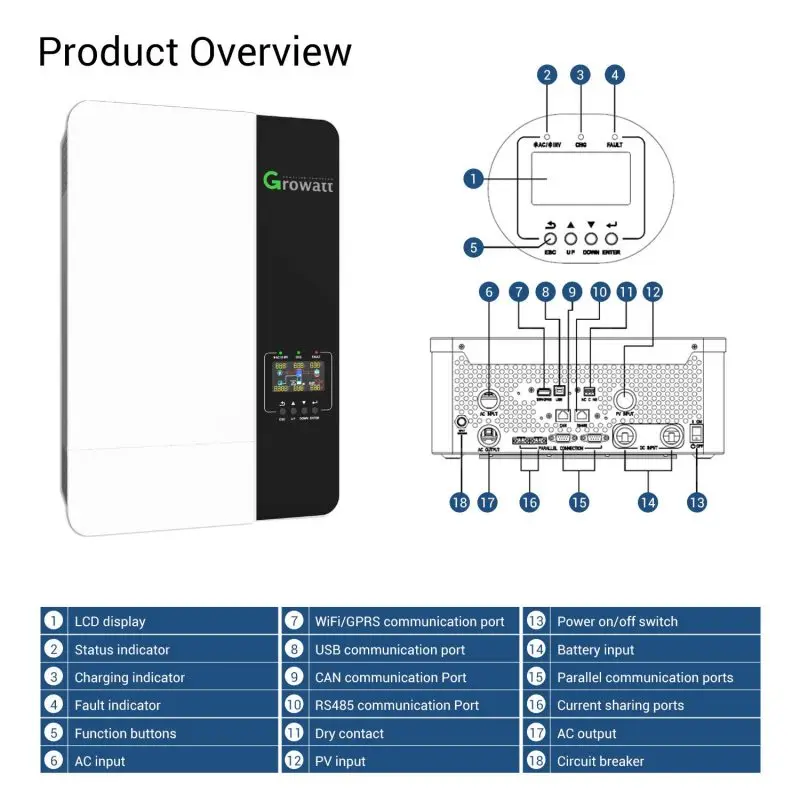

Product Overview
Description
Products Description
About this item
* Growatt 3500W Solar Inverter can work with battery or without 48V battery, battery system requires:48VDC, Battery charger,max charge current 80A Integrated MPPT charge controller and Equalization charging and power-saving mode function
* Growatt 48v inverter 220Vac ouput, Maximum PV input voltage up to 450VDC, Configurable grid or solar input priority,PV and Grid power the load jointly if PV energy unsufficient.

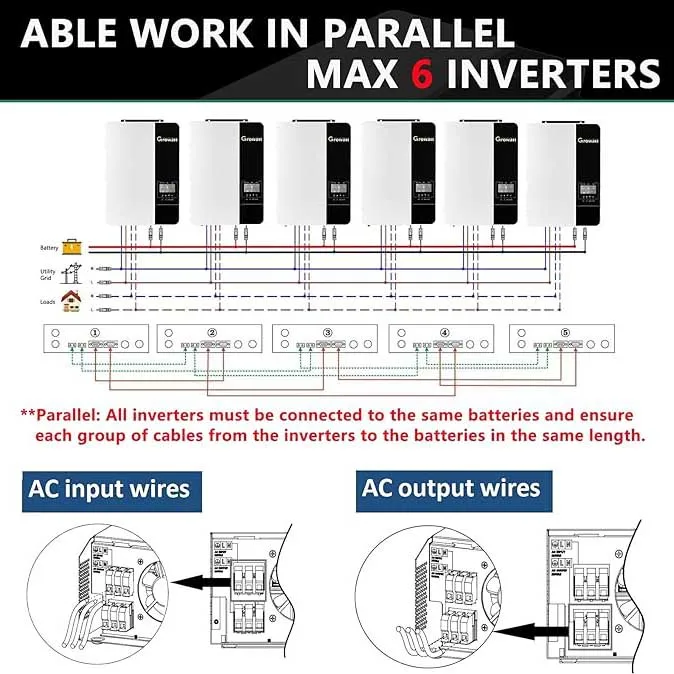

* Hybrid inverter 48V Flexibly schedule the Inverter charging and discharging time, Support parallel operation for capacity expansion up to 30kW，max 6 units work together to support three-phase equipment.
* Inverter Rated power 3.5KW, power factor 1, Remote monitoring (optional)，Hybrid Inverter：Pure sine wave output 3.5KW and 80A MPPT charge controller Combine.

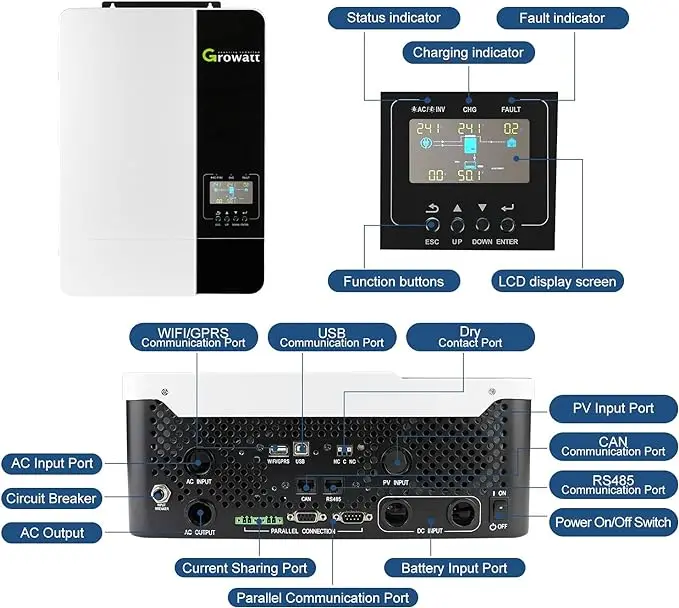

* Inverter Compatible with multiple battery types, 48V Li Ion & Lead Acid battery support, AGM, Flooded, User-defined, Lithium able to select, 48V inverter with very detail LCD display allow you know inverter's working satuts and setting in easy way. Also can work whitout battery.
* Growatt 48v inverter 220Vac ouput, Maximum PV input voltage up to 450VDC, Configurable grid or solar input priority,PV and Grid power the load jointly if PV energy unsufficient.
* Hybrid inverter 48V Flexibly schedule the Inverter charging and discharging time, Support parallel operation for capacity expansion up to 30kW，max 6 units work together to support three-phase equipment.
* Inverter Rated power 3.5KW, power factor 1, Remote monitoring (optional)，Hybrid Inverter：Pure sine wave output 3.5KW and 80A MPPT charge controller Combine.
* Inverter Compatible with multiple battery types, 48V Li Ion & Lead Acid battery support, AGM, Flooded, User-defined, Lithium able to select, 48V inverter with very detail LCD display allow you know inverter's working satuts and setting in easy way. Also can work whitout battery.

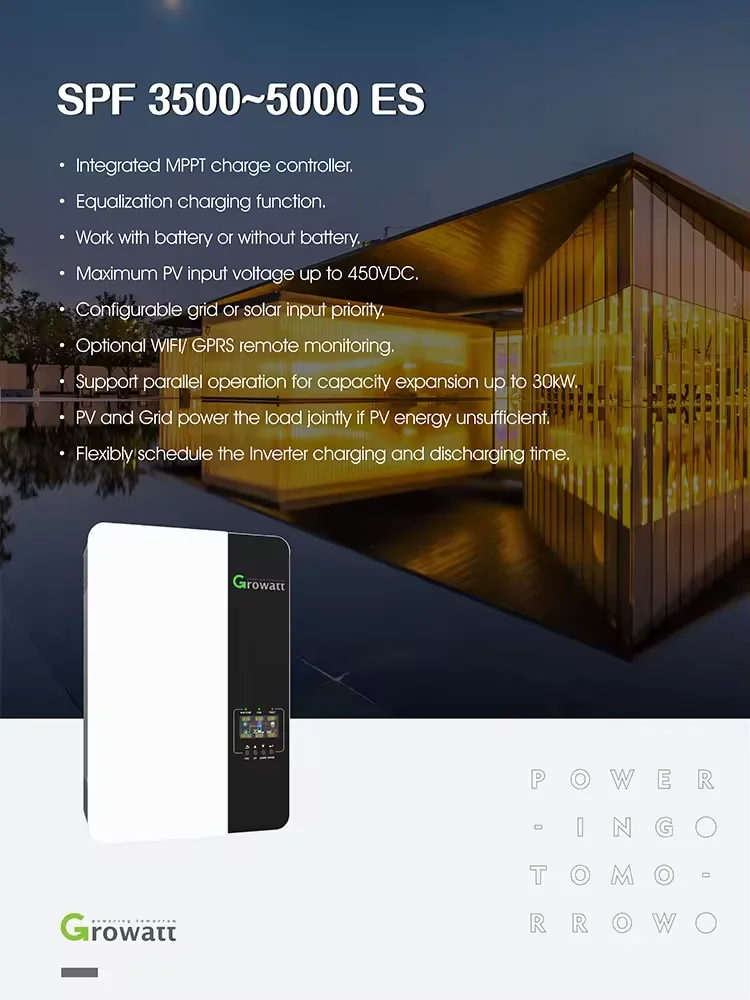

Feature
* Solar and utility grid can power loads at the same time
* Rated power 3.5KW to 5KW, power factor 1
* MPPT ranges 120V~430V, 450Voc
* High frequency inverter with small size and light weight
* Parallel operation up to 6 unit (only with battery connected)
* WIFI/ GPRS remote monitoring (optional)

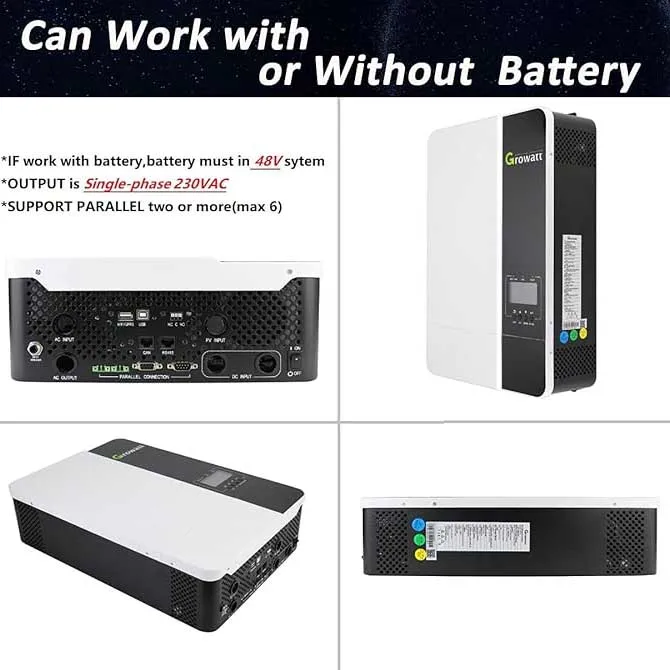

* With the ability to work without battery
* Pure sine wave AC output 220V, Single-phase output, 110V is not supported；
* Rated power 3.5KW to 5KW, power factor 1
* MPPT ranges 120V~430V, 450Voc
* High frequency inverter with small size and light weight
* Parallel operation up to 6 unit (only with battery connected)
* WIFI/ GPRS remote monitoring (optional)
* With the ability to work without battery
* Pure sine wave AC output 220V, Single-phase output, 110V is not supported；
Product Parameters
Growatt 3500ES Specifications | ||
Nominal Input Voltage | 230Vac(Max AC Input Voltage:300Vac) | |
Nominal Input Frequency | 50Hz / 60Hz (Auto detection) | |
Rated Output Power | 3.5KVA/3.5KW Pure Sine Wave | |
Output Voltage Regulation | 230Vac±5% | |
Output Frequency | 50Hz | |
Surge Capacity | 2* rated power for 5 seconds | |
Nominal DC Input Voltage | 48Vdc | |
Max. PV Array Power | 4500W | |
Max. PV Input Current | 18A | |
Start-up Voltage | 150Vdc±10Vdc | |
PV Array MPPT Voltage Range | 120Vdc~430Vdc | |
Max. PV Open Circuit Voltage | 450Vdc | |
Max. PV Charging Current | 80A | |
Max. AC Charging Current | 60Amp(@VI/P=230Vac) | |
Operating Temperature Range | 0℃ to 55℃(131 °F) | |

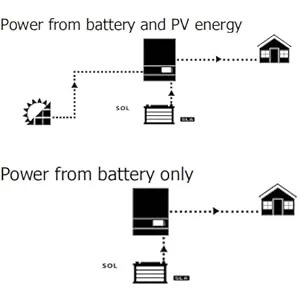

Output source working mode(To configure load power source priority)
* Solar First: Solar energy provides power to the loads as first priority; battery energy will supply power the loads at the same time If solar energy is not sufficient. Utility provides power to the loads only when Solar energy is not available or Battery voltage drops to low-level warning Voltage.
* Utility First (default): Utility will provide power to the loads as first priority. Solar and battery energy will provide power to the loads only when utility power is not available.
* SBU Priority: Solar energy provides power to the loads as first priority, then battery, then Utility power.
* SUB Priority: Solar energy provides power to the loads as first priority, then utility power, then Battery power.
* Utility First (default): Utility will provide power to the loads as first priority. Solar and battery energy will provide power to the loads only when utility power is not available.
* SBU Priority: Solar energy provides power to the loads as first priority, then battery, then Utility power.
* SUB Priority: Solar energy provides power to the loads as first priority, then utility power, then Battery power.

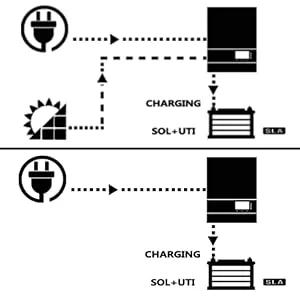

Charger source priority: To configure charger source priority
* Solar first: Solar energy will charge battery as first priority, then Utility Power.
* Solar and Utility: Solar energy and utility will both charge battery.
* Only Solar: Solar energy will be the only charger source no matter utility is available or not.
* If this off grid solar inverter is working in Battery mode or Power saving mode, only solar energy can charge battery. Solar energy will charge battery if it's available and sufficient.
* Solar and Utility: Solar energy and utility will both charge battery.
* Only Solar: Solar energy will be the only charger source no matter utility is available or not.
* If this off grid solar inverter is working in Battery mode or Power saving mode, only solar energy can charge battery. Solar energy will charge battery if it's available and sufficient.

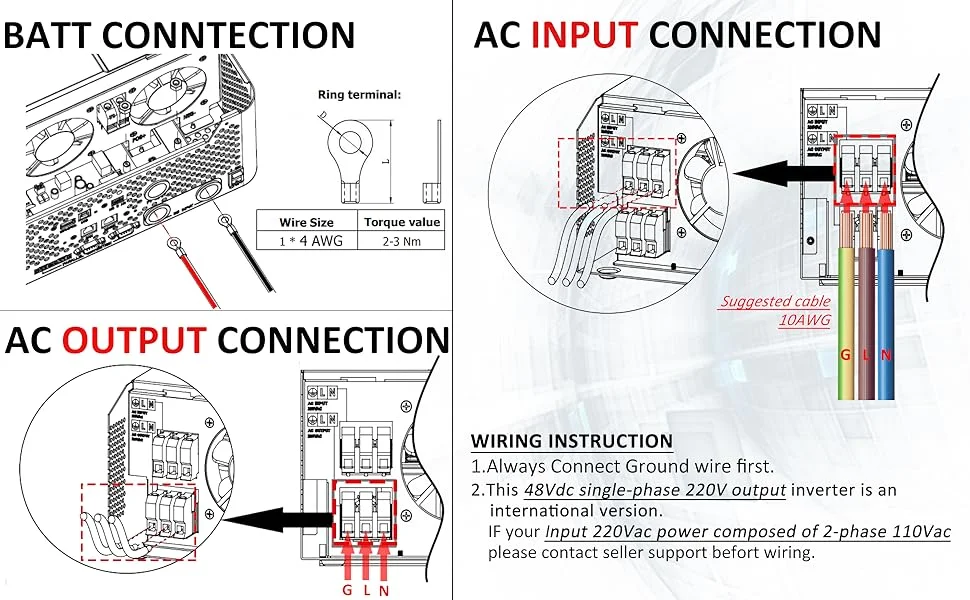

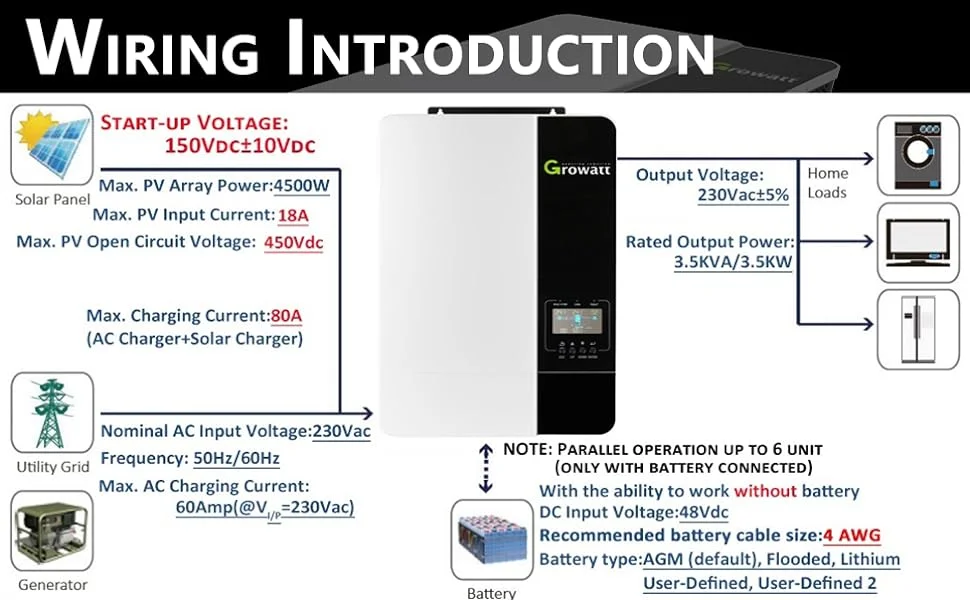

IMPORTANT WIRING NOTE:
1. Install screws recommend M4 or M5 size screws.
2. Make sure polarity at both the battery and the inverter/charge is correctly.
3. connected and ring terminals are tightly screwed to the terminals.
4. Before making the final DC connection or closing DC breaker/disconnector, be sure positive (+) must be connected to positive (+) and negative (-) must be connected to negative(-).
5. AC Input/Output recommended cable size: 10 AWG; PV recommended cable size: 12 AWG/1.2-1.6 Nm Torque value; Battery recommended cable: 4 AWG/2-3 Nm Torque value
6. Parallel operation up to 6 unit (only with battery connected)
2. Make sure polarity at both the battery and the inverter/charge is correctly.
3. connected and ring terminals are tightly screwed to the terminals.
4. Before making the final DC connection or closing DC breaker/disconnector, be sure positive (+) must be connected to positive (+) and negative (-) must be connected to negative(-).
5. AC Input/Output recommended cable size: 10 AWG; PV recommended cable size: 12 AWG/1.2-1.6 Nm Torque value; Battery recommended cable: 4 AWG/2-3 Nm Torque value
6. Parallel operation up to 6 unit (only with battery connected)
1. This is a wide voltage Hybrid inverter, The voltage that starts to connect to the solar panel must be above 150V for the
Hybrid inverter to work normally. Means you can connect solar panels in series, saving you the cost of buying wires

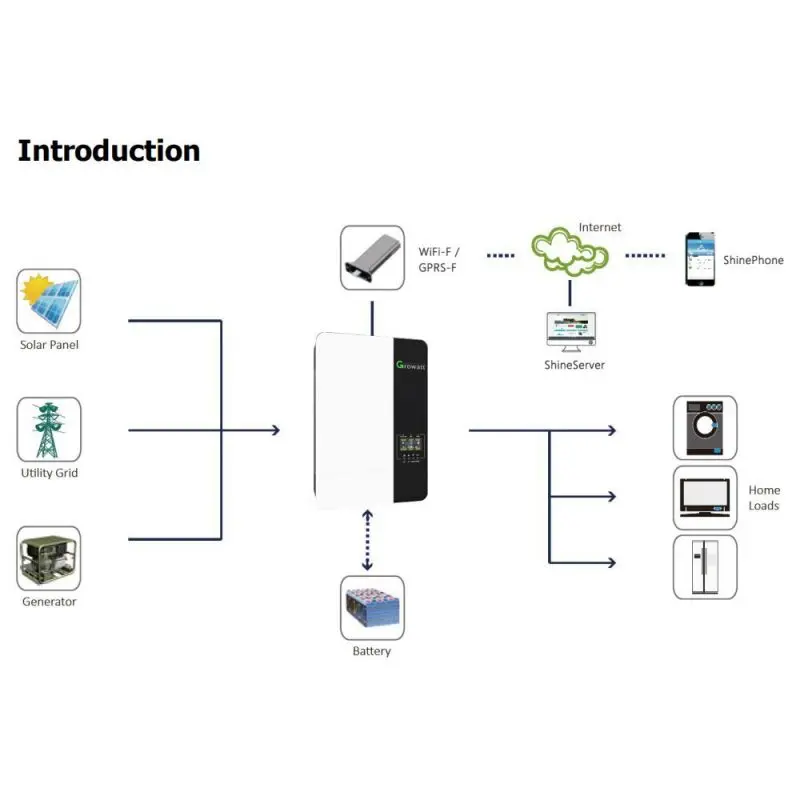

2. The whole system also need other devices to achieve complete running such as PV modules, generator, or utility grid.
3. This 48Vdc single-phase 220V output inverter is an international version. This inverter only outputs 220Vac. It does NOT output 120Vac.(if your input 220V ac power is 2-phase 220V, please ask support for detail wiring intruction.
Hybrid inverter to work normally. Means you can connect solar panels in series, saving you the cost of buying wires
2. The whole system also need other devices to achieve complete running such as PV modules, generator, or utility grid.
3. This 48Vdc single-phase 220V output inverter is an international version. This inverter only outputs 220Vac. It does NOT output 120Vac.(if your input 220V ac power is 2-phase 220V, please ask support for detail wiring intruction.

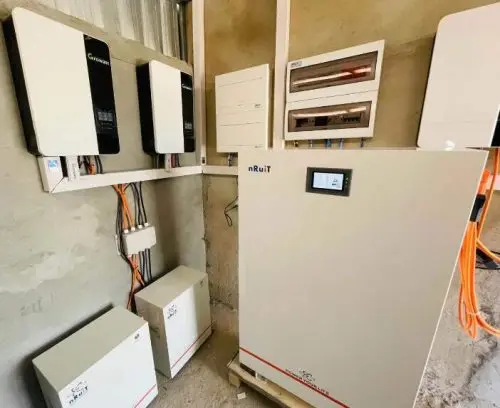

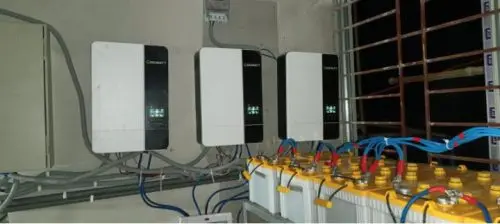

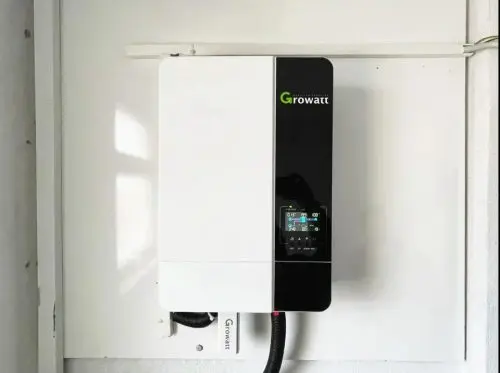

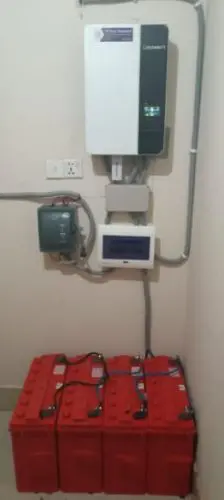

Customer Photos

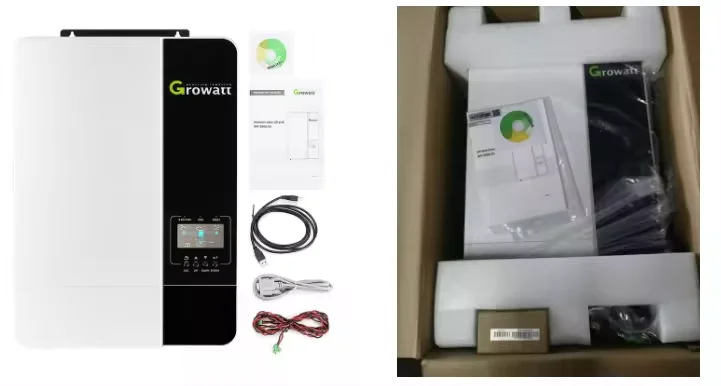

Product Packaging

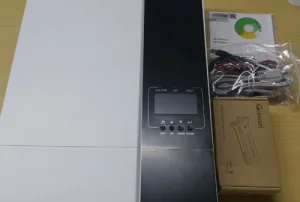

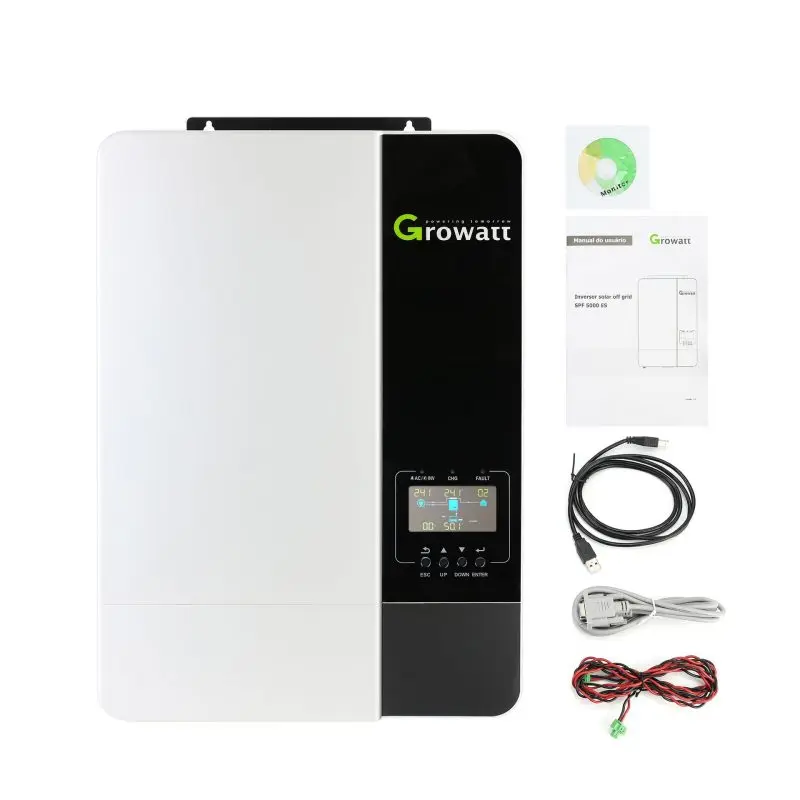

You should have received the following items in the package：
*The unit x 1 *User manual x 1
*Communication cable x 1
*Current sharing cable x 1
*Parallel communication cable x 1
*Communication cable x 1
*Current sharing cable x 1
*Parallel communication cable x 1
