Product Overview
Description

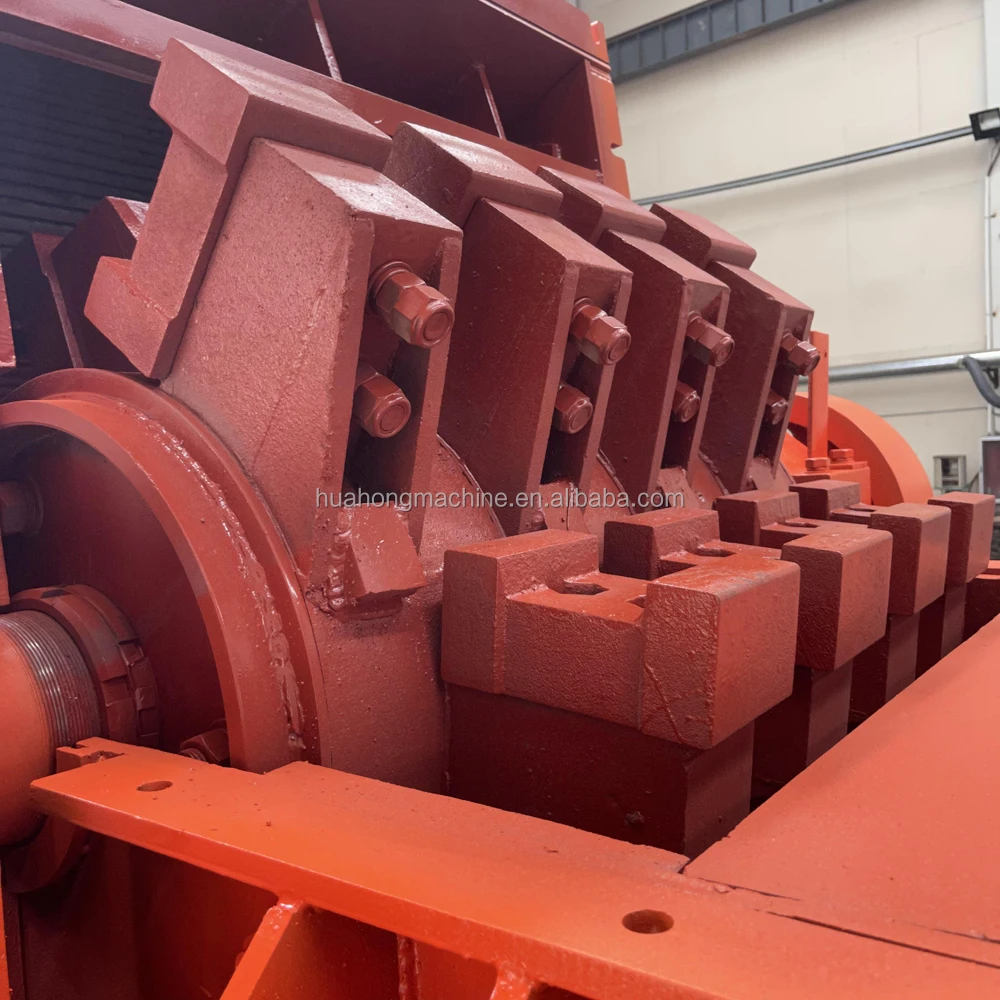

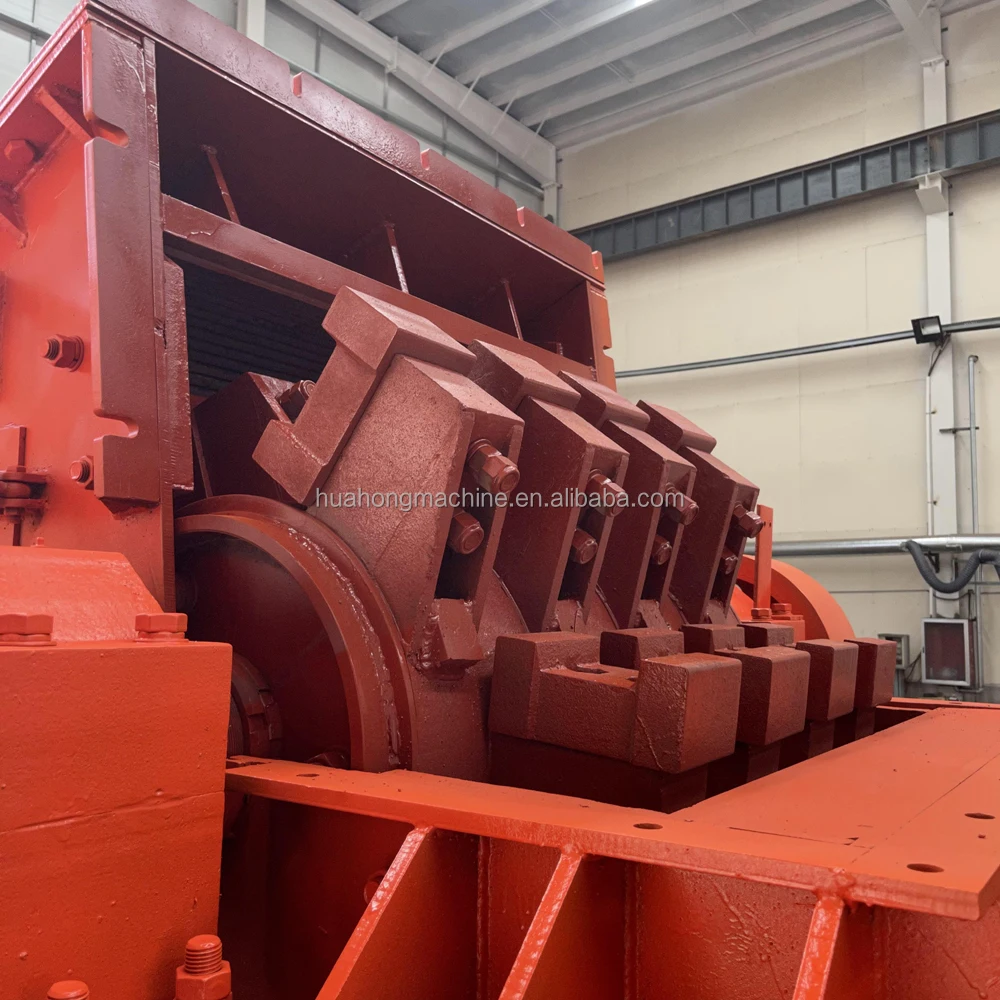

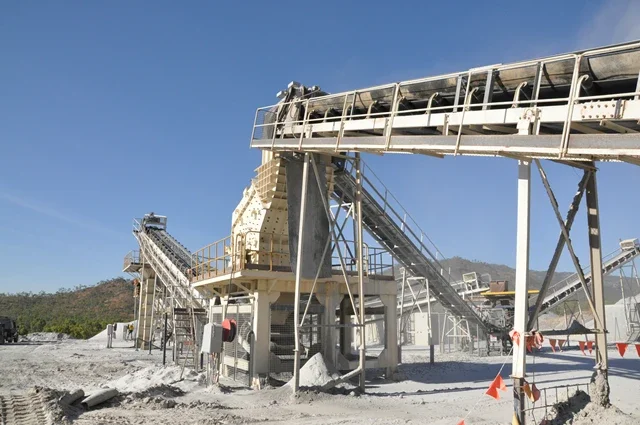

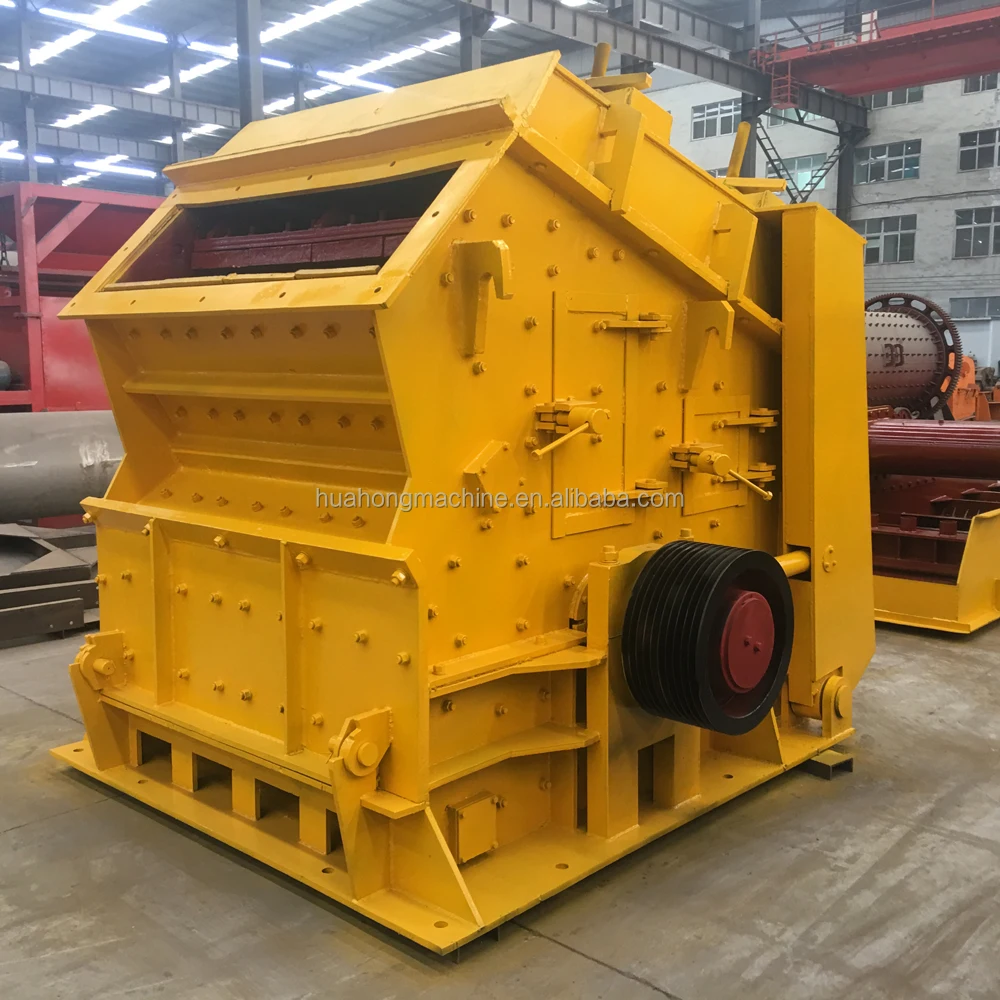

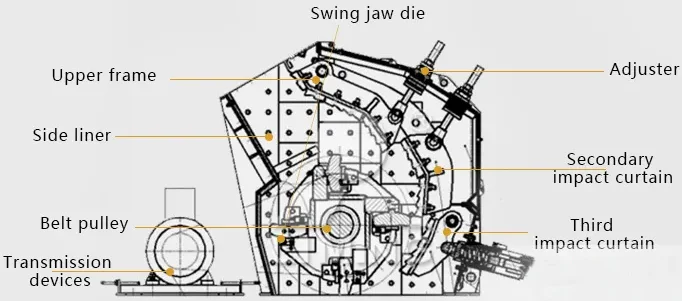

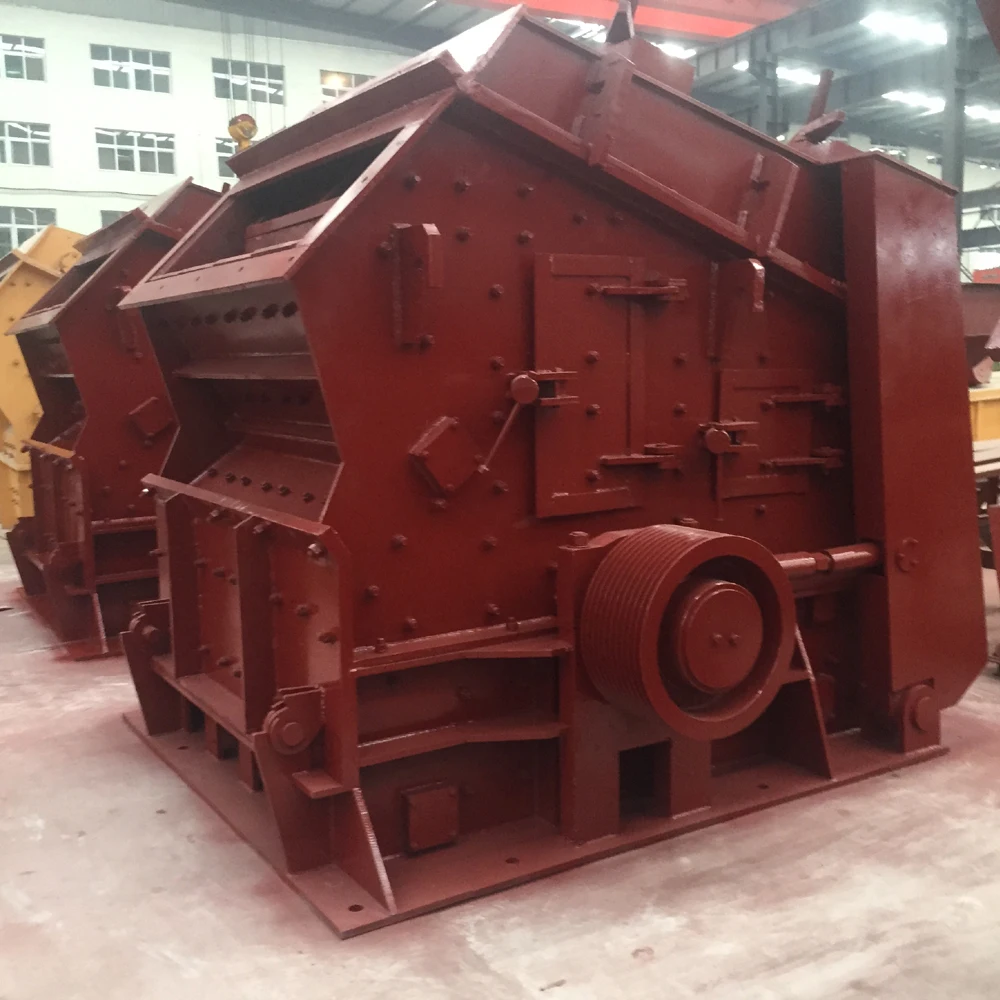

The impact crusher can crush large, medium, and small particle-size materials. The maximum feed particle size is less than 500mm,and the compressive strength is less than 350MPa. It is widely used in all kinds of ore crushing, railway, highway, and construction industry artificial sand and gravel production. The stone crushing equipment includes the jaw crusher, impact crusher, cone crusher, and other crushing equipment. At present, the impact crusher's comprehensive performance is excellent. Impact crushing machine has many models and large output and is the first choice for mine crushing.
Model | Feed opening size(mm) | Max feeding size(mm) | Rotor size D*L(mm) | Capacity (t/h) | Power (kw) | Overall Dimension (mm*mm*mm) |
PF-1007 | 450X750 | 250 | Φ1000X700 | 10-60 | 45 | 2330*1700*2560 |
PF-1010 | 450X1100 | 300 | Φ1000X1050 | 50-90 | 55 | 2330*2010*2560 |
PF-1210 | 450X1100 | 300 | Φ1250X1050 | 70-130 | 90 | 2640*2010*2850 |
PF-1214 | 450X1450 | 350 | Φ1250X1400 | 90-180 | 132 | 2640*2400*2850 |
PF-1315 | 650X1500 | 350 | Φ1320X1500 | 120-250 | 160-200 | 2930*2670*3150 |

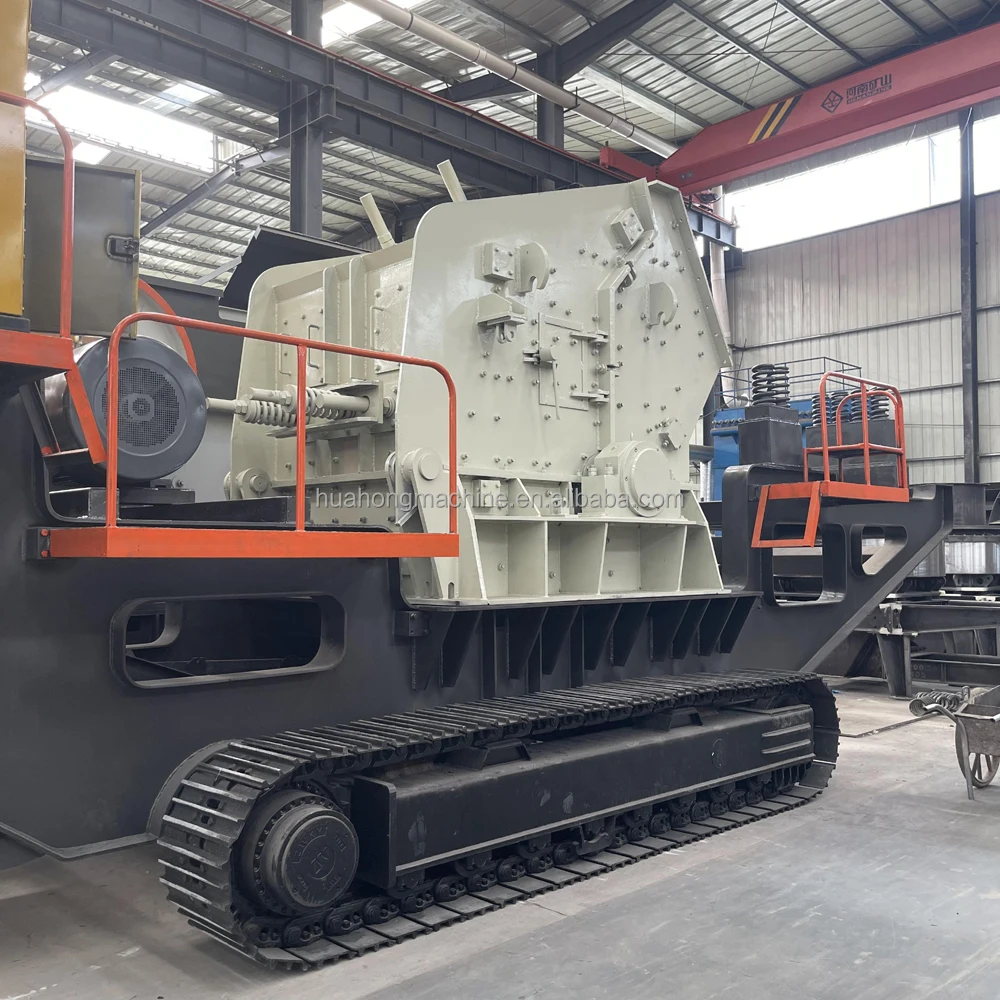

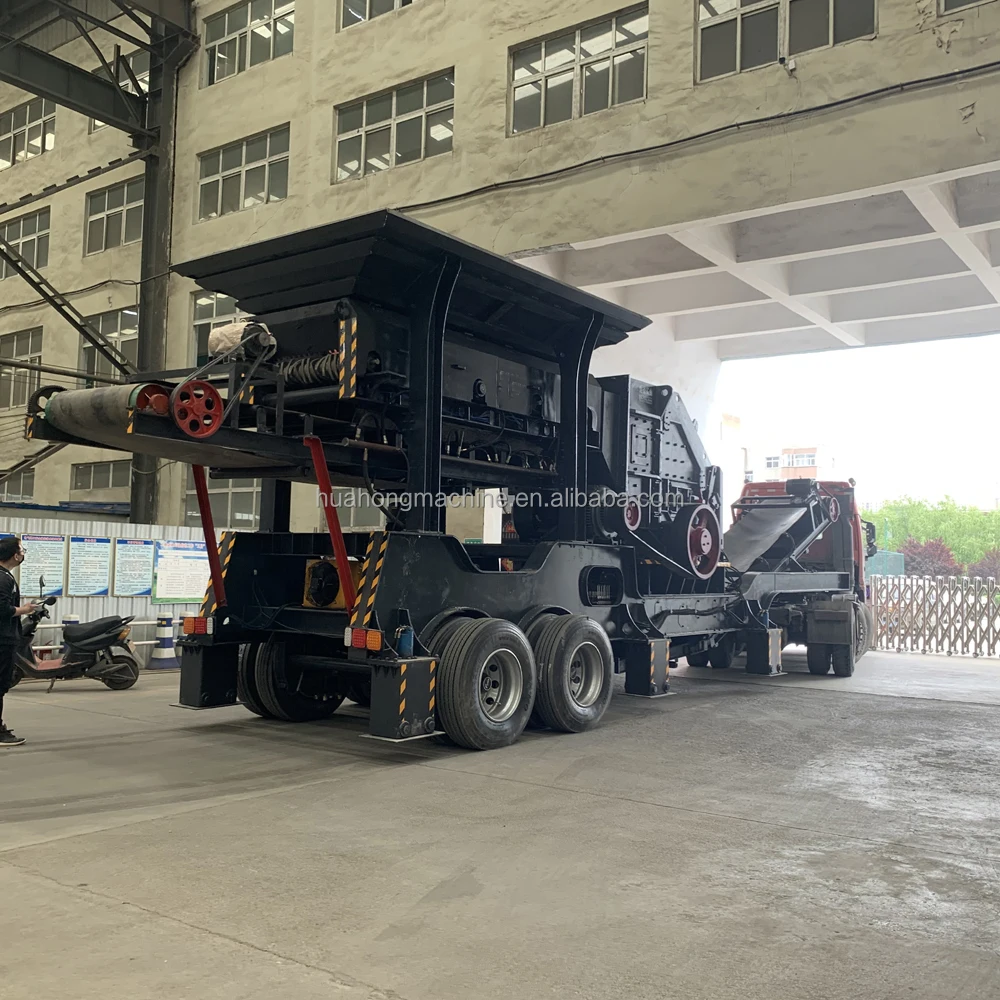

Mobile type impact crusher
