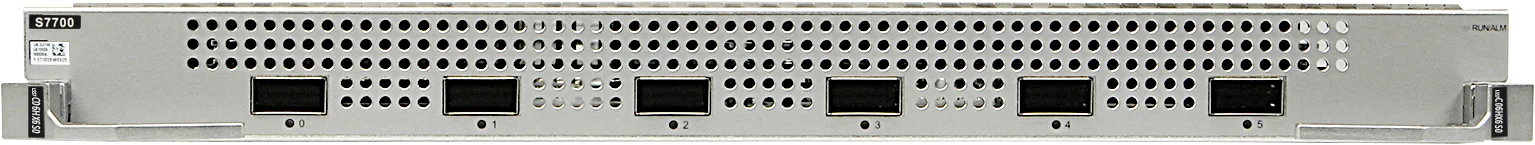

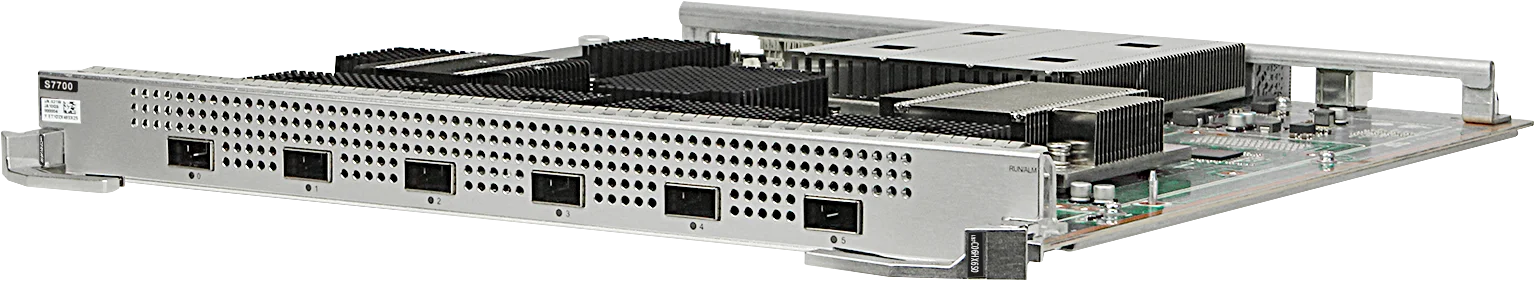

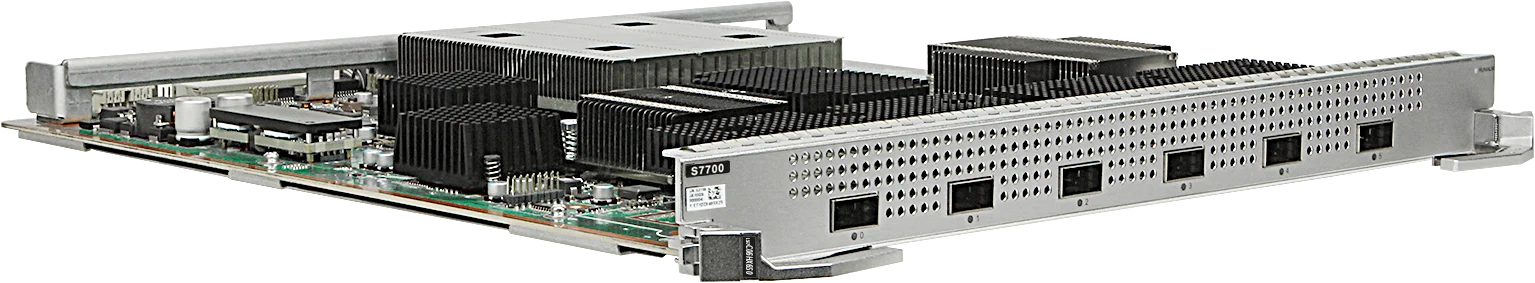

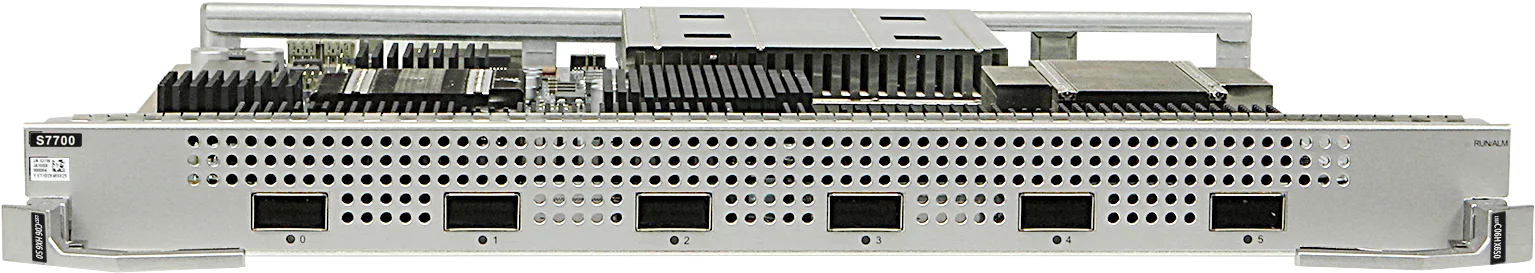

LSS7C06HX6S0 for HW s7700 series Interface Card 03033DBC 001 6 port 100GE QSFP28 Interface Card (X6S, QSFP28) LSS7C06HX6S0

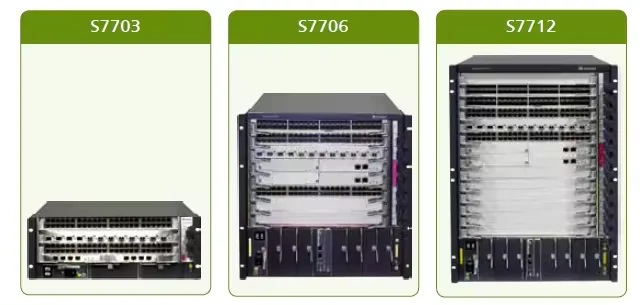

Product Model

S7703

S7706

S7712

Switching capacity

1.92 Tbps

3.84 Tbps

3.84 Tbps

Forwarding Performance

1440 Mpps

1440 Mpps

2880 Mpps

service slots

3

6

12

MPU slots

2

2

2

Wireless Network Management

Native AC
AP access control, AP region management, and AP profile management
Radio profile management, uniform static configuration, and centralized dynamic management
Basic WLAN services, QoS, security, and user management
Deployment of ACs on different network layers

User Management

Unified user management
802.1x, MAC address, and Portal authentication
Traffic-based and time-based accounting
User authorization based on user groups, domains, and time ranges

Routing

IPv4 static routes, RIP, OSPF, IS-IS, and BGP4
IPv6 static routes, RIPng, OSPFv3, IS-ISv6, and BGP4+
IPv4/IPv6 equal-cost routes, policy routing, and route policy
IPv4 and IPv6 stack
Pingv6, Telnetv6, FTPv6, TFTPv6, DNSv6, and ICMPv6
IPv4-to-IPv6 transition technologies, such as IPv6 manual tunnel, 6 to 4 tunnel, ISATAP tunnel, GRE tunnel, and IPv4-compatible
automatic tunnel

iPCA

Adds marks on service packets in order to measure the number of lost packets and packet loss ratios in real time with zero payload
Measures the number of lost packets and packet loss ratios at the network and device levels on Layer 2 and Layer 3 networks

SVF

Up to 256 clients (access switches) and 4,096 APs virtualized into a single device
2-level AS structure
Unified management on HW and non-HW devices

Buffer Capacity

Up to 200 ms per port

Interoperability

VLAN-Based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST)
Link-type Negotiation Protocol (LNP) (similar to DTP)
VLAN Central Management Protocol (VCMP) (similar to VTP)
