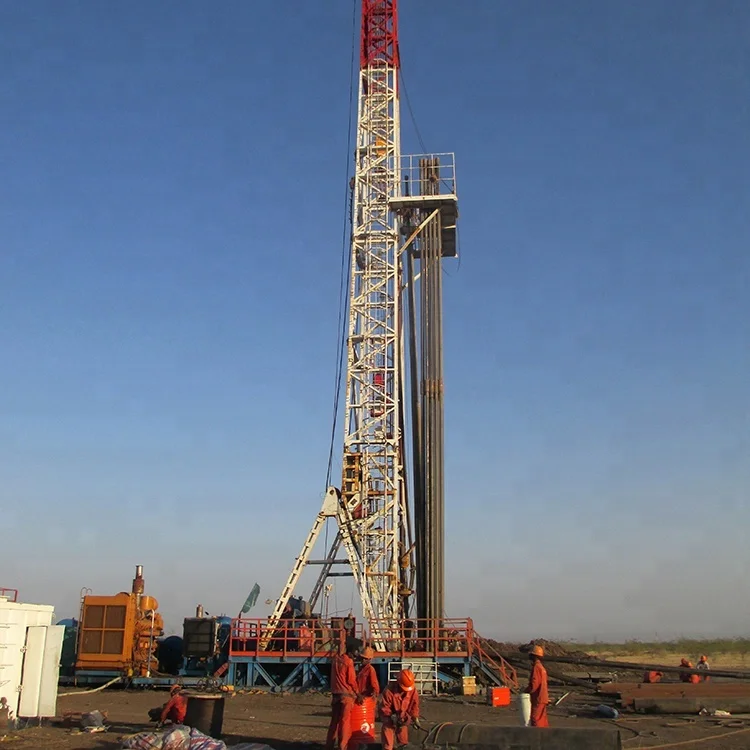

ZJ50 High Quality Oilfield Special Drilling Rigs of Beyond
- Category: >>>
- Supplier: Shandong Beyond Petroleum Equipment Co. Ltd.
Share on (1601104976130):
Product Overview
Description
Product Description
| Model | ZJ30/1700DB | ZJ40/2250DB | ZJ50/3150D | ZJ50/3150DB | ZJ70/4500D | ZJ70/4500DB | |
| Drilling depth(114mm pipe)m | 1600~3000 | 2500~4000 | 3800~5000 | 3800~5000 | 4500~7000 | 4500~7000 | |
| Max.load kN | 1700 | 2250 | 3150 | 3150 | 3150 | 4500 | |
| Drilling line system | 10 | 10 | 12 | 12 | 12 | 12 | |
| Dia. line mm(in) | 29(11/8) | 32(11/4) | 35(13/8) | 35(13/8) | 38(11/2) | 38(11/2) | |
| Load fast line kN | 210 | 280 | 350 | 350 | 485 | 485 | |
| Drawwork | model | JC30DB | JC40DB | JC50D | JC50DB | JC70D | JC70DB |
| Rated power kW | 550 | 735 | 1100 | 1100 | 1470 | 1470 | |
| Shift | I,Continuously variable speed | I,Continuously variable speed | IV,Continuously variable speed | I,Continuously variable speed | IV,Continuously variable speed | I,Continuously variable speed | |
| Main brake | Hydraulic disc brake | ||||||
| Auxiliary brake | Electromagnetic brake or Eaton brake | ||||||
| Crown block | TC170 | TC225 | TC315 | TC315 | TC450 | TC450 | |
| Traveling block | YC225 | YC225 | YC315 | YC315 | YC450 | YC450 | |
| Hook | DG225 | DG225 | DG315 | DG315 | DG450 | DG450 | |
| Swivel | Model | SL225-II | SL225-II | SL450-II | |||
| Dia. Center hole mm | 75 | ||||||
| Rotary table | Model | ZP520 or ZP275 | ZP375 | ||||
| Center hole mm(in) | 520.7(20½) or 698.5(27½) | 952.5(37½) | |||||
| Shift | II,Continuously variable speed | II,Continuously variable speed | II,Continuously variable speed | 1,Continuously variable speed | II,Continuously variable speed | 1,Continuously variable speed | |
| Mud pump | Model X set | F-1300×2 | F-1300×2 | F-1600×2 | F-1600×2 | F-1600×3 | F-1600×3 |
| Unit power KW(hp) | 960(1300) | 960(1300) | 1180(1600) | 1180(1600) | 1180(1600) | 1180(1600) | |
| Drive type | Motor | ||||||

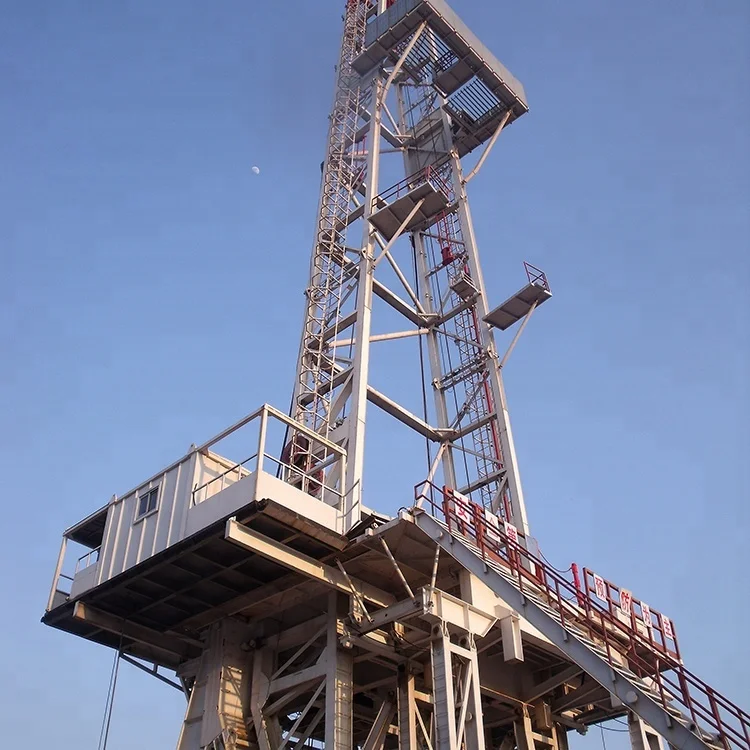

| Derrick | Type | K | |||||
| Height | 41.5 | 41.5 | 43 | 43 | 45 | 45 | |
| Height substructure m | 7.5 | 7.5 | 9 | 9 | 9,10.5 | 9,10.5 | |
| Height under substructure m | 6.26 | 6.26 | 7.7 | 7.7 | 7.7,9.2 | 7.7,9.2 | |
Packaging & Shipping
Company Information
Shandong Beyond Petroleum Equipment Co., Ltd, hereinafter referred to as “Beyond”, was established in year 2016 and certified by ISO9001. Its main business scope is to supply drilling equipment and spares for overseas customers from different sectors, like petroleum, water well, construction and HDD.
Beyond products cover but not limited to: oil drilling & workover rig, water well drilling rig, pile drilling rig, horizontal directional drilling rig, mud pump and spares, solid control system & equipment, and other different drilling materials. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. We can customize the product supply as per your on-site conditions, and we can offer overseas after-sale services with our strong technical support. Thanks to our professional services, quality products, fast delivery and competitive prices, we have built up a very good reputation among our customers. Our products had covered countries like USA, Venezuela, Argentina, India, Singapore, Kazakhstan, Azerbaijan, Egypt and Ethiopia.
With “Professional & Efficient, Customer Focus, Win-win Cooperation” as its business principle, Beyond believes we will become your trustable and reliable partner in China. We warmly welcome you to be our customers to establish good cooperation and create a bright future with us together. Choose Beyond, You will get beyond your expectations and we will not let you down.
