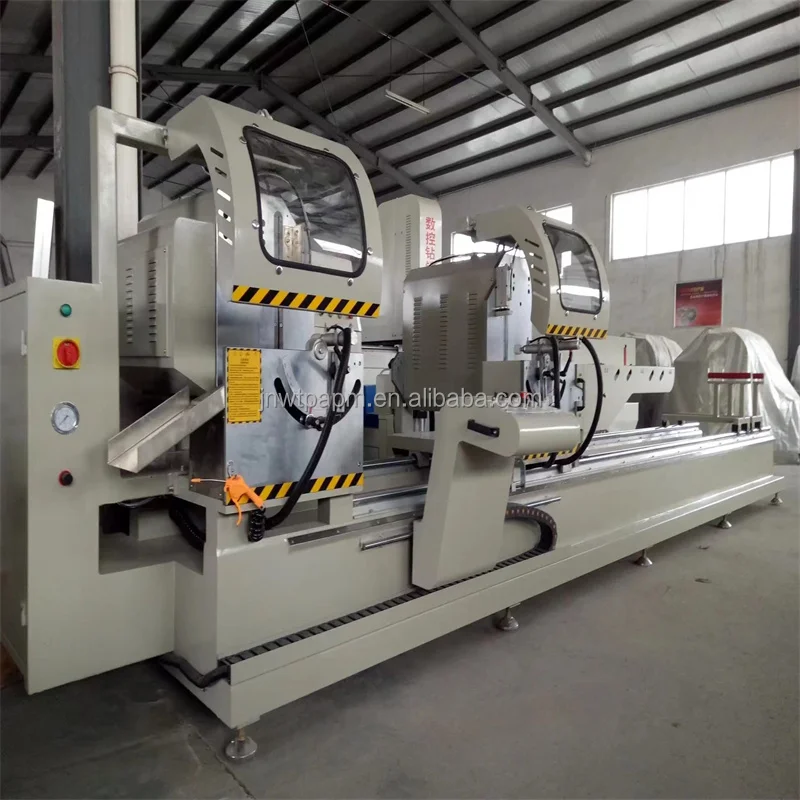

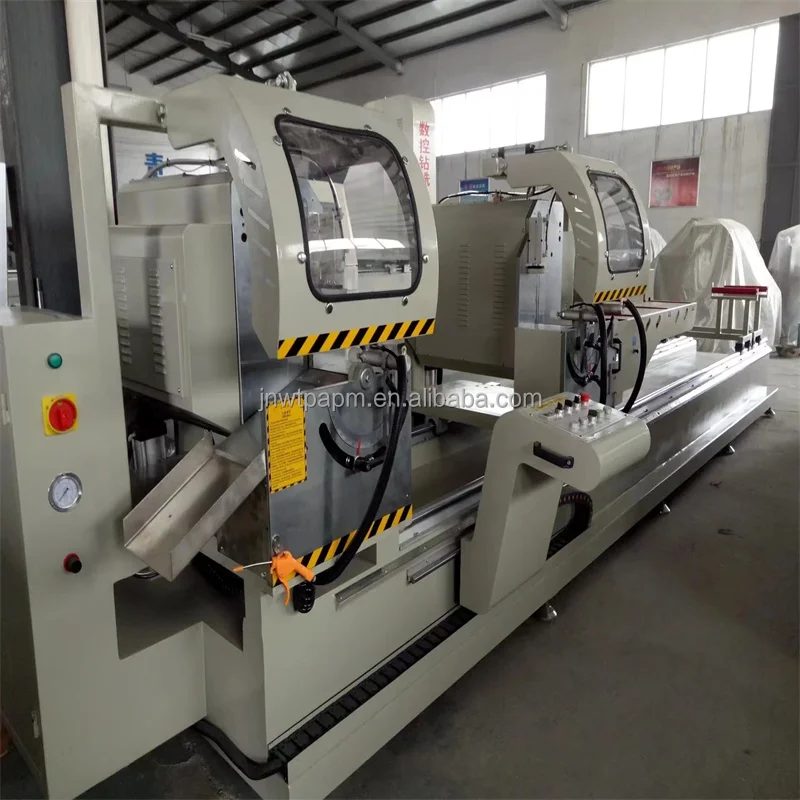

Good quality aluminium window manufacturer wall saw digital display double head metal cutting machinery miter saw for aluminum
- Category: >>>
- Supplier: Tieneng Intelligent Equipment (shandong) Co. Ltd.
Share on (1601104983458):
Product Overview
Description
--FEATURES
Used for aluminum profile, high precision window and door frame cutting. And it can be customized different cutting size according to your requirement.
* The digital display device on the machine can accurately show the length of the cut profiles.
* Imported high precision linear guiding pair ensured steady and long-term processing accuracy.
* Right head move by gear and gear racks/linear guideway. Cutting angle change automatic between 45°, 90° .
* The automated elevating protective shield ensures a secure and clean working environment.
* The digital display device on the machine can accurately show the length of the cut profiles.
* Imported high precision linear guiding pair ensured steady and long-term processing accuracy.
* Right head move by gear and gear racks/linear guideway. Cutting angle change automatic between 45°, 90° .
* The automated elevating protective shield ensures a secure and clean working environment.
--SPECIFICATIONS
Model | LJGX-500X4200 |

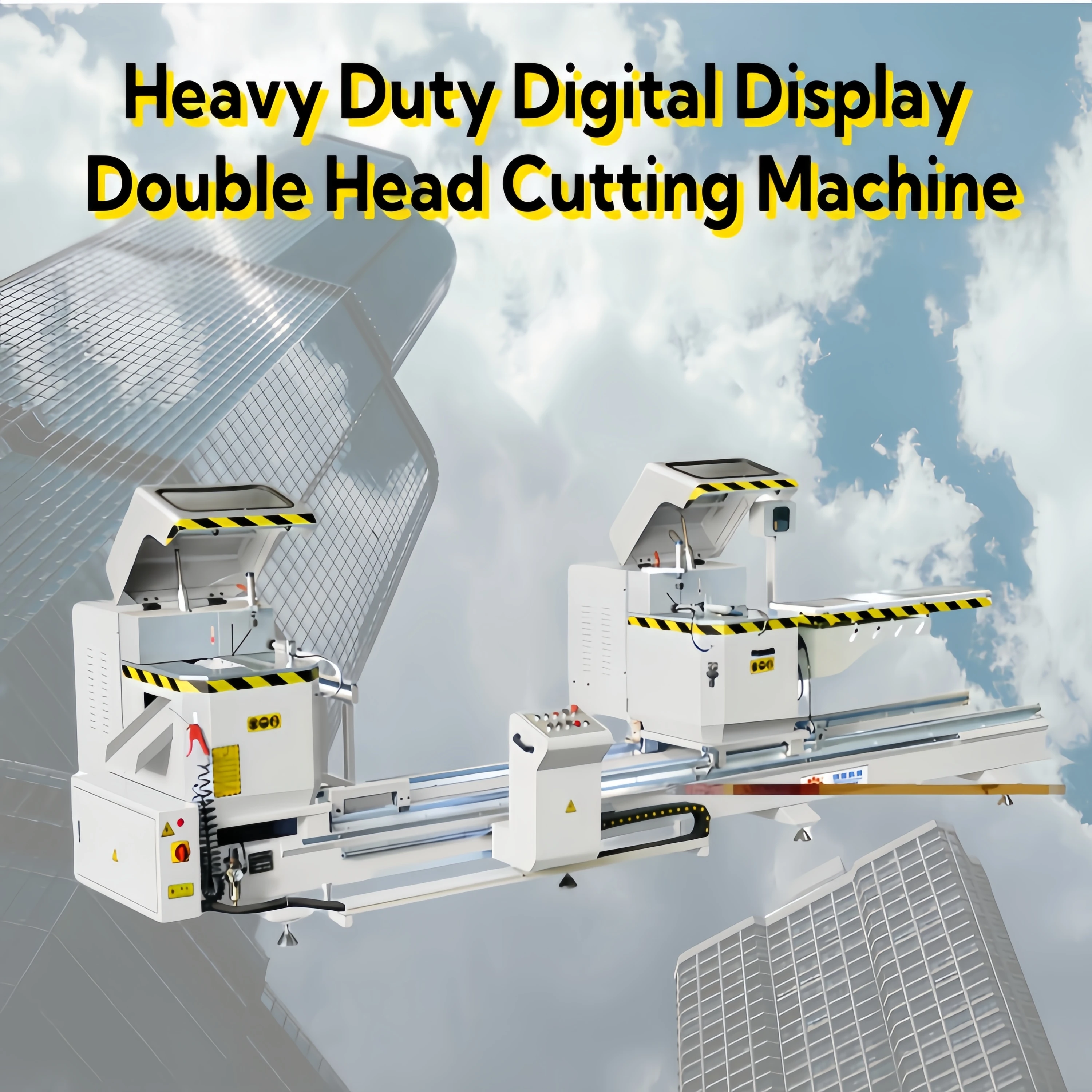

Product Name | Digital Display Double-Head Precision Cutting Saw |
Saw Blade Specification | Φ500×Φ30×4.4mm |
Saw Speed | 2800r/min |
Cutting Length | 350-4200mm |
Cutting Width | 235mm |
Cutting Height | 500mm saw blade:90° MAX 135mm 45° MAX 125mm (For your reference) |
MAX Cutting Section | 500mm saw blade:135mmX235mm (For your reference) |
Cutting angle | 45°，90° |
Overall dimensions | 5800×1500×1700mm |
Power supply | 380V 50HZ/220V 50HZ/CUSTOMIZED |
Input Power | 2X2.2KW |
Air Pressure | 0.5-0.8Mpa |
Air Consumption | 60L/min |
