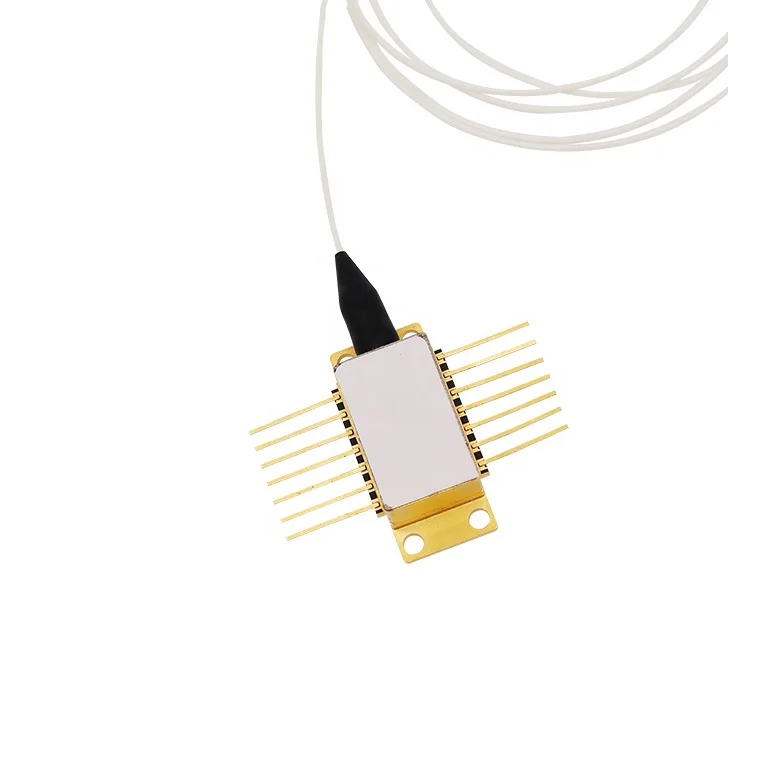

14Pin 1550nm 500mW Fiber Coupled Laser Diode Butterfly Package 100kHz/300kHz/500kHz with PD TEC for LiDAR
- Category: >>>
- Supplier: Xinland Laser Co. Ltd.
Share on (1601105080195):
Product Overview
Description
Specification
Center Wavelength | 1550nm±30nm@25°C |
Power | 500mW |
Line width | 100kHz/300kHz/500kHz |

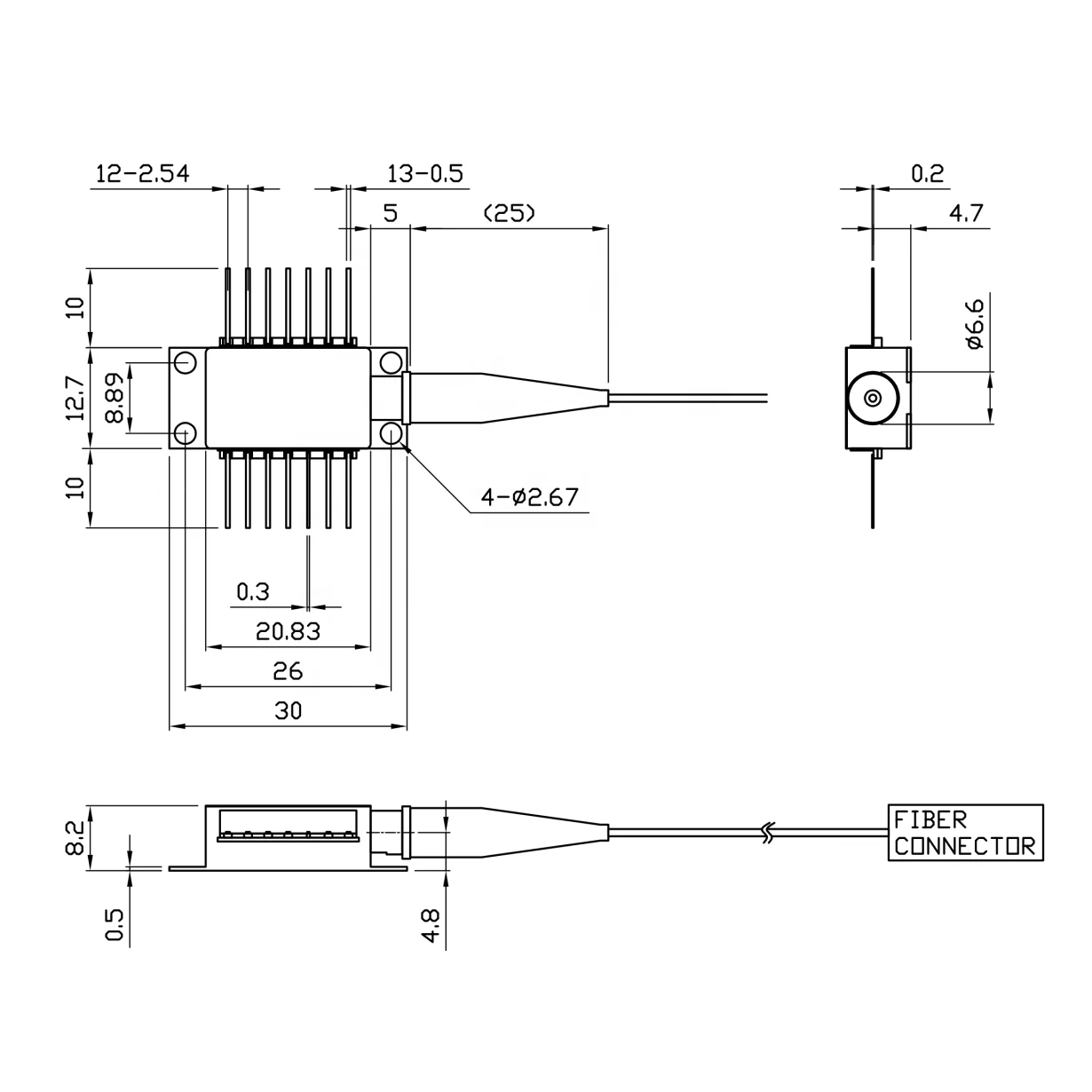

Package | 14-Pin Butterfly Package |
Fiber Type | Multimode Polarization maintaining fiber |
Fiber Core Diameter | 105um |
Numerical Aperture | 0.22N.A. |
Fiber Length | >80cm |
Optical Fiber Interface | FC/PC |
Other Parameters | built-in TEC cooling chip, thermistor and PD |
Product Description
14Pin Package 1550nm 500mW Fiber Coupled Laser Diode 100kHz/300kHz/500kHz with TEC for LiDAR
Features
Cost effective
High Output Power
High Dynamic Range
High Efficiency
Standard Low Cost Package
Fast axis collimated to 5mrad with f=590um lens
Cost effective
High Output Power
High Dynamic Range
High Efficiency
Standard Low Cost Package
Fast axis collimated to 5mrad with f=590um lens
Applications
OEM Medical
Professional Medical
LiDAR
Military / Aerospace
Illumination
OEM Medical
Professional Medical
LiDAR
Military / Aerospace
Illumination
