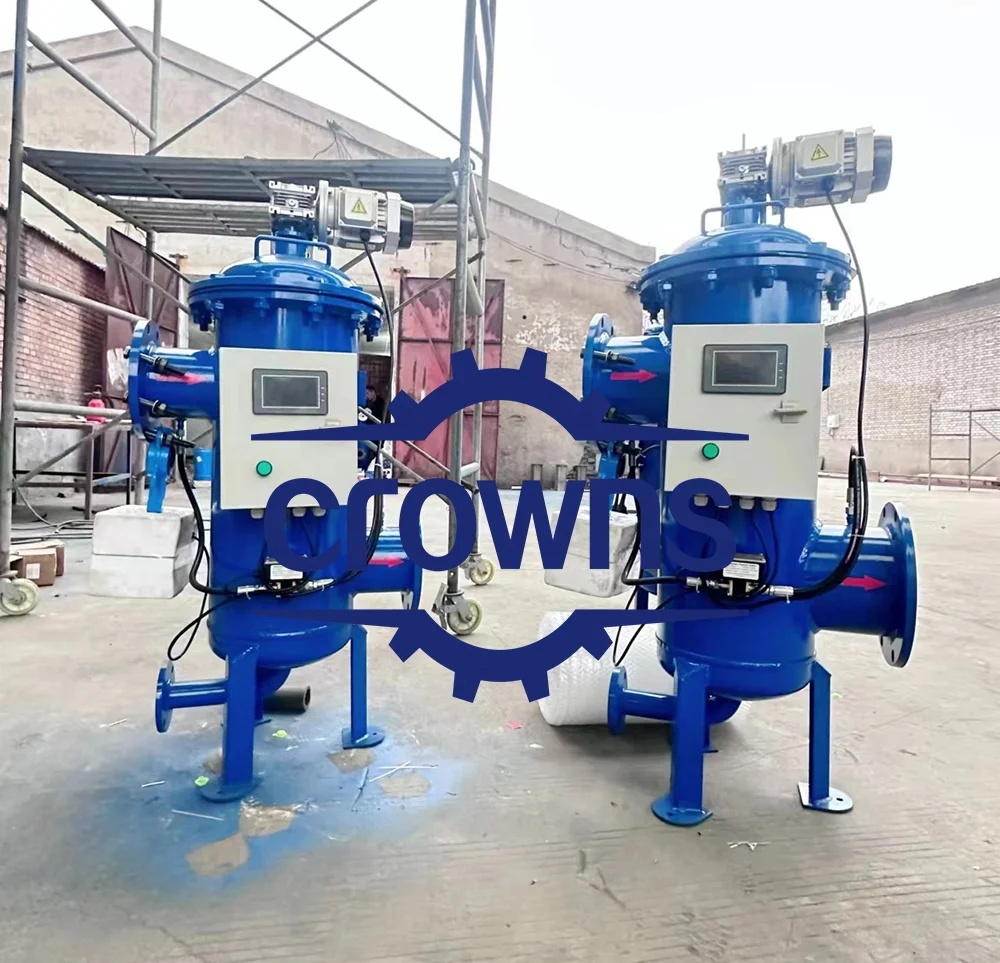

Industrial Filtration Equipment Automatic Self Cleaning Filter Brushway Technology to Remove 100 Micron to 2000 Micron Solid
- Category: >>>
- Supplier: Qingdao Crowns Machinery Co. Ltd.Qingdao Ltd.
Share on (1601105135508):
Product Overview
Description
Industrial Filtration Equipment Automatic Self-Cleaning Filter Brushway Technology to Remove 100 Micron to 2000 Micron Solid
Introduction

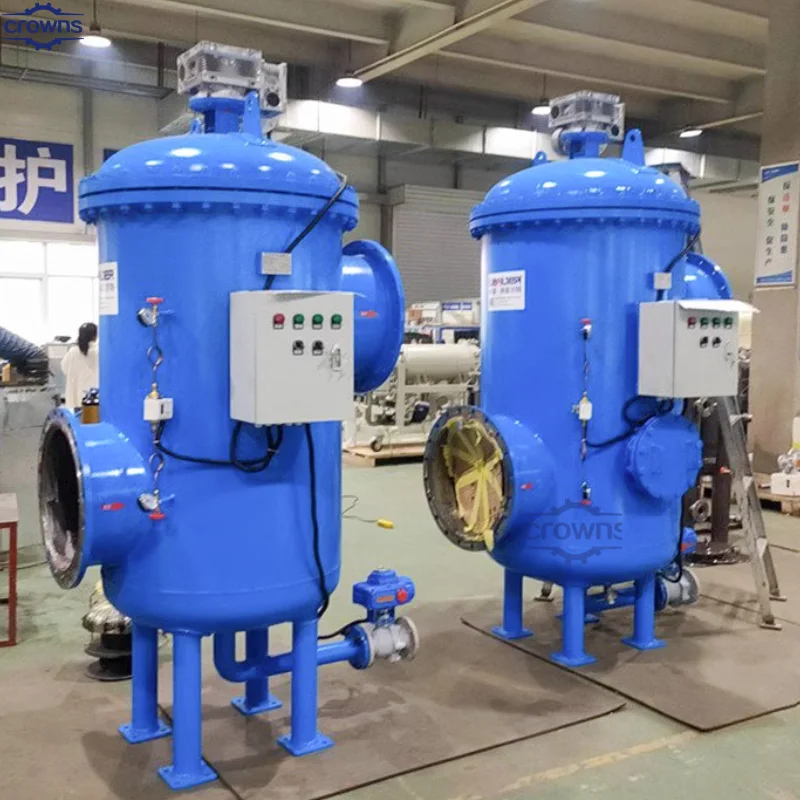

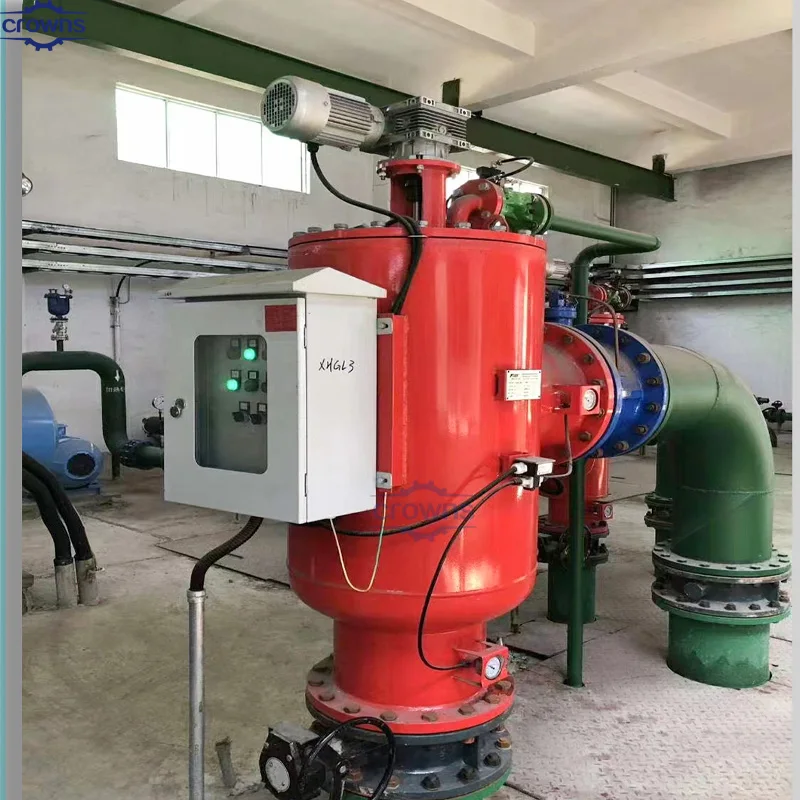

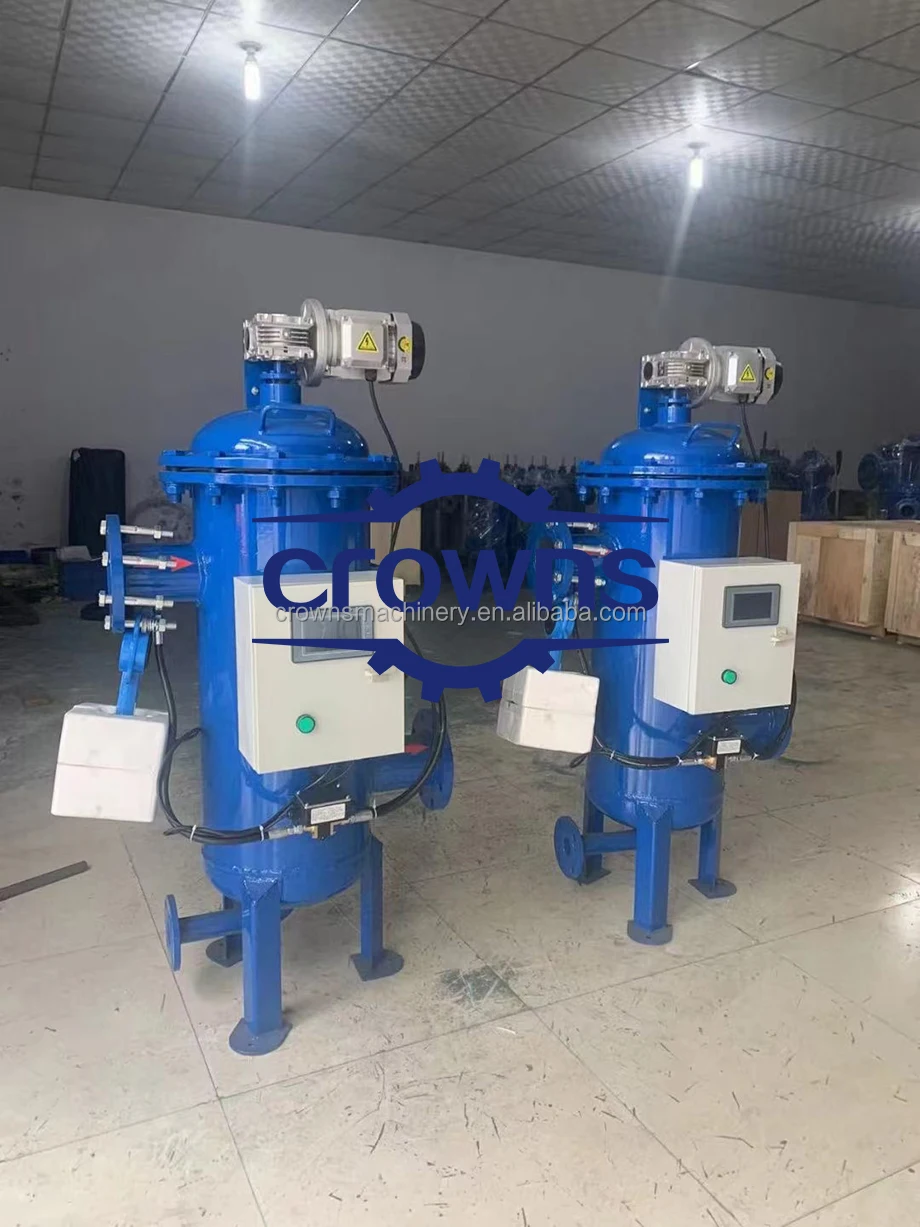

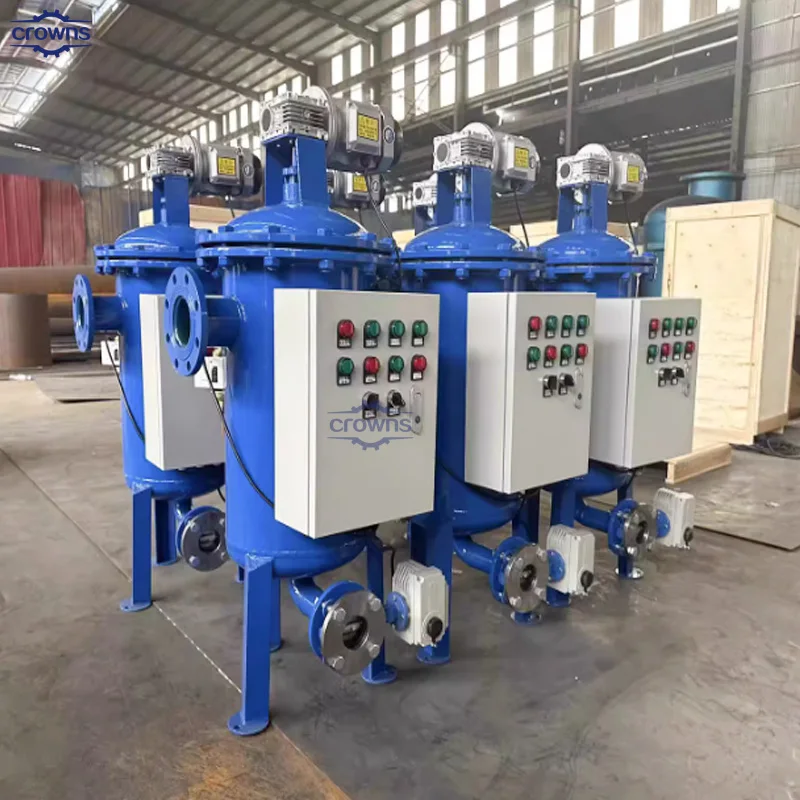

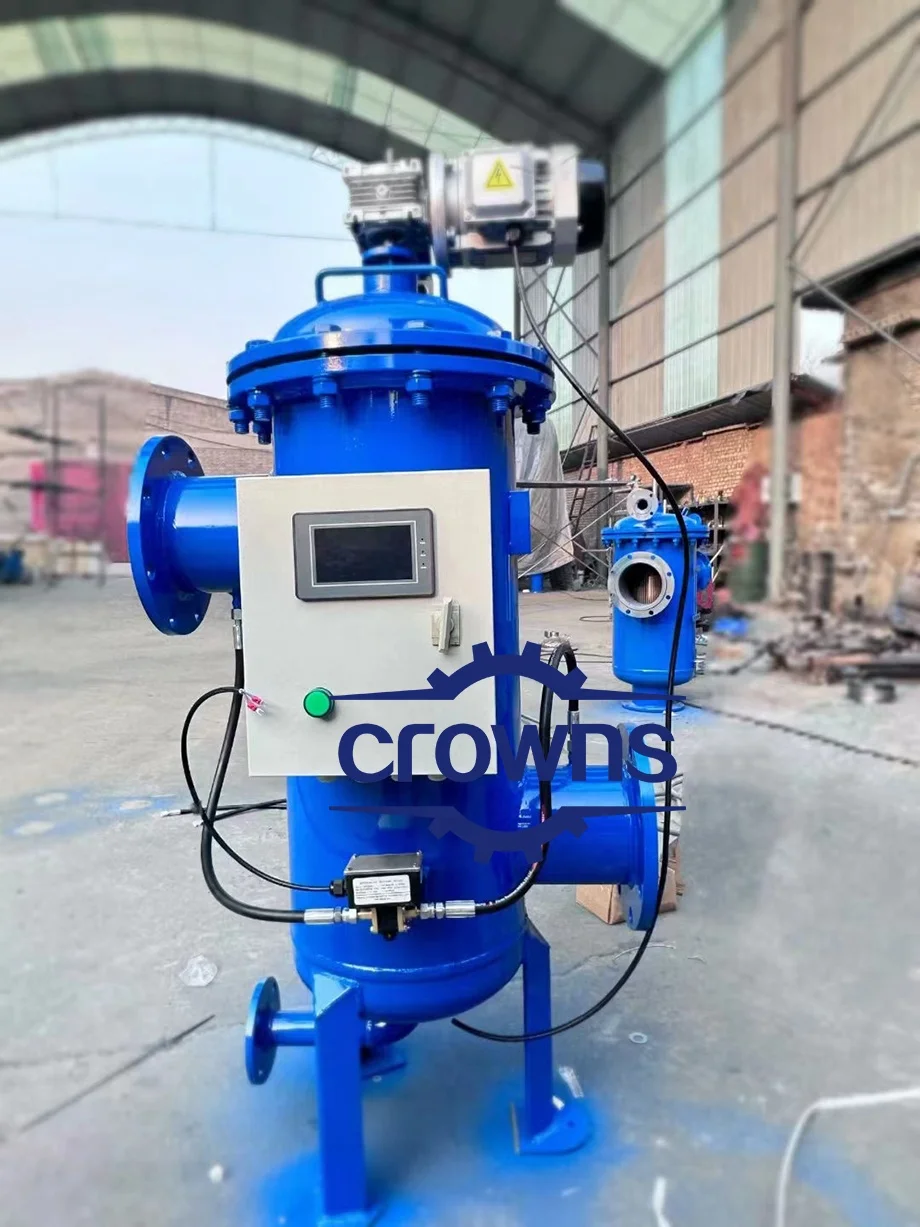

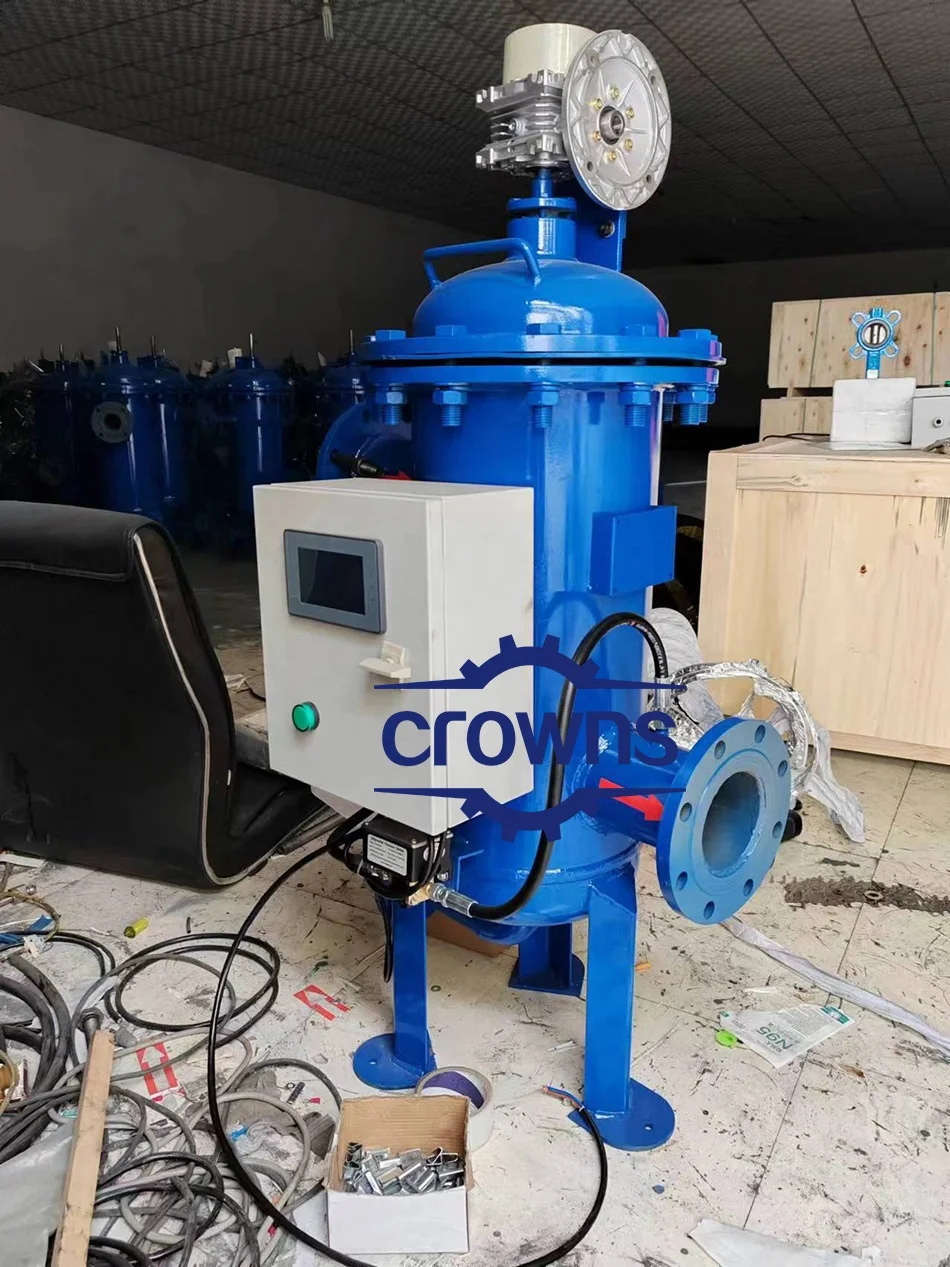

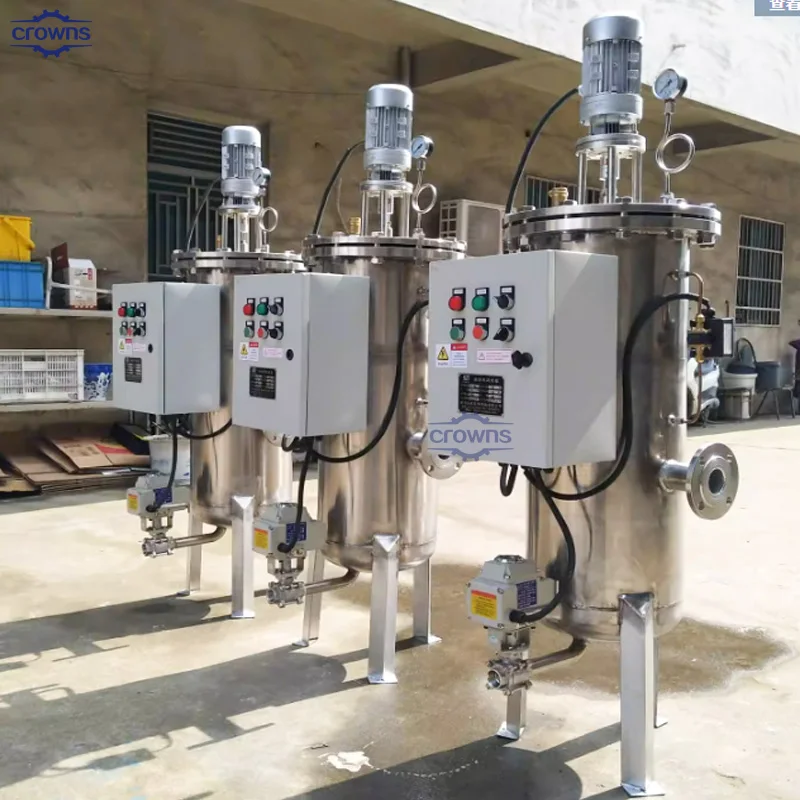

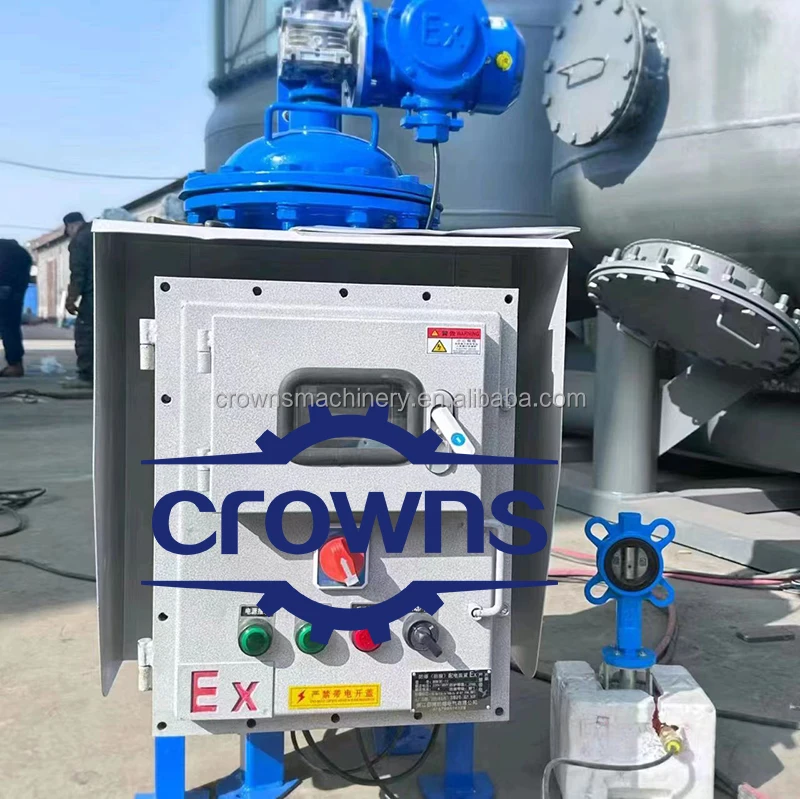

The inside structure of the automatic self-cleaning brush filter is made up of the stainless steel strainer and stainless steel wire brush and transmission part. The washing and the drainage are automatically finished by the drive motor and electrical valve. The operation way is automatic running (manual running is also Ok), It is with the double function of the pressure difference and regularly automatic drainage. The automation part takes use of the most advanced and reliable PLC in the world.When the water flow gets through the filter, the impurity in the water is held by the strainer With the increase of the impurity accumulated on the surface of the strainer, the pressure difference reaches 0.04Mpa. The switch of the pressure difference will give out a signal while the PLC sends an instruction to start the drive motor and open the drainage valve; the impurity accumulated on the strainer will be brushed off with the rotating brush and discharged from the drainage exit. The whole process of brushing and draining require no personal operation and without machine halt. At the same time, the equipment is with the function of regular washing and draining and manual washing and draining to make sure that the water output is safe and reliable in any case.
Filter flow | 80-1100 m³/h | ||||||
Pressure rating | 1.0Mpa | ||||||
Water temperature range | 0 ~ 65 °C | ||||||
Filtering precision | 50 -3000 micron | ||||||
Inlet and outlet connection | Flange | ||||||
Backwash time | 20-30 seconds | ||||||
Water consumption during backwash | 1%-3% of filtered water | ||||||
Drain way | Manual/Timing control/ DP control | ||||||
Cleaning way | Brush | ||||||
Drive way | Motor/Manual drive | ||||||
Rated operating voltage | 3-ph/380V/1-ph/220V/50Hz | ||||||
