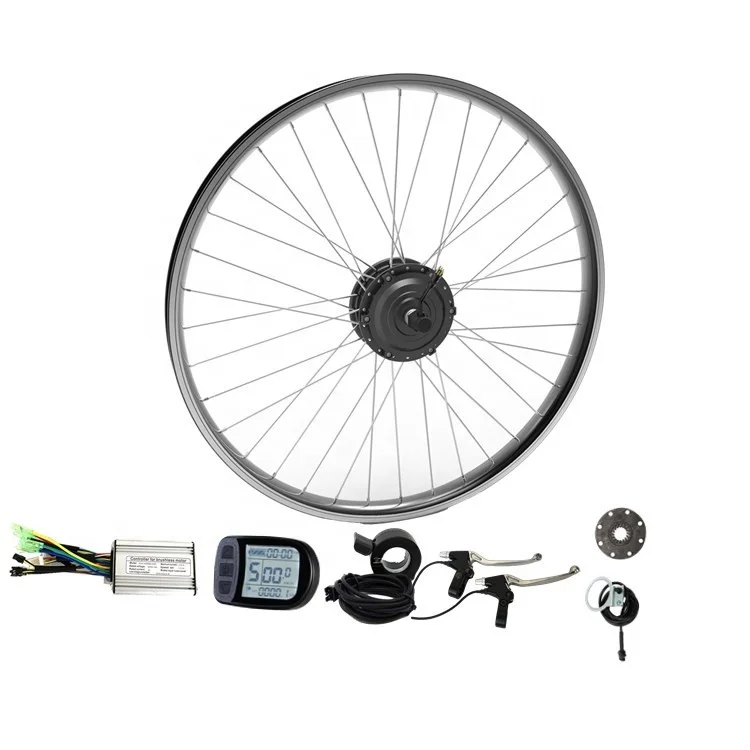

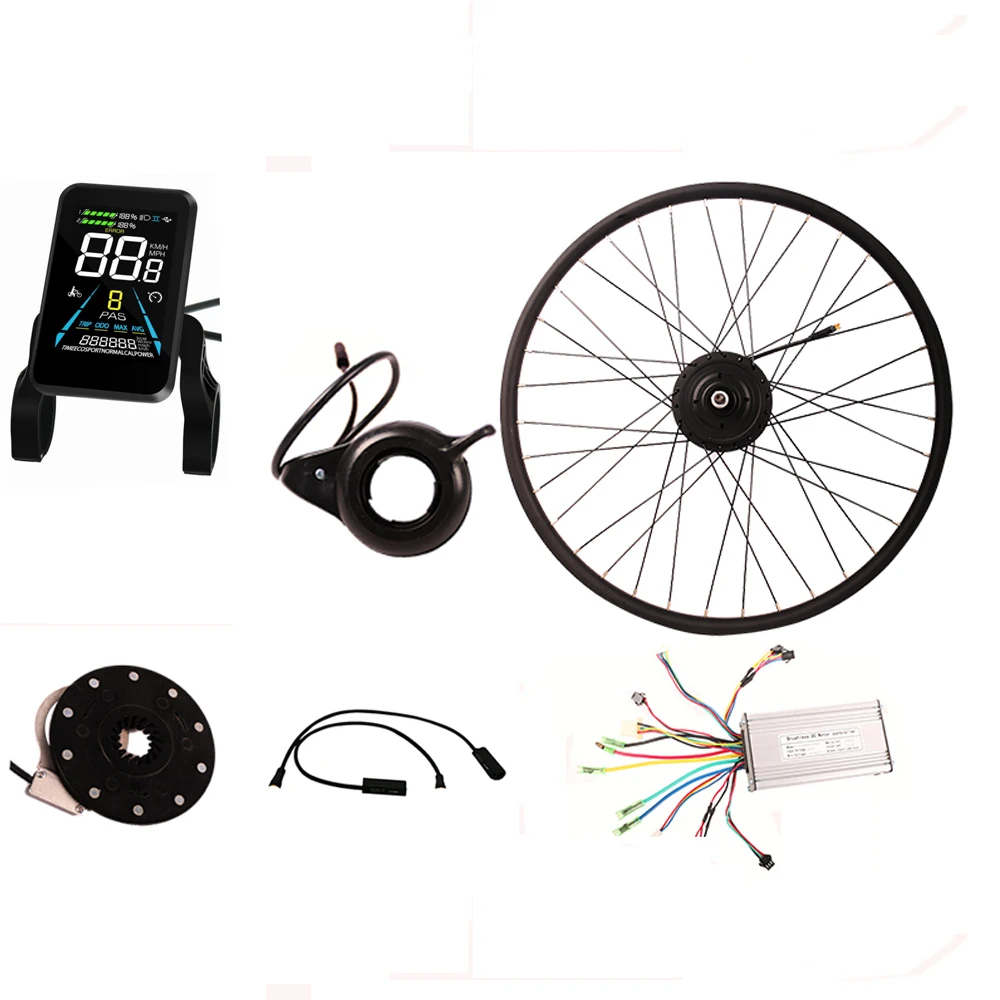

Factory directly e bike 48v 250w 350w 500w 750w 1000w motor e bike kit electric bicycle bike conversion kit

Product Overview

Description

Factory price 48V electric bicycle e-bike conversion kit 1000W/electric bicycle kit/bikes electric bicycles kits

The packing list of 48v 1000w electrric bike kit :

Model	ENC481000
Certificate	CE for EN15194
motor	48v 1000w front or rear motor brushless geared design
Wheel size	20-29 inch aluminum alloy double wall design for choosing
controller	48v 26amp water proof smart controller
Throttle type	Thumb throttle/twist throttle
Electric brake levers	Wu xing brand electric brake lever
pas	1:1 8 magnet intelligent pedal assistant
manual	Book manual,ties
specification	45km/h speed,120kg max loading
package	Carton box with foams packing for express shipping
color	Black
Option parts
tires	Kenda tire and tube
Lcd display	Show multifunctions,speed ,range,time,max speed adjust,5 pas system and so no
Head light	Headlighet with horn
free wheel	6 speed or 7 speed for rear motor only
Torque arm	Prevent the motor axle from stripping out

Design	Brushless gearless
Power	1000w
Speed	40-45km/h
Torque	40N.m
Weight	6.8kg
Efficiency	>88%
placement	front/rear
Wheel size	20-29 inch
Drop out width	100mm/135mm

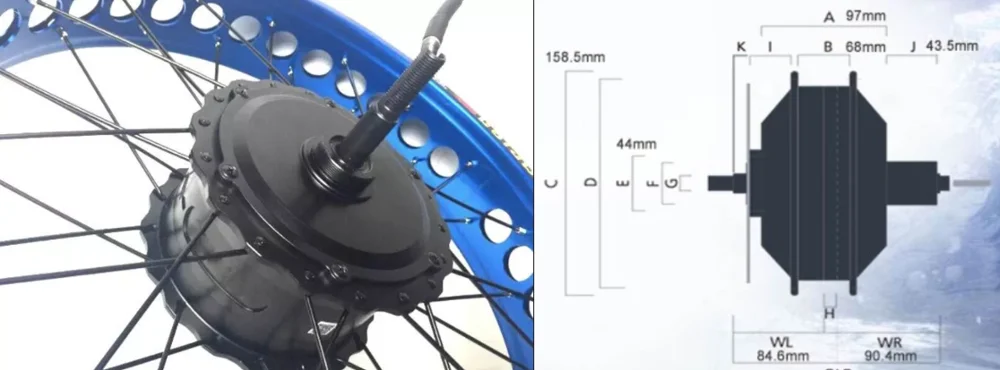

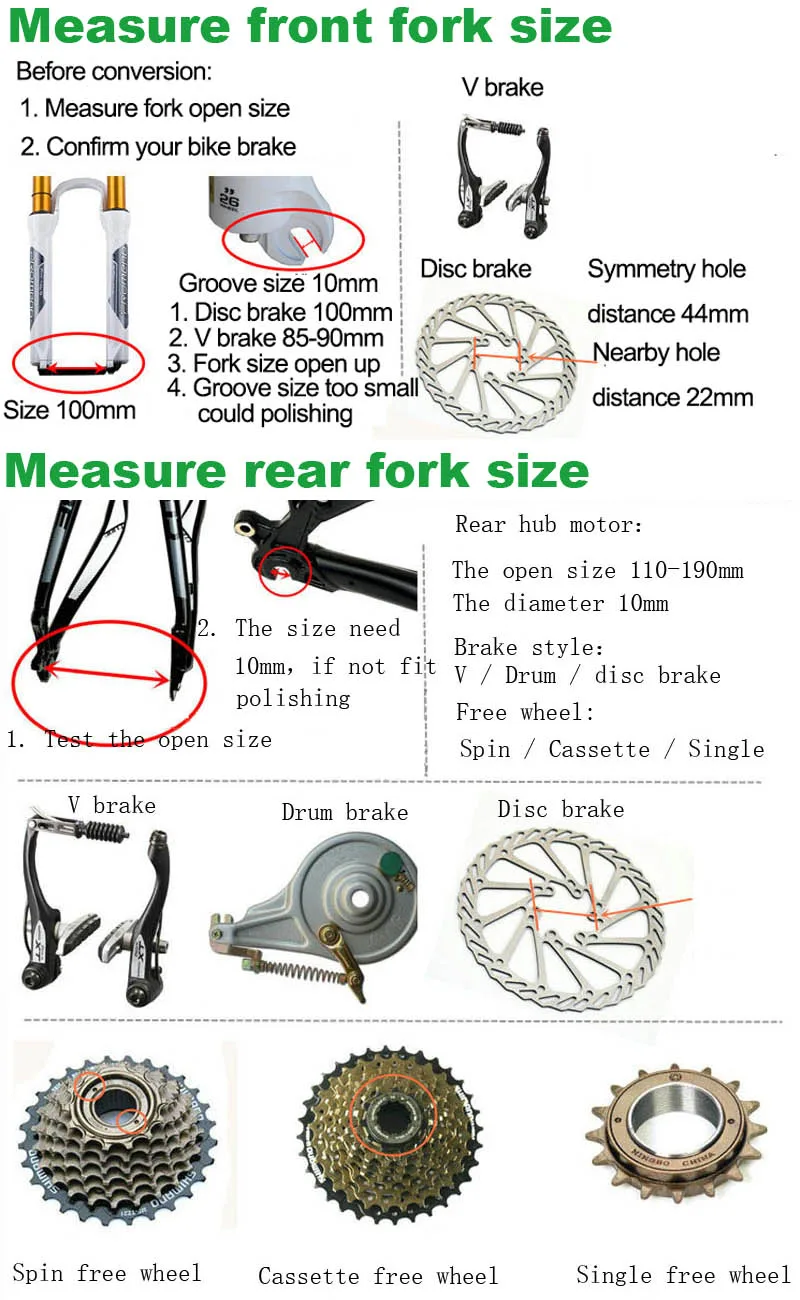

Motor and motor size

Front and rear hub motor is different open size, rear hub motor you want cassette flywheel or spin flywheel need notice before booking it.

Before conversion:

1. Measure front & rear fork open size

2. Confirm your bike brake

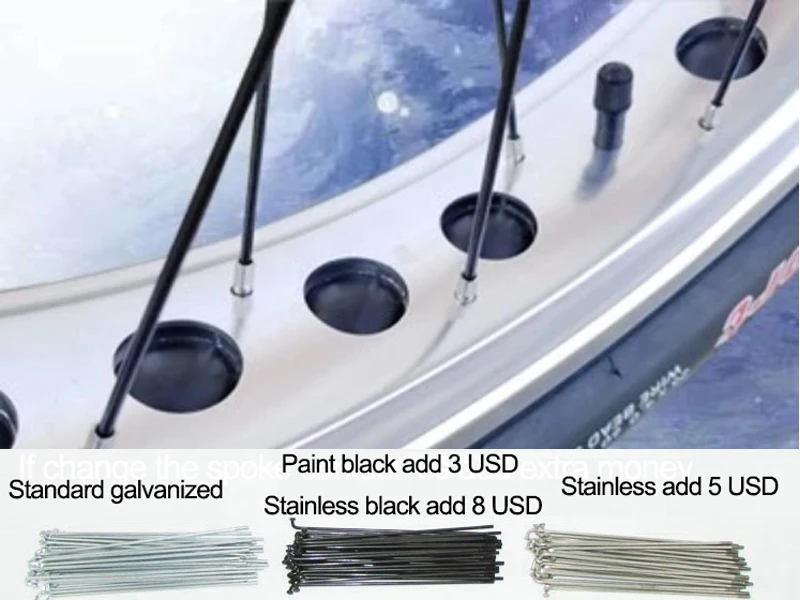

Rim & Spoke

Double aluminum alloy rim

20 inch 26 inch 28 inch( 700c)* 1.75optional



Spoke

Iron steel & Stainless steel optional

12 /13G silver and black optional

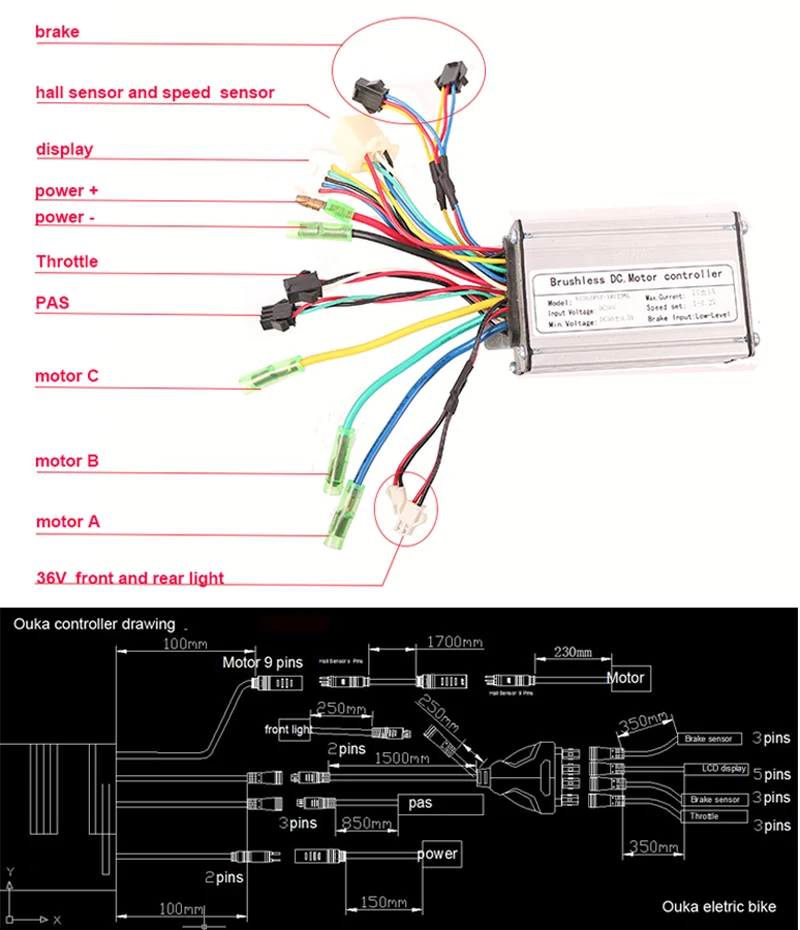

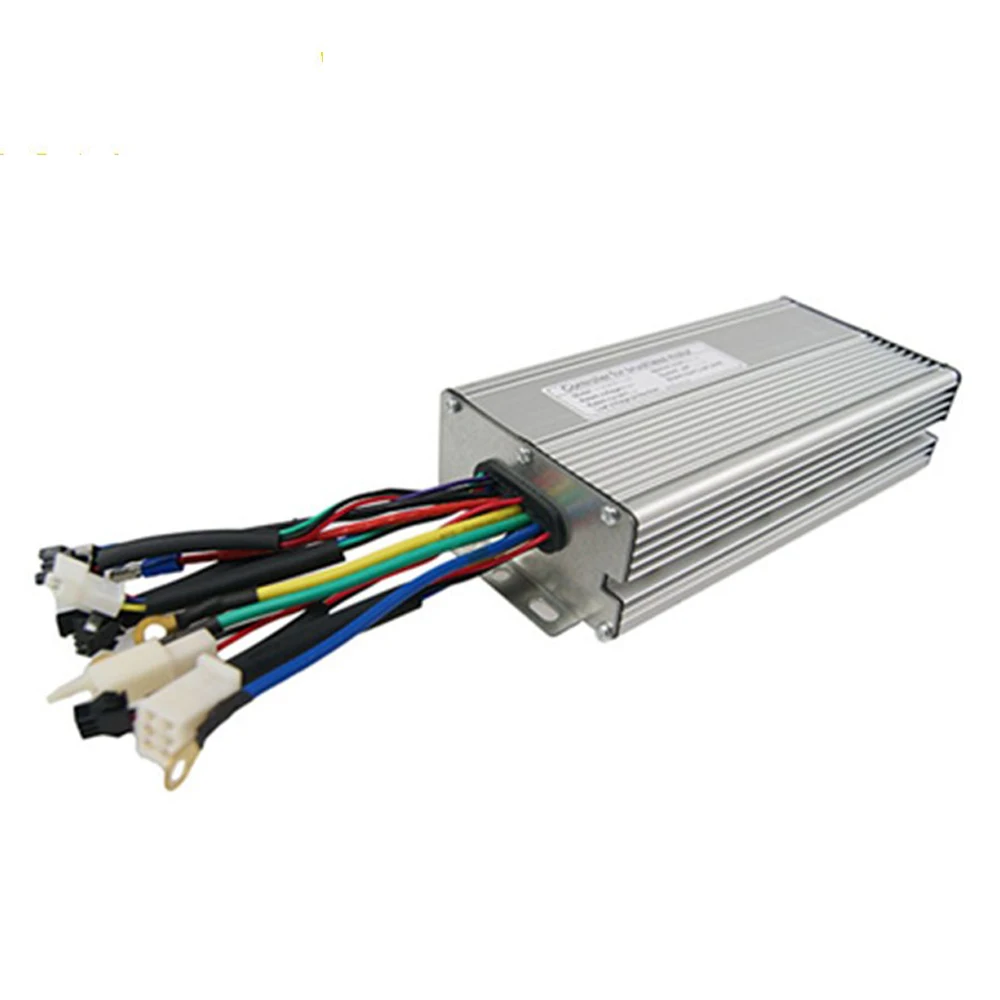

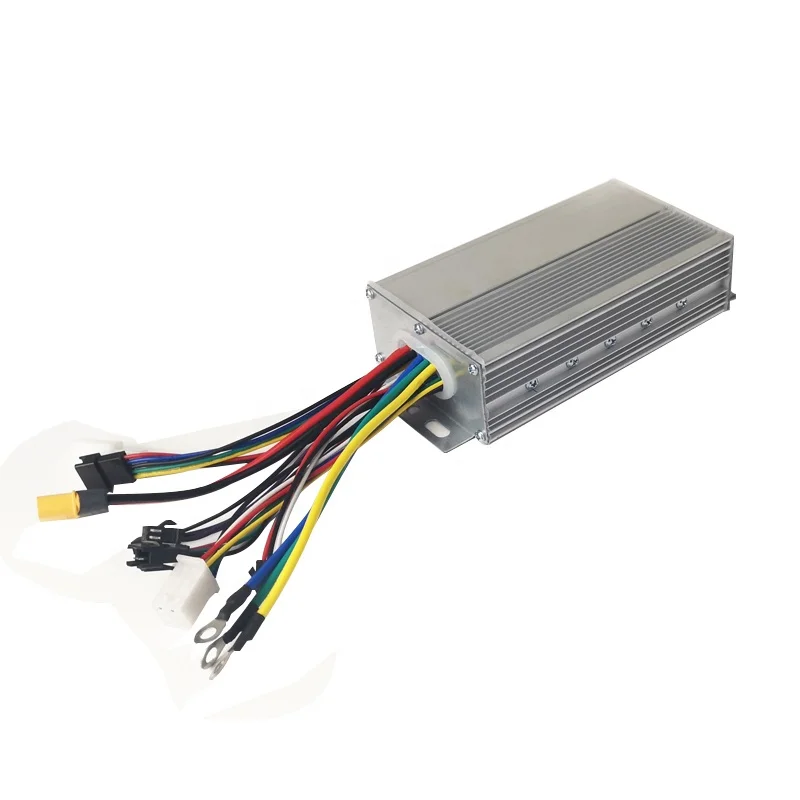

Controller

The controller currect limit from 14A-35A depend on different motor wattage. The controller could customized function as your request. ( Less than 50 sets, don't accept customized)

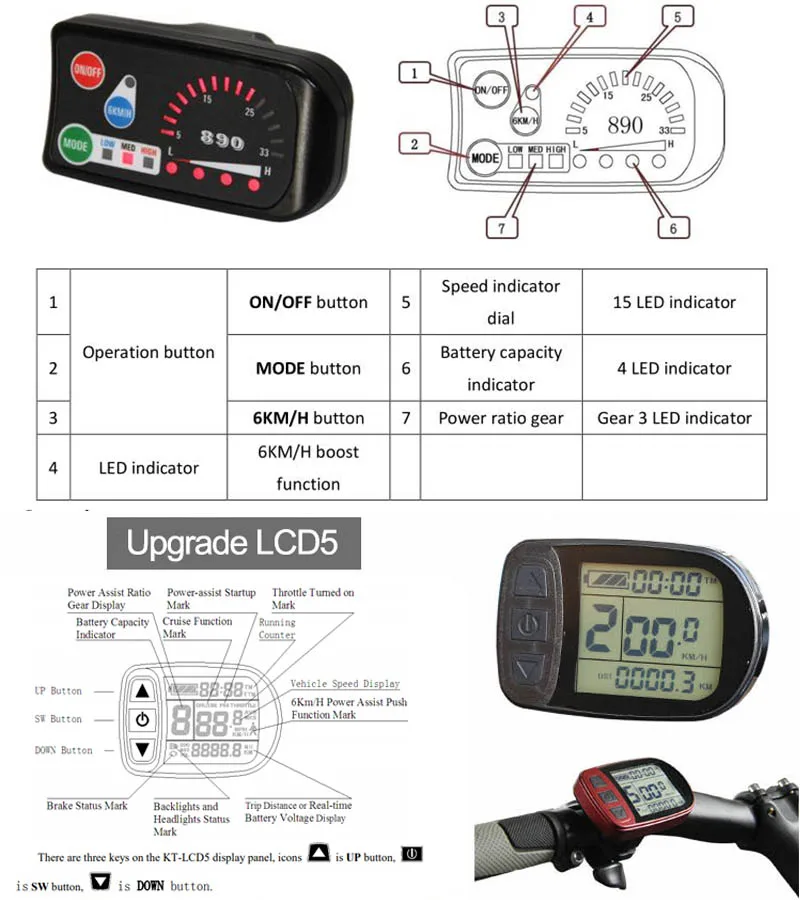

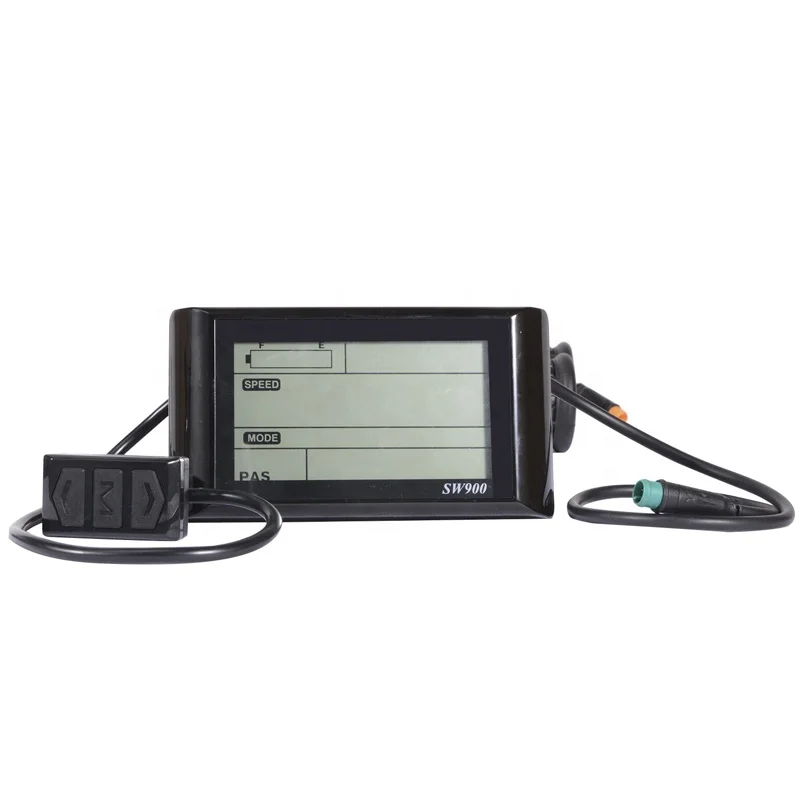

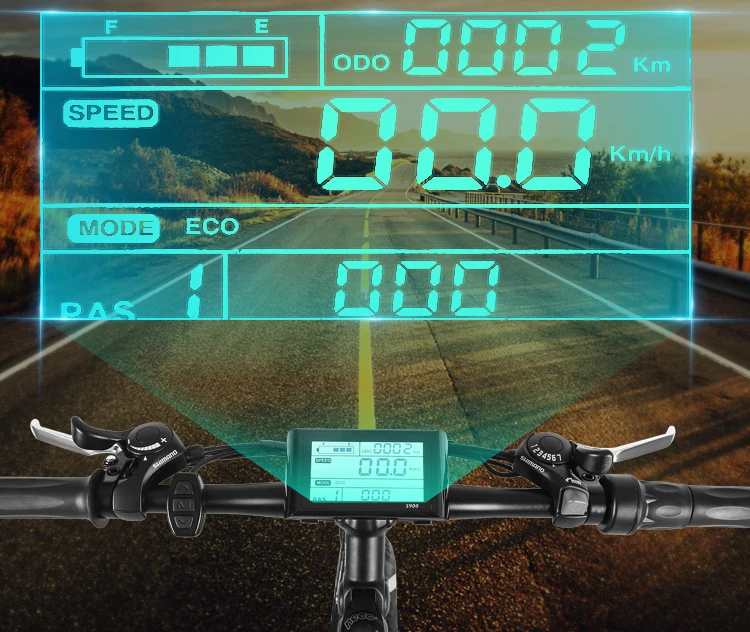

Display

LED display and LCD display optional, LCD display has more function and could setting some of the bike data. It could also upgrade better color LCD display.

For more optional display. Click the following picture. You can found a catalogue about it.

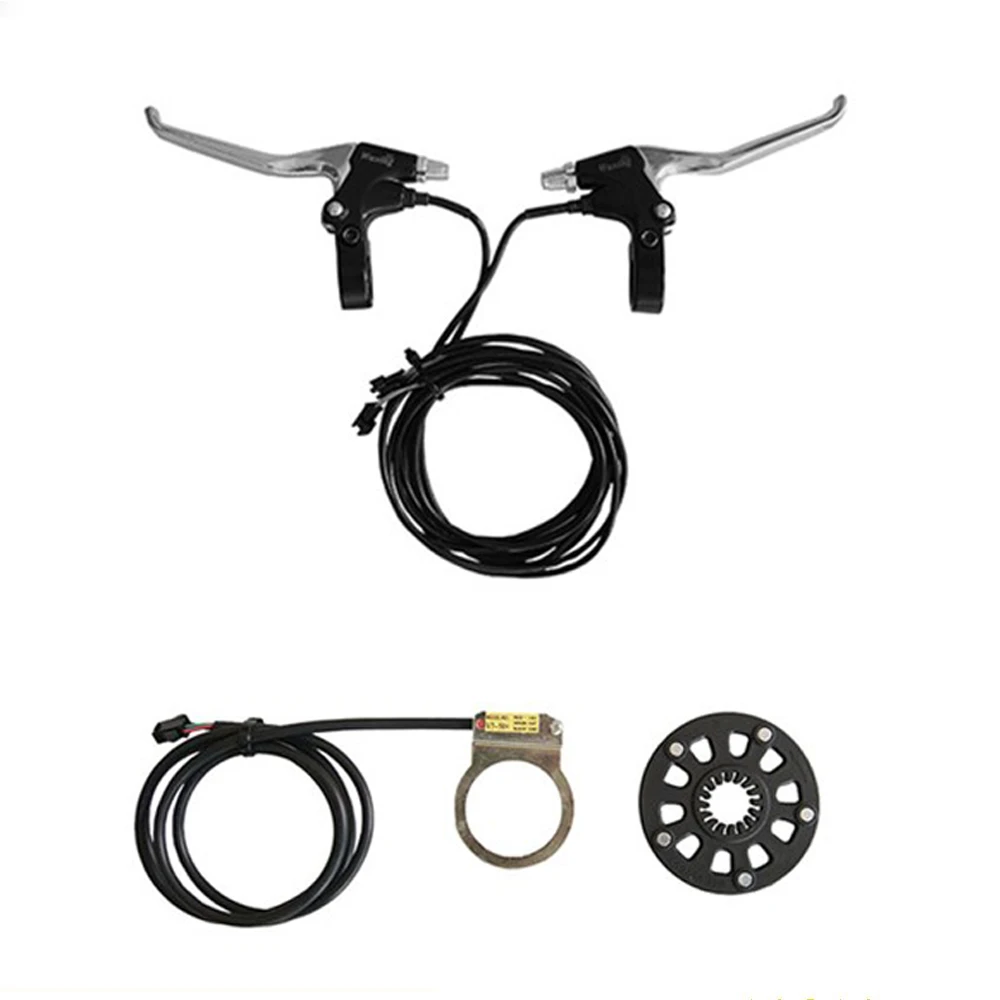

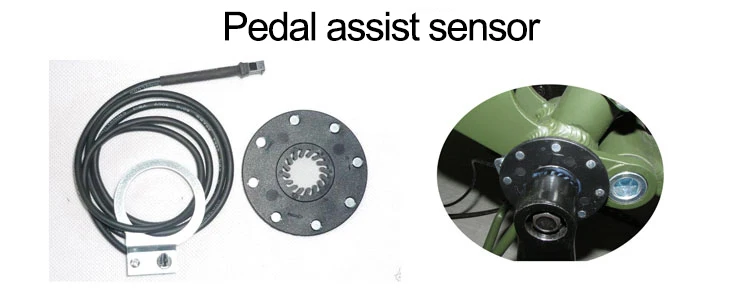

Pedal assist sensor( 1:1 PAS)

For more information about the PAS. Click the following picture. You can found a catalogue about it.

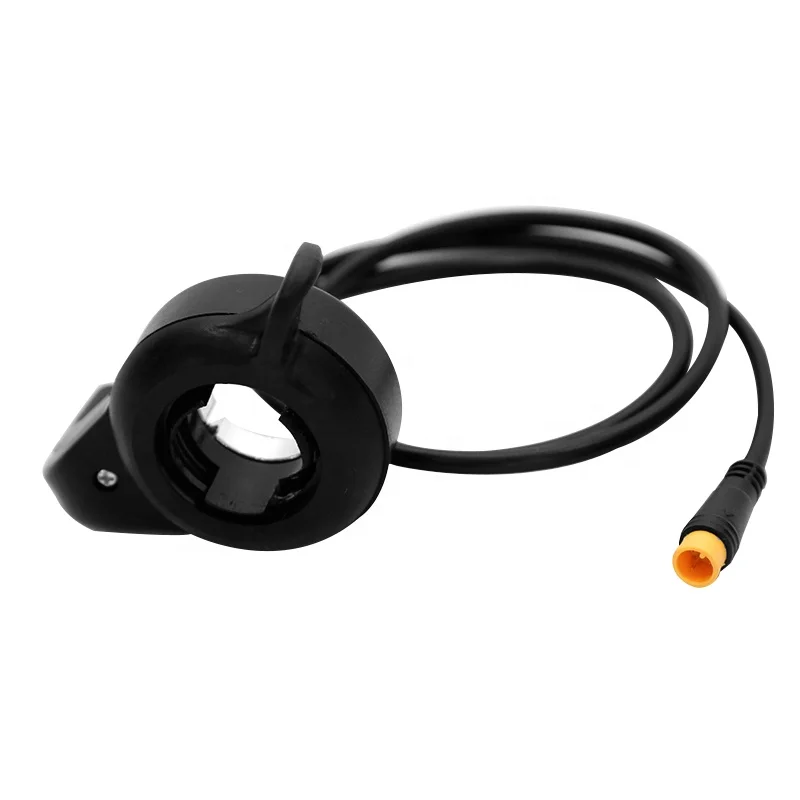

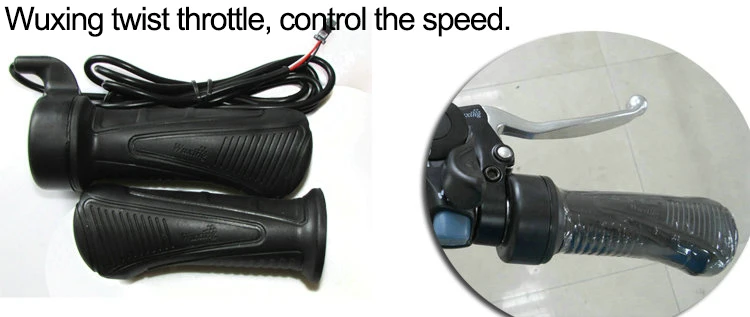

Throttle

The throttle, have three different optional, full twist throttle, half twist throttle, thumb throttle. For more information about the throttle. Click the following picture. You can found a catalogue about it.

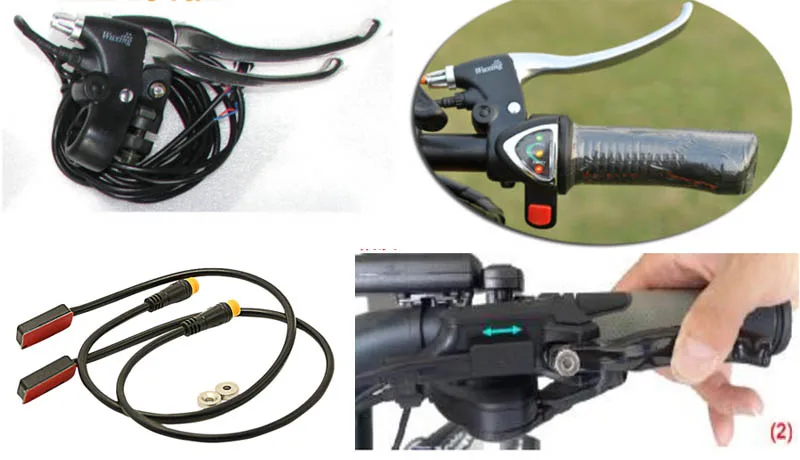

Brake levels with cut off power function

The brake have two optional. common bike use brake levels, if your brake levels is very good quality or hydraulic disc brake could consider hydraulic disc brake sensor. It is same cut off power function. For more information about the brake sensor. Click the following picture. You can found a catalogue about brakes.

Battery and charger

About the other types case: forg battery, downtube battery, rear rack battery, bag battery click the following picture to the catalogue select more.

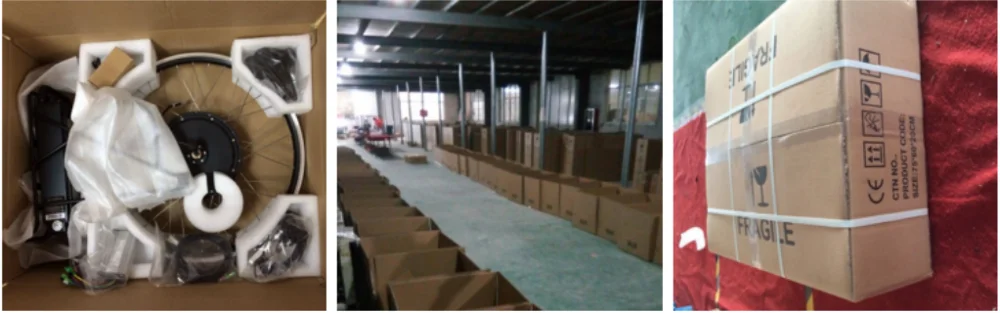

Package

The other optional is center crank mid drive motor electric bike conversion kit.

Click the following picture to select the catalogue.

1. Warranty policy

a.)     For main electronic parts, charger, controller and battery, we provide 6 months warranty.

b.)     For motor, we provide 12 months warranty.

c.)     For frame, handlebar, stem and wheel rim we provide 2 years warranty.

 1.1 The following conditions, not including in warranty policy

a.)     Any damages caused by human factor.

b.)     Dismounting any parts without professional technical people.

c.)     Use other parts in our electric bike or scooter.

d.)     Damages caused by traffic accident and other accident.

e.)     The problem caused by overloading.

 2. Technical support

a.)     We provide “electric circuit diagram” for each model.

b.)     We can train customer’s 1 or 2 technical workers for free.

c.)     When oversea customers meet serious problem, they can not work out by technican, we will dispatch engineer to customer’s company to give help.



FAQ

Q: Why choose an electric bike?

A: You can not only ride it as ordinary bike but also choose battery powered mode when you get tired, and you don't need to get a license and pay parking fee.

Q:Can you change configuration for me?

A:No problem, we can do customize, so we can change configuration based on your request.

Q: Do you have the e-bike kit in stock?

A: No, to keep the quality, all e-bike kit will be newly produced against you order.

Q: What colors are available, can we attach our logo or brand on the bicycles?

A: We have color options, also we can change the colors and attach your logo and brand based on your request, please contact us to ask for more.

Q: Can I order some samples at first to see the quality?

A: No problem, if your order is less than 10 pcs, we need to charge some extra sample fee, the amount is based on your specific quantity, when your orders reach 1*40' container, we can refund you the sample fee.

Q: Can I mix different models in one container?

A: Yes, different models can be mixed up in one full container.

Q: What's your payment terms?
A: Payment term is 30% TT in advance , 70%balance against copy of BL. The samples payment will be 100% prepaid.
