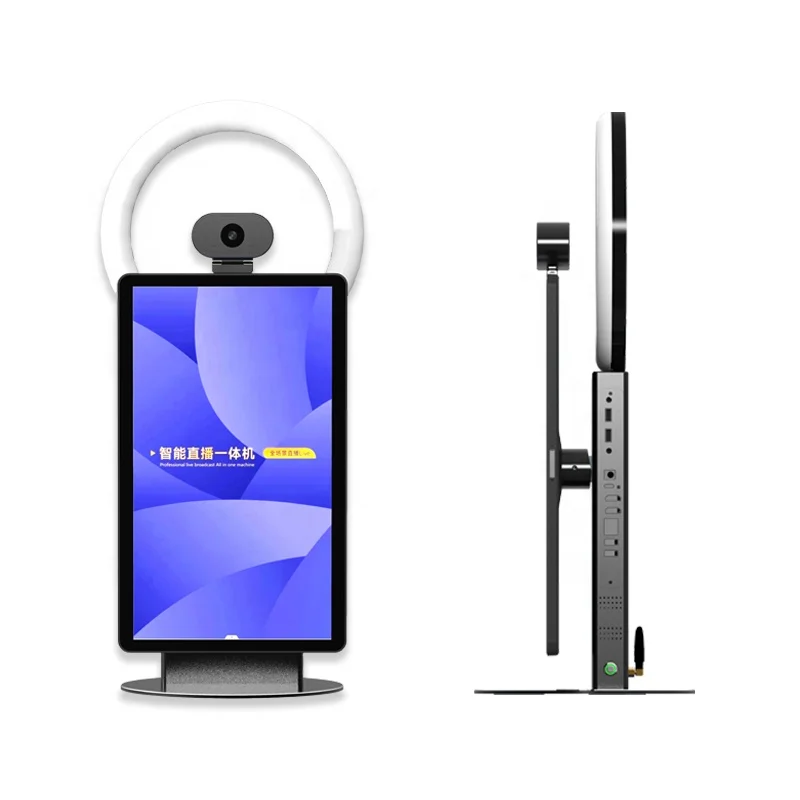

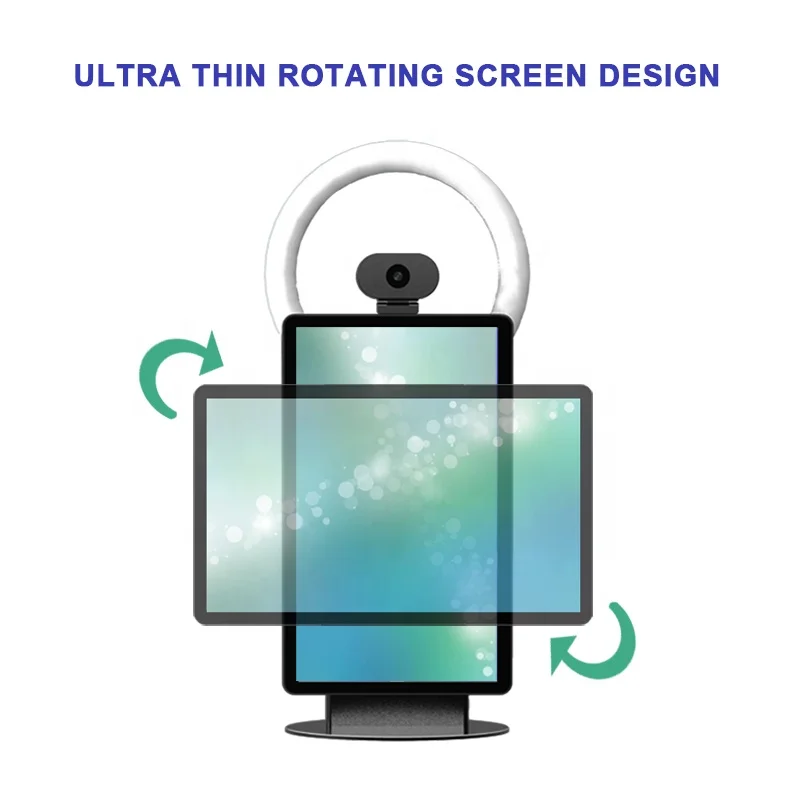

Product Name | Desktop All In One Live Broadcast Machine / Equipment | |
Display information | ||
Size | 15.6 inch | |
Backlight Type | DLED | |
Display Type | 2D | |
Effective display area | 340.7 * 194 mm | |
Brightness | 280-450cd/㎡ (Brightness can be customized) | |
Screen Ratio | 16:9 | |
physical Resolution | 1080*1920 FHD | |
Ratio contrast | 1400:1(Typ.)transmission | |
Visual Angle (horizontal/vertical) | 178°/178° | |
Response time | 5ms | |
Refresh | 60Hz | |
Audio output power | 8Ω5W x2 | |
Touch characteristic | ||
Touch the specifications | Capacitive touch screen | |
glass | Explosion-proof Tempered glass | |
Touch Points | 10 Touch Points | |
Touch screen sensing method | Fingers or other non-transparent touch-sensitive media | |
Mechanical specification parameters | ||
The net weight | 3 kg | |
30Gross weight | 5.5 kg | |

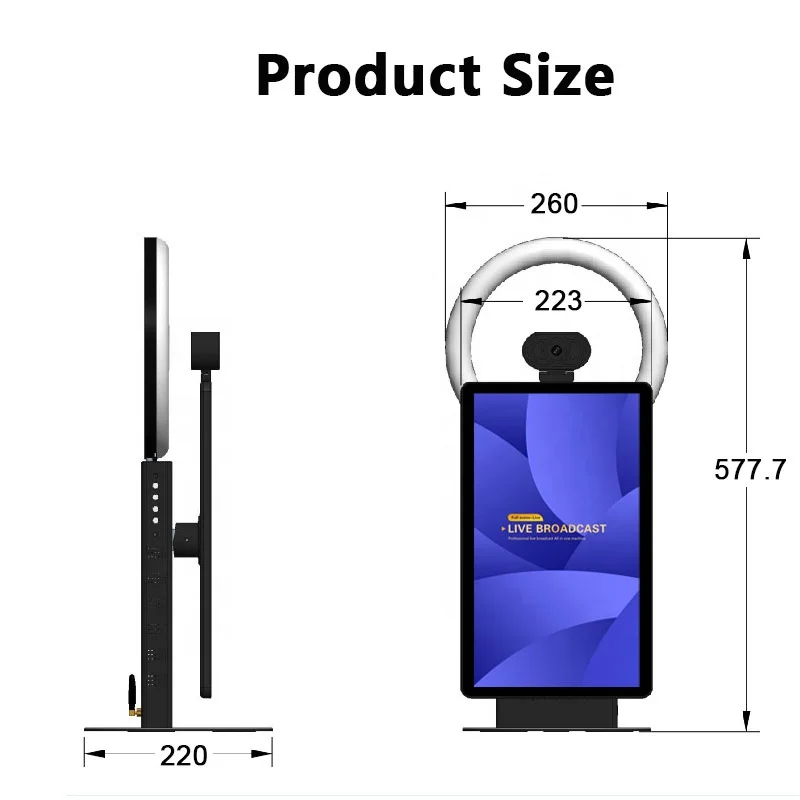

Bare machine outline size (L x W x H) | 613*166.8*260 mm | |
Shell color (face frame/back shell) | silver /Customized | |
To protect the glass | Toughened glass/level 7 earthquake resistant | |
Type of installation | Desktop , portable | |
The environment | ||
Working temperature | -10℃~55℃ | |
Working humidity | 10%~90%(No condensation) | |
Storage temperature | -20℃~60℃ | |
Store humidity | 10%~90%(No condensation) | |
Using lifetime | ≧50000 hrs | |
Android System parameter | ||
Android System | Android 11.0 and other Version for optional | |
Android motherboard type | RK3566 | |
Processor | Dual-core max 1.2GB (4 Core ,1.5GHz/4 core,1.8GHz for optional) | |
WIFI | 2.4G | |
Bluetooth | Support | |
standard memory | 8GB RAM,1288GB SSD | |
Configuration upgrade option | 2GB RAM,16GB ROM or 4GB RAM,16GB ROM(max is 128GB ROM) | |
Picture | JPEG、BMP、PNG | |
Audio | MP3,WVA,ACC,AC3,PCM,COOK,MP2 | |
Video | MPEG‐1/2,MPEG‐4 SP/ASP,DivX,Xvid,MJPEG,H.264,H.263/H.264,HEVC,RV30/RV40 | |
Windows System for option | ||
Processor | Intel I3/I5/I7 for optional | |
Main frequency | 2.4GHz | |
Chipset | Intel(R) 7 Series Chipset Family Mobile | |
Memory | 4G | |
Hard disk | Hard 128G | |
Graphics card | Core HD Graphics 3000 | |
Sound Card | Onboard Realtek ALC622 HD | |
WIFI | 2.4G | |
Maximum resolution | 1920*1080 | |
Input Port | 1*LAN, 3*USB3.0, 3*USB2.0, 1*MIC-IN | |
Ouput Port | 1*HDMI, 1*VGA, 1*LINE-OUT |
