Price:$6,360.00 - $6,800.00

Quantity:


Product Overview

Description





Communication Site Energy Solution
Huijue Group's outdoor communication energy cabinet is applicable to communication base stations, intelligent traffic, industrial and commercial sites, and edge sites, providing a stable energy supply for power backup systems, optical distribution, network communication, and integrated backup power systems. It features a unified power platform system that supports both AC and DC input and output, meeting different power introduction and output requirements. It solves the problem of difficult utility power introduction in remote roads, forests, and mountainous areas, offering a one-stop solution for sites. This solution can be used in grid-connected scenarios, as well as off-grid scenarios, especially when grid electricity prices are higher than diesel.


Specification

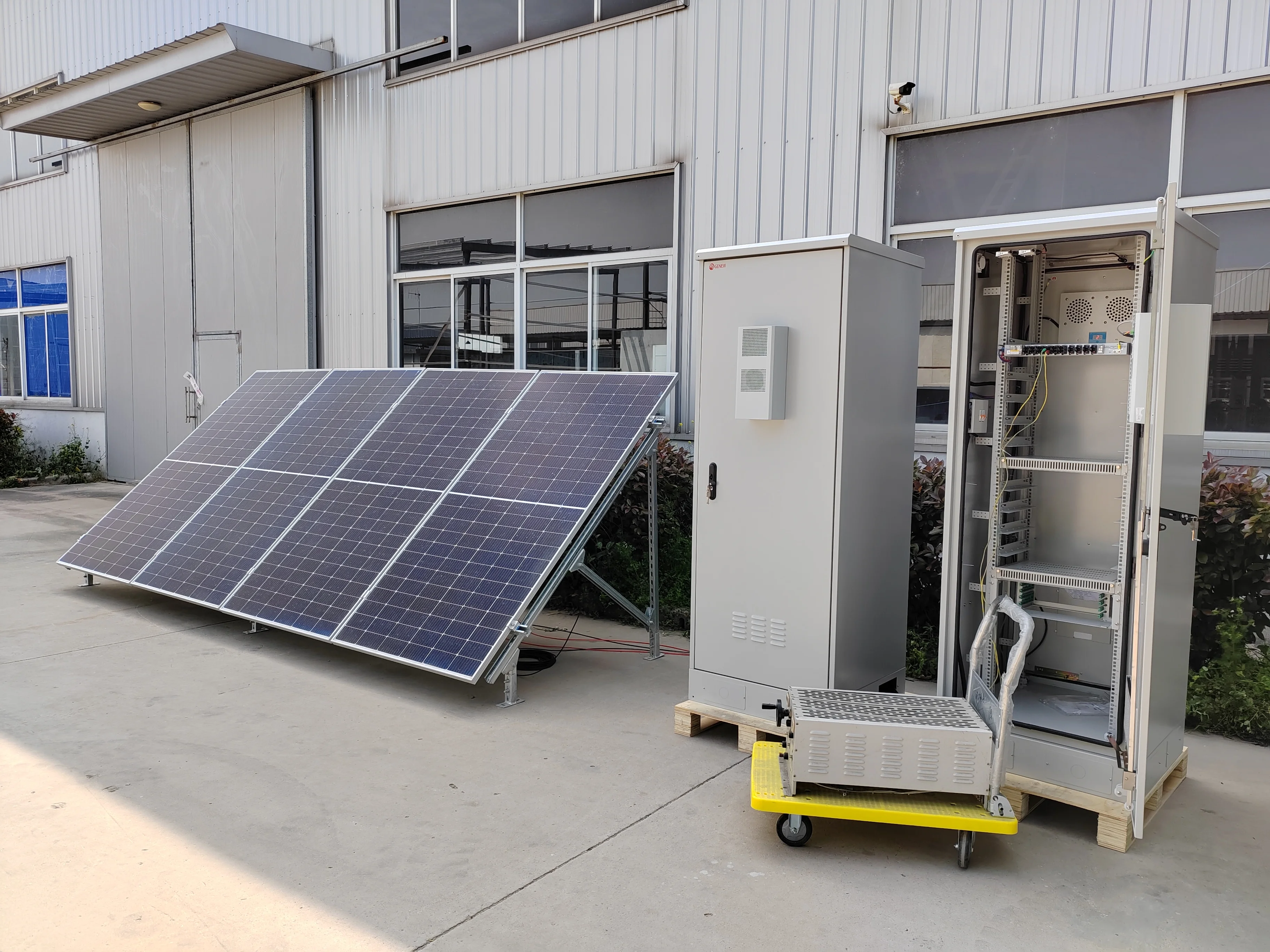

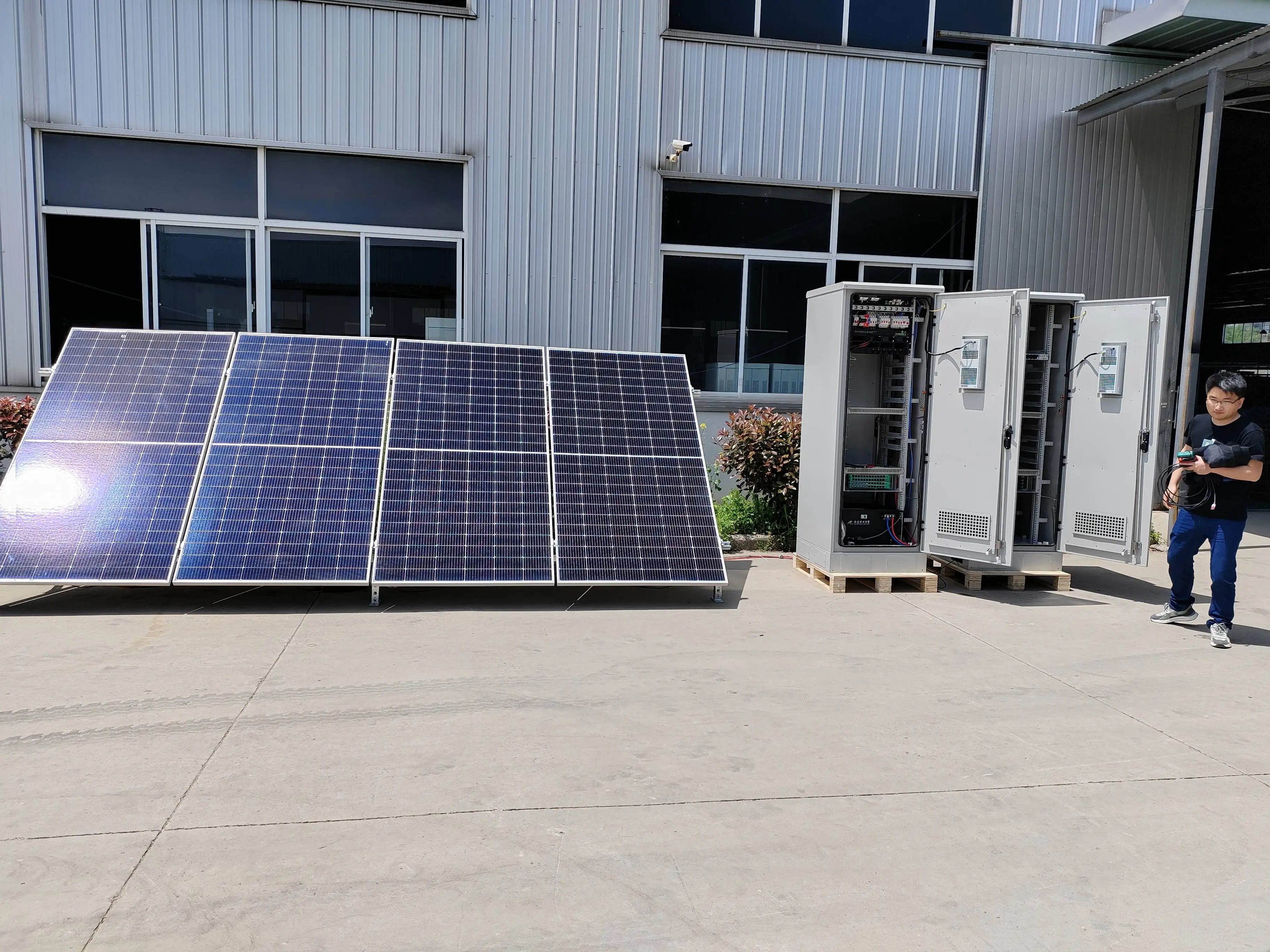

Outdoor Communication Energy Cabinet
Introduces safe and efficient clean energy (solar, wind) with AI management to achieve energy saving, low carbon, and stable and safe operation of communication base stations.
Offers different base station energy system solutions according to user needs, suitable for remote areas and extreme hot and cold climates.



product specification
physical dimension
900mm(W)×900mm(D)×2200mm(H); IP55 protection
installation mode
fall to the ground
Cooling solution
Intelligent temperature control (heat exchange/air conditioning, energy-saving automatic switching refrigeration)

AC input
AC input voltage
Single-phase/three-phase 380VAC input (two-way input interlocking)
rectifier module
50A, fully equipped with 400A in the same slot as the photovoltaic module

Photovoltaic input
Photovoltaic module capacity

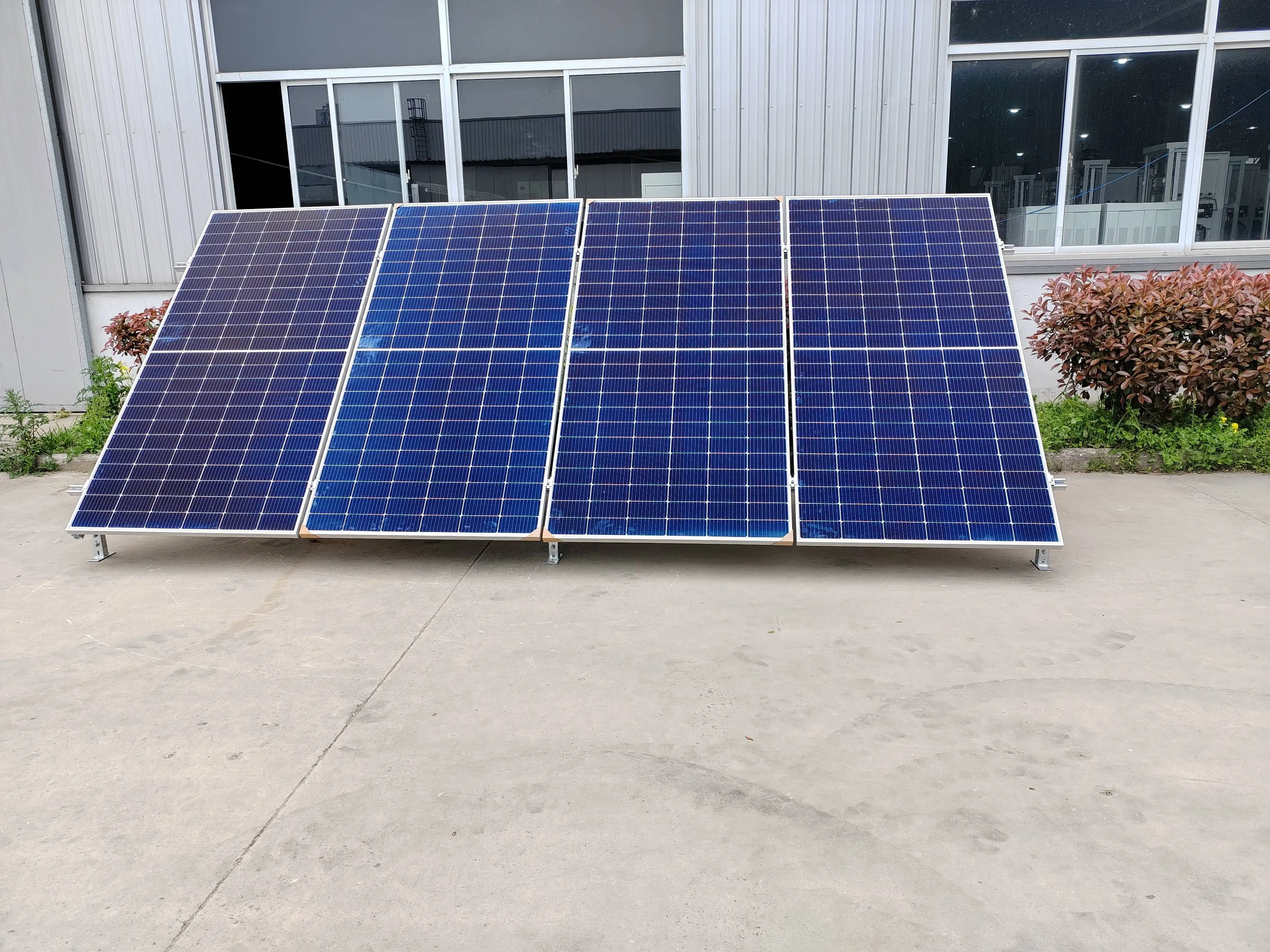

550Wp*8 blocks;=4.4kw
Photovoltaic module
50A(3000W)*2

wind power
wind power
600W~2000W
Fan Control Module
2KW
Energy storage backup
Lithium iron phosphate battery
100AH, 51.2V; fully equipped with 4 groups, energy storage 20KWH

output characteristics
DC output voltage
432VDC~58VDC (default 535VDC)
output configuration
Battery: 4*125A; DC: 63A*4, 32A*4, 16A*6 AC: input 32A*3, lightning protection class C; socket: 2 channels;



Monitoring unit system
signal input
1-way analog input (battery temperature); 4-way digital dry contact input
Alarm output
4 dry contacts
Communication Interface
RS485
storage
Up to 1000 historical alarm records
sensor
Temperature and humidity, smog, access control, water immersion



environment
Operating temperature
-20~+75°C (-40°C can be started)
storage temperature
-40℃~+75℃
Working humidity
5%~95%(no condensation)
Altitude
≤4000m (1800m~4000m, every time the altitude rises by 200m, the temperature will decrease by 1ºC.)




Product Features

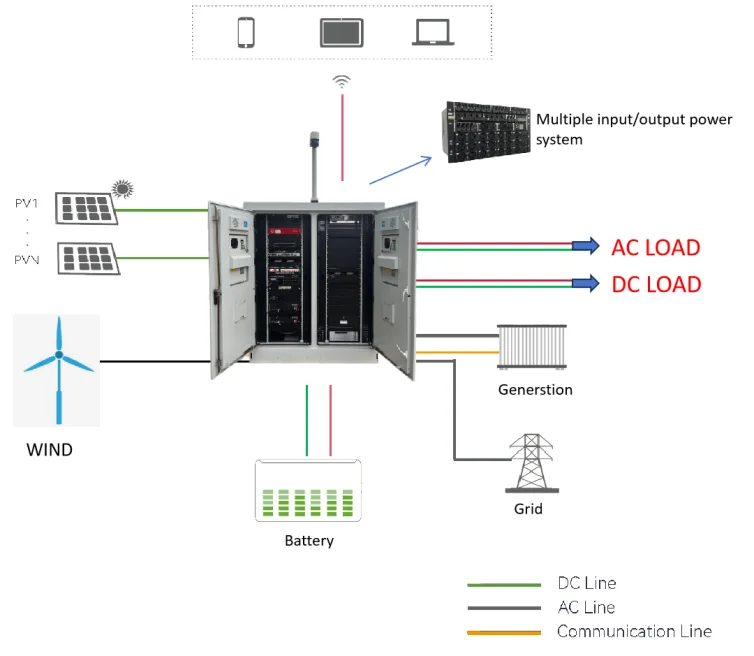

1.Supports photovoltaic, wind, and generator multiple power introductions, multiple voltage outputs: DC-48V, optional (AC220V,-24V, and -12V).
2.Features intelligent monitoring management system, better energy saving and remote control.
3.Configurable high-efficiency, safe, long-life (3000 cycle times) backup/storage batteries.
4.Temperature control: Automatic wind speed adjustment for cooling, low power consumption, supports RS485 communication.
5.Cabinet protection IP55, C4 corrosion level, FRP material with strong corrosion resistance, suitable for various harsh outdoor environments.
6.The product is lightweight and can be manually handled, factory pre-fabricated as a whole for transportation, or can be assembled on-site from parts.
7.Double-layer thermal insulation structure of the cabinet, low comprehensive heat transfer coefficient (heat transfer coefficient 0.024W/(m·K)).

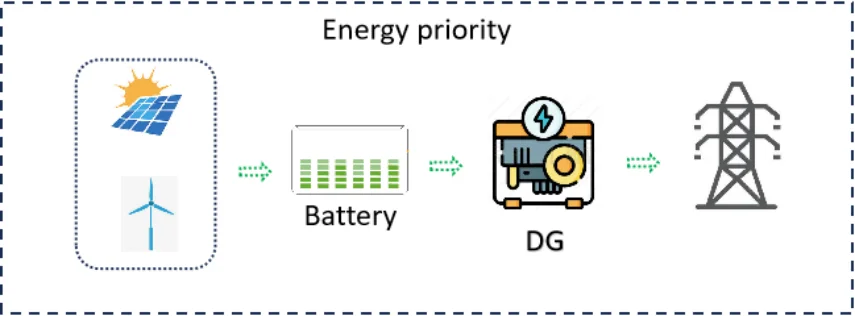

8.Suitable for off-grid and high electricity price grid scenarios, energy usage sequence: photovoltaic/wind - battery - utility
power - diesel engine; maximizes the efficiency of green energy utilizationigher than diesel.

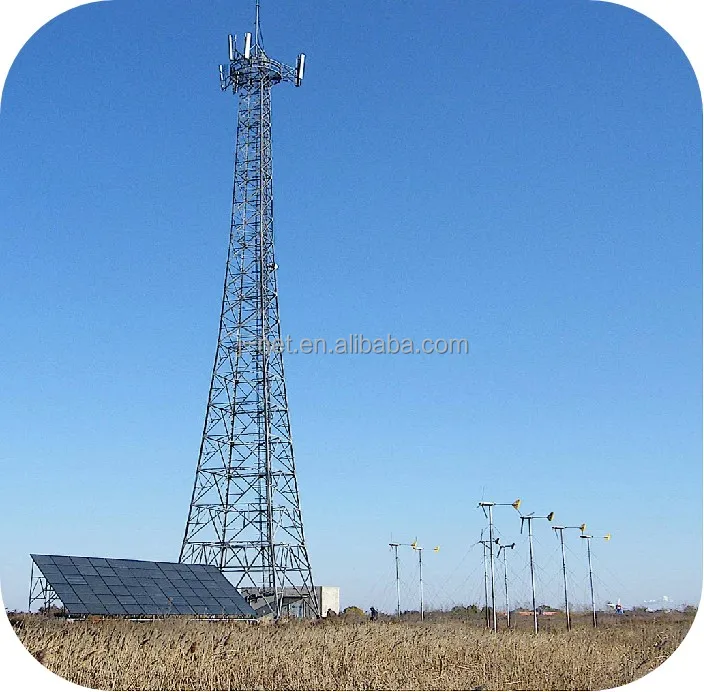

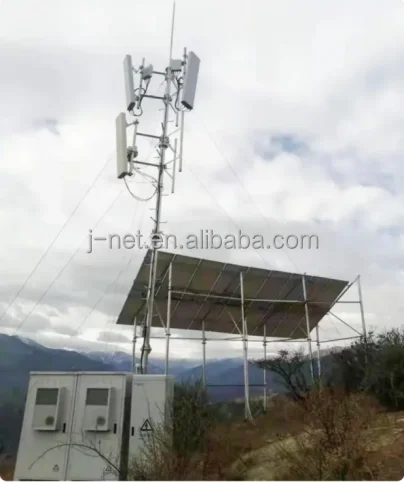

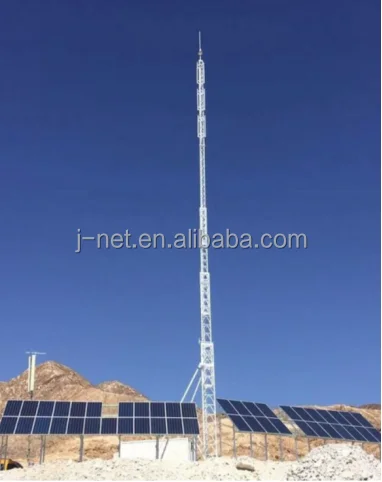

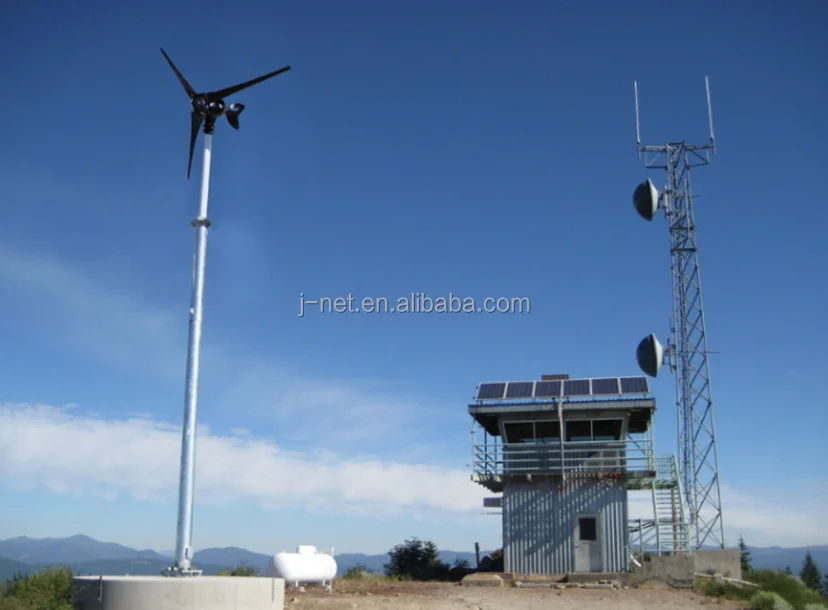

Application scenarios






Company Profile
















FAQ


1. who are we?
We are based in Shanghai, China, start from 2002,sell to Domestic Market(53.00%),North America(20.00%),Western Europe(12.00%),Mid East(8.00%),Oceania(5.00%),South Asia(2.00%). There are total about 301-500 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;

3.what can you buy from us?
Energy Storage System/Home Energy Storage System/Energy Storage Container, Telecom Power/Site Energy Solution/Battery Cabinet , 5G Intelligent Integrated Power Supply

4. why should you buy from us not from other suppliers?
Huijue is the leading supplier, manufacturer and solution provider for telecom and energy storage products as below: 1. Site Energy Solution 2. C&I Energy Storage System 3. Household Energy Storage System 4. LiFePO4 Battery

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDU；
Accepted Payment Currency:USD,EUR,AUD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
