PTFE/PFA Lined Elbows 45 degree/90 degree Fixed/Loose Flange Type Pipe Fittings 150# for Chemical Industrial Watertreament

Detail images:

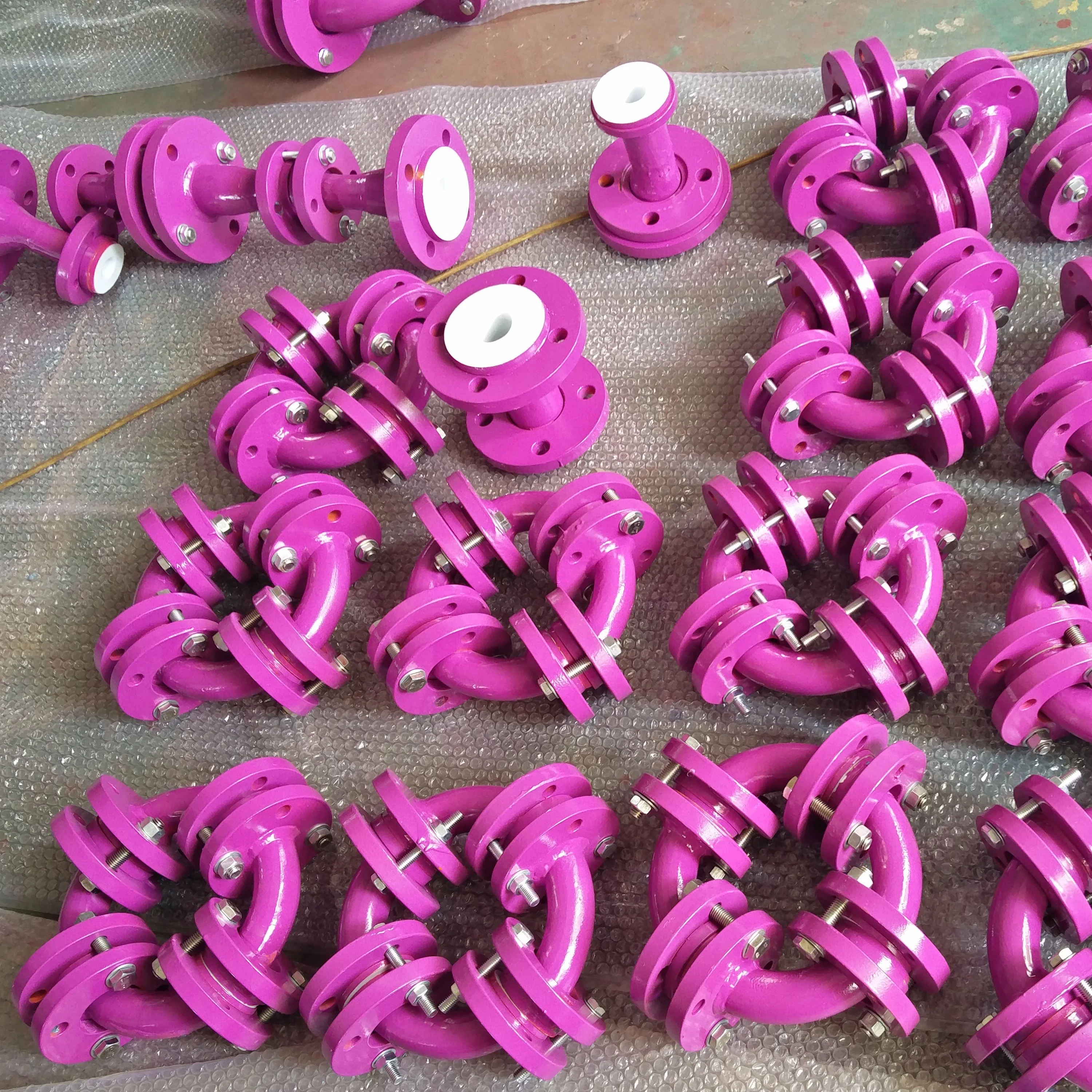

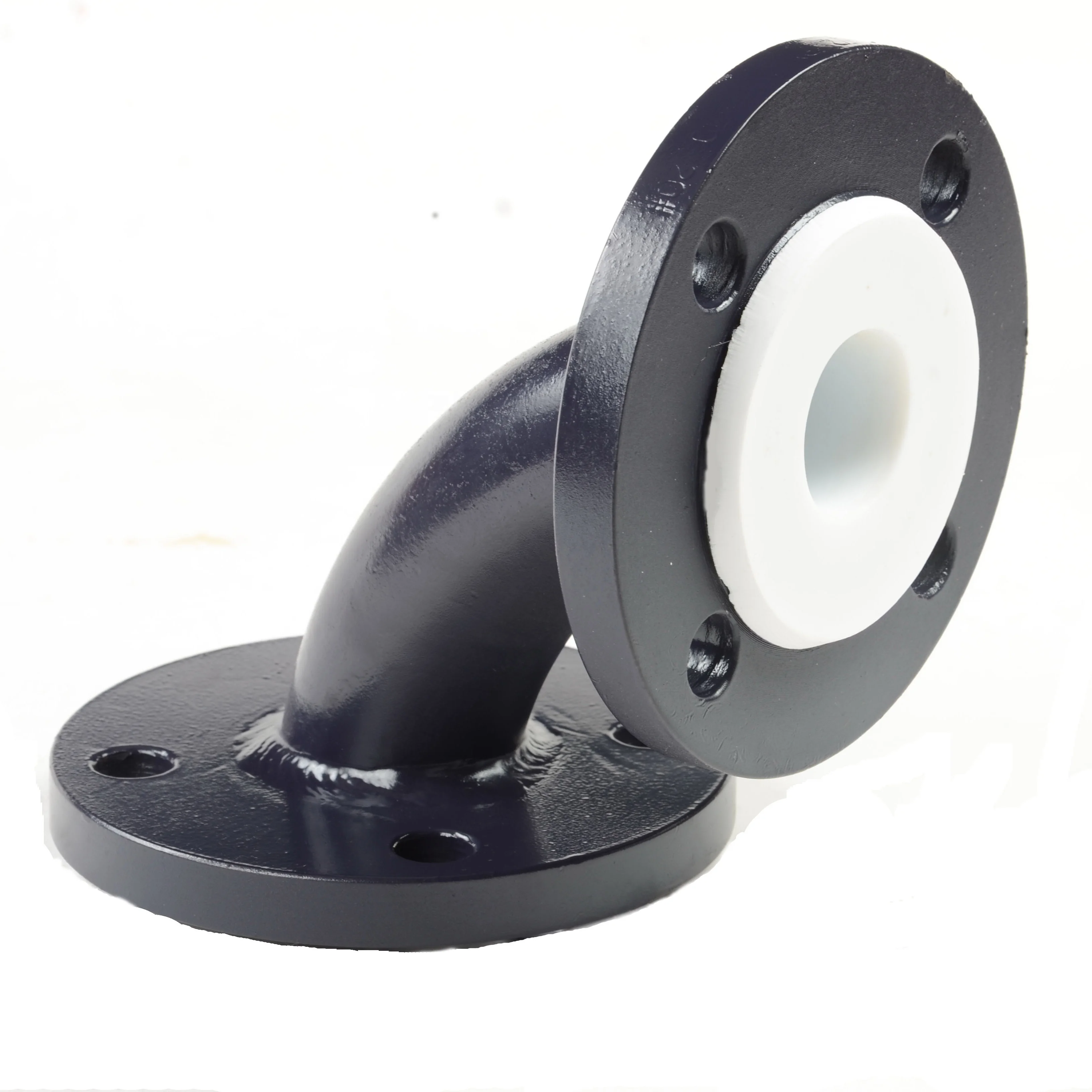

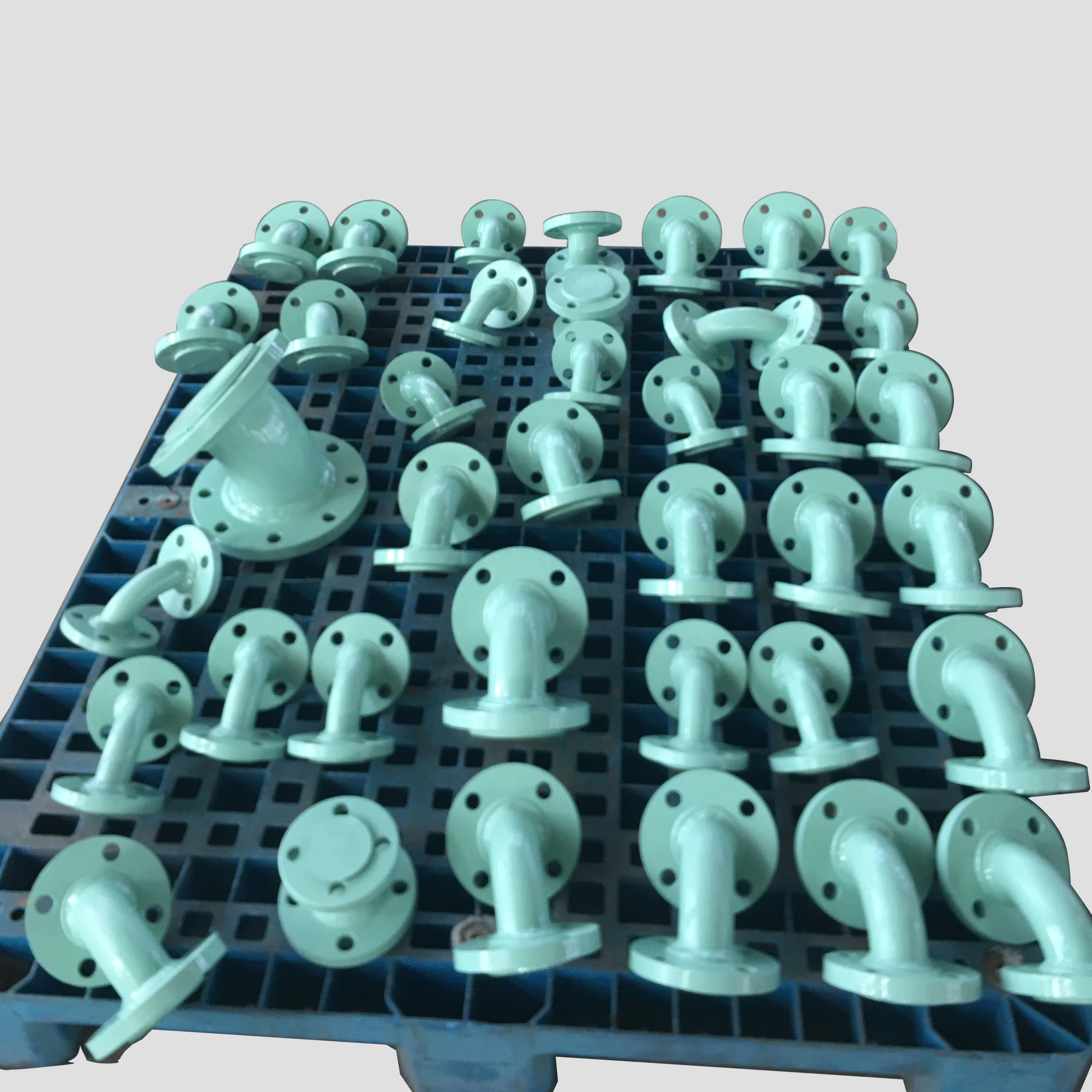

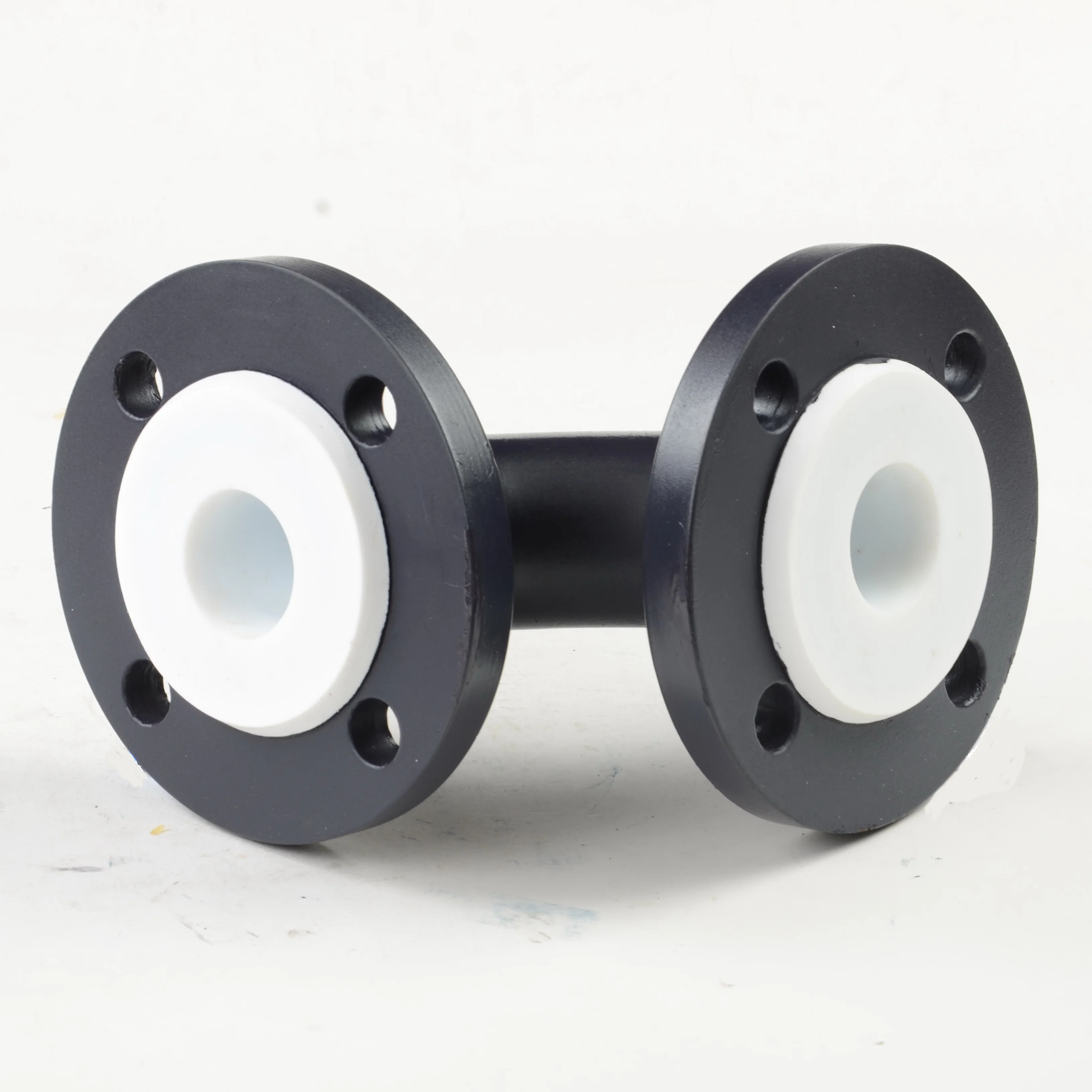

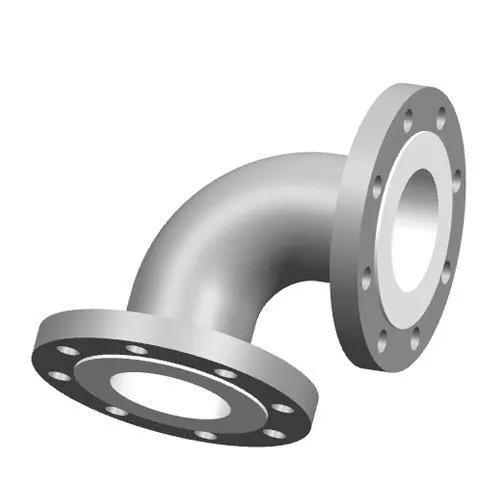

PTFE lined Elbow 90°/45°
Overview:
PTFE powder with high performance is used to push (squeeze) into the pipe, the surface is chemically treated, and then it is lined into seamless steel tube (the outer diameter of the liner is slightly larger than the inner diameter of the steel tube 1.5-2mm) to form a seamless liner.To relieve the stress, it is placed in a furnace and heated to 180 degrees for constant temperature treatment, so that it is suitable for use in temperatures below 180 degrees.At the same time, the axial tensile strength of push (squeeze) pressure pipe is obviously better than that of winding pipe, which can be used in micro-negative pressure pipeline.
Industries:
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment
Feature & Benefits:
1.The piping and fittings were tested hydraulically at 1.5 times the design pressure.
2.Where PTFE lining is involved, 100% integrity test is conducted after hydrostatic test, and the leakage point test method is electric spark test.
3.lining material: PTFE,PFA,FEP,PVDF,PO,PP,PE
Medium: strong acid, strong alkali, organic solvent, strong oxidant, toxic, volatile, flammable chemical medium
Connection: flanged

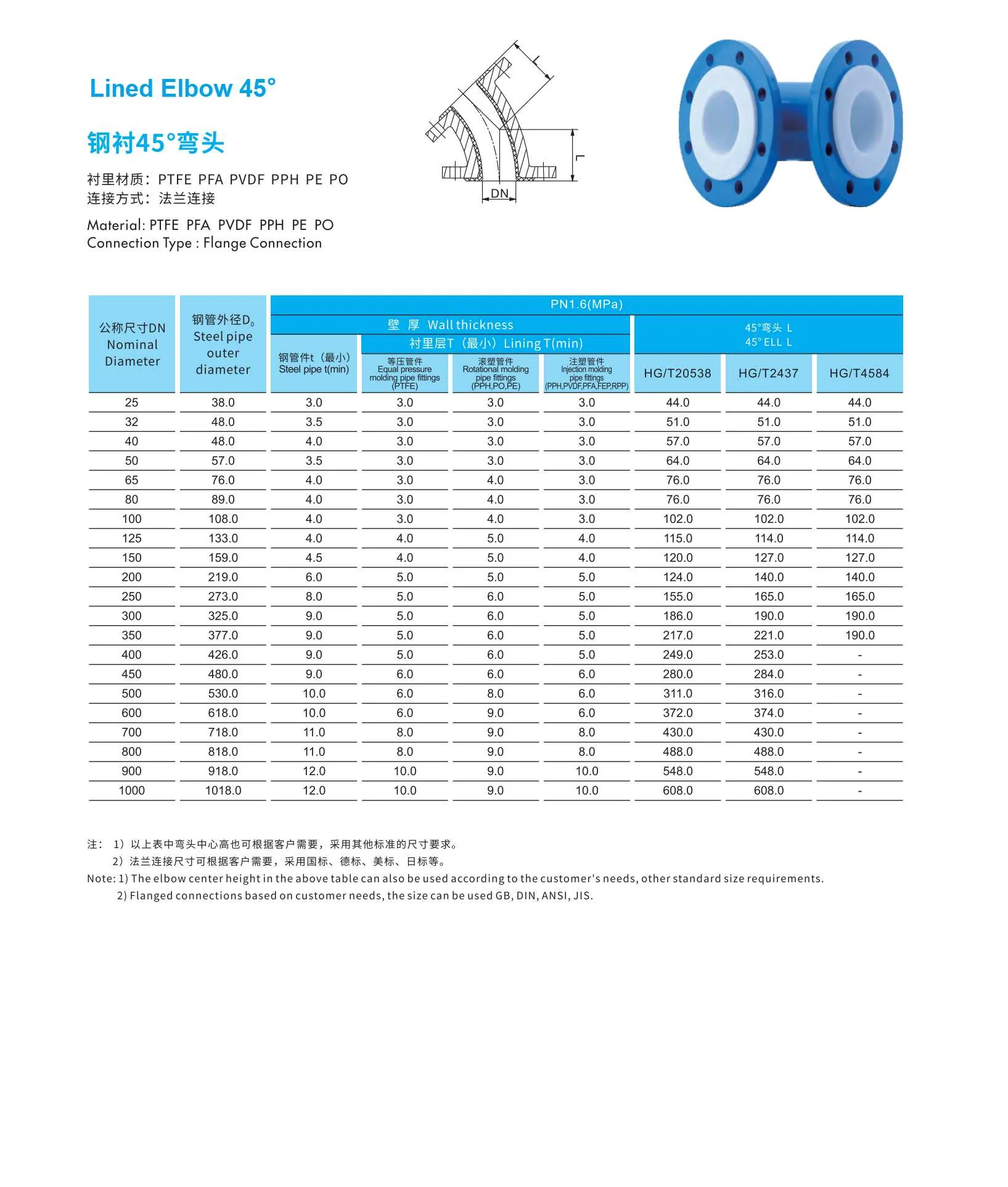

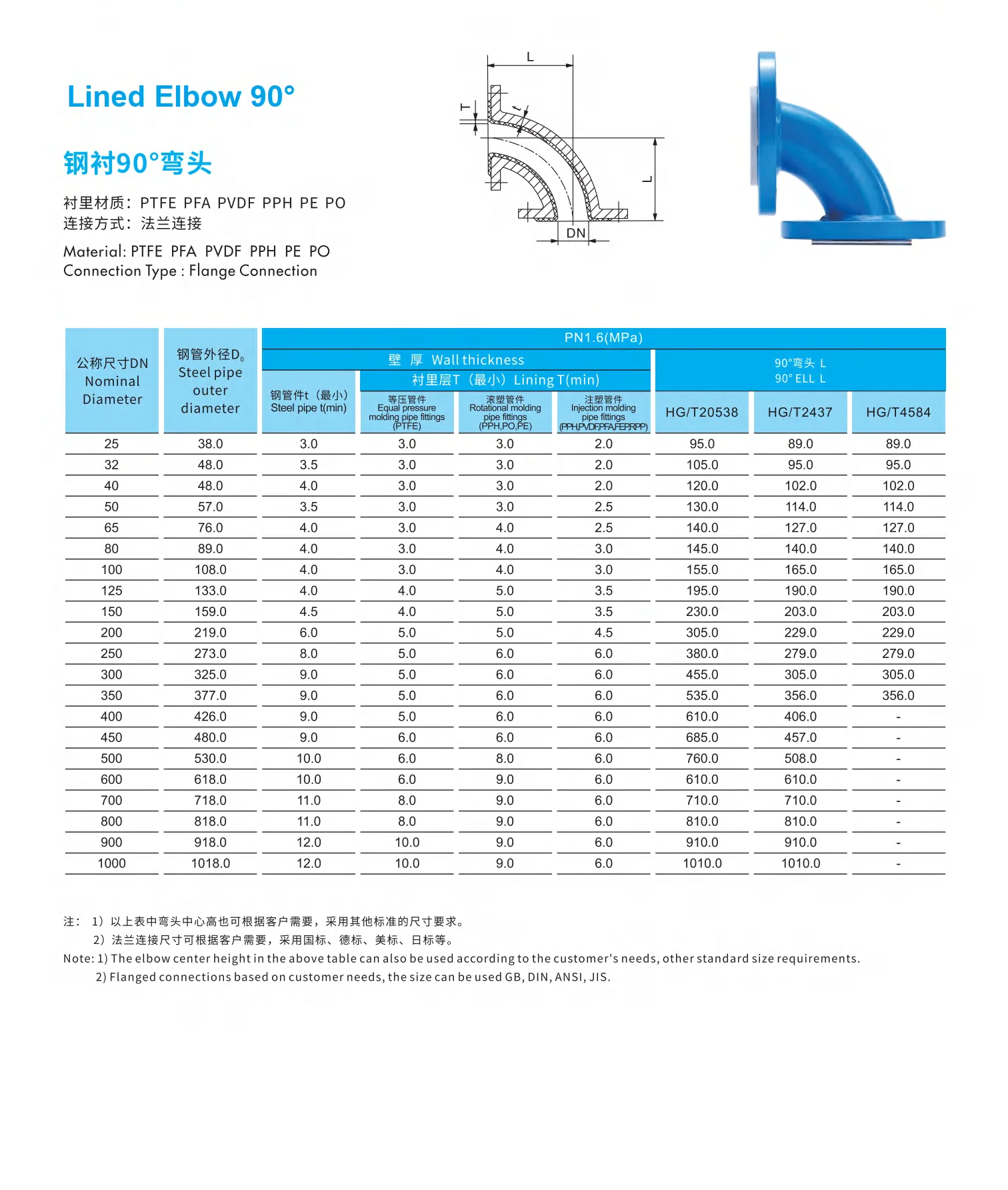

Lining Specifications:
Lining Material
We offer lining materials like PTFE,PFA,FEP,PVDF,PO,PP,PE
Temperature:
PTFE Max : 260°C ，FEP Max : 204°C ，
PFA Max : 260°C ，
PVDF Max : 140°C ，
PO Max : 80°C
PE Max : 70°C ，
PP Max : 120°C
Lining Thickness
Min. 3.0mm
Spark Test
Body liners & all wet parts are tested for spark at 15,000 Volts

Luoyang Pioneer Anticorrosion is specialized in the manufacturing of international quality anti corrosion pumps,valves,pipes and fittings. The products are widely used for scrubbing, steel pickling, electroplating, paints, dye stuffs, chlor alkali, pharmaceutical industry and Mineral.

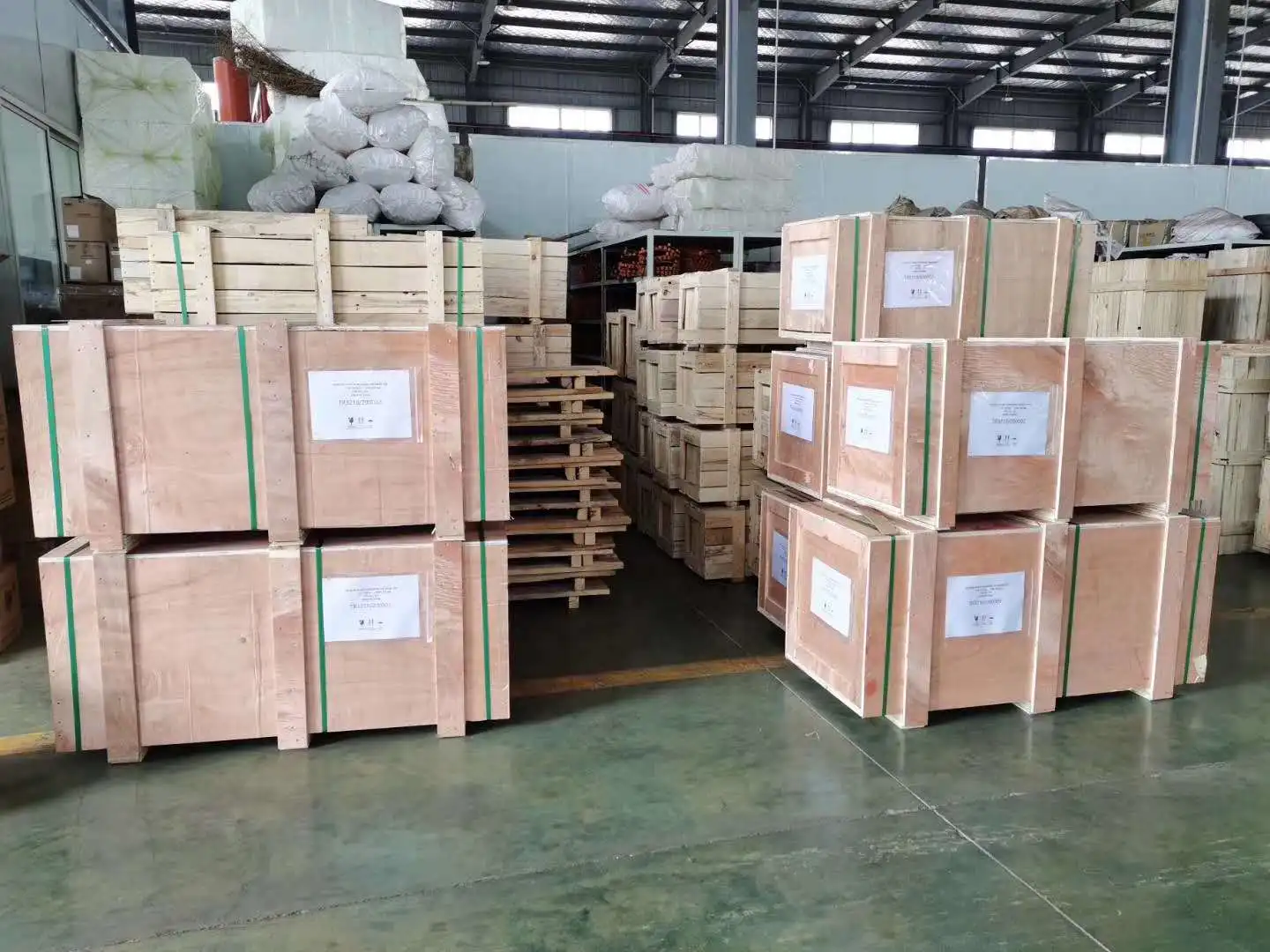

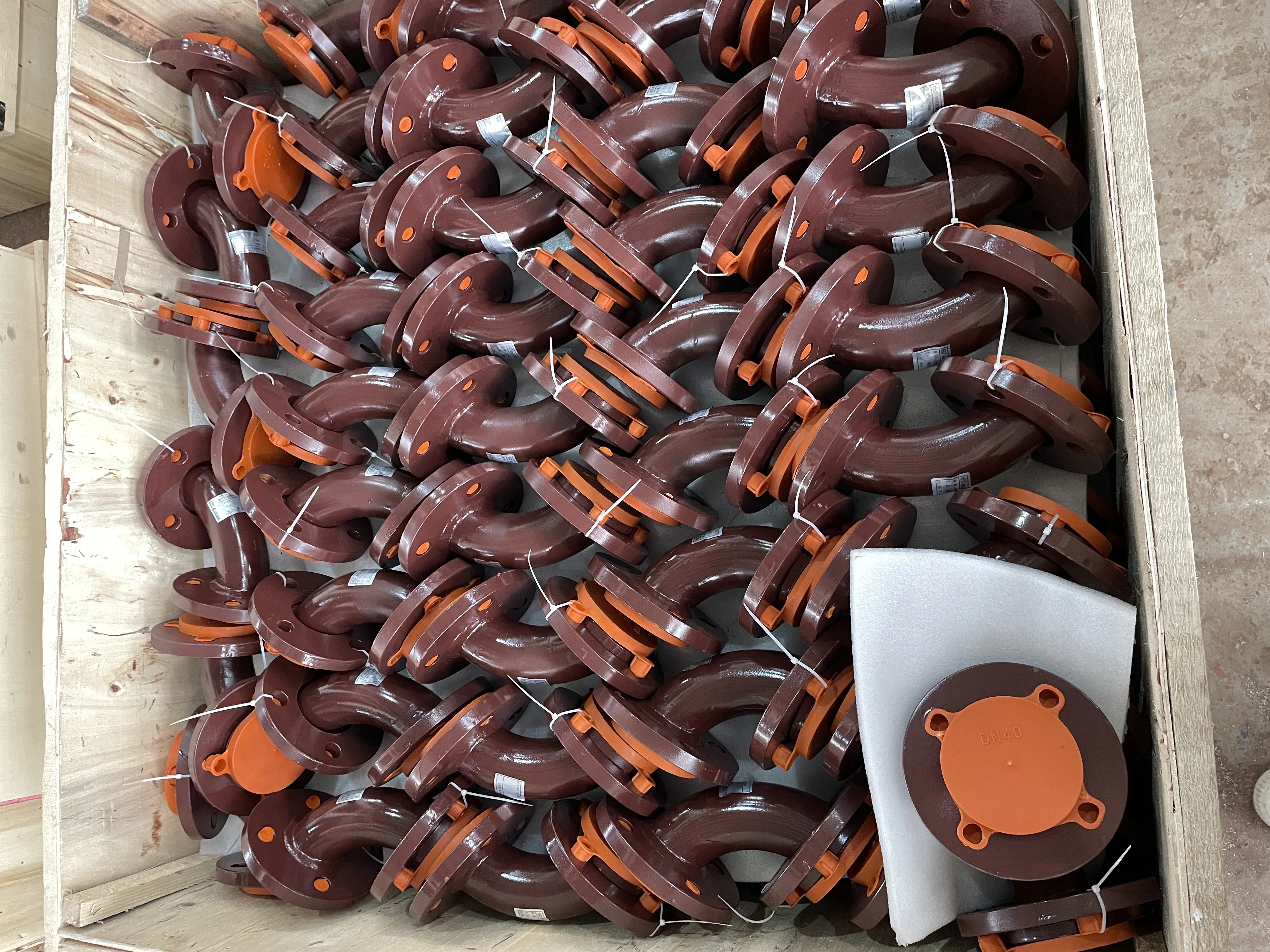

Plywood case for safety sea shipping

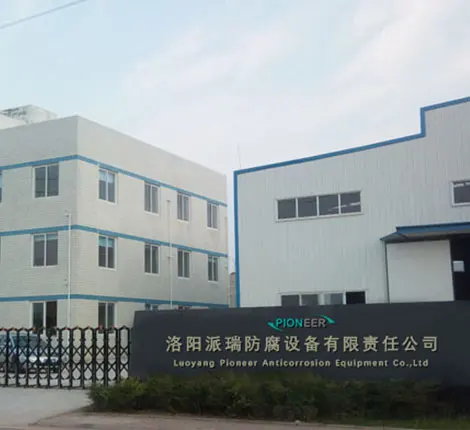

1. who are we?
We are based in Henan, China, start from 2019,sell to Domestic Market(20.00%),Southeast Asia(20.00%),Eastern Asia(10.00%),Mid East(10.00%),South America(10.00%),Northern Europe(10.00%),Africa(5.00%),South Asia(5.00%),North America(5.00%),Central America(5.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?

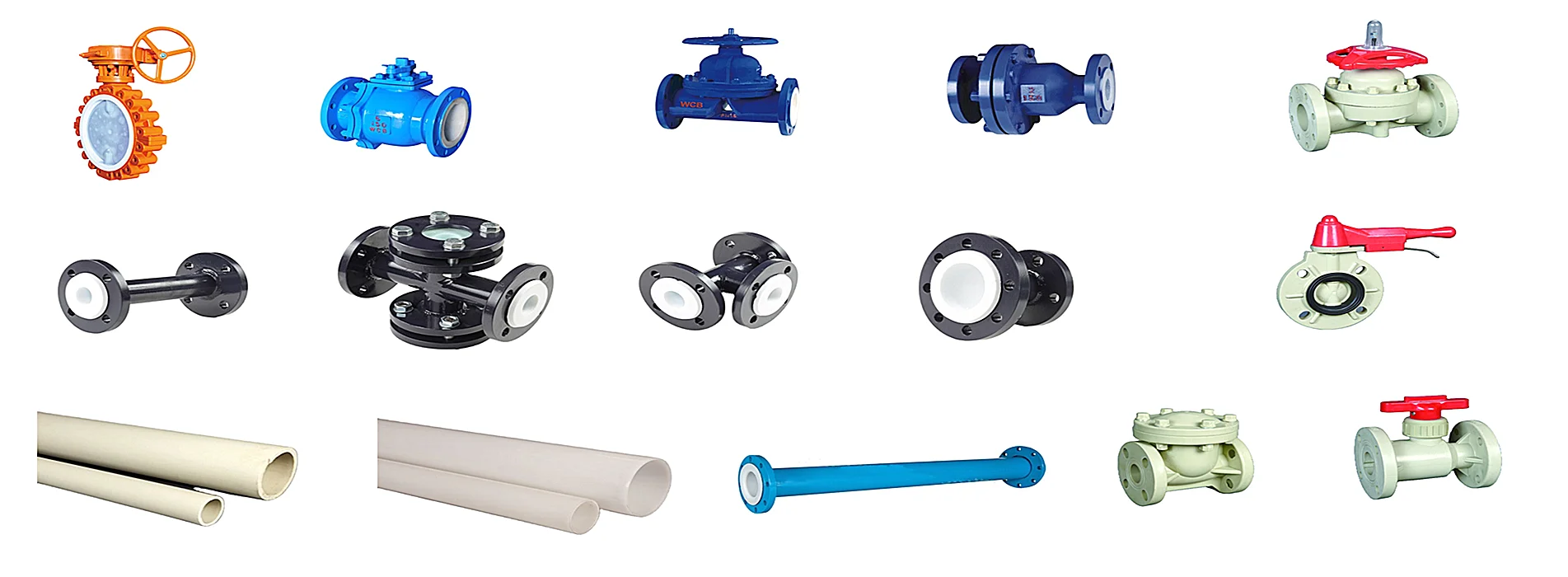

centrifugal pump,industrial valve,PTFE lined pipe,chemical pump,Plastic pipe

4. why should you buy from us not from other suppliers?
Luoyang Pioneer Anticorrosion is specialized in the manufacturing of international quality anti corrosion pumps,valves,pipes and fittings. The products are widely used for scrubbing, steel pickling, electroplating, paints, dye stuffs, chlor alkali,

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,DAF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Russian
