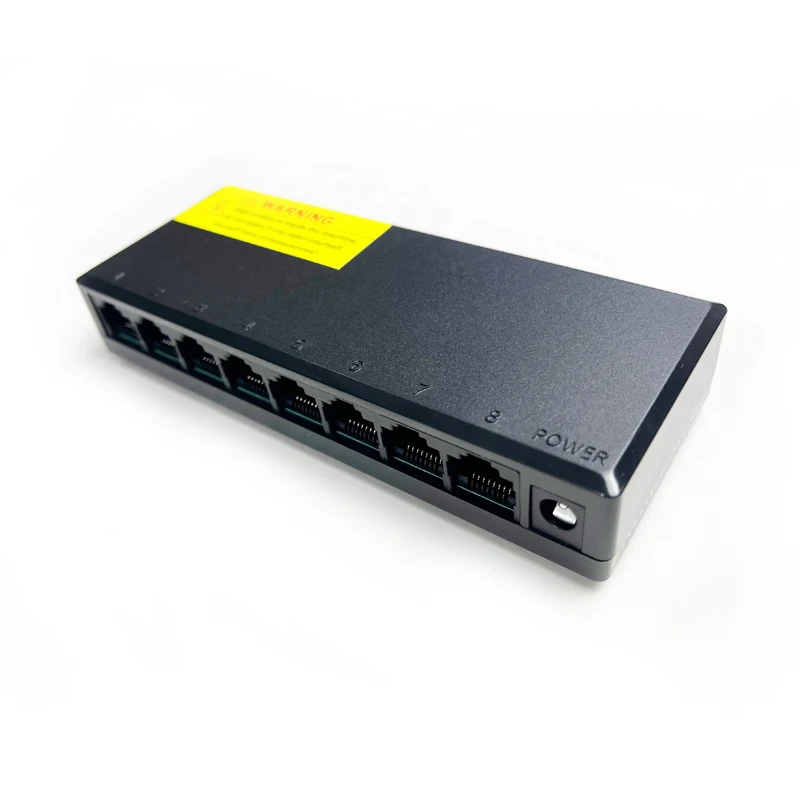

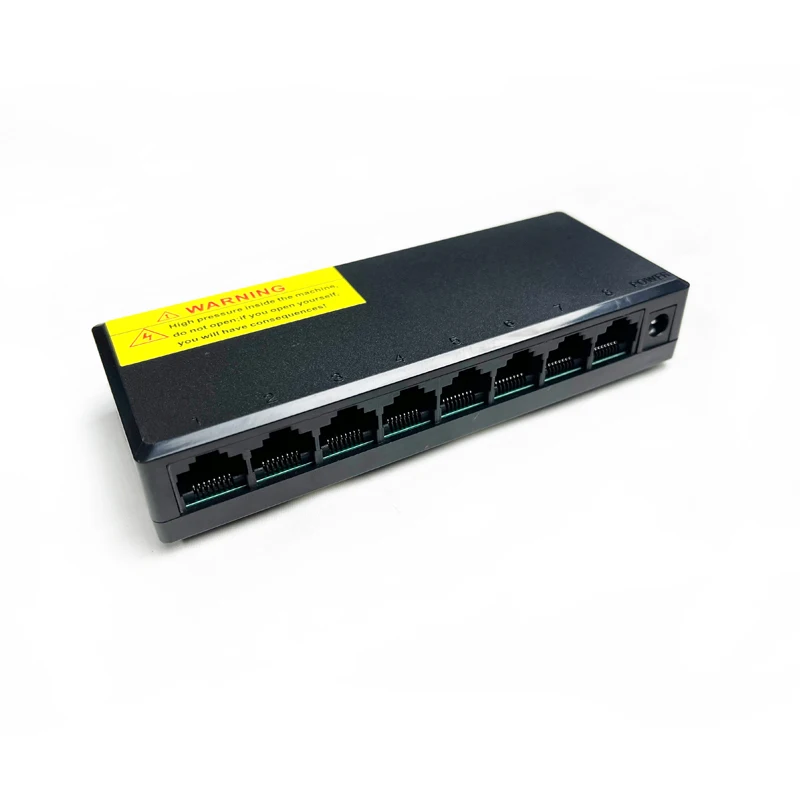

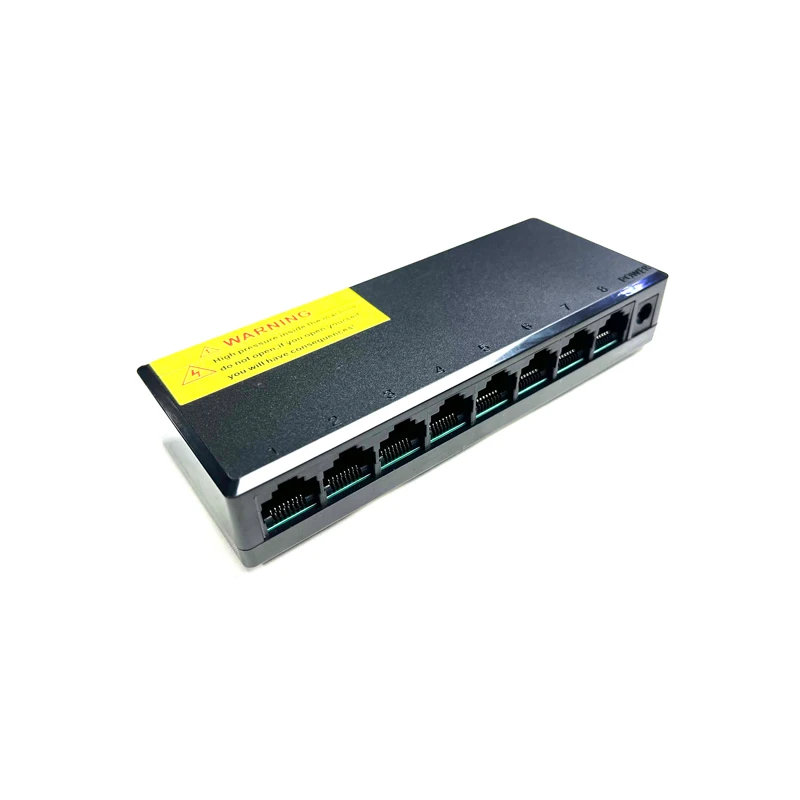

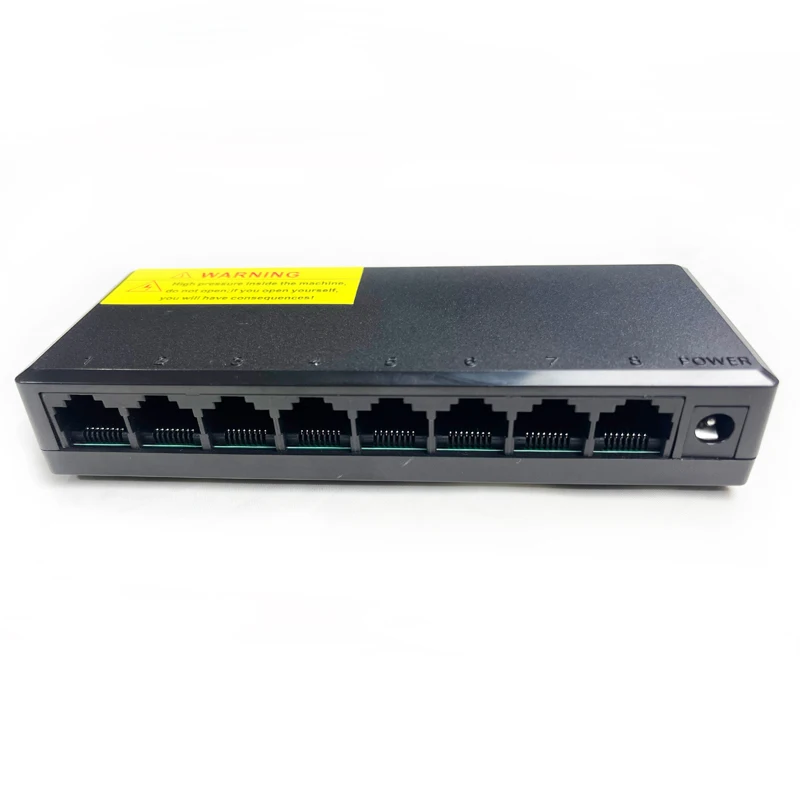

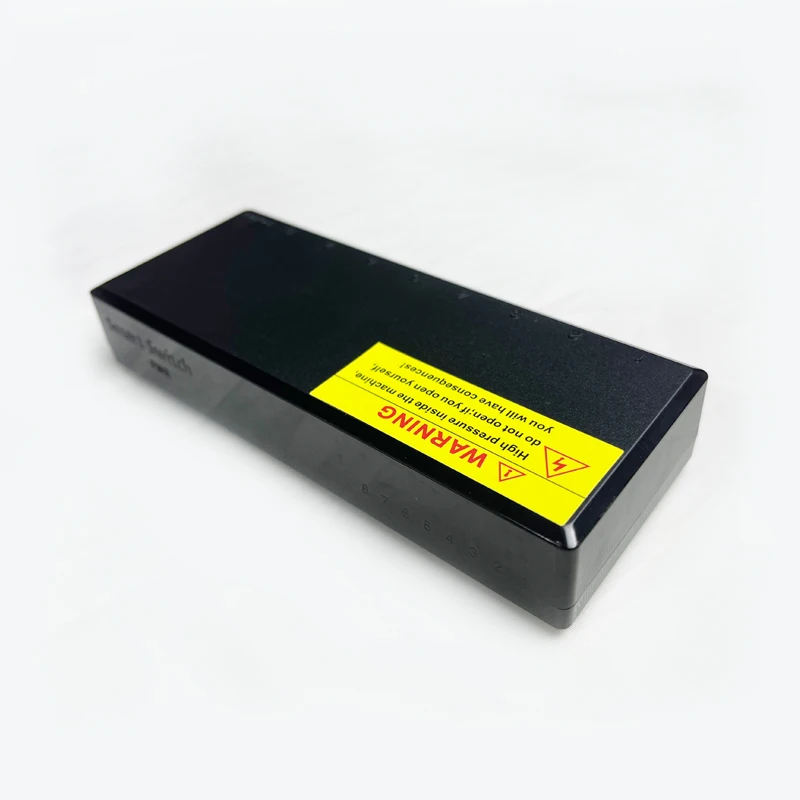

CE ROHS Certified 8 Port Plastic Network Switch 10/100Mbps Ethernet Switch
- Category: >>>
- Supplier: Shenzhen Sunsoont Technology Co. Ltd.
Share on (1601105932307):
Product Overview
Description
Product Description
Sunsoont Desktop Rj45 8 Port Hub non Poe Switch Network 10/100M For CCTV Network Poe Switches
SST-8EH Ethernet network switch with 8*10/100M auto-sensing ports can be the same network of 10Mbps, Can automatically adapt to full or half duplex mode, which enables bidirectional transmission rates up to 2000Mbps per port.
MAC address self-learning function, to ensure error-free data transmission. Store and forward switching mode, prevents damaged packets flooded in the network. Flow control function, can prevent instantaneous large amounts of data on the network impact, support Auto-MDI / MDIX auto-flip function. Large capacity, high bandwidth, non-blocking full wire speed on all ports work, support long frame transmission; the use of intelligent and secure network of Internet cafes, hotels, Intelligent Community, SMEs, high-definition network video surveillance to provide a low-cost, high reliable solution.There have LED indicators on the front panel , it can dynamically display device connection and running, providing a simple fault detection method, easy maintenance and management.
MAC address self-learning function, to ensure error-free data transmission. Store and forward switching mode, prevents damaged packets flooded in the network. Flow control function, can prevent instantaneous large amounts of data on the network impact, support Auto-MDI / MDIX auto-flip function. Large capacity, high bandwidth, non-blocking full wire speed on all ports work, support long frame transmission; the use of intelligent and secure network of Internet cafes, hotels, Intelligent Community, SMEs, high-definition network video surveillance to provide a low-cost, high reliable solution.There have LED indicators on the front panel , it can dynamically display device connection and running, providing a simple fault detection method, easy maintenance and management.
Feature
• Adopt energy-saving and low-power-consumption solutions, saving electricity and environmental protection;
• The alloy steel shell design effectively improves heat dissipation efficiency and shields electromagnetic interference, ensuring stable work;
• Follow IEEE802.3 Ethernet and IEEE802.3u Fast Ethernet protocol standards;
• 1.6Gbps backplane bandwidth, 8 10/100Mbps TX adaptive ports;
• All 10M/100M ports support full-duplex/half-duplex working mode;
• 1.19Mpps packet forwarding rate, automatic MDI/MDI-X line sequence crossover;
• Automatic address learning and aging;
• 2K MAC address space;
• High-speed SRAM Packet buffer;
• Store/forward and frame filtering;
• Full-duplex IEEE802.3 flow control, half-duplex back pressure operation • Supports data frame transmission with a frame length of 2048 Byte;
• LED indicators provide simple detection and management functions;

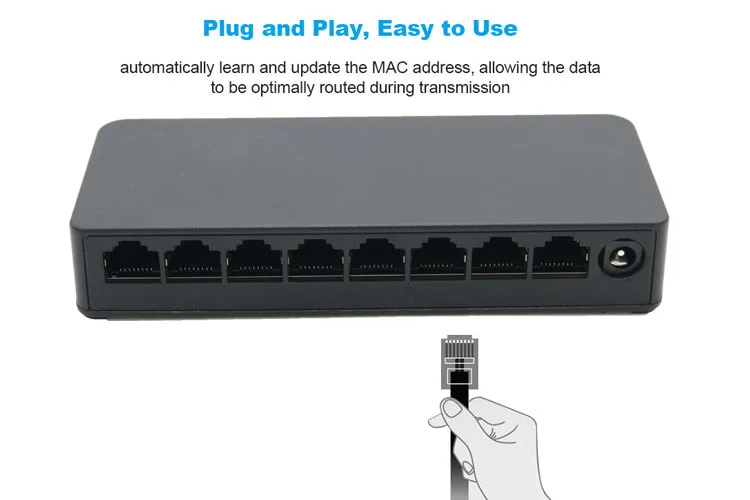

• With plug and play function;
• Configurable loop detection function;
• Configurable EEE function.
• The alloy steel shell design effectively improves heat dissipation efficiency and shields electromagnetic interference, ensuring stable work;
• Follow IEEE802.3 Ethernet and IEEE802.3u Fast Ethernet protocol standards;
• 1.6Gbps backplane bandwidth, 8 10/100Mbps TX adaptive ports;
• All 10M/100M ports support full-duplex/half-duplex working mode;
• 1.19Mpps packet forwarding rate, automatic MDI/MDI-X line sequence crossover;
• Automatic address learning and aging;
• 2K MAC address space;
• High-speed SRAM Packet buffer;
• Store/forward and frame filtering;
• Full-duplex IEEE802.3 flow control, half-duplex back pressure operation • Supports data frame transmission with a frame length of 2048 Byte;
• LED indicators provide simple detection and management functions;
• With plug and play function;
• Configurable loop detection function;
• Configurable EEE function.
Specification
Standards | IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX | IEEE802.3x Flow control IEEE802.1p QoS IEEE802.1d Spanning Tree | |
Application | Indoor network system, security system, etc | ||
Ethernet Port | Ø Connector: RJ45 Ø Data Rate: 10/100M Ø Distance: 100m Ø UTP Type: UTP-5E or higher level | ||
Performance | Ø Processing Type: Store and Forward Ø Transmission Mode: half/full-duplex with auto-negotiation function Ø MAC Table Size: 1K Ø Buffer Space: 448K Ø Back bandwidth: 1.6G Ø Time Delay: ＜150μs | ||
Power | Ø Power type: external power supply Ø Input Voltage: AC100V～240V 50/60Hz Ø Connector: DC Socket Ø Working Voltage: 5V Ø Power Consumption: 1.8W～4W | ||
Environment | Ø Storage Temperature: -40～70℃ Ø Operating Temperature: -10～55℃ Ø Relative Humidity: 5-90% ( no condensation) | ||
Packaging accessories | 8 port 100M network switch Power Adapter User manual Certificate | ||
Physical Characteristics | Ø Dimension: 140×52×28mm Ø Weight: 0.30kg Ø Color: Plastic, Blue/Black | ||
