Product Overview

Description


Flange End Swing Check Valve

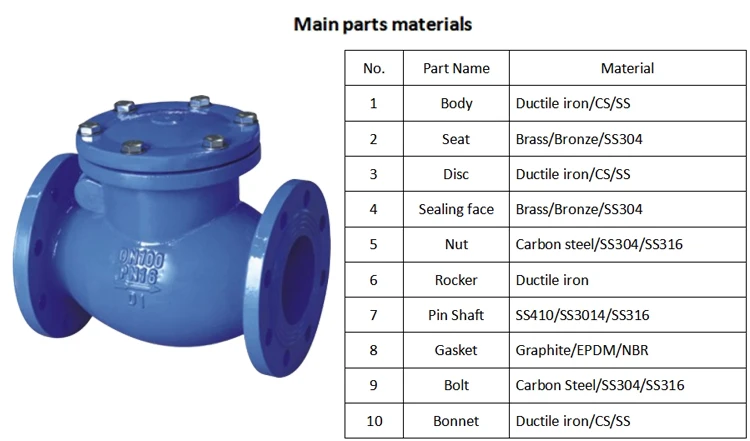

water check valve.jpg








Main technical parameters

























Nominal pressurePN10/PN16/PN25/PN40/PN64,125LB/150LB/300LB5K/10K/16K
Face to face standardGB/T12221-2005, BS5153.ASME B16.10. DIN F6, EN558-1. JIS B2002
Flange connection standardGB/T17241.6, GB/T9113-2010, EN1092-2JIS B2212
Test standardGB/T13927-2008. API598
Applicable mediaWater, oil, gas, etc

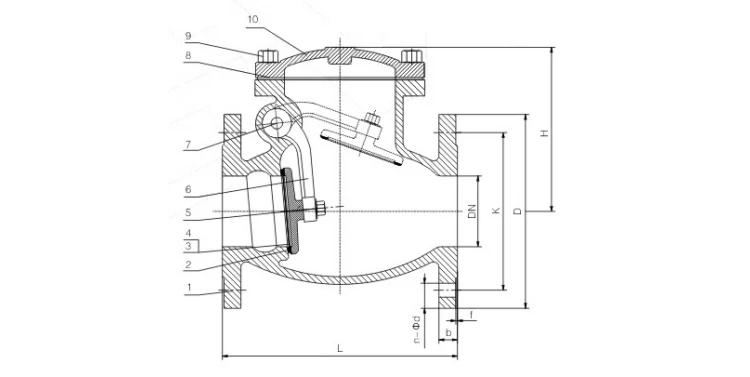

Product structure diagram


check valve.jpg


Maximum pressure conditions






















SizeMax pressure (bar)Min/Max Temp (℃)Test Pressure (bar)
ShellSeat
DN40-DN60010.0/16.0/25.0-10℃ +220℃15.0/24.0/37.511.0/17.6/27.5

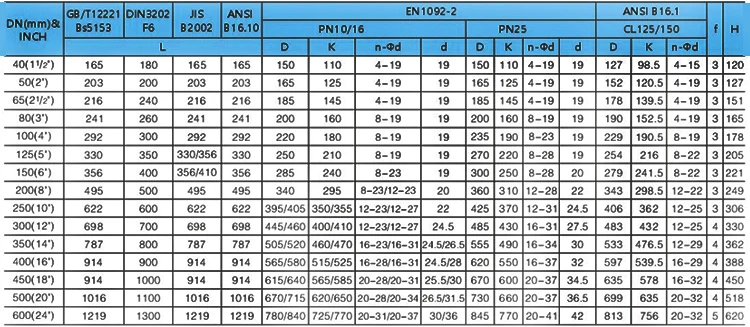

Dimensions


check valves.jpg








FAQ:


Q. Can I have my own Logo on the product?


A: Yes, OEM service is available.





Q.What information should I let you know if I want to get a quotation?


A: Size, design standard, material, package, Quantities, etc... Please send us some pictures and designs for checking if possible so we can do best as your request. Otherwise, we will recommend relevant products with details for your reference.





Q: What is your terms of delivery?


A: We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient for you.





Q: What's the package and how do you ship the goods?


A: Usually is wood pallet as your requst. We usually ship by sea. Airline shipping is also optional.
