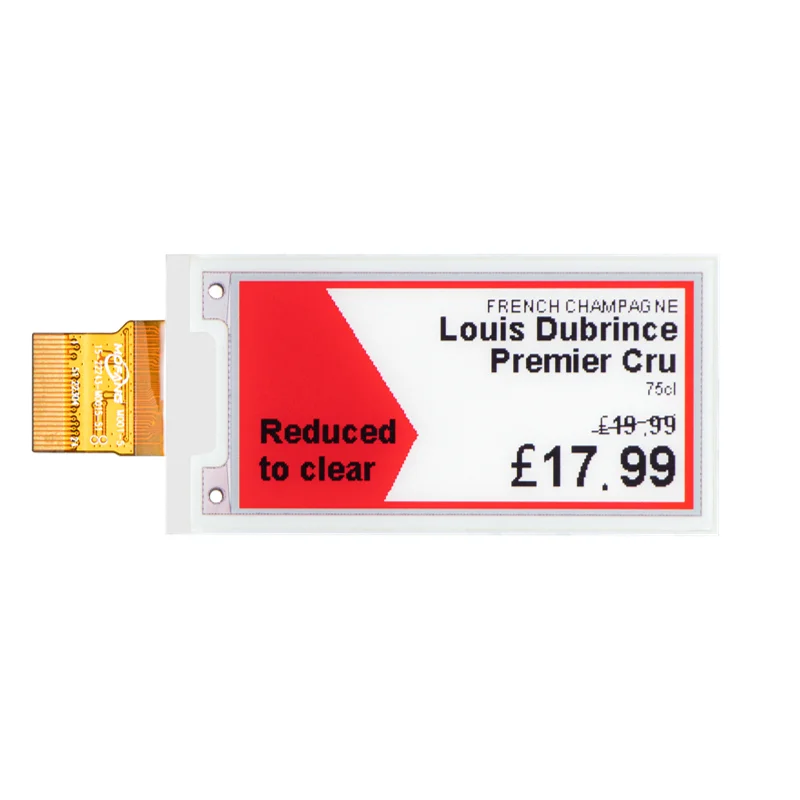

EPD 3 color e ink display 2.13inch e ink paper E ink screen for ESL tag SPI

Product Overview

Description

2.13 inch / 122x250 resolution / tricolor, black, white and red
This is a 2.13-inch tricolor e-ink screen with a resolution of 122x250 and 24pin FPC connection. It can communicate through the SPI interface and the I2C signal main interface reads the built-in temperature sensor.
In view of its many advantages: ultra-low power consumption and a close to 180-degree perspective, this product is an excellent choice for shelf tags, smart tags, wearable devices, smart home applications, industrial instruments, smart cards and other related products.
* Note: this e-paper does not support partial refresh.

Product characteristics
• Black, white and red electronic paper
• Ultra-wide viewing angle and ultra-low power consumption
• Pure reflection mode
• Bistable display
• Horizontal and vertical mode
• Anti-glare treatment of hard coating on surface
• Ultra-low current deep sleep mode
• Display RAM on the chip
• Waveforms can be stored in OTP on chip or written by MCU
• Provide serial peripheral interface
• On-chip oscillator
• Chip boost and regulator control for generating VCOM, gate and source drive voltages
• I2C signal main interface, used to read external temperature sensor
• Built in temperature sensor



Model Number	MF-12132-M001F
Screen Size	2.13 inch
Type	Dot-matrix display
Display Resolution	122x250
Outline Dimension (mm)	29.2(H)×59.2 (V) ×0.84(D)
Active Area (mm)	23.7(H)×48.55(V)
Pixel Pitch (mm)	0.194×0.194
Operating Temperature	0℃~40℃
Storage Temperature	-25℃~40℃
Connector	24 Pin FPC
Gray scale	2
Full Update Time(s)
Power Consumption(mW)
Standby Power Consumption (mW)
Interface	SPI
