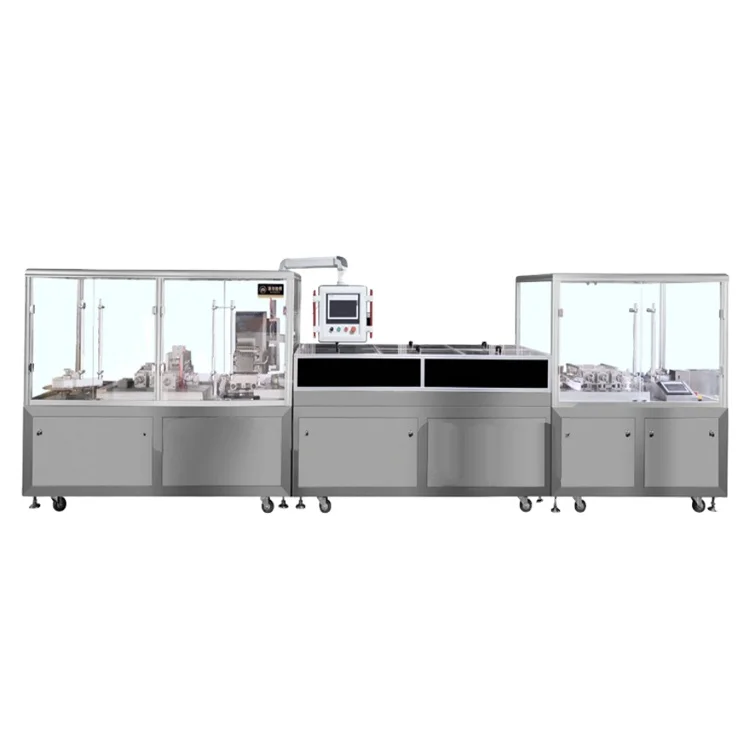

Full Automatic Manufacture Suppository Making Form Fill Seal Machine
- Category: >>>
- Supplier: Liaoning Zonelink Trading Co. Ltd.
Share on (1601106572046):
Product Overview
Description
Product Description
suppository filling and sealing machine
It is widely used and can fill substrate and production with high viscosity.
It is widely used and can fill substrate and production with high viscosity.

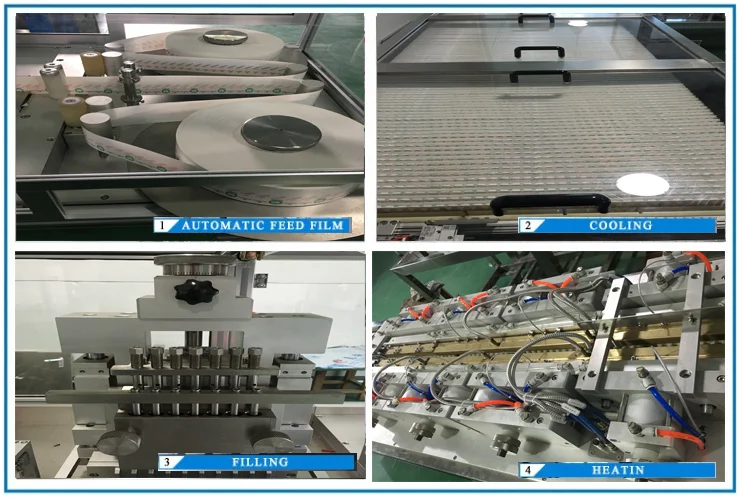

Processing

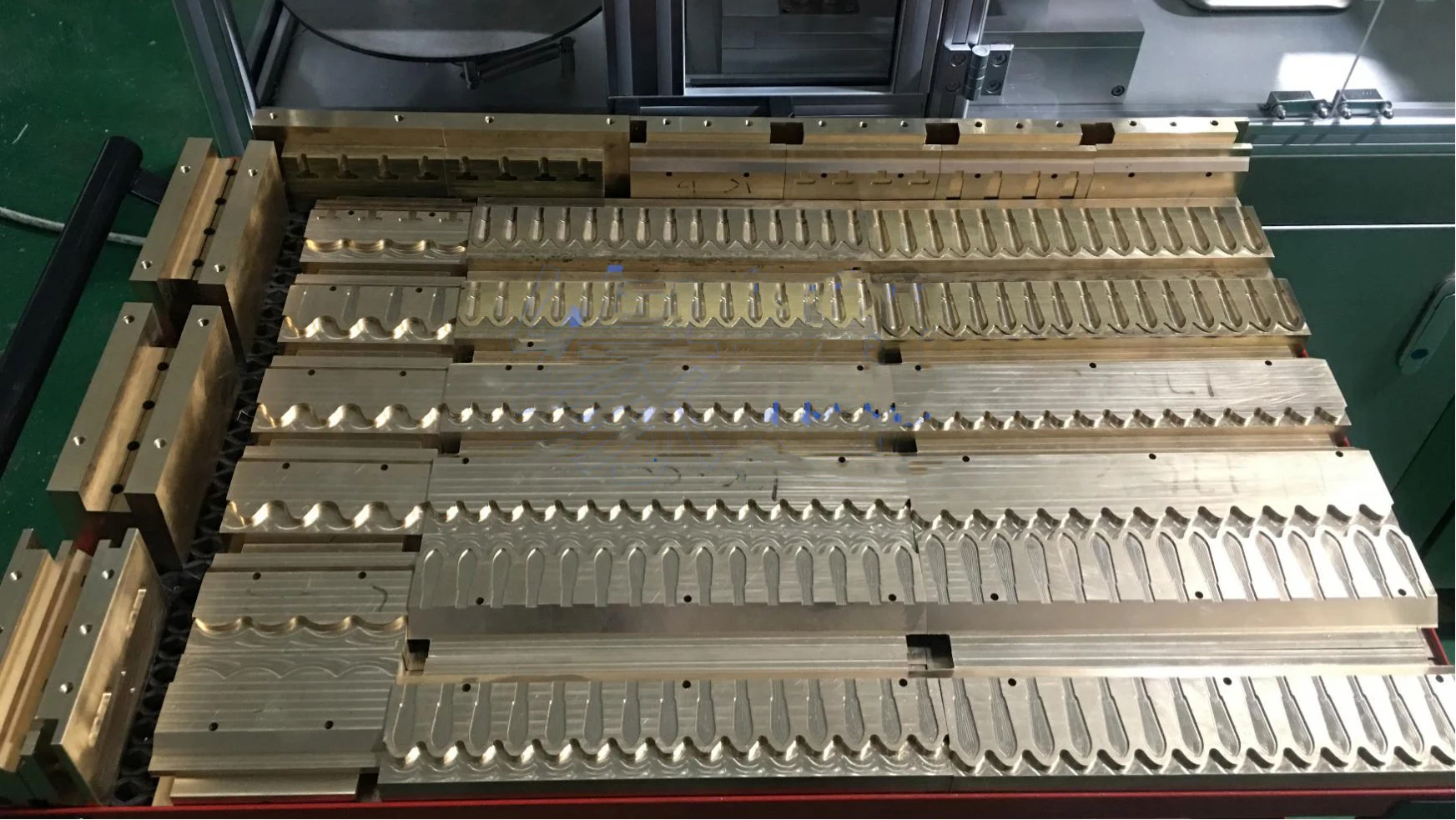

1, Thermoforming:
The PVC/PE film into the forming area after preheating mold -- > forming mold blowing mold -- >blow film forming.
triangle knife cutting process and dotted line.

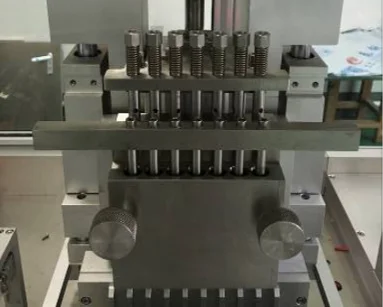

2, Filling:
6 filling heads, forming suppository for one-time embedded type filling, filling accuracy + / - 2%, material barrel has electric heating insulation system, with stirring motor at the top to make in a uniform state, material barrel pump by the high precision of filling head, filling a residual through the other end of the cycle to the raw material filling barrel again next time.
3, Cooling:
cooling racks after the whole filled, external cooling box is equipped with water chiller, cooling air through the cooling box of four condenser suppository of cooling rack to cool.
sealing and part code:
4. Sealing and Cutting:
After cooling of the solid suppository into the sealing area: preheating mold -- -- > the sealing mould -- - > code mold. And then to shear a set of finished product for 5 and 6 grain (be) according to customer's requirements.
The PVC/PE film into the forming area after preheating mold -- > forming mold blowing mold -- >blow film forming.
triangle knife cutting process and dotted line.
2, Filling:
6 filling heads, forming suppository for one-time embedded type filling, filling accuracy + / - 2%, material barrel has electric heating insulation system, with stirring motor at the top to make in a uniform state, material barrel pump by the high precision of filling head, filling a residual through the other end of the cycle to the raw material filling barrel again next time.
3, Cooling:
cooling racks after the whole filled, external cooling box is equipped with water chiller, cooling air through the cooling box of four condenser suppository of cooling rack to cool.
sealing and part code:
4. Sealing and Cutting:
After cooling of the solid suppository into the sealing area: preheating mold -- -- > the sealing mould -- - > code mold. And then to shear a set of finished product for 5 and 6 grain (be) according to customer's requirements.
Product Application
Output | 8000-12000pcs/h | single dosage | 0.5-5ml | |
Filling Valve Head | 7 filling heads | |||
Dosage allowed | <±2% | Packaging Film | PVC\\PE\\PVC (thickness0.15mm) | |
Stirring tank capacity | 20L | Air pressure | >0.6Mpa | |
Air consumption/min | 1.5m3 | Water consumption/h | 50kg (recycling) | |
Working voltage | 3 phase 380V | total power | 3KW | |
Adopt forming shapes | Bullet, torpedo and duck shapes and other shapes | Machine Weight | 2T | |
Adapt Material | Synthetic fatty acid glycerol, glycerin gelatin, polyethylene glycol etc | Each di st a nee of suppository | 17.4mm | |
Overall dimensions | 5500mm*2000mm*2100mm | |||
